EVE-NGを使って仮想NW環境を用意する~3. はじめてのルーティング編~

More than 1 year has passed since last update.

はじめに

元々は残す気はなかったけれども
ドハマリして全くうまくいかなかった異なるセグメント間の
疎通ができたのでその時の設定を記念に残す。

先に結論

書いてしまうと普通に見えるけども…これが原因だった。
・PC端末にデフォルトゲートウェイを設定した
・L2SWにデフォルトルートを設定した
う~ん、ちょっと恥ずかしい。

実際の構成

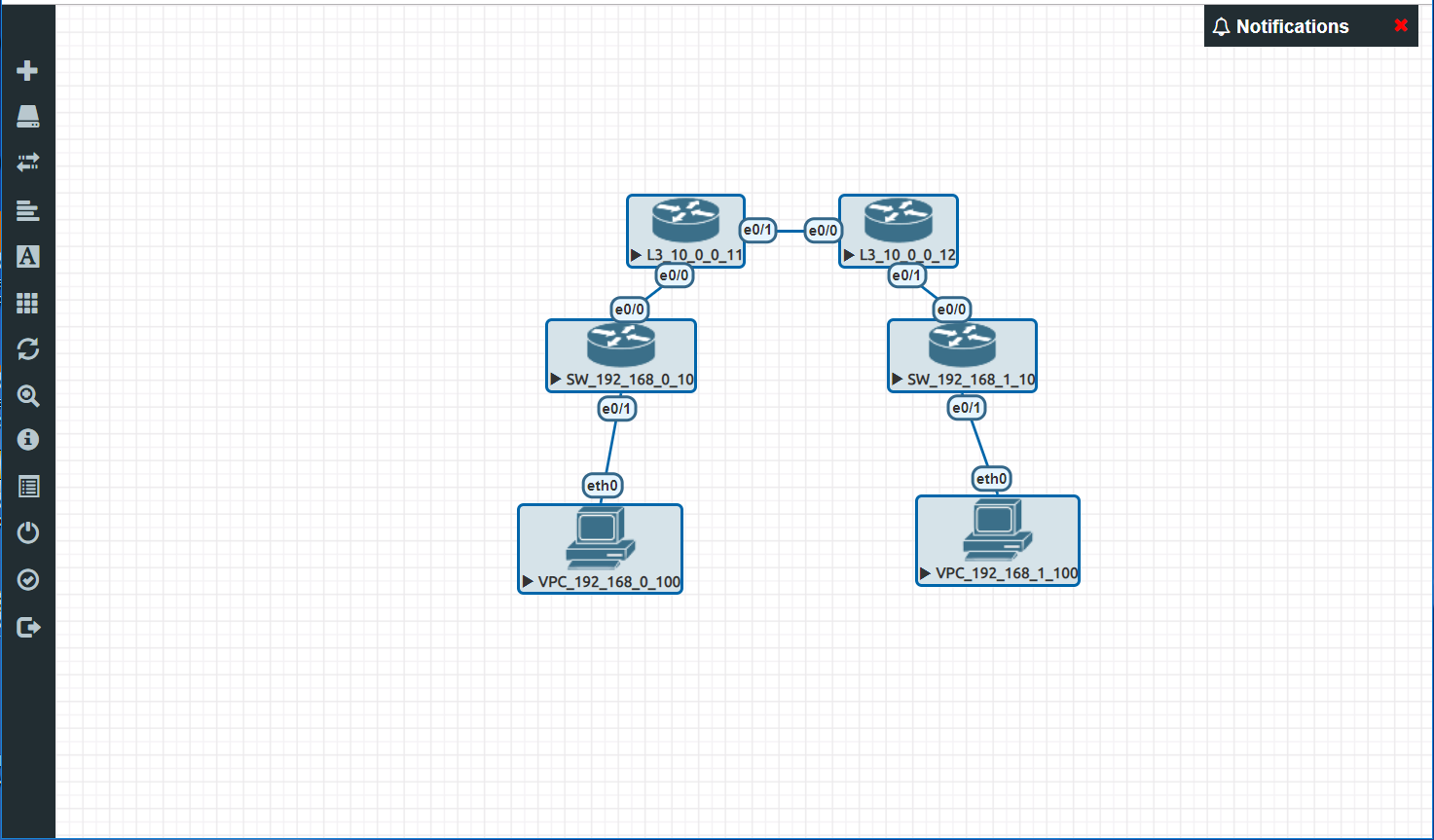

イメージ的には、
L3SW×2を使って2つのLANセグメント、1つの中間セグメントをイメージして作った。

各SWのIOSは…下表参照

種別 端末名 使用したimage file
L3SW L3_10_0_0_[11,12] L3-ADVENTERPRISEK9-M-15.5-2T.bin
L2SW SW_192_168_[0,1]_10 L2-ADVENTERPRISE-M-15.1-20130726.bin
PC端末 VPC_192_168_[0,1]_100 Virtual PC(VPCS)

実際の設定

とりあえず全部書き出す

L3_10_0_0_11
Router#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override

Gateway of last resort is not set

      10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        10.0.0.0/24 is directly connected, Ethernet0/1
L        10.0.0.11/32 is directly connected, Ethernet0/1
      192.168.0.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.0.0/24 is directly connected, Ethernet0/0
L        192.168.0.1/32 is directly connected, Ethernet0/0
S     192.168.1.0/24 [1/0] via 10.0.0.12
Router#show run
Building configuration...

Current configuration : 1075 bytes
!
! Last configuration change at 01:18:25 EET Thu Sep 19 2019
!
version 15.5
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Router
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
!
!
!
bsd-client server url https://cloudsso.cisco.com/as/token.oauth2
clock timezone EET 2 0
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
!
!
!
!
!
!
!
!
!
!
!
!
!


!
!
!
!
ip cef
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
!
!
!
cts logging verbose
!
!
!
redundancy
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Ethernet0/0
 ip address 192.168.0.1 255.255.255.0
!
interface Ethernet0/1
 ip address 10.0.0.11 255.255.255.0
!
interface Ethernet0/2
 no ip address
 shutdown
!
interface Ethernet0/3
 no ip address
 shutdown
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
ip route 192.168.1.0 255.255.255.0 10.0.0.12
!
!
!
!
control-plane
!
!
!
!
!
!
!
!
line con 0
 logging synchronous
line aux 0
line vty 0 4
 login
 transport input none
!
!
end

Router#
SW_192_168_0_10
SW-1#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       + - replicated route, % - next hop override

Gateway of last resort is 192.168.0.1 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 192.168.0.1
      192.168.0.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.0.0/24 is directly connected, Vlan1
L        192.168.0.10/32 is directly connected, Vlan1
SW-1#show run
Building configuration...

Current configuration : 827 bytes
!
version 15.1
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
service compress-config
!
hostname SW-1
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
clock timezone EET 2 0
!
ip cef
!
!
no ipv6 cef
ipv6 multicast rpf use-bgp
!
!
!
!
!
!
!
spanning-tree mode pvst
spanning-tree extend system-id
!
!
!
!
vlan internal allocation policy ascending
!
!
!
!
!
!
!
!
!
!
interface Ethernet0/0
 duplex auto
!
interface Ethernet0/1
 duplex auto
!
interface Ethernet0/2
 duplex auto
!
interface Ethernet0/3
 duplex auto
!
interface Vlan1
 ip address 192.168.0.10 255.255.255.0
!
ip default-gateway 192.168.0.1
!
no ip http server
!
ip route 0.0.0.0 0.0.0.0 192.168.0.1
!
!
!
!
control-plane
!
!
line con 0
 logging synchronous
line aux 0
line vty 0 4
 login
!
end

SW-1#
PC_192_168_0_100

Welcome to Virtual PC Simulator, version 1.0 (0.8c)
Dedicated to Daling.
Build time: Dec 31 2016 01:22:17
Copyright (c) 2007-2015, Paul Meng (mirnshi@gmail.com)
All rights reserved.

VPCS is free software, distributed under the terms of the "BSD" licence.
Source code and license can be found at vpcs.sf.net.
For more information, please visit wiki.freecode.com.cn.
Modified version supporting unetlab by unetlab team

Press '?' to get help.

Executing the startup file


Checking for duplicate address...
PC1 : 192.168.0.100 255.255.255.0 gateway 192.168.0.1

PC-1> show ip

NAME        : PC-1[1]
IP/MASK     : 192.168.0.100/24
GATEWAY     : 192.168.0.1
DNS         :
MAC         : 00:50:79:66:68:05
LPORT       : 20000
RHOST:PORT  : 127.0.0.1:30000
MTU         : 1500

PC-1>
L3_10_0_0_12
Router#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override

Gateway of last resort is not set

      10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        10.0.0.0/24 is directly connected, Ethernet0/0
L        10.0.0.12/32 is directly connected, Ethernet0/0
S     192.168.0.0/24 [1/0] via 10.0.0.11
      192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.1.0/24 is directly connected, Ethernet0/1
L        192.168.1.1/32 is directly connected, Ethernet0/1
Router#ter len 0
Router#show run
Building configuration...

Current configuration : 1065 bytes
!
version 15.5
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Router
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
!
!
!
bsd-client server url https://cloudsso.cisco.com/as/token.oauth2
clock timezone EET 2 0
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
!
!
!
!
!
!
!
!
!
!
!
!
!


!
!
!
!
ip cef
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
!
!
!
cts logging verbose
!
!
!
redundancy
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Ethernet0/0
 ip address 10.0.0.12 255.255.255.0
!
interface Ethernet0/1
 ip address 192.168.1.1 255.255.255.0
!
interface Ethernet0/2
 no ip address
 shutdown
!
interface Ethernet0/3
 no ip address
 shutdown
!
router rip
 network 10.0.0.0
 network 192.168.1.0
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
ip route 192.168.0.0 255.255.255.0 10.0.0.11
!
!
!
!
control-plane
!
!
!
!
!
!
!
!
line con 0
 logging synchronous
line aux 0
line vty 0 4
 login
 transport input none
!
!
end

Router#copy run start
Destination filename [startup-config]?
Building configuration...
[OK]
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#no router
Router(config)#no router rip
Router(config)#^Z
Router#te
*Sep 18 23:19:17.610: %SYS-5-CONFIG_I: Configured from console by console
Router#ter len 0
Router#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       a - application route
       + - replicated route, % - next hop override

Gateway of last resort is not set

      10.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C        10.0.0.0/24 is directly connected, Ethernet0/0
L        10.0.0.12/32 is directly connected, Ethernet0/0
S     192.168.0.0/24 [1/0] via 10.0.0.11
      192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.1.0/24 is directly connected, Ethernet0/1
L        192.168.1.1/32 is directly connected, Ethernet0/1
Router#show run
Building configuration...

Current configuration : 1075 bytes
!
! Last configuration change at 01:19:17 EET Thu Sep 19 2019
!
version 15.5
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname Router
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
!
!
!
bsd-client server url https://cloudsso.cisco.com/as/token.oauth2
clock timezone EET 2 0
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
!
!
!
!
!
!
!
!
!
!
!
!
!


!
!
!
!
ip cef
no ipv6 cef
!
multilink bundle-name authenticated
!
!
!
!
!
!
!
cts logging verbose
!
!
!
redundancy
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
interface Ethernet0/0
 ip address 10.0.0.12 255.255.255.0
!
interface Ethernet0/1
 ip address 192.168.1.1 255.255.255.0
!
interface Ethernet0/2
 no ip address
 shutdown
!
interface Ethernet0/3
 no ip address
 shutdown
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
ip route 192.168.0.0 255.255.255.0 10.0.0.11
!
!
!
!
control-plane
!
!
!
!
!
!
!
!
line con 0
 logging synchronous
line aux 0
line vty 0 4
 login
 transport input none
!
!
end

Router#
SW_192_168_1_10
SW-2#show ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP
       + - replicated route, % - next hop override

Gateway of last resort is 192.168.1.1 to network 0.0.0.0

S*    0.0.0.0/0 [1/0] via 192.168.1.1
      192.168.1.0/24 is variably subnetted, 2 subnets, 2 masks
C        192.168.1.0/24 is directly connected, Vlan1
L        192.168.1.10/32 is directly connected, Vlan1
SW-2#copy run start
Destination filename [startup-config]?
Building configuration...
Compressed configuration from 936 bytes to 636 bytes[OK]
SW-2#ter len 0
SW-2#show run
Building configuration...

Current configuration : 936 bytes
!
! Last configuration change at 01:14:41 EET Thu Sep 19 2019
!
version 15.1
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
service compress-config
!
hostname SW-2
!
boot-start-marker
boot-end-marker
!
!
!
no aaa new-model
clock timezone EET 2 0
!
ip cef
!
!
no ipv6 cef
ipv6 multicast rpf use-bgp
!
!
!
!
!
!
!
spanning-tree mode pvst
spanning-tree extend system-id
!
!
!
!
vlan internal allocation policy ascending
!
!
!
!
!
!
!
!
!
!
interface Ethernet0/0
 duplex auto
!
interface Ethernet0/1
 duplex auto
!
interface Ethernet0/2
 duplex auto
!
interface Ethernet0/3
 duplex auto
!
interface Vlan1
 ip address 192.168.1.10 255.255.255.0
!
ip default-gateway 192.168.1.1
!
no ip http server
!
ip route 0.0.0.0 0.0.0.0 192.168.1.1
ip route 192.168.1.0 255.255.255.0 192.168.0.1
!
!
!
!
control-plane
!
!
line con 0
 logging synchronous
line aux 0
line vty 0 4
 login
!
end

SW-2#
PC_192_168_1_100

Welcome to Virtual PC Simulator, version 1.0 (0.8c)
Dedicated to Daling.
Build time: Dec 31 2016 01:22:17
Copyright (c) 2007-2015, Paul Meng (mirnshi@gmail.com)
All rights reserved.

VPCS is free software, distributed under the terms of the "BSD" licence.
Source code and license can be found at vpcs.sf.net.
For more information, please visit wiki.freecode.com.cn.
Modified version supporting unetlab by unetlab team

Press '?' to get help.

Executing the startup file

Checking for duplicate address...
PC1 : 192.168.1.100 255.255.255.0 gateway 192.168.1.10

VPCS> show ip

NAME        : VPCS[1]
IP/MASK     : 192.168.1.100/24
GATEWAY     : 192.168.1.10
DNS         :
MAC         : 00:50:79:66:68:08
LPORT       : 20000
RHOST:PORT  : 127.0.0.1:30000
MTU         : 1500

VPCS>

これで設定がわけわからなくなってやり直すことになっても取り返せるぞっと。

3
Help us understand the problem. What is going on with this article?
Why not register and get more from Qiita?
  1. We will deliver articles that match you
    By following users and tags, you can catch up information on technical fields that you are interested in as a whole
  2. you can read useful information later efficiently
    By "stocking" the articles you like, you can search right away
watyanabe164
会社ではインフラエンジニアやってます。一方プライベートではAIの可能性に感化されて趣味でpythonでAI関連のプログラムを試したり、そのほか興味の赴くままに様々な技術を試して楽しんでます。シンギュラリティが楽しみで仕方ない。

Comments

No comments
Sign up for free and join this conversation.
Sign Up
If you already have a Qiita account Login
3
Help us understand the problem. What is going on with this article?
