HP thin client T630

Last updated at Posted at 2019-10-29

2度と原爆を受けたくないですねー。 政治家はこの工夫をしてるか。

中立国スイスの工夫
スイスに最初に来た時に言われたのが、「スイスは武装中立国としてどこにも属さず一国で生き延びられるように準備をしている」「スイスのパンは不味い。一年備蓄しておいた去年の小麦粉を使用しており、有事の際に輸入が全部ストップしても一年間は食いつなげるようにしている」でした。以上!https://panorama-alpin.com/2018/05/03/%E3%82%B9%E3%82%A4%E3%82%B9%E3%81%AE%E3%83%91%E3%83%B3%E3%81%AF%E4%B8%8D%E5%91%B3%E3%81%84%E3%81%AE%E3%81%8B%EF%BC%9F/

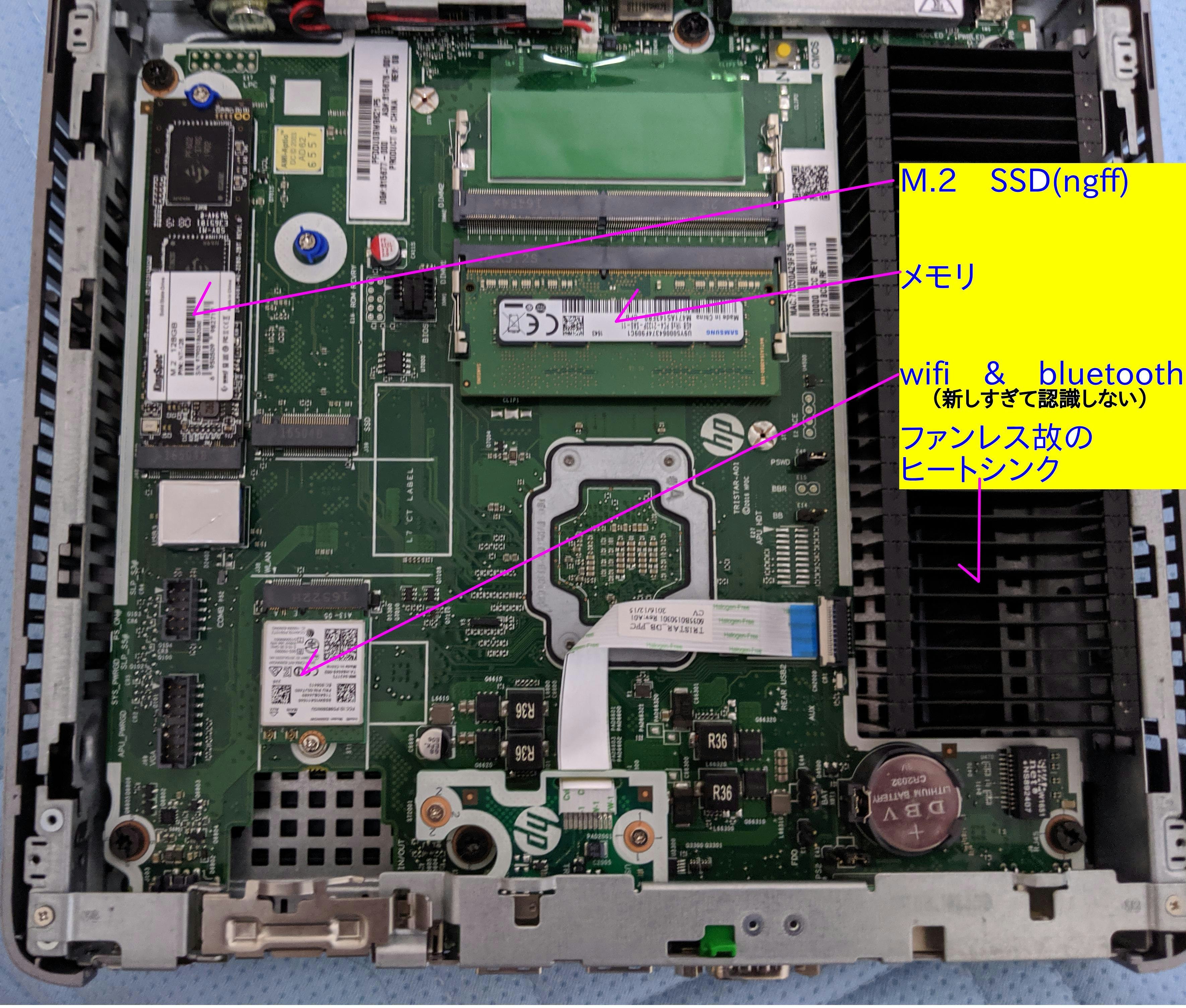

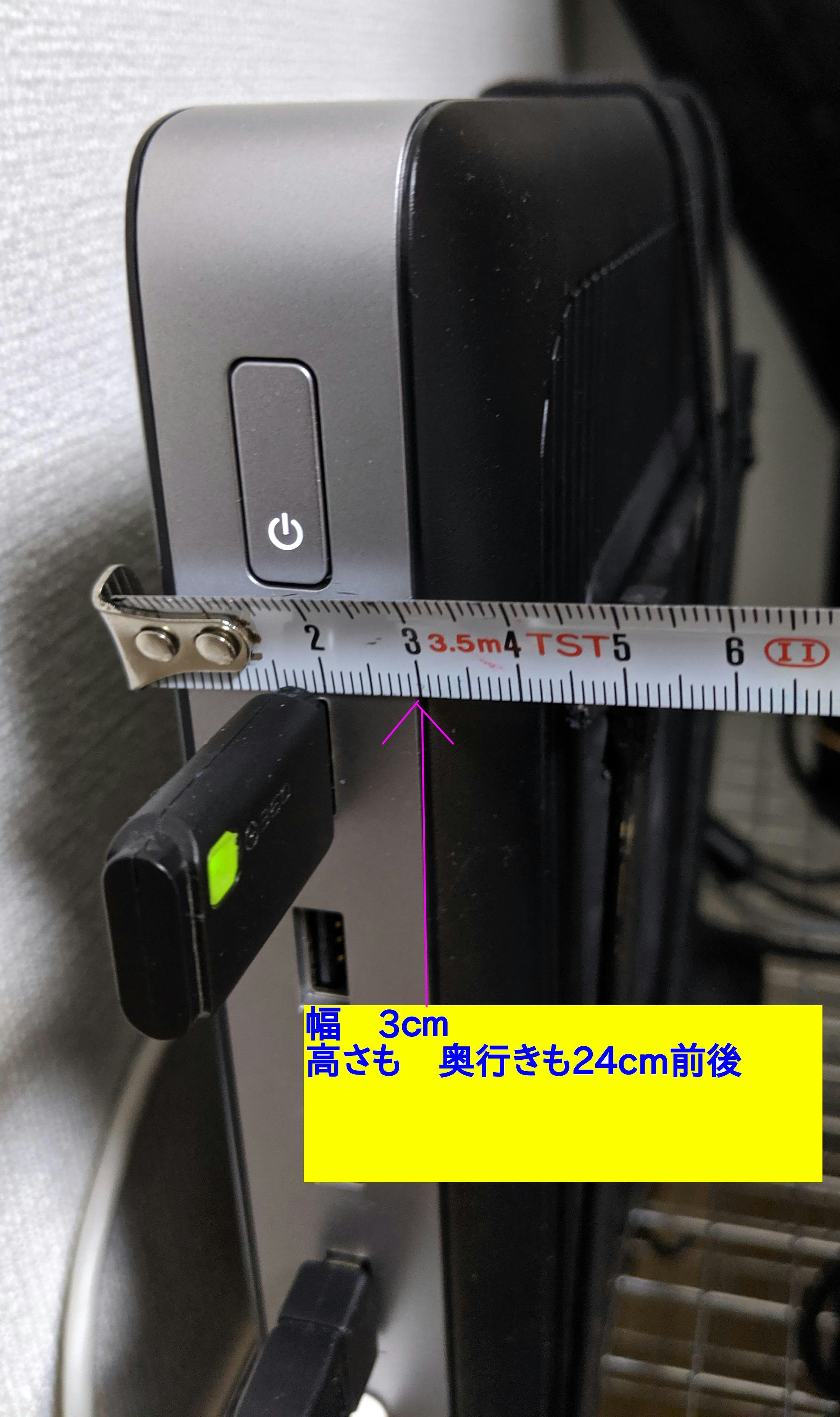

T630は薄くてファンレスでいい感じ



これにmanjaro linux をいれてみた

enp1s0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.17.1  netmask 255.255.255.0  broadcast 192.168.17.255
        ether 7c:d3:0a:29:fb:c5  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

wlp0s18u1u2: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500 <---★**USB wifi**★
        inet 192.168.3.7  netmask 255.255.255.0  broadcast 192.168.3.255
        inet6 2400:2413:73c0:6600:591:b8b5:66b:6ff9  prefixlen 64  scopeid 0x0<global>
        inet6 fe80::8de5:2ffe:ee6a:23f3  prefixlen 64  scopeid 0x20<link>
        ether 00:87:36:2f:bd:00  txqueuelen 1000  (Ethernet)
        RX packets 454975  bytes 632764059 (603.4 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 171762  bytes 21717089 (20.7 MiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

wlp2s0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500 <---★**認識してない**★
        ether da:b9:6e:98:a8:58  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0







# dmesg | grep wlp2s0
[    7.008512] iwlwifi 0000:02:00.0 wlp2s0: renamed from wlan0



新しすぎるこの上のやつは、今はいけてない

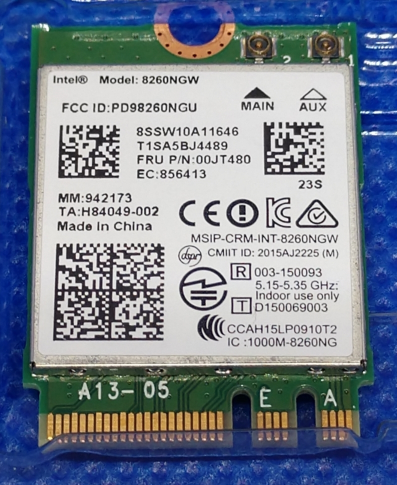

インテル デュアルバンド 無線LANカード
Intel Dual Band Wireless-AC 8260NGW
コネクタ:M.2
規格:802.11AC
仕様:867 Mbps+ Bluetooth 4.0

https://wiki.archlinux.jp/index.php/%E3%83%AF%E3%82%A4%E3%83%A4%E3%83%AC%E3%82%B9%E8%A8%AD%E5%AE%9A#iwlwifi

iwlwifi は 5100AGN, 5300AGN, 5350AGN などの Intel の最新のワイヤレスチップのワイヤレスドライバーです。full list of supported devices を見て下さい
と云う

以下諸種情報



dmesg | grep CPU
[    0.000000] [Firmware Info]: CPU: Re-enabling disabled Topology Extensions Support.
[    0.063249] smpboot: Allowing 4 CPUs, 0 hotplug CPUs
[    0.466013] setup_percpu: NR_CPUS:320 nr_cpumask_bits:320 nr_cpu_ids:4 nr_node_ids:1
[    0.519094] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    0.577595] rcu: 	RCU restricting CPUs from NR_CPUS=320 to nr_cpu_ids=4.
[    0.584681] rcu: 	Offload RCU callbacks from CPUs: (none).
[    0.659157] BIOS may not properly restore RDRAND after suspend, hiding RDRAND via CPUID. Use rdrand=force to reenable.
[    0.774611] smpboot: CPU0: AMD Embedded G-Series GX-420GI Radeon R7E (family: 0x15, model: 0x60, stepping: 0x1)
[    0.829264] smp: Bringing up secondary CPUs ...
[    0.869297] .... node  #0, CPUs:      #1 #2 #3
[    0.951518] smp: Brought up 1 node, 4 CPUs
[    1.774228] ledtrig-cpu: registered to indicate activity on CPUs
[    1.799722] microcode: CPU0: patch_level=0x06006112
[    1.799740] microcode: CPU1: patch_level=0x06006112
[    1.799769] microcode: CPU2: patch_level=0x06006112
[    1.799792] microcode: CPU3: patch_level=0x06006112






# dmesg | grep sda
[    2.871130] sd 0:0:0:0: [sda] 250069680 512-byte logical blocks: (128 GB/119 GiB)★ これはngff
[    2.871203] sd 0:0:0:0: [sda] Write Protect is off
[    2.871212] sd 0:0:0:0: [sda] Mode Sense: 00 3a 00 00
[    2.871354] sd 0:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[    2.878318]  sda: sda1 sda2 sda3
[    2.880022] sd 0:0:0:0: [sda] Attached SCSI disk
[    3.164657] XFS (sda2): Mounting V5 Filesystem
[    3.191703] XFS (sda2): Ending clean mount
[    5.905973] Adding 7593180k swap on /dev/sda3.  Priority:-2 extents:1 across:7593180k SSDscFS





# hdparm -t /dev/sda2
/dev/sda2:
 Timing buffered disk reads: 938 MB in  3.00 seconds = 312.52 MB/sec
