1個目 とりあえずいろいろ動かした
回転、大きさ調節、サインカーブなどを使ってみた。
Shader "Original/OriginalEffectShader"
{
Properties
{
_MainTex ("Texture", 2D) = "white" {}
}
SubShader
{
// No culling or depth
Cull Off ZWrite Off ZTest Always
// 追加
CGINCLUDE
#define PI 3.14159
// (anti-aliased)Gridを作る関数
float coordinateGrid(float2 r){
float3 axisCol = float3(0.0, 0.0, 1.0);
float3 gridCol = float3(0.5, 0.5, 0.5);
float ret = 0.0;
// Draw grid lines
const float tickWidth = 0.1;
for(float i= -2.0;i<2.0; i+= tickWidth){
ret += 1.0 - smoothstep(0.0, 0.008, abs (r.x - i));
ret += 1.0 - smoothstep(0.0, 0.008, abs (r.y - i));
}
// Draw the axis
ret += 1.0-smoothstep(0.001, 0.015, abs(r.x));
ret += 1.0-smoothstep(0.001, 0.015, abs(r.y));
return ret;
}
// returns 1.0 if inside circle
float disk(float2 r, float2 center, float radius){
return 1.0 - smoothstep( radius - 0.005, radius + 0.005, length(r - center));
}
// returns 1.0 if inside the rect
float rectangle(float2 r, float2 bottomLeft, float2 topRight){
float ret;
float d = 0.005;
ret = smoothstep(bottomLeft.x - d, bottomLeft.x + d, r.x);
ret *= smoothstep(bottomLeft.y - d, bottomLeft.y + d, r.y);
ret *= 1.0 - smoothstep(topRight.y - d, topRight.y + d, r.y);
ret *= 1.0 - smoothstep(topRight.x - d, topRight.x + d, r.x);
return ret;
}
float mod(float a, float b) { return a-b*floor(a/b); }
ENDCG
Pass
{
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "UnityCG.cginc"
struct appdata
{
float4 vertex : POSITION;
float2 uv : TEXCOORD0;
};
struct v2f
{
float2 uv : TEXCOORD0;
float4 vertex : SV_POSITION;
};
v2f vert (appdata v)
{
v2f o;
o.vertex = mul(UNITY_MATRIX_MVP, v.vertex);
o.uv = v.uv;
return o;
}
sampler2D _MainTex;
fixed4 frag (v2f i) : SV_Target
{
float2 r = 2.0 * (i.uv - 0.5);
float aspectRatio = _ScreenParams.x / _ScreenParams.y;
r.x *= aspectRatio;
//長方形がはけてくための設定
float2 t = r / (1 + mod(_Time.y, 20) * 0.05);
float2 t1 = r / (1 + mod(_Time.y, 20) * 0.1);
float2 t2 = r / (1 + mod(_Time.y, 20) * 0.15);
fixed3 bgCol = float3(1.0, 1.0, 1.0); // white
fixed3 col1 = float3(0.216, 0.471, 0.698); // blue
fixed3 col2 = float3(1.00, 0.329, 0.298); // red
fixed3 col3 = float3(0.867, 0.910, 0.247); // yellow
fixed3 col4 = float3(0.537, 0.741, 0.408); //green
fixed3 ret;
ret = bgCol;
float2 q = r + float2(-aspectRatio, 1.0);
//右上から出てくる赤い円
ret = lerp(ret, col2, disk(r, float2(-aspectRatio * 0.9, 0.8), 0.5));
//後ろの青い円
ret = lerp(ret, col1, disk(q, float2(0, 0), 2.5));
//以下青い円の周りに赤い長方形を回すスクリプト
float x = 2.7 * cos((PI * 0.7 + mod(_Time.y * 0.5, PI * 0.5))*1.0);
float y = 2.7 * sin((PI * 0.7 + mod(_Time.y * 0.5, PI * 0.5))*1.0);
float2 s = q - float2(x, y);
float angle = _Time.y * 3.0;
float2x2 rot = float2x2(cos(angle), -sin(angle), sin(angle), cos(angle));
s = mul(rot, s);
ret = lerp(ret, col2, rectangle(s, float2(-0.06, -0.06), float2(0.06, 0.06)));
//くねくねしてる緑の円
float angle1 = 0.3;
float2x2 rot1 = float2x2(cos(angle1), -sin(angle1), sin(angle1), cos(angle1));
float2 p = mul(rot1, r);
ret = lerp(ret, col4, disk(p, float2((mod(_Time.y * 1.5, 2.0) - 1.0) * (aspectRatio + 0.2), sin(_Time.y * PI * 3) * 0.71), 0.1));
//左下から出てくる緑
ret = lerp(ret, col4, rectangle(p, float2(-1.5, -2.0), float2(0, -0.8)));
float2x2 rot2 = float2x2(cos(angle/2), -sin(angle/2), sin(angle/2), cos(angle/2));
float2 h = mul(rot2, q);
ret = lerp(ret, col3, rectangle(h, float2(-0.7, -0.7), float2(0.7, 0.7)));
//最初にある左上の青
ret = lerp(ret, col1, smoothstep(1.5,1.51,-t.x + t.y));
//左下の黄色
ret = lerp(ret, col3, smoothstep(2.6, 2.6, -t1.x -4 * t1.y));
//右の赤
ret = lerp(ret, col2, smoothstep(2.3, 2.31, 3 * t2.x - t2.y));
fixed3 pixel = ret;
return fixed4(pixel, 1.0);
}
ENDCG
}
}
}

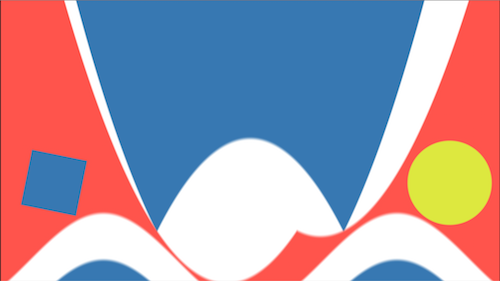

#2個目 二次関数とかあれこれいじってみた
二次関数に絶対値をつけたり、サインカーブを置いてみたり。
Shader "Original/Original1EffectShader"
{
Properties
{
_MainTex ("Texture", 2D) = "white" {}
}
SubShader
{
// No culling or depth
Cull Off ZWrite Off ZTest Always
// 追加
CGINCLUDE
#define PI 3.14159
// (anti-aliased)Gridを作る関数
float coordinateGrid(float2 r){
float3 axisCol = float3(0.0, 0.0, 1.0);
float3 gridCol = float3(0.5, 0.5, 0.5);
float ret = 0.0;
// Draw grid lines
const float tickWidth = 0.1;
for(float i= -2.0;i<2.0; i+= tickWidth){
ret += 1.0 - smoothstep(0.0, 0.008, abs (r.x - i));
ret += 1.0 - smoothstep(0.0, 0.008, abs (r.y - i));
}
// Draw the axis
ret += 1.0-smoothstep(0.001, 0.015, abs(r.x));
ret += 1.0-smoothstep(0.001, 0.015, abs(r.y));
return ret;
}
// returns 1.0 if inside circle
float disk(float2 r, float2 center, float radius){
return 1.0 - smoothstep( radius - 0.005, radius + 0.005, length(r - center));
}
// returns 1.0 if inside the rect
float rectangle(float2 r, float2 bottomLeft, float2 topRight){
float ret;
float d = 0.005;
ret = smoothstep(bottomLeft.x - d, bottomLeft.x + d, r.x);
ret *= smoothstep(bottomLeft.y - d, bottomLeft.y + d, r.y);
ret *= 1.0 - smoothstep(topRight.y - d, topRight.y + d, r.y);
ret *= 1.0 - smoothstep(topRight.x - d, topRight.x + d, r.x);
return ret;
}
float mod(float a, float b) { return a-b*floor(a/b); }
ENDCG
Pass
{
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "UnityCG.cginc"
struct appdata
{
float4 vertex : POSITION;
float2 uv : TEXCOORD0;
};
struct v2f
{
float2 uv : TEXCOORD0;
float4 vertex : SV_POSITION;
};
v2f vert (appdata v)
{
v2f o;
o.vertex = mul(UNITY_MATRIX_MVP, v.vertex);
o.uv = v.uv;
return o;
}
sampler2D _MainTex;
fixed4 frag (v2f i) : SV_Target
{
float2 r = 2.0 * (i.uv - 0.5);
float aspectRatio = _ScreenParams.x / _ScreenParams.y;
r.x *= aspectRatio;
fixed3 bgCol = float3(1.0, 1.0, 1.0); // white
fixed3 col1 = float3(0.216, 0.471, 0.698); // blue
fixed3 col2 = float3(1.00, 0.329, 0.298); // red
fixed3 col3 = float3(0.867, 0.910, 0.247); // yellow
fixed3 ret;
ret = bgCol;
//座標をずらす
float2 s = r * 3;
//真ん中の青い二次関数チックなところ(言い表し方わかりませんw)
float y = abs(0.5 * (s.x - 2) * (s.x + 2)) - 2;
ret = lerp(ret, col1, smoothstep(-s.y, -s.y + 0.1, -y));
//逆になった山のようなところ
float y1 = 0.5 * ((s.x - 0.5) * (s.x - 0.5) - 2 * abs(s.x - 1) - 4);
ret = lerp(ret, col2, smoothstep(s.y, s.y + 0.1, y1));
//下の波二つ
ret = lerp(ret, bgCol, smoothstep(s.y, s.y + 0.1, -cos(s.x) - 2.5));
ret = lerp(ret, col1, smoothstep(s.y, s.y + 0.1, -cos(s.x) - 3.5));
//右のほうにある円
ret = lerp(ret, col3, disk(r, float2(0.8 * aspectRatio, -0.3), 0.3));
//左の長方形
float angle = 0.2;
float2x2 rot = float2x2(cos(angle), -sin(angle), sin(angle), cos(angle));
float2 t = r - float2(-1.4, -0.3);
t = mul(rot, t);
ret = lerp(ret, col1, rectangle(t, float2(-0.2, -0.2), float2(0.2, 0.2)));
fixed3 pixel = ret;
return fixed4(pixel, 1.0);
}
ENDCG
}
}
}
#3個目 光っぽさを出してみた
色を加算することで光っぽさが出る。
Shader "Original/Original2EffectShader"
{
Properties
{
_MainTex ("Texture", 2D) = "white" {}
}
SubShader
{
// No culling or depth
Cull Off ZWrite Off ZTest Always
// 追加
CGINCLUDE
#define PI 3.14159
// (anti-aliased)Gridを作る関数
float coordinateGrid(float2 r){
float3 axisCol = float3(0.0, 0.0, 1.0);
float3 gridCol = float3(0.5, 0.5, 0.5);
float ret = 0.0;
// Draw grid lines
const float tickWidth = 0.1;
for(float i= -2.0;i<2.0; i+= tickWidth){
ret += 1.0 - smoothstep(0.0, 0.005, abs (r.x - i));
ret += 1.0 - smoothstep(0.0, 0.005, abs (r.y - i));
}
// Draw the axis
ret += 1.0-smoothstep(0.001, 0.01, abs(r.x));
ret += 1.0-smoothstep(0.001, 0.01, abs(r.y));
return ret;
}
// returns 1.0 if inside circle
float disk(float2 r, float2 center, float radius){
return 1.0 - smoothstep( radius - 0.005, radius + 0.005, length(r - center));
}
// returns 1.0 if inside the rect
float rectangle(float2 r, float2 bottomLeft, float2 topRight){
float ret;
float d = 0.005;
ret = smoothstep(bottomLeft.x - d, bottomLeft.x + d, r.x);
ret *= smoothstep(bottomLeft.y - d, bottomLeft.y + d, r.y);
ret *= 1.0 - smoothstep(topRight.y - d, topRight.y + d, r.y);
ret *= 1.0 - smoothstep(topRight.x - d, topRight.x + d, r.x);
return ret;
}
float mod(float a, float b) { return a-b*floor(a/b); }
ENDCG
Pass
{
CGPROGRAM
#pragma vertex vert
#pragma fragment frag
#include "UnityCG.cginc"
struct appdata
{
float4 vertex : POSITION;
float2 uv : TEXCOORD0;
};
struct v2f
{
float2 uv : TEXCOORD0;
float4 vertex : SV_POSITION;
};
v2f vert (appdata v)
{
v2f o;
o.vertex = mul(UNITY_MATRIX_MVP, v.vertex);
o.uv = v.uv;
return o;
}
sampler2D _MainTex;
fixed4 frag (v2f i) : SV_Target
{
float2 r = 2.0 * (i.uv - 0.5);
float aspectRatio = _ScreenParams.x / _ScreenParams.y;
r.x *= aspectRatio;
fixed3 bgCol = float3(0.0, 0.0, 0.0); // white
fixed3 col1 = float3(0.216, 0.471, 0.698); // blue
fixed3 col2 = float3(1.00, 0.329, 0.298); // red
fixed3 col3 = float3(0.867, 0.910, 0.247); // yellow
fixed3 col4 = float3(0.537, 0.741, 0.408); //green
fixed3 col5 = (col1 + col2)/2;
fixed3 ret;
ret = bgCol;
//青い光
float t = (sin(_Time.y) - 0.5) * 0.2;//時間により変化する値
float2 r2 = r - float2(0, - 1.2);//座標をずらす
float angle = t * PI;//回転角
float2x2 rotmat = float2x2(cos(angle), -sin(angle), sin(angle), cos(angle));//回転行列
r2 = mul(rotmat, r2);//回転させる
ret += col1 * (1.0 - smoothstep(0, abs(r2.y * 0.2 + 0.05), abs(r2.x))) * 0.5;//光の描画 以下同じ順番
//赤い光
t = (sin(_Time.y * 0.8) - 0.5) * 0.2;
float2 s = r - float2(1.1, -1.2);
angle = (-0.1 + t) * PI;
rotmat = float2x2(cos(angle), -sin(angle), sin(angle), cos(angle));
s = mul(rotmat, s);
ret += col2 * (1.0 - smoothstep(0, abs(s.y * 0.2 + 0.05), abs(s.x))) * 0.5;
//黄色の光
t = (sin(_Time.y * 1.2) - 0.5) * 0.2;
float2 q = r - float2(-1.2, -1.4);
angle = (-0.8 + t) * PI;
rotmat = float2x2(cos(angle), -sin(angle), sin(angle), cos(angle));
q = mul(rotmat, q);
ret += col3 * (1.0 - smoothstep(0, abs(q.y * 0.2 + 0.05), abs(q.x))) * 0.5;
//緑の光
t = (sin(_Time.y * 1.4) - 0.5) * 0.2;
float2 u = r - float2(-2.0, -1.2);
angle = (0.3 + t * 0.8) * PI;
rotmat = float2x2(cos(angle), -sin(angle), sin(angle), cos(angle));
u = mul(rotmat, u);
ret += col4 * (1.0 - smoothstep(0, abs(u.y * 0.2 + 0.05), abs(u.x))) * 0.5;
fixed3 pixel = ret;
return fixed4(pixel, 1.0);
}
ENDCG
}
}
}
