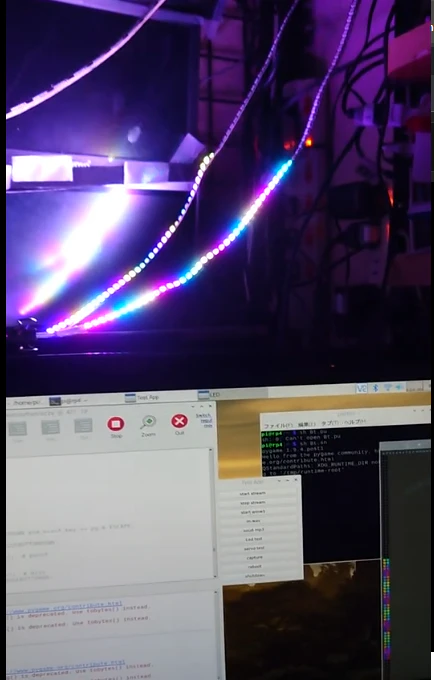

Pythonで Art-net 出力が 出来ました
まだ全ソース公開出来るほど整理できていませんが、一部だけ公開します。
(参考サイトも調べて、追記予定です)
def pack_put():
#player.note_on(64, 127)
#1 ID[8] Int8 - Array of 8 characters, the final character is a null termination.
# Value = puthon ‘A’ ‘r’ ‘t’ ‘-‘ ‘N’ ‘e’ ‘t’ 0x00
packet.extend(map(ord, "Art-Net"))
packet.append(0x00) # Null terminate Art,-Net
#2 OpCode Int 16 - The OpCode defines the class of data following
# ArtPoll within this UDP packet.
# Transmitted low byte first. See Table 1 for the
# OpCode listing. Set to OpPoll.
packet.extend([0x00, 0x50]) # Opcode ArtDMX 0x5000 (Little endian)
#3 ProtVerHi Int8 - High byte of the Art-Net protocol revision number.
packet.append(0x00) # Null terminate Art-Net
#4 ProtVerLo Int8 - Low byte of the Art-Net protocol revision number.
# Current value 14. Controllers should
# ignore communication with nodes using a protocol version lower than 14.
#packet.extend([0x00, 0x0e]) # Protocol version 14
packet.append(0x0e) # Protocol version 14
packet.append(0x1f) # Protocol version 14
packet.append(0x00) # Protocol version 13
packet.append(DMX_Universe) # Protocol version 14
packet.append(0x00) # Protocol version 15
#5 TalkToMe Int8 - Set behaviour of Node
# 7-5 Unused, transmit as zero, do not test upon receipt. __sequence_counter) Sequence,
# 4 0 = Enable VLC transmission.
# 1 = Disable VLC transmission.
# 3 0 = Diagnostics messages are broadcast. (if bit 2).
# 1 = Diagnostics messages are unicast. (if bit 2).
# 2 0 = Do not send me diagnostics messages.
# 1 = Send me diagnostics messages.
# 1 0 = Only send ArtPollReply in response to an ArtPoll or ArtAddress.
# 1 = Send ArtPollReply whenever Node conditions change. This selection allows the
# Controller to be informed of changes without the need to continuously poll.
# 0 0 = Deprecated.
packet.append(0x02) # Physical
#6 Priority Int8 - The lowest priority of diagnostics message that should be sent. See Table 5.
packet.append(0x00)
#with socket.socket(socket.AF_INET, socket.SOCK_DGRAM) as udp:
参考文献
