Raspberry Pi 3 Model BにSPI接続のSDカードアダプタを追加しようとした

Last updated at Posted at 2022-01-16

なんでSPI接続のSDカードアダプタを増設?

本当はSDIO接続のSDカードアダプタモジュールを使う予定でした。しかし、ずいぶん前に届いていたモジュールのパッケージを開けてみたら、SPIって書いてあり落胆しました。とはいえ、使えるのかどうか位は確認すべきかと思い立ち現在に至ります。
※結論に書いてますが、現時点でSDカードの読み書きまで至っていません。

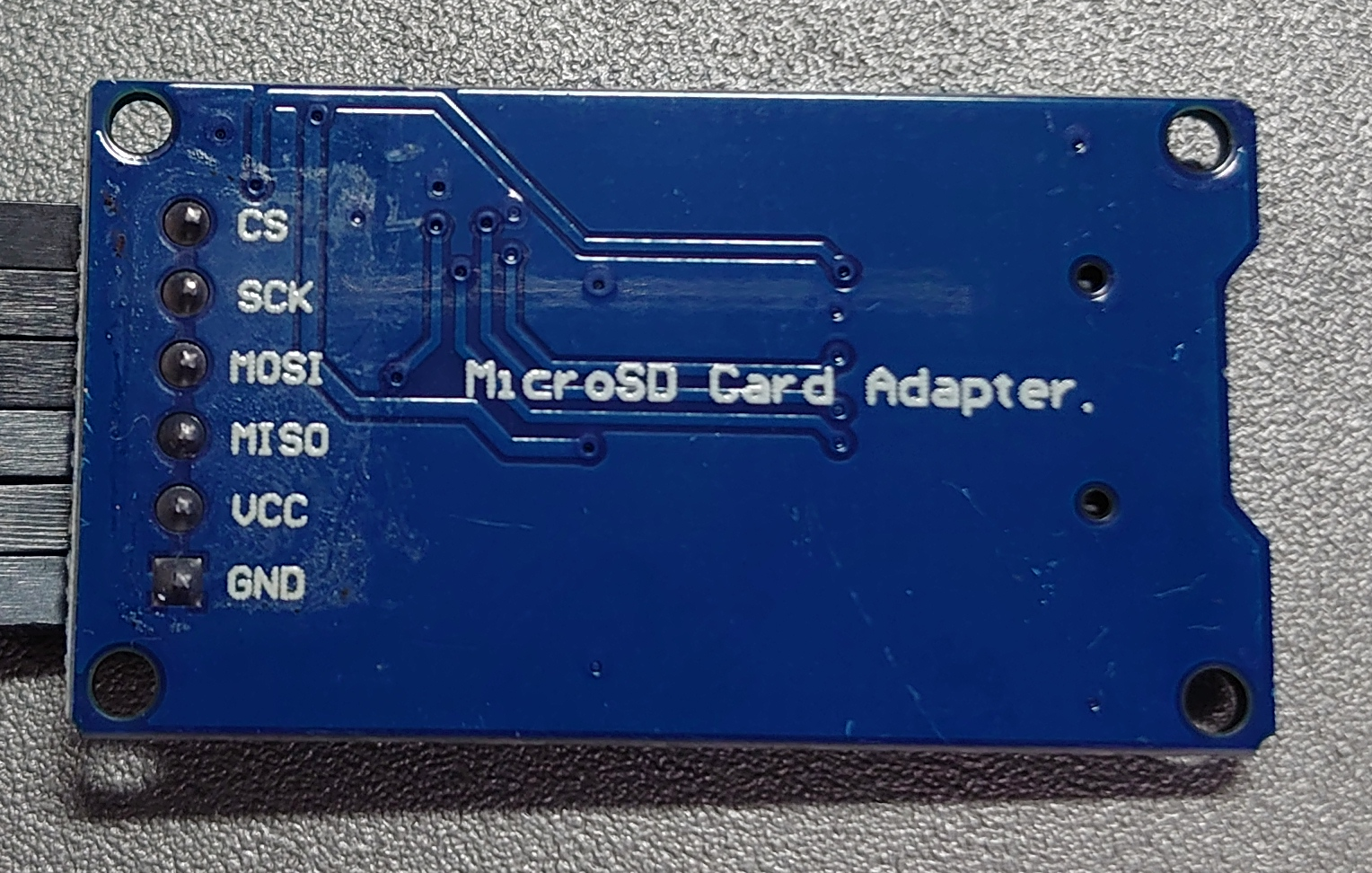

どうみてもSDIOじゃないアダプタ
買うとき確かめた気がするんだけど・・・

#準備

接続

ピン配置を「gpio readall」で調べて、
電源はPin1、GroundはPin39として、SPIのピンは19、21、23と24とした。

pi@raspberrypi:~ $ gpio readall
 +-----+-----+---------+------+---+---Pi 3B--+---+------+---------+-----+-----+
 | BCM | wPi |   Name  | Mode | V | Physical | V | Mode | Name    | wPi | BCM |
 +-----+-----+---------+------+---+----++----+---+------+---------+-----+-----+
 |     |     |    3.3v |      |   |  1 || 2  |   |      | 5v      |     |     |
 |   2 |   8 |   SDA.1 |   IN | 1 |  3 || 4  |   |      | 5v      |     |     |
 |   3 |   9 |   SCL.1 |   IN | 1 |  5 || 6  |   |      | 0v      |     |     |
 |   4 |   7 | GPIO. 7 |   IN | 1 |  7 || 8  | 0 | IN   | TxD     | 15  | 14  |
 |     |     |      0v |      |   |  9 || 10 | 1 | IN   | RxD     | 16  | 15  |
 |  17 |   0 | GPIO. 0 |   IN | 0 | 11 || 12 | 0 | IN   | GPIO. 1 | 1   | 18  |
 |  27 |   2 | GPIO. 2 |   IN | 0 | 13 || 14 |   |      | 0v      |     |     |
 |  22 |   3 | GPIO. 3 |   IN | 0 | 15 || 16 | 0 | IN   | GPIO. 4 | 4   | 23  |
 |     |     |    3.3v |      |   | 17 || 18 | 0 | IN   | GPIO. 5 | 5   | 24  |
 |  10 |  12 |    MOSI | ALT0 | 0 | 19 || 20 |   |      | 0v      |     |     |
 |   9 |  13 |    MISO | ALT0 | 0 | 21 || 22 | 0 | IN   | GPIO. 6 | 6   | 25  |
 |  11 |  14 |    SCLK | ALT0 | 0 | 23 || 24 | 1 | OUT  | CE0     | 10  | 8   |
 |     |     |      0v |      |   | 25 || 26 | 1 | OUT  | CE1     | 11  | 7   |
 |   0 |  30 |   SDA.0 |   IN | 1 | 27 || 28 | 1 | IN   | SCL.0   | 31  | 1   |
 |   5 |  21 | GPIO.21 |   IN | 1 | 29 || 30 |   |      | 0v      |     |     |
 |   6 |  22 | GPIO.22 |   IN | 1 | 31 || 32 | 0 | IN   | GPIO.26 | 26  | 12  |
 |  13 |  23 | GPIO.23 |   IN | 0 | 33 || 34 |   |      | 0v      |     |     |
 |  19 |  24 | GPIO.24 |   IN | 0 | 35 || 36 | 0 | IN   | GPIO.27 | 27  | 16  |
 |  26 |  25 | GPIO.25 |   IN | 0 | 37 || 38 | 0 | IN   | GPIO.28 | 28  | 20  |
 |     |     |      0v |      |   | 39 || 40 | 0 | IN   | GPIO.29 | 29  | 21  |
 +-----+-----+---------+------+---+----++----+---+------+---------+-----+-----+
 | BCM | wPi |   Name  | Mode | V | Physical | V | Mode | Name    | wPi | BCM |
 +-----+-----+---------+------+---+---Pi 3B--+---+------+---------+-----+-----+

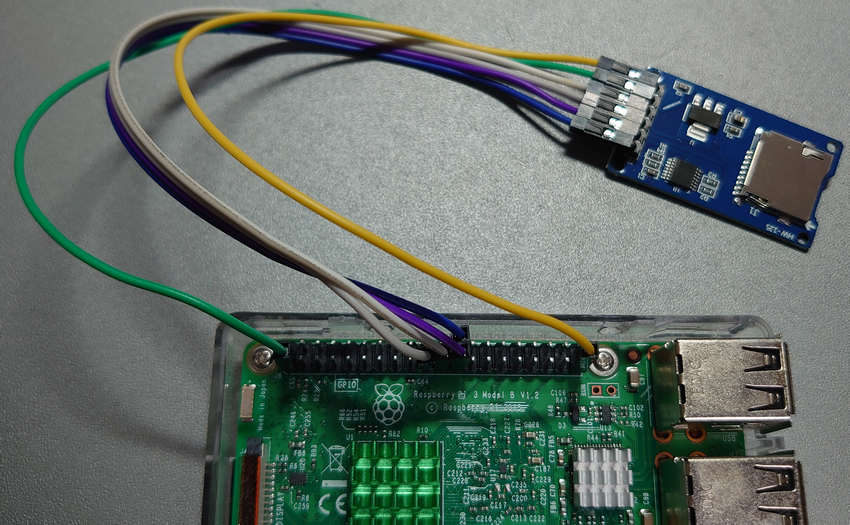

以下のように接続した

SPIを有効にしておく

GUIのRaspberry Piの設定もしくは、rasp-configでSPIを有効にして、再起動しておく。

認識されているか確認

デバイスが検出されているか

dmesg | grep mmc

[    3.284320] mmc1: new high speed SDIO card at address 0001
[    6.037766] EXT4-fs (mmcblk0p2): re-mounted. Opts: (null)
[    8.069818] brcmfmac mmc1:0001:1: Direct firmware load for brcm/brcmfmac43430-sdio.raspberrypi,3-model-b.txt failed with error -2

なんかエラー出ている

調べたら(ググったら)以下に「brcmfmac43430-sdio.raspberrypi,3-model-b.txt」があった。
https://github.com/openwrt/cypress-nvram

sudo cp /home/pi/Downloads/brcmfmac43430-sdio.raspberrypi,3-model-b.txt /lib/firmware/brcm/

コピー後ラズパイを再起動した。

「mmc1: new high speed SDIO card at address 0001」が出ているので、検出までは成功した模様。

[    3.001235] mmc-bcm2835 3f300000.mmcnr: could not get clk, deferring probe
[    3.001914] sdhost-bcm2835 3f202000.mmc: could not get clk, deferring probe
[    3.028335] mmc-bcm2835 3f300000.mmcnr: mmc_debug:0 mmc_debug2:0
[    3.028352] mmc-bcm2835 3f300000.mmcnr: DMA channel allocated
[    3.092295] mmc1: queuing unknown CIS tuple 0x80 (2 bytes)
[    3.093957] mmc1: queuing unknown CIS tuple 0x80 (3 bytes)
[    3.095624] mmc1: queuing unknown CIS tuple 0x80 (3 bytes)
[    3.098606] mmc1: queuing unknown CIS tuple 0x80 (7 bytes)
[    3.104409] mmc0: sdhost-bcm2835 loaded - DMA enabled (>1)
[    3.165498] mmc0: host does not support reading read-only switch, assuming write-enable
[    3.168788] mmc0: new high speed SDHC card at address 1234
[    3.169957] mmcblk0: mmc0:1234 SA32G 28.8 GiB
[    3.173102]  mmcblk0: p1 p2
[    3.211040] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[    3.221040] mmc1: new high speed SDIO card at address 0001
[    6.005339] EXT4-fs (mmcblk0p2): re-mounted. Opts: (null)

デバイスが見えてない

/dev/以下にデバイスはいないし、差し込んだSDカードの情報もみえていない。
何かの手順で間違いがあるようだ。

結論

しばらく後に持ち越す。
