インストールするときにハマったのでメモ
最終的にやったこと
-
brewでroswellのインストール -
brewでczmqのインストール - 環境変数
C_INCLUDE_PATHを/opt/homebrew/includeに設定 -
roswellでcommon-lisp-jupyterのインストール
インストール作業
roswell のインストール
brew install roswell
roswell のインストール後は roswell がインストールしたコマンドを実行できるように、 PATH に追加しました。
.zshrc
export PATH="$PATH:$HOME/.roswell/bin"
czmq のインストール
homebrew だと czmq という名前であるようです。
brew install czmq
環境変数の設定
私の環境だと cc は Apple clang でした。
cc --version
Apple clang version 15.0.0 (clang-1500.3.9.4)
Target: arm64-apple-darwin23.4.0
Thread model: posix
InstalledDir: /Library/Developer/CommandLineTools/usr/bin
コンパイラに include パスを渡したいので下のように設定しました。
export C_INCLUDE_PATH=/opt/homebrew/include
common-lisp-jupyter のインストール
ros install common-lisp-jupyter
実行
jupyter lab
起動するとブラウザが開きます。

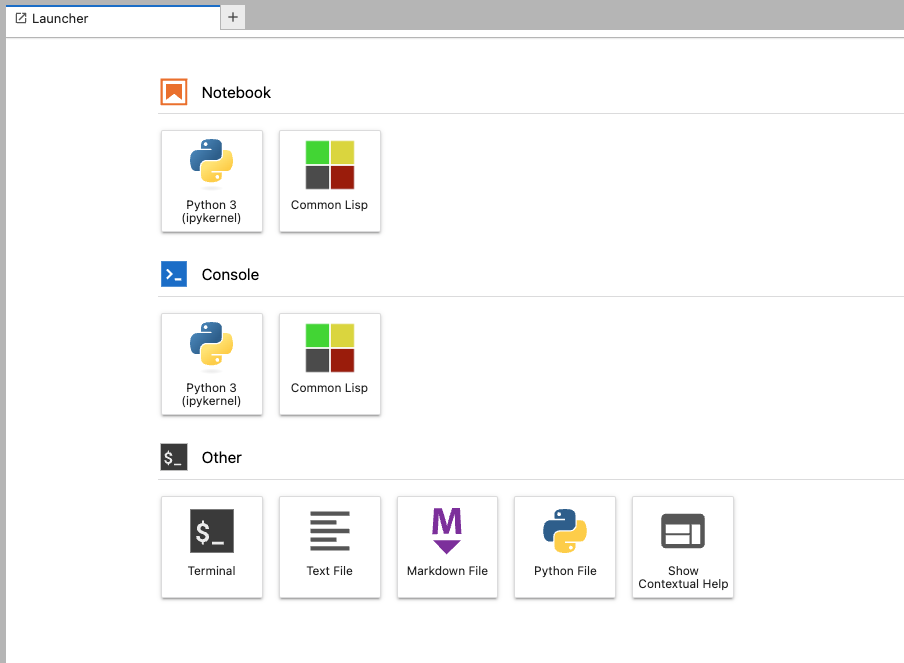

Launcher に Common Lisp が入っていれば大丈夫です。

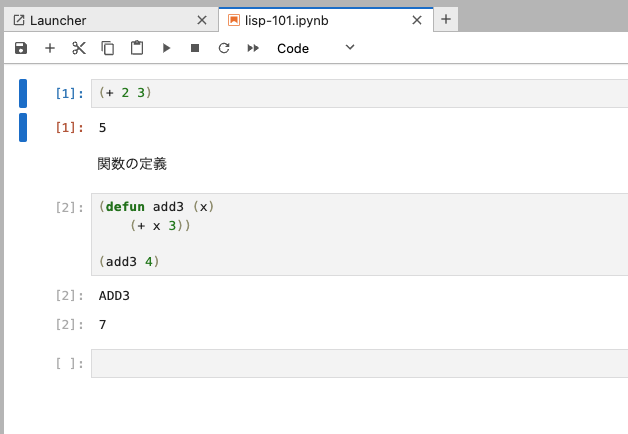

いくつか実行してみました。
ちゃんと実行できています。
環境変数の設定について
当初 ros install common-lisp-jupyter を実行したら以下のエラーになりました。
% ros install common-lisp-jupyter
To load "common-lisp-jupyter":
Load 1 ASDF system:
common-lisp-jupyter
; Loading "common-lisp-jupyter"
...................[1/3] System 'common-lisp-jupyter' found. Loading the system..; cc -o /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel-tmpAAURSO1.o -c -g -Wall -Wundef -Wsign-compare -Wpointer-arith -O3 -g -Wall -fdollars-in-identifiers -fno-omit-frame-pointer -fPIC -I/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/cffi-20241012-git/ /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel.c
/Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel.c:6:10: fatal error: 'zmq.h' file not found
#include <zmq.h>
^~~~~~~
1 error generated.
Aborted during step [1/3].
Unhandled CFFI-GROVEL:GROVEL-ERROR in thread #<error printing a SB-THREAD:THREAD: #<PRINT-NOT-READABLE {7008F5EA43}>>: Subprocess #<UIOP/LAUNCH-PROGRAM::PROCESS-INFO {7008EA8923}>
with command ("cc" "-o" "/Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel-tmpAAURSO1.o" "-c" "-g" "-Wall" "-Wundef" "-Wsign-compare" "-Wpointer-arith" "-O3" "-g" "-Wall" "-fdollars-in-identifiers" "-fno-omit-frame-pointer" "-fPIC" "-I/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/cffi-20241012-git/" "/Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel.c")
exited with error code 1
Backtrace for: #<SB-THREAD:THREAD tid=259 "main thread" RUNNING {7004F901E3}>
0: (SB-DEBUG::DEBUGGER-DISABLED-HOOK #<CFFI-GROVEL:GROVEL-ERROR "~a" {7008F5DD23}> #<unused argument> :QUIT T)
1: (SB-DEBUG::RUN-HOOK *INVOKE-DEBUGGER-HOOK* #<CFFI-GROVEL:GROVEL-ERROR "~a" {7008F5DD23}>)
2: (INVOKE-DEBUGGER #<CFFI-GROVEL:GROVEL-ERROR "~a" {7008F5DD23}>)
3: (ERROR CFFI-GROVEL:GROVEL-ERROR :FORMAT-CONTROL "~a" :FORMAT-ARGUMENTS (#<UIOP/RUN-PROGRAM:SUBPROCESS-ERROR {7008F5D753}>))
4: (CFFI-GROVEL:GROVEL-ERROR "~a" #<UIOP/RUN-PROGRAM:SUBPROCESS-ERROR {7008F5D753}>)
....
....
zmq.h は homebrew でインストールしたので /opt/homebrew/include に入ってます。
cffi のコードを見ると、 include ディレクトリは /opt/local/include を指しているのでこれでは zmq.h が見つからなくてコンパイルに失敗します。
(setf *cc*
(or (getenvp "CC")
#+(or cygwin (not windows)) "cc"
"gcc")
*cc-flags*
(append
arch-flags
;; For MacPorts
#+darwin (list "-I" "/opt/local/include/")
;; ECL internal flags
#+ecl (parse-command-flags c::*cc-flags*)
;; FreeBSD non-base header files
#+freebsd (list "-I" "/usr/local/include/")
(split-cflags (getenv "CFLAGS")))
さらにコードを見ると CFLAGS 環境変数から取得しているようですが、CFLAGS に -I/opt/homebrew/include を設定しても何故かコンパイルに失敗します。
そのため、コンパイラに指定するのではなくコンパイラが直接参照する環境変数(ここではC_INCLUDE_PATH)を設定したところ、コンパイルが成功しました。
% ros install common-lisp-jupyter
To load "common-lisp-jupyter":
Load 1 ASDF system:
common-lisp-jupyter
; Loading "common-lisp-jupyter"
...................[1/3] System 'common-lisp-jupyter' found. Loading the system..; cc -o /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel-tmpAAURSO1.o -c -g -Wall -Wundef -Wsign-compare -Wpointer-arith -O3 -g -Wall -fdollars-in-identifiers -fno-omit-frame-pointer -fPIC -I/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/cffi-20241012-git/ /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel.c
/Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel.c:11:7: warning: unused variable 'autotype_tmp' [-Wunused-variable]
int autotype_tmp;
^
1 warning generated.
; cc -o /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel-tmp5GEXGEG5 -g -dynamic -twolevel_namespace /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel.o
; /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/pzmq-20210531-git/grovel__grovel.grovel-tmp.lisp
...............................
[package puri]....................................
[package trivial-do]..............................
[package shasht]..................................
[package static-vectors]..........................
[package trivial-mimes]...........................
[package jupyter].................................
[package jupyter/markdown-formatter]..............
[package jupyter/widgets].........................
[package jupyter/common-lisp].....................
[package jupyter/convert].........................
...............................
; compiling file "/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/common-lisp-jupyter-20241012-git/src/packages.lisp" (written 10 OCT 2024 05:13:06 AM):
; file: /Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/common-lisp-jupyter-20241012-git/src/packages.lisp
; in: DEFPACKAGE #:JUPYTER/WIDGETS
; (DEFPACKAGE #:JUPYTER/WIDGETS
; (:USE #:COMMON-LISP)
; (:NICKNAMES :JW :JUPYTER-WIDGETS)
; (:DOCUMENTATION "Package for core Jupyter Widget support.")
; (:EXPORT #:ACCORDION
; #:AUDIO
; #:BLUR
; #:BOUNDED-FLOAT-TEXT
; #:BOUNDED-INT-TEXT
; #:BOX
; #:BUTTON
; #:BUTTON-STYLE
; #:CHECKBOX
; #:CHECKBOX-STYLE
; #:COLOR-PICKER
; ...))
; ==>
; (SB-IMPL::%DEFPACKAGE "JUPYTER/WIDGETS" '("JW" "JUPYTER-WIDGETS") 'NIL 'NIL
; 'NIL '("COMMON-LISP") 'NIL 'NIL
; '("ACCORDION" "AUDIO" "BLUR" "BOUNDED-FLOAT-TEXT"
; "BOUNDED-INT-TEXT" "BOX" "BUTTON" "BUTTON-STYLE"
; "CHECKBOX" "CHECKBOX-STYLE" "COLOR-PICKER" "COMBOBOX"
; ...)
; '("JUPYTER/WIDGETS") 'NIL ...)
;
; caught WARNING:
; JUPYTER/WIDGETS also exports the following symbols:
; (JUPYTER/WIDGETS:MAKE-IMAGE JUPYTER/WIDGETS:MAKE-CHECKBOX-STYLE
; JUPYTER/WIDGETS:MAKE-ACCORDION
; JUPYTER/WIDGETS:MAKE-PROGRESS-STYLE
; JUPYTER/WIDGETS:MAKE-DATE-PICKER
; JUPYTER/WIDGETS:MAKE-CONTROLLER
; JUPYTER/WIDGETS:MAKE-INT-SLIDER
; JUPYTER/WIDGETS:MAKE-CHECKBOX
; JUPYTER/WIDGETS:MAKE-BOUNDED-FLOAT-TEXT
; JUPYTER/WIDGETS:MAKE-RADIO-BUTTONS
; JUPYTER/WIDGETS:MAKE-CONTROLLER-BUTTON
; JUPYTER/WIDGETS:MAKE-AUDIO
; JUPYTER/WIDGETS:MAKE-CONTROLLER-AXIS
; JUPYTER/WIDGETS:MAKE-FLOAT-RANGE-SLIDER
; JUPYTER/WIDGETS:MAKE-GRID-BOX
; JUPYTER/WIDGETS:MAKE-SELECT-MULTIPLE
; JUPYTER/WIDGETS:MAKE-BOUNDED-INT-TEXT
; JUPYTER/WIDGETS:MAKE-HTML
; JUPYTER/WIDGETS:MAKE-LINK
; JUPYTER/WIDGETS:MAKE-DESCRIPTION-STYLE
; JUPYTER/WIDGETS:MAKE-TEXT-AREA
; JUPYTER/WIDGETS:MAKE-TOGGLE-BUTTON-STYLE
; JUPYTER/WIDGETS:MAKE-OUTPUT
; JUPYTER/WIDGETS:MAKE-V-BOX
; JUPYTER/WIDGETS:MAKE-SLIDER-STYLE
; JUPYTER/WIDGETS:MAKE-SIDECAR
; JUPYTER/WIDGETS:MAKE-FLOAT-SLIDER
; JUPYTER/WIDGETS:MAKE-TOGGLE-BUTTONS
; JUPYTER/WIDGETS:MAKE-INT-TEXT
; JUPYTER/WIDGETS:MAKE-VALID
; JUPYTER/WIDGETS:MAKE-HTML-MATH-STYLE
; JUPYTER/WIDGETS:MAKE-DROPDOWN
; JUPYTER/WIDGETS:MAKE-TOGGLE-BUTTON
; JUPYTER/WIDGETS:MAKE-FLOAT-PROGRESS
; JUPYTER/WIDGETS:MAKE-TEXT
; JUPYTER/WIDGETS:MAKE-PASSWORD
; JUPYTER/WIDGETS:MAKE-DIRECTIONAL-LINK
; JUPYTER/WIDGETS:MAKE-TOGGLE-BUTTONS-STYLE
; JUPYTER/WIDGETS:MAKE-INT-PROGRESS
; JUPYTER/WIDGETS:MAKE-PLAY
; JUPYTER/WIDGETS:MAKE-LABEL
; JUPYTER/WIDGETS:MAKE-LABEL-STYLE
; JUPYTER/WIDGETS:MAKE-COMBOBOX
; JUPYTER/WIDGETS:MAKE-FLOAT-TEXT
; JUPYTER/WIDGETS:MAKE-COLOR-PICKER
; JUPYTER/WIDGETS:MAKE-HTML-STYLE
; JUPYTER/WIDGETS:MAKE-BUTTON-STYLE
; JUPYTER/WIDGETS:MAKE-TAB
; JUPYTER/WIDGETS:MAKE-SELECT
; JUPYTER/WIDGETS:MAKE-LAYOUT
; JUPYTER/WIDGETS:MAKE-BOX
; JUPYTER/WIDGETS:MAKE-FLOAT-LOG-SLIDER
; JUPYTER/WIDGETS:MAKE-FILE-UPLOAD
; JUPYTER/WIDGETS:MAKE-SELECTION-SLIDER
; JUPYTER/WIDGETS:MAKE-VIDEO
; JUPYTER/WIDGETS:MAKE-BUTTON
; JUPYTER/WIDGETS:MAKE-HTML-MATH
; JUPYTER/WIDGETS:MAKE-TEXT-STYLE
; JUPYTER/WIDGETS:MAKE-SELECTION-RANGE-SLIDER
; JUPYTER/WIDGETS:MAKE-H-BOX
; JUPYTER/WIDGETS:MAKE-INT-RANGE-SLIDER)
; See also:
; The ANSI Standard, Macro DEFPACKAGE
; The SBCL Manual, Variable SB-EXT:*ON-PACKAGE-VARIANCE*
; wrote /Users/tamurashingo/.cache/common-lisp/sbcl-2.4.9.roswell-macosx-arm64/Users/tamurashingo/.roswell/lisp/quicklisp/dists/quicklisp/software/common-lisp-jupyter-20241012-git/src/packages-tmpULDB0RG.fasl
; compilation finished in 0:00:00.003
;
; compilation unit aborted
; caught 1 fatal ERROR condition
; caught 1 WARNING condition
Creating directories.
Installing kernel spec file /Users/tamurashingo/Library/Jupyter/kernels/common-lisp/kernel.json
Installing kernel resources to /Users/tamurashingo/Library/Jupyter/kernels/common-lisp/.
[2/3] Processing build-hook..
[3/3] Attempting to install the scripts in roswell/ subdirectory of the system...
Found 2 scripts: cl-jupyter lisp-to-nb
/Users/tamurashingo/.roswell/bin/cl-jupyter
/Users/tamurashingo/.roswell/bin/lisp-to-nb
コンパイル時に警告が出ていますが、未使用変数があるという警告なので問題ありません。
また、ライブラリ側ですが、なぜか /opt/homebrew/lib を見ているようなのでこちらは何も設定しなくて問題ありませんでした。
(defun darwin-fallback-library-path ()
(or (explode-path-environment-variable "DYLD_FALLBACK_LIBRARY_PATH")
(list (merge-pathnames #p"lib/" (user-homedir-pathname))
#+arm64 #p"/opt/homebrew/lib/"
#p"/opt/local/lib/"
#p"/usr/local/lib/"
#p"/usr/lib/")))
