Unityで後ろのMeshが映り込む場合の対処法: DepthWrite

Posted at

Phoenix bird というFBXをUnityで扱う際に,後ろのMeshが映り込む現象があったのでその対処法です.

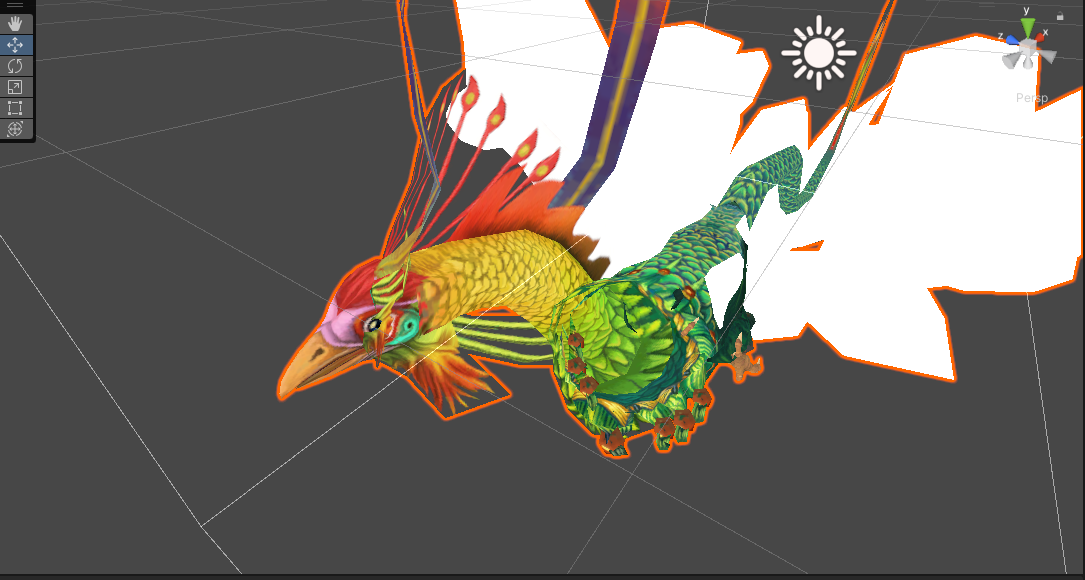

適用前

Depth Write OFF & Alpha Clipping OFF



なぜ後ろのMeshが映り込むのか?

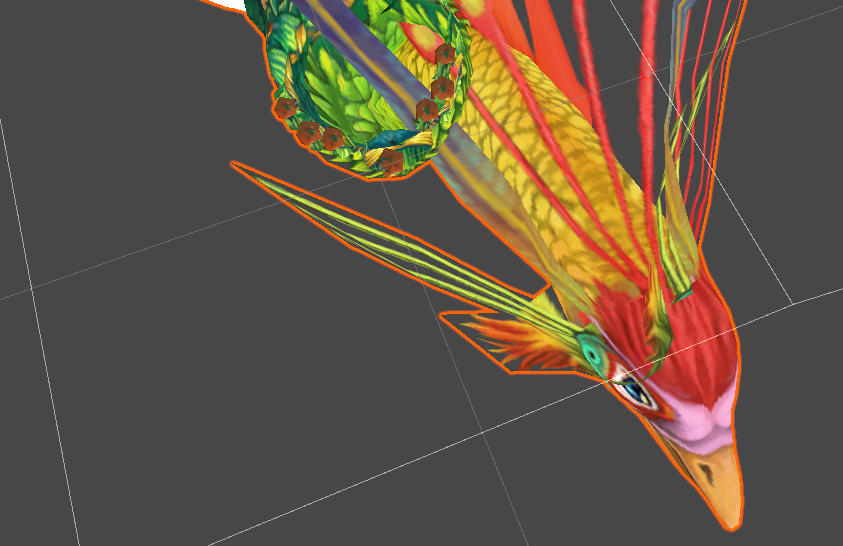

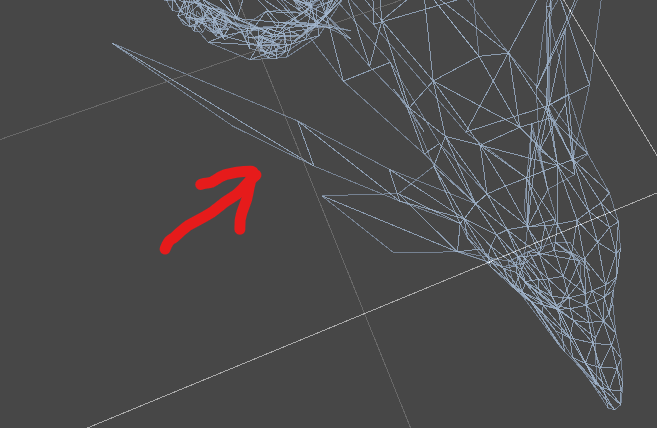

羽のような薄いパーツのある3Dモデルの場合,Meshを節約するために,Planeオブジェクトのように厚みのない2D的なMeshにテクスチャを張るという手法がよくつかわれます.

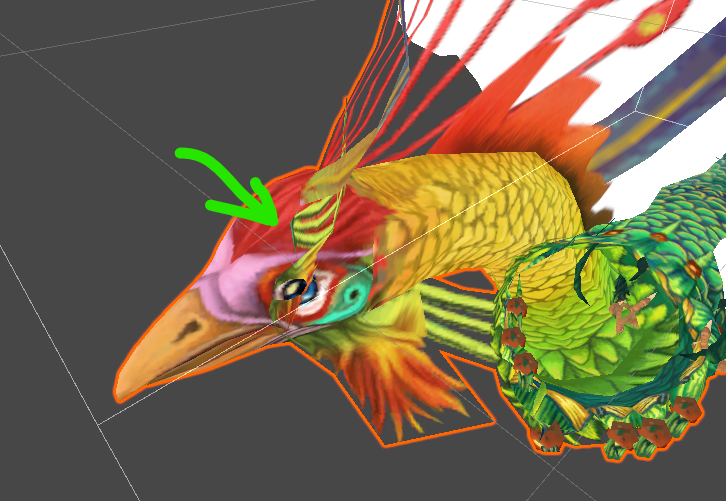

こういった場合に,描画の仕組み上,前面のMeshと後ろの 厚みのない2D的なMesh が前に出てくる場合があります.

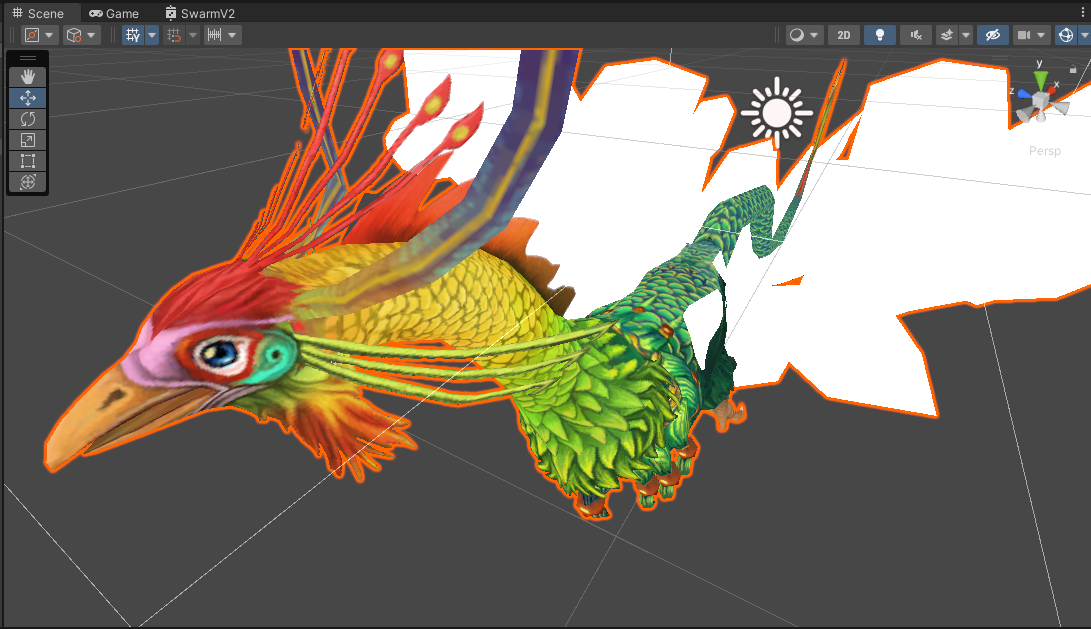

適用後

この対処法として,Depth Write(カメラからの深度を使う)をオンにすると,この問題が解消されます.

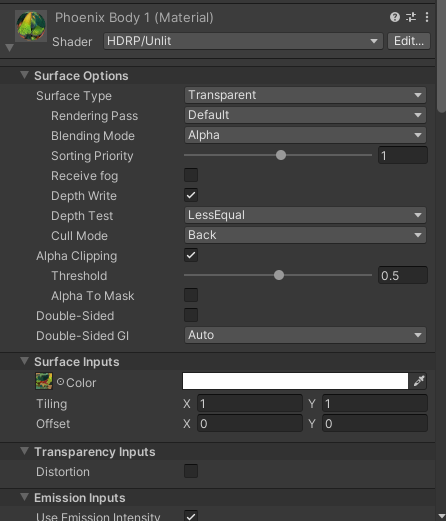

Depth Write ON & Alpha Clipping ON
