@suo-takefumi

JSONデータからAWS構成図を作図するスクリプト

はじめに

AWS構成図の作図や図の更新作業をサクッとできないかと模索してます。模索第1弾としてJSONデータからAWS構成図を作図するスクリプトを作りました。

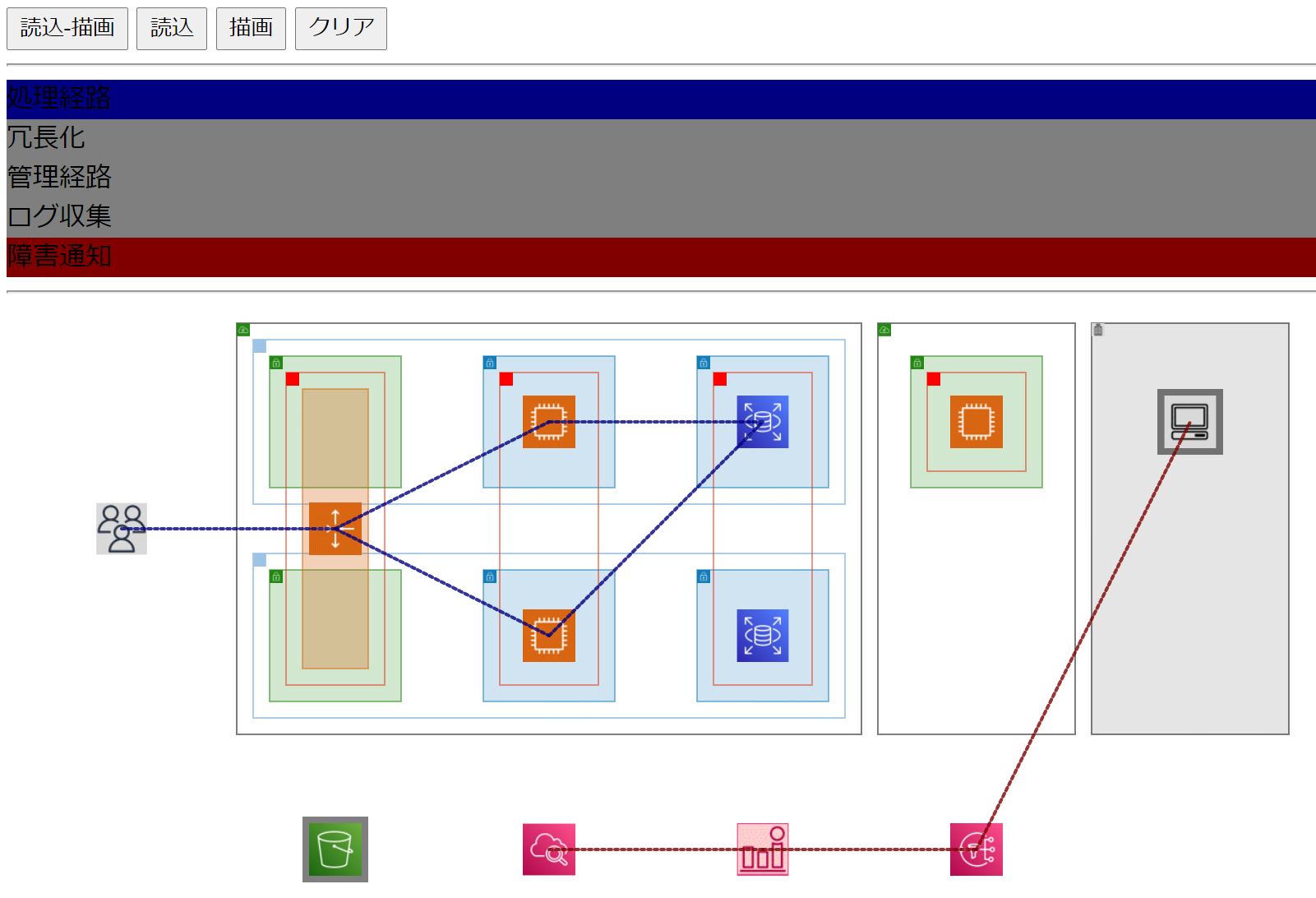

作ったスクリプトの動作はこんな感じ。通信経路の表示/非表示も簡単に切り替えできます。

参考情報

今回は、以前作成した記事のコードをベースにスクリプトを作成しました。

スクリプトソース

作成したスクリプトは以下のgithubに格納しました。ソースをダウンロードし、AwsDiagram.htmlを実行するとサンプルが動きます。WEBサーバは不要です。

Handling_JSON_with_no_web_server_HTML-JavaScript-

仕組み

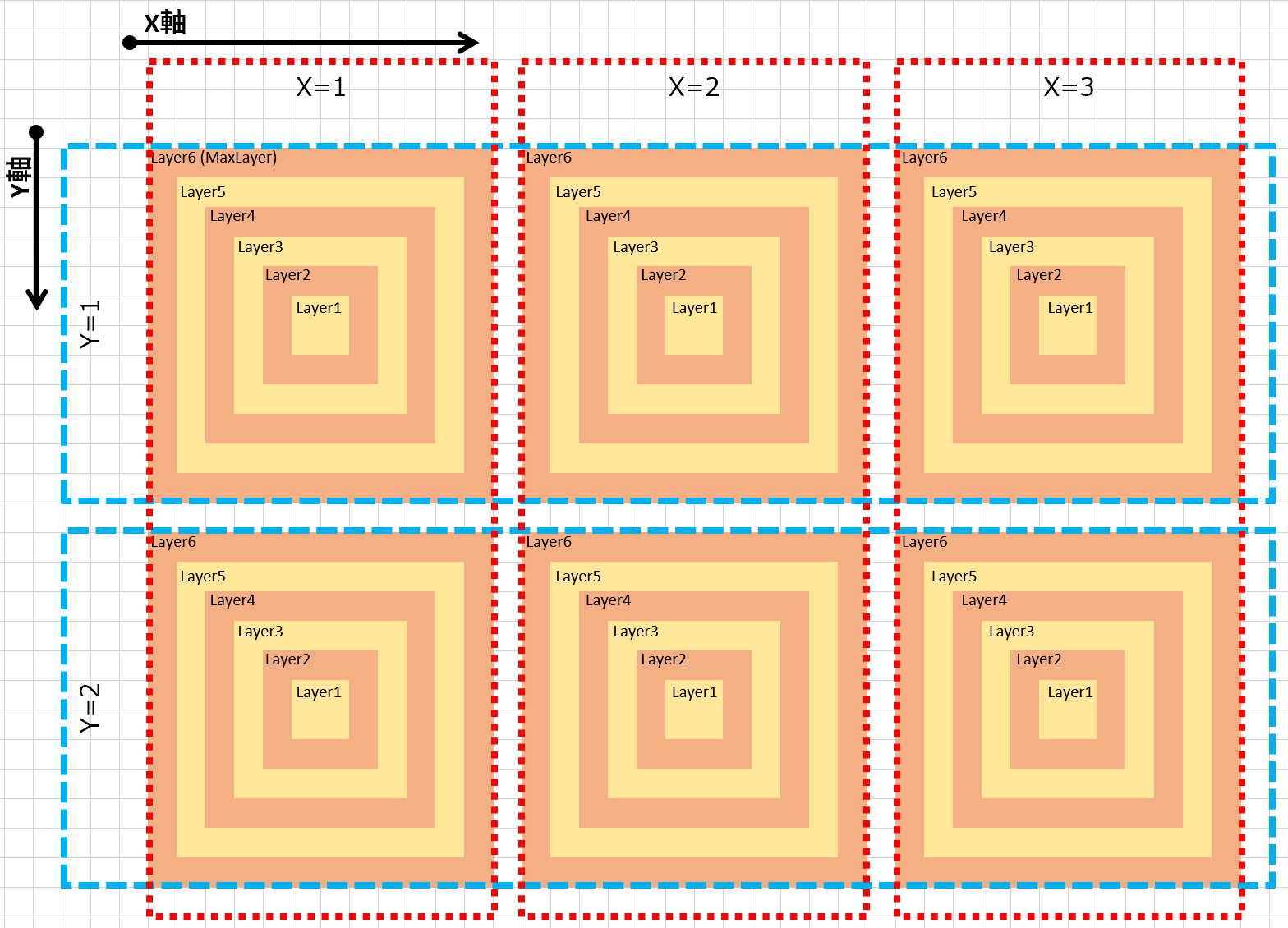

以下の図のように、X軸とY軸で座標があって、各座標にはレイヤーがあります。この座標とレイヤーを指定して図形を描画します。


描画する図は、座標とレイヤーを指定することで描画する場所が指定されます。それらを設定するのが設定するのがlink.json.jsになります。link.json.jsを更新すれば作図内容を変更できます。

link.json.jsの作図例としてサンプル(1)~(5)を紹介します。

サンプル(1)EC2アイコンを4つ配置する

基本的なルールだけで描画したサンプル、EC2アイコンを4つ配置します。

link.json.jsです。

link.json_01.js
let list = [
  {
    "OBJECT": "NONE",
      "TYPE": "INIT",
      "MaxLayer": 6,
      "BaseWidth": 2,
      "CellWidth": 20,
      "EC2" : ["ec2.png","none","0.3","none","CENTER"],
  },
  {"OBJECT": "EC2-11","TYPE": "FIG","SET": "EC2","LAYER": 1,"TopX": "1","TopY": "1","BtmX": "1","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-12","TYPE": "FIG","SET": "EC2","LAYER": 1,"TopX": "1","TopY": "2","BtmX": "1","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-21","TYPE": "FIG","SET": "EC2","LAYER": 1,"TopX": "2","TopY": "1","BtmX": "2","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-22","TYPE": "FIG","SET": "EC2","LAYER": 1,"TopX": "2","TopY": "2","BtmX": "2","BtmY": "2","Width" : 0,"Height": 0,},
];

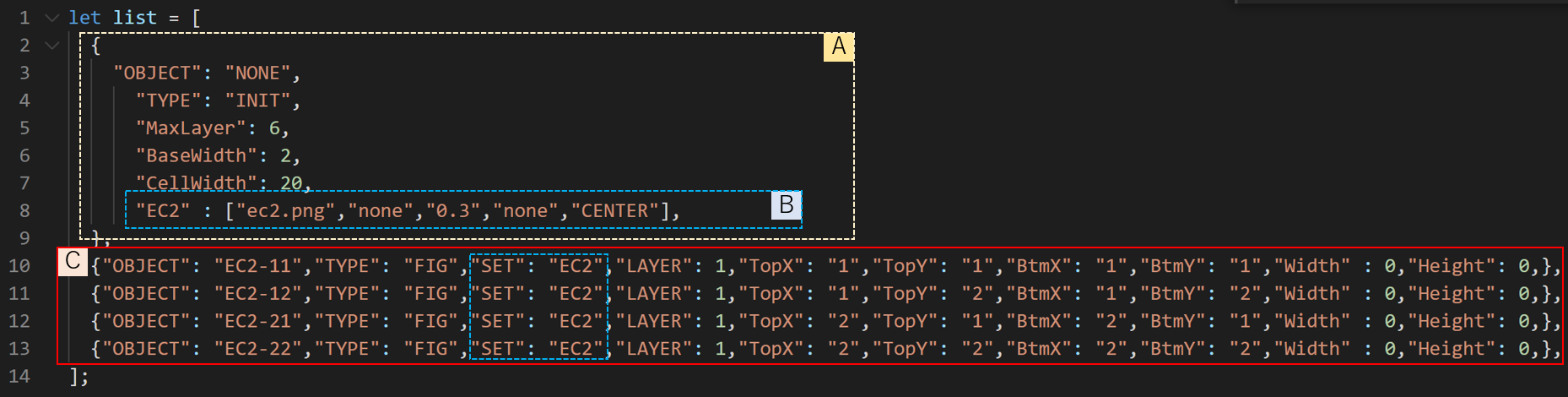

link.json.jsの基本は、以下の A, B, C の3つです。


Aについて

"OBJECT": "NONE" があるデータ部は、全体の定義を設定します。ここに、レイヤーの最大数やEC2アイコンの描画規則などを設定します。

変数名 説明
OBJECT NONE を設定すると、全体の定義を設定
TYPE INIT を記載します
MaxLayer レイヤーの最大数を設定
BaseWidth 描画する図形の基本サイズ
CellWidth 描画する図形の基本サイズ
EC2 EC2アイコンの描画規則

Bについて

EC2アイコンを描画する規則を設定しています。

意味
ec2.png 描画する画像データ
none 面の色 none は色なし
0.3 面の色の透明度
none 線の色 none は色なし
CENTER 描画する画像データの配置場所。
選択肢は、HEAD,CENTER の2つ

Cについて

配置するアイコンの位置、レイヤー、描画規則を設定します。

変数名 説明
OBJECT データ名
TYPE データのタイプを指定。FIG は図形の意味
SET "OBJECT": "NONE"で定義した定義の名前。
LAYER 描画するレイヤーを指定
TopX 描画する図形の左上のX座標
TopY 描画する図形の左上のY座標
BtmX 描画する図形の右下のX座標
BtmY 描画する図形の右下のY座標
Width 固定値 0 を設定(スクリプトが、実行時に適切な値に更新)
Height 固定値 0 を設定(スクリプトが、実行時に適切な値に更新)

指定するレイヤーを変更すると、描画するサイズも変わる。先ほどのjsonでLAYER値を変更した場合、このようになります。

link.json_01-2.js
let list = [
  {
    "OBJECT": "NONE",
      "TYPE": "INIT",
      "MaxLayer": 6,
      "BaseWidth": 2,
      "CellWidth": 20,
      "EC2" : ["ec2.png","none","0.3","none","CENTER"],
  },
  {"OBJECT": "EC2-11","TYPE": "FIG","SET": "EC2","LAYER": 1,"TopX": "1","TopY": "1","BtmX": "1","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-12","TYPE": "FIG","SET": "EC2","LAYER": 2,"TopX": "1","TopY": "2","BtmX": "1","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-21","TYPE": "FIG","SET": "EC2","LAYER": 3,"TopX": "2","TopY": "1","BtmX": "2","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-22","TYPE": "FIG","SET": "EC2","LAYER": 4,"TopX": "2","TopY": "2","BtmX": "2","BtmY": "2","Width" : 0,"Height": 0,},
];

サンプル(2)Web3層のネットワーク図

Web3層のAWSネットワーク図のサンプルです。

link.json_02.js
let list = [
  {
    "OBJECT": "NONE",
      "TYPE": "INIT",
      "MaxLayer": 6,
      "BaseWidth": 2,
      "CellWidth": 20,
      "VPC" : ["vpc.png",           "none"   ,"0.0","#000000","HEAD"],
      "AZ"  : ["az.png",            "none"   ,"0.0","#5b9cd5","HEAD"],
      "PUB" : ["subnet-public.png", "#1f860f","0.2","#1f860f","HEAD"],
      "PRI" : ["subnet-private.png","#147eba","0.2","#147eba","HEAD"],
  },
  {"OBJECT": "VPC-1", "TYPE": "FIG", "SET": "VPC","LAYER": 5,"TopX": "2","TopY": "1","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "AZ-1",  "TYPE": "FIG", "SET": "AZ","LAYER": 4,"TopX": "2","TopY": "1","BtmX": "4","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "AZ-2",  "TYPE": "FIG", "SET": "AZ","LAYER": 4,"TopX": "2","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-01","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "2","TopY": "1","BtmX": "2","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-02","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "2","TopY": "2","BtmX": "2","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-11","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "3","TopY": "1","BtmX": "3","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-12","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "3","TopY": "2","BtmX": "3","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-21","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "4","TopY": "1","BtmX": "4","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-22","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "4","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
];

長方形は、TopX,TopYとBtmX,BtmYの値によって設定します。長方形はVPCやAZなどの描画に使用できます。


サンプル(3) 線を描画する

AWS構成図にデータの通信経路を描画する方法です。通信経路は描画のON/OFFを切り替えできます。

ライン(1)を描画した場合

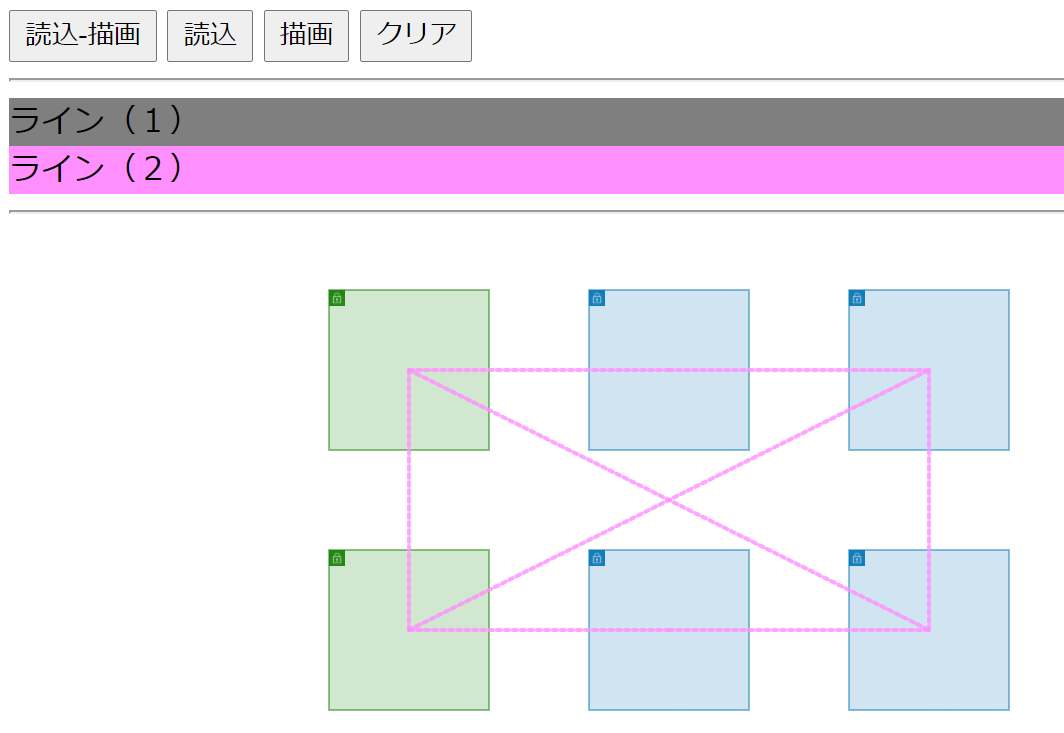

ライン(2)を描画した場合

JSONデータはこちら

link.json_03.js
let list = [
  {
    "OBJECT": "NONE",
      "TYPE": "INIT",
      "MaxLayer": 6,
      "BaseWidth": 2,
      "CellWidth": 20,
      "VPC" : ["vpc.png",           "none"   ,"0.0","#000000","HEAD"],
      "AZ"  : ["az.png",            "none"   ,"0.0","#5b9cd5","HEAD"],
      "PUB" : ["subnet-public.png", "#1f860f","0.2","#1f860f","HEAD"],
      "PRI" : ["subnet-private.png","#147eba","0.2","#147eba","HEAD"],
  },
  {"OBJECT": "Subnet-01","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "2","TopY": "1","BtmX": "2","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-02","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "2","TopY": "2","BtmX": "2","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-11","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "3","TopY": "1","BtmX": "3","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-12","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "3","TopY": "2","BtmX": "3","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-21","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "4","TopY": "1","BtmX": "4","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-22","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "4","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
  {"TYPE": "LINE","OBJECT": "LINE-01","LINE": ["Subnet-01","Subnet-11","Subnet-21"],},
  {"TYPE": "LINE","OBJECT": "LINE-02","LINE": ["Subnet-01","Subnet-11","Subnet-21","Subnet-22","Subnet-12","Subnet-02","Subnet-01"],},
  {"TYPE": "LINE","OBJECT": "LINE-03","LINE": ["Subnet-01","Subnet-22"],},
  {"TYPE": "LINE","OBJECT": "LINE-04","LINE": ["Subnet-02","Subnet-21"],},
  {"TYPE": "LINE-GRP","LAVEL": "ライン(1)","STROKE": "#000080","LINES": ["LINE-01"],},
  {"TYPE": "LINE-GRP","LAVEL": "ライン(2)","STROKE": "#FF8FFF","LINES": ["LINE-02","LINE-03","LINE-04"],},
];

線の描画は、"TYPE": "LINE""TYPE": "LINE-GRP" の2つのデータを用意します。
"TYPE": "LINE"は、変数 OBJECT に名前を設定し、変数 LINE に線を引くOBJECT名を指定します。以下は、OBJECT "Subnet-01","Subnet-11","Subnet-21" の順に線を引く設定です。

{"TYPE": "LINE","OBJECT": "LINE-01","LINE": ["Subnet-01","Subnet-11","Subnet-21"],}

"TYPE": "LINE-GRP"は以下のように、変数 LINES に LINE名 を指定します。STROKE は線の色を指定します。

{"TYPE": "LINE-GRP","LAVEL": "ライン(1)","STROKE": "#000080","LINES": ["LINE-01"],}

サンプル(4)それっぽいAWS構成図

Web3層に、ログ収集、オンプレ環境の端末からのアクセス、エンドユーザーからの通信経路などを盛り込んだ構成図を描いてみました。


jsonデータはちょっと長いですが、やっていることはこれまで紹介したことと同じです。

link.json_04.js
let list = [
  {
    "OBJECT": "NONE",
      "TYPE": "INIT",
      "MaxLayer": 6,
      "BaseWidth": 2,
      "CellWidth": 20,
      "OFFICE" : ["office.png",     "#000000","0.1","#000000","HEAD"],
      "VPC" : ["vpc.png",           "none"   ,"0.0","#000000","HEAD"],
      "AZ"  : ["az.png",            "none"   ,"0.0","#5b9cd5","HEAD"],
      "PUB" : ["subnet-public.png", "#1f860f","0.2","#1f860f","HEAD"],
      "PRI" : ["subnet-private.png","#147eba","0.2","#147eba","HEAD"],
      "ALB" : ["alb.png",           "#d86613","0.3","#d86613","CENTER"],
      "SG"  : ["sg.png",            "none"   ,"0.0","#df3312","HEAD"],
      "EC2" : ["ec2.png",           "none"   ,"0.3","none","CENTER"],
      "CW" : ["cw.png",           "none"   ,"0.3","none","CENTER"],
      "SNS" : ["sns.png",           "none"   ,"0.3","none","CENTER"],
      "S3"  : ["s3.png",           "#000000" ,"0.5","none","CENTER"],
      "RDS" : ["rds.png",           "none"   ,"0.3","none","CENTER"],
      "USERS":["users.png",         "none"   ,"0.3","none","CENTER"],
      "PC":["pc.png",               "#000000","0.5","none","CENTER"],
      "ALARM":["alarm.png",         "none","0.5","none","CENTER"],
  },

  {"OBJECT": "USERS","TYPE": "FIG",    "SET": "USERS","LAYER": 1,"TopX": "1","TopY": "1","BtmX": "1","BtmY": "2","Width" : 0,"Height": 0,},

  {"OBJECT": "VPC-1", "TYPE": "FIG", "SET": "VPC","LAYER": 5,"TopX": "2","TopY": "1","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "AZ-1",  "TYPE": "FIG", "SET": "AZ","LAYER": 4,"TopX": "2","TopY": "1","BtmX": "4","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "AZ-2",  "TYPE": "FIG", "SET": "AZ","LAYER": 4,"TopX": "2","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},

  {"OBJECT": "Subnet-01","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "2","TopY": "1","BtmX": "2","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-02","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "2","TopY": "2","BtmX": "2","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-11","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "3","TopY": "1","BtmX": "3","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-12","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "3","TopY": "2","BtmX": "3","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-21","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "4","TopY": "1","BtmX": "4","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-22","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "4","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},

  {"OBJECT": "ALB-01","TYPE": "FIG",    "SET": "ALB","LAYER": 1,"TopX": "2","TopY": "1","BtmX": "2","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "SG-01","TYPE": "FIG",     "SET": "SG","LAYER": 2,"TopX": "2","TopY": "1","BtmX": "2","BtmY": "2","Width" : 0,"Height": 0,},

  {"OBJECT": "S3-01","TYPE": "FIG",    "SET": "S3","LAYER": 1,"TopX": "2","TopY": "3","BtmX": "2","BtmY": "3","Width" : 0,"Height": 0,},



  {"OBJECT": "EC2-11","TYPE": "FIG",    "SET": "EC2","LAYER": 1,"TopX": "3","TopY": "1","BtmX": "3","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-12","TYPE": "FIG",    "SET": "EC2","LAYER": 1,"TopX": "3","TopY": "2","BtmX": "3","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "SG-11","TYPE": "FIG",     "SET": "SG","LAYER": 2,"TopX": "3","TopY": "1","BtmX": "3","BtmY": "2","Width" : 0,"Height": 0,},

  {"OBJECT": "CW-11","TYPE": "FIG",    "SET": "CW","LAYER": 1,"TopX": "3","TopY": "3","BtmX": "3","BtmY": "3","Width" : 0,"Height": 0,},


  {"OBJECT": "RDS-21","TYPE": "FIG", "SET": "RDS","LAYER": 1,"TopX": "4","TopY": "1","BtmX": "4","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "RDS-22","TYPE": "FIG", "SET": "RDS","LAYER": 1,"TopX": "4","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "SG-21", "TYPE": "FIG", "SET": "SG","LAYER": 2,"TopX": "4","TopY": "1","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},

  {"OBJECT": "ALARM-01","TYPE": "FIG",    "SET": "ALARM","LAYER": 1,"TopX": "4","TopY": "3","BtmX": "4","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "SNS-01","TYPE": "FIG",    "SET": "SNS","LAYER": 1,"TopX": "5","TopY": "3","BtmX": "5","BtmY": "3","Width" : 0,"Height": 0,},


  {"OBJECT": "VPC-2", "TYPE": "FIG", "SET": "VPC","LAYER": 5,"TopX": "5","TopY": "1","BtmX": "5","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-31","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "5","TopY": "1","BtmX": "5","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-31","TYPE": "FIG",    "SET": "EC2","LAYER": 1,"TopX": "5","TopY": "1","BtmX": "5","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "SG-31","TYPE": "FIG",     "SET": "SG","LAYER": 2,"TopX": "5","TopY": "1","BtmX": "5","BtmY": "1","Width" : 0,"Height": 0,},

  {"OBJECT": "OFFICE","TYPE": "FIG", "SET": "OFFICE","LAYER": 5,"TopX": "6","TopY": "1","BtmX": "6","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "PC-01","TYPE": "FIG",  "SET": "PC","LAYER": 1,"TopX": "6","TopY": "1","BtmX": "6","BtmY": "1","Width" : 0,"Height": 0,},


  {"TYPE": "LINE","OBJECT": "LINE-A1","LINE": ["ALB-01","EC2-11","RDS-21"],},
  {"TYPE": "LINE","OBJECT": "LINE-A2","LINE": ["ALB-01","EC2-12","RDS-21"],},
  {"TYPE": "LINE","OBJECT": "LINE-B1","LINE": ["RDS-21","RDS-22"],},
  {"TYPE": "LINE","OBJECT": "LINE-A0","LINE": ["USERS","ALB-01"],},

  {"TYPE": "LINE","OBJECT": "LINE-M0","LINE": ["PC-01","EC2-31","RDS-21"],},
  {"TYPE": "LINE","OBJECT": "LINE-M1","LINE": ["EC2-31","RDS-22"],},
  {"TYPE": "LINE","OBJECT": "LINE-M2","LINE": ["EC2-31","EC2-11"],},
  {"TYPE": "LINE","OBJECT": "LINE-M3","LINE": ["EC2-31","EC2-12"],},

  {"TYPE": "LINE","OBJECT": "LOG-01","LINE": ["ALB-01","S3-01"],},
  {"TYPE": "LINE","OBJECT": "LOG-02","LINE": ["EC2-11","CW-11","S3-01"],},
  {"TYPE": "LINE","OBJECT": "LOG-03","LINE": ["EC2-12","CW-11"],},
  {"TYPE": "LINE","OBJECT": "LOG-04","LINE": ["RDS-21","CW-11"],},
  {"TYPE": "LINE","OBJECT": "ALARM-01","LINE": ["CW-11","ALARM-01","SNS-01","PC-01"],},


  {"TYPE": "LINE-GRP","LAVEL": "処理経路","STROKE": "#000080","LINES": ["LINE-A0","LINE-A1","LINE-A2"],},
  {"TYPE": "LINE-GRP","LAVEL": "冗長化","STROKE": "#800000","LINES": ["LINE-B1"],},
  {"TYPE": "LINE-GRP","LAVEL": "管理経路","STROKE": "#800000","LINES": ["LINE-M0","LINE-M1","LINE-M2","LINE-M3"],},
  {"TYPE": "LINE-GRP","LAVEL": "ログ収集","STROKE": "#800000","LINES": ["LOG-01","LOG-02","LOG-03","LOG-04"],},
  {"TYPE": "LINE-GRP","LAVEL": "障害通知","STROKE": "#800000","LINES": ["ALARM-01"],},

];

サンプル(5)少し複雑なAWS構成図

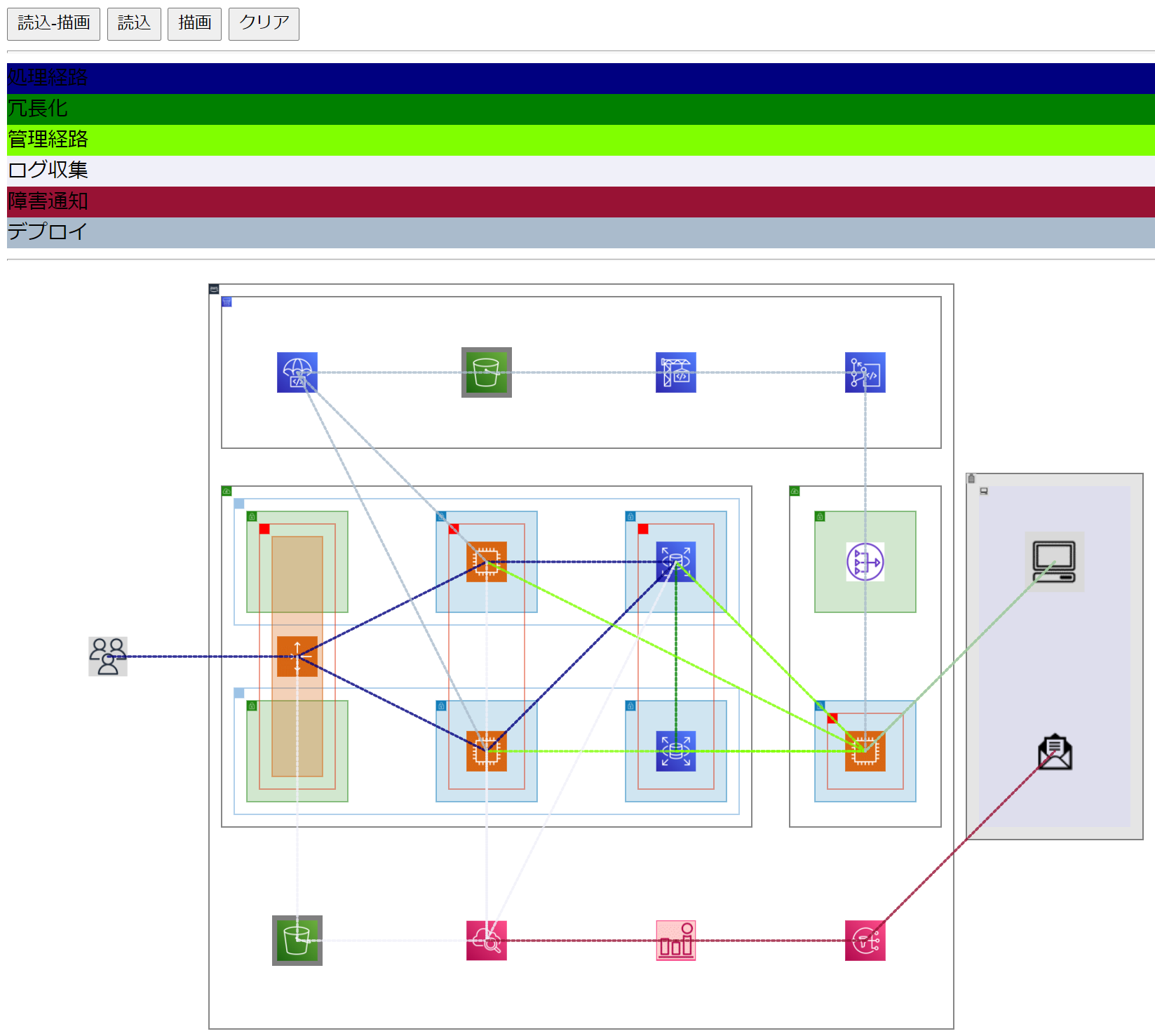

少し複雑なAWS構成図です。以下の図は通信経路(破線)をすべて表示しています(通信経路(破線)の表示/非表示は切り替え可)。


jsonデータは少し長くなりましたが、これまでのサンプルと同じ規則なので"複雑さ"は変わってないです。

link.json_05.js
let list = [
  {
    "OBJECT": "NONE",
      "TYPE": "INIT",
      "MaxLayer": 7,
      "BaseWidth": 2,
      "CellWidth": 20,
      "OFFICE" : ["office.png",     "#000000","0.1","#000000","HEAD"],
      "AWS" : ["aws.png",           "none"   ,"0.0","#000000","HEAD"],
      "VPC" : ["vpc.png",           "none"   ,"0.0","#000000","HEAD"],
      "AZ"  : ["az.png",            "none"   ,"0.0","#5b9cd5","HEAD"],
      "PUB" : ["subnet-public.png", "#1f860f","0.2","#1f860f","HEAD"],
      "PRI" : ["subnet-private.png","#147eba","0.2","#147eba","HEAD"],
      "ALB" : ["alb.png",           "#d86613","0.3","#d86613","CENTER"],
      "SG"  : ["sg.png",            "none"   ,"0.0","#df3312","HEAD"],
      "NATGW": ["natgw.png",         "none"   ,"0.0","none","CENTER"],
      "EC2" : ["ec2.png",           "none"   ,"0.3","none","CENTER"],
      "CW" : ["cw.png",           "none"   ,"0.3","none","CENTER"],
      "SNS" : ["sns.png",           "none"   ,"0.3","none","CENTER"],
      "S3"  : ["s3.png",           "#000000" ,"0.5","none","CENTER"],
      "RDS" : ["rds.png",           "none"   ,"0.3","none","CENTER"],
      "USERS":["users.png",         "none"   ,"0.3","none","CENTER"],
      "PC1":["pc.png",               "#CCCCFF","0.3","none","HEAD"],
      "PC2":["pc.png",               "none","0.0","none","CENTER"],
      "ALARM":["alarm.png",         "none","0.0","none","CENTER"],
      "MAIL":["mail.png",         "none","0.0","none","CENTER"],

      "CPIPE":["cpipeline.png",         "none","0.0","#000000","HEAD"],
      "CCOM":["ccommit.png",         "none","0.0","none","CENTER"],
      "CBLD":["cbuild.png",         "none","0.0","none","CENTER"],
      "CDEP":["cdeploy.png",         "none","0.0","none","CENTER"],
  },

  {"OBJECT": "USERS","TYPE": "FIG",  "SET": "USERS","LAYER": 1,"TopX": "1","TopY": "2","BtmX": "1","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "AWS-1", "TYPE": "FIG", "SET": "AWS","LAYER": 6,"TopX": "2","TopY": "1","BtmX": "5","BtmY": "4","Width" : 0,"Height": 0,},

  {"OBJECT": "VPC-1", "TYPE": "FIG", "SET": "VPC","LAYER": 5,"TopX": "2","TopY": "2","BtmX": "4","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "AZ-1",  "TYPE": "FIG", "SET": "AZ","LAYER": 4,"TopX": "2","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "AZ-2",  "TYPE": "FIG", "SET": "AZ","LAYER": 4,"TopX": "2","TopY": "3","BtmX": "4","BtmY": "3","Width" : 0,"Height": 0,},

  {"OBJECT": "Subnet-01","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "2","TopY": "2","BtmX": "2","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-02","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "2","TopY": "3","BtmX": "2","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-11","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "3","TopY": "2","BtmX": "3","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-12","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "3","TopY": "3","BtmX": "3","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-21","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "4","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-22","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "4","TopY": "3","BtmX": "4","BtmY": "3","Width" : 0,"Height": 0,},

  {"OBJECT": "ALB-01","TYPE": "FIG",    "SET": "ALB","LAYER": 1,"TopX": "2","TopY": "2","BtmX": "2","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "SG-01","TYPE": "FIG",     "SET": "SG","LAYER": 2,"TopX": "2","TopY": "2","BtmX": "2","BtmY": "3","Width" : 0,"Height": 0,},

  {"OBJECT": "S3-01","TYPE": "FIG",    "SET": "S3","LAYER": 1,"TopX": "2","TopY": "4","BtmX": "2","BtmY": "4","Width" : 0,"Height": 0,},

  {"OBJECT": "EC2-11","TYPE": "FIG",    "SET": "EC2","LAYER": 1,"TopX": "3","TopY": "2","BtmX": "3","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-12","TYPE": "FIG",    "SET": "EC2","LAYER": 1,"TopX": "3","TopY": "3","BtmX": "3","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "SG-11","TYPE": "FIG",     "SET": "SG","LAYER": 2,"TopX": "3","TopY": "2","BtmX": "3","BtmY": "3","Width" : 0,"Height": 0,},

  {"OBJECT": "CW-11","TYPE": "FIG",    "SET": "CW","LAYER": 1,"TopX": "3","TopY": "4","BtmX": "3","BtmY": "4","Width" : 0,"Height": 0,},


  {"OBJECT": "RDS-21","TYPE": "FIG", "SET": "RDS","LAYER": 1,"TopX": "4","TopY": "2","BtmX": "4","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "RDS-22","TYPE": "FIG", "SET": "RDS","LAYER": 1,"TopX": "4","TopY": "3","BtmX": "4","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "SG-21", "TYPE": "FIG", "SET": "SG","LAYER": 2,"TopX": "4","TopY": "2","BtmX": "4","BtmY": "3","Width" : 0,"Height": 0,},

  {"OBJECT": "ALARM-01","TYPE": "FIG",    "SET": "ALARM","LAYER": 1,"TopX": "4","TopY": "4","BtmX": "4","BtmY": "4","Width" : 0,"Height": 0,},
  {"OBJECT": "SNS-01","TYPE": "FIG",    "SET": "SNS","LAYER": 1,"TopX": "5","TopY": "4","BtmX": "5","BtmY": "4","Width" : 0,"Height": 0,},


  {"OBJECT": "VPC-2", "TYPE": "FIG", "SET": "VPC","LAYER": 5,"TopX": "5","TopY": "2","BtmX": "5","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-31","TYPE": "FIG", "SET": "PUB","LAYER": 3,"TopX": "5","TopY": "2","BtmX": "5","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "Subnet-32","TYPE": "FIG", "SET": "PRI","LAYER": 3,"TopX": "5","TopY": "3","BtmX": "5","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "NATGW-01","TYPE": "FIG",  "SET": "NATGW","LAYER": 1,"TopX": "5","TopY": "2","BtmX": "5","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "EC2-31","TYPE": "FIG",    "SET": "EC2","LAYER": 1,"TopX": "5","TopY": "3","BtmX": "5","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "SG-31","TYPE": "FIG",     "SET": "SG","LAYER": 2,"TopX": "5","TopY": "3","BtmX": "5","BtmY": "3","Width" : 0,"Height": 0,},

  {"OBJECT": "OFFICE","TYPE": "FIG", "SET": "OFFICE","LAYER": 6,"TopX": "6","TopY": "2","BtmX": "6","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "PC-01","TYPE": "FIG",  "SET": "PC1","LAYER": 5,"TopX": "6","TopY": "2","BtmX": "6","BtmY": "3","Width" : 0,"Height": 0,},
  {"OBJECT": "PC-02","TYPE": "FIG",  "SET": "PC2","LAYER": 2,"TopX": "6","TopY": "2","BtmX": "6","BtmY": "2","Width" : 0,"Height": 0,},
  {"OBJECT": "ML-01","TYPE": "FIG",  "SET": "MAIL","LAYER": 1,"TopX": "6","TopY": "3","BtmX": "6","BtmY": "3","Width" : 0,"Height": 0,},



  {"OBJECT": "CP-01","TYPE": "FIG",    "SET": "CPIPE","LAYER": 5,"TopX": "2","TopY": "1","BtmX": "5","BtmY": "1","Width" : 0,"Height": 0,},

  {"OBJECT": "CD-01","TYPE": "FIG",    "SET": "CDEP","LAYER": 1,"TopX": "2","TopY": "1","BtmX": "2","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "S3-02","TYPE": "FIG",    "SET": "S3","LAYER": 1,"TopX": "3","TopY": "1","BtmX": "3","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "CB-01","TYPE": "FIG",    "SET": "CBLD","LAYER": 1,"TopX": "4","TopY": "1","BtmX": "4","BtmY": "1","Width" : 0,"Height": 0,},
  {"OBJECT": "CM-01","TYPE": "FIG",    "SET": "CCOM","LAYER": 1,"TopX": "5","TopY": "1","BtmX": "5","BtmY": "1","Width" : 0,"Height": 0,},




  {"TYPE": "LINE","OBJECT": "LINE-A1","LINE": ["ALB-01","EC2-11","RDS-21"],},
  {"TYPE": "LINE","OBJECT": "LINE-A2","LINE": ["ALB-01","EC2-12","RDS-21"],},
  {"TYPE": "LINE","OBJECT": "LINE-B1","LINE": ["RDS-21","RDS-22"],},
  {"TYPE": "LINE","OBJECT": "LINE-A0","LINE": ["USERS","ALB-01"],},

  {"TYPE": "LINE","OBJECT": "LINE-M0","LINE": ["PC-02","EC2-31","RDS-21"],},
  {"TYPE": "LINE","OBJECT": "LINE-M1","LINE": ["EC2-31","RDS-22"],},
  {"TYPE": "LINE","OBJECT": "LINE-M2","LINE": ["EC2-31","EC2-11"],},
  {"TYPE": "LINE","OBJECT": "LINE-M3","LINE": ["EC2-31","EC2-12"],},

  {"TYPE": "LINE","OBJECT": "LOG-01","LINE": ["ALB-01","S3-01"],},
  {"TYPE": "LINE","OBJECT": "LOG-02","LINE": ["EC2-11","CW-11","S3-01"],},
  {"TYPE": "LINE","OBJECT": "LOG-03","LINE": ["EC2-12","CW-11"],},
  {"TYPE": "LINE","OBJECT": "LOG-04","LINE": ["RDS-21","CW-11"],},
  {"TYPE": "LINE","OBJECT": "ALARM-01","LINE": ["CW-11","ALARM-01","SNS-01","ML-01"],},

  {"TYPE": "LINE","OBJECT": "DEP-01","LINE": ["PC-02","EC2-31","NATGW-01", "CM-01", "CB-01", "S3-02", "CD-01", "EC2-11"],},
  {"TYPE": "LINE","OBJECT": "DEP-02","LINE": ["CD-01", "EC2-12"],},


  {"TYPE": "LINE-GRP","LAVEL": "処理経路","STROKE": "#000080","LINES": ["LINE-A0","LINE-A1","LINE-A2"],},
  {"TYPE": "LINE-GRP","LAVEL": "冗長化","STROKE": "#008000","LINES": ["LINE-B1"],},
  {"TYPE": "LINE-GRP","LAVEL": "管理経路","STROKE": "#80FF00","LINES": ["LINE-M0","LINE-M1","LINE-M2","LINE-M3"],},
  {"TYPE": "LINE-GRP","LAVEL": "ログ収集","STROKE": "#F0F0F9","LINES": ["LOG-01","LOG-02","LOG-03","LOG-04"],},
  {"TYPE": "LINE-GRP","LAVEL": "障害通知","STROKE": "#981234","LINES": ["ALARM-01"],},
  {"TYPE": "LINE-GRP","LAVEL": "デプロイ","STROKE": "#AABBCC","LINES": ["DEP-01","DEP-02"],},

];

おわりに

デザインの修正や、CIDRや許可した通信ポート設定などの情報も表示するようにしたりと改善したいことはいろいろあります。マウスで作図できるようにするのもいいかもしれません。更新版ができたらまた紹介しようと思います。

22
Help us understand the problem. What is going on with this article?
Why not register and get more from Qiita?
  1. We will deliver articles that match you
    By following users and tags, you can catch up information on technical fields that you are interested in as a whole
  2. you can read useful information later efficiently
    By "stocking" the articles you like, you can search right away
suo-takefumi
妄想を具現化するのが好きです。/ Protout Studio 2期生 / のぞくAR #ウソ穴 開発者
protoout-studio
プロトアウトスタジオは日本初のプロトタイピング専門スクールです。プログラミングだけではなく、企画力と発信力を身に付けて”自分で課題を見つけて実装し、発信し続ける人”を育成しています。 圧倒的なアウトプット力を身に付けましょう。 学生募集中です。

Comments

No comments
Sign up for free and join this conversation.
Sign Up
If you already have a Qiita account Login
22
Help us understand the problem. What is going on with this article?
