CloudWatch Logs の CreateExportTask でエクスポートされたログのキー名からエクスポートタスク ID 名を削除する方法

はじめに

CloudWatch Logs の CreateExportTask API を実行して、CloudWatch Logs のログを S3 へエクスポートする際、以下のようにログのキー名には、ランダムな文字列であるエクスポートタスク ID（CreateExportTask実行時に返却される）が含まれています。

<バケット名>/<destinationPrefix に指定した値 OR exportedlogs>/<エクスポートタスクの ID>/<ログストリーム名>/<ログファイル名>

場合によっては、このエクスポートタスク ID をエクスポートされたログのキー名に含めずにエクスポートしたいことがあると思います。

現状では、このエクスポートタスク ID を含めずにエクスポートすることが出来ないので、エクスポートタスク ID を含めたくない場合は、エクスポート完了後にキー名を変更する必要があります。

しかしながら、毎度手動で変更するのも面倒且つオペレーションミスを誘発しそうなので、Lambda を使用して自動的に変更する方法を紹介したいと思います。

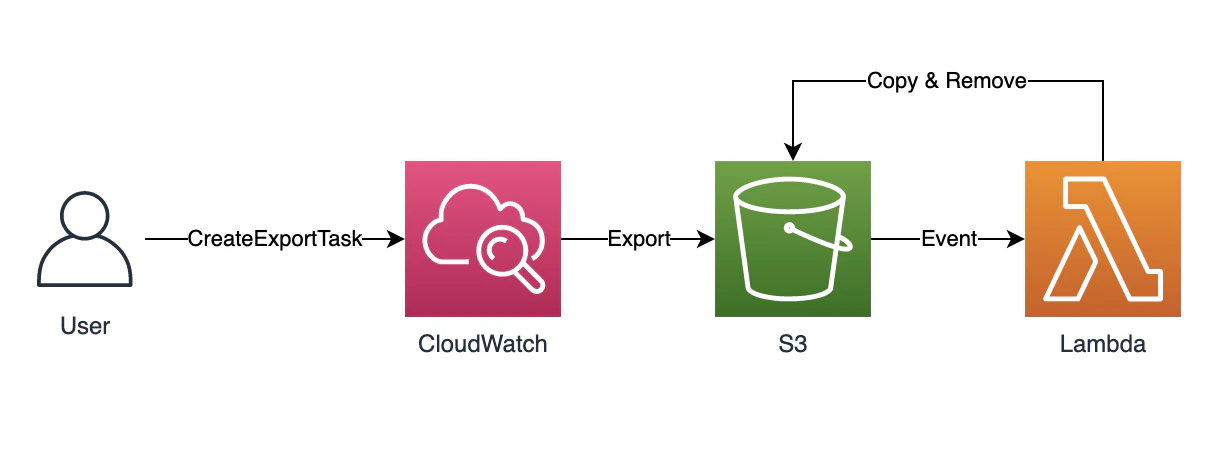

処理の流れは以下になります。

環境構築

各設定値を予め環境変数に設定

$ LogGroupName=export-task-test
$ LogStreamName=test-stream
$ S3BucketName=<Bucket Name>
$ LambdaRoleName=lambda-s3-copy-object-role
$ LambdaRoleArn=arn:aws:iam::<AWS Account ID>:role/$LambdaRoleName
$ LambdaFunctionName=move-exported-log

CloudWatch Logs のロググループを作成

$ aws logs create-log-group \
 --log-group-name $LogGroupName

確認

$ aws logs describe-log-groups \
 --log-group-name-prefix $LogGroupName
{
    "logGroups": [
        {
            "logGroupName": "export-task-test",
            "creationTime": 1585128988867,
            "metricFilterCount": 0,
            "arn": "arn:aws:logs:ap-northeast-1:<AWS Account ID>:log-group:export-task-test:*",
            "storedBytes": 0
        }
    ]
}

CloudWatch Logs のログストリームを作成

$ aws logs create-log-stream \
 --log-group-name $LogGroupName \
 --log-stream-name $LogStreamName

確認

$ aws logs describe-log-streams \
 --log-group-name $LogGroupName
{
    "logStreams": [
        {
            "logStreamName": "test-stream",
            "creationTime": 1585129244632,
            "arn": "arn:aws:logs:ap-northeast-1:<AWS Account ID>:log-group:export-task-test:log-stream:test-stream",
            "storedBytes": 0
        }
    ]
}

CloudWatch Logs のログストリームにログを追加

$ aws logs put-log-events \
 --log-group-name $LogGroupName \
 --log-stream-name $LogStreamName \
 --log-events timestamp=`date +%s`000,message="test"
{
    "nextSequenceToken": "49605200498425818635249562987166057764478997389507621362"
}

確認

$ aws logs get-log-events \
 --log-group-name $LogGroupName \
 --log-stream-name $LogStreamName
{
    "events": [
        {
            "timestamp": 1585129637000,
            "message": "test",
            "ingestionTime": 1585129638304
        }
    ],
    "nextForwardToken": "f/35349572141376339595642616875239835279383229376686194688",
    "nextBackwardToken": "b/35349572141376339595642616875239835279383229376686194688"
}

Lambda 関数が使用する IAM ロールを作成

IAM ロールを作成

assume-role-policy-document.json

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "lambda.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

$ aws iam create-role \
 --role-name $LambdaRoleName \
 --assume-role-policy-document file://assume-role-policy-document.json
{
    "Role": {
        "Path": "/",
        "RoleName": "lambda-s3-copy-object-role",
        "RoleId": "AROAXXXXXXXXXXXXXXXXX",
        "Arn": "arn:aws:iam::<AWS Account ID>:role/lambda-s3-copy-object-role",
        "CreateDate": "2020-03-25T10:04:57Z",
        "AssumeRolePolicyDocument": {
            "Version": "2012-10-17",
            "Statement": [
                {
                    "Effect": "Allow",
                    "Principal": {
                        "Service": "lambda.amazonaws.com"
                    },
                    "Action": "sts:AssumeRole"
                }
            ]
        }
    }
}

インラインポリシーを IAM ロールに設定

copy-object-policy.json

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "CopyObject",
            "Effect": "Allow",
            "Action": [
                "s3:PutObject",
                "s3:DeleteObject",
                "s3:GetObject"
            ],
            "Resource": "arn:aws:s3:::<Bucket Name>/*"
        }
    ]
}

cloudwatch-logs-policy.json

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "PutLogEvents",
            "Effect": "Allow",
            "Action": "logs:PutLogEvents",
            "Resource": "arn:aws:logs:ap-northeast-1:<AWS Account ID>:log-group:*:log-stream:*"
        },
        {
            "Sid": "CreateLogStream",
            "Effect": "Allow",
            "Action": "logs:CreateLogStream",
            "Resource": "arn:aws:logs:ap-northeast-1:<AWS Account ID>:log-group:*"
        },
        {
            "Sid": "CreateLogGroup",
            "Effect": "Allow",
            "Action": "logs:CreateLogGroup",
            "Resource": "*"
        }
    ]
}

$ aws iam put-role-policy \
 --role-name $LambdaRoleName \
 --policy-name copy-object-policy \
 --policy-document file://copy-object-policy.json

$ aws iam put-role-policy \
 --role-name $LambdaRoleName \
 --policy-name cloudwatch-logs-policy \
 --policy-document file://cloudwatch-logs-policy.json

確認

$ aws iam get-role-policy \
 --role-name $LambdaRoleName \
 --policy-name copy-object-policy
{
    "RoleName": "lambda-s3-copy-object-role",
    "PolicyName": "copy-object-policy",
    "PolicyDocument": {
        "Version": "2012-10-17",
        "Statement": [
            {
                "Sid": "CopyObject",
                "Effect": "Allow",
                "Action": [
                    "s3:PutObject",
                    "s3:DeleteObject",
                    "s3:GetObject"
                ],
                "Resource": "arn:aws:s3:::<Bucket Name>/*"
            }
        ]
    }
}

$ aws iam get-role-policy \
 --role-name $LambdaRoleName \
 --policy-name cloudwatch-logs-policy
{
    "RoleName": "lambda-s3-copy-object-role",
    "PolicyName": "cloudwatch-logs-policy",
    "PolicyDocument": {
        "Version": "2012-10-17",
        "Statement": [
            {
                "Sid": "PutLogEvents",
                "Effect": "Allow",
                "Action": "logs:PutLogEvents",
                "Resource": "arn:aws:logs:ap-northeast-1:<AWS Account ID>:log-group:*:log-stream:*"
            },
            {
                "Sid": "CreateLogStream",
                "Effect": "Allow",
                "Action": "logs:CreateLogStream",
                "Resource": "arn:aws:logs:ap-northeast-1:<AWS Account ID>:log-group:*"
            },
            {
                "Sid": "CreateLogGroup",
                "Effect": "Allow",
                "Action": "logs:CreateLogGroup",
                "Resource": "*"
            }
        ]
    }
}

Lambda 関数を作成

$ mkdir code
$ cd code
$ touch lambda_function.py

lambda_function.py

import sys, traceback, json
import boto3
s3 = boto3.client('s3')
BUCKET_NAME = '<Bucket Name>'
LOG_GROUP_NAME = 'export-task-test'


def copy_object(src_key, dst_key):
    try:
        result = s3.copy_object(
            Bucket=BUCKET_NAME,
            CopySource='%s/%s' % (BUCKET_NAME, src_key),
            Key=dst_key
        )
        result = True
    except:
        traceback.print_exc()
        result = False
    return result


def delete_object(src_key):
    try:
        s3.delete_object(
            Bucket=BUCKET_NAME,
            Key=src_key
        )
        result = True
    except:
        traceback.print_exc()
        result = False
    return result


def cleanup_objects(src_key):
    # Delete Old Object & aws-logs-write-test Object
    return delete_object(src_key) and delete_object('exportedlogs/aws-logs-write-test')


def move_log(src_key):
    result = False
    group_stream_log_list = [LOG_GROUP_NAME] + src_key.split('/')[-2:]
    # <LogGrpupName>/<LogStreamName>/<LogName>
    dst_key = '/'.join(group_stream_log_list)
    return copy_object(src_key, dst_key)


def move_log_and_cleanup_objects(record):
    src_key = record['s3']['object']['key']
    event_name_category = record['eventName'].split(':')[0]
    if event_name_category != 'ObjectCreated':
        return 'Skipped: %s %s' % (event_name_category, src_key)
    if not move_log(src_key):
        return 'Failed to move %s' % src_key
    if not cleanup_objects(src_key):
        return 'Failed to cleanup %s' % src_key
    return 'Successfully moved %s' % src_key


def lambda_handler(event, context):
    record = event['Records'][0]
    result = move_log_and_cleanup_objects(record)
    print(result)
    return result

$ zip -r lambda_function.zip ./
  adding: lambda_function.py (deflated 64%)
$ aws lambda create-function \
 --function-name $LambdaFunctionName \
 --runtime python3.8 \
 --role $LambdaRoleArn \
 --handler lambda_function.lambda_handler \
 --zip-file fileb://lambda_function.zip
{
    "FunctionName": "move-exported-log",
    "FunctionArn": "arn:aws:lambda:ap-northeast-1:<AWS Account ID>:function:move-exported-log",
    "Runtime": "python3.8",
    "Role": "arn:aws:iam::<AWS Account ID>:role/lambda-s3-copy-object-role",
    "Handler": "lambda_function.lambda_handler",
    "CodeSize": 787,
    "Description": "",
    "Timeout": 3,
    "MemorySize": 128,
    "LastModified": "2020-03-25T15:27:22.284+0000",
    "CodeSha256": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
    "Version": "$LATEST",
    "TracingConfig": {
        "Mode": "PassThrough"
    },
    "RevisionId": "XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX",
    "State": "Active",
    "LastUpdateStatus": "Successful"
}

S3 バケットを作成

$ aws s3api create-bucket \
 --bucket $S3BucketName \
 --create-bucket-configuration LocationConstraint=ap-northeast-1
{
    "Location": "http://<Bucket Name>.s3.amazonaws.com/"
}

S3 バケットのバケットポリシーで CloudWatch Logs サービスからのアクセスを許可

bucket-policy.json

{
    "Version": "2012-10-17",
    "Statement": [
      {
          "Action": "s3:GetBucketAcl",
          "Effect": "Allow",
          "Resource": "arn:aws:s3:::<Bucket Name>",
          "Principal": { "Service": "logs.ap-northeast-1.amazonaws.com" }
      },
      {
          "Action": "s3:PutObject" ,
          "Effect": "Allow",
          "Resource": "arn:aws:s3:::<Bucket Name>/*",
          "Condition": { "StringEquals": { "s3:x-amz-acl": "bucket-owner-full-control" } },
          "Principal": { "Service": "logs.ap-northeast-1.amazonaws.com" }
      }
    ]
}

$ aws s3api put-bucket-policy \
 --bucket $S3BucketName \
 --policy file://bucket-policy.json

確認

$ aws s3api get-bucket-policy \
 --bucket $S3BucketName \
 | jq -r .Policy \
 | jq .
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "logs.ap-northeast-1.amazonaws.com"
      },
      "Action": "s3:GetBucketAcl",
      "Resource": "arn:aws:s3:::<Bucket Name>"
    },
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "logs.ap-northeast-1.amazonaws.com"
      },
      "Action": "s3:PutObject",
      "Resource": "arn:aws:s3:::<Bucket Name>/*",
      "Condition": {
        "StringEquals": {
          "s3:x-amz-acl": "bucket-owner-full-control"
        }
      }
    }
  ]
}

Lambda 関数に S3 からの実行許可を与える

aws lambda add-permission \
 --function-name $LambdaFunctionName \
 --principal s3.amazonaws.com \
 --statement-id s3invoke \
 --action "lambda:InvokeFunction" \
 --source-arn arn:aws:s3:::$S3BucketName \
 --source-account <AWS Account ID> \
 | jq -r .Statement \
 | jq .
{
  "Sid": "s3invoke",
  "Effect": "Allow",
  "Principal": {
    "Service": "s3.amazonaws.com"
  },
  "Action": "lambda:InvokeFunction",
  "Resource": "arn:aws:lambda:ap-northeast-1:<AWS Account ID>:function:move-exported-log",
  "Condition": {
    "StringEquals": {
      "AWS:SourceAccount": "<AWS Account ID>"
    },
    "ArnLike": {
      "AWS:SourceArn": "arn:aws:s3:::<Bucket Name>"
    }
  }
}

S3 イベントを設定

bucket-notification-configuration.json

{
    "LambdaFunctionConfigurations": [
        {
            "Id": "move-exported-log",
            "LambdaFunctionArn": "arn:aws:lambda:ap-northeast-1:<AWS Account ID>:function:move-exported-log",
            "Events": [
                "s3:ObjectCreated:*"
            ],
            "Filter": {
                "Key": {
                    "FilterRules": [
                        {
                            "Name": "prefix",
                            "Value": "exportedlogs/"
                        },
                        {
                            "Name": "suffix",
                            "Value": ".gz"
                        }
                    ]
                }
            }
        }
    ]
}

$ aws s3api put-bucket-notification-configuration \
 --bucket $S3BucketName \
 --notification-configuration file://bucket-notification-configuration.json

確認

$ aws s3api get-bucket-notification-configuration \
 --bucket $S3BucketName
{
    "LambdaFunctionConfigurations": [
        {
            "Id": "move-exported-log",
            "LambdaFunctionArn": "arn:aws:lambda:ap-northeast-1:<AWS Account ID>:function:move-exported-log",
            "Events": [
                "s3:ObjectCreated:*"
            ],
            "Filter": {
                "Key": {
                    "FilterRules": [
                        {
                            "Name": "Prefix",
                            "Value": "exportedlogs/"
                        },
                        {
                            "Name": "Suffix",
                            "Value": ".gz"
                        }
                    ]
                }
            }
        }
    ]
}

検証

$ today=`date +%Y-%m-%d`
$ begining_of_yesterday=`date -j -v -1d -f "%Y-%m-%d %T" $today" 00:00:00" +%s`000
$ begining_of_today=`date -j -f "%Y-%m-%d %T" $today" 00:00:00" +%s`000

$ aws logs create-export-task \
 --log-group-name $LogGroupName \
 --from $begining_of_yesterday \
 --to $begining_of_today \
 --destination $S3BucketName
{
    "taskId": "cd8073fd-d3d9-4297-ab8b-071e2246ad5b"
}

結果

$ aws logs start-query \
 --log-group-name "/aws/lambda/${LambdaFunctionName}" \
 --start-time `date -v -1d +%s`000 \
 --end-time `date +%s`000 \
 --query-string "FIELDS @message"
{
    "queryId": "95e4aaba-6bac-4e66-8524-ee2f8a59acaf"
}

$ aws logs get-query-results \
 --query-id 95e4aaba-6bac-4e66-8524-ee2f8a59acaf
{
    "results": [
        ...
        [
            {
                "field": "@message",
                "value": "Successfully moved exportedlogs/cd8073fd-d3d9-4297-ab8b-071e2246ad5b/test-stream/000000.gz\n"
            },
            ...
        ],
        ...

$ aws s3 ls s3://<Bucket Name>/$LogGroupName/$LogStreamName/
2020-03-26 18:57:14         50 000000.gz

まとめ

上記のように、CloudWatch Logs と S3 イベント、Lambda を組み合わせることで、CreateExportTask でエクスポートされたログのキー名からエクスポートタスク ID 名を削除することが可能です。

エクスポート先の S3 バケットには、<ロググループ名>/<ログストリーム名>/<ログ名> のキーでログが出力されるので、ログ一覧の可視性を上げることが出来ます。

良ければお試しください。

参考ドキュメント

• Boto 3 Documentation
• CreateExportTask
• AWS Lambda Execution Role
• Configuring Amazon S3 Event Notifications
• Export Log Data to Amazon S3 Using the AWS CLI
• Tutorial: Using AWS Lambda with Amazon S3
• AWS Lambda Execution Role
