DockerHubのトークンのキーローテーション機能をLambdaとSecrets Managerを使って実現しよう！

Posted at

概要

LambdaとSecrets Managerを使うと秘匿情報のキーローテーションを実現できます
今回はDockerHubのトークンを使ってキーローテーションします
また、リソースはCloudFormationを使ってコード化します

前提

  • DockerHubのアカウントを作成済み

Lambda用のバケットの作成

Lambdaをzipファイルからデプロイする用のS3バケットを作成します

AWSTemplateFormatVersion: 2010-09-09
Description: "S3 Bucket Stack For Account Setup"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName

# -------------------------------------
# Parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter"
    Default: my-project

# -------------------------------------
# Resources
# -------------------------------------
Resources:
  # -------------------------------------
  # S3
  # -------------------------------------
  # For Lambda Archive
  LambdaArchiveBucket:
    DeletionPolicy: Retain
    UpdateReplacePolicy: Retain
    Type: AWS::S3::Bucket
    Properties:
      BucketEncryption:
        ServerSideEncryptionConfiguration:
          - ServerSideEncryptionByDefault:
              SSEAlgorithm: AES256
      BucketName: !Sub ${ProjectName}-lambda-archive-${AWS::Region}
      PublicAccessBlockConfiguration:
        BlockPublicAcls: true
        BlockPublicPolicy: true
        IgnorePublicAcls: true
        RestrictPublicBuckets: true
      VersioningConfiguration:
        Status: Enabled
      LifecycleConfiguration:
        Rules:
          - Id: ExpiresAfter365DaysFor4thOlderVersion
            Status: Enabled
            NoncurrentVersionExpiration:
              NewerNoncurrentVersions: 3
              NoncurrentDays: 365

# -------------------------------------
# Outputs
# -------------------------------------
Outputs:
  LambdaArchiveBucketName:
    Value: !Ref LambdaArchiveBucket
  LambdaArchiveBucketArn:
    Value: !GetAtt  LambdaArchiveBucket.Arn

Lambdaの実装

DockerHubのトークンを更新するためのLambdaを実装します
処理の流れは以下の通りです

ログイン→トークンの作成→前のトークンの無効化→Secrets Manager内のsecretの更新

各APIの詳細は以下のドキュメントに記載してます

また、処理中にエラーが発生したらSlack通知を送るようにしてます

Lambda関数の作成

lambda_function.py
import datetime
import json
import logging
import os
import urllib

import boto3
import requests
from botocore.exceptions import ClientError

logger = logging.getLogger(__name__)

url = "https://hub.docker.com/v2/access-tokens"


def lambda_handler(event, context):
    """Lambdaのエントリーポイント"""
    login_token = login()
    headers = {"Authorization": f"Bearer {login_token}"}
    create_data = create_token(headers=headers)
    token = create_data["token"]
    disable_token(headers=headers, uuid=create_data["uuid"])
    get_secret(token=token)
    return "DockerHubのPATのキーローテーションに成功しました"


def login():
    """ログイン用メソッド"""
    try:
        login_url = "https://hub.docker.com/v2/users/login"
        login_data = {
            "username": getParameterStoreValue(os.environ.get("DOCKER_HUB_USERNAME")),
            "password": getParameterStoreValue(os.environ.get("DOCKER_HUB_PASSWORD")),
        }
        response = requests.post(login_url, json=login_data).content.decode()
        login_token = json.loads(response.strip("\n"))["token"]
        logger.info("ログイン成功")
        return login_token
    except BaseException as e:
        logger.error(f"ログイン失敗:{e}")
        slack_notifier(f"ログイン失敗:{e}")


def create_token(headers: str):
    """トークン生成用メソッド"""
    try:
        create_data = {
            "token_label": f"Token:{datetime.datetime.now()}",
            "scopes": ["repo:admin"],
        }
        response = json.loads(
            requests.post(url, headers=headers, json=create_data).content.decode()
        )
        logger.info("トークン作成成功")
        return response
    except BaseException as e:
        logger.error(f"トークン作成失敗:{e}")
        slack_notifier(f"トークン作成失敗:{e}")


def list_token(headers: str):
    """トークン一覧表示用メソッド"""
    response = json.loads(requests.get(url, headers=headers).content.decode())
    return response["results"]


def disable_token(headers: str, uuid: str):
    """トークン無効化用メソッド"""
    try:
        list_data = list_token(headers=headers)
        for value in list_data:
            if value["uuid"] != uuid:
                uuid = value["uuid"]
                update_url = f"{url}/{uuid}"

                disable_token_data = {"is_active": False}
                response = json.loads(
                    requests.patch(
                        update_url, headers=headers, json=disable_token_data
                    ).content.decode()
                )
        logger.info("トークンの無効化成功")

        if len(list_data) >= 3:
            uuid_list = list_data[2:]
            for value in uuid_list:
                uuid = value["uuid"]
                delete_url = f"{url}/{uuid}"
                response = requests.delete(delete_url, headers=headers)
            logger.info("トークンの削除成功")
    except BaseException as e:
        logger.error(f"トークンの削除失敗:{e}")
        slack_notifier(f"トークンの削除失敗:{e}")


def get_secret(token: str):
    """Secrets Managerの値更新用メソッド"""
    secret_name = "docker-pat"
    region_name = "ap-northeast-1"

    # Create a Secrets Manager client
    session = boto3.session.Session()
    client = session.client(
        service_name="secretsmanager", region_name=region_name
    )
    logger.info("Secrets Manager内のトークンの更新開始")
    try:
        response = client.update_secret(
            SecretId=secret_name,
            Description="DockerHub PAT",
            SecretString=token,
        )
    except ClientError as e:
        # For a list of exceptions thrown, see
        # https://docs.aws.amazon.com/secretsmanager/latest/apireference/API_GetSecretValue.html
        logger.error(f"Secrets Manager内のトークンの更新に失敗:{e}")
        slack_notifier(f"Secrets Manager内のトークンの更新に失敗:{e}")
        raise e
    logger.info("Secrets Manager内のトークンの更新終了")


def slack_notifier(value):
    url = getParameterStoreValue(os.environ.get("DOCKER_HUB_SLACK_WEBHOOK_URL"))
    post_json = {
        "attachments": [
        {
            "text": f":no_entry_sign: エラーが発生しました :no_entry_sign:",
        },
        {
            "fields": [
                {
                    "title": "トークン更新中にエラー発生",
                    "value": value,
                }],
          }]
    }
    requests.post(url, data = json.dumps(post_json))


def getParameterStoreValue(parameter_path: str):
    """パラメータストアに設定されている値を取得する
    パラメータストアのパスを指定して、対応する設定値を取得する
    前提:
        - AWS-Parameters-and-Secrets-Lambda-Extension レイヤーが存在する
    参考:
        - https://docs.aws.amazon.com/ja_jp/systems-manager/latest/userguide/ps-integration-lambda-extensions.html
    Args:
        parameter_path (str): SSMパラメータストアのパス
    Returns:
        _type_: パラメータストアに登録されている値
    """
    port = "2773"
    encoded_parameter_path = urllib.parse.quote_plus(parameter_path)
    parameter_store_url = (
        "http://localhost:"
        + port
        + "/systemsmanager/parameters/get/?name="
        + encoded_parameter_path
        + "&withDecryption=true"
    )
    aws_session_token = os.environ.get("AWS_SESSION_TOKEN")
    headers = {"X-Aws-Parameters-Secrets-Token": aws_session_token}
    r = requests.get(parameter_store_url, headers=headers)
    return json.loads(r.text)["Parameter"]["Value"]


# コマンドライン呼び出しの場合のみ、明示的にlambda_handler関数を呼び出す（local環境テストのため）
if __name__ == "__main__":
    lambda_handler("", "")

Lambda用テンプレートスタックの作成

Lambda本体の設定を行います
パラメータストア内の環境変数へアクセスする権限とSecrets Manager内のシークレットを更新する権限の付与も行います
スタックを作成する前に

  • DOCKER_HUB_USERNAME
  • DOCKER_HUB_PASSWORD
  • DOCKER_HUB_SLACK_WEBHOOK_URL

をパラメータストアに登録しましょう

AWSTemplateFormatVersion: 2010-09-09
Description: "Lambda Function Stack For Rotate DockerHub Token"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
      - Label:
          default: "Lambda Configuration"
        Parameters:
          - LambdaArchiveBucketName
          - LambdaArchiveBucketObjectKey
          - PythonRequestsLambdaExtensionArn
          - ParametersSecretsLambdaExtensionArn
          - LambdaHandler
          - LambdaMemorySize
          - LambdaTimeout
          - LambdaRuntime

# -------------------------------------
# Parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter"
    Default: my-project
  LambdaArchiveBucketName:
    Type: String
    Description: "Enter the S3 Bucket name for Lambda zip archive"
  LambdaArchiveBucketObjectKey:
    Type: String
    Description: "Enter the S3 Bucket object key for Lambda zip archive"
  PythonRequestsLambdaExtensionArn:
    Type: String
    Description: "Enter the Python 3.12 Request Module Extension ARN"
    Default: arn:aws:lambda:ap-northeast-1:770693421928:layer:Klayers-p312-requests:5
  ParametersSecretsLambdaExtensionArn:
    Type: String
    Description: "Enter the Lambda Extension ARN for AWS Parameters and Secrets"
    Default: arn:aws:lambda:ap-northeast-1:133490724326:layer:AWS-Parameters-and-Secrets-Lambda-Extension:11
  LambdaHandler:
    Type: String
    Description: "Enter the Lambda function handler (default: lambda_function.lambda_handler)"
    Default: lambda_function.lambda_handler
  LambdaMemorySize:
    Type: Number
    Description: "Enter the Lambda function memory size (MiB) (default: 128)"
    Default: 128
    MinValue: 128
    MaxValue: 10240
  LambdaTimeout:
    Type: Number
    Description: "Enter the Lambda function timeout second (default: 30)"
    Default: 30
    MinValue: 1
    MaxValue: 900
  LambdaRuntime:
    Type: String
    Description: "Enter the Lambda function runtime (default: python3.12)"
    AllowedValues:
      - python3.12
    Default: python3.12

# -------------------------------------
# Resources
# -------------------------------------
Resources:
  # -------------------------------------
  # Lambda Function
  # -------------------------------------
  RotateDockerHubTokenLambdaFunction:
    Type: AWS::Lambda::Function
    Properties:
      Code:
        S3Bucket: !Ref LambdaArchiveBucketName
        S3Key: !Ref LambdaArchiveBucketObjectKey
      FunctionName: !Sub ${ProjectName}-rotate-dockerhub-token
      Description: "DockerHubのトークンをキーローテーションするための Lambda 関数"
      Handler: !Ref LambdaHandler
      MemorySize: !Ref LambdaMemorySize
      Role: !GetAtt RotateDockerHubTokenLambdaExecutionRole.Arn
      Runtime: !Ref LambdaRuntime
      Timeout: !Ref LambdaTimeout
      Layers:
        - !Ref ParametersSecretsLambdaExtensionArn
        - !Ref PythonRequestsLambdaExtensionArn
      Environment:
        Variables:
          DOCKER_HUB_PASSWORD: DOCKER_HUB_PASSWORD
          DOCKER_HUB_SLACK_WEBHOOK_URL: DOCKER_HUB_SLACK_WEBHOOK_URL
          DOCKER_HUB_USERNAME: DOCKER_HUB_USERNAME
      PackageType: Zip
  RotateDockerHubTokenFunctionPermissions:
    Type: AWS::Lambda::Permission
    Properties:
      Action: lambda:InvokeFunction
      FunctionName: !GetAtt RotateDockerHubTokenLambdaFunction.Arn
      Principal: secretsmanager.amazonaws.com

  # -------------------------------------
  # IAM Role
  # -------------------------------------
  RotateDockerHubTokenLambdaExecutionRole:
    Type: AWS::IAM::Role
    Properties:
      RoleName: !Sub LambdaRoleForRotateDockerHubToken-${ProjectName}
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service: lambda.amazonaws.com
            Action: sts:AssumeRole
      Path: /service-role/
      Policies:
        - PolicyName: !Sub LambdaAccessForRotateDockerHubToken-${ProjectName}
          PolicyDocument:
            Version: 2012-10-17
            Statement:
              - Effect: Allow
                Action: logs:CreateLogGroup
                Resource: !Sub arn:aws:logs:${AWS::Region}:${AWS::AccountId}:*
              - Effect: Allow
                Action:
                  - logs:CreateLogStream
                  - logs:PutLogEvents
                Resource: !Sub
                  - arn:aws:logs:${AWS::Region}:${AWS::AccountId}:log-group:/aws/lambda/${LambdaFunctionName}:*
                  - {LambdaFunctionName: !Sub "${ProjectName}-rotate-dockerhub-token"}
              - Effect: Allow
                Action:
                  - ssm:GetParameter
                  - kms:Decrypt
                Resource:
                  - !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/DOCKER_HUB_PASSWORD
                  - !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/DOCKER_HUB_SLACK_WEBHOOK_URL
                  - !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/DOCKER_HUB_USERNAME
                  - !Sub arn:aws:kms:${AWS::Region}:${AWS::AccountId}:key/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
              - Effect: Allow
                Action:
                  - secretsmanager:UpdateSecret
                Resource:
                  - !Sub arn:aws:secretsmanager:${AWS::Region}:${AWS::AccountId}:*

Secrets Manager

DockerHubのトークンを格納するSecrets Managerを作成します

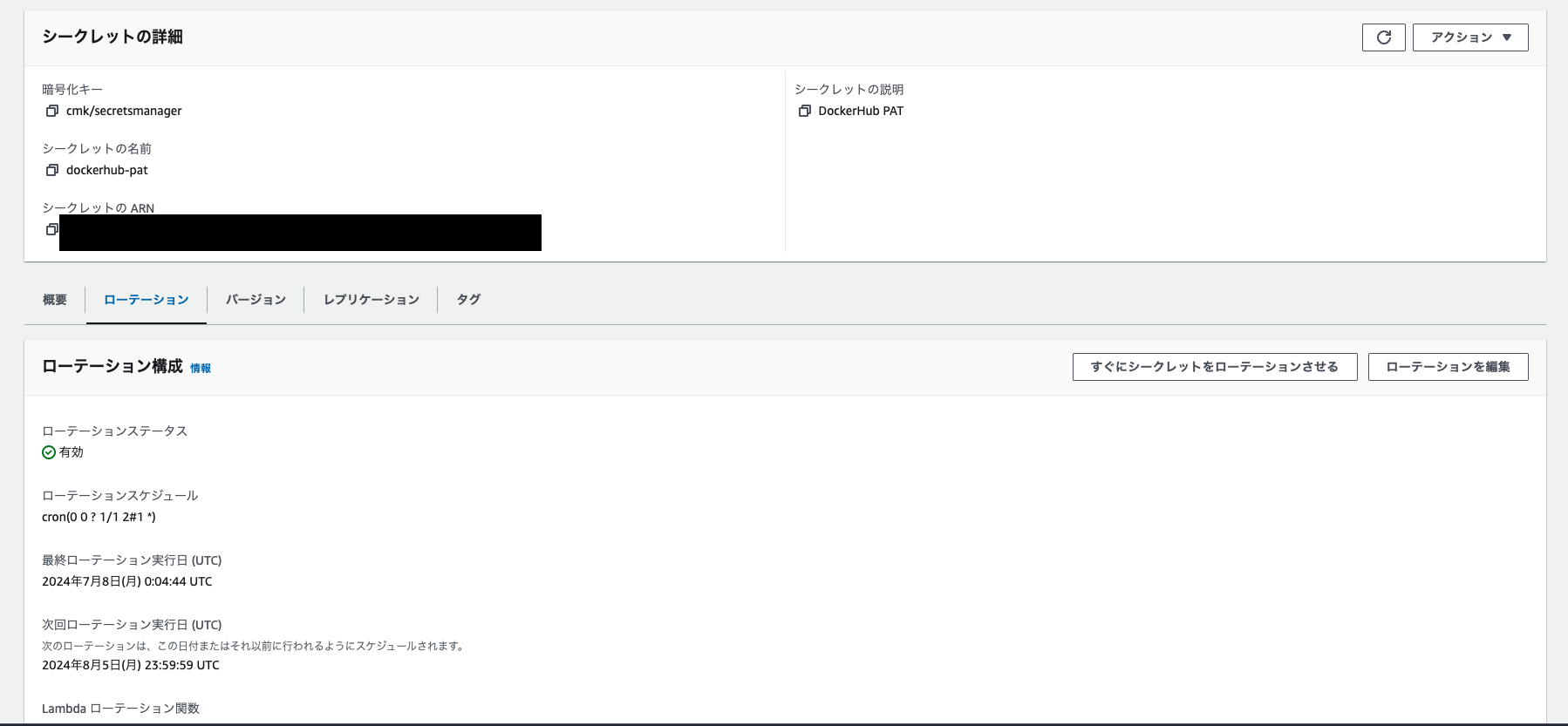

今回は毎月第一月曜日にLambdaを実行するようローテーションスケジュールを設定します

AWSTemplateFormatVersion: 2010-09-09
Description: "Secrets Manager Stack"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    # パラメータの並び順
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
      - Label:
          default: "Secrets Manager Configutation"
        Parameters:
          - DockerHubToken
          - RotationSchedule
          - DockerHubTokenRotateLambdaArn
      - Label:
          default: "KMS Key Configutation"
        Parameters:
          - PendingWindowInDays
          - KMSKeyAliasName

# Input parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name. (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter."
    Default: my-project
  DockerHubToken:
    Description: "Enter the DockerHub token."
    Type: String
    NoEcho: true
    MinLength: 30
    ConstraintDescription: "DockerHub Token must be enter."
  RotationSchedule:
    Description: "Enter the rotation schedule using cron. (ex: cron(0 0 ? 1/1 2#1 *))"
    Type: String
    ConstraintDescription: "Rotation Schedule must be enter."
  RotateDockerHubTokenLambdaArn:
    Description: "Enter the arn of DockerHub token rotation Lambda Arn. (ex: arn:aws:lambda:ap-northeast-1:012345678901:function:lambda-name)"
    Type: String
    ConstraintDescription: "Lambda Arn must be enter."
  KMSKeyAliasName:
    Description: "Enter the alias name for SecretsManager KMS key (default: alias/cmk/secretsmanager)"
    Type: String
    Default: alias/cmk/secretsmanager
  PendingWindowInDays:
    Description: "Enter the number of days to wait before being removed from the stack"
    Type: Number
    Default: 30
    MinValue: 7
    MaxValue: 30
# -------------------------------------
# Resources
# -------------------------------------
Resources:
  SecretManager:
    Type: AWS::SecretsManager::Secret
    Properties:
      Description: DockerHub PAT
      KmsKeyId: !Ref SecretsManagerKMSKey
      Name: dockerhub-pat
      SecretString: !Ref DockerHubToken
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-rotate-docker-pat
        - Key: ProjectName
          Value: !Ref ProjectName
  SecretManagerRotationSchedule:
    Type: AWS::SecretsManager::RotationSchedule
    Properties:
      RotateImmediatelyOnUpdate: true
      RotationLambdaARN: !Ref RotateDockerHubTokenLambdaArn
      RotationRules:
        ScheduleExpression: !Ref RotationSchedule
      SecretId: !Ref SecretManager

  # -------------------------------------
  # KMS Key for SecretsManager
  # -------------------------------------
  SecretsManagerKMSKey:
    Type: AWS::KMS::Key
    Properties:
      Description: "KMS key for encrypting SNS"
      PendingWindowInDays: !Ref PendingWindowInDays
      KeyPolicy:
        Version: 2012-10-17
        Id: sns-key
        Statement:
          - Effect: Allow
            Principal:
              AWS: !Sub arn:aws:iam::${AWS::AccountId}:root
            Action: kms:*
            Resource: "*"
          - Effect: Allow
            Principal:
              Service:
                - secretsmanager.amazonaws.com
            Action:
              - kms:Decrypt
              - kms:GenerateDataKey
            Resource: "*"
  KMSKeyAlias:
    Type: AWS::KMS::Alias
    Properties:
      AliasName: !Ref KMSKeyAliasName
      TargetKeyId: !Ref SecretsManagerKMSKey
Outputs:
  SecretManager:
    Value: !Ref SecretManager
  SecretManagerRotationSchedule:
    Value: !Ref SecretManagerRotationSchedule

実際に作成してみよう！

以下のようにLambdaとSecrets Managerが作成され、DockerHubのトークンのキーローテーションができるようになったら成功です

スクリーンショット 2024-07-08 11.43.55.png

スクリーンショット 2024-07-08 11.42.51.png

スクリーンショット 2024-07-08 11.44.52.png

参考

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
