Nested Stackを使って複数以上のCloudFormationのStackをまとめて構築しよう！

Posted at

概要

Nested Stackを使うと複数以上のテンプレートを同時に作成できるので開発効率が上がってとても便利です
今回はフロントエンドで使用する

  • Amplify
  • CloudFront

をNested Stackを使って作成する方法について解説します

前提

  • 今回はAmplifyとCloudFrontをNested Stackを使って同時に作成していきます
  • ACMをus-east-1に作成済み
  • GitHub用のPATを作成済み

Nested Stackとは

CloudFormationテンプレートの中で別のCloudFormationスタックを参照し、デプロイする方法です
ネストされたスタックを使用することで複数以上のテンプレートをより管理、デプロイしやすくなります

テンプレートを保存するS3バケットの作成

Nested Stackを使う際はS3バケット内のテンプレートファイルを参照する必要があります

nested-stack-bucket.yml
AWSTemplateFormatVersion: 2010-09-09
Description: "S3 Bucket Factory Settings Stack"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    # パラメータの並び順
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
          - Environment

# -------------------------------------
# Input parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name. (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter."
    Default: my-project
  Environment:
    Description: "Select the environment."
    Type: String
    AllowedValues:
      - dev
      - stg
      - prd
    ConstraintDescription: "Environment must be select."

# -------------------------------------
# Resources
# -------------------------------------
Resources:
  # -------------------------------------
  # S3
  # -------------------------------------
  # For CloudFormation Templates
  CloudFormationTemplatesBucket:
    DeletionPolicy: Retain
    UpdateReplacePolicy: Retain
    Type: AWS::S3::Bucket
    Properties:
      BucketEncryption:
        ServerSideEncryptionConfiguration:
          - ServerSideEncryptionByDefault:
              SSEAlgorithm: AES256
      BucketName: !Sub cf-templates-${ProjectName}-${Environment}-${AWS::Region}
      PublicAccessBlockConfiguration:
        BlockPublicAcls: true
        BlockPublicPolicy: true
        IgnorePublicAcls: true
        RestrictPublicBuckets: true
      VersioningConfiguration:
        Status: Enabled
      LifecycleConfiguration:
        Rules:
          - Id: ExpiresAfter365DaysFor4thOlderVersion
            Status: Enabled
            NoncurrentVersionExpiration:
              NewerNoncurrentVersions: 3
              NoncurrentDays: 365

# -------------------------------------
# Output Parameters
# -------------------------------------
Outputs:
  CloudFormationTemplatesBucketName:
    Value: !Ref CloudFormationTemplatesBucket
  CloudFormationTemplatesBucketArn:
    Value: !GetAtt CloudFormationTemplatesBucket.Arn

実際に作成してみよう！

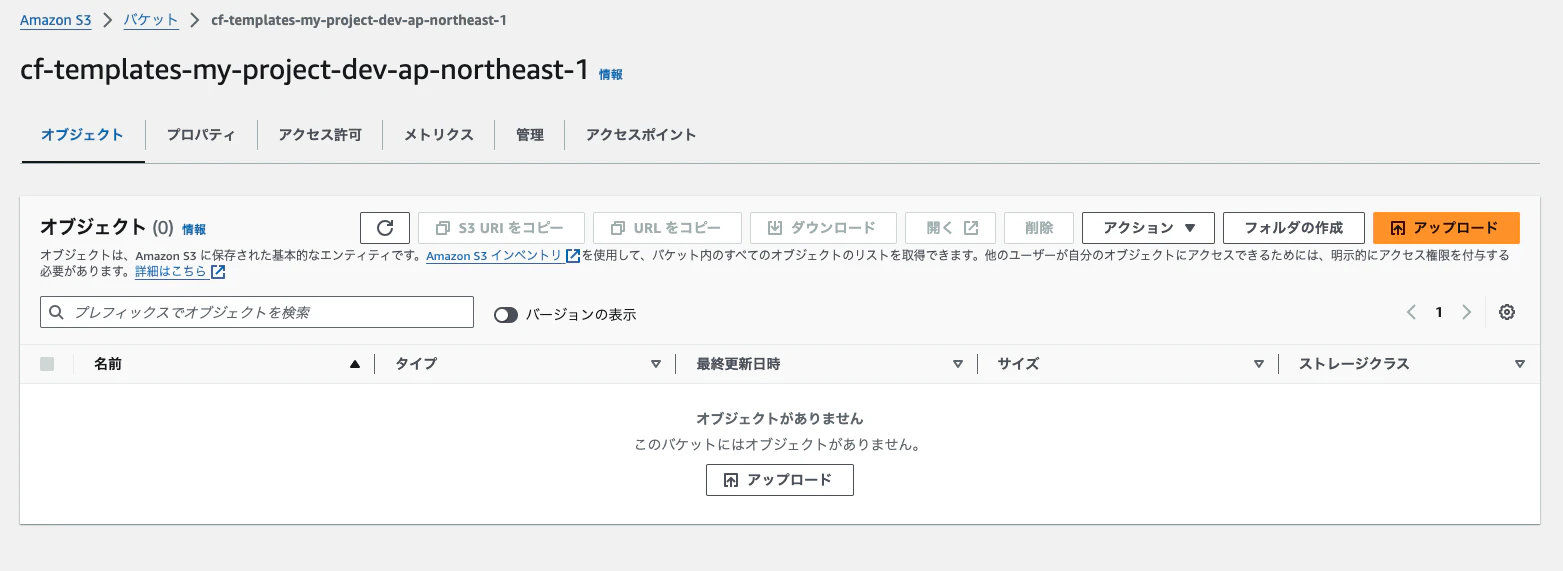

以下のようにバケットが作成されたら成功です
スクリーンショット 2024-06-29 21.31.42.png

Amplifyの作成

Amplify用のStackを作成します

amplify.yml
AWSTemplateFormatVersion: 2010-09-09
Description: "Amplify Frontend Hosting Stack"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
          - Environment
      - Label:
          default: "Amplify Configuration"
        Parameters:
          # GitHubへのread write権限を付与するため
          - GitHubAccessToken
          - GitHubRepoURL
          - SourceBranchName
          # For Amplify
          - AmplifyDomainName
          - AmplifySubDomainPrefix
          - AmplifyPlatform
          - AmplifyBasicUserName
          - AmplifyBasicPassword
          - APIURL
          - FetchCredential
          - ALBHeaderAuthName
          - ALBHeaderAuthValue

# -------------------------------------
# Parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name. (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter."
    Default: my-project
  Environment:
    Description: "Select the environment."
    Type: String
    AllowedValues:
      - dev
      - stg
      - prd
    ConstraintDescription: "Environment must be select"
  GitHubAccessToken:
    Description: "Enter the Github personal access token. (ex: ghp_xxxxxxxxxx)"
    Type: String
    NoEcho: true
  GitHubRepoURL:
    Description: "Enter the Github repository URL."
    Type: String
  SourceBranchName:
    Description: "Enter the source branch name in GitHub frontend repository. (ex: main)"
    Type: String
  AmplifyDomainName:
    Description: "Enter the custom Amplify domain name. (Alias) (ex: shun-practice.com)"
    Type: String
  AmplifySubDomainPrefix:
    Description: "Enter the custom Amplify domain name subdomain prefix. (ex: amplify)"
    Type: String
  # SSRを使用する際はWEB_COMPUTEを選択
  AmplifyPlatform:
    Description: "Select the Amplify app platform. (when using SSR: WEB_COMPUTE)"
    Type: String
    Default: WEB_COMPUTE
    AllowedValues:
      - WEB
      - WEB_COMPUTE
      - WEB_DYNAMIC
  AmplifyBasicUserName:
    Description: "Enter the Amplify basic auth username."
    Type: String
    MinLength: 1
    MaxLength: 255
    ConstraintDescription: "AmplifyBasicUserName must be 1 to 225 characters."
  AmplifyBasicPassword:
    Description: "Enter the Amplify basic auth password."
    Type: String
    NoEcho: true
    MinLength: 7
    MaxLength: 255
    ConstraintDescription: "AmplifyBasicPassword must be 7 to 225 characters."
  APIURL:
    Description: "Enter the API URL for backend. (ex: https://api.shun-practice.com)"
    Type: String
  FetchCredential:
    Description: "Enter the auth settings for API fetch from frontend."
    Type: String
    Default: include
  ALBHeaderAuthName:
    Description: "Enter the ALB header auth name. (ex: X-Auth-ALB)"
    Type: String
  ALBHeaderAuthValue:
    Description: "Enter the ALB header auth value."
    Type: String

# -------------------------------------
# Resources
# -------------------------------------
Resources:
  # -------------------------------------
  # Amplify Hosting
  # -------------------------------------
  # https://docs.aws.amazon.com/ja_jp/AWSCloudFormation/latest/UserGuide/aws-resource-amplify-app.html
  AmplifyFrontHosting:
    Type: AWS::Amplify::App
    Properties:
      Name: !Sub ${ProjectName}-${Environment}-front-amplify
      # GitHubにアクセスするために必要
      AccessToken: !Ref GitHubAccessToken
      Repository: !Ref GitHubRepoURL
      Platform: !Ref AmplifyPlatform
      # Automatically disconnect a branch in Amplify Hosting when you delete a branch from your Git repository
      EnableBranchAutoDeletion: true
      BasicAuthConfig:
        EnableBasicAuth: true
        Username: !Ref AmplifyBasicUserName
        Password: !Ref AmplifyBasicPassword
      IAMServiceRole: !Ref AmplifyServiceRole
      # 環境変数
      EnvironmentVariables:
        - Name: NEXT_PUBLIC_API_BASE_URL
          Value: !Ref APIURL
        - Name: NEXT_PUBLIC_CREDENTIALS
          Value: !Ref FetchCredential
        - Name: NEXT_PUBLIC_AUTH_NAME
          Value: !Ref ALBHeaderAuthName
        - Name: NEXT_PUBLIC_AUTH_VALUE
          Value: !Ref ALBHeaderAuthValue
        - Name: _DISABLE_L2_CACHE
          Value: true
        - Name: AMPLIFY_MONOREPO_APP_ROOT
          Value: application
      BuildSpec: |
        version: 1
        applications:
          - appRoot: application
            frontend:
              phases:
                preBuild:
                  commands:
                    - curl https://get.volta.sh | bash
                    - source ~/.bash_profile
                    - volta install node
                    - npm ci
                build:
                  commands:
                    - npm run build
              artifacts:
                baseDirectory: .next
                files:
                  - "**/*"
              cache:
                paths:
                  - "node_modules/**/*"
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-front-amplify
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

  # -------------------------------------
  # Amplify Branch
  # -------------------------------------
  AmplifyBranch:
    Type: AWS::Amplify::Branch
    Properties:
      AppId: !GetAtt AmplifyFrontHosting.AppId
      BranchName: !Ref SourceBranchName
      EnableAutoBuild: true
      EnablePullRequestPreview: false
      Framework: Next.js - SSR
      Tags:
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
        - Key: BranchName
          Value: !Ref SourceBranchName

  # -------------------------------------
  # Amplify Custom Domain
  # -------------------------------------
  AmplifyCustomDomain:
    DependsOn: AmplifyBranch
    Type: AWS::Amplify::Domain
    Properties:
      AppId: !GetAtt AmplifyFrontHosting.AppId
      DomainName: !Ref AmplifyDomainName
      SubDomainSettings:
        - Prefix: !Ref AmplifySubDomainPrefix
          BranchName: !Ref SourceBranchName

  # -------------------------------------
  # Amplify Service Role
  # -------------------------------------
  AmplifyServiceRole:
    Type: AWS::IAM::Role
    Properties:
      RoleName: !Sub AmplifyServiceRoleForCWL-${ProjectName}-${Environment}-front
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service: amplify.amazonaws.com
            Action:
              - sts:AssumeRole
  AmplifyServiceRolePolicy:
    Type: AWS::IAM::Policy
    Properties:
      PolicyName: !Sub AmplifyAccessForCWL-${ProjectName}-${Environment}-front
      PolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Action:
              - logs:CreateLogStream
              - logs:CreateLogGroup
              - logs:DescribeLogGroups
              - logs:PutLogEvents
            Resource: "*"
      Roles:
        - Ref: AmplifyServiceRole

# -------------------------------------
# Outputs
# -------------------------------------
Outputs:
  AmplifyAppID:
    Value: !GetAtt AmplifyFrontHosting.AppId
  AmplifyCustomDomainURL:
    Value: !Sub ${AmplifySubDomainPrefix}.${AmplifyCustomDomain.DomainName}
  AmplifyBasicAuthCredentials:
    Value: !Join
      - " "
      - - Basic
        - Fn::Base64: !Sub ${AmplifyBasicUserName}:${AmplifyBasicPassword}

CloudFrontの作成

今回はCloudFrontにbasic認証をかけます
IDはtest、PWはTest012345678です

echo -n "test:Test012345678" | base64
dGVzdDpUZXN0MDEyMzQ1Njc4

CloudFront用のStackを作成します

cloufront.yml
AWSTemplateFormatVersion: 2010-09-09
Description: "CloudFront Stack"

# -------------------------------------
# Mappings
# -------------------------------------
Mappings:
  # CachePolicyIdは以下の記事を参照
  # https://docs.aws.amazon.com/ja_jp/AmazonCloudFront/latest/DeveloperGuide/using-managed-cache-policies.html
  CachePolicyIds:
    CachingOptimized:
      Id: 658327ea-f89d-4fab-a63d-7e88639e58f6
    CachingDisabled:
      Id: 4135ea2d-6df8-44a3-9df3-4b5a84be39ad
    CachingOptimizedForUncompressedObjects:
      Id: b2884449-e4de-46a7-ac36-70bc7f1ddd6d
    Elemental-MediaPackage:
      Id: 08627262-05a9-4f76-9ded-b50ca2e3a84f
    Amplify:
      Id: 2e54312d-136d-493c-8eb9-b001f22f67d2
  # ResponseHeadersPolicyIdは以下の記事を参照
  # https://docs.aws.amazon.com/ja_jp/AmazonCloudFront/latest/DeveloperGuide/using-managed-response-headers-policies.html
  ResponseHeadersPolicyIds:
    CORS-and-SecurityHeadersPolicy:
      Id: e61eb60c-9c35-4d20-a928-2b84e02af89c
    CORS-With-Preflight:
      Id: 5cc3b908-e619-4b99-88e5-2cf7f45965bd
    CORS-with-preflight-and-SecurityHeadersPolicy:
      Id: eaab4381-ed33-4a86-88ca-d9558dc6cd63
    SecurityHeadersPolicy:
      Id: 67f7725c-6f97-4210-82d7-5512b31e9d03
    SimpleCORS:
      Id: 60669652-455b-4ae9-85a4-c4c02393f86c

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
          - Environment
      - Label:
          default: "Route 53 Configuration"
        Parameters:
          - HostZoneID
          - DomainName
      - Label:
          default: "CloudFront Configuration"
        Parameters:
          - CloudFrontHostZoneID
          - ACMPublicCertificateArn
          - AmplifyURL
          - CachePolicy
          - ResponseHeadersPolicy
          - WebACLArn

# -------------------------------------
# Parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter"
    Default: my-project
  Environment:
    Description: "Select the environment"
    Type: String
    AllowedValues: [dev, stg, prd]
    ConstraintDescription: "Environment must be select"
  HostZoneID:
    Description: "Select the Route 53 Hosted Zone ID"
    Type: AWS::Route53::HostedZone::Id
  DomainName:
    Description: "Enter the Route 53 domain name"
    Default: shun-practice.com
    Type: String
  # https://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/aws-properties-route53-recordset-aliastarget.html#cfn-route53-recordset-aliastarget-hostedzoneid
  CloudFrontHostZoneID:
    Type: String
    Description: "Select the CloudFront hosted zone ID. (fixed value: Z2FDTNDATAQYW2)"
    Default: Z2FDTNDATAQYW2
    AllowedValues:
      - Z2FDTNDATAQYW2
  ACMPublicCertificateArn:
    Description: "Enter the ACM public certificate ARN for global region"
    Type: String
  AmplifyURL:
    Type: String
    Description: "Enter the Amplify URL. (ex: <branch name>.<random number>.amplifyapp.com)"
  AuthHeaderValue:
    Description: "Enter the encoded Amplify basic auth credentials"
    Type: String
  CachePolicy:
    Description: "Select the CloudFront cache policy"
    Type: String
    Default: CachingDisabled
    AllowedValues:
      - CachingOptimized
      - CachingDisabled
      - CachingOptimizedForUncompressedObjects
      - Elemental-MediaPackage
      - Amplify
  ResponseHeadersPolicy:
    Description: "Select the CloudFront response headers policy"
    Type: String
    Default: SecurityHeadersPolicy
    AllowedValues:
      - CORS-and-SecurityHeadersPolicy
      - CORS-With-Preflight
      - CORS-with-preflight-and-SecurityHeadersPolicy
      - SecurityHeadersPolicy
      - SimpleCORS
  WebACLArn:
    Description: "Enter the ARN of the WAFv2 to apply to CloudFront (ex: arn:aws:wafv2:us-east-1:012345678910:global/webacl/example/xxxxx)"
    Type: String


# -------------------------------------
# Resources
# -------------------------------------
Resources:
  # -------------------------------------
  # Route 53
  # -------------------------------------
  CloudFrontAliasRecord:
    Type: AWS::Route53::RecordSet
    Properties:
      HostedZoneId: !Ref HostZoneID
      Name: !Ref DomainName
      Type: A
      # CloudFront用の設定
      AliasTarget:
        HostedZoneId: !Ref CloudFrontHostZoneID
        DNSName: !GetAtt AssetsDistribution.DomainName
  # -------------------------------------
  # CloudFront Distribution
  # -------------------------------------
  AssetsDistribution:
    Type: AWS::CloudFront::Distribution
    Properties:
      DistributionConfig:
        Origins:
        - Id: Amplify
          DomainName: !Ref AmplifyURL
          CustomOriginConfig:
            OriginProtocolPolicy: https-only
          OriginCustomHeaders:
            - HeaderName: Authorization
              HeaderValue: !Ref AuthHeaderValue
        Enabled: true
        Comment: "Amplify Hosting Distribution"
        CustomErrorResponses:
          - ErrorCachingMinTTL: 0
            ErrorCode: 404
            ResponseCode: 200
            ResponsePagePath: /404/index.html
        DefaultCacheBehavior:
          CachePolicyId: !FindInMap [CachePolicyIds, !Ref CachePolicy , Id]
          ResponseHeadersPolicyId: !FindInMap [ResponseHeadersPolicyIds, !Ref ResponseHeadersPolicy, Id]
          FunctionAssociations:
            - EventType: viewer-request
              FunctionARN: !Ref CloudFrontFunctionForBasicAuth
          TargetOriginId: Amplify
          ViewerProtocolPolicy: redirect-to-https
        HttpVersion: http2
        ViewerCertificate:
          AcmCertificateArn: !Ref ACMPublicCertificateArn
          MinimumProtocolVersion: TLSv1.2_2021
          SslSupportMethod: sni-only
        # 代替ドメイン名の設定に必要
        Aliases:
          - !Ref DomainName
        IPV6Enabled: false
        WebACLId: !Ref WebACLArn

  # For CloudFront Functions
  # https://dev.classmethod.jp/articles/apply-basic-authentication-password-with-cloudfront-functions/
  CloudFrontFunctionForBasicAuth:
    Type: AWS::CloudFront::Function
    Properties:
      Name: !Sub ${ProjectName}-${Environment}-BasicAuth
      AutoPublish: true
      FunctionCode: |-
        function handler(event) {
          var request = event.request;
          var headers = request.headers;
          // echo -n user:pass | base64
          var authString = "Basic dGVzdDpUZXN0MDEyMzQ1Njc4";
          if (
            typeof headers.authorization === "undefined" ||
            headers.authorization.value !== authString
          ) {
            return {
              statusCode: 401,
              statusDescription: "Unauthorized",
              headers: {"www-authenticate": {value: "Basic"}}
            };
          }
          return request;
        }
      FunctionConfig:
        Comment: "Function for basic authentication."
        Runtime: cloudfront-js-1.0

# -------------------------------------
# Outputs
# -------------------------------------
Outputs:
  AssetsDistributionID:
    Value: !Ref AssetsDistribution

Nested Stackの作成

CloudFormationではAWS::CloudFormation::Stackを使って
先ほど作成した子スタック(AmplifyとCloudFrontのスタック)を参照します
参照する際はS3内のURLを指定します
また、Nested Stack作成時に子スタックのパラメータを渡すよう設定します

frontend.yml
AWSTemplateFormatVersion: 2010-09-09
Description: "Frontend Stack (CloudFront, Amplify)"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "CloudFormation Configuration"
        Parameters:
          - CloudFrontTemplateURL
          - AmplifyTemplateURL
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
          - Environment
      - Label:
          default: "CloudFront Configuration"
        Parameters:
          - HostZoneID
          - DomainName
          - ACMPublicCertificateArn
          - CachePolicy
          - ResponseHeadersPolicy
          - WebACLArn
      - Label:
          default: "Amplify Configuration"
        Parameters:
          - GitHubAccessToken
          - GitHubRepoURL
          - SourceBranchName
          - AmplifySubDomainPrefix
          - AmplifyPlatform
          - AmplifyBasicUserName
          - AmplifyBasicPassword
          - APIURL
          - FetchCredential
          - ALBHeaderAuthName
          - ALBHeaderAuthValue

# -------------------------------------
# Parameters
# -------------------------------------
Parameters:
  # -------------------------------------
  # CloudFormation
  # -------------------------------------
  CloudFrontTemplateURL:
    Description: "Enter the CloudFront template object URL in S3 bucket"
    Type: String
  AmplifyTemplateURL:
    Description: "Enter the Amplify template object URL in S3 bucket"
    Type: String
  # -------------------------------------
  # Project
  # -------------------------------------
  ProjectName:
    Description: "Enter the project name. (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter."
    Default: my-project
  Environment:
    Description: "Select the environment."
    Type: String
    AllowedValues:
      - dev
      - stg
      - prd
    ConstraintDescription: "Environment must be select"
  # -------------------------------------
  # CloudFront
  # -------------------------------------
  HostZoneID:
    Description: "Select the Route 53 Hosted Zone ID"
    Type: AWS::Route53::HostedZone::Id
  DomainName:
    Description: "Enter the cloudfront domain name (Alias) (ex: shun-practice.com)"
    Type: String
  ACMPublicCertificateArn:
    Description: "Enter the ACM public certificate ARN for global region"
    Type: String
  CachePolicy:
    Description: "Select the CloudFront cache policy"
    Type: String
    Default: CachingDisabled
    AllowedValues:
      - CachingOptimized
      - CachingDisabled
      - CachingOptimizedForUncompressedObjects
      - Elemental-MediaPackage
      - Amplify
  ResponseHeadersPolicy:
    Description: "Select the CloudFront response headers policy"
    Type: String
    Default: SecurityHeadersPolicy
    AllowedValues:
      - CORS-and-SecurityHeadersPolicy
      - CORS-With-Preflight
      - CORS-with-preflight-and-SecurityHeadersPolicy
      - SecurityHeadersPolicy
      - SimpleCORS
  WebACLArn:
    Description: "Enter the ARN of the WAFv2 to apply to CloudFront. (ex: arn:aws:wafv2:us-east-1:012345678910:global/webacl/example/xxxxx)"
    Type: String
  # -------------------------------------
  # Amplify
  # -------------------------------------
  GitHubAccessToken:
    Description: "Enter the Github personal access token. (ex: ghp_xxxxxxxxxx)"
    Type: String
    NoEcho: true
  GitHubRepoURL:
    Description: "Enter the Github repository URL."
    Type: String
  SourceBranchName:
    Description: "Enter the source branch name in GitHub frontend repository. (ex: main)"
    Type: String
  AmplifyDomainName:
    Description: "Enter the custom Amplify domain name. (Alias) (ex: shun-practice.com)"
    Type: String
  AmplifySubDomainPrefix:
    Description: "Enter the custom Amplify domain name subdomain prefix. (ex: amplify)"
    Type: String
  # SSRを使用する際はWEB_COMPUTEを選択
  AmplifyPlatform:
    Description: "Select the Amplify app platform. (when using SSR: WEB_COMPUTE)"
    Type: String
    Default: WEB_COMPUTE
    AllowedValues:
      - WEB
      - WEB_COMPUTE
      - WEB_DYNAMIC
  AmplifyBasicUserName:
    Description: "Enter the Amplify basic auth username"
    Type: String
    MinLength: 1
    MaxLength: 255
    ConstraintDescription: "AmplifyBasicUserName must be 1 to 225 characters"
  AmplifyBasicPassword:
    Description: "Enter the Amplify basic auth password"
    Type: String
    NoEcho: true
    MinLength: 7
    MaxLength: 255
    ConstraintDescription: "AmplifyBasicPassword must be 7 to 225 characters"
  APIURL:
    Description: "Enter the API URL for backend. (ex: https://api.shun-practice.com)"
    Type: String
  FetchCredential:
    Description: "Enter the auth settings for API fetch from frontend."
    Type: String
    Default: include
  ALBHeaderAuthName:
    Description: "Enter the ALB header auth name. (ex: X-Auth-ALB)"
    Type: String
  ALBHeaderAuthValue:
    Description: "Enter the ALB header auth value."
    Type: String
Resources:
  # -------------------------------------
  # CloudFront Stack
  # -------------------------------------
  CloudFrontStack:
    DeletionPolicy: Retain
    UpdateReplacePolicy: Retain
    Type: AWS::CloudFormation::Stack
    Properties:
      TemplateURL: !Ref CloudFrontTemplateURL
      Parameters:
        ProjectName: !Ref ProjectName
        Environment: !Ref Environment
        HostZoneID: !Ref HostZoneID
        DomainName: !Ref DomainName
        ACMPublicCertificateArn: !Ref ACMPublicCertificateArn
        AmplifyURL: !GetAtt AmplifyStack.Outputs.AmplifyCustomDomainURL
        AuthHeaderValue: !GetAtt AmplifyStack.Outputs.AmplifyBasicAuthCredentials
        CachePolicy: !Ref CachePolicy
        ResponseHeadersPolicy: !Ref ResponseHeadersPolicy
        WebACLArn: !Ref WebACLArn
  # -------------------------------------
  # Amplify Stack
  # -------------------------------------
  AmplifyStack:
    DeletionPolicy: Retain
    UpdateReplacePolicy: Retain
    Type: AWS::CloudFormation::Stack
    Properties:
      TemplateURL: !Ref AmplifyTemplateURL
      Parameters:
        ProjectName: !Ref ProjectName
        Environment: !Ref Environment
        GitHubAccessToken: !Ref GitHubAccessToken
        GitHubRepoURL: !Ref GitHubRepoURL
        SourceBranchName: !Ref SourceBranchName
        AmplifyDomainName: !Ref DomainName
        AmplifySubDomainPrefix: !Ref AmplifySubDomainPrefix
        AmplifyPlatform: !Ref AmplifyPlatform
        AmplifyBasicUserName: !Ref AmplifyBasicUserName
        AmplifyBasicPassword: !Ref AmplifyBasicPassword
        APIURL: !Ref APIURL
        FetchCredential: !Ref FetchCredential
        ALBHeaderAuthName: !Ref ALBHeaderAuthName
        ALBHeaderAuthValue: !Ref ALBHeaderAuthValue

実際に作成してみよう！

テンプレートを先ほど作成したS3へアップロードします

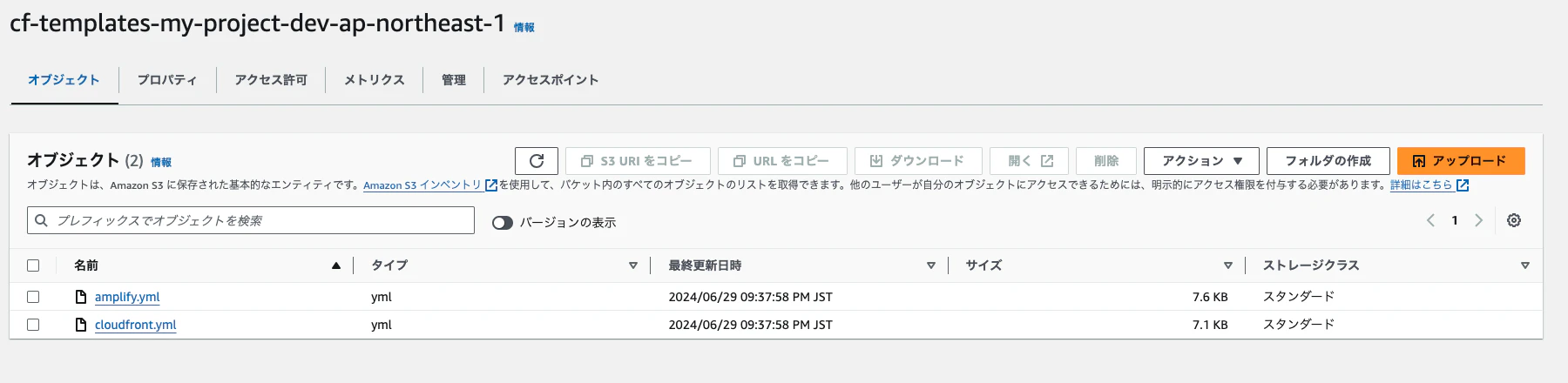

スクリーンショット 2024-06-29 21.49.16.png

コンソールからスタックを作成します

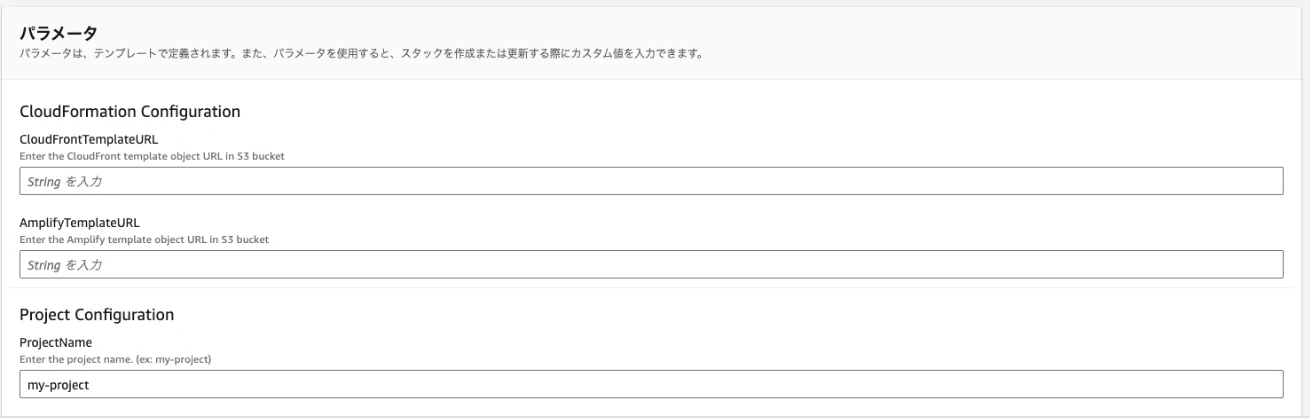

スクリーンショット 2024-06-29 21.56.46.png

URLの値はS3内のyamlファイルのプロバティにあるオブジェクトURLを指定します

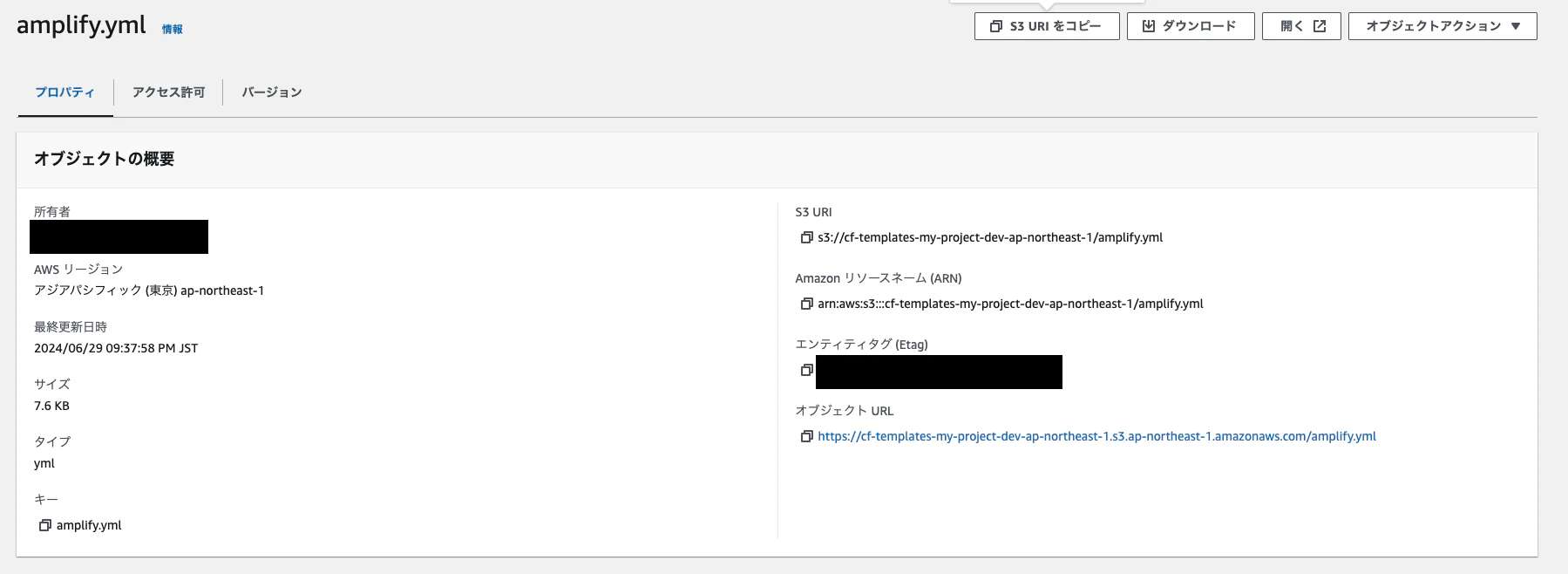

スクリーンショット 2024-06-29 21.57.44.png

以下のようにAmplifyとCloudFrontのスタックがまとめて作成されたら成功です

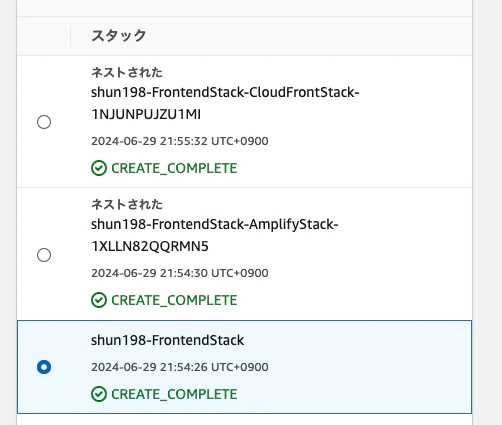

スクリーンショット 2024-06-29 22.04.56.png

参考

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
