GNS3でNexus9000vを使ってEVPN/VXLANを設定する

Posted at

概要

GNS3でNexus9000vを使ってEVPN/VXLANを設定する。
Cisco Community | Nexus シリーズ : VXLAN EVPN 基本設定

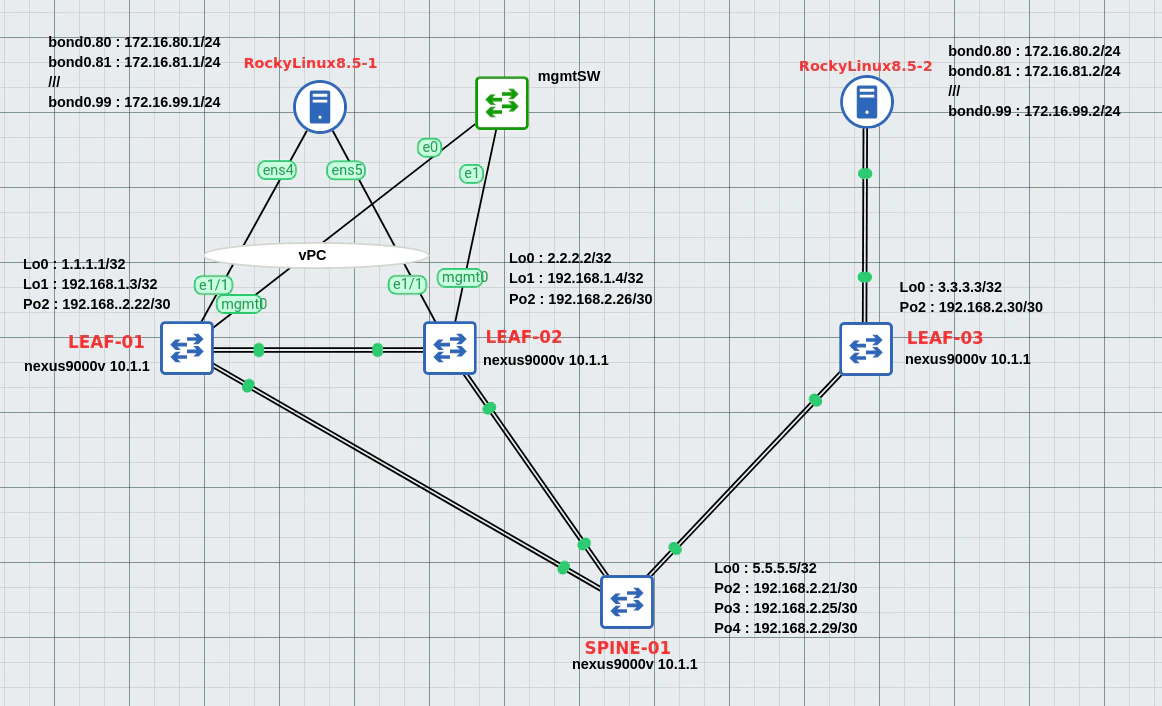

使用するトポロジー

環境

  • ThinkCentre M75q Gen2（8CPUs, Mem64GB）
  • Ubuntu 20.04.1 LTS
  • GNS3：2.2.42

事前準備

前回を参照：GNS3でNexus9000vを使ってvPCを設定する

設定

LEAF-01

//featureを有効化
feature ospf
feature bgp
feature vn-segment-vlan-based
feature nv overlay

//アンダーレイネットワークの設定
router ospf 100
  router-id 1.1.1.1
!
interface loopback0
  ip address 1.1.1.1/32
  ip ospf network point-to-point
  ip router ospf 100 area 0.0.0.0
!
interface loopback1
  ip address 192.168.1.3/32
  ip address 192.168.1.129/32 secondary
  ip ospf network point-to-point
  ip router ospf 100 area 0.0.0.0
!
interface port-channel2
  description SPINE-01_Po2
  no switchport
  mtu 9216
  ip address 192.168.2.22/30
  ip ospf network point-to-point
  ip router ospf 100 area 0.0.0.0
!
interface Ethernet1/3
  no switchport
  mtu 9216
  udld aggressive
  channel-group 2 mode active
  no shutdown
!
interface Ethernet1/4
  no switchport
  mtu 9216
  udld aggressive
  channel-group 2 mode active
  no shutdown

//EVPN MP-BGPの設定
router bgp 65001
  router-id 1.1.1.1
  log-neighbor-changes
  address-family ipv4 unicast
  address-family l2vpn evpn
  neighbor 5.5.5.5
    bfd
    remote-as 65001
    update-source loopback0
    timers 20 60
    address-family ipv4 unicast
      send-community
      send-community extended
    address-family l2vpn evpn
      send-community
      send-community extended

//オーバーレイネットワークの設定
vlan 1,80-99
!
vlan 80
  vn-segment 100080
vlan 81
  vn-segment 100081
vlan 82
  vn-segment 100082
vlan 83
  vn-segment 100083
vlan 84
  vn-segment 100084
vlan 85
  vn-segment 100085
vlan 86
  vn-segment 100086
vlan 87
  vn-segment 100087
vlan 88
  vn-segment 100088
vlan 89
  vn-segment 100089
vlan 90
  vn-segment 100090
vlan 91
  vn-segment 100091
vlan 92
  vn-segment 100092
vlan 93
  vn-segment 100093
vlan 94
  vn-segment 100094
vlan 95
  vn-segment 100095
vlan 96
  vn-segment 100096
vlan 97
  vn-segment 100097
vlan 98
  vn-segment 100098
vlan 99
  vn-segment 100099
!
evpn
  vni 100080 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100081 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100082 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100083 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100084 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100085 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100086 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100087 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100088 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100089 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100090 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100091 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100092 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100093 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100094 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100095 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100096 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100097 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100098 l2
    rd auto
    route-target import auto
    route-target export auto
  vni 100099 l2
    rd auto
    route-target import auto
    route-target export auto
!
interface nve1
  no shutdown
  host-reachability protocol bgp
  source-interface loopback1
  member vni 100080
    ingress-replication protocol bgp
  member vni 100081
    ingress-replication protocol bgp
  member vni 100082
    ingress-replication protocol bgp
  member vni 100083
    ingress-replication protocol bgp
  member vni 100084
    ingress-replication protocol bgp
  member vni 100085
    ingress-replication protocol bgp
  member vni 100086
    ingress-replication protocol bgp
  member vni 100087
    ingress-replication protocol bgp
  member vni 100088
    ingress-replication protocol bgp
  member vni 100089
    ingress-replication protocol bgp
  member vni 100090
    ingress-replication protocol bgp
  member vni 100091
    ingress-replication protocol bgp
  member vni 100092
    ingress-replication protocol bgp
  member vni 100093
    ingress-replication protocol bgp
  member vni 100094
    ingress-replication protocol bgp
  member vni 100095
    ingress-replication protocol bgp
  member vni 100096
    ingress-replication protocol bgp
  member vni 100097
    ingress-replication protocol bgp
  member vni 100098
    ingress-replication protocol bgp
  member vni 100099
    ingress-replication protocol bgp

SPINE-01

//featureを有効化
feature ospf
feature bgp

//アンダーレイネットワークの設定
router ospf 100
  router-id 5.5.5.5
!
interface loopback0
  ip address 5.5.5.5/32
  ip ospf network point-to-point
  ip router ospf 100 area 0.0.0.0
interface port-channel2
  description LEAF-01_Po2
  no switchport
  mtu 9216
  ip address 192.168.2.21/30
  ip ospf network point-to-point
  ip router ospf 100 area 0.0.0.0
!
interface port-channel3
  description LEAF-02_Po2
  no switchport
  mtu 9216
  ip address 192.168.2.25/30
  ip ospf network point-to-point
  ip router ospf 100 area 0.0.0.0
!
interface port-channel4
  description LEAF-03_Po2
  no switchport
  mtu 9216
  ip address 192.168.2.29/30
  ip ospf network point-to-point
  ip router ospf 100 area 0.0.0.0
!
interface Ethernet1/3
  no switchport
  mtu 9216
  udld aggressive
  channel-group 2 mode active
  no shutdown
!
interface Ethernet1/4
  no switchport
  mtu 9216
  udld aggressive
  channel-group 2 mode active
  no shutdown
!
interface Ethernet1/5
  no switchport
  mtu 9216
  udld aggressive
  channel-group 3 mode active
  no shutdown
!
interface Ethernet1/6
  no switchport
  mtu 9216
  udld aggressive
  channel-group 3 mode active
  no shutdown
!
interface Ethernet1/7
  no switchport
  mtu 9216
  udld aggressive
  channel-group 4 mode active
  no shutdown
!
interface Ethernet1/8
  no switchport
  mtu 9216
  udld aggressive
  channel-group 4 mode active
  no shutdown

//EVPN MP-BGPの設定
nv overlay evpn
!
router bgp 65001
  router-id 5.5.5.5
  cluster-id 1
  log-neighbor-changes
  address-family ipv4 unicast
  address-family l2vpn evpn
  neighbor 1.1.1.1
    remote-as 65001
    update-source loopback0
    timers 20 60
    address-family ipv4 unicast
      send-community
      send-community extended
    address-family l2vpn evpn
      send-community
      send-community extended
      route-reflector-client
  neighbor 2.2.2.2
    remote-as 65001
    update-source loopback0
    timers 20 60
    address-family ipv4 unicast
      send-community
      send-community extended
    address-family l2vpn evpn
      send-community
      send-community extended
      route-reflector-client
  neighbor 3.3.3.3
    remote-as 65001
    update-source loopback0
    timers 20 60
    address-family ipv4 unicast
      send-community
      send-community extended
    address-family l2vpn evpn
      send-community
      send-community extended
      route-reflector-client

コントロールプレーンの動作確認

RockyLinux8.5-1

bond0.80のMACアドレスは0c:91:18:28:00:01

[rocky@rocky-cloud ~]$ ip a
6: bond0.80@bond0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 0c:91:18:28:00:01 brd ff:ff:ff:ff:ff:ff
    inet 172.16.80.1/24 brd 172.16.80.255 scope global noprefixroute bond0.80
       valid_lft forever preferred_lft forever

LEAF-01

//LEAF-01のMACアドレステーブルに 0c:91:18:28:00:01 が載る
LEAF-01# sh mac address-table vlan 80
Legend:
        * - primary entry, G - Gateway MAC, (R) - Routed MAC, O - Overlay MAC
        age - seconds since last seen,+ - primary entry using vPC Peer-Link,
        (T) - True, (F) - False, C - ControlPlane MAC, ~ - vsan
   VLAN     MAC Address      Type      age     Secure NTFY Ports
---------+-----------------+--------+---------+------+----+------------------
*   80     0c91.1828.0001   dynamic  0         F      F    Po4

//L2RIB
LEAF-01# sh l2route evpn mac evi 80
Topology    Mac Address    Prod   Flags         Seq No     Next-Hops
----------- -------------- ------ ------------- ---------- ---------------------
  80          0c91.1828.0001 Local  L,            0          Po4

//BGP L2VPN
LEAF-01# sh bgp l2vpn evpn vni-id 100080
   Network            Next Hop            Metric     LocPrf     Weight Path
Route Distinguisher: 1.1.1.1:32847    (L2VNI 100080)
*>l[2]:[0]:[0]:[48]:[0c91.1828.0001]:[0]:[0.0.0.0]/216
                      192.168.1.129                     100      32768 i

//MP-BGPによって5.5.5.5（SPINE-01）へアドバタイズされる
LEAF-01# sh bgp l2vpn evpn 0c91.1828.0001
BGP routing table information for VRF default, address family L2VPN EVPN
Route Distinguisher: 1.1.1.1:32847    (L2VNI 100080)
BGP routing table entry for [2]:[0]:[0]:[48]:[0c91.1828.0001]:[0]:[0.0.0.0]/216,
 version 66
Paths: (1 available, best #1)
Flags: (0x000102) (high32 00000000) on xmit-list, is not in l2rib/evpn

  Advertised path-id 1
  Path type: local, path is valid, is best path, no labeled nexthop
  AS-Path: NONE, path locally originated
    192.168.1.129 (metric 0) from 0.0.0.0 (1.1.1.1)
      Origin IGP, MED not set, localpref 100, weight 32768
      Received label 100080
      Extcommunity: RT:65001:100080 SOO:192.168.1.129:0 ENCAP:8

  Path-id 1 advertised to peers:
    5.5.5.5

LEAF-03

//MP-BGP to L2RIB
LEAF-03# sh bgp internal event-history events | i 0c91.1828.0001
[729] 2023 Aug 16 13:51:25.085565 [bgp] E_DEBUG     [29184] (default) RIB: [L2VPN EVPN] Adding 3.3.3.3:32847:[2]:[0]:[0]:[48]:[0c91.1828.0001]:[0]:[0.0.0.0]/216 via 192.168.1.129 (encap 0, label 100080) to NH list (flags2: 0x400, l2r_nh_flags: 0x0)
[730] 2023 Aug 16 13:51:25.085557 [bgp] E_DEBUG     [29184] (default) RIB: [L2VPN EVPN] Add/delete 3.3.3.3:32847:[2]:[0]:[0]:[48]:[0c91.1828.0001]:[0]:[0.0.0.0]/216, flags=0x200, in_rib: no
[731] 2023 Aug 16 13:51:25.085154 [bgp] E_DEBUG     [29184] (default) IMP: [L2VPN EVPN] Created import destination entry for 3.3.3.3:32847:[2]:[0]:[0]:[48]:[0c91.1828.0001]:[0]:[0.0.0.0]/216
[732] 2023 Aug 16 13:51:25.085149 [bgp] E_DEBUG     [29184] (default) IMP: [L2VPN EVPN] Importing prefix 1.1.1.1:32847:[2]:[0]:[0]:[48]:[0c91.1828.0001]:[0]:[0.0.0.0]/216 to <default> RD 3.3.3.3:32847

//L2RIB
LEAF-03# sh l2route evpn mac evi 80
Topology    Mac Address    Prod   Flags         Seq No     Next-Hops                    ----------- -------------- ------ ------------- ---------- ---------------------
80          0c91.1828.0001 BGP    Rcv           0          192.168.1.129 (Label:100080)

//MACアドレステーブルにエントリが載る
LEAF-03#  show mac address-table vlan 80
   VLAN     MAC Address      Type      age     Secure NTFY Ports
---------+-----------------+--------+---------+------+----+------------------
C   80     0c91.1828.0001   dynamic  0         F      F    nve1(192.168.1.129)

このようなコントロールプレーンの動作によりLEAF-01に収容されているホストのMACがLEAF-03に伝播されることでpingが疎通できる。

[rocky@rocky-cloud ~]$ ping 172.16.80.2 -c 3
PING 172.16.80.2 (172.16.80.2) 56(84) bytes of data.
64 bytes from 172.16.80.2: icmp_seq=1 ttl=64 time=5.99 ms
64 bytes from 172.16.80.2: icmp_seq=2 ttl=64 time=6.62 ms
64 bytes from 172.16.80.2: icmp_seq=3 ttl=64 time=8.50 ms
