第5世代 AMD EPYCTMプロセッサを搭載した Oracle Cloud Infrastructure (OCI) Compute E6 Standard が発表されました。
ストレージ技術基礎より、ストレージの IOPS(Input Output Per Second) と スループット(データ転送速度)の算出は次のようになります。
[スループット] = [1回のアクセスで処理する容量] × [IOPS]
--> 200Gbps = 4KB × IOPS
--> IOPS = 200Gb / 4KB = 25GB / 4 KB = 25,000,000 KB / 4 KB = 6,250,000
ということで 200Gbps の帯域幅を備えた BM.Standard.E6 コンピユートのストレージ・パフォーマンスは、625万 IOPS出そうです。
E6 Standard Bare metal instance は、高スループットのコンピュート集中型のワークロード向けに設計されています。各インスタンスには、256コア、3 TBのメモリ、200 Gbpsのネットワーク・スループットが付属しています。これは、E5 Standardと比較して、コンピュートおよびメモリーが33%多く、ネットワーク帯域幅が2倍であり、業界標準のベンチマークで最大2倍のパフォーマンスを実現します。

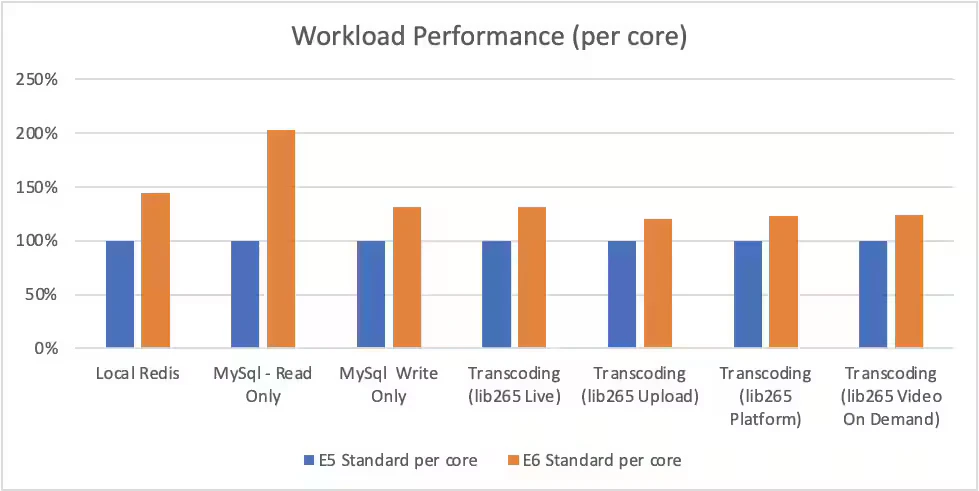

オラクルのワークロード・テストでは、E6 Standardは、E5 Standardよりも最大2倍のコア当たりパフォーマンスが向上し、コストを損なうことなく必要なコンピュート・パワーが得られます。
-
E6 Standardインスタンスの理想的なユース・ケース
・ ビデオ・トランスコーディング、会議、オンデマンド・ビデオ
・ 大規模なパラレル・バッチ・ジョブ
・ インメモリー・データベースとキャッシュ・フリート
・ エンタープライズ・アプリケーション用のバックエンド・サーバー
・ Webサーバーとアプリケーション・サーバー
・ ゲーム・サーバー
・ アプリケーション開発環境
・ ビッグ・データ処理 (Spark、Hadoopなど)
・ 財務モデリングとリアルタイム分析
・ 高パフォーマンス・コンピューティング (HPC)
・ 科学的シミュレーションと3Dレンダリング
ということで、Oracle Cloud Infrastructure (OCI) BM.Standard.E6 で IOパフォーマンス 600万IOPS, 200Gbpsスループットを手段問わず無邪気にだしてみてみてみます。
■ 超高パフォーマンス・ボリュームのためのアタッチメントの構成
超高パフォーマンス・レベルで構成されたボリュームをアタッチして、最適なパフォーマンスを実現するには、ボリューム・アタッチメントをマルチパス対応にする必要があります。
ブロック・ボリューム・サービスでは、ボリュームをアタッチする際に、アタッチメントがマルチパス対応になるよう試行します。満たしていない前提条件があると、ボリューム・アタッチメントはマルチパス対応になりません。
● マルチパス対応の iSCSI アタッチメント前提条件
マルチパス対応の iSCSI ボリュームアタッチメントを構成するために必要な前提条件
・参考: 超高パフォーマンス・ボリュームのためのアタッチメントの構成
- サポートされているシェイプ
- サポートされてるイメージ
- インスタンスのブロック・ボリューム管理プラグインを有効化
- ブロック・ボリューム管理プラグインのパブリックIPアドレスまたはサービス・ゲートウェイを設定
- 権限の構成
- 一貫性のあるデバイス・パスを使用
- インスタンスに、同じインスタンスの別のマルチパス対応アタッチメントが存在しないこと(Oracle Cloud Agentバージョン1.39未満の場合)
■ 権限の構成
ブロック・ボリューム管理プラグインが、マルチパス対応iSCSIアタッチメントの iSCSI設定の結果をレポートできるよう、権限を構成する必要があります

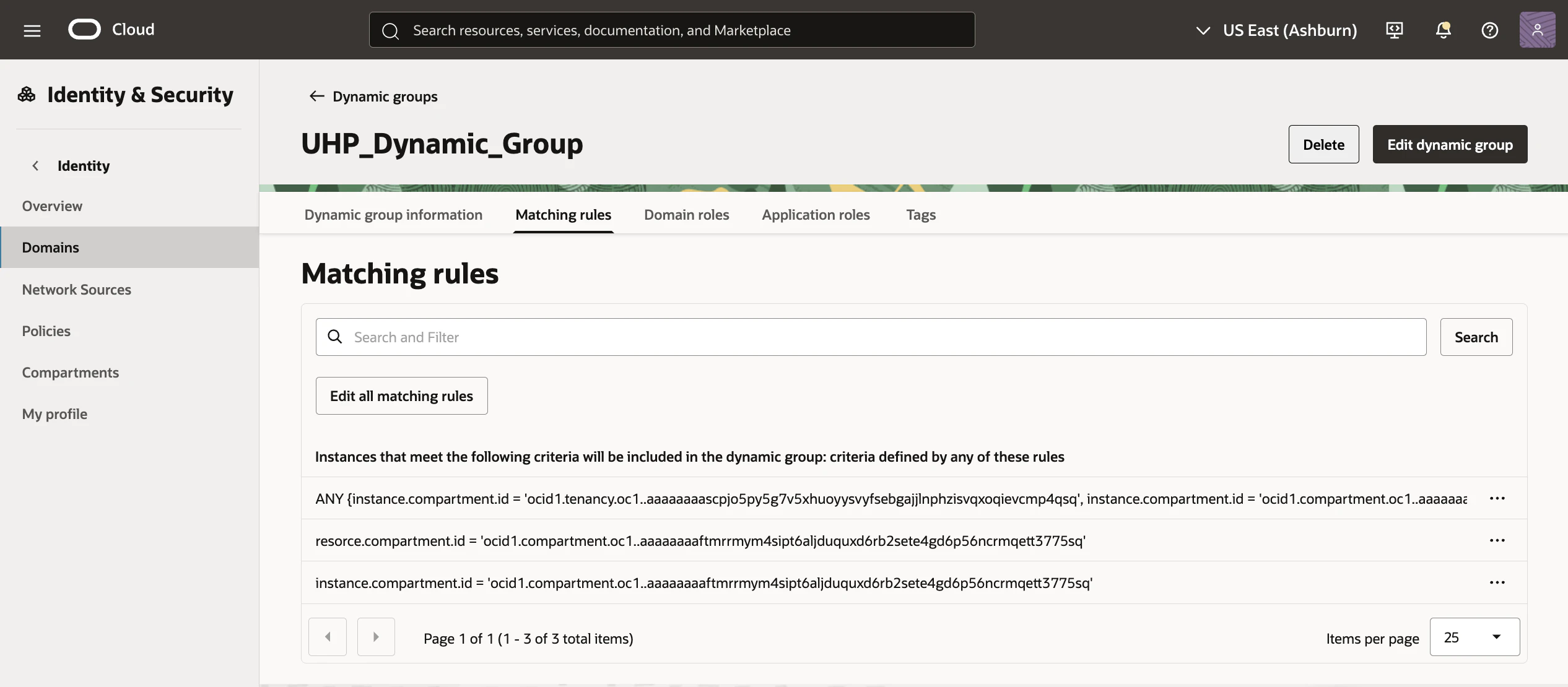

1) 動的グループの作成
次のコード・サンプルの一致ルールを使用して動的グループを作成し、指定したコンパートメント内のすべてのインスタンスを追加します。
ここでは、UHP_Dynamic_Group という名前で作成
例)
ANY {instance.compartment.id = '<テナンシOCID>', instance.compartment.id = '<コンパートメントOCID>'}

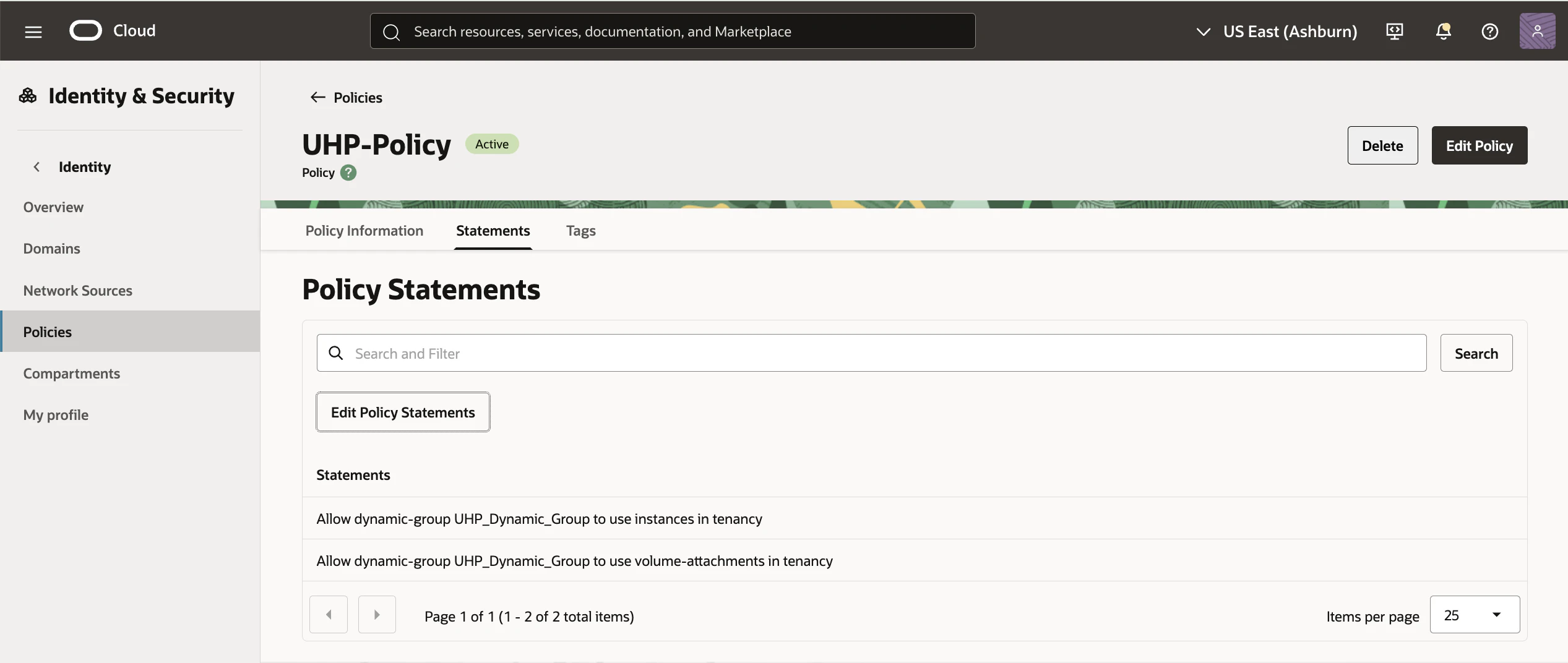

2) 動的グループのポリシーの構成
前のステップで作成した動的グループ: UHP_Dynamic_Group に権限を付与するポリシーを構成して、インスタンス・エージェントによるアクセスを可能にし、ブロック・ボリューム・サービスをコールして、アタッチメント構成を取得できるようにします。
例)
Allow <dynamic-group名> InstantAgent to use instances in tenancy
Allow <dynamic-group名> InstantAgent to use volume-attachments in tenancy
■ サービス・ゲートウェイとルート制御設定
コンピュート・インスタンスが Oracleサービス (OCN) にアクセスできるよう
サービス・ゲートウェイを作成して、インスタンス配置するサブネットの ルート・ルールへ「 All Oracle Services Network Service」を設定します。

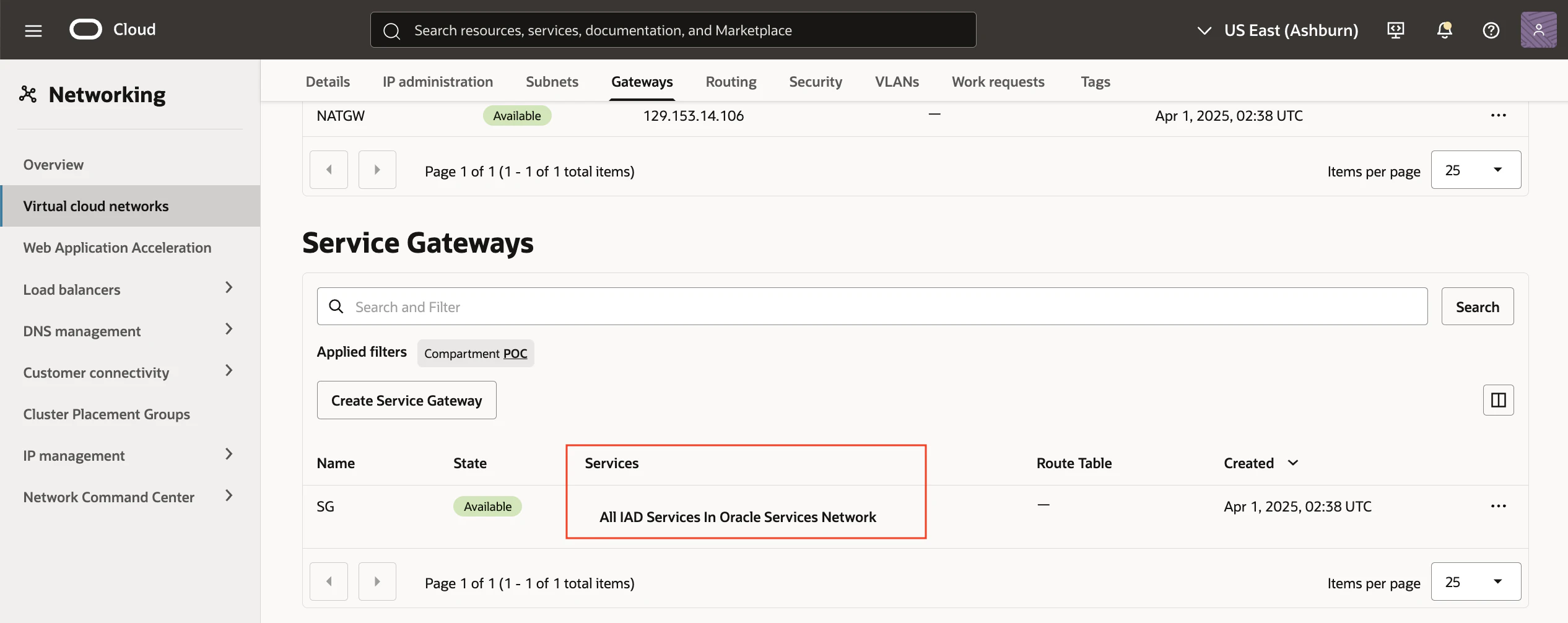

1) Serive Gateway設定

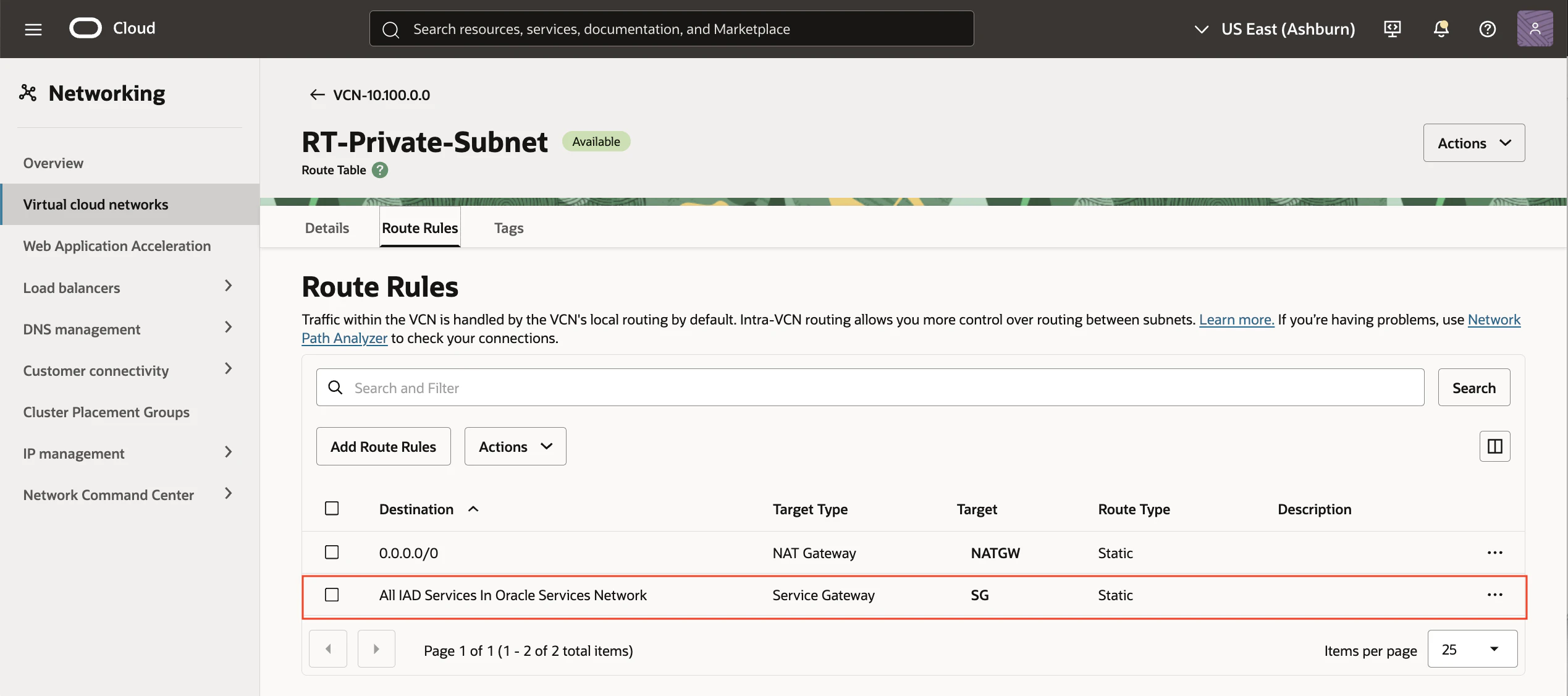

2) Route Table設定
Compute配置するSubnetに付属の Route Table へ Service Gatewayへ通じるRoute Rouleを設定
■ コンピュート・インスタンス作成

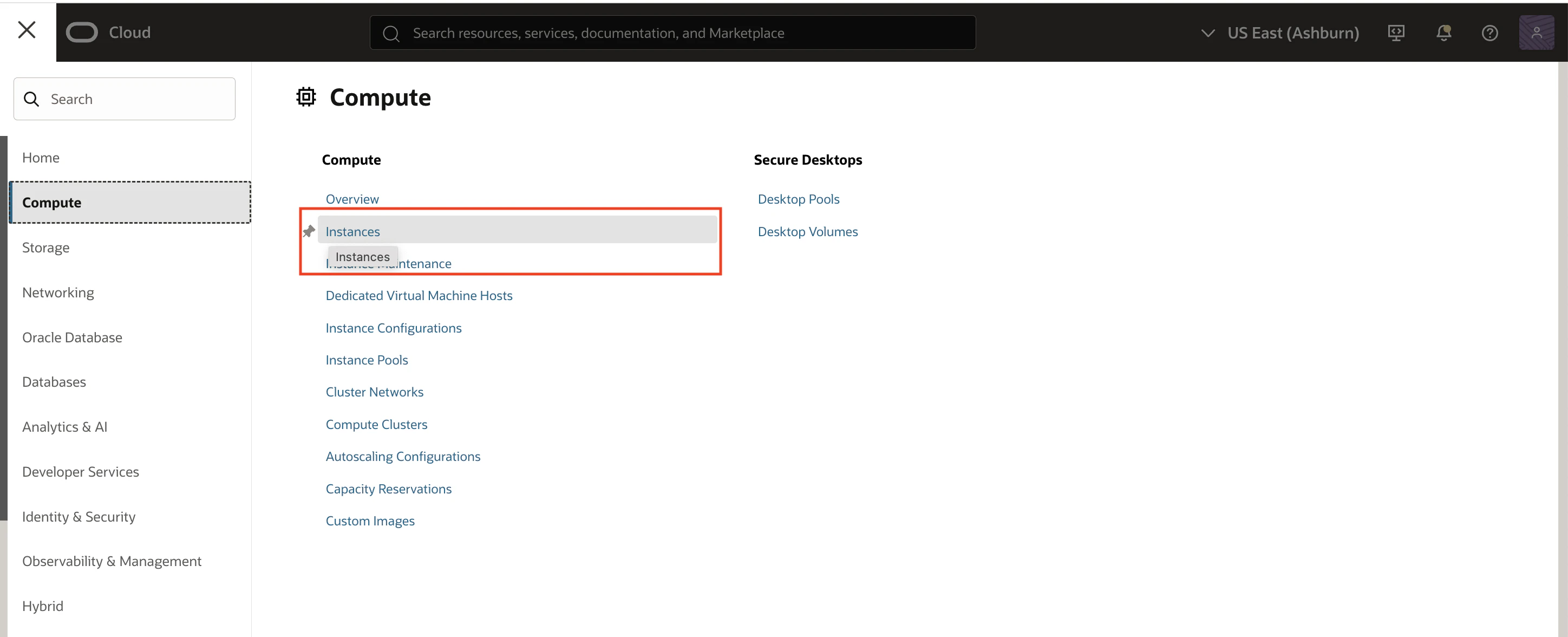

1) OCIコンソール画面
メニューから [コンピュート] > [インスタンス] をクリック

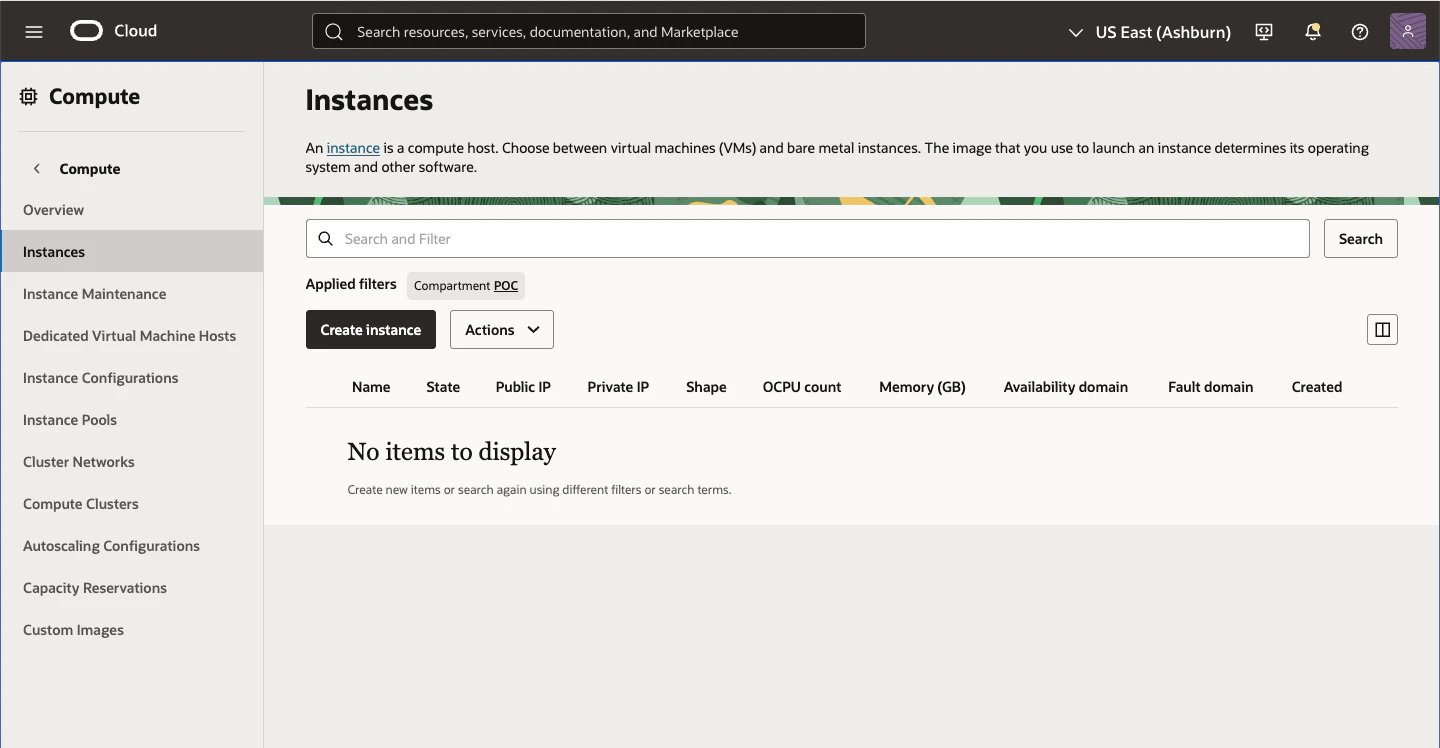

2) インスタンス画面
[インスタンス作成]をクリック

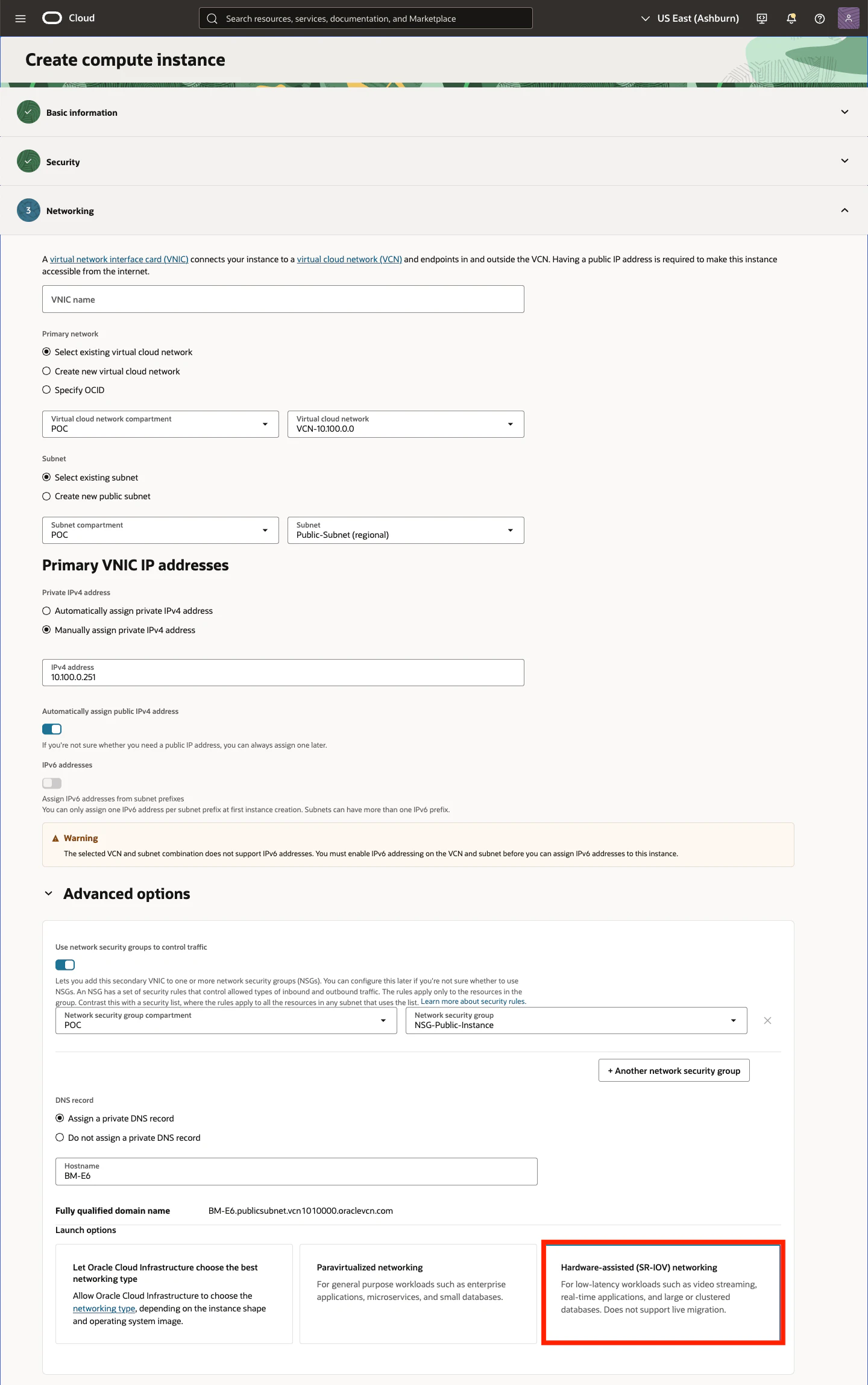

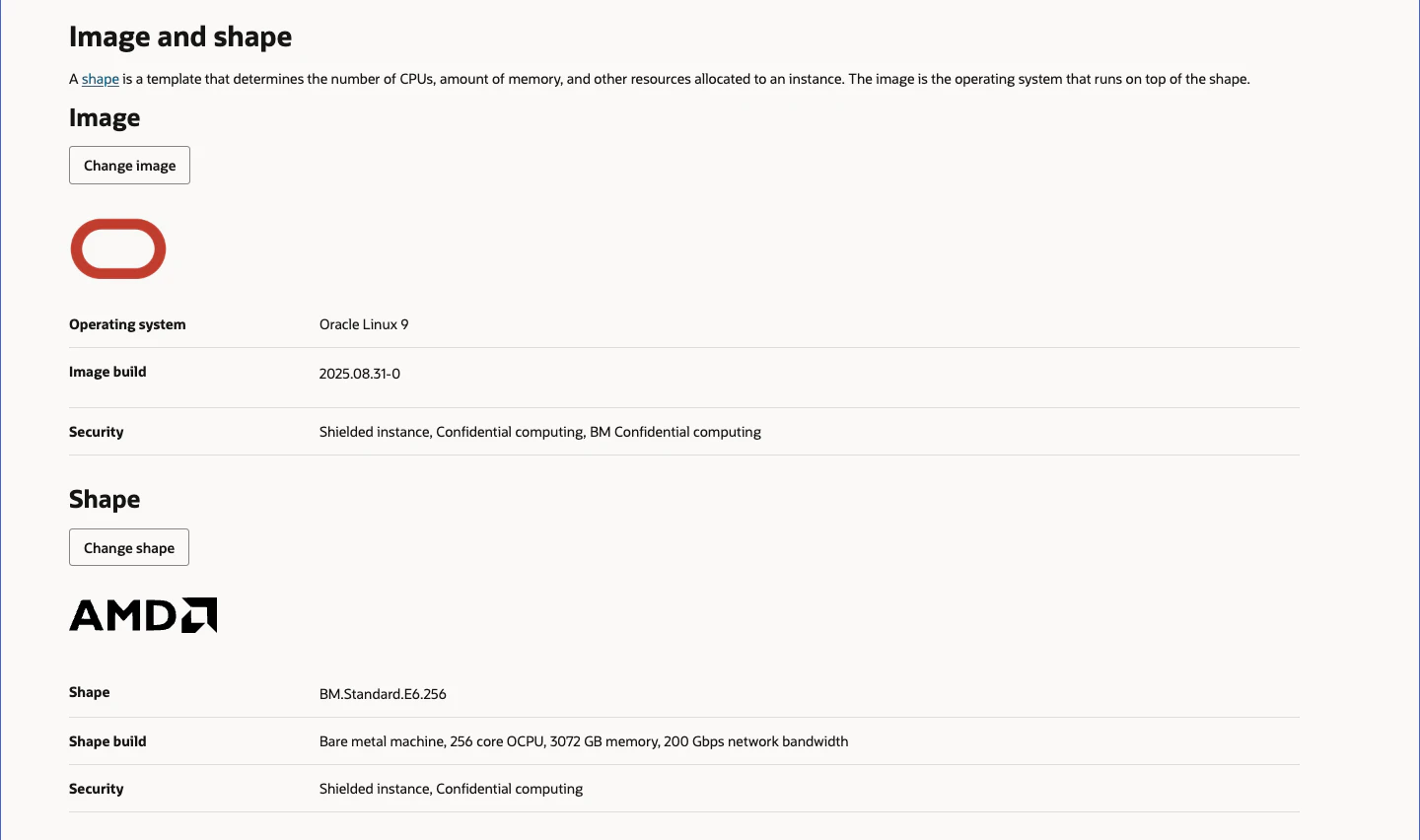

3) コンピュート・インスタンスの作成画面
今回、BM.Standard.E6 を使用して UHPブロック・ボリュームのマルチパス有効化するために 以下項目を設定して作成します。
・サポートされているシェイプ: Oracle Linux 9
・サポートされてるイメージ: BM.Standard.E6
・インスタンスのブロック・ボリューム管理プラグイン: 有効化

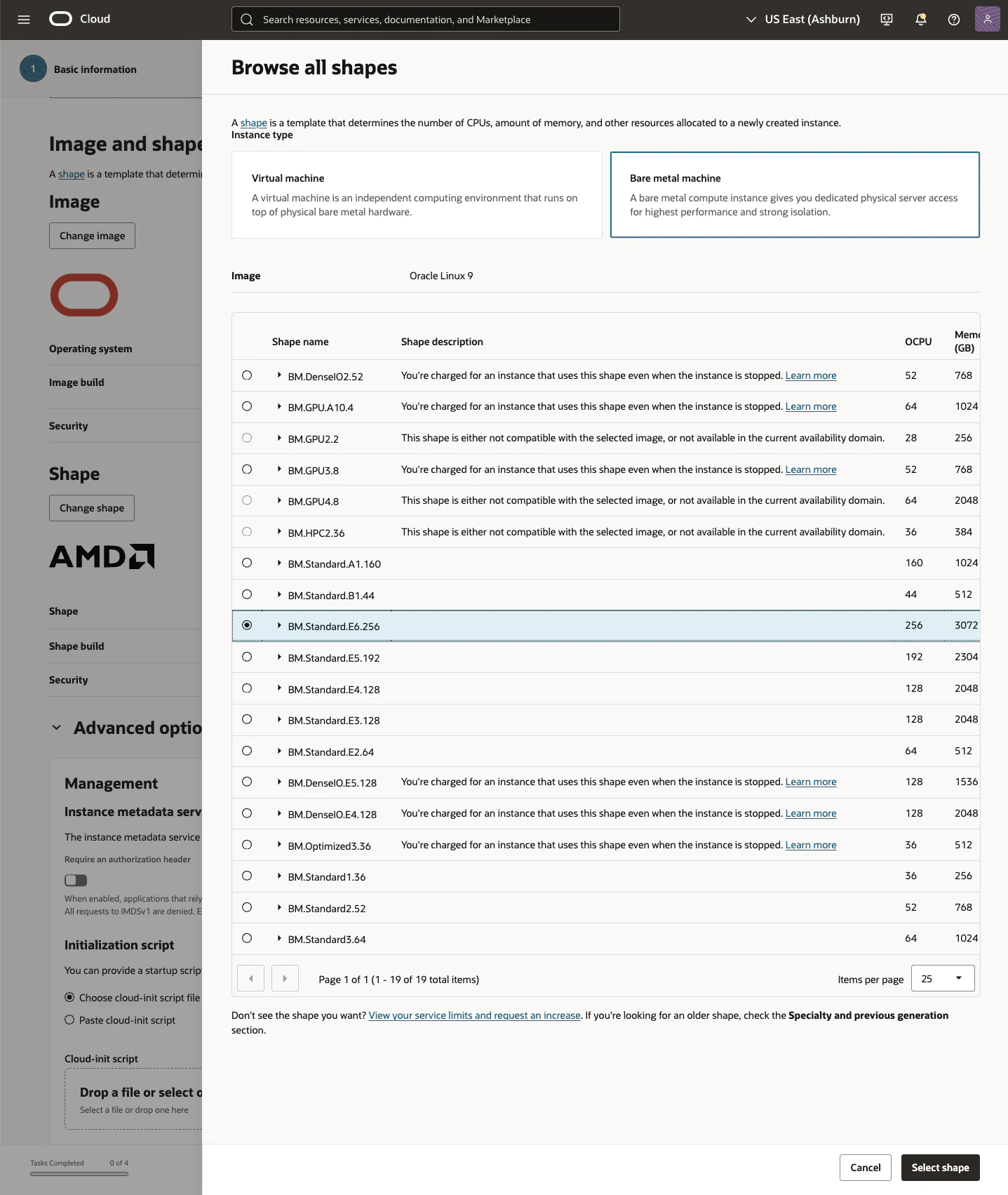

・すべてのシェイプの参照画面
主に次の項目を設定して[Select Shape]をクリック
Instance type: 今回は、[Bare metal machine]を選択
Shape name: 今回は、[BM.Standard.E6.256]を選択
Provision only a percentage of cores and disable the rest: 192あるCPUから利用する％を指定します。

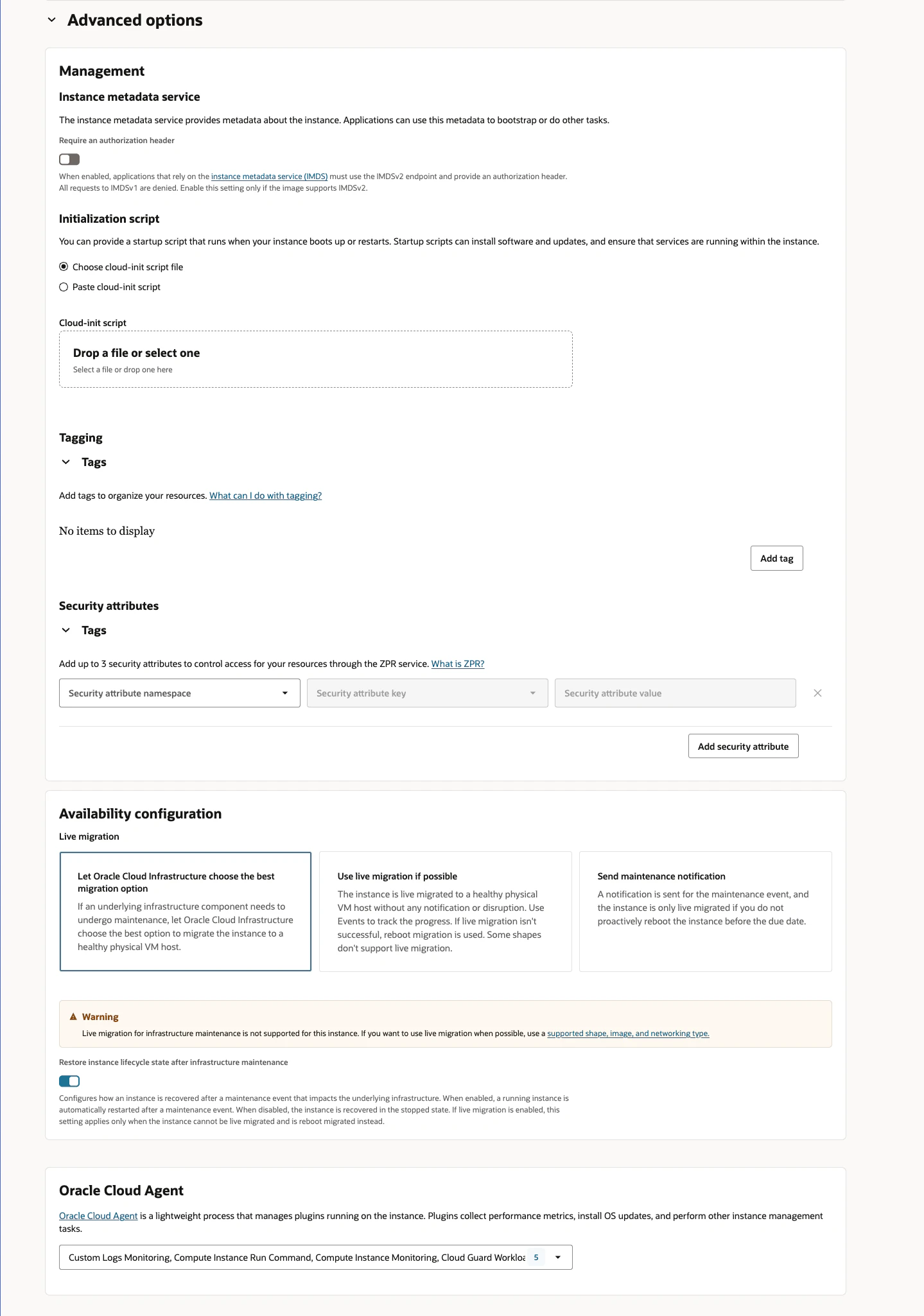

・コンピュート・インスタンスの作成: Basic画面

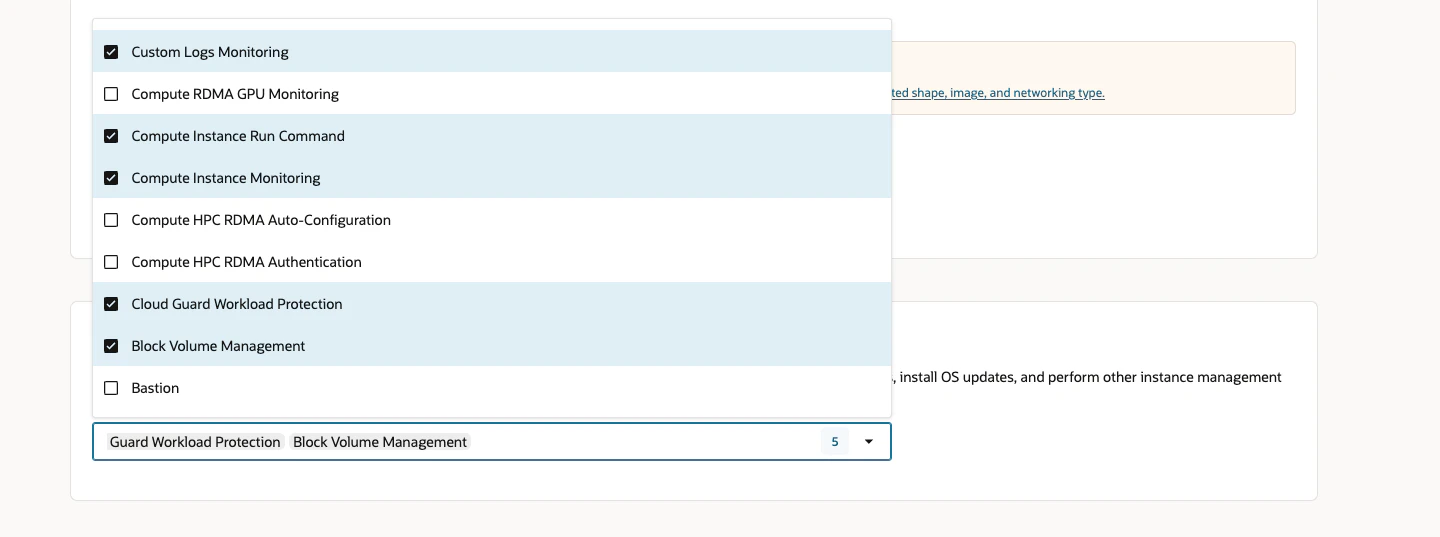

Oracle Cloud Agent項目で [ブロック・ボリューム管理]をチェック

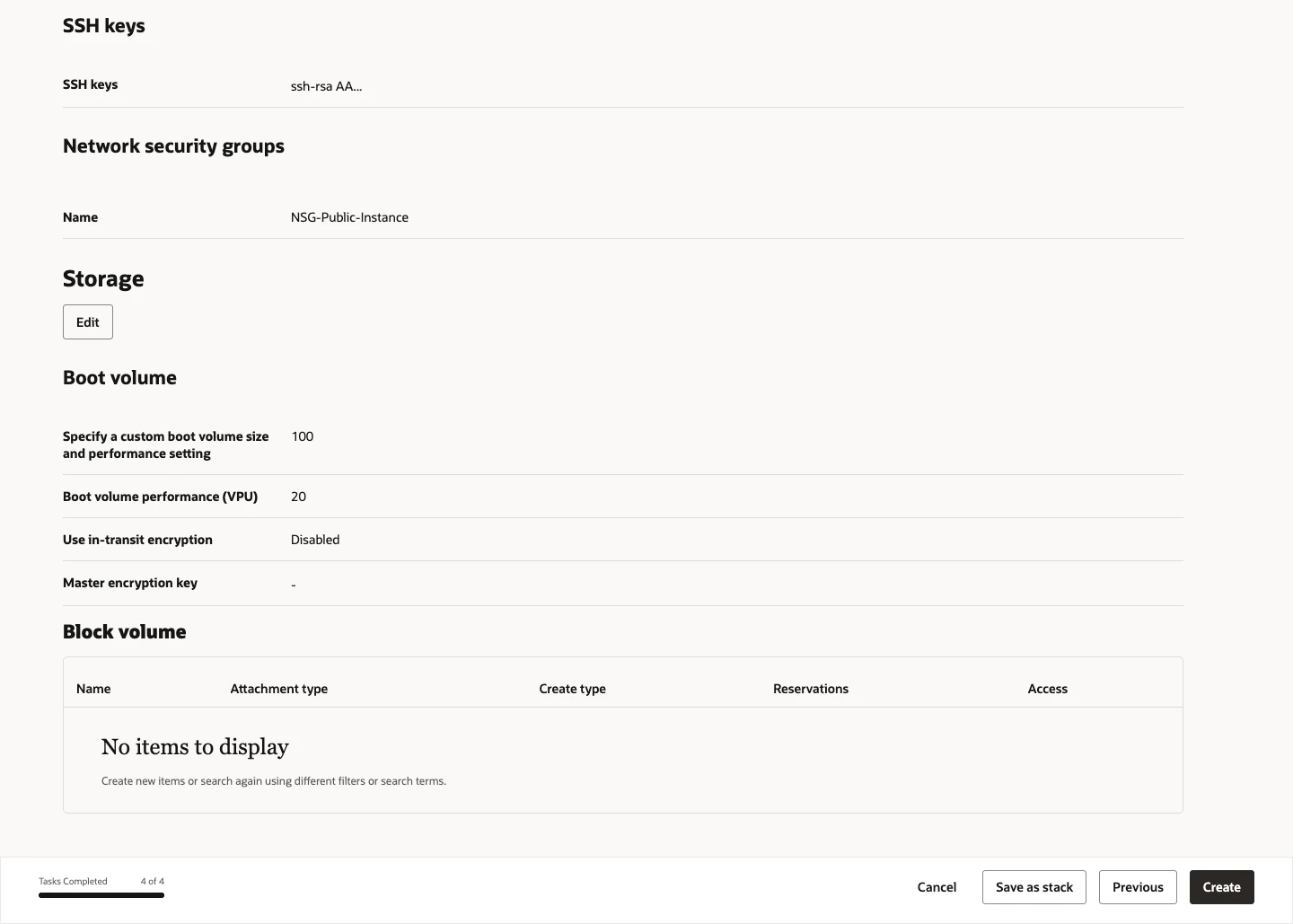

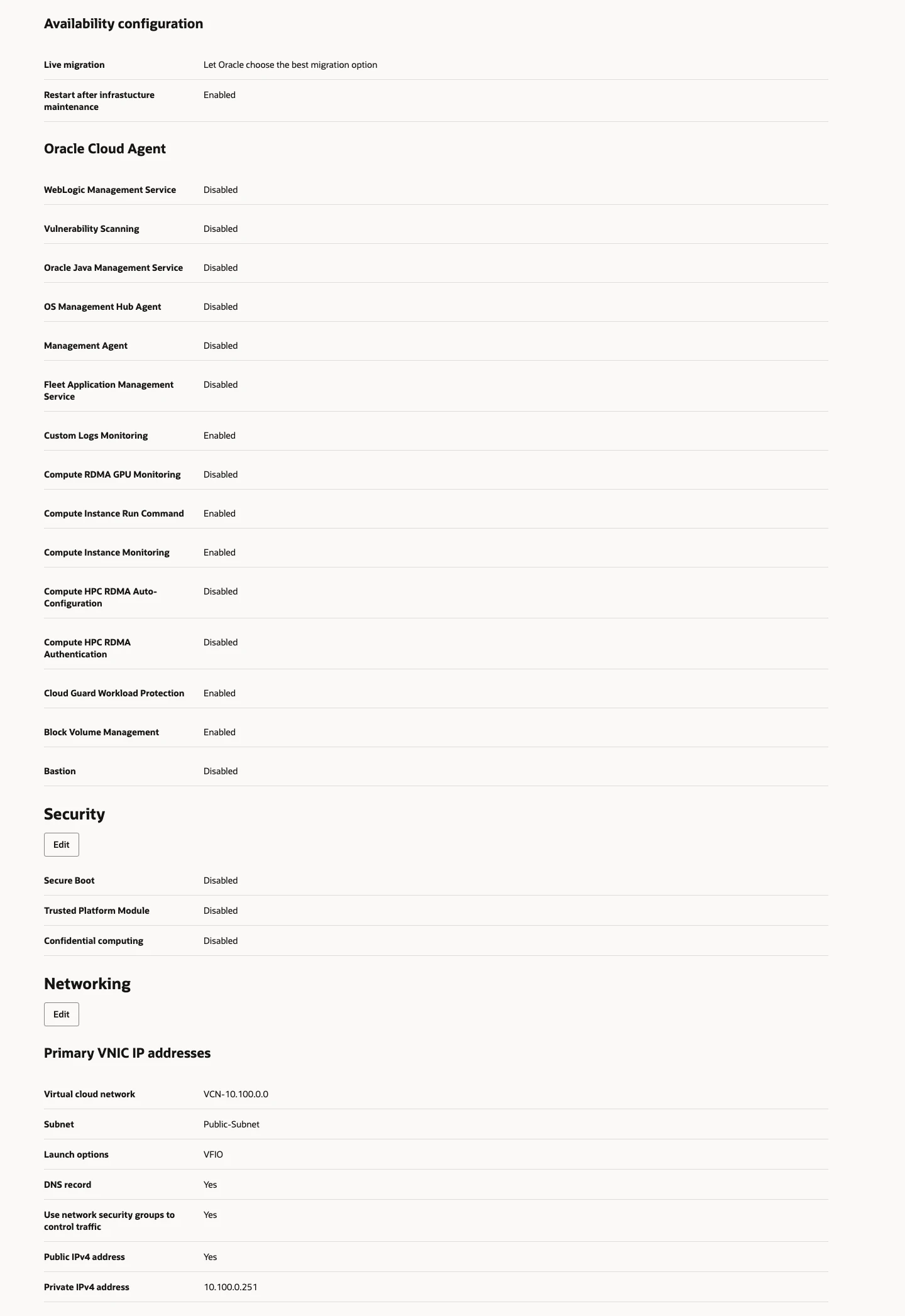

4)コンピュート・インスタンスの作成: Review画面
全ての項目の入力項目を確認したら、[Create]をクリック
5) 作成中

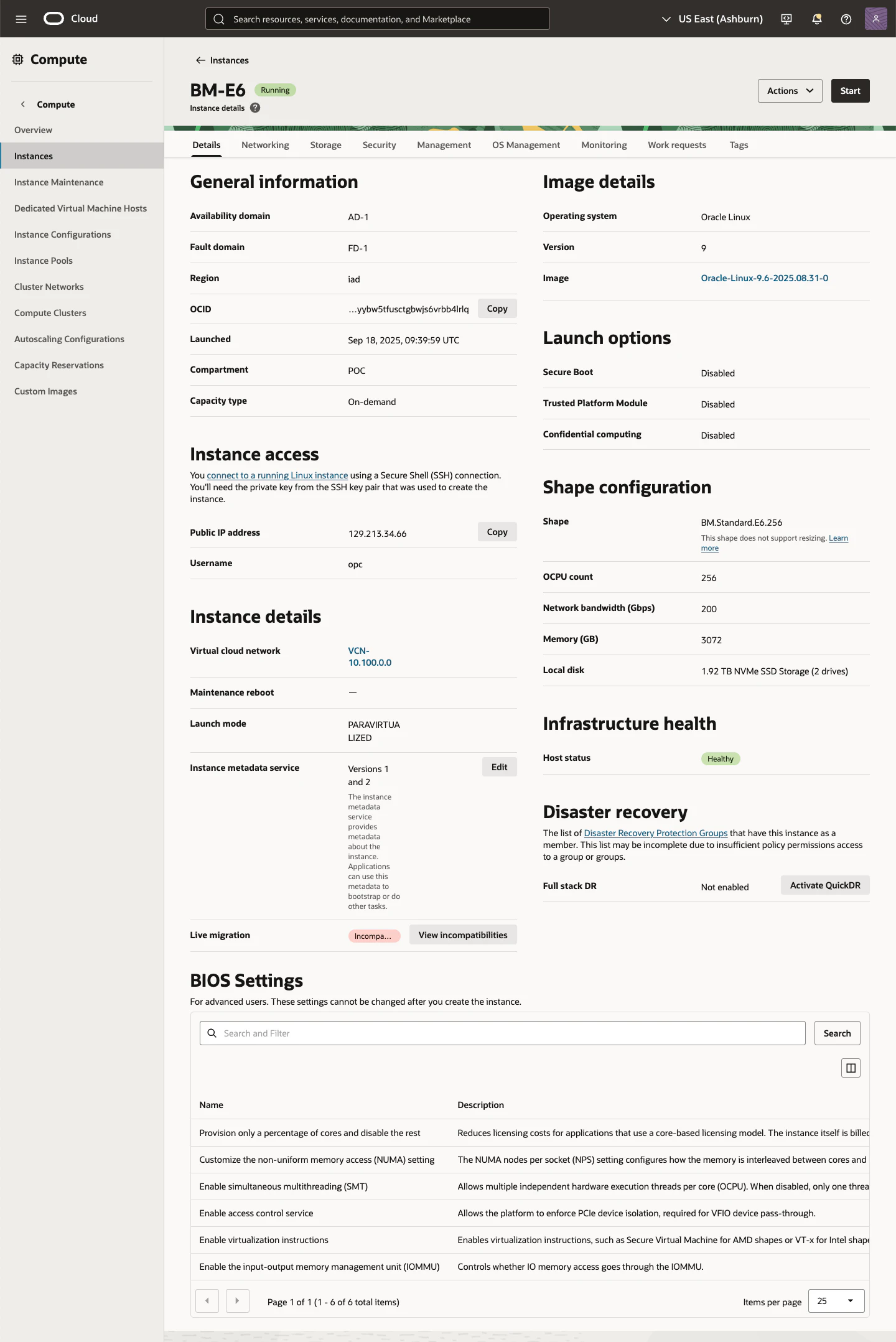

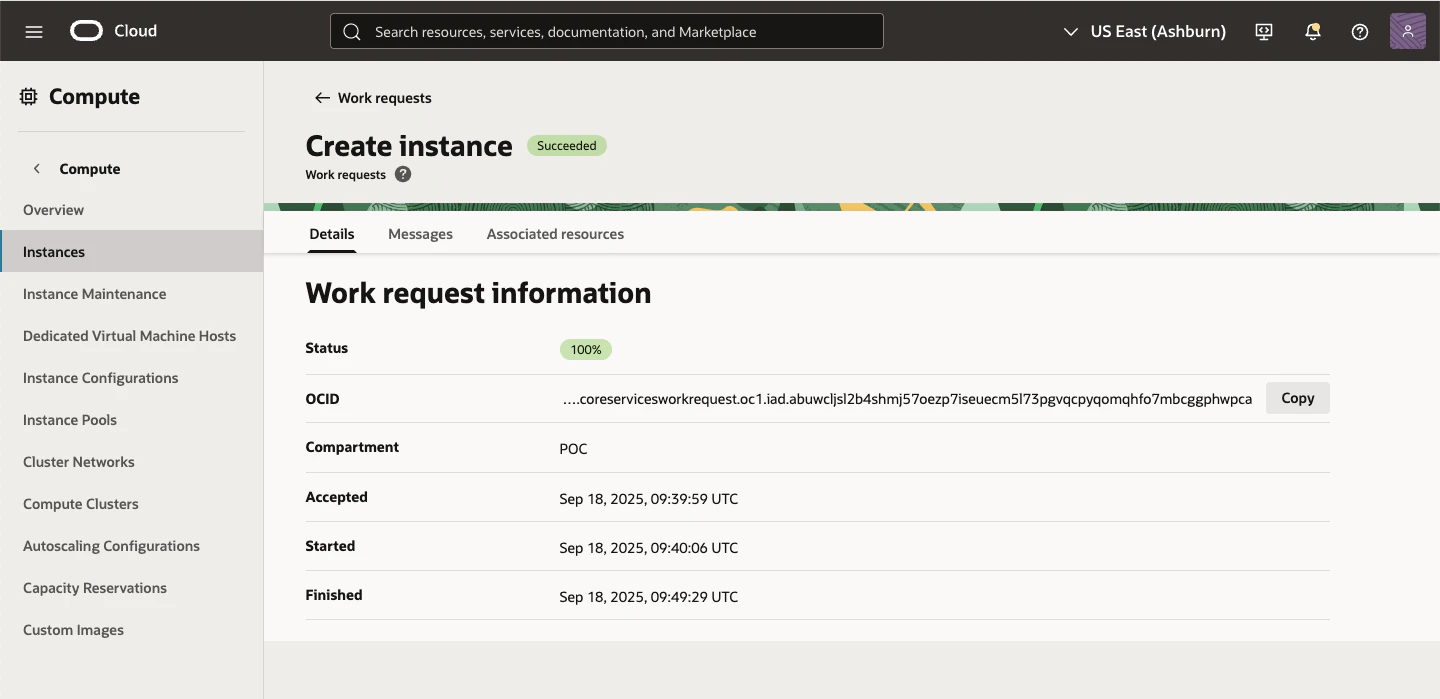

6) 作成完了

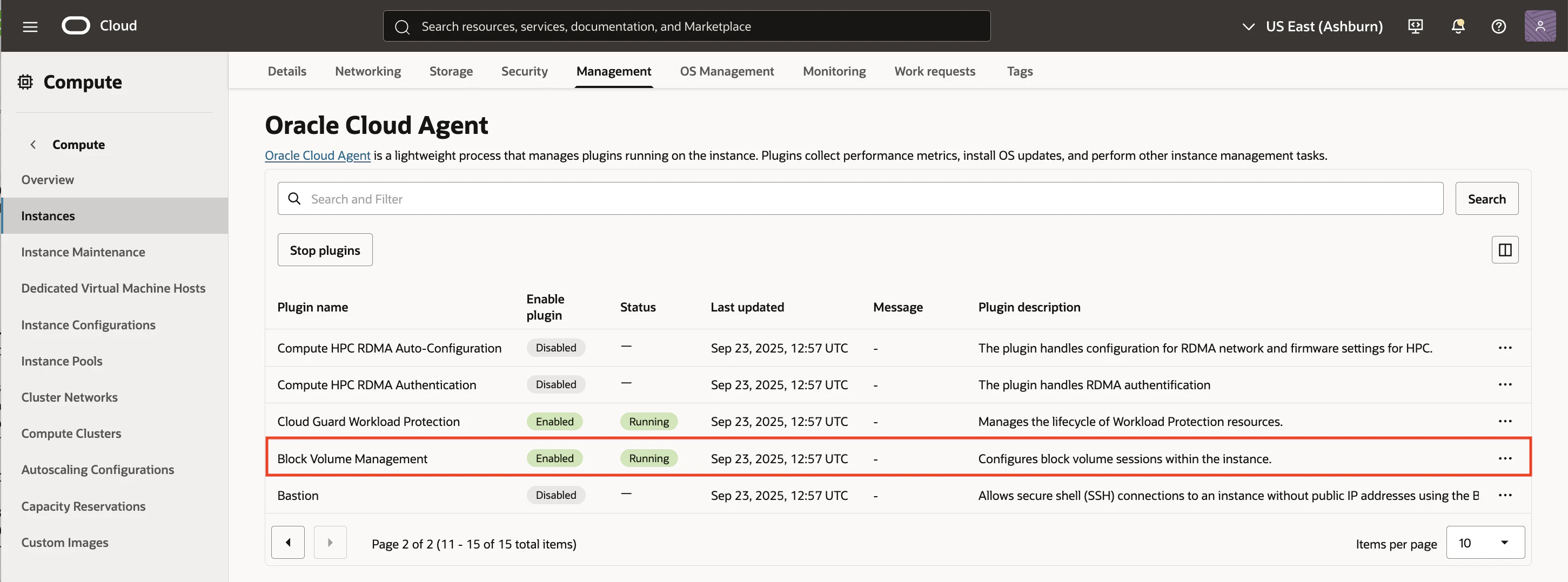

7) Block Volume Management プラグイン確認
UHPのiSCSIを自動認識するようにBlock Volume Management プラグインが有効化されていることを確認
● 複数 UHPボリューム・サポート確認
Oracle Cloud Agentバージョン1.39以降のインスタンスでは、複数の超高パフォーマンス・ボリュームがサポートされています。次のコマンドを使用して、バージョンを確認します。
[opc@bm-e6 ~]$ yum info oracle-cloud-agent
Ksplice for Oracle Linux 9 (x86_64) 76 MB/s | 10 MB 00:00
Oracle Linux 9 OCI Included Packages (x86_64) 68 MB/s | 184 MB 00:02
Oracle Linux 9 BaseOS Latest (x86_64) 155 MB/s | 85 MB 00:00
Oracle Linux 9 Application Stream Packages (x86_64) 152 MB/s | 69 MB 00:00
Oracle Linux 9 Addons (x86_64) 14 MB/s | 733 kB 00:00
Oracle Linux 9 UEK Release 8 (x86_64) 112 MB/s | 15 MB 00:00
Last metadata expiration check: 0:00:01 ago on Tue 23 Sep 2025 02:08:18 PM GMT.
Installed Packages
Name : oracle-cloud-agent
Version : 1.53.0
Release : 3.el9
Architecture : x86_64
Size : 493 M
Source : oracle-cloud-agent-1.53.0-3.el9.src.rpm
Repository : @System
Summary : Oracle Cloud Agent
URL : https://docs.cloud.oracle.com/iaas/
License : https://oss.oracle.com/licenses/upl/
Description : Oracle Cloud Infrastructure agent for management and monitoring.
■ ブロック・ボリューム作成とアタッチ
VPUのパフォーマンスの特性を参照してブロック・ボリュームのパフォーマンスが最大になるように設定します。
超高パフォーマンス VPU=120は、1つのブロック・ボリュームを 1,333GBで作成すると最大IOPS は 300,000 です。
6,250,000 IOPSになるように 21つのブロック・ボリュームを作成して コンピュートへアタッチします。
1) OCIコンソール画面

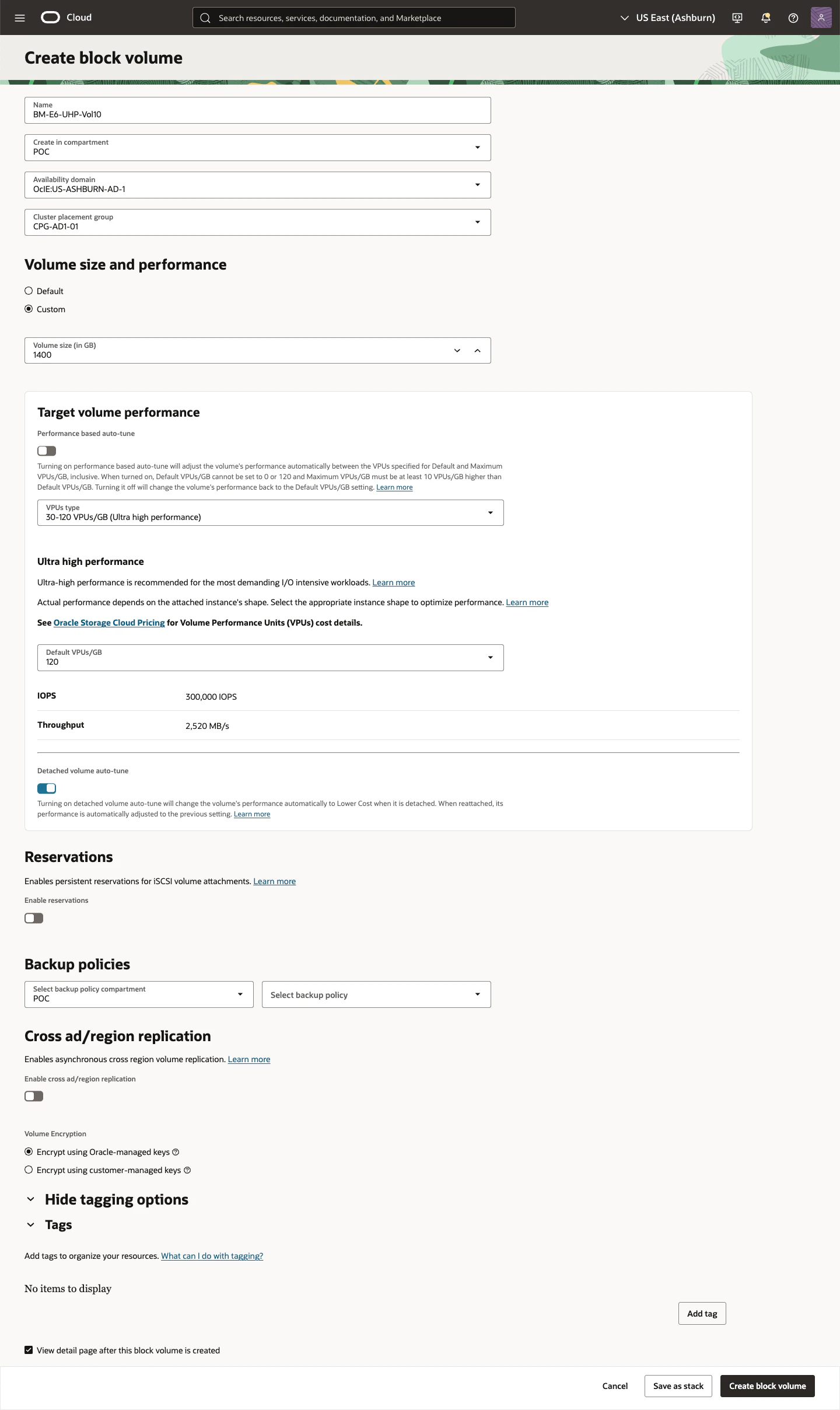

2) ブロック・ボリューム作成画面
次の項目を入力し、[ブロック・ボリュームの作成]をクリック
・Volume size (in GB): 1400
・VPUs/GB: 120

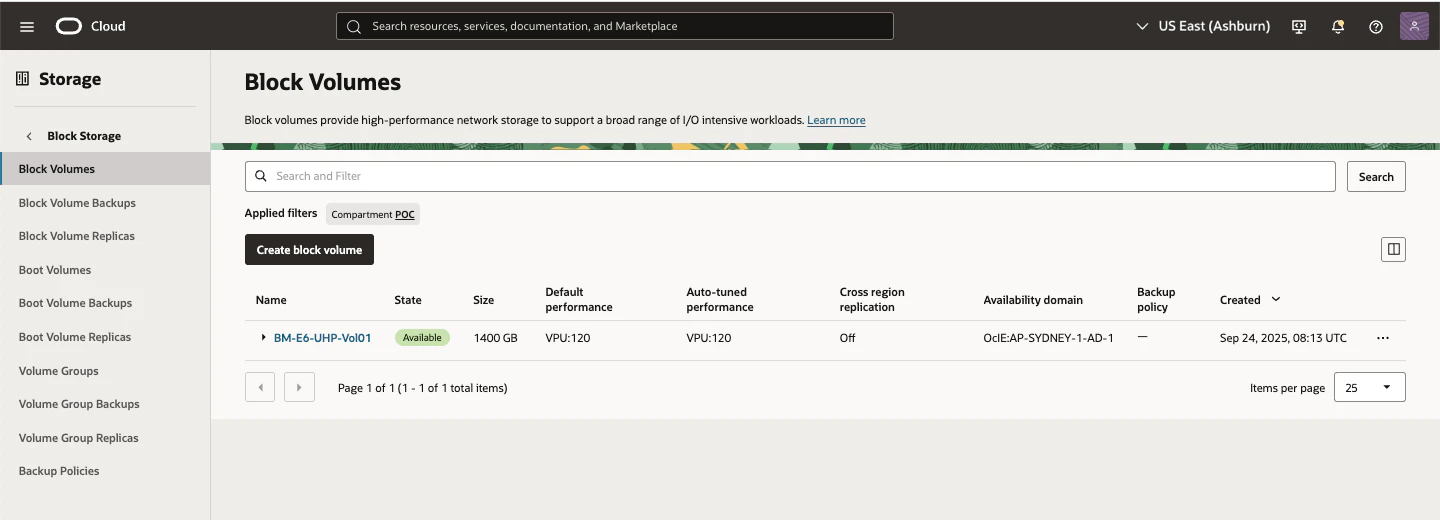

3) 作成完了

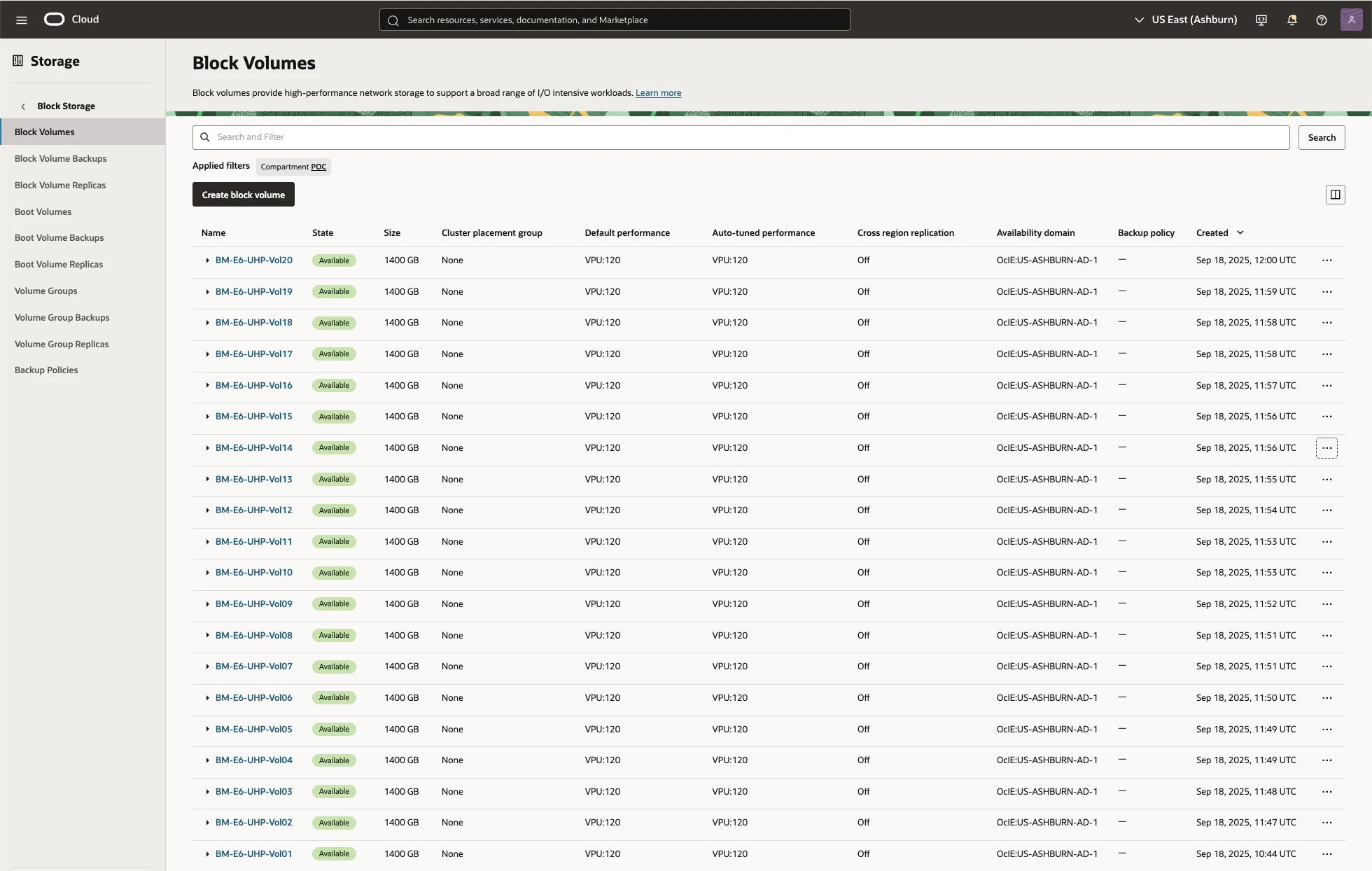

4) 21個作成
同様に全部で21個作成します。
● ブロック・ボリュームのアタッチ
作成した21個のブロック・ボリュームをアタッチします。

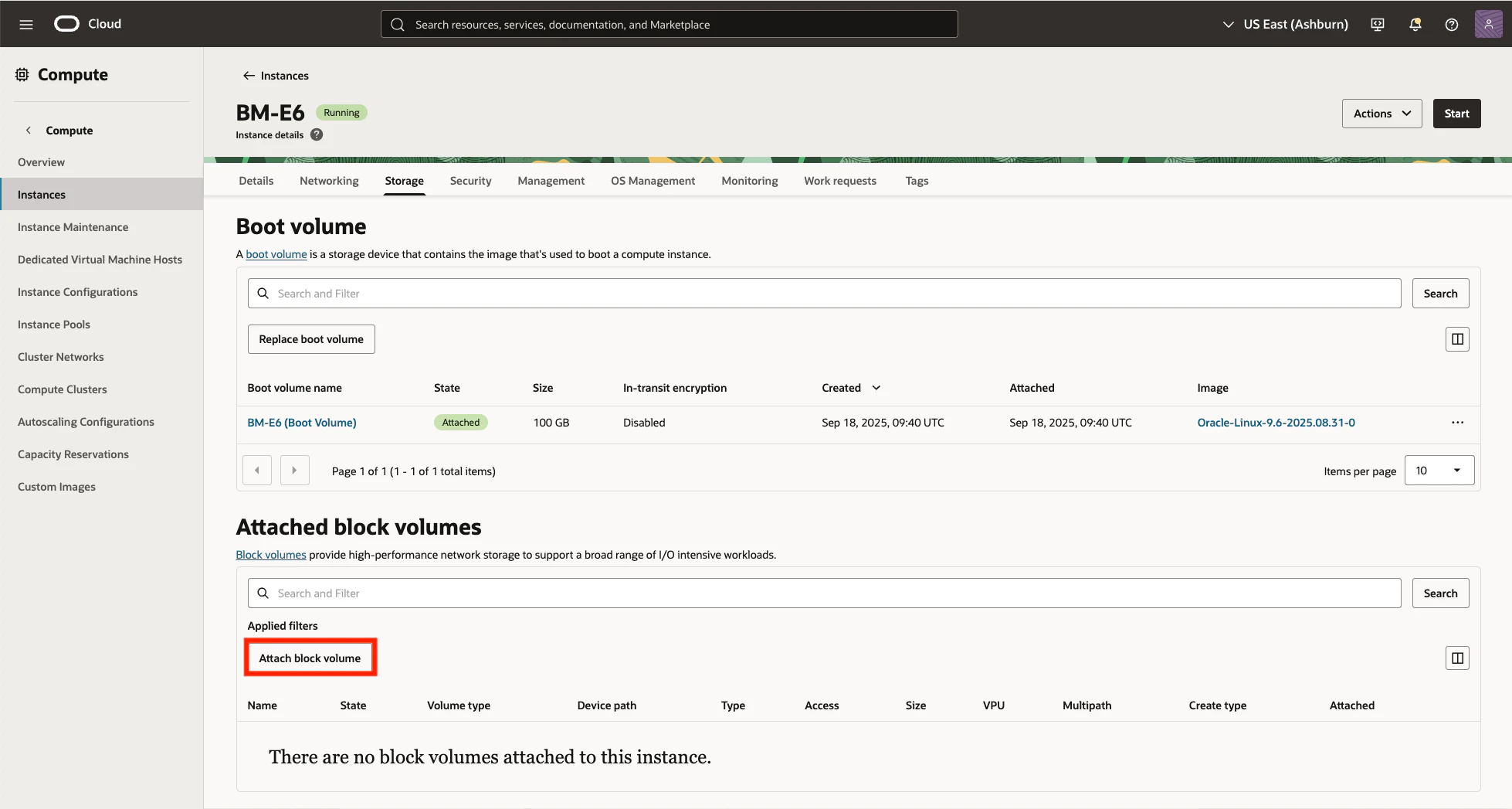

1) コンピュート画面
左リストにある[Attached block volumes]をクリックし、[Attach block volume]をクリック

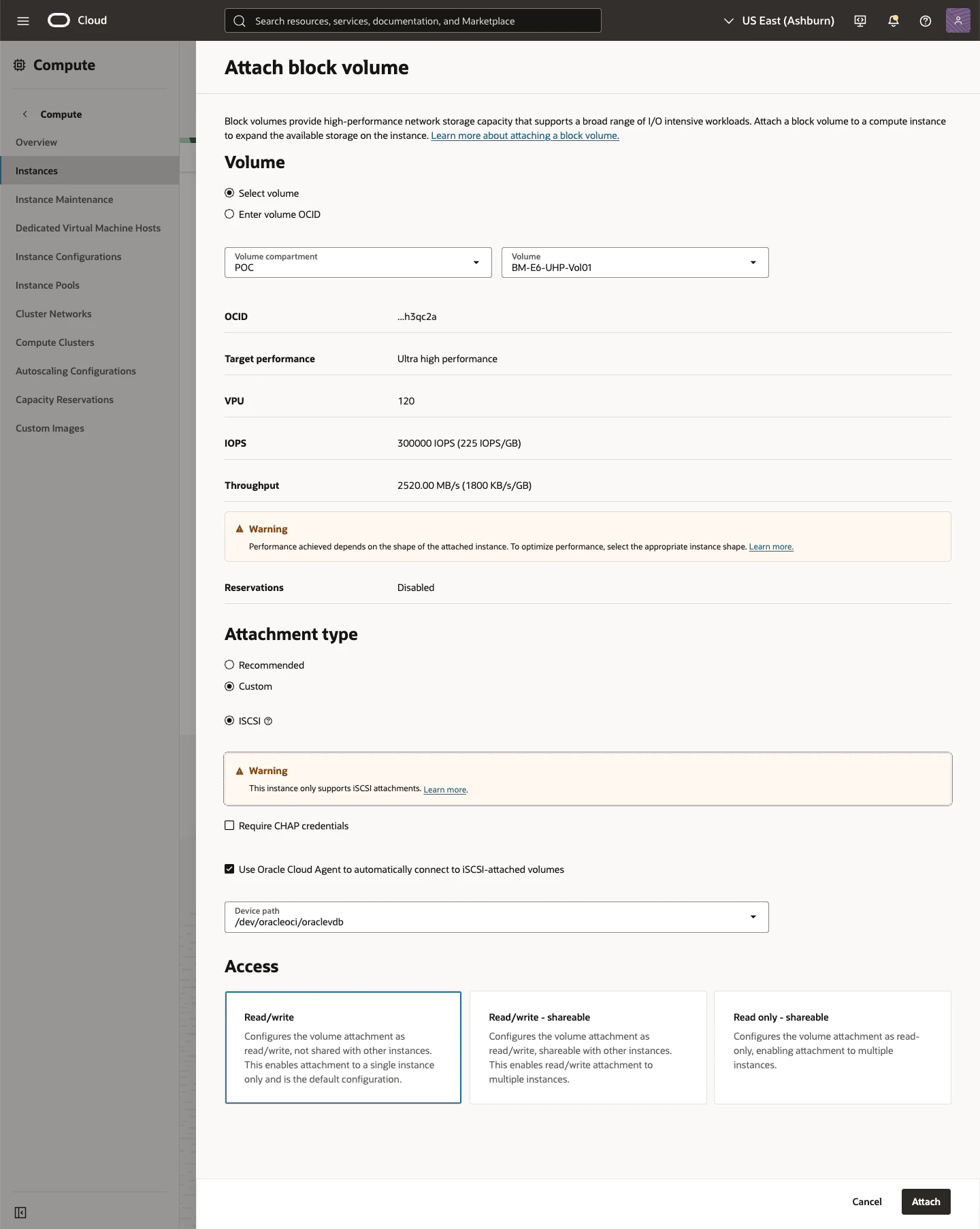

2) Attach block volume画面
次の項目を入力し、[Attach]をクリック
・ Select volume: 作成したボリュームを選択
・ Use Oracle Cloud Agent to automatically connect to iSCSI-attached volumes:自動認識するようにチェック

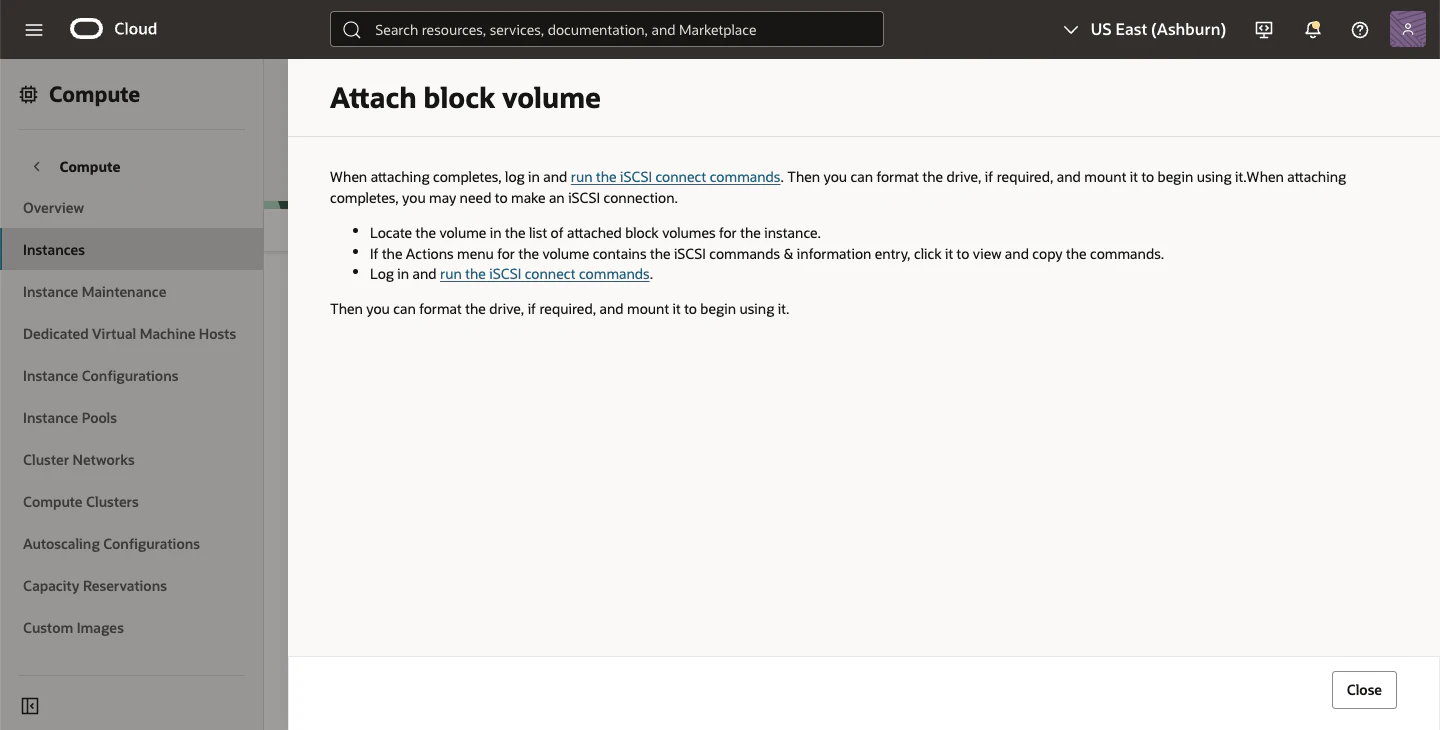

3) Attach block volume画面
内容を確認し、[Close]をクリック

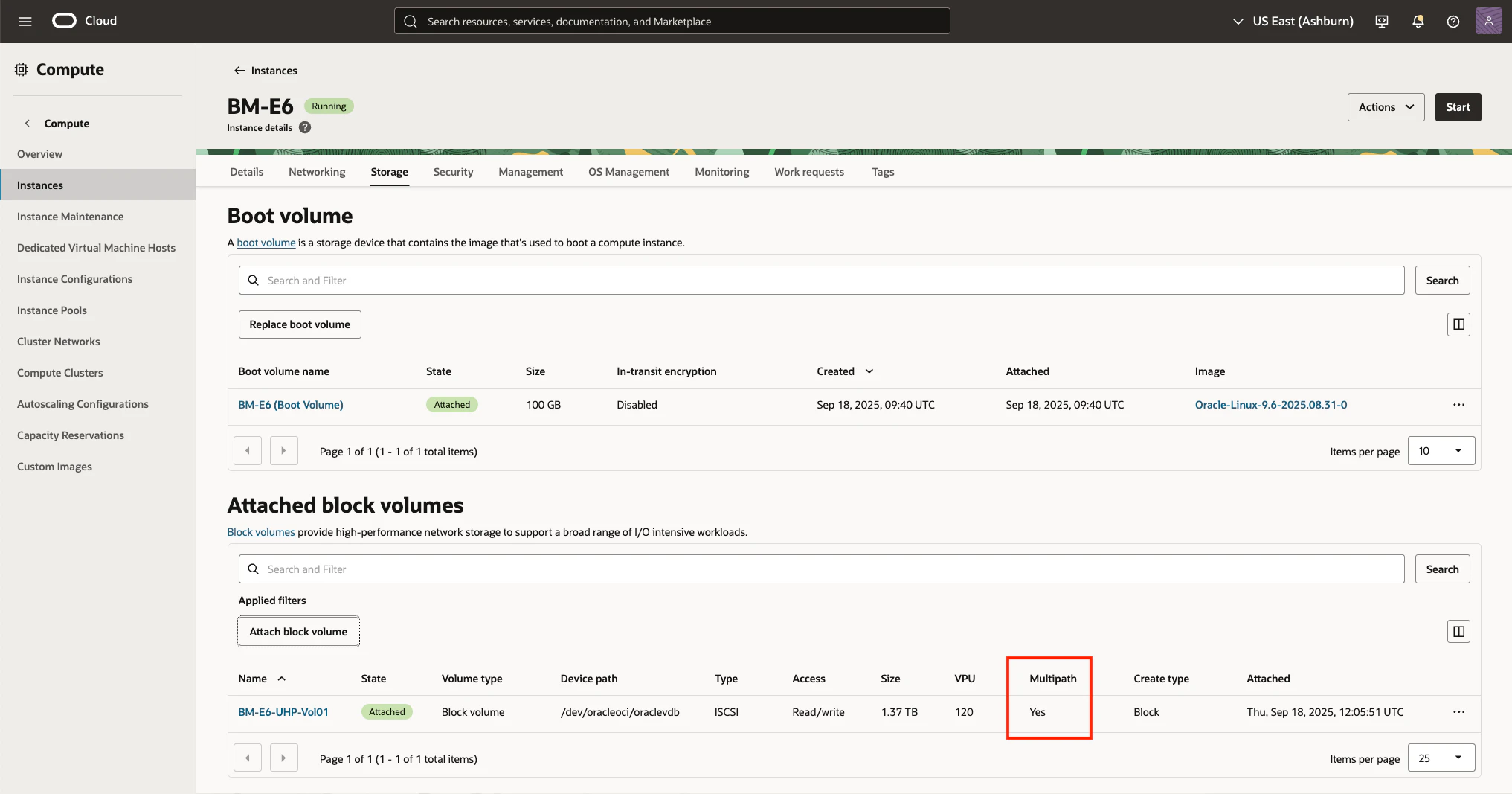

4) コンピュート: Attached block volumes画面
アタッチ完了したら、Multipath の項目が 'Yes' であることを確認

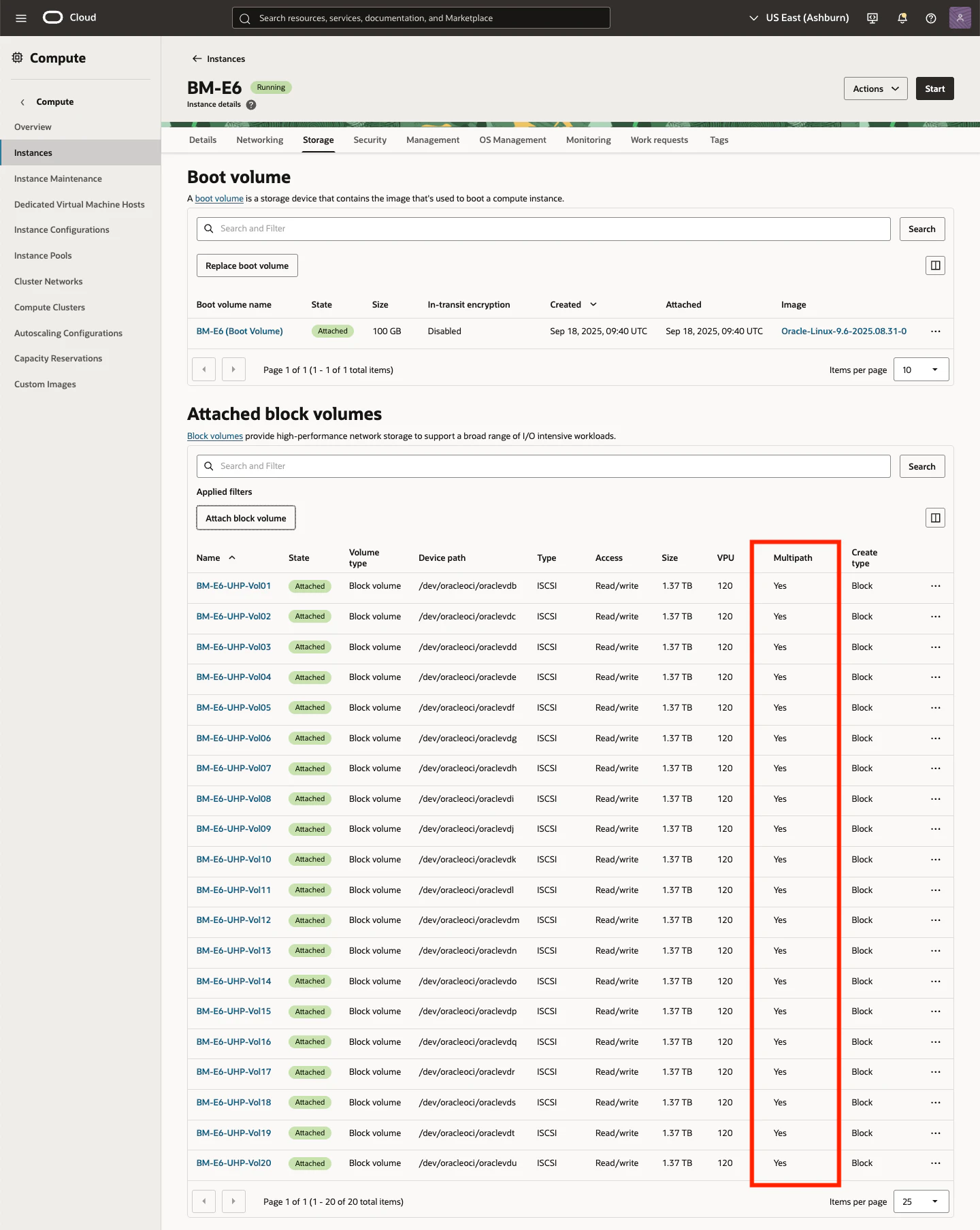

5) 21個の Block Volumeをアタッチ
21個の Block Volumeをアタッチして、全て Multipath の項目が 'Yes' であることを確認
● OSコマンドで物理ボリューム確認
物理ボリュームの情報を表示して追加した /dev/oracleoci/oraclevdb があることを確認
・ 物理ボリュームの情報
[opc@bm-e6 ~]$ sudo -i
[root@bm-e6 ~]# pvs -a
PV VG Fmt Attr PSize PFree
/dev/nvme0n1 --- 0 0
/dev/nvme1n1 --- 0 0
/dev/oracleoci/oraclevdb --- 0 0
/dev/oracleoci/oraclevdc --- 0 0
/dev/oracleoci/oraclevdd --- 0 0
/dev/oracleoci/oraclevde --- 0 0
/dev/oracleoci/oraclevdf --- 0 0
/dev/oracleoci/oraclevdg --- 0 0
/dev/oracleoci/oraclevdh --- 0 0
/dev/oracleoci/oraclevdi --- 0 0
/dev/oracleoci/oraclevdj --- 0 0
/dev/oracleoci/oraclevdk --- 0 0
/dev/oracleoci/oraclevdl --- 0 0
/dev/oracleoci/oraclevdm --- 0 0
/dev/oracleoci/oraclevdn --- 0 0
/dev/oracleoci/oraclevdo --- 0 0
/dev/oracleoci/oraclevdp --- 0 0
/dev/oracleoci/oraclevdq --- 0 0
/dev/oracleoci/oraclevdr --- 0 0
/dev/oracleoci/oraclevds --- 0 0
/dev/oracleoci/oraclevdt --- 0 0
/dev/oracleoci/oraclevdu --- 0 0
/dev/oracleoci/oraclevdv --- 0 0
/dev/sda1 --- 0 0
/dev/sda2 --- 0 0
/dev/sda3 ocivolume lvm2 a-- 44.50g 0
・ 各物理ボリュームの詳細
[root@bm-e6 ~]# pvdisplay
--- Physical volume ---
PV Name /dev/sda3
VG Name ocivolume
PV Size 44.50 GiB / not usable 0
Allocatable yes (but full)
PE Size 4.00 MiB
Total PE 11392
Free PE 0
Allocated PE 11392
PV UUID znkklg-UAMl-AH9e-OEE5-2CQl-gH12-c6Ykd4
・ LVM ブロックデバイスをすべてスキャン
[root@bm-e6 ~]# pvscan
PV /dev/sda3 VG ocivolume lvm2 [44.50 GiB / 0 free]
Total: 1 [44.50 GiB] / in use: 1 [44.50 GiB] / in no VG: 0 [0 ]
・ 物理ボリュームに使用できるブロックデバイスを一覧表示
[root@bm-e6 ~]# lvmdiskscan
/dev/oracleoci/oraclevdj [ <1.37 TiB]
/dev/oracleoci/oraclevdk [ <1.37 TiB]
/dev/oracleoci/oraclevdl [ <1.37 TiB]
/dev/oracleoci/oraclevdm [ <1.37 TiB]
/dev/oracleoci/oraclevdn [ <1.37 TiB]
/dev/oracleoci/oraclevdo [ <1.37 TiB]
/dev/oracleoci/oraclevdp [ <1.37 TiB]
/dev/oracleoci/oraclevdq [ <1.37 TiB]
/dev/oracleoci/oraclevdr [ <1.37 TiB]
/dev/oracleoci/oraclevds [ <1.37 TiB]
/dev/oracleoci/oraclevdb [ <1.37 TiB]
/dev/oracleoci/oraclevdt [ <1.37 TiB]
/dev/oracleoci/oraclevdu [ <1.37 TiB]
/dev/oracleoci/oraclevdc [ <1.37 TiB]
/dev/oracleoci/oraclevdd [ <1.37 TiB]
/dev/oracleoci/oraclevde [ <1.37 TiB]
/dev/oracleoci/oraclevdf [ <1.37 TiB]
/dev/oracleoci/oraclevdg [ <1.37 TiB]
/dev/oracleoci/oraclevdh [ <1.37 TiB]
/dev/oracleoci/oraclevdi [ <1.37 TiB]
/dev/oracleoci/oraclevdv [ <1.37 TiB]
/dev/sda1 [ 100.00 MiB]
/dev/sda2 [ 2.00 GiB]
/dev/sda3 [ 44.50 GiB] LVM physical volume
/dev/nvme0n1 [ 894.25 GiB]
/dev/nvme1n1 [ 894.25 GiB]
20 disks
4 partitions
0 LVM physical volume whole disks
1 LVM physical volume
・ ブロックデバイス確認
[root@bm-e6 ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 100G 0 disk
├─sda1 8:1 0 100M 0 part /boot/efi
├─sda2 8:2 0 2G 0 part /boot
└─sda3 8:3 0 44.5G 0 part
├─ocivolume-root 252:0 0 29.5G 0 lvm /
└─ocivolume-oled 252:1 0 15G 0 lvm /var/oled
sdb 8:16 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
sdc 8:32 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
sdd 8:48 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
sde 8:64 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
sdf 8:80 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
sdg 8:96 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
sdh 8:112 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
sdi 8:128 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
sdj 8:144 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
sdk 8:160 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
sdl 8:176 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
sdm 8:192 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
sdn 8:208 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
sdo 8:224 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
sdp 8:240 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
sdq 65:0 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
sdr 65:16 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
sds 65:32 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
sdt 65:48 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
sdu 65:64 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
sdv 65:80 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
sdw 65:96 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
sdx 65:112 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
sdy 65:128 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
sdz 65:144 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
sdaa 65:160 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
sdab 65:176 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
sdac 65:192 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
sdad 65:208 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
sdae 65:224 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
sdaf 65:240 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
sdag 66:0 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
sdah 66:16 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
sdai 66:32 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
sdaj 66:48 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
sdak 66:64 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
sdal 66:80 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
sdam 66:96 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
sdan 66:112 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
sdao 66:128 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
sdap 66:144 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
sdaq 66:160 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
sdar 66:176 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
sdas 66:192 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
sdat 66:208 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
sdau 66:224 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
sdav 66:240 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
sdaw 67:0 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
sdax 67:16 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
sday 67:32 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
sdaz 67:48 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
sdba 67:64 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
sdbb 67:80 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
sdbc 67:96 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
sdbd 67:112 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
sdbe 67:128 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
sdbf 67:144 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
sdbg 67:160 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
sdbh 67:176 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
sdbi 67:192 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
sdbj 67:208 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
sdbk 67:224 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
sdbl 67:240 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
sdbm 68:0 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
sdbn 68:16 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
sdbo 68:32 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
sdbp 68:48 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
sdbq 68:64 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
sdbr 68:80 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
sdbs 68:96 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
sdbt 68:112 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
sdbu 68:128 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
sdbv 68:144 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
sdbw 68:160 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
sdbx 68:176 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
sdby 68:192 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
sdbz 68:208 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
sdca 68:224 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
sdcb 68:240 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
sdcc 69:0 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
sdcd 69:16 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
sdce 69:32 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
sdcf 69:48 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
sdcg 69:64 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
sdch 69:80 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
sdci 69:96 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
sdcj 69:112 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
sdck 69:128 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
sdcl 69:144 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
sdcm 69:160 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
sdcn 69:176 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
sdco 69:192 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
sdcp 69:208 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
sdcq 69:224 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
sdcr 69:240 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
sdcs 70:0 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
sdct 70:16 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
sdcu 70:32 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
sdcv 70:48 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
sdcw 70:64 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
sdcx 70:80 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
sdcy 70:96 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
sdcz 70:112 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
sdda 70:128 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
sddb 70:144 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
nvme0n1 259:0 0 894.3G 0 disk
nvme1n1 259:1 0 894.3G 0 disk
⚫︎ マルチパスの構成確認
・ マルチパスのステータス確認
[root@bm-e6 ~]# mpathconf
multipath is enabled
find_multipaths is yes
user_friendly_names is enabled
recheck_wwid is disabled
default property blacklist is disabled
enable_foreign is not set (no foreign multipath devices will be shown)
dm_multipath module is loaded
multipathd is running
・ mpath確認
[root@bm-e6 ~]# ls -l /dev/mapper/mpath*
lrwxrwxrwx. 1 root root 7 Sep 18 12:06 /dev/mapper/mpatha -> ../dm-2
lrwxrwxrwx. 1 root root 7 Sep 18 12:08 /dev/mapper/mpathb -> ../dm-3
lrwxrwxrwx. 1 root root 7 Sep 18 12:09 /dev/mapper/mpathc -> ../dm-4
lrwxrwxrwx. 1 root root 7 Sep 18 12:09 /dev/mapper/mpathd -> ../dm-5
lrwxrwxrwx. 1 root root 7 Sep 18 12:10 /dev/mapper/mpathe -> ../dm-6
lrwxrwxrwx. 1 root root 7 Sep 18 12:10 /dev/mapper/mpathf -> ../dm-7
lrwxrwxrwx. 1 root root 7 Sep 18 12:10 /dev/mapper/mpathg -> ../dm-8
lrwxrwxrwx. 1 root root 7 Sep 18 12:11 /dev/mapper/mpathh -> ../dm-9
lrwxrwxrwx. 1 root root 8 Sep 18 12:11 /dev/mapper/mpathi -> ../dm-10
lrwxrwxrwx. 1 root root 8 Sep 18 12:12 /dev/mapper/mpathj -> ../dm-11
lrwxrwxrwx. 1 root root 8 Sep 18 12:12 /dev/mapper/mpathk -> ../dm-12
lrwxrwxrwx. 1 root root 8 Sep 18 12:12 /dev/mapper/mpathl -> ../dm-13
lrwxrwxrwx. 1 root root 8 Sep 18 12:13 /dev/mapper/mpathm -> ../dm-14
lrwxrwxrwx. 1 root root 8 Sep 18 12:13 /dev/mapper/mpathn -> ../dm-15
lrwxrwxrwx. 1 root root 8 Sep 18 12:13 /dev/mapper/mpatho -> ../dm-16
lrwxrwxrwx. 1 root root 8 Sep 18 12:14 /dev/mapper/mpathp -> ../dm-17
lrwxrwxrwx. 1 root root 8 Sep 18 12:14 /dev/mapper/mpathq -> ../dm-18
lrwxrwxrwx. 1 root root 8 Sep 18 12:15 /dev/mapper/mpathr -> ../dm-19
lrwxrwxrwx. 1 root root 8 Sep 18 12:15 /dev/mapper/mpaths -> ../dm-20
lrwxrwxrwx. 1 root root 8 Sep 18 12:16 /dev/mapper/mpatht -> ../dm-22
・ マルチパス構成表示
[root@bm-e6 ~]# multipath -ll
mpatha (360fb0a309e2f4dd394cd0e65c0b7f187) dm-2 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 10:0:0:2 sdb 8:16 active ready running
|- 11:0:0:2 sdc 8:32 active ready running
|- 12:0:0:2 sdd 8:48 active ready running
|- 13:0:0:2 sde 8:64 active ready running
`- 14:0:0:2 sdf 8:80 active ready running
mpathb (360f38c0542094096b5f23ebd40f27ffa) dm-3 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 15:0:0:3 sdg 8:96 active ready running
|- 16:0:0:3 sdh 8:112 active ready running
|- 17:0:0:3 sdi 8:128 active ready running
|- 18:0:0:3 sdj 8:144 active ready running
`- 19:0:0:3 sdk 8:160 active ready running
mpathc (360ce5f8a81044da9b562ab781e7033ba) dm-4 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 20:0:0:4 sdl 8:176 active ready running
|- 21:0:0:4 sdm 8:192 active ready running
|- 22:0:0:4 sdn 8:208 active ready running
|- 23:0:0:4 sdo 8:224 active ready running
`- 24:0:0:4 sdp 8:240 active ready running
mpathd (360110659ee73484099254b362c701e21) dm-5 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 25:0:0:5 sdq 65:0 active ready running
|- 26:0:0:5 sdr 65:16 active ready running
|- 27:0:0:5 sds 65:32 active ready running
|- 28:0:0:5 sdt 65:48 active ready running
`- 29:0:0:5 sdu 65:64 active ready running
mpathe (360daa8e46b0b45d290587926d3075c90) dm-6 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 30:0:0:6 sdv 65:80 active ready running
|- 31:0:0:6 sdw 65:96 active ready running
|- 32:0:0:6 sdx 65:112 active ready running
|- 33:0:0:6 sdy 65:128 active ready running
`- 34:0:0:6 sdz 65:144 active ready running
mpathf (360e0a0c71c6c4282a98f0ecb39e0723e) dm-7 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 35:0:0:7 sdaa 65:160 active ready running
|- 36:0:0:7 sdab 65:176 active ready running
|- 37:0:0:7 sdac 65:192 active ready running
|- 38:0:0:7 sdad 65:208 active ready running
`- 39:0:0:7 sdae 65:224 active ready running
mpathg (360c794743c384c278f1232ed43cf79ee) dm-8 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 40:0:0:8 sdaf 65:240 active ready running
|- 41:0:0:8 sdag 66:0 active ready running
|- 42:0:0:8 sdah 66:16 active ready running
|- 43:0:0:8 sdai 66:32 active ready running
`- 44:0:0:8 sdaj 66:48 active ready running
mpathh (36067b66cbf24469e86deb51c518f9209) dm-9 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 45:0:0:9 sdak 66:64 active ready running
|- 46:0:0:9 sdal 66:80 active ready running
|- 47:0:0:9 sdam 66:96 active ready running
|- 48:0:0:9 sdan 66:112 active ready running
`- 49:0:0:9 sdao 66:128 active ready running
mpathi (360efd5ccbc4e4e418135640fe90d1c55) dm-10 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 50:0:0:10 sdap 66:144 active ready running
|- 51:0:0:10 sdaq 66:160 active ready running
|- 52:0:0:10 sdar 66:176 active ready running
|- 53:0:0:10 sdas 66:192 active ready running
`- 54:0:0:10 sdat 66:208 active ready running
mpathj (360806912bcd044a2b7474f80787f2861) dm-11 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 55:0:0:11 sdau 66:224 active ready running
|- 56:0:0:11 sdav 66:240 active ready running
|- 57:0:0:11 sdaw 67:0 active ready running
|- 58:0:0:11 sdax 67:16 active ready running
`- 59:0:0:11 sday 67:32 active ready running
mpathk (360b243c8723b4014a5ec8b20bd9b4152) dm-12 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 60:0:0:12 sdaz 67:48 active ready running
|- 61:0:0:12 sdba 67:64 active ready running
|- 62:0:0:12 sdbb 67:80 active ready running
|- 63:0:0:12 sdbc 67:96 active ready running
`- 64:0:0:12 sdbd 67:112 active ready running
mpathl (360a0679ebc61400787dbf7e398a8a866) dm-13 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 65:0:0:13 sdbe 67:128 active ready running
|- 66:0:0:13 sdbf 67:144 active ready running
|- 67:0:0:13 sdbg 67:160 active ready running
|- 68:0:0:13 sdbh 67:176 active ready running
`- 69:0:0:13 sdbi 67:192 active ready running
mpathm (360ee0803d33c474393a4f49758252404) dm-14 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 70:0:0:14 sdbj 67:208 active ready running
|- 71:0:0:14 sdbk 67:224 active ready running
|- 72:0:0:14 sdbl 67:240 active ready running
|- 73:0:0:14 sdbm 68:0 active ready running
`- 74:0:0:14 sdbn 68:16 active ready running
mpathn (3600cbcecb3ea4482b650a97f12b7e1ee) dm-15 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 75:0:0:15 sdbo 68:32 active ready running
|- 76:0:0:15 sdbp 68:48 active ready running
|- 77:0:0:15 sdbq 68:64 active ready running
|- 78:0:0:15 sdbr 68:80 active ready running
`- 79:0:0:15 sdbs 68:96 active ready running
mpatho (360db207e3af6462182720e77f3c8a112) dm-16 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 80:0:0:16 sdbt 68:112 active ready running
|- 81:0:0:16 sdbu 68:128 active ready running
|- 82:0:0:16 sdbv 68:144 active ready running
|- 83:0:0:16 sdbw 68:160 active ready running
`- 84:0:0:16 sdbx 68:176 active ready running
mpathp (3607996ca82294d3e896fe8c90ef28456) dm-17 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 85:0:0:17 sdby 68:192 active ready running
|- 86:0:0:17 sdbz 68:208 active ready running
|- 87:0:0:17 sdca 68:224 active ready running
|- 88:0:0:17 sdcb 68:240 active ready running
`- 89:0:0:17 sdcc 69:0 active ready running
mpathq (3601109c7601045c3a70f3e9cee0f5d8a) dm-18 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 90:0:0:18 sdcd 69:16 active ready running
|- 91:0:0:18 sdce 69:32 active ready running
|- 92:0:0:18 sdcf 69:48 active ready running
|- 93:0:0:18 sdcg 69:64 active ready running
`- 94:0:0:18 sdch 69:80 active ready running
mpathr (360aecd292d23464295058ef5f4f8f9a1) dm-19 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 95:0:0:19 sdci 69:96 active ready running
|- 96:0:0:19 sdcj 69:112 active ready running
|- 97:0:0:19 sdck 69:128 active ready running
|- 98:0:0:19 sdcl 69:144 active ready running
`- 99:0:0:19 sdcm 69:160 active ready running
mpaths (360f39a40d51c4635b8c237223b50d19a) dm-20 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 100:0:0:20 sdcn 69:176 active ready running
|- 101:0:0:20 sdco 69:192 active ready running
|- 102:0:0:20 sdcp 69:208 active ready running
|- 103:0:0:20 sdcq 69:224 active ready running
`- 104:0:0:20 sdcr 69:240 active ready running
mpatht (3600eaadc22ee4eb78a62f08eec4d09f7) dm-21 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 105:0:0:21 sdcs 70:0 active ready running
|- 106:0:0:21 sdct 70:16 active ready running
|- 107:0:0:21 sdcu 70:32 active ready running
|- 108:0:0:21 sdcv 70:48 active ready running
`- 109:0:0:21 sdcw 70:64 active ready running
mpathu (3602bfcdbf4e445e88882958504b7a002) dm-23 ORACLE,BlockVolume
size=1.4T features='4 queue_if_no_path retain_attached_hw_handler queue_mode bio' hwhandler='0' wp=rw
`-+- policy='queue-length 0' prio=1 status=active
|- 110:0:0:22 sdcx 70:80 active ready running
|- 111:0:0:22 sdcy 70:96 active ready running
|- 112:0:0:22 sdcz 70:112 active ready running
|- 113:0:0:22 sdda 70:128 active ready running
`- 114:0:0:22 sddb 70:144 active ready running
・ マルチパス構成ファイル確認
[root@bm-e6 ~]# cat /etc/multipath.conf
defaults {
user_friendly_names yes
find_multipaths yes
rr_weight uniform
path_selector "queue-length 0"
path_grouping_policy multibus
polling_interval 30
path_checker tur
checker_timeout 300
failback immediate
verbosity 2
rr_min_io 1
rr_min_io_rq 1
dev_loss_tmo 9000
fast_io_fail_tmo off
no_path_retry queue
skip_kpartx no
features "2 queue_mode bio"
}
・ multipath.conf 設定の例ファイル
DM-Multipathがサポートするストレージ・アレイの詳細とそのデフォルトの構成値を次のファイルで確認できます。
[root@bm-e6 ~]# cat /usr/share/doc/device-mapper-multipath/multipath.conf
# This is a basic configuration file with some examples, for device mapper
# multipath.
#
# For a complete list of the default configuration values, run either
# multipath -t
# or
# multipathd show config
#
# For a list of configuration options with descriptions, see the multipath.conf
# man page
## By default, devices with vendor = "IBM" and product = "S/390.*" are
## blacklisted. To enable mulitpathing on these devies, uncomment the
## following lines.
#blacklist_exceptions {
# device {
# vendor "IBM"
# product "S/390.*"
# }
#}
## Use user friendly names, instead of using WWIDs as names.
defaults {
user_friendly_names yes
find_multipaths yes
}
##
## Here is an example of how to configure some standard options.
##
#
#defaults {
# udev_dir /dev
# polling_interval 10
# selector "round-robin 0"
# path_grouping_policy multibus
# prio alua
# path_checker readsector0
# rr_min_io 100
# max_fds 8192
# rr_weight priorities
# failback immediate
# no_path_retry fail
# user_friendly_names yes
#}
##
## The wwid line in the following blacklist section is shown as an example
## of how to blacklist devices by wwid. The 2 devnode lines are the
## compiled in default blacklist. If you want to blacklist entire types
## of devices, such as all scsi devices, you should use a devnode line.
## However, if you want to blacklist specific devices, you should use
## a wwid line. Since there is no guarantee that a specific device will
## not change names on reboot (from /dev/sda to /dev/sdb for example)
## devnode lines are not recommended for blacklisting specific devices.
##
#blacklist {
# wwid 26353900f02796769
# devnode "^(ram|raw|loop|fd|md|dm-|sr|scd|st)[0-9]*"
# devnode "^hd[a-z]"
#}
#multipaths {
# multipath {
# wwid 3600508b4000156d700012000000b0000
# alias yellow
# path_grouping_policy multibus
# path_checker readsector0
# path_selector "round-robin 0"
# failback manual
# rr_weight priorities
# no_path_retry 5
# }
# multipath {
# wwid 1DEC_____321816758474
# alias red
# }
#}
#devices {
# device {
# vendor "COMPAQ "
# product "HSV110 (C)COMPAQ"
# path_grouping_policy multibus
# path_checker readsector0
# path_selector "round-robin 0"
# hardware_handler "0"
# failback 15
# rr_weight priorities
# no_path_retry queue
# }
# device {
# vendor "COMPAQ "
# product "MSA1000 "
# path_grouping_policy multibus
# }
#}
■ ストライプ化論理ボリューム(LV)作成
アタッチした 10個の UHP ブロック・ボリュームを LVM (logical volume manager) でひとつのボリュームグループにまとめ、単一の論理ボリューム（LV）/dev/volgroup01/striped_logical_volume を作成します。
● 物理ボリューム(PV)確認
1) 物理ボリューム(PV)作成
・ pvs確認
[root@bm-e6 ~]# pvs -a
PV VG Fmt Attr PSize PFree
/dev/nvme0n1 --- 0 0
/dev/nvme1n1 --- 0 0
/dev/oracleoci/oraclevdb --- 0 0
/dev/oracleoci/oraclevdc --- 0 0
/dev/oracleoci/oraclevdd --- 0 0
/dev/oracleoci/oraclevde --- 0 0
/dev/oracleoci/oraclevdf --- 0 0
/dev/oracleoci/oraclevdg --- 0 0
/dev/oracleoci/oraclevdh --- 0 0
/dev/oracleoci/oraclevdi --- 0 0
/dev/oracleoci/oraclevdj --- 0 0
/dev/oracleoci/oraclevdk --- 0 0
/dev/oracleoci/oraclevdl --- 0 0
/dev/oracleoci/oraclevdm --- 0 0
/dev/oracleoci/oraclevdn --- 0 0
/dev/oracleoci/oraclevdo --- 0 0
/dev/oracleoci/oraclevdp --- 0 0
/dev/oracleoci/oraclevdq --- 0 0
/dev/oracleoci/oraclevdr --- 0 0
/dev/oracleoci/oraclevds --- 0 0
/dev/oracleoci/oraclevdt --- 0 0
/dev/oracleoci/oraclevdu --- 0 0
/dev/oracleoci/oraclevdv --- 0 0
/dev/sda1 --- 0 0
/dev/sda2 --- 0 0
/dev/sda3 ocivolume lvm2 a-- 44.50g 0
・ PV作成
-vオプションを指定してコマンドを実行し、詳細情報を取得します。
[root@bm-e6 ~]# pvcreate -v /dev/oracleoci/oraclevd[b-v]
Wiping signatures on new PV /dev/oracleoci/oraclevdb.
Wiping signatures on new PV /dev/oracleoci/oraclevdc.
Wiping signatures on new PV /dev/oracleoci/oraclevdd.
Wiping signatures on new PV /dev/oracleoci/oraclevde.
Wiping signatures on new PV /dev/oracleoci/oraclevdf.
Wiping signatures on new PV /dev/oracleoci/oraclevdg.
Wiping signatures on new PV /dev/oracleoci/oraclevdh.
Wiping signatures on new PV /dev/oracleoci/oraclevdi.
Wiping signatures on new PV /dev/oracleoci/oraclevdj.
Wiping signatures on new PV /dev/oracleoci/oraclevdk.
Wiping signatures on new PV /dev/oracleoci/oraclevdl.
Wiping signatures on new PV /dev/oracleoci/oraclevdm.
Wiping signatures on new PV /dev/oracleoci/oraclevdn.
Wiping signatures on new PV /dev/oracleoci/oraclevdo.
Wiping signatures on new PV /dev/oracleoci/oraclevdp.
Wiping signatures on new PV /dev/oracleoci/oraclevdq.
Wiping signatures on new PV /dev/oracleoci/oraclevdr.
Wiping signatures on new PV /dev/oracleoci/oraclevds.
Wiping signatures on new PV /dev/oracleoci/oraclevdt.
Wiping signatures on new PV /dev/oracleoci/oraclevdu.
Wiping signatures on new PV /dev/oracleoci/oraclevdv.
Set up physical volume for "/dev/oracleoci/oraclevdb" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdb.
Writing physical volume data to disk "/dev/oracleoci/oraclevdb".
Physical volume "/dev/oracleoci/oraclevdb" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdc" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdc.
Writing physical volume data to disk "/dev/oracleoci/oraclevdc".
Physical volume "/dev/oracleoci/oraclevdc" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdd" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdd.
Writing physical volume data to disk "/dev/oracleoci/oraclevdd".
Physical volume "/dev/oracleoci/oraclevdd" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevde" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevde.
Writing physical volume data to disk "/dev/oracleoci/oraclevde".
Physical volume "/dev/oracleoci/oraclevde" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdf" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdf.
Writing physical volume data to disk "/dev/oracleoci/oraclevdf".
Physical volume "/dev/oracleoci/oraclevdf" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdg" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdg.
Writing physical volume data to disk "/dev/oracleoci/oraclevdg".
Physical volume "/dev/oracleoci/oraclevdg" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdh" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdh.
Writing physical volume data to disk "/dev/oracleoci/oraclevdh".
Physical volume "/dev/oracleoci/oraclevdh" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdi" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdi.
Writing physical volume data to disk "/dev/oracleoci/oraclevdi".
Physical volume "/dev/oracleoci/oraclevdi" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdj" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdj.
Writing physical volume data to disk "/dev/oracleoci/oraclevdj".
Physical volume "/dev/oracleoci/oraclevdj" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdk" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdk.
Writing physical volume data to disk "/dev/oracleoci/oraclevdk".
Physical volume "/dev/oracleoci/oraclevdk" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdl" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdl.
Writing physical volume data to disk "/dev/oracleoci/oraclevdl".
Physical volume "/dev/oracleoci/oraclevdl" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdm" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdm.
Writing physical volume data to disk "/dev/oracleoci/oraclevdm".
Physical volume "/dev/oracleoci/oraclevdm" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdn" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdn.
Writing physical volume data to disk "/dev/oracleoci/oraclevdn".
Physical volume "/dev/oracleoci/oraclevdn" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdo" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdo.
Writing physical volume data to disk "/dev/oracleoci/oraclevdo".
Physical volume "/dev/oracleoci/oraclevdo" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdp" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdp.
Writing physical volume data to disk "/dev/oracleoci/oraclevdp".
Physical volume "/dev/oracleoci/oraclevdp" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdq" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdq.
Writing physical volume data to disk "/dev/oracleoci/oraclevdq".
Physical volume "/dev/oracleoci/oraclevdq" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdr" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdr.
Writing physical volume data to disk "/dev/oracleoci/oraclevdr".
Physical volume "/dev/oracleoci/oraclevdr" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevds" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevds.
Writing physical volume data to disk "/dev/oracleoci/oraclevds".
Physical volume "/dev/oracleoci/oraclevds" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdt" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdt.
Writing physical volume data to disk "/dev/oracleoci/oraclevdt".
Physical volume "/dev/oracleoci/oraclevdt" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdu" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdu.
Writing physical volume data to disk "/dev/oracleoci/oraclevdu".
Physical volume "/dev/oracleoci/oraclevdu" successfully created.
Set up physical volume for "/dev/oracleoci/oraclevdv" with 2936012800 available sectors.
Zeroing start of device /dev/oracleoci/oraclevdv.
Writing physical volume data to disk "/dev/oracleoci/oraclevdv".
Physical volume "/dev/oracleoci/oraclevdv" successfully created.
Not creating system devices file due to existing VGs.
2) pvs 確認
[root@bm-e6 ~]# pvs
PV VG Fmt Attr PSize PFree
/dev/oracleoci/oraclevdb lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdc lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdd lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevde lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdf lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdg lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdh lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdi lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdj lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdk lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdl lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdm lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdn lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdo lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdp lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdq lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdr lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevds lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdt lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdu lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdv lvm2 --- <1.37t <1.37t
/dev/sda3 ocivolume lvm2 a-- 44.50g 0
● ボリュームグループ(VG) 作成
1) ボリュームグループ volgroup01 を作成
新しく作成した物理ボリュームを使用してボリューム・グループ(VG)を作成します。
[[root@bm-e6 ~]# vgs
VG #PV #LV #SN Attr VSize VFree
ocivolume 1 2 0 wz--n- 44.50g 0
[root@bm-e6 ~]# vgcreate -v volgroup01 /dev/oracleoci/oraclevd[b-v]
Wiping signatures on new PV /dev/oracleoci/oraclevdb.
Wiping signatures on new PV /dev/oracleoci/oraclevdc.
Wiping signatures on new PV /dev/oracleoci/oraclevdd.
Wiping signatures on new PV /dev/oracleoci/oraclevde.
Wiping signatures on new PV /dev/oracleoci/oraclevdf.
Wiping signatures on new PV /dev/oracleoci/oraclevdg.
Wiping signatures on new PV /dev/oracleoci/oraclevdh.
Wiping signatures on new PV /dev/oracleoci/oraclevdi.
Wiping signatures on new PV /dev/oracleoci/oraclevdj.
Wiping signatures on new PV /dev/oracleoci/oraclevdk.
Wiping signatures on new PV /dev/oracleoci/oraclevdl.
Wiping signatures on new PV /dev/oracleoci/oraclevdm.
Wiping signatures on new PV /dev/oracleoci/oraclevdn.
Wiping signatures on new PV /dev/oracleoci/oraclevdo.
Wiping signatures on new PV /dev/oracleoci/oraclevdp.
Wiping signatures on new PV /dev/oracleoci/oraclevdq.
Wiping signatures on new PV /dev/oracleoci/oraclevdr.
Wiping signatures on new PV /dev/oracleoci/oraclevds.
Wiping signatures on new PV /dev/oracleoci/oraclevdt.
Wiping signatures on new PV /dev/oracleoci/oraclevdu.
Wiping signatures on new PV /dev/oracleoci/oraclevdv.
Not creating system devices file due to existing VGs.
Adding physical volume '/dev/oracleoci/oraclevdb' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdc' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdd' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevde' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdf' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdg' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdh' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdi' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdj' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdk' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdl' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdm' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdn' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdo' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdp' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdq' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdr' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevds' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdt' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdu' to volume group 'volgroup01'
Adding physical volume '/dev/oracleoci/oraclevdv' to volume group 'volgroup01'
Creating volume group backup "/etc/lvm/backup/volgroup01" (seqno 1).
Volume group "volgroup01" successfully created
2) VG作成確認
vgs コマンドを使用すると、作成したボリュームグループの属性を表示できます。
[root@bm-e6 ~]# vgs
VG #PV #LV #SN Attr VSize VFree
ocivolume 1 2 0 wz--n- 44.50g 0
volgroup01 21 0 0 wz--n- 28.71t 28.71t
● ストライプ化論理ボリューム(LV)作成
1) 論理ボリューム(LV)作成
ストライプサイズが 4 キロバイトの 21 つのストライプがある、全てのボリューム・サイズを使用するストライプ化論理ボリューム(LV)を作成します。
[root@bm-e6 ~]# lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
oled ocivolume -wi-ao---- 15.00g
root ocivolume -wi-ao---- 29.50g
[root@bm-e6 ~]# lvcreate -v -i 21 -I 4 -l 100%FREE -n striped_logical_volume volgroup01
Converted 100% of FREE (7526379) extents into 7526379 (with mimages 1 and stripes 21 for segtype striped).
Creating logical volume striped_logical_volume
Archiving volume group "volgroup01" metadata (seqno 1).
Activating logical volume volgroup01/striped_logical_volume.
activation/volume_list configuration setting not defined: Checking only host tags for volgroup01/striped_logical_volume.
Creating volgroup01-striped_logical_volume
Loading table for volgroup01-striped_logical_volume (252:22).
Resuming volgroup01-striped_logical_volume (252:22).
Wiping known signatures on logical volume volgroup01/striped_logical_volume.
Initializing 4.00 KiB of logical volume volgroup01/striped_logical_volume with value 0.
Logical volume "striped_logical_volume" created.
Creating volume group backup "/etc/lvm/backup/volgroup01" (seqno 2).
2) LV作成確認
volgroup01 VG内に含まれるすべての論理ボリュームが表示されます。
[root@bm-e6 ~]# lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
oled ocivolume -wi-ao---- 15.00g
root ocivolume -wi-ao---- 29.50g
striped_logical_volume volgroup01 -wi-a----- 28.71t
3) LV詳細表示
論理ボリュームの詳細な情報を表示
[root@bm-e6 ~]# lvdisplay /dev/volgroup01
--- Logical volume ---
LV Path /dev/volgroup01/striped_logical_volume
LV Name striped_logical_volume
VG Name volgroup01
LV UUID NPELec-2fAT-2ePk-75hR-wNAR-zil1-nwFjIC
LV Write Access read/write
LV Creation host, time bm-e6, 2025-09-24 09:11:34 +0000
LV Status available
# open 0
LV Size 28.71 TiB
Current LE 7526379
Segments 1
Allocation inherit
Read ahead sectors auto
- currently set to 336
Block device 252:22
4) LV一覧表示
[root@bm-e6 ~]# lvscan
ACTIVE '/dev/ocivolume/oled' [15.00 GiB] inherit
ACTIVE '/dev/ocivolume/root' [29.50 GiB] inherit
ACTIVE '/dev/volgroup01/striped_logical_volume' [28.71 TiB] inherit
5) ブロックデバイス一覧表示
[root@bm-e6 ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
sda 8:0 0 100G 0 disk
├─sda1 8:1 0 100M 0 part /boot/efi
├─sda2 8:2 0 2G 0 part /boot
└─sda3 8:3 0 44.5G 0 part
├─ocivolume-root 252:0 0 29.5G 0 lvm /
└─ocivolume-oled 252:1 0 15G 0 lvm /var/oled
sdb 8:16 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdc 8:32 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdd 8:48 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sde 8:64 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdf 8:80 0 1.4T 0 disk
└─mpatha 252:2 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdg 8:96 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdh 8:112 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdi 8:128 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdj 8:144 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdk 8:160 0 1.4T 0 disk
└─mpathb 252:3 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdl 8:176 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdm 8:192 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdn 8:208 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdo 8:224 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdp 8:240 0 1.4T 0 disk
└─mpathc 252:4 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdq 65:0 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdr 65:16 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sds 65:32 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdt 65:48 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdu 65:64 0 1.4T 0 disk
└─mpathd 252:5 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdv 65:80 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdw 65:96 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdx 65:112 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdy 65:128 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdz 65:144 0 1.4T 0 disk
└─mpathe 252:6 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdaa 65:160 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdab 65:176 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdac 65:192 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdad 65:208 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdae 65:224 0 1.4T 0 disk
└─mpathf 252:7 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdaf 65:240 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdag 66:0 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdah 66:16 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdai 66:32 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdaj 66:48 0 1.4T 0 disk
└─mpathg 252:8 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdak 66:64 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdal 66:80 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdam 66:96 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdan 66:112 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdao 66:128 0 1.4T 0 disk
└─mpathh 252:9 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdap 66:144 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdaq 66:160 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdar 66:176 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdas 66:192 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdat 66:208 0 1.4T 0 disk
└─mpathi 252:10 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdau 66:224 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdav 66:240 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdaw 67:0 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdax 67:16 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sday 67:32 0 1.4T 0 disk
└─mpathj 252:11 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdaz 67:48 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdba 67:64 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbb 67:80 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbc 67:96 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbd 67:112 0 1.4T 0 disk
└─mpathk 252:12 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbe 67:128 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbf 67:144 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbg 67:160 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbh 67:176 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbi 67:192 0 1.4T 0 disk
└─mpathl 252:13 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbj 67:208 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbk 67:224 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbl 67:240 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbm 68:0 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbn 68:16 0 1.4T 0 disk
└─mpathm 252:14 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbo 68:32 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbp 68:48 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbq 68:64 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbr 68:80 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbs 68:96 0 1.4T 0 disk
└─mpathn 252:15 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbt 68:112 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbu 68:128 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbv 68:144 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbw 68:160 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbx 68:176 0 1.4T 0 disk
└─mpatho 252:16 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdby 68:192 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdbz 68:208 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdca 68:224 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcb 68:240 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcc 69:0 0 1.4T 0 disk
└─mpathp 252:17 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcd 69:16 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdce 69:32 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcf 69:48 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcg 69:64 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdch 69:80 0 1.4T 0 disk
└─mpathq 252:18 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdci 69:96 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcj 69:112 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdck 69:128 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcl 69:144 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcm 69:160 0 1.4T 0 disk
└─mpathr 252:19 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcn 69:176 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdco 69:192 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcp 69:208 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcq 69:224 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcr 69:240 0 1.4T 0 disk
└─mpaths 252:20 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcs 70:0 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdct 70:16 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcu 70:32 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcv 70:48 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcw 70:64 0 1.4T 0 disk
└─mpatht 252:21 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 27.3T 0 lvm
sdcx 70:80 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 28.7T 0 lvm
sdcy 70:96 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 28.7T 0 lvm
sdcz 70:112 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 28.7T 0 lvm
sdda 70:128 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 28.7T 0 lvm
sddb 70:144 0 1.4T 0 disk
└─mpathu 252:23 0 1.4T 0 mpath
└─volgroup01-striped_logical_volume 252:22 0 28.7T 0 lvm
nvme0n1 259:0 0 894.3G 0 disk
nvme1n1 259:1 0 894.3G 0 disk
■ FIOコマンド使用してブロック・ボリューム・パフォーマンス・テスト
Linuxベース・インスタンスでブロック・ボリューム・パフォーマンス・テストを行うためのサンプルFIOコマンドを参照して FIOコマンドで IOPSとスループットのパフォーマンス・テストをします。
● FIO インストール
1) install fio
Oracle LinuxまたはCentOSシステムにFIOをインストールして構成するには、次のコマンドを実行します
[root@bm-e6 ~]# dnf install fio -y
Last metadata expiration check: 2:36:27 ago on Thu 18 Sep 2025 10:21:55 AM GMT.
Dependencies resolved.
===================================================================================================================================================================================================================
Package Architecture Version Repository Size
===================================================================================================================================================================================================================
Installing:
fio x86_64 3.35-1.el9 ol9_appstream 6.4 M
Installing dependencies:
boost-iostreams x86_64 1.75.0-10.el9 ol9_appstream 36 k
libnbd x86_64 1.20.3-1.el9 ol9_appstream 178 k
librados2 x86_64 2:16.2.4-5.0.3.el9 ol9_appstream 3.4 M
librbd1 x86_64 2:16.2.4-5.0.3.el9 ol9_appstream 3.0 M
librdmacm x86_64 54.0-1.el9 ol9_baseos_latest 74 k
Installing weak dependencies:
fio-engine-http x86_64 3.35-1.el9 ol9_appstream 17 k
fio-engine-libaio x86_64 3.35-1.el9 ol9_appstream 14 k
fio-engine-nbd x86_64 3.35-1.el9 ol9_appstream 13 k
fio-engine-rados x86_64 3.35-1.el9 ol9_appstream 15 k
fio-engine-rbd x86_64 3.35-1.el9 ol9_appstream 15 k
fio-engine-rdma x86_64 3.35-1.el9 ol9_appstream 19 k
Transaction Summary
===================================================================================================================================================================================================================
Install 12 Packages
Total download size: 13 M
Installed size: 32 M
Downloading Packages:
(1/12): librdmacm-54.0-1.el9.x86_64.rpm 844 kB/s | 74 kB 00:00
(2/12): boost-iostreams-1.75.0-10.el9.x86_64.rpm 361 kB/s | 36 kB 00:00
(3/12): fio-engine-http-3.35-1.el9.x86_64.rpm 1.2 MB/s | 17 kB 00:00
(4/12): fio-engine-nbd-3.35-1.el9.x86_64.rpm 996 kB/s | 13 kB 00:00
(5/12): fio-engine-libaio-3.35-1.el9.x86_64.rpm 348 kB/s | 14 kB 00:00
(6/12): fio-engine-rbd-3.35-1.el9.x86_64.rpm 1.8 MB/s | 15 kB 00:00
(7/12): fio-engine-rados-3.35-1.el9.x86_64.rpm 132 kB/s | 15 kB 00:00
(8/12): fio-engine-rdma-3.35-1.el9.x86_64.rpm 167 kB/s | 19 kB 00:00
(9/12): libnbd-1.20.3-1.el9.x86_64.rpm 950 kB/s | 178 kB 00:00
(10/12): librados2-16.2.4-5.0.3.el9.x86_64.rpm 7.0 MB/s | 3.4 MB 00:00
(11/12): librbd1-16.2.4-5.0.3.el9.x86_64.rpm 7.7 MB/s | 3.0 MB 00:00
(12/12): fio-3.35-1.el9.x86_64.rpm 4.9 MB/s | 6.4 MB 00:01
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 10 MB/s | 13 MB 00:01
Running transaction check
Transaction check succeeded.
Running transaction test
Transaction test succeeded.
Running transaction
Preparing : 1/1
Installing : librdmacm-54.0-1.el9.x86_64 1/12
Installing : libnbd-1.20.3-1.el9.x86_64 2/12
Installing : boost-iostreams-1.75.0-10.el9.x86_64 3/12
Installing : librados2-2:16.2.4-5.0.3.el9.x86_64 4/12
Running scriptlet: librados2-2:16.2.4-5.0.3.el9.x86_64 4/12
Installing : librbd1-2:16.2.4-5.0.3.el9.x86_64 5/12
Running scriptlet: librbd1-2:16.2.4-5.0.3.el9.x86_64 5/12
Installing : fio-engine-http-3.35-1.el9.x86_64 6/12
Installing : fio-engine-libaio-3.35-1.el9.x86_64 7/12
Installing : fio-engine-nbd-3.35-1.el9.x86_64 8/12
Installing : fio-engine-rados-3.35-1.el9.x86_64 9/12
Installing : fio-engine-rdma-3.35-1.el9.x86_64 10/12
Installing : fio-3.35-1.el9.x86_64 11/12
Installing : fio-engine-rbd-3.35-1.el9.x86_64 12/12
Running scriptlet: fio-engine-rbd-3.35-1.el9.x86_64 12/12
Verifying : librdmacm-54.0-1.el9.x86_64 1/12
Verifying : boost-iostreams-1.75.0-10.el9.x86_64 2/12
Verifying : fio-3.35-1.el9.x86_64 3/12
Verifying : fio-engine-http-3.35-1.el9.x86_64 4/12
Verifying : fio-engine-libaio-3.35-1.el9.x86_64 5/12
Verifying : fio-engine-nbd-3.35-1.el9.x86_64 6/12
Verifying : fio-engine-rados-3.35-1.el9.x86_64 7/12
Verifying : fio-engine-rbd-3.35-1.el9.x86_64 8/12
Verifying : fio-engine-rdma-3.35-1.el9.x86_64 9/12
Verifying : libnbd-1.20.3-1.el9.x86_64 10/12
Verifying : librados2-2:16.2.4-5.0.3.el9.x86_64 11/12
Verifying : librbd1-2:16.2.4-5.0.3.el9.x86_64 12/12
Installed:
boost-iostreams-1.75.0-10.el9.x86_64 fio-3.35-1.el9.x86_64 fio-engine-http-3.35-1.el9.x86_64 fio-engine-libaio-3.35-1.el9.x86_64 fio-engine-nbd-3.35-1.el9.x86_64
fio-engine-rados-3.35-1.el9.x86_64 fio-engine-rbd-3.35-1.el9.x86_64 fio-engine-rdma-3.35-1.el9.x86_64 libnbd-1.20.3-1.el9.x86_64 librados2-2:16.2.4-5.0.3.el9.x86_64
librbd1-2:16.2.4-5.0.3.el9.x86_64 librdmacm-54.0-1.el9.x86_64
Complete!
2) FIO インストール確認
[root@bm-e6 ~]# fio -v
fio-3.35
[root@bm-e6 ~]# fio -h
fio-3.35
fio [options] [job options] <job file(s)>
--debug=options Enable debug logging. May be one/more of:
process,file,io,mem,blktrace,verify,random,parse,
diskutil,job,mutex,profile,time,net,rate,compress,
steadystate,helperthread,zbd
--parse-only Parse options only, don't start any IO
--merge-blktrace-only Merge blktraces only, don't start any IO
--output Write output to file
--bandwidth-log Generate aggregate bandwidth logs
--minimal Minimal (terse) output
--output-format=type Output format (terse,json,json+,normal)
--terse-version=type Set terse version output format (default 3, or 2 or 4 or 5)
--version Print version info and exit
--help Print this page
--cpuclock-test Perform test/validation of CPU clock
--crctest=[type] Test speed of checksum functions
--cmdhelp=cmd Print command help, "all" for all of them
--enghelp=engine Print ioengine help, or list available ioengines
--enghelp=engine,cmd Print help for an ioengine cmd
--showcmd Turn a job file into command line options
--eta=when When ETA estimate should be printed
May be "always", "never" or "auto"
--eta-newline=t Force a new line for every 't' period passed
--status-interval=t Force full status dump every 't' period passed
--readonly Turn on safety read-only checks, preventing writes
--section=name Only run specified section in job file, multiple sections can be specified
--alloc-size=kb Set smalloc pool to this size in kb (def 16384)
--warnings-fatal Fio parser warnings are fatal
--max-jobs=nr Maximum number of threads/processes to support
--server=args Start a backend fio server
--daemonize=pidfile Background fio server, write pid to file
--client=hostname Talk to remote backend(s) fio server at hostname
--remote-config=file Tell fio server to load this local job file
--idle-prof=option Report cpu idleness on a system or percpu basis
(option=system,percpu) or run unit work
calibration only (option=calibrate)
--inflate-log=log Inflate and output compressed log
--trigger-file=file Execute trigger cmd when file exists
--trigger-timeout=t Execute trigger at this time
--trigger=cmd Set this command as local trigger
--trigger-remote=cmd Set this command as remote trigger
--aux-path=path Use this path for fio state generated files
Fio was written by Jens Axboe <axboe@kernel.dk>
● IOPS パフォーマンス・テスト
IOPSパフォーマンスをテストするには、次のFIOサンプル・コマンドを使用します。コマンドを直接実行することも、コマンドを使用してジョブ・ファイルを作成してからそのジョブ・ファイルを実行することもできます。
・参考: Sample FIO Commands for Block Volume Performance Tests on Linux-based Instances
FIO実行するときは--numjobs オプションを使用して、ストライプしているデバイス(/dev/sd?)の数に応じて並列度を上げて実行します。
今回100個のデバイス・ファイルがあるので、10以上の値で調整します。
・ Sequential Reads テスト
データベース・ワークロードなど、順次アクセス・パターンを利用できるワークロードに対しては、順次読取りをテストすることにより、このパターンのパフォーマンスを確認できます。
順次読取りをテストするには、次のコマンドを実行します。
[root@bm-e6 ~]# fio --filename=/dev/volgroup01/striped_logical_volume --direct=1 --rw=read --bs=4k --ioengine=libaio --iodepth=256 --runtime=120 --numjobs=150 --time_based --group_reporting --name=iops-test-job --eta-newline=1 --readonly
iops-test-job: (g=0): rw=read, bs=(R) 4096B-4096B, (W) 4096B-4096B, (T) 4096B-4096B, ioengine=libaio, iodepth=256
...
fio-3.35
Starting 150 processes
Jobs: 150 (f=150): [R(150)][2.5%][r=22.5GiB/s][r=5904k IOPS][eta 01m:57s]
Jobs: 150 (f=150): [R(150)][4.2%][r=22.6GiB/s][r=5927k IOPS][eta 01m:55s]
Jobs: 150 (f=150): [R(150)][5.8%][r=19.7GiB/s][r=5172k IOPS][eta 01m:53s]
Jobs: 150 (f=150): [R(150)][7.5%][r=22.5GiB/s][r=5892k IOPS][eta 01m:51s]
Jobs: 150 (f=150): [R(150)][9.2%][r=22.2GiB/s][r=5810k IOPS][eta 01m:49s]
Jobs: 150 (f=150): [R(150)][10.8%][r=22.6GiB/s][r=5937k IOPS][eta 01m:47s]
Jobs: 150 (f=150): [R(150)][11.7%][r=22.6GiB/s][r=5922k IOPS][eta 01m:46s]
Jobs: 150 (f=150): [R(150)][12.5%][r=22.6GiB/s][r=5929k IOPS][eta 01m:45s]
Jobs: 150 (f=150): [R(150)][13.3%][r=22.7GiB/s][r=5942k IOPS][eta 01m:44s]
Jobs: 150 (f=150): [R(150)][14.2%][r=22.6GiB/s][r=5924k IOPS][eta 01m:43s]
Jobs: 150 (f=150): [R(150)][15.0%][r=22.5GiB/s][r=5900k IOPS][eta 01m:42s]
Jobs: 150 (f=150): [R(150)][15.8%][r=22.7GiB/s][r=5951k IOPS][eta 01m:41s]
Jobs: 150 (f=150): [R(150)][16.7%][r=22.6GiB/s][r=5926k IOPS][eta 01m:40s]
Jobs: 150 (f=150): [R(150)][17.5%][r=22.6GiB/s][r=5931k IOPS][eta 01m:39s]
Jobs: 150 (f=150): [R(150)][18.3%][r=22.6GiB/s][r=5923k IOPS][eta 01m:38s]
Jobs: 150 (f=150): [R(150)][19.2%][r=22.5GiB/s][r=5906k IOPS][eta 01m:37s]
Jobs: 150 (f=150): [R(150)][20.0%][r=22.6GiB/s][r=5936k IOPS][eta 01m:36s]
Jobs: 150 (f=150): [R(150)][20.8%][r=22.7GiB/s][r=5946k IOPS][eta 01m:35s]
Jobs: 150 (f=150): [R(150)][21.7%][r=22.6GiB/s][r=5933k IOPS][eta 01m:34s]
Jobs: 150 (f=150): [R(150)][22.5%][r=22.7GiB/s][r=5940k IOPS][eta 01m:33s]
Jobs: 150 (f=150): [R(150)][23.3%][r=22.6GiB/s][r=5921k IOPS][eta 01m:32s]
Jobs: 150 (f=150): [R(150)][24.2%][r=22.6GiB/s][r=5933k IOPS][eta 01m:31s]
Jobs: 150 (f=150): [R(150)][25.0%][r=22.5GiB/s][r=5904k IOPS][eta 01m:30s]
Jobs: 150 (f=150): [R(150)][25.8%][r=22.7GiB/s][r=5952k IOPS][eta 01m:29s]
Jobs: 150 (f=150): [R(150)][26.7%][r=22.7GiB/s][r=5940k IOPS][eta 01m:28s]
Jobs: 150 (f=150): [R(150)][27.5%][r=22.4GiB/s][r=5873k IOPS][eta 01m:27s]
Jobs: 150 (f=150): [R(150)][28.3%][r=22.2GiB/s][r=5821k IOPS][eta 01m:26s]
Jobs: 150 (f=150): [R(150)][29.2%][r=22.5GiB/s][r=5892k IOPS][eta 01m:25s]
Jobs: 150 (f=150): [R(150)][30.0%][r=22.6GiB/s][r=5937k IOPS][eta 01m:24s]
Jobs: 150 (f=150): [R(150)][30.8%][r=22.6GiB/s][r=5925k IOPS][eta 01m:23s]
Jobs: 150 (f=150): [R(150)][31.7%][r=22.4GiB/s][r=5881k IOPS][eta 01m:22s]
Jobs: 150 (f=150): [R(150)][32.5%][r=22.6GiB/s][r=5917k IOPS][eta 01m:21s]
Jobs: 150 (f=150): [R(150)][33.3%][r=22.5GiB/s][r=5889k IOPS][eta 01m:20s]
Jobs: 150 (f=150): [R(150)][34.2%][r=21.3GiB/s][r=5586k IOPS][eta 01m:19s]
Jobs: 150 (f=150): [R(150)][35.0%][r=22.6GiB/s][r=5924k IOPS][eta 01m:18s]
Jobs: 150 (f=150): [R(150)][35.8%][r=22.6GiB/s][r=5930k IOPS][eta 01m:17s]
Jobs: 150 (f=150): [R(150)][36.7%][r=22.6GiB/s][r=5929k IOPS][eta 01m:16s]
Jobs: 150 (f=150): [R(150)][37.5%][r=22.6GiB/s][r=5922k IOPS][eta 01m:15s]
Jobs: 150 (f=150): [R(150)][38.3%][r=22.5GiB/s][r=5887k IOPS][eta 01m:14s]
Jobs: 150 (f=150): [R(150)][40.0%][r=22.6GiB/s][r=5914k IOPS][eta 01m:12s]
Jobs: 150 (f=150): [R(150)][40.8%][r=22.5GiB/s][r=5896k IOPS][eta 01m:11s]
Jobs: 150 (f=150): [R(150)][42.5%][r=22.6GiB/s][r=5927k IOPS][eta 01m:09s]
Jobs: 150 (f=150): [R(150)][44.2%][r=21.4GiB/s][r=5600k IOPS][eta 01m:07s]
Jobs: 150 (f=150): [R(150)][45.8%][r=22.6GiB/s][r=5936k IOPS][eta 01m:05s]
Jobs: 150 (f=150): [R(150)][47.5%][r=22.6GiB/s][r=5932k IOPS][eta 01m:03s]
Jobs: 150 (f=150): [R(150)][49.2%][r=22.7GiB/s][r=5941k IOPS][eta 01m:01s]
Jobs: 150 (f=150): [R(150)][50.8%][r=22.1GiB/s][r=5802k IOPS][eta 00m:59s]
Jobs: 150 (f=150): [R(150)][52.5%][r=22.2GiB/s][r=5810k IOPS][eta 00m:57s]
Jobs: 150 (f=150): [R(150)][54.2%][r=22.7GiB/s][r=5943k IOPS][eta 00m:55s]
Jobs: 150 (f=150): [R(150)][55.8%][r=22.2GiB/s][r=5820k IOPS][eta 00m:53s]
Jobs: 150 (f=150): [R(150)][57.5%][r=22.6GiB/s][r=5927k IOPS][eta 00m:51s]
Jobs: 150 (f=150): [R(150)][59.2%][r=22.7GiB/s][r=5948k IOPS][eta 00m:49s]
Jobs: 150 (f=150): [R(150)][60.8%][r=22.6GiB/s][r=5938k IOPS][eta 00m:47s]
Jobs: 150 (f=150): [R(150)][62.5%][r=22.7GiB/s][r=5946k IOPS][eta 00m:45s]
Jobs: 150 (f=150): [R(150)][64.2%][r=22.6GiB/s][r=5916k IOPS][eta 00m:43s]
Jobs: 150 (f=150): [R(150)][65.8%][r=22.6GiB/s][r=5934k IOPS][eta 00m:41s]
Jobs: 150 (f=150): [R(150)][67.5%][r=19.8GiB/s][r=5197k IOPS][eta 00m:39s]
Jobs: 150 (f=150): [R(150)][69.2%][r=22.6GiB/s][r=5925k IOPS][eta 00m:37s]
Jobs: 150 (f=150): [R(150)][70.8%][r=22.7GiB/s][r=5940k IOPS][eta 00m:35s]
Jobs: 150 (f=150): [R(150)][72.5%][r=22.6GiB/s][r=5916k IOPS][eta 00m:33s]
Jobs: 150 (f=150): [R(150)][74.2%][r=18.3GiB/s][r=4798k IOPS][eta 00m:31s]
Jobs: 150 (f=150): [R(150)][75.8%][r=22.7GiB/s][r=5944k IOPS][eta 00m:29s]
Jobs: 150 (f=150): [R(150)][77.5%][r=22.6GiB/s][r=5930k IOPS][eta 00m:27s]
Jobs: 150 (f=150): [R(150)][79.2%][r=22.6GiB/s][r=5932k IOPS][eta 00m:25s]
Jobs: 150 (f=150): [R(150)][80.8%][r=22.6GiB/s][r=5928k IOPS][eta 00m:23s]
Jobs: 150 (f=150): [R(150)][82.5%][r=21.7GiB/s][r=5701k IOPS][eta 00m:21s]
Jobs: 150 (f=150): [R(150)][84.2%][r=22.6GiB/s][r=5935k IOPS][eta 00m:19s]
Jobs: 150 (f=150): [R(150)][85.8%][r=22.6GiB/s][r=5914k IOPS][eta 00m:17s]
Jobs: 150 (f=150): [R(150)][87.5%][r=22.6GiB/s][r=5938k IOPS][eta 00m:15s]
Jobs: 150 (f=150): [R(150)][89.2%][r=22.6GiB/s][r=5929k IOPS][eta 00m:13s]
Jobs: 150 (f=150): [R(150)][90.8%][r=22.7GiB/s][r=5938k IOPS][eta 00m:11s]
Jobs: 150 (f=150): [R(150)][92.5%][r=22.6GiB/s][r=5935k IOPS][eta 00m:09s]
Jobs: 150 (f=150): [R(150)][94.2%][r=22.7GiB/s][r=5942k IOPS][eta 00m:07s]
Jobs: 150 (f=150): [R(150)][95.8%][r=22.7GiB/s][r=5940k IOPS][eta 00m:05s]
Jobs: 150 (f=150): [R(150)][97.5%][r=22.7GiB/s][r=5946k IOPS][eta 00m:03s]
Jobs: 150 (f=150): [R(150)][99.2%][r=22.6GiB/s][r=5931k IOPS][eta 00m:01s]
Jobs: 150 (f=150): [R(150)][100.0%][r=22.7GiB/s][r=5944k IOPS][eta 00m:00s]
iops-test-job: (groupid=0, jobs=150): err= 0: pid=118888: Wed Sep 24 10:24:53 2025
read: IOPS=5808k, BW=22.2GiB/s (23.8GB/s)(2659GiB/120005msec)
slat (nsec): min=1692, max=156612k, avg=25012.65, stdev=175709.04
clat (usec): min=320, max=345856, avg=6585.13, stdev=3031.68
lat (usec): min=324, max=345862, avg=6610.14, stdev=3043.83
clat percentiles (usec):
| 1.00th=[ 3228], 5.00th=[ 3916], 10.00th=[ 4359], 20.00th=[ 4883],
| 30.00th=[ 5342], 40.00th=[ 5735], 50.00th=[ 6128], 60.00th=[ 6521],
| 70.00th=[ 7046], 80.00th=[ 7635], 90.00th=[ 8717], 95.00th=[10159],
| 99.00th=[17957], 99.50th=[22676], 99.90th=[38011], 99.95th=[47449],
| 99.99th=[72877]
bw ( MiB/s): min= 9969, max=25636, per=100.00%, avg=22714.12, stdev=13.53, samples=35850
iops : min=2552108, max=6563027, avg=5814795.55, stdev=3464.37, samples=35850
lat (usec) : 500=0.01%, 750=0.01%, 1000=0.01%
lat (msec) : 2=0.01%, 4=5.77%, 10=88.97%, 20=4.52%, 50=0.70%
lat (msec) : 100=0.04%, 250=0.01%, 500=0.01%
cpu : usr=2.62%, sys=29.59%, ctx=43013554, majf=2, minf=215001
IO depths : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.1%
issued rwts: total=697009084,0,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=256
Run status group 0 (all jobs):
READ: bw=22.2GiB/s (23.8GB/s), 22.2GiB/s-22.2GiB/s (23.8GB/s-23.8GB/s), io=2659GiB (2855GB), run=120005-120005msec
・ IOPS パフォーマンス・テスト結果
IOPS パフォーマンスは、次の iops 行を見ると、max=6563027 で 625万IOPS 以上あることを確認できます。
iops行
iops : min=2552108, max=6563027, avg=5814795.55, stdev=3464.37, samples=35850
● スループット・パフォーマンス・テスト
スループット・パフォーマンスをテストするには、次のFIOサンプル・コマンドを使用します。
・ Sequential Reads テスト
データベース・ワークロードなど、順次アクセス・パターンを利用できるワークロードに対しては、順次読取りをテストすることにより、このパターンのパフォーマンスを確認できます。
順次読取りをテストするには、次のコマンドを実行します:
[root@bm-e6 ~]# fio --filename=/dev/volgroup01/striped_logical_volume --direct=1 --rw=read --bs=64k --ioengine=libaio --iodepth=64 --runtime=120 --numjobs=150 --time_based --group_reporting --name=throughput-test-job --eta-newline=1 --readonly
throughput-test-job: (g=0): rw=read, bs=(R) 64.0KiB-64.0KiB, (W) 64.0KiB-64.0KiB, (T) 64.0KiB-64.0KiB, ioengine=libaio, iodepth=64
...
fio-3.35
Starting 150 processes
Jobs: 150 (f=150): [R(150)][2.5%][r=21.8GiB/s][r=358k IOPS][eta 01m:57s]
Jobs: 150 (f=150): [R(150)][4.2%][r=22.6GiB/s][r=371k IOPS][eta 01m:55s]
Jobs: 150 (f=150): [R(150)][5.8%][r=22.7GiB/s][r=372k IOPS][eta 01m:53s]
Jobs: 150 (f=150): [R(150)][7.5%][r=22.6GiB/s][r=370k IOPS][eta 01m:51s]
Jobs: 150 (f=150): [R(150)][9.2%][r=22.5GiB/s][r=369k IOPS][eta 01m:49s]
Jobs: 150 (f=150): [R(150)][10.0%][r=22.4GiB/s][r=367k IOPS][eta 01m:48s]
Jobs: 150 (f=150): [R(150)][10.8%][r=20.6GiB/s][r=338k IOPS][eta 01m:47s]
Jobs: 150 (f=150): [R(150)][11.7%][r=20.9GiB/s][r=342k IOPS][eta 01m:46s]
Jobs: 150 (f=150): [R(150)][12.5%][r=20.7GiB/s][r=340k IOPS][eta 01m:45s]
Jobs: 150 (f=150): [R(150)][13.3%][r=16.6GiB/s][r=272k IOPS][eta 01m:44s]
Jobs: 150 (f=150): [R(150)][14.2%][r=21.7GiB/s][r=355k IOPS][eta 01m:43s]
Jobs: 150 (f=150): [R(150)][15.0%][r=22.2GiB/s][r=364k IOPS][eta 01m:42s]
Jobs: 150 (f=150): [R(150)][15.8%][r=19.7GiB/s][r=323k IOPS][eta 01m:41s]
Jobs: 150 (f=150): [R(150)][16.7%][r=22.4GiB/s][r=368k IOPS][eta 01m:40s]
Jobs: 150 (f=150): [R(150)][17.5%][r=22.7GiB/s][r=372k IOPS][eta 01m:39s]
Jobs: 150 (f=150): [R(150)][18.3%][r=22.5GiB/s][r=369k IOPS][eta 01m:38s]
Jobs: 150 (f=150): [R(150)][19.2%][r=22.6GiB/s][r=371k IOPS][eta 01m:37s]
Jobs: 150 (f=150): [R(150)][20.0%][r=22.6GiB/s][r=370k IOPS][eta 01m:36s]
Jobs: 150 (f=150): [R(150)][20.8%][r=14.9GiB/s][r=243k IOPS][eta 01m:35s]
Jobs: 150 (f=150): [R(150)][21.7%][r=22.6GiB/s][r=370k IOPS][eta 01m:34s]
Jobs: 150 (f=150): [R(150)][22.5%][r=11.5GiB/s][r=188k IOPS][eta 01m:33s]
Jobs: 150 (f=150): [R(150)][23.3%][r=22.2GiB/s][r=364k IOPS][eta 01m:32s]
Jobs: 150 (f=150): [R(150)][24.2%][r=22.6GiB/s][r=370k IOPS][eta 01m:31s]
Jobs: 150 (f=150): [R(150)][25.0%][r=22.7GiB/s][r=372k IOPS][eta 01m:30s]
Jobs: 150 (f=150): [R(150)][25.8%][r=22.7GiB/s][r=371k IOPS][eta 01m:29s]
Jobs: 150 (f=150): [R(150)][26.7%][r=22.6GiB/s][r=370k IOPS][eta 01m:28s]
Jobs: 150 (f=150): [R(150)][27.5%][r=22.6GiB/s][r=371k IOPS][eta 01m:27s]
Jobs: 150 (f=150): [R(150)][28.3%][r=22.2GiB/s][r=364k IOPS][eta 01m:26s]
Jobs: 150 (f=150): [R(150)][29.2%][r=20.0GiB/s][r=328k IOPS][eta 01m:25s]
Jobs: 150 (f=150): [R(150)][30.0%][r=22.6GiB/s][r=370k IOPS][eta 01m:24s]
Jobs: 150 (f=150): [R(150)][31.7%][r=22.6GiB/s][r=371k IOPS][eta 01m:22s]
Jobs: 150 (f=150): [R(150)][32.5%][r=22.6GiB/s][r=371k IOPS][eta 01m:21s]
Jobs: 150 (f=150): [R(150)][33.3%][r=22.5GiB/s][r=369k IOPS][eta 01m:20s]
Jobs: 150 (f=150): [R(150)][34.2%][r=22.4GiB/s][r=367k IOPS][eta 01m:19s]
Jobs: 150 (f=150): [R(150)][35.0%][r=22.7GiB/s][r=371k IOPS][eta 01m:18s]
Jobs: 150 (f=150): [R(150)][35.8%][r=22.0GiB/s][r=360k IOPS][eta 01m:17s]
Jobs: 150 (f=150): [R(150)][36.7%][r=22.7GiB/s][r=371k IOPS][eta 01m:16s]
Jobs: 150 (f=150): [R(150)][37.5%][r=22.5GiB/s][r=369k IOPS][eta 01m:15s]
Jobs: 150 (f=150): [R(150)][38.3%][r=22.7GiB/s][r=372k IOPS][eta 01m:14s]
Jobs: 150 (f=150): [R(150)][40.0%][r=22.7GiB/s][r=372k IOPS][eta 01m:12s]
Jobs: 150 (f=150): [R(150)][41.7%][r=22.7GiB/s][r=371k IOPS][eta 01m:10s]
Jobs: 150 (f=150): [R(150)][43.3%][r=21.9GiB/s][r=360k IOPS][eta 01m:08s]
Jobs: 150 (f=150): [R(150)][45.0%][r=22.6GiB/s][r=370k IOPS][eta 01m:06s]
Jobs: 150 (f=150): [R(150)][46.7%][r=22.6GiB/s][r=370k IOPS][eta 01m:04s]
Jobs: 150 (f=150): [R(150)][48.3%][r=21.6GiB/s][r=355k IOPS][eta 01m:02s]
Jobs: 150 (f=150): [R(150)][50.0%][r=22.6GiB/s][r=370k IOPS][eta 01m:00s]
Jobs: 150 (f=150): [R(150)][51.7%][r=16.2GiB/s][r=266k IOPS][eta 00m:58s]
Jobs: 150 (f=150): [R(150)][53.3%][r=21.2GiB/s][r=347k IOPS][eta 00m:56s]
Jobs: 150 (f=150): [R(150)][55.0%][r=20.2GiB/s][r=330k IOPS][eta 00m:54s]
Jobs: 150 (f=150): [R(150)][56.7%][r=21.8GiB/s][r=357k IOPS][eta 00m:52s]
Jobs: 150 (f=150): [R(150)][58.3%][r=22.6GiB/s][r=371k IOPS][eta 00m:50s]
Jobs: 150 (f=150): [R(150)][60.0%][r=22.6GiB/s][r=371k IOPS][eta 00m:48s]
Jobs: 150 (f=150): [R(150)][61.7%][r=22.6GiB/s][r=370k IOPS][eta 00m:46s]
Jobs: 150 (f=150): [R(150)][63.3%][r=17.2GiB/s][r=281k IOPS][eta 00m:44s]
Jobs: 150 (f=150): [R(150)][65.0%][r=22.6GiB/s][r=371k IOPS][eta 00m:42s]
Jobs: 150 (f=150): [R(150)][66.7%][r=22.7GiB/s][r=371k IOPS][eta 00m:40s]
Jobs: 150 (f=150): [R(150)][68.3%][r=22.7GiB/s][r=372k IOPS][eta 00m:38s]
Jobs: 150 (f=150): [R(150)][70.0%][r=22.5GiB/s][r=369k IOPS][eta 00m:36s]
Jobs: 150 (f=150): [R(150)][71.7%][r=18.8GiB/s][r=308k IOPS][eta 00m:34s]
Jobs: 150 (f=150): [R(150)][73.3%][r=16.1GiB/s][r=263k IOPS][eta 00m:32s]
Jobs: 150 (f=150): [R(150)][75.0%][r=22.7GiB/s][r=371k IOPS][eta 00m:30s]
Jobs: 150 (f=150): [R(150)][76.7%][r=22.4GiB/s][r=366k IOPS][eta 00m:28s]
Jobs: 150 (f=150): [R(150)][78.3%][r=22.3GiB/s][r=366k IOPS][eta 00m:26s]
Jobs: 150 (f=150): [R(150)][80.0%][r=22.7GiB/s][r=371k IOPS][eta 00m:24s]
Jobs: 150 (f=150): [R(150)][81.7%][r=22.6GiB/s][r=371k IOPS][eta 00m:22s]
Jobs: 150 (f=150): [R(150)][83.3%][r=22.4GiB/s][r=367k IOPS][eta 00m:20s]
Jobs: 150 (f=150): [R(150)][85.0%][r=19.9GiB/s][r=325k IOPS][eta 00m:18s]
Jobs: 150 (f=150): [R(150)][86.7%][r=22.6GiB/s][r=371k IOPS][eta 00m:16s]
Jobs: 150 (f=150): [R(150)][88.3%][r=22.7GiB/s][r=372k IOPS][eta 00m:14s]
Jobs: 150 (f=150): [R(150)][90.0%][r=22.4GiB/s][r=367k IOPS][eta 00m:12s]
Jobs: 150 (f=150): [R(150)][91.7%][r=22.7GiB/s][r=372k IOPS][eta 00m:10s]
Jobs: 150 (f=150): [R(150)][93.3%][r=22.4GiB/s][r=367k IOPS][eta 00m:08s]
Jobs: 150 (f=150): [R(150)][95.0%][r=22.6GiB/s][r=370k IOPS][eta 00m:06s]
Jobs: 150 (f=150): [R(150)][96.7%][r=21.0GiB/s][r=344k IOPS][eta 00m:04s]
Jobs: 150 (f=150): [R(150)][98.3%][r=21.8GiB/s][r=357k IOPS][eta 00m:02s]
Jobs: 150 (f=150): [R(150)][100.0%][r=22.4GiB/s][r=367k IOPS][eta 00m:00s]
throughput-test-job: (groupid=0, jobs=150): err= 0: pid=111131: Wed Sep 24 09:38:58 2025
read: IOPS=354k, BW=21.6GiB/s (23.2GB/s)(2596GiB/120012msec)
slat (usec): min=32, max=326566, avg=421.74, stdev=834.14
clat (usec): min=550, max=641500, avg=26654.65, stdev=11529.47
lat (usec): min=694, max=642471, avg=27076.39, stdev=11659.36
clat percentiles (msec):
| 1.00th=[ 17], 5.00th=[ 20], 10.00th=[ 21], 20.00th=[ 22],
| 30.00th=[ 23], 40.00th=[ 24], 50.00th=[ 26], 60.00th=[ 27],
| 70.00th=[ 28], 80.00th=[ 30], 90.00th=[ 33], 95.00th=[ 38],
| 99.00th=[ 62], 99.50th=[ 84], 99.90th=[ 174], 99.95th=[ 234],
| 99.99th=[ 380]
bw ( MiB/s): min= 7542, max=25713, per=100.00%, avg=22176.20, stdev=18.80, samples=35850
iops : min=120670, max=411413, avg=354815.26, stdev=300.77, samples=35850
lat (usec) : 750=0.01%, 1000=0.01%
lat (msec) : 2=0.01%, 4=0.01%, 10=0.01%, 20=8.44%, 50=89.86%
lat (msec) : 100=1.36%, 250=0.28%, 500=0.04%, 750=0.01%
cpu : usr=0.33%, sys=26.71%, ctx=41673389, majf=1, minf=445271
IO depths : 1=0.1%, 2=0.1%, 4=0.1%, 8=0.1%, 16=0.1%, 32=0.1%, >=64=100.0%
submit : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%
complete : 0=0.0%, 4=100.0%, 8=0.0%, 16=0.0%, 32=0.0%, 64=0.1%, >=64=0.0%
issued rwts: total=42530711,0,0,0 short=0,0,0,0 dropped=0,0,0,0
latency : target=0, window=0, percentile=100.00%, depth=64
Run status group 0 (all jobs):
READ: bw=21.6GiB/s (23.2GB/s), 21.6GiB/s-21.6GiB/s (23.2GB/s-23.2GB/s), io=2596GiB (2787GB), run=120012-120012msec
・ スループット・パフォーマンス・テスト結果
スループット・パフォーマンスは、次の bw 行を見ると、max= 25713 (MiB/s) = 215.7 Gbit/s であることを確認できます。
bw行
bw ( MiB/s): min= 7542, max=25713, per=100.00%, avg=22176.20, stdev=18.80, samples=35850
■ おまけ
● LVM 削除
1) XFS Umount
[root@bm-e6 ~]# df -hT | grep xfs
/dev/sdb4 xfs 46G 2.8G 43G 7% /
/dev/sdb3 xfs 960M 174M 787M 19% /boot
/dev/mapper/volgroup01-striped_logical_volume xfs 4.4T 132G 4.3T 3% /xfs
[root@bm-e6 ~]# umount /xfs
/dev/mapper/volgroup01-striped_logical_volume xfs 4.4T 132G 4.3T 3% /xfs
2) lvremove
[root@bm-e6 ~]# lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
oled ocivolume -wi-ao---- 15.00g
root ocivolume -wi-ao---- 29.50g
striped_logical_volume volgroup01 -wi-a----- 27.34t
[root@bm-e6 ~]# lvremove striped_logical_volume volgroup01
Volume group "striped_logical_volume" not found
Cannot process volume group striped_logical_volume
Do you really want to remove active logical volume volgroup01/striped_logical_volume? [y/n]: y
Logical volume "striped_logical_volume" successfully removed.
3) vgremove
[root@bm-e6 ~]# vgs
VG #PV #LV #SN Attr VSize VFree
ocivolume 1 2 0 wz--n- 44.50g 0
volgroup01 20 0 0 wz--n- 27.34t 27.34t
[root@bm-e6 ~]# vgremove volgroup01
Volume group "volgroup01" successfully removed
4) pvremove
[root@bm-e6 ~]# pvs
PV VG Fmt Attr PSize PFree
/dev/oracleoci/oraclevdb lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdc lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdd lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevde lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdf lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdg lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdh lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdi lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdj lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdk lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdl lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdm lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdn lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdo lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdp lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdq lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdr lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevds lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdt lvm2 --- <1.37t <1.37t
/dev/oracleoci/oraclevdu lvm2 --- <1.37t <1.37t
/dev/sda3 ocivolume lvm2 a-- 44.50g 0
[root@bm-e6 ~]# pvremove /dev/oracleoci/oraclevd[b-u]
Labels on physical volume "/dev/oracleoci/oraclevdb" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdc" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdd" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevde" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdf" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdg" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdh" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdi" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdj" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdk" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdl" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdm" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdn" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdo" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdp" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdq" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdr" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevds" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdt" successfully wiped.
Labels on physical volume "/dev/oracleoci/oraclevdu" successfully wiped.
[root@bm-e6 ~]# pvs
PV VG Fmt Attr PSize PFree
/dev/sda3 ocivolume lvm2 a-- 44.50g 0
■ 結論
E6 Standard により、OCI は高いパフォーマンス、圧倒的なスケーラビリティ、そして低コストを両立させ、業界をリードする価値を提供します。Web サーバーやアプリケーション・サーバー、動画トランスコーディング、クラウドネイティブ・サービ、あるいは汎用ワークロードなど、どのようなワークロードを実行する場合でも、E6 Standard は期待どおりの価格で必要なパフォーマンスを提供します。同じ価格で最大 2 倍のパフォーマンス。比類のない価値です。E6 Standard ベアメタルおよびフレキシブル仮想マシン・インスタンスの詳細については、ドキュメントをご覧ください。
■ 参考
・ NEWS
- AMD: 第 5 世代 AMD EPYC™ プロセッサ搭載の Oracle Cloud Infrastructure Compute E6 シェイプが、クラウドにおける卓越した性能と効率性を実現
- ASCII.jp: Oracle Cloud Infrastructure、第5世代AMD EPYCプロセッサ搭載のE6シェイプを導入
- hpcwire.com: AMD Powers Oracle Cloud E6 Shapes with 5th Gen EPYC CPUs
・ Oracle Cloud Infrastructureドキュメント
- コンピュート・シェイプ
- ブロック・ボリューム・パフォーマンス
- シェイプのパフォーマンスの詳細
- 複数ボリューム・アタッチメントのUltra High Performanceサポート
- 超高パフォーマンス・ボリュームのためのアタッチメントの構成
- Linuxベース・インスタンスでブロック・ボリューム・パフォーマンス・テストを行うためのサンプルFIOコマンド
- Oracle Cloud Infrastructure（OCI）ネットワーキング
- Virtual Cloud Network
・ Oracle Blog
- Oracle launches OCI Compute E6 Standard Instances: 2X the Performance, Same Price
- OracleがOCI Compute E6 Standard Instancesを発表: 2倍の性能、同じ価格
- AMD EPYCプロセッサ上のE5インスタンスでパフォーマンスを最大2倍向上
- Shatter the Million IOPS Barrier in the Cloud with OCI Block Storage
・ 計算方法
- ストレージ技術基礎
- データのサイズ コンバーター
- IOPS, MB/s, GB/day Converter
- メビバイト/秒 (MiB/s - 毎秒), 帯域幅
- MB/sとIOPSの換算の仕方と変換ツール。ランダムリード/ライトの指標の変換。
・ My Oracle Support (MOS)
- How to Calculate the Number of IOPS and Throughput of a Database (Doc ID 2206831.1)
・ Google Cloud
- Linux VM で永続ディスクのパフォーマンスをベンチマークする
