Oracle Cloud:YAMAHAルーターとOCIをBGPでIPSec VPN接続してみてみた

Last updated at Posted at 2019-06-04

■ 目的

動的ルーティングのBGP(Border Gateway Protocol)は相互接続で動的にお互いの経路情報をやり取りするために使われる経路制御プロトコルです。
このBGPでOracle Cloud Infrastructure(OCI)へIPSec接続を行いルート情報が伝搬され、オンプレミス,OCIそれぞれのインスタンスが疎通できることを確認します。
ということで、前回設定した YAMAHA NVR700w で OCI へ IPsec VPN 接続した構成を使用して BGP の設定をしてみてみます。

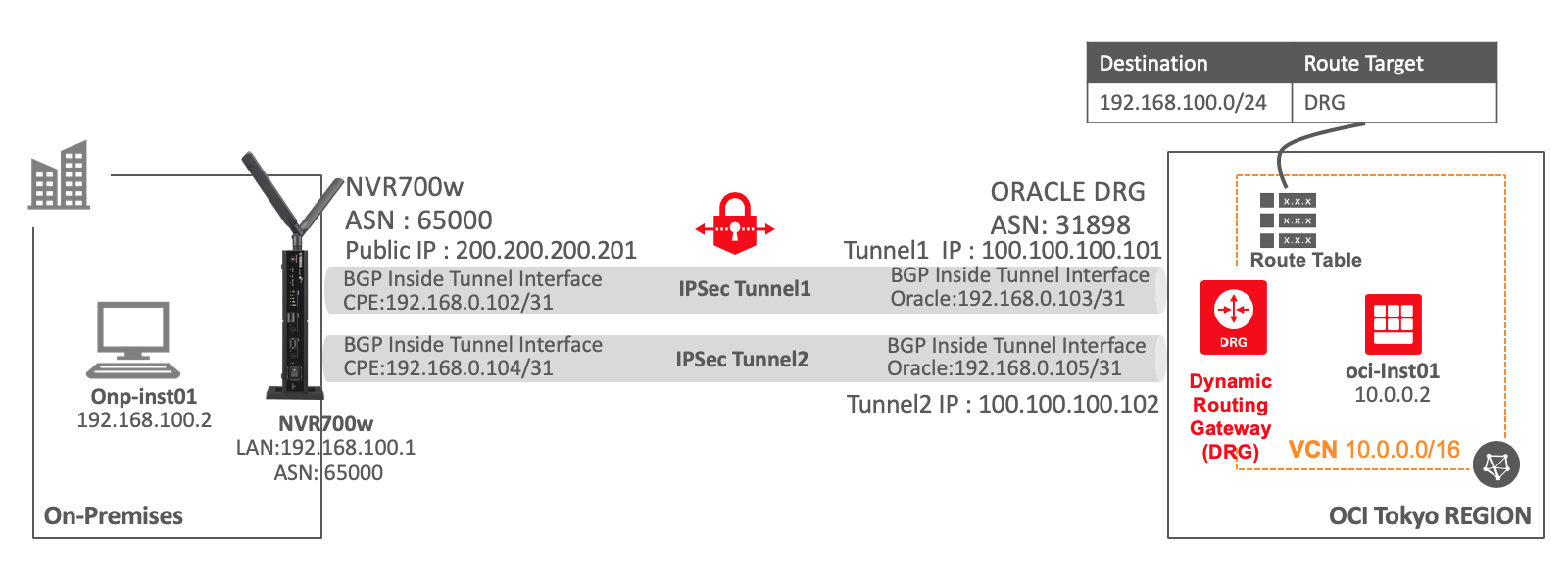

■ 構成図


● 手順概要

IPSec接続までは静的ルーティングの手順と同じで、静的ルーティング部分をBGP設定に変更します。
・参考:Oracle Cloud:YAMAHA NVR700wでOCIへIPsec VPN接続してみてみた

■ OCI側IPSecとBGP設定

● IPSec Connection作成

ここでは静的ルートのStatic Route CIDRは空白のままで設定せずBGPの設定を行います。

・Create IPSec Connection設定画面

CPEオブジェクトを作成するときに指定したCPEのパブリックIPアドレスがIKE IDとして使用されるので、CPEがNAT配下にある場合は、NATで払い出されたVPNルーターのPrivate IPを設定します

・IPSec BGP Tunnel1設定画面

[拡張オプション表示]は不要、自動でYAMAHAルーターと接続するときに適切な値が自動設定されます

・IPSec BGP Tunnel2設定画面

[拡張オプション表示]は不要、自動でYAMAHAルーターと接続するときに適切な値が自動設定されます

■ YAMAHA IPSec設定手順

● NVR700wへLOGIN

・ssh、コンソール接続でLOGIN

root@onp-inst01:~ # ssh root@192.168.100.1
    root@192.168.100.1's password:
>

・管理ユーザーへ移行

> administrator
    Password:
    There are changed configuration unsaved in nonvolatile memory!
    The administrator password is factory default setting. Please change the password by the 'administrator password' command.
#

● NAT設定

    nat descriptor type 1000 masquerade
    nat descriptor address outer 1000 200.200.200.201
    nat descriptor masquerade static 1000 1 192.168.100.1 udp 500
    nat descriptor masquerade static 1000 2 192.168.100.1 esp

● IPSec接続設定

以下のように設定

・ Tunnel1設定

    tunnel select 1
    description tunnel OCI-VPN1
    ipsec tunnel 1
    ipsec sa policy 1 1 esp aes256-cbc sha256-hmac
    ipsec ike duration ipsec-sa 1 3600
    ipsec ike duration isakmp-sa 1 28800
    ipsec ike encryption 1 aes256-cbc
    ipsec ike group 1 modp1536
    ipsec ike hash 1 sha256
    ipsec ike keepalive log 1 off
    ipsec ike keepalive use 1 on dpd 5 4
    ipsec ike local address 1 200.200.200.201
    ipsec ike local id 1 0.0.0.0/0
    ipsec ike nat-traversal 1 on
    ipsec ike pfs 1 on
    ipsec ike pre-shared-key 1 text ipsecNVR700wSecretKey01
    ipsec ike remote address 1 100.100.100.101
    ipsec ike remote id 1 0.0.0.0/0
    ip tunnel tcp mss limit auto
    tunnel enable 1

・ Tunnel2設定

    tunnel select 2
    description tunnel OCI-VPN2
    ipsec tunnel 2
    ipsec sa policy 2 2 esp aes256-cbc sha256-hmac
    ipsec ike duration ipsec-sa 2 3600
    ipsec ike duration isakmp-sa 2 28800
    ipsec ike encryption 2 aes256-cbc
    ipsec ike group 2 modp1536
    ipsec ike hash 2 sha256
    ipsec ike keepalive log 2 off
    ipsec ike keepalive use 2 on dpd 5 4
    ipsec ike local address 2 200.200.200.201
    ipsec ike local id 2 0.0.0.0/0
    ipsec ike nat-traversal 2 on
    ipsec ike pfs 2 on
    ipsec ike pre-shared-key 2 text ipsecNVR700wSecretKey02
    ipsec ike remote address 2 100.100.100.102
    ipsec ike remote id 2 0.0.0.0/0
    ip tunnel tcp mss limit auto
    tunnel enable 2

・ LOOPBACKインタフェース設定

CPE の GlobalアドレスをLOOPBACKインタフェースへ登録

    ip loopback1 address 200.200.200.201/32

● IPSec設定反映と確認

tunnel2# ipsec auto refresh on
tunnel2# show ipsec sa
    Total: isakmp:2 send:2 recv:3

    sa    sgw isakmp connection    dir  life[s] remote-id
    ----------------------------------------------------------------------------
    1     1    -     isakmp        -    28589   100.100.100.101
    2     2    -     isakmp        -    28634   100.100.100.102
    3     1    1     tun[0001]esp  send 3391    100.100.100.101
    4     1    1     tun[0001]esp  recv 3391    100.100.100.101
    5     2    2     tun[0002]esp  send 3436    100.100.100.102
    6     2    -     tun[0002]esp  recv 3392    100.100.100.102
    7     2    2     tun[0002]esp  recv 3436    100.100.100.102

■ YAMAHA BGP設定手順

● BGP設定

Oracle Cloud のASN は31898になります
詳細設定は構成図を参考して以下のように設定

tunnel select 1
ip tunnel address 192.168.0.102/31
ip tunnel remote address 192.168.0.103

tunnel select 2
ip tunnel address 192.168.0.104/31
ip tunnel remote address 192.168.0.105

bgp use on
bgp autonomous-system 65000
bgp log neighbor
bgp neighbor 1 31898 192.168.0.103 hold-time=180 local-address=192.168.0.102 ignore-capability=on
bgp neighbor 2 31898 192.168.0.105 hold-time=180 local-address=192.168.0.104 ignore-capability=on
bgp import filter 1 equal 0.0.0.0/0
bgp import 31898 static filter 1

● BGP設定反映と確認

# bgp configure refresh

・BGPの疎通には数十秒は時間がかかります。
BGP stateがIdolからEstablishedになればOKです

# show status bgp neighbor
    BGP neighbor is 192.168.0.103, remote AS 31898, local AS 65000, external link
    BGP version 4, remote router ID 192.168.0.103
    BGP state = Established, up for 00:02:19
    Last read 00:00:25, hold time is 180, keepalive interval is 60 seconds
    Received 3 messages, 0 notifications, 0 in queue
    Sent 8 messages, 1 notifications, 0 in queue
    Connection established 1; dropped 0
    Last reset never
    Local host: 192.168.0.102, Local port: 1027
    Foreign host: 192.168.0.103, Foreign port: 179

    BGP neighbor is 192.168.0.105, remote AS 31898, local AS 65000, external link
    BGP version 4, remote router ID 192.168.0.105
    BGP state = Established, up for 00:02:27
    Last read 00:00:34, hold time is 180, keepalive interval is 60 seconds
    Received 3 messages, 0 notifications, 0 in queue
    Sent 8 messages, 1 notifications, 0 in queue
    Connection established 1; dropped 0
    Last reset never
    Local host: 192.168.0.104, Local port: 1026
    Foreign host: 192.168.0.105, Foreign port: 179

● ルート伝搬確認

OCI側SubnetのCIDR 10.0.0.0/24がルートに追加されていることを確認

tunnel2# show ip route
    Destination         Gateway          Interface       Kind  Additional Info.
    default             -                    PP[01]    static  filter:500000
    default             -                    PP[01]    static
    10.0.0.0/24         192.168.0.103   TUNNEL[1]       BGP  path=31898
    192.168.100.0/24    192.168.100.1        LAN1  implicit
    192.168.0.102/31  -                 TUNNEL[1]  implicit
    192.168.0.104/31  -                 TUNNEL[2]  implicit
    ・・・

● 設定保存

# save
    Saving ... CONFIG0 Done .

● BGP Tunnel Interface IP 疎通確認

BGPトンネル用のIPに対して疎通できることを確認

# ping -c 3 192.168.0.102
    received from 192.168.0.102: icmp_seq=0 ttl=255 time=0.028ms
    received from 192.168.0.102: icmp_seq=1 ttl=255 time=0.014ms
    received from 192.168.0.102: icmp_seq=2 ttl=255 time=0.013ms

    3 packets transmitted, 3 packets received, 0.0% packet loss
    round-trip min/avg/max = 0.013/0.018/0.028 ms

# ping -c 3 192.168.0.103
    received from 192.168.0.103: icmp_seq=0 ttl=63 time=40.989ms
    received from 192.168.0.103: icmp_seq=1 ttl=63 time=30.870ms
    received from 192.168.0.103: icmp_seq=2 ttl=63 time=20.522ms

    3 packets transmitted, 3 packets received, 0.0% packet loss
    round-trip min/avg/max = 20.522/30.793/40.989 ms

# ping -c 3 192.168.0.104
    received from 192.168.0.104: icmp_seq=0 ttl=255 time=0.019ms
    received from 192.168.0.104: icmp_seq=1 ttl=255 time=0.014ms
    received from 192.168.0.104: icmp_seq=2 ttl=255 time=0.013ms

    3 packets transmitted, 3 packets received, 0.0% packet loss
    round-trip min/avg/max = 0.013/0.015/0.019 ms

# ping -c 3 192.168.0.105
    received from 192.168.0.105: icmp_seq=0 ttl=63 time=28.160ms
    received from 192.168.0.105: icmp_seq=1 ttl=63 time=16.867ms
    received from 192.168.0.105: icmp_seq=2 ttl=63 time=19.639ms

    3 packets transmitted, 3 packets received, 0.0% packet loss
    round-trip min/avg/max = 16.867/21.555/28.160 ms

● OCI画面確認

1) ステータス確認

・ IPsec接続情報
IPSec と BGPの Status がUPしていることを確認

・ CPE/Tunnel情報
CPE と Tunnel情報を確認できます

2) Tunnel01確認

・ Tunnel情報
Tunnel01の状態を確認できます

・ フェーズ詳細
ISAKMP・IPSecポリシーの認証アルゴリズム、Diffie-Hellmanグループなどパラメータが設定されていることを確認できます

3) Tunnel02確認

・ Tunnel情報
Tunnel02の状態を確認できます

・フェーズ詳細
ISAKMP・IPSecポリシーの認証アルゴリズム、Diffie-Hellmanグループなどパラメータが設定されていることを確認できます

■ インスタンス疎通確認

● OCIインスタンス -> オンプレミス インスタンス疎通確認

・ ping疎通確認

[opc@oci-inst01 ~]$ ping -c 3 192.168.100.2
    PING 192.168.100.2 (192.168.100.2) 56(84) bytes of data.
    64 bytes from 192.168.100.2: icmp_seq=1 ttl=62 time=6.56 ms
    64 bytes from 192.168.100.2: icmp_seq=2 ttl=62 time=4.73 ms
    64 bytes from 192.168.100.2: icmp_seq=3 ttl=62 time=7.83 ms

    --- 192.168.100.2 ping statistics ---
    3 packets transmitted, 3 received, 0% packet loss, time 2003ms
    rtt min/avg/max/mdev = 4.736/6.380/7.836/1.272 ms

・ ssh疎通確認

sshでホスト名が出力されることを確認

[opc@oci-inst01 ~]$ ssh onp-inst01@192.168.100.2 hostname
    The authenticity of host '192.168.100.2 (192.168.100.2)' can't be established.
    ECDSA key fingerprint is SHA256:IyO/gHz8uoauFpQFb7zZHgWRD4.
    ECDSA key fingerprint is MD5:5e:2c:5d:79::fb:22.
    Are you sure you want to continue connecting (yes/no)? yes
    Warning: Permanently added '192.168.100.2' (ECDSA) to the list of known hosts.
    onp-inst@192.168.100.2's password:
    onp-inst01

● オンプレミス インスタンス -> OCIインスタンス疎通確認

・ ping疎通確認

root@onp-inst01:~ # ping -c 3 10.0.0.2
    PING 10.0.0.2 (10.0.0.2) 56(84) bytes of data.
    64 bytes from 10.0.0.2: icmp_seq=1 ttl=62 time=19.6 ms
    64 bytes from 10.0.0.2: icmp_seq=2 ttl=62 time=4.42 ms
    64 bytes from 10.0.0.2: icmp_seq=3 ttl=62 time=13.9 ms

    --- 10.0.0.2 ping statistics ---
    3 packets transmitted, 3 received, 0% packet loss, time 2003ms
    rtt min/avg/max/mdev = 4.426/12.683/19.668/6.287 ms

・ ssh確認

sshでホスト名が出力されることを確認

root@onp-inst01:~ # ssh -i id_rsa opc@10.0.0.2 hostname
    The authenticity of host '10.0.0.2 (10.0.0.2)' can't be established.
    ECDSA key fingerprint is SHA256:GfDmeI//qisrVVjZWJAtSouA.
    Are you sure you want to continue connecting (yes/no)? yes
    Warning: Permanently added '10.0.0.2' (ECDSA) to the list of known hosts.
    oci-inst01

■ NVR700w Config

NVR700wの最終コンフィグ

# show config
	# NVR700W Rev.15.00.23 (Mon Jun 13 12:40:35 2022)
	# MAC Address : 00:a0:de:e7:31, 00:a0:de:e7:32
	# Memory 256Mbytes, 2LAN, 1ONU, 1WWAN
	# main:  NVR700W ver=00 serial=M4Y00000 MAC-Address=00:a0:de:e7:31 MAC-Address=00:a0:de:e7:32
	# Reporting Date: Dec 11 11:41:37 2022
	console character en.ascii
	ip route default gateway pdp wan1
	ip lan1 address 192.168.100.1/24
	ip wan1 address pdp
	ip wan1 nat descriptor 31000
	wan1 bind wwan 1
	wwan select 1
	description wwan NTT
	wwan always-on on
	wwan auth accept chap
	wwan auth myname sim@ntt sim
	wwan auto connect on
	wwan disconnect time off
	wwan disconnect input time off
	wwan disconnect output time off
	wwan access-point name ntt.jp
	wwan access limit length off
	wwan access limit time off
	wwan enable 1
	tunnel select 1
	description tunnel OCI-VPN1
	ipsec tunnel 1
	ipsec sa policy 1 1 esp aes256-cbc sha256-hmac
	ipsec ike duration ipsec-sa 1 3600
	ipsec ike duration isakmp-sa 1 28800
	ipsec ike encryption 1 aes256-cbc
	ipsec ike group 1 modp1536
	ipsec ike hash 1 sha256
	ipsec ike keepalive log 1 off
	ipsec ike keepalive use 1 on dpd 5 4
	ipsec ike local address 1 200.200.200.201
	ipsec ike local id 1 0.0.0.0/0
	ipsec ike nat-traversal 1 on
	ipsec ike pfs 1 on
	ipsec ike pre-shared-key 1 text Tunnel01IPSecPasswd
	ipsec ike remote address 1 100.100.100.101
	ipsec ike remote id 1 0.0.0.0/0
	ip tunnel address 192.168.0.102/31
	ip tunnel remote address 192.168.0.103
	ip tunnel tcp mss limit auto
	tunnel enable 1
	tunnel select 2
	description tunnel OCI-VPN2
	ipsec tunnel 2
	ipsec sa policy 2 2 esp aes256-cbc sha256-hmac
	ipsec ike duration ipsec-sa 2 3600
	ipsec ike duration isakmp-sa 2 28800
	ipsec ike encryption 2 aes256-cbc
	ipsec ike group 2 modp1536
	ipsec ike hash 2 sha256
	ipsec ike keepalive log 2 off
	ipsec ike keepalive use 2 on dpd 5 4
	ipsec ike local address 2 200.200.200.201
	ipsec ike local id 2 0.0.0.0/0
	ipsec ike nat-traversal 2 on
	ipsec ike pfs 2 on
	ipsec ike pre-shared-key 2 text Tunnel02IPSecPasswd
	ipsec ike remote address 2 100.100.100.102
	ipsec ike remote id 2 0.0.0.0/0
	ip tunnel address 192.168.0.104/31
	ip tunnel remote address 192.168.0.105
	ip tunnel tcp mss limit auto
	tunnel enable 2
	ip loopback1 address 200.200.200.201/32
	ip filter 500000 restrict * * * * *
	nat descriptor type 31000 masquerade
	nat descriptor address outer 31000 primary
	bgp use on
	bgp autonomous-system 65000
	bgp log neighbor
	bgp neighbor 1 31898 192.168.0.103 hold-time=30 local-address=192.168.0.102 ignore-capability=on
	bgp neighbor 2 31898 192.168.0.105 hold-time=30 local-address=192.168.0.104 ignore-capability=on
	bgp import filter 1 equal 0.0.0.0/0
	bgp import 31898 static filter 1
	ipsec auto refresh on
	telnetd host lan
	dhcp service server
	dhcp server rfc2131 compliant except remain-silent
	dhcp scope 1 192.168.100.2-192.168.100.191/24
	dns host lan1
	dns server pdp wan1
	dns server select 500401 pdp wan1 any .
	dns private address spoof on
	dns private name setup.netvolante.jp
	analog supplementary-service pseudo call-waiting
	analog extension dial prefix sip prefix="9#"
	wwan-module use on

■ 参考

・ Oracle Cloud Infrastructureドキュメント
 - サイト間VPN
 - CPE構成
 - ヤマハRTXシリーズ

・ YAMAHAドキュメント
 - Oracle Cloud InfrastructureとVPN(IPsec)接続するルーターの設定 : コマンド設定
 - ヤマハネットワーク機器の技術資料
 - LOOPBACK、NULLインタフェース

6
3
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
6
3

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
