はじめに
IBM DataPowerは、外部とのGatewayを担う物理アプライアンスとしてIBMが提供している製品ですが、様々な導入オプションを提供しています。各導入オプションとその機能的な差異については、Knowledge Center: Differences among DataPower Gateways productsに記載があります。
今回は、Linux環境に導入するオプションについて紹介いたします。
前提となるLinux環境は、Software Product Compatibility Reportsからご確認ください。
執筆時点（2022年5月）での前提は以下になります。
| Operating System | Minimum | Hardware |
|---|---|---|
| Red Hat Enterprise Linux (RHEL) Server 7 | 7.4 | x86-64 |
| Disk | Memory | Processor |
|---|---|---|
| 7 GB (5 GB allocated to /opt and 2 GB to /var) |
4 GB RAM (without API workload) 8 GB RAM (with API workload) |
4 vCPU |
今回は、RHEL 7.9の環境で導入検証しています。
導入手順
以下の流れでご紹介します。
- 事前準備
- 導入作業
- 動作確認
1. 事前準備
1.1 Linux環境の準備
導入前提を満たすOS環境を準備します。今回は、IBM TechZoneからIBM Cloudに検証環境を払い出しています。この環境払い出しは、IBM社員または、Partner Worldに登録されたビジネス・パートナーが利用可能となります。
1.2 OS設定
Linux hostの設定に関してこちらに記載がありますので、問題がないか確認します。
今回は特に変更していません。
1.3 導入モジュールの配置
パスポート・アドバンテージサイトから導入に必要なRPMパッケージを取得します。
今回は、DataPower 10.0.4の非本番用のモジュール（idg_lx10040.cd.nonprod.tar）を使用しています。
この圧縮ファイル内に、導入に必要な2つのrpmファイルがありますので、そちらをLinux環境に転送します。
- idg_lx10040.cd.nonprod.image.x86_64.rpm
- idg_lx10040.cd.common.x86_64.rpm
2. 導入作業
こちらの手順を参考に導入を実施します。
Before you begin
DataPowerの導入や接続に必要なTelnetとschrootをインストールします。
schrootについては、上記のKnowledge Centerに記載がありますが、こちらのサイトのRHEL 7での手順を実施しています。
Telnetパッケージ導入ログ
[root@itzvsi-8h4o7l63 datapower]# yum install telnet
Loaded plugins: product-id, search-disabled-repos, subscription-manager
rhel-7-server-eus-optional-rpms | 1.8 kB 00:00:00
rhel-7-server-extras-rpms | 2.0 kB 00:00:00
rhel-7-server-optional-rpms | 1.8 kB 00:00:00
rhel-7-server-rpms | 2.0 kB 00:00:00
rhel-7-server-supplementary-rpms | 2.0 kB 00:00:00
Resolving Dependencies
--> Running transaction check
---> Package telnet.x86_64 1:0.17-66.el7 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
============================================================================================================================
Package Arch Version Repository Size
============================================================================================================================
Installing:
telnet x86_64 1:0.17-66.el7 rhel-7-server-rpms 64 k
Transaction Summary
============================================================================================================================
Install 1 Package
Total download size: 64 k
Installed size: 113 k
Is this ok [y/d/N]: y
Downloading packages:
telnet-0.17-66.el7.x86_64.rpm | 64 kB 00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : 1:telnet-0.17-66.el7.x86_64 1/1
Verifying : 1:telnet-0.17-66.el7.x86_64 1/1
Installed:
telnet.x86_64 1:0.17-66.el7
Complete!
schrootパッケージ導入ログ
[root@itzvsi-8h4o7l63 ~]# subscription-manager repos --enable rhel-*-optional-rpms \
> --enable rhel-*-extras-rpms \
> --enable rhel-ha-for-rhel-*-server-rpms
Error: 'rhel-ha-for-rhel-*-server-rpms' does not match a valid repository ID. Use "subscription-manager repos --list" to see valid repositories.
Repository 'rhel-7-server-optional-rpms' is enabled for this system.
Repository 'rhel-7-server-eus-optional-rpms' is enabled for this system.
Repository 'rhel-7-server-extras-rpms' is enabled for this system.
[root@itzvsi-8h4o7l63 ~]# yum install https://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm
Loaded plugins: product-id, search-disabled-repos, subscription-manager
epel-release-latest-7.noarch.rpm | 15 kB 00:00:00
Examining /var/tmp/yum-root-iojIkm/epel-release-latest-7.noarch.rpm: epel-release-7-14.noarch
Marking /var/tmp/yum-root-iojIkm/epel-release-latest-7.noarch.rpm to be installed
Resolving Dependencies
--> Running transaction check
---> Package epel-release.noarch 0:7-14 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
============================================================================================================================
Package Arch Version Repository Size
============================================================================================================================
Installing:
epel-release noarch 7-14 /epel-release-latest-7.noarch 25 k
Transaction Summary
============================================================================================================================
Install 1 Package
Total size: 25 k
Installed size: 25 k
Is this ok [y/d/N]: y
Downloading packages:
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : epel-release-7-14.noarch 1/1
Verifying : epel-release-7-14.noarch 1/1
rhel-7-server-eus-optional-rpms/7Server/x86_64 | 1.8 kB 00:00:00
rhel-7-server-eus-optional-rpms/7Server/x86_64/group | 22 kB 00:00:00
rhel-7-server-eus-optional-rpms/7Server/x86_64/updateinfo | 1.8 MB 00:00:00
rhel-7-server-eus-optional-rpms/7Server/x86_64/primary | 4.0 MB 00:00:00
rhel-7-server-extras-rpms/x86_64 | 2.0 kB 00:00:00
rhel-7-server-extras-rpms/x86_64/group | 124 B 00:00:00
rhel-7-server-extras-rpms/x86_64/updateinfo | 255 kB 00:00:00
rhel-7-server-extras-rpms/x86_64/primary | 436 kB 00:00:00
rhel-7-server-extras-rpms/x86_64/productid | 2.1 kB 00:00:00
rhel-7-server-optional-rpms/7Server/x86_64 | 1.8 kB 00:00:00
rhel-7-server-optional-rpms/7Server/x86_64/group | 22 kB 00:00:00
rhel-7-server-optional-rpms/7Server/x86_64/updateinfo | 3.0 MB 00:00:00
rhel-7-server-optional-rpms/7Server/x86_64/primary | 6.8 MB 00:00:00
rhel-7-server-rpms/7Server/x86_64 | 2.0 kB 00:00:00
rhel-7-server-rpms/7Server/x86_64/group | 631 kB 00:00:00
rhel-7-server-rpms/7Server/x86_64/updateinfo | 4.1 MB 00:00:00
rhel-7-server-rpms/7Server/x86_64/primary | 56 MB 00:00:00
rhel-7-server-rpms/7Server/x86_64/productid | 2.1 kB 00:00:00
rhel-7-server-supplementary-rpms/7Server/x86_64 | 2.0 kB 00:00:00
rhel-7-server-supplementary-rpms/7Server/x86_64/group | 45 kB 00:00:00
rhel-7-server-supplementary-rpms/7Server/x86_64/updateinfo | 88 kB 00:00:00
rhel-7-server-supplementary-rpms/7Server/x86_64/primary | 141 kB 00:00:00
rhel-7-server-supplementary-rpms/7Server/x86_64/productid | 2.1 kB 00:00:00
Installed:
epel-release.noarch 0:7-14
Complete!
Procedure
DataPowerの導入を実施します。
[root@itzvsi-8h4o7l63 ~]# yum install idg_lx10040.cd.nonprod.image.x86_64.rpm idg_lx10040.cd.common.x86_64.rpm
Loaded plugins: product-id, search-disabled-repos, subscription-manager
Examining idg_lx10040.cd.nonprod.image.x86_64.rpm: ibm-datapower-agoradco-nonpd-image-10.0.4.0.337832-1.x86_64
Marking idg_lx10040.cd.nonprod.image.x86_64.rpm to be installed
Examining idg_lx10040.cd.common.x86_64.rpm: ibm-datapower-common-10.0.4.0.337832-1.x86_64
Marking idg_lx10040.cd.common.x86_64.rpm to be installed
Resolving Dependencies
--> Running transaction check
---> Package ibm-datapower-agoradco-nonpd-image.x86_64 0:10.0.4.0.337832-1 will be installed
---> Package ibm-datapower-common.x86_64 0:10.0.4.0.337832-1 will be installed
--> Processing Dependency: ipvsadm for package: ibm-datapower-common-10.0.4.0.337832-1.x86_64
epel/x86_64/metalink | 16 kB 00:00:00
epel | 4.7 kB 00:00:00
rhel-7-server-eus-optional-rpms | 1.8 kB 00:00:00
rhel-7-server-extras-rpms | 2.0 kB 00:00:00
rhel-7-server-optional-rpms | 1.8 kB 00:00:00
rhel-7-server-rpms | 2.0 kB 00:00:00
rhel-7-server-supplementary-rpms | 2.0 kB 00:00:00
(1/3): epel/x86_64/updateinfo | 1.0 MB 00:00:00
(2/3): epel/x86_64/group_gz | 96 kB 00:00:00
(3/3): epel/x86_64/primary_db | 7.0 MB 00:00:00
rhel-7-server-eus-optional-rpms 13717/13717
rhel-7-server-extras-rpms 1422/1422
rhel-7-server-optional-rpms 23393/23393
rhel-7-server-rpms 32922/32922
rhel-7-server-supplementary-rpms 443/443
--> Processing Dependency: schroot for package: ibm-datapower-common-10.0.4.0.337832-1.x86_64
--> Running transaction check
---> Package ipvsadm.x86_64 0:1.27-8.el7 will be installed
---> Package schroot.x86_64 0:1.6.10-7.el7 will be installed
--> Processing Dependency: libboost_filesystem-mt.so.1.53.0()(64bit) for package: schroot-1.6.10-7.el7.x86_64
--> Processing Dependency: libboost_iostreams-mt.so.1.53.0()(64bit) for package: schroot-1.6.10-7.el7.x86_64
--> Processing Dependency: libboost_program_options-mt.so.1.53.0()(64bit) for package: schroot-1.6.10-7.el7.x86_64
--> Processing Dependency: libboost_regex-mt.so.1.53.0()(64bit) for package: schroot-1.6.10-7.el7.x86_64
--> Processing Dependency: libboost_system-mt.so.1.53.0()(64bit) for package: schroot-1.6.10-7.el7.x86_64
--> Running transaction check
---> Package boost-filesystem.x86_64 0:1.53.0-28.el7 will be installed
---> Package boost-iostreams.x86_64 0:1.53.0-28.el7 will be installed
---> Package boost-program-options.x86_64 0:1.53.0-28.el7 will be installed
---> Package boost-regex.x86_64 0:1.53.0-28.el7 will be installed
--> Processing Dependency: libicuuc.so.50()(64bit) for package: boost-regex-1.53.0-28.el7.x86_64
--> Processing Dependency: libicui18n.so.50()(64bit) for package: boost-regex-1.53.0-28.el7.x86_64
--> Processing Dependency: libicudata.so.50()(64bit) for package: boost-regex-1.53.0-28.el7.x86_64
---> Package boost-system.x86_64 0:1.53.0-28.el7 will be installed
--> Running transaction check
---> Package libicu.x86_64 0:50.2-4.el7_7 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
============================================================================================================================
Package Arch Version Repository Size
============================================================================================================================
Installing:
ibm-datapower-agoradco-nonpd-image x86_64 10.0.4.0.337832-1 /idg_lx10040.cd.nonprod.image.x86_64 3.0 G
ibm-datapower-common x86_64 10.0.4.0.337832-1 /idg_lx10040.cd.common.x86_64 694 k
Installing for dependencies:
boost-filesystem x86_64 1.53.0-28.el7 rhel-7-server-rpms 68 k
boost-iostreams x86_64 1.53.0-28.el7 rhel-7-server-rpms 61 k
boost-program-options x86_64 1.53.0-28.el7 rhel-7-server-rpms 156 k
boost-regex x86_64 1.53.0-28.el7 rhel-7-server-rpms 296 k
boost-system x86_64 1.53.0-28.el7 rhel-7-server-rpms 40 k
ipvsadm x86_64 1.27-8.el7 rhel-7-server-rpms 45 k
libicu x86_64 50.2-4.el7_7 rhel-7-server-rpms 6.9 M
schroot x86_64 1.6.10-7.el7 epel 789 k
Transaction Summary
============================================================================================================================
Install 2 Packages (+8 Dependent packages)
Total size: 3.0 G
Total download size: 8.3 M
Installed size: 3.0 G
Is this ok [y/d/N]: y
Downloading packages:
warning: /var/cache/yum/x86_64/7Server/rhel-7-server-rpms/packages/boost-filesystem-1.53.0-28.el7.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID fd431d51: NOKEY
Public key for boost-filesystem-1.53.0-28.el7.x86_64.rpm is not installed
(1/8): boost-filesystem-1.53.0-28.el7.x86_64.rpm | 68 kB 00:00:00
(2/8): boost-iostreams-1.53.0-28.el7.x86_64.rpm | 61 kB 00:00:00
(3/8): boost-program-options-1.53.0-28.el7.x86_64.rpm | 156 kB 00:00:00
(4/8): boost-regex-1.53.0-28.el7.x86_64.rpm | 296 kB 00:00:00
(5/8): boost-system-1.53.0-28.el7.x86_64.rpm | 40 kB 00:00:00
(6/8): ipvsadm-1.27-8.el7.x86_64.rpm | 45 kB 00:00:00
(7/8): libicu-50.2-4.el7_7.x86_64.rpm | 6.9 MB 00:00:00
warning: /var/cache/yum/x86_64/7Server/epel/packages/schroot-1.6.10-7.el7.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID 352c64e5: NOKEY
Public key for schroot-1.6.10-7.el7.x86_64.rpm is not installed
(8/8): schroot-1.6.10-7.el7.x86_64.rpm | 789 kB 00:00:00
----------------------------------------------------------------------------------------------------------------------------
Total 13 MB/s | 8.3 MB 00:00:00
Retrieving key from file:///etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-release
Importing GPG key 0xFD431D51:
Userid : "Red Hat, Inc. (release key 2) <security@redhat.com>"
Fingerprint: 567e 347a d004 4ade 55ba 8a5f 199e 2f91 fd43 1d51
Package : redhat-release-server-7.9-6.el7_9.x86_64 (installed)
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-release
Is this ok [y/N]: y
Importing GPG key 0x2FA658E0:
Userid : "Red Hat, Inc. (auxiliary key) <security@redhat.com>"
Fingerprint: 43a6 e49c 4a38 f4be 9abf 2a53 4568 9c88 2fa6 58e0
Package : redhat-release-server-7.9-6.el7_9.x86_64 (installed)
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-release
Is this ok [y/N]: y
Retrieving key from file:///etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
Importing GPG key 0x352C64E5:
Userid : "Fedora EPEL (7) <epel@fedoraproject.org>"
Fingerprint: 91e9 7d7c 4a5e 96f1 7f3e 888f 6a2f aea2 352c 64e5
Package : epel-release-7-14.noarch (@/epel-release-latest-7.noarch)
From : /etc/pki/rpm-gpg/RPM-GPG-KEY-EPEL-7
Is this ok [y/N]: y
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : boost-system-1.53.0-28.el7.x86_64 1/10
Installing : boost-filesystem-1.53.0-28.el7.x86_64 2/10
Installing : boost-program-options-1.53.0-28.el7.x86_64 3/10
Installing : ipvsadm-1.27-8.el7.x86_64 4/10
Installing : libicu-50.2-4.el7_7.x86_64 5/10
Installing : boost-regex-1.53.0-28.el7.x86_64 6/10
Installing : ibm-datapower-agoradco-nonpd-image-10.0.4.0.337832-1.x86_64 7/10
Installing : boost-iostreams-1.53.0-28.el7.x86_64 8/10
Installing : schroot-1.6.10-7.el7.x86_64 9/10
Installing : ibm-datapower-common-10.0.4.0.337832-1.x86_64 10/10
Created symlink from /etc/systemd/system/multi-user.target.wants/datapower.service to /usr/lib/systemd/system/datapower.service.
Verifying : boost-system-1.53.0-28.el7.x86_64 1/10
Verifying : boost-iostreams-1.53.0-28.el7.x86_64 2/10
Verifying : schroot-1.6.10-7.el7.x86_64 3/10
Verifying : ibm-datapower-common-10.0.4.0.337832-1.x86_64 4/10
Verifying : ibm-datapower-agoradco-nonpd-image-10.0.4.0.337832-1.x86_64 5/10
Verifying : libicu-50.2-4.el7_7.x86_64 6/10
Verifying : boost-regex-1.53.0-28.el7.x86_64 7/10
Verifying : ipvsadm-1.27-8.el7.x86_64 8/10
Verifying : boost-program-options-1.53.0-28.el7.x86_64 9/10
Verifying : boost-filesystem-1.53.0-28.el7.x86_64 10/10
Installed:
ibm-datapower-agoradco-nonpd-image.x86_64 0:10.0.4.0.337832-1 ibm-datapower-common.x86_64 0:10.0.4.0.337832-1
Dependency Installed:
boost-filesystem.x86_64 0:1.53.0-28.el7 boost-iostreams.x86_64 0:1.53.0-28.el7
boost-program-options.x86_64 0:1.53.0-28.el7 boost-regex.x86_64 0:1.53.0-28.el7
boost-system.x86_64 0:1.53.0-28.el7 ipvsadm.x86_64 0:1.27-8.el7
libicu.x86_64 0:50.2-4.el7_7 schroot.x86_64 0:1.6.10-7.el7
Complete!
これで導入が完了しました。
導入後は「/opt/ibm/datapower」内に各ファイルが作成されています。
必要に応じて「datapower.conf」から稼働設定を変更します。
[root@itzvsi-8h4o7l63 datapower]# ll
total 3114516
-rw-r--r--. 1 root root 4200 Dec 4 08:00 datapower.conf
-rwxr-xr-x. 1 root root 73464 Dec 4 08:00 datapower-control
-rwxr-xr-x. 1 root root 899 Dec 4 08:00 datapower-docker-build.sh
-rw-r--r--. 1 root root 508 Dec 4 08:00 datapower-external.cfg
lrwxrwxrwx. 1 root root 36 May 9 09:45 datapower.img -> /var/opt/ibm/datapower/datapower.img
-rw-r--r--. 1 root root 3185378138 Dec 4 09:19 datapower_rel_agoradco_nonpd.img.gz
-rwxr-xr-x. 1 root root 2846 Dec 4 08:00 datapower-support-mustgather.sh
-rwxr-xr-x. 1 root root 1158 Dec 4 08:00 datapower-trigger-failsafe.sh
-rwxr-xr-x. 1 root root 108 May 9 09:45 dpPostRemoveCommon.sh
-rwxr-xr-x. 1 root root 82 May 9 09:45 dpPostRemoveImage.sh
-rwxr-xr-x. 1 root root 619 Dec 4 08:00 dpPreStartCommon.sh
-rwxr-xr-x. 1 root root 759 Dec 4 09:18 dpPreStartImage.sh
-rwxr-xr-x. 1 root root 632 Dec 4 08:00 dpPreStart.sh
-rwxr-xr-x. 1 root root 166760 Dec 4 08:00 libcryptsetup.so.4
-r-xr-xr-x. 1 root root 356120 Dec 4 08:00 libdevmapper.so.1.02
-rwxr-xr-x. 1 root root 11344 Dec 4 08:00 libfipscheck.so.1
-rwxr-xr-x. 1 root root 91176 Dec 4 08:00 libudev.so.1
3. 動作確認
DataPowerの起動
systemctlコマンドでDataPowerを開始します。
稼働には5分ほどかかります。
[root@itzvsi-8h4o7l63 datapower]# systemctl start datapower
[root@itzvsi-8h4o7l63 ~]# systemctl status datapower -l
● datapower.service - DataPower Service
Loaded: loaded (/usr/lib/systemd/system/datapower.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2022-05-09 09:45:59 CDT; 9min ago
Process: 3330 ExecStartPre=/bin/bash /opt/ibm/datapower/dpPreStart.sh /opt/ibm/datapower/datapower.img (code=exited, status=0/SUCCESS)
Main PID: 3526 (datapower-contr)
CGroup: /system.slice/datapower.service
mq3526 /opt/ibm/datapower/datapower-control exec-datapower /opt/ibm/datapower/datapower.img
May 09 09:45:22 itzvsi-8h4o7l63.dte.demo.ibmcloud.com systemd[1]: Starting DataPower Service...
May 09 09:45:46 itzvsi-8h4o7l63.dte.demo.ibmcloud.com bash[3330]: Mon May 09 2022 09:45:46 INF dpControl [pre-start][3330] Resizing DPOS partition from 7024640 to 7366657 sectors
May 09 09:45:59 itzvsi-8h4o7l63.dte.demo.ibmcloud.com bash[3330]: Mon May 09 2022 09:45:59 INF dpControl [pre-start][3330] Processing /tmp/ibm-dp-container-1-3330-1652107557/primary/etc/datapower.conf
May 09 09:45:59 itzvsi-8h4o7l63.dte.demo.ibmcloud.com bash[3330]: Mon May 09 2022 09:45:59 INF dpControl [pre-start][3330] Standby Control Not Enabled
May 09 09:45:59 itzvsi-8h4o7l63.dte.demo.ibmcloud.com bash[3330]: Mon May 09 2022 09:45:59 INF dpControl [pre-start][3330] License not automatically accepted
May 09 09:45:59 itzvsi-8h4o7l63.dte.demo.ibmcloud.com bash[3330]: Mon May 09 2022 09:45:59 INF dpControl [pre-start][3330] RaidBlockDeviceName is not specified
May 09 09:45:59 itzvsi-8h4o7l63.dte.demo.ibmcloud.com systemd[1]: Started DataPower Service.
May 09 09:46:00 itzvsi-8h4o7l63.dte.demo.ibmcloud.com datapower-control[3526]: Mon May 09 2022 09:46:00 INF dpControl [session][3526] Starting DataPower service ...
May 09 09:46:00 itzvsi-8h4o7l63.dte.demo.ibmcloud.com datapower-control[3526]: Mon May 09 2022 09:46:00 INF dpControl [session][3526] License not automatically accepted
起動が完了するとローカルホストの2200ポートが開始していることが確認できます。
[root@itzvsi-8h4o7l63 ~]# netstat -tlnw
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State
tcp 0 0 127.0.0.1:2200 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:25 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:16379 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:26379 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:63501 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:63502 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:63503 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:63504 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:63505 0.0.0.0:* LISTEN
tcp 0 0 127.0.0.1:63506 0.0.0.0:* LISTEN
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN
tcp6 0 0 ::1:25 :::* LISTEN
tcp6 0 0 :::22 :::* LISTEN
DataPowerへのTelnet接続
2200ポートを使用してTelnet接続できます。
[root@itzvsi-8h4o7l63 datapower]# telnet 127.0.0.1 2200
Trying 127.0.0.1...
Connected to 127.0.0.1.
Escape character is '^]'.
itzvsi-8h4o7l63.dte.demo.ibmcloud.com
Unauthorized access prohibited.
login: admin
Password: *****
Welcome to IBM DataPower Gateway console configuration.
Copyright IBM Corporation 1999, 2021
Version: IDG.10.0.4.0 build 337832 on Dec 3, 2021 12:54:08 PM
Delivery type: CD
Serial number: 0000001
Web UIにアクセスするために、web-mgmtへインターネットからアクセス可能なIPアドレス・ポートを設定します。
idg# config
Global mode
idg(config)# show web-mgmt
web-mgmt [up]
--------
admin-state enabled
ip-address *.*.*.*
port 443
save-config-overwrite on
idle-timeout 600 Seconds
acl web-mgmt [up]
ssl-config-type server
enable-sts on

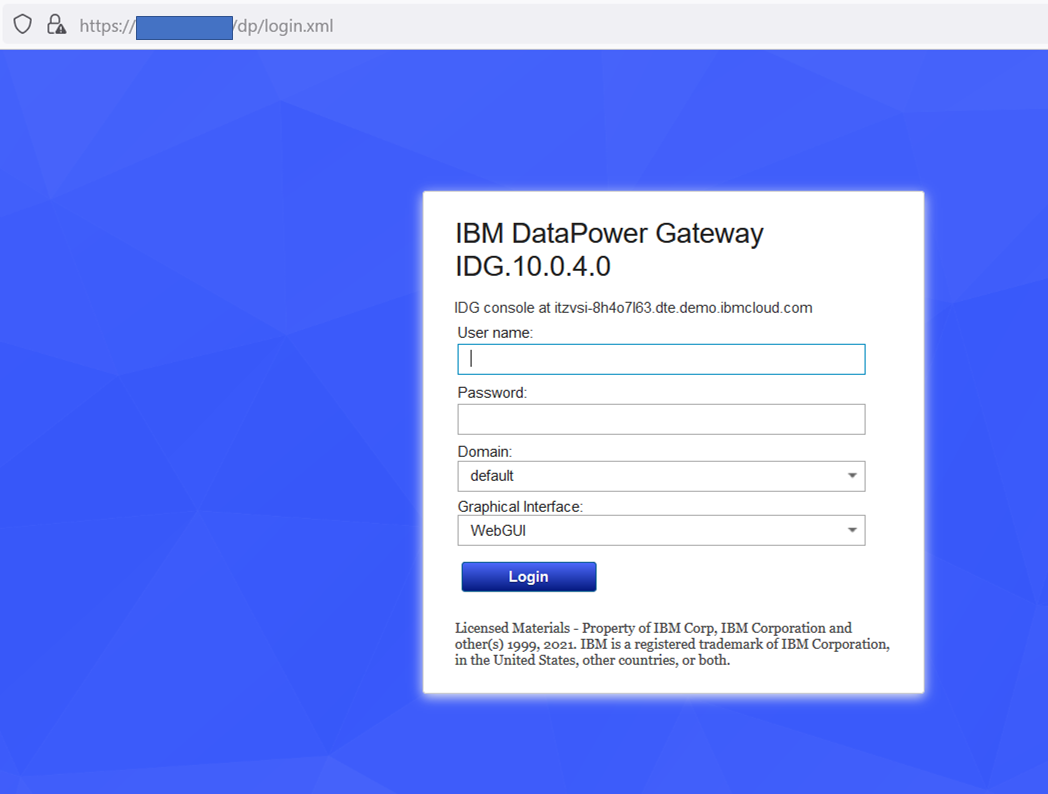

DataPowerへのWeb UI接続
インターネットからWeb UIに接続することができます。
導入Tips
RHELバージョンについて
現在、DataPower for LinuxはRHEL 8はサポートしていません。
導入しようとすると以下のようなエラーが出てしまいますのでご注意ください。
# yum install idg_lx10040.cd.nonprod.image.x86_64.rpm ibm-datapower-common-10.0.4.0.337832-1.x86_64.rpm
Updating Subscription Management repositories.
Red Hat Enterprise Linux 8 for x86_64 - AppStre 47 kB/s | 2.8 kB 00:00
Red Hat CodeReady Linux Builder for RHEL 8 x86_ 48 kB/s | 2.8 kB 00:00
Red Hat Enterprise Linux 8 for x86_64 - BaseOS 51 kB/s | 2.4 kB 00:00
Package ibm-datapower-agoradco-nonpd-image-10.0.4.0.337832-1.x86_64 is already installed.
Error:
Problem: conflicting requests
- nothing provides libgcrypt.so.11()(64bit) needed by ibm-datapower-common-10.0.4.0.337832-1.x86_64
- nothing provides libgcrypt.so.11(GCRYPT_1.2)(64bit) needed by ibm-datapower-common-10.0.4.0.337832-1.x86_64
(try to add '--skip-broken' to skip uninstallable packages or '--nobest' to use not only best candidate packages)
以上です。
