windows11で、sketchup6 その9

概要

windows11に、sketchup6を入れてみた。
rubyで、3Dを書く。
練習問題やってみた。

練習問題

SGIのロゴを作れ。

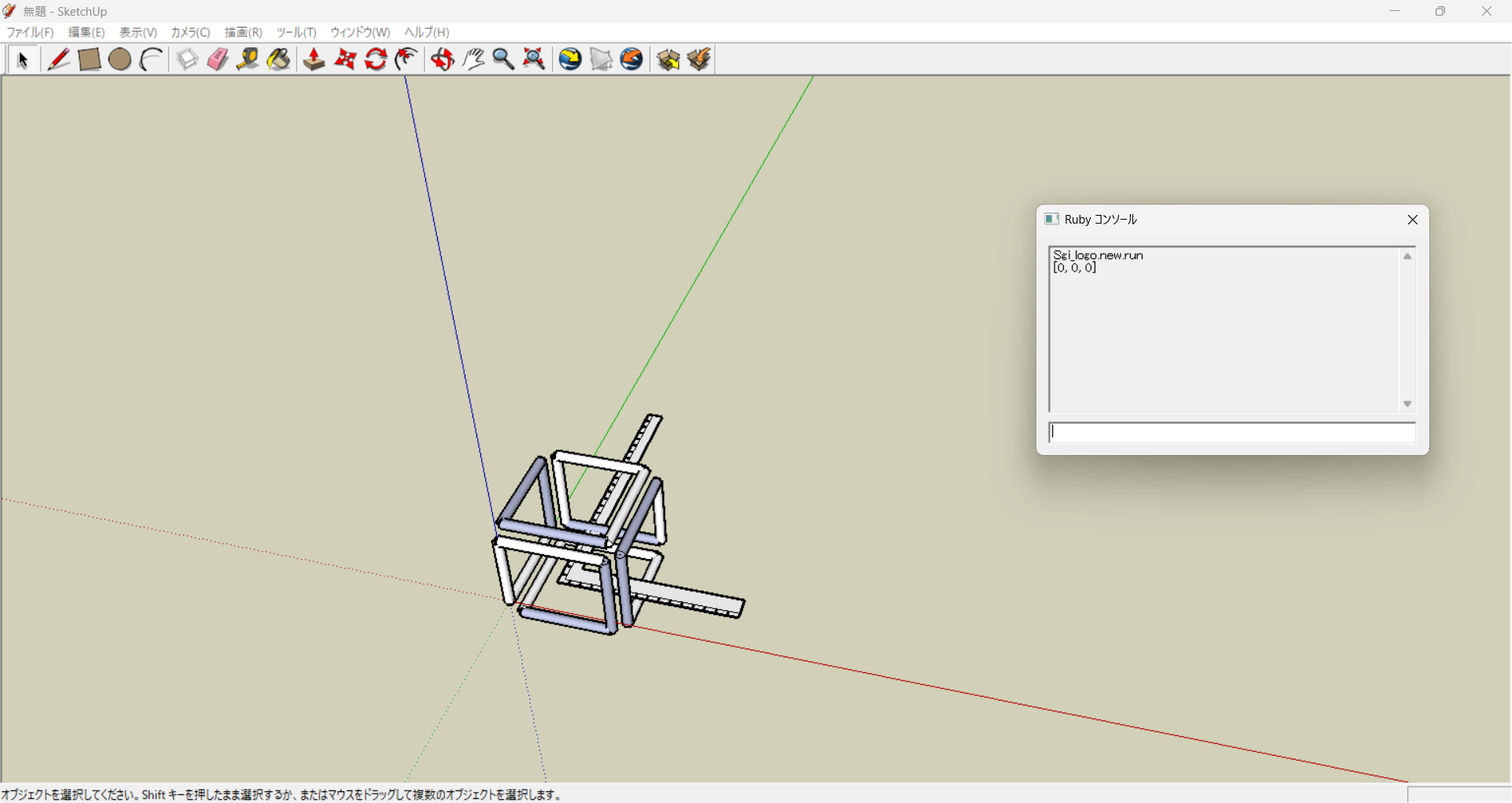

写真

サンプルコード

require 'sketchup.rb'

#Sgi_logo.new.run

class Sgi_logo
	def initialize
		@model = Sketchup.active_model
		@entities = @model.active_entities
		@x = 0
		@y = 0
		@z = 0
		@v = "x"
	end
	def run
		enjin(9, 0) #1
		enjin(8, 0) #2
		enjin(8, 3) #3
		enjin(9, 3) #4
		enjin(9, 0) #5
		enjin(8, 3) #6
		enjin(8, 1) #7
		enjin(9, 2) #8
		enjin(7, 1) #9
		enjin(9, 3) #10
		enjin(8, 0) #11
		enjin(8, 3) #12
		enjin(9, 3) #13
		enjin(9, 0) #14
		enjin(8, 3) #15
		enjin(8, 1) #16
		enjin(9, 2) #17
		enjin(7, 1) #18
	end
	def enjin(move, vec)
		p1 = Geom::Point3d.new(@x, @y, @z)
		x1, y1, z1 = 0, 0, 0
		case @v + String(vec)
		when "x0"
			y1 = move
			@v = "y"
		when "x1"
			z1 = move
			@v = "z"
		when "x2"
			y1 = -move
			@v = "-y"
		when "x3"
			z1 = -move
			@v = "-z"
		when "-x0"
			y1 = -move
			@v = "-y"
		when "-x1"
			z1 = -move
			@v = "-z"
		when "-x2"
			y1 = move
			@v = "y"
		when "-x3"
			z1 = move
			@v = "z"
		when "y0"
			z1 = move
			@v = "z"
		when "y1"
			x1 = move
			@v = "x"
		when "y2"
			z1 = -move
			@v = "-z"
		when "y3"
			x1 = -move
			@v = "-x"
		when "-y0"
			z1 = -move
			@v = "-z"
		when "-y1"
			x1 = -move
			@v = "-x"
		when "-y2"
			z1 = move
			@v = "z"
		when "-y3"
			x1 = move
			@v = "x"
		when "z0"
			x1 = move
			@v = "x"
		when "z1"
			y1 = move
			@v = "y"
		when "z2"
			x1 = -move
			@v = "-x"
		when "z3"
			y1 = -move
			@v = "-y"
		when "-z0"
			x1 = -move
			@v = "-x"
		when "-z1"
			y1 = -move
			@v = "-y"
		when "-z2"
			x1 = move
			@v = "x"
		when "-z3"
			y1 = move
			@v = "y"
		end
		case @v
		when "x", "-x"
			p2 = Geom::Point3d.new(@x + x1, @y + y1, @z + z1)
			circleBase1 = @entities.add_circle(p1, X_AXIS, 0.4, 24)
			circleBase2 = @entities.add_circle(p2, X_AXIS, 0.4, 24)
			curve = @entities.add_arc p2, Y_AXIS, X_AXIS, 0.4, 0, -Math::PI / 2 , 24
		when "y", "-y"
			p2 = Geom::Point3d.new(@x + x1, @y + y1, @z + z1)
			circleBase1 = @entities.add_circle(p1, Y_AXIS, 0.4, 24)
			circleBase2 = @entities.add_circle(p2, Y_AXIS, 0.4, 24)
			curve = @entities.add_arc p2, Y_AXIS, X_AXIS, 0.4, 0, -Math::PI / 2 , 24
		when "z", "-z"
			p2 = Geom::Point3d.new(@x + x1, @y + y1, @z + z1)
			circleBase1 = @entities.add_circle(p1, Z_AXIS, 0.4, 24)
			circleBase2 = @entities.add_circle(p2, Z_AXIS, 0.4, 24)
			curve = @entities.add_arc p2, Y_AXIS, X_AXIS, 0.4, 0, -Math::PI / 2 , 24
		end
		base = @entities.add_face(circleBase1)
		base1 = @entities.add_face(circleBase2)
		status = base1.followme(curve)
		line1 = @entities.add_line(p1, p2)
		status = base.followme(line1)
		@x, @y, @z = @x + x1, @y + y1, @z + z1
	end
end

以上。
