megasquirtモドキ

More than 5 years have passed since last update.

概要

業界では、有名なオープンソースのフルコン「MEGASQUIRT」のフェイクです。
見た目、フルコンをセッティングしているように、見えます。
OBD2のライブデータを表示しています。
arduino unoとelm327を使ってます。
tunnerstudioからは、megasquirtに見えます。

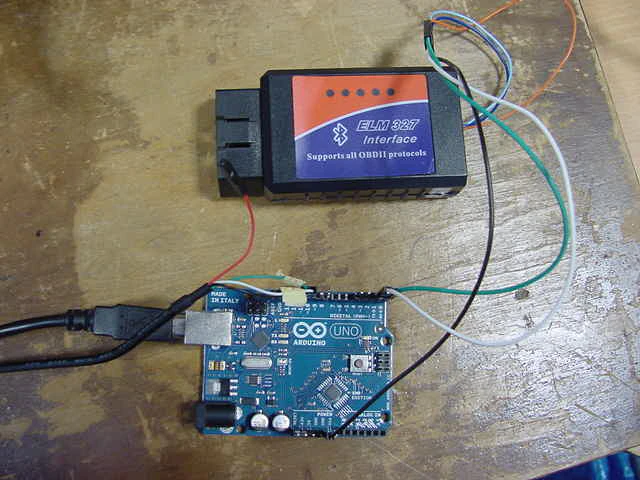

写真


ムービー

https://www.youtube.com/watch?v=1HTn73HCVV8

回路図


サンプルコード

#include <SoftwareSerial.h>
#include <Obdsquirt.h>

Obdsquirt squirt;
int n = 0;
void setup()
{
    pinMode(13, OUTPUT);
    squirt.begin();
    while (!squirt.init());
}
void loop()
{
    int value;
    digitalWrite(13, HIGH);
    if (Serial.available())
    {
        squirt.command();
    }
    if (squirt.isLoop())
    {
        switch (n)
        {
        case 0:
            if (squirt.read(PID_RPM, value))
            {
                squirt.currentStatus.RPM = value;
            }
        break;
        case 1:
            if (squirt.read(PID_THROTTLE, value))
            {
                squirt.currentStatus.TPS = value;
            }
        break;
        case 2:
            if (squirt.read(PID_COOLANT_TEMP, value))
            {
                squirt.currentStatus.coolant = value + 40;
            }
        break;
        case 3:
            if (squirt.read(PID_INTAKE_TEMP, value))
            {
                squirt.currentStatus.IAT = value + 40;
            }
        break;
        case 4:
            if (squirt.read(PID_INTAKE_MAP, value))
            {
                squirt.currentStatus.MAP = value;
            }
        break;
        default:
        break;
        }
    }
    n++;
    if (n > 4) n = 0;
}
