sketchupでruby その6

概要

sketchupでrubyやってみた。
material使ってみた。

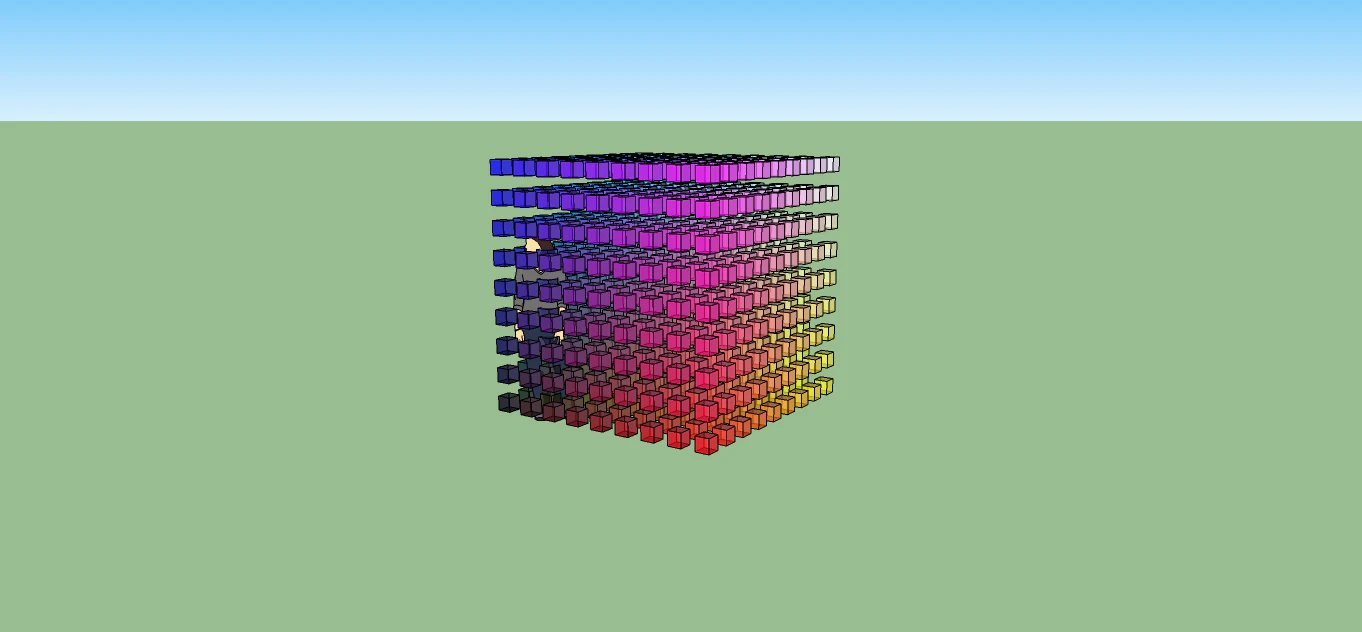

写真

サンプルコード

def colorbox
    model = Sketchup.active_model
    entities = model.active_entities
    Sketchup.set_status_text "Please wait a little."
    for x in 0..8 do
       for y in 0..8 do
          for z in 0..8 do
             group = entities.add_group
             entitie = group.entities
             pts = []
             pts[0] = [x * 10 + 5, y * 10 + 5, z * 10 + 5]
             pts[1] = [x * 10 + 10, y * 10 + 5, z * 10 + 5]
             pts[2] = [x * 10 + 10, y * 10 + 10, z * 10 + 5]
             pts[3] = [x * 10 + 5, y * 10 + 10, z * 10 + 5]
             base = entitie.add_face pts
             base.pushpull 5
             materials = model.materials
             m = materials.add "ohi" + String(x) + String(y) + String(z)
             m.color = Sketchup::Color.new(x * 32 , y * 32 , z * 32)
             m.alpha = 0.7
             entitie.each { |e|
                case e
                when Sketchup::Face
                   e.material = "ohi" + String(x) + String(y) + String(z)
                end
             }
          end
       end
    end
end

以上。
