高位合成言語アセンブラを作る。 その9

Last updated at Posted at 2020-11-02

#概要

高位合成言語アセンブラを作る。
練習問題、やってみた。

#全加算器を作れ。

make 8
in 0 2
wire 3 5
xor 1 2 3
and 1 2 4
xor 0 3 7
and 0 3 5
or 4 5 6
out 6 7

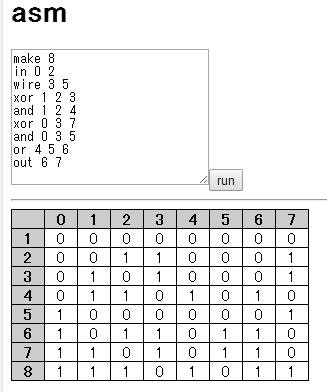

#真理値表を表示。


#成果物

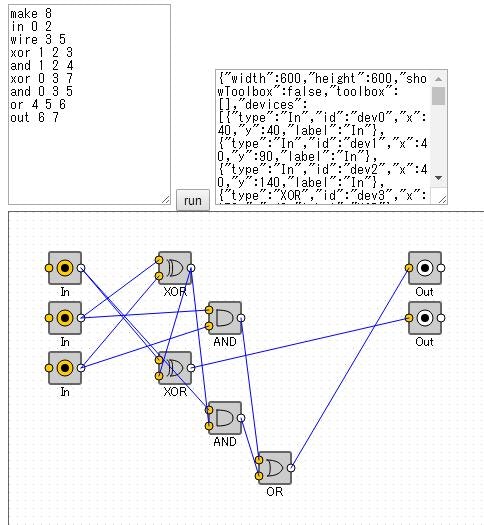

#回路図を表示。

#成果物

#コンパイルして、verilog生成。

module x(input a, input b, input c, output g, output h);
    assign d = b ^ c;
    assign e = b & c;
    assign h = a ^ d;
    assign f = a & d;
    assign g = e | f;
endmodule

module testbench;
    reg a, b, c;
    x u(.a(a), .b(b), .c(c), .g(g), .h(h));
    initial
    begin
        $display("a b c g h ");
        $monitor("%b %b %b %b %b ", a, b, c, g, h);
        a = 0; b = 0; c = 0; #10;
        a = 0; b = 0; c = 1; #10;
        a = 0; b = 1; c = 0; #10;
        a = 0; b = 1; c = 1; #10;
        a = 1; b = 0; c = 0; #10;
        a = 1; b = 0; c = 1; #10;
        a = 1; b = 1; c = 0; #10;
        a = 1; b = 1; c = 1; #10;
        $finish;
    end
endmodule

#成果物

#実行結果


a b c g h
0 0 0 0 0
0 0 1 0 1
0 1 0 0 1
0 1 1 1 0
1 0 0 0 1
1 0 1 1 0
1 1 0 1 0
1 1 1 1 1

以上。
