windows11で、sketchup6 その93

概要

windows11に、sketchup6を入れてみた。
rubyで、3Dを書く。
式を評価して、グラフを描く、スクリプト見つけたのでやってみた。

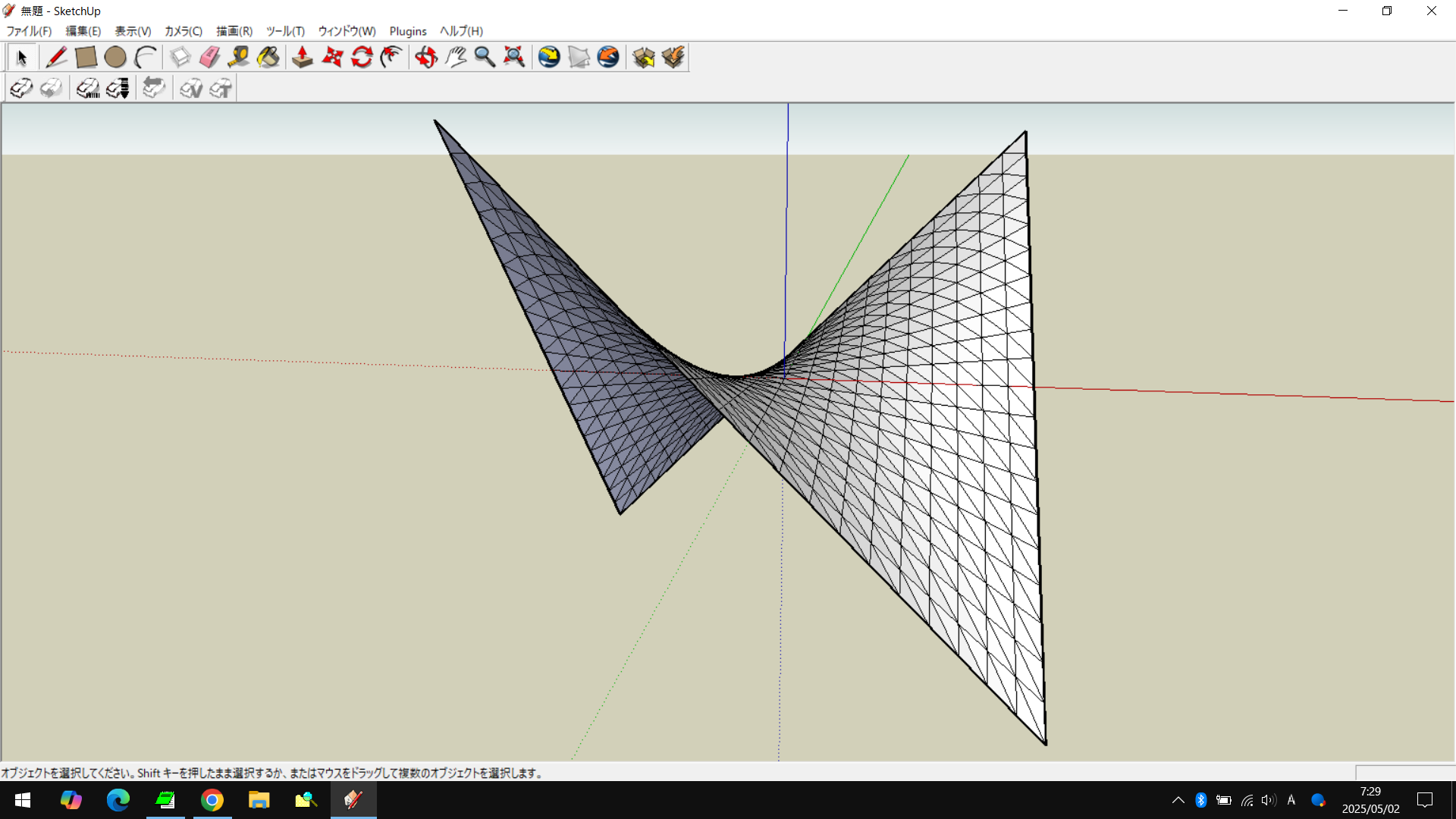

写真

サンプルコード

def graph_3d
	model = Sketchup.active_model
	model.start_operation "k_tools"
	entities = model.active_entities
	group = entities.add_group
	entities = group.entities
	Sketchup::set_status_text("Dessiner une surface 3D sur le plan XY", SB_PROMPT)
	xbeg = -1.0 if not xbeg
	xend = 1.0 if not xend
	stepx = 0.1 if not stepx
	ybeg= -1.0 if not ybeg
	yend= 1.0 if not yend
	stepy = 0.1 if not stepy
	prompts = ["Valeur X mini ", "Valeur X maxi ", "Valeur du pas X ", "Valeur Y mini ", "Valeur Y maxi ", "Valeur du pas Y "]
	values = [xbeg, xend, stepx, ybeg, yend, stepy]
	results = inputbox prompts, values, "Intervalle et resolution"
	xbeg, xend, stepx, ybeg, yend, stepy = results
	formula = "x*y" if not formula
	prompts = ["z = "]
	values = [formula]
	results = inputbox prompts, values, "Formule mathematique"
	formula = results.to_s
	$style = "Facetise" if not $style
	style_list = %w[Grille Triangle_Grille Facetise].join("|")
	dropdowns= [style_list]
	prompts = ["Style: "]
	values = [$style]
	results = inputbox prompts, values, dropdowns, "Visualisation"
	$style = results[0].chomp
	xbeg.step(xend - stepx, stepx) do |i|
	ybeg.step(yend - stepy, stepy) do |j|
	x1 = i
	x = x1
	y1 = j
	y = y1
		begin
			z1 = eval(formula)
		rescue
			z1 = 0
		end
		z1 = 100000000 if z1 > 100000000
		z1 = -100000000 if z1 < -100000000
		x2 = i + stepx
		x = x2
		y2 = j
		y = y2
		begin
			z2 = eval(formula)
		rescue
			z2 = 0
		end
		z2 = 100000000 if z2 > 100000000
		z2 = -100000000 if z2 < -100000000
		x3 = i
		x = x3
		y3 = j + stepy
		y = y3
		begin
			z3 = eval(formula)
		rescue
			z3 = 0
		end
		z3 = 100000000 if z3 > 100000000
		z3 = -100000000 if z3 < -100000000
		x4 = i + stepx
		x = x4
		y4 = j + stepy
		y = y4
		begin
			z4 = eval(formula)
		rescue
			z4 = 0
		end
		z4 = 100000000 if z4 > 100000000
		z4 = -100000000 if z4 < -100000000
		pt1 = [x1.m, y1.m, z1.m]
		pt2 = [x2.m, y2.m, z2.m]
		pt3 = [x3.m, y3.m, z3.m]
		pt4 = [x4.m, y4.m, z4.m]
		if $style == "Facetise" then
			face3d= entities.add_face(pt1, pt2, pt3)
			face3d= entities.add_face(pt2, pt3, pt4)
		else
			polyline3d = entities.add_line(pt1, pt2)
			polyline3d = entities.add_line(pt1, pt3)
			polyline3d = entities.add_line(pt2, pt4)
			polyline3d = entities.add_line(pt3, pt4)
			if $style == "Triangle_Grille" then
				polyline3d = entities.add_line(pt2, pt3)
			end
		end
	end
	end
	view = model.active_view.zoom_extents
	model.commit_operation
end

以上。
