wslでelixir その76

概要

wsl(wsl2じゃない)で、elixirやってみた。
練習問題やってみた。

練習問題

Livebookで、jsonをパースして、geojsonを生成して、deck.gl地図にプロットせよ。

方針

• jason使う。
• kino.js使う。
• deck.js使う

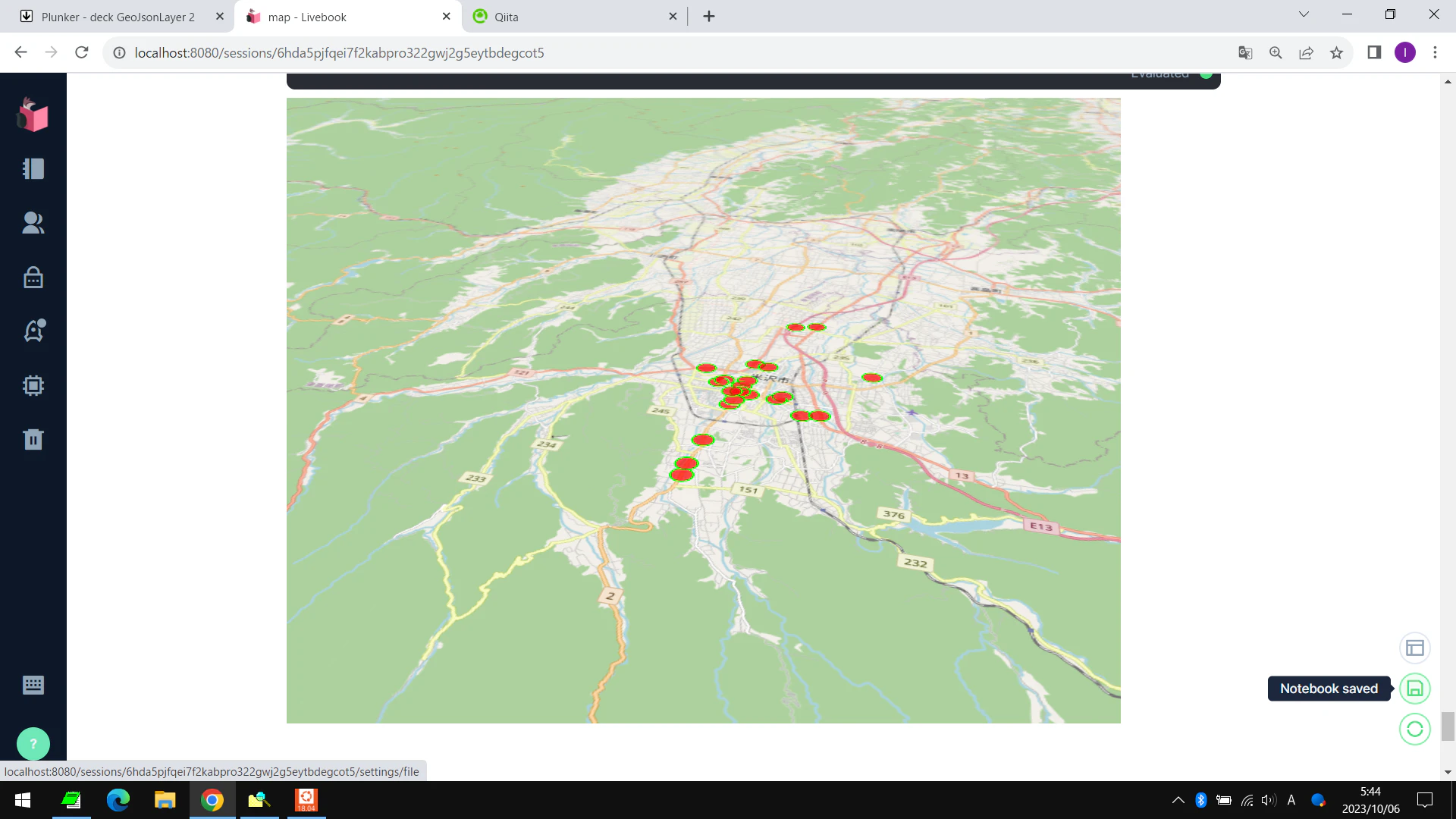

写真

サンプルコード

defmodule KinoMap.Deckgl do
  use Kino.JS

  def new(html) when is_binary(html) do
    Kino.JS.new(__MODULE__, html)
  end

  asset "main.js" do
    """
    import "https://unpkg.com/deck.gl@latest/dist.min.js";
    export function init(ctx, html) {
      const mapid = document.createElement("div");
    	mapid.id = "map";
    	mapid.style.width = "800px";
    	mapid.style.height = "600px";
    	ctx.root.appendChild(mapid);
    	const tileLayer = new deck.TileLayer({
       data: 'https://c.tile.openstreetmap.org/{z}/{x}/{y}.png',
       minZoom: 0,
       maxZoom: 19,
       tileSize: 256,
       renderSubLayers: props => {
        const {
         bbox: {
              west,
              south,
              east,
              north
            }
        } = props.tile;
        return new deck.BitmapLayer(props, {
         data: null,
         image: props.data,
         bounds: [west, south, east, north]
        });
       }
      });
      var geojson = JSON.parse(html);
      const geojsonLayer = new deck.GeoJsonLayer({
        id: 'geojson_layer',
        data: geojson.features,
       	pointType: 'circle',
		    getPointRadius: 300,
    		getFillColor: [255, 0, 0, 180],
    		getLineColor: [0, 255, 0, 255],
    		lineWidthMinPixels: 2,

      });
      const deckgl = new deck.DeckGL({
       container: 'map',
        initialViewState: {
          latitude: 37.9,
          longitude: 140.1,
          zoom: 11,
          maxZoom: 16,
          pitch: 80,
          bearing: -15
        },
        controller: true,
        layers: [tileLayer, geojsonLayer, ],
      });
    }
    """
  end
end

geojson =
  """
  {
  		"bikuya": [{
  				"lat": "37.929687",
  				"lon": "140.151111",
  				"name": "オートショップユニット"
  		}, {
  				"lat": "37.929220",
  				"lon": "140.109344",
  				"name": "（株）エイジュウプロ"
  		}, {
  				"lat": "37.923453",
  				"lon": "140.093108",
  				"name": "（株）ホンダウイングロードショウ"
  		}, {
  				"lat": "37.911333",
  				"lon": "140.112004",
  				"name": "（有）カーセンター葵商会"
  		}, {
  				"lat": "37.907591",
  				"lon": "140.108036",
  				"name": "塚本サイクル"
  		}, {
  				"lat": "37.928429",
  				"lon": "140.114247",
  				"name": "サイクルショップ川口"
  		}, {
  				"lat": "37.916279",
  				"lon": "140.099879",
  				"name": "サイクルショップ中村"
  		}, {
  				"lat": "37.917854",
  				"lon": "140.101416",
  				"name": "菅原商会"
  		}, {
  				"lat": "37.912485",
  				"lon": "140.108688",
  				"name": "サイクルセンター卯月"
  		}, {
  				"lat": "37.912049",
  				"lon": "140.105914",
  				"name": "ホンダ野村モータース"
  		}, {
  				"lat": "37.869915",
  				"lon": "140.103534",
  				"name": "モーターハウスＫ"
  		}, {
  				"lat": "37.918955",
  				"lon": "140.109289",
  				"name": "ライダースサロン・ヤマカ"
  		}, {
  				"lat": "37.915746",
  				"lon": "140.108313",
  				"name": "中央ホンダ"
  		}, {
  				"lat": "37.905011",
  				"lon": "140.107225",
  				"name": "香澄ホンダ"
  		}, {
  				"lat": "37.912663",
  				"lon": "140.123328",
  				"name": "佐藤オート商会"
  		}, {
  				"lat": "37.910789",
  				"lon": "140.121636",
  				"name": "香坂輪店"
  		}, {
  				"lat": "37.958525",
  				"lon": "140.125682",
  				"name": "斎藤モータース"
  		}, {
  				"lat": "37.956678",
  				"lon": "140.117820",
  				"name": "ニューホンダ石山"
  		}, {
  				"lat": "37.903901",
  				"lon": "140.131694",
  				"name": "二輪屋たかはし"
  		}, {
  				"lat": "37.886019",
  				"lon": "140.104554",
  				"name": "夢工場"
  		}, {
  				"lat": "37.874814",
  				"lon": "140.103239",
  				"name": "あべ輪店"
  		}, {
  				"lat": "37.905055",
  				"lon": "140.137379",
  				"name": "レッドバロン米沢"
  		}]
  }
  """
  |> Jason.decode!()
  |> Map.get("bikuya")
  |> Enum.reduce("{\"type\":\"FeatureCollection\",\"features\":[", fn i, acc ->
    lat = i |> Map.get("lat")
    lon = i |> Map.get("lon")
    name = i |> Map.get("name")

    acc <>
      "{\"type\":\"Feature\",\"properties\":{\"name\":\"#{name}\"},\"geometry\":{\"type\":\"Point\",\"coordinates\":[#{lon},#{lat}]}},"
  end)

geojson = geojson <> "{}]}"

KinoMap.Deckgl.new(geojson)

以上。
