wslでmanim その11

概要

wslでmanimやってみた。
練習問題やってみた。

練習問題

3dグラフを書け。

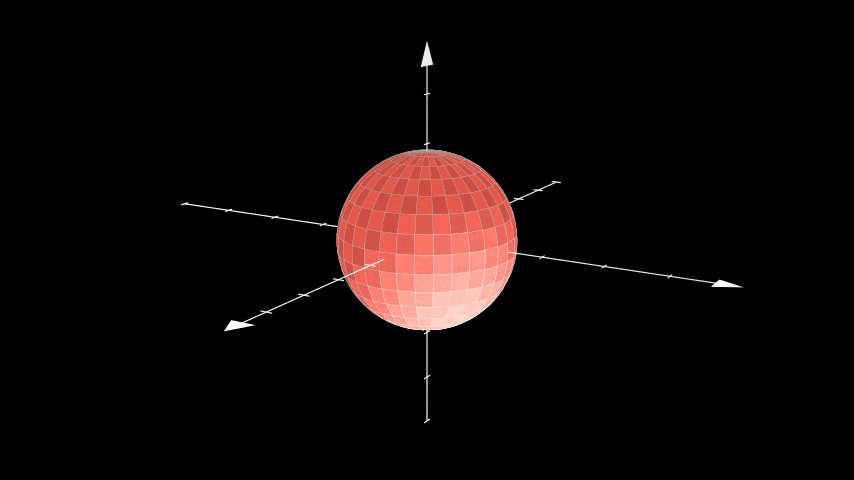

成果物

サンプルコード

from manim import *

class DSurface(Surface):
	def __init__(self, **kwargs):
		kwargs = {
			"u_range": [-1.5, 1.5],
			"v_range": [-1.5, 1.5],
			"checkerboard_colors": [GREEN, BLUE],
			"fill_opacity": 0.5
		}
		Surface.__init__(self, self.func, **kwargs)
	def func(self, x, y):
		return np.array([x, y, x ** 2 + y ** 2])

class test(ThreeDScene):
	def construct(self):
		sphere = Surface(lambda u, v: np.array([1.5 * np.cos(u) * np.cos(v), 1.5 * np.cos(u) * np.sin(v), 1.5 * np.sin(u)]), v_range = [0, TAU], u_range = [-PI / 2, PI / 2], checkerboard_colors = [RED_D, RED_E], resolution = (15, 32))
		def param_plane(u, v):
			x = u
			y = v
			z = 0
			return np.array([x, y, z])
		plane = Surface(param_plane, resolution = (22, 22), v_range = [-2, +2], u_range = [-2, +2], )
		def param_gauss(u, v):
			x = u
			y = v
			d = np.sqrt(x * x + y * y)
			sigma, mu = 0.4, 0.0
			z = np.exp(-((d - mu) ** 2 / (2.0 * sigma ** 2)))
			return np.array([x, y, z])
		gauss_plane = Surface(param_gauss, resolution = (22, 22), v_range = [-2, +2], u_range = [-2, +2], )
		cylinder = Surface(lambda u, v: np.array([np.cos(TAU * v), np.sin(TAU * v), 1.0 * (1 - u)]), resolution = (6, 32))
		surface = DSurface()
		axes = ThreeDAxes()
		self.set_camera_orientation(phi = 75 * DEGREES, theta = 30 * DEGREES)
		self.add(axes)
		self.add(sphere)
		self.wait()
		self.remove(sphere)
		self.add(plane)
		self.wait()
		self.remove(plane)
		self.add(gauss_plane)
		self.wait()
		self.remove(gauss_plane)
		self.add(cylinder)
		self.wait()
		self.remove(cylinder)
		self.add(surface)
		self.wait()

以上。
