windows11で、sketchup6 その8

概要

windows11に、sketchup6を入れてみた。
rubyで、3Dを書く。

問題見つけた。

sketchup v6 には、geomクラスが無い。

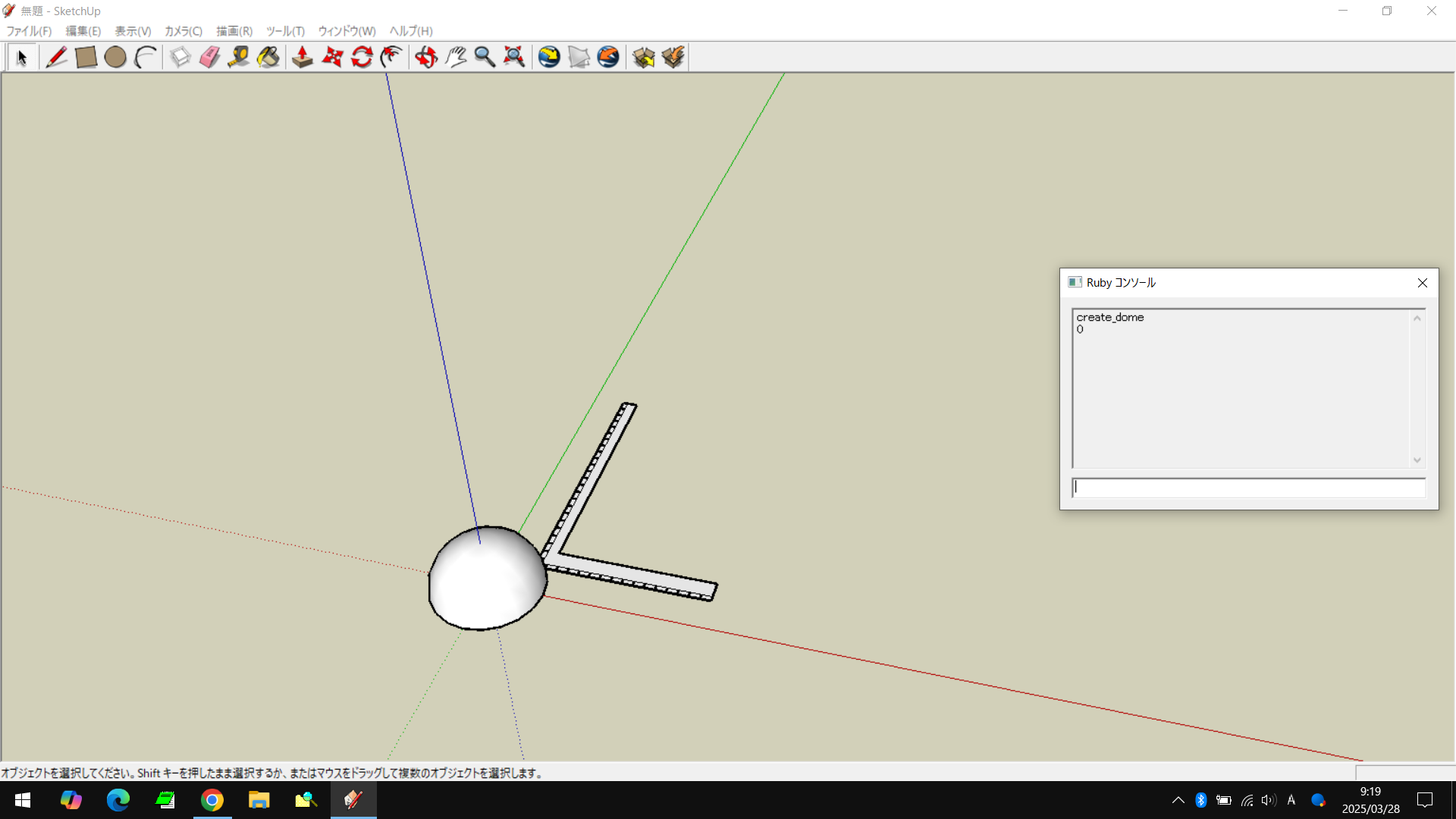

写真

サンプルコード

class Geom::Point3d
	def dot(v)
		self.x * v.x + self.y * v.y + self.z * v.z
	end
end

class Geom::Vector3d
	def scale_by(n)
		self.x *= n
		self.y *= n
		self.z *= n
		self
	end
	def to_point3d
		Geom::Point3d.new(*self.to_a)
	end
end

class Geom::PolygonMesh
	def add_revolved_points(pts, axis, numsegments)
		numpts = pts.length
		if (numpts < 2)
			raise ArgumentError, "At least two points required", caller
		end
		planar = true
		angle = Math::PI * 2
		da = angle / numsegments
		t = Geom::Transformation.rotation(axis[0], axis[1], da)
		index_array = []
		for pt in pts do
			if (pt.on_line?(axis))
				index_array.push([self.add_point(pt)])
			else
				indices = []
				for i in 0...numsegments do
					indices.push(self.add_point(pt))
					pt.transform!(t)
				end
				index_array.push indices
			end
		end
		i1 = index_array[0]
		for i in 1...numpts do
			i2 = index_array[i]
			n1 = i1.length
			n2 = i2.length
			nest if (n1 < numsegments && n2 < numsegments)
			for j in 0...numsegments do
				jp1 = (j + 1) % numsegments
				if (n1 < numsegments)
					self.add_polygon i1[0], i2[jp1], i2[j]
				elsif (n2 < numsegments)
					self.add_polygon i1[j], i1[jp1], i2[0]
				else
					if (planar)
						self.add_polygon i1[j], i1[jp1], i2[jp1], i2[j]
					else
						self.add_polygon i1[j], i1[jp1], i2[jp1]
						self.add_polygon i1[j], i2[jp1], i2[j]
					end
				end
			end
			i1 = i2
		end
	end
	def add_extruded_points(pts, center, dir, angle, numsegments)
		numpts = pts.length
		if (numpts < 2)
			raise ArgumentError, "At least two points required", caller
		end
		vec = Geom::Vector3d.new dir
		distance = vec.length
		dz = distance / numsegments
		da = angle / numsegments
		vec.length = dz
		t = Geom::Transformation.translation vec
		r = Geom::Transformation.rotation center, dir, da
		tform = t * r
		index_array = []
		for i in 0...numsegments do
			indices = []
			for pt in pts do
				indices.push(self.add_point(pt))
				pt.transform!(tform)
			end
			index_array.push indices
		end
		i1 = index_array[0]
		for i in 1...numsegments do
			i2 = index_array[i]
			for j in 0...numpts do
				k = (j + 1) % numpts
				self.add_polygon -i1[j], i2[k], -i1[k]
				self.add_polygon i1[j], -i2[j], -i2[k]
			end
			i1 = i2
		end
	end
end

def create_dome
	model = Sketchup.active_model
	entities = model.active_entities
	r = 5
	n90 = 5
	smooth = 12
	arcpts = []
	delta = Math::PI / (2 * n90)
	for i in 0..n90 do
		angle = delta * i
		cosa = Math.cos(angle)
		sina = Math.sin(angle)
		arcpts.push([r * cosa, 0, r * sina])
	end
	numpoly = n90 * n90 * 4
	numpts = numpoly + 1
	mesh = Geom::PolygonMesh.new(numpts, numpoly)
	mesh.add_revolved_points(arcpts, [ORIGIN, Z_AXIS], n90 * 4)
	entities.add_faces_from_mesh(mesh, smooth)
end

以上。
