vistaでstm32duino

Last updated at Posted at 2021-10-14

概要

vistaでstm32duinoやってみた。
STM32F401CCU6買ってみた。

仕様

ボード STM32F401CCU6
周波数(MHz) 84
CPU ARM Cortex-M4
FLASH(KB) 256
RAM(KB) 64
パッケージ UFQFPN48
ユニバーサルIO 36
最小動作電圧 1.7
最大動作電圧 3.6
16bitタイマ 6
32bitタイマ 2
モータ制御用タイマ 1
12bit ADC 1
12bit ADCチャネル数 10
SPI 3
I2S 2
I2C 3
U(S)ART 3
USB OTG FS 1

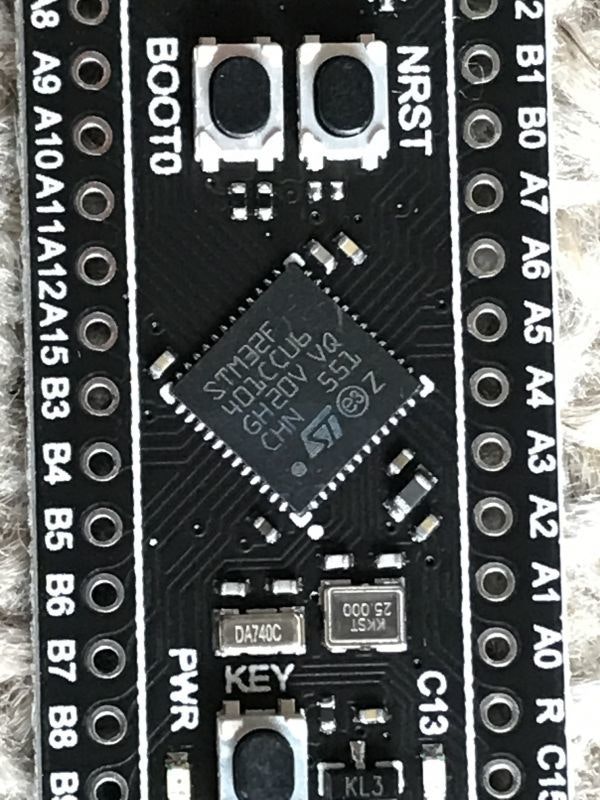

写真


ピン配置


以上。
