arduinoでi2c その4

Last updated at Posted at 2018-01-16

概要

フルスクラッチでmaster書いてみた。

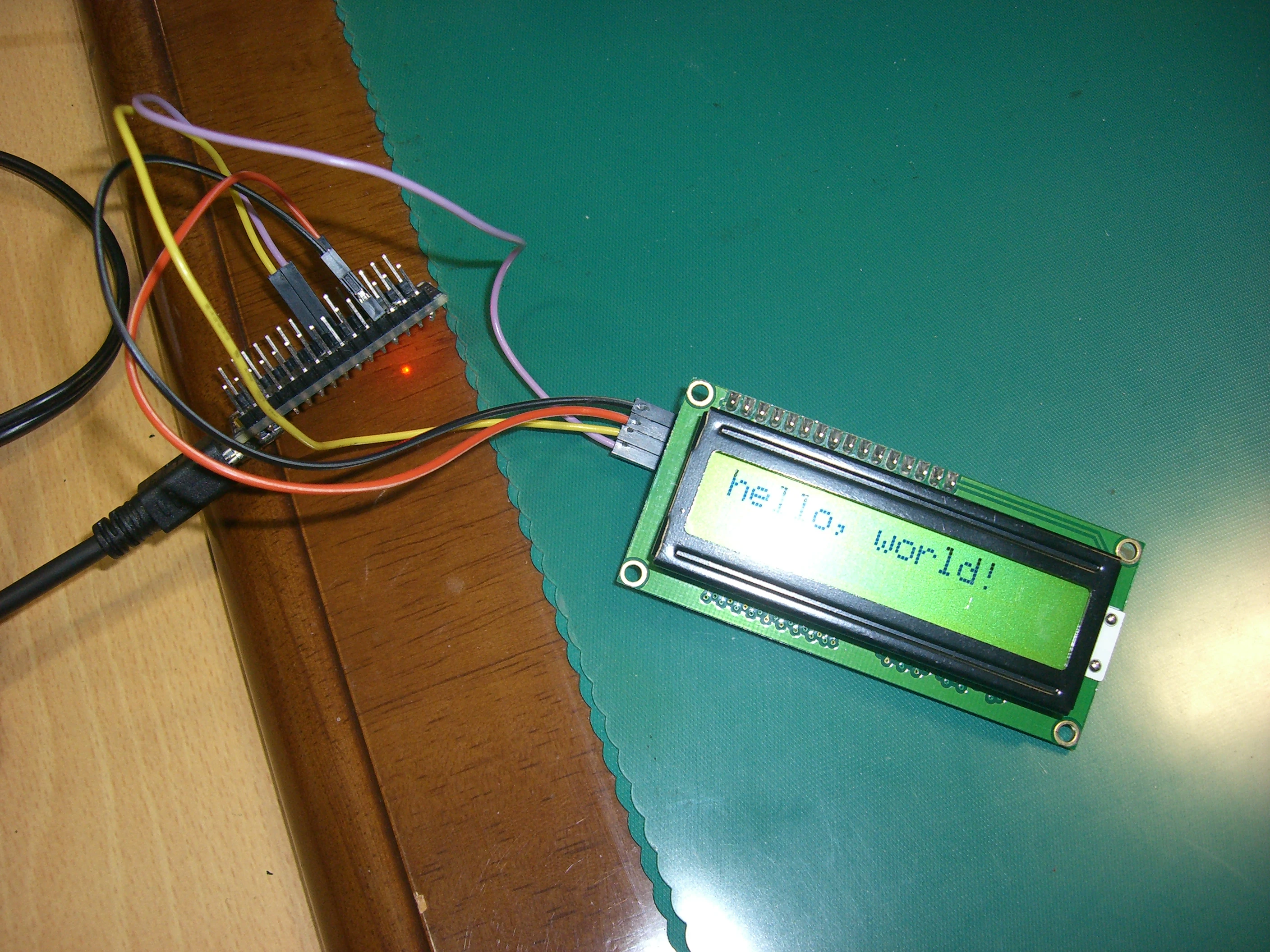

写真


回路図


サンプルコード

#include <inttypes.h>
#include <compat/twi.h>

#define F_CPU               16000000UL
#define SCL_CLOCK           50000L
#define PCF8574_ADDRESS     0x27 << 1 + 0
void i2c_init(void)
{
    TWSR = 0;
    TWBR = ((F_CPU / SCL_CLOCK) - 16) / 2;
}
unsigned char i2c_start(unsigned char address)
{
    uint8_t twst;
    TWCR = (1 << TWINT) | (1 << TWSTA) | (1 << TWEN);
    while (!(TWCR & (1 << TWINT)));
    twst = TW_STATUS & 0xF8;
    if ((twst != TW_START) && (twst != TW_REP_START)) return 1;
    TWDR = address;
    TWCR = (1 << TWINT) | (1 << TWEN);
    while (!(TWCR & (1 << TWINT)));
    twst = TW_STATUS & 0xF8;
    if ((twst != TW_MT_SLA_ACK) && (twst != TW_MR_SLA_ACK)) return 1;
    return 0;
}
void i2c_stop(void)
{
    TWCR = (1 << TWINT) | (1 << TWEN) | (1 << TWSTO);
    while (TWCR & (1 << TWSTO));
}
unsigned char i2c_write(unsigned char data)
{
    uint8_t twst;
    TWDR = data;
    TWCR = (1 << TWINT) | (1 << TWEN);
    while (!(TWCR & (1 << TWINT)));
    twst = TW_STATUS & 0xF8;
    if (twst != TW_MT_DATA_ACK) return 1;
    return 0;
}
void send(uint8_t d)
{
    uint8_t s;
    i2c_start(PCF8574_ADDRESS);
    i2c_write(d);
    s = d | 0x04;
    i2c_write(s);
    delayMicroseconds(1);
    s = d & 0xfb;
    i2c_write(s);
    delayMicroseconds(1);
    i2c_stop();
}
void set(uint8_t d)
{
    uint8_t s;
    uint8_t f1 = d & 0xf0;
    uint8_t f2 = d << 4;
    i2c_start(PCF8574_ADDRESS);
    s = f1;
    i2c_write(s);
    s = f1 | 0x04;
    i2c_write(s);
    delayMicroseconds(1);
    s = f1 & 0xfb;
    i2c_write(s);
    i2c_stop();
    i2c_start(PCF8574_ADDRESS);
    s = f2;
    i2c_write(s);
    s = f2 | 0x04;
    i2c_write(s);
    delayMicroseconds(1);
    s = f2 & 0xfb;
    i2c_write(s);
    i2c_stop();
}
void data(uint8_t d)
{
    uint8_t s;
    uint8_t f1 = d & 0xf0;
    uint8_t f2 = d << 4;
    i2c_start(PCF8574_ADDRESS);
    s = f1;
    i2c_write(s);
    s = f1 | 0x05;
    i2c_write(s);
    delayMicroseconds(1);
    s = f1 & 0xfa;
    i2c_write(s);
    i2c_stop();
    i2c_start(PCF8574_ADDRESS);
    s = f2;
    i2c_write(s);
    s = f2 | 0x05;
    i2c_write(s);
    delayMicroseconds(1);
    s = f2 & 0xfa | 0x08;
    i2c_write(s);
    i2c_stop();
}
void setup()
{
    unsigned char c;
    unsigned char address;
    int nDevices;
    Serial.begin(115200);
    i2c_init();
    send(0x03);
    delayMicroseconds(50);
    send(0x03);
    delayMicroseconds(50);
    send(0x03);
    delayMicroseconds(15);
    send(0x02);
    set(0x28);
    set(0x0c);
    set(0x01);
    set(0x06);
    data(0x68);
    data(0x65);
    data(0x6c);
    data(0x6c);
    data(0x6f);
    data(0x2c);
    data(0x20);
    data(0x77);
    data(0x6f);
    data(0x72);
    data(0x6c);
    data(0x64);
    data(0x21);
    Serial.println("ok");
}
void loop()
{
    delay(100);
}



以上。
