plunkerで liquidfun その14

概要

plunkerで liquidfunやってみた。
練習問題やってみた。

練習問題

エレベーターをシミュレーションせよ。

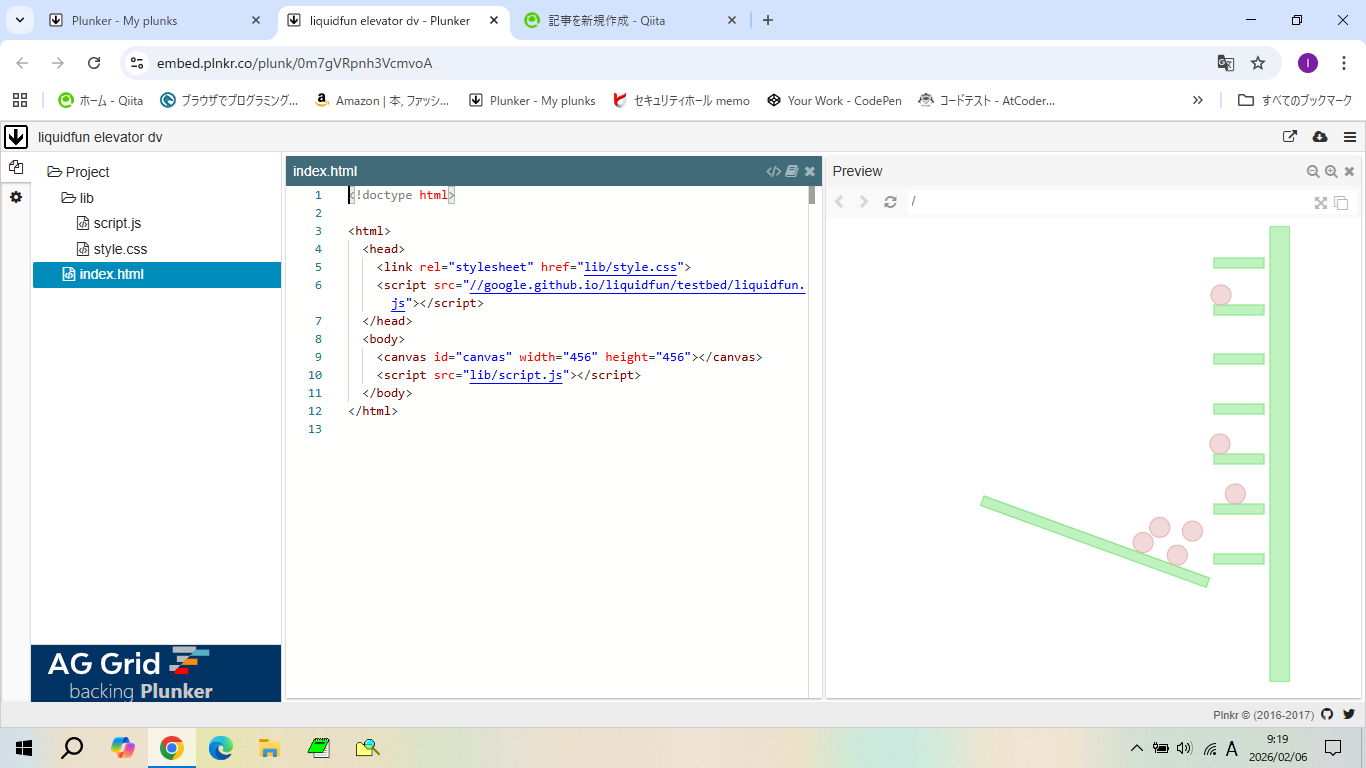

写真

サンプルコード

var world = null;
var FPS = 1000 / 60;
var CIRCLE_VOLUME = 20;
var GRAVITY = 30;
var STAGE_WIDTH = 456;
var STAGE_HEIGHT = 456;
var SCALE = 10;
var ITEM_TYPE_CIRCLE = "item_type_circle";
var ITEM_TYPE_POLYGON = "item_type_polygon";
var physicsEngine = PhysicsEngine();
var viewer = Viewer({
	id: "canvas"
});
function PhysicsEngine() {
	var gravity_ = GRAVITY;
	var items_ = [];
	world = new b2World(new b2Vec2(0, gravity_));
	for (i = 0; i < 7; i++)
	{
		items_.push(createStaticWall_({
			width: 50,
			height: 10,
			x: 380,
			y: 80 + i * 50
		}));
	}
	items_.push(createStaticWall_({
		width: 20,
		height: STAGE_HEIGHT,
		x: STAGE_WIDTH - 20,
		y: 0
	}));
	items_.push(createStaticRect_({
		angle: 20,
		width: 240,
		height: 10,
		x: 150,
		y: 270
	}));
	for (i = 0; i < 7; i++)
	{
		items_.push(createDynamicCircle_({
			radius: 10,
			x: 110 + i * 30,
			y: 0,
		}));
	}
	return {
		update: update,
		getItems: getItems
	};
	function update() {
		world.Step(FPS / 1000, 10, 10);
	}
	function getItems() {
		return items_;
	}
	function createStaticWall_(params) {
		var width = params.width / SCALE;
		var height = params.height / SCALE;
		var x = params.x / SCALE;
		var y = params.y / SCALE;
		var bodyDef = new b2BodyDef();
		bodyDef.type = b2_staticBody;
		bodyDef.position.Set(x, y);
		var body = world.CreateBody(bodyDef);
		var shape = new b2PolygonShape;
		//shape.SetAsBoxXY(width, height);
		shape.vertices[0] = new b2Vec2(0, 0);
		shape.vertices[1] = new b2Vec2(width, 0);
		shape.vertices[2] = new b2Vec2(width, height);
		shape.vertices[3] = new b2Vec2(0, height);
		body.CreateFixtureFromShape(shape, 0.5);
		return {
			type: ITEM_TYPE_POLYGON,
			body: body,
			shape: shape
		};
	}
	function createStaticRect_(params) {
		var width = params.width / SCALE;
		var height = params.height / SCALE;
		var x = params.x / SCALE;
		var y = params.y / SCALE;
		var bodyDef = new b2BodyDef();
		bodyDef.type = b2_staticBody;
		bodyDef.position.Set(x, y);
		bodyDef.angle = Math.PI / 180 * params.angle;
		var body = world.CreateBody(bodyDef);
		var shape = new b2PolygonShape;
		//shape.SetAsBoxXY(width, height);
		shape.vertices[0] = new b2Vec2(0, 0);
		shape.vertices[1] = new b2Vec2(width, 0);
		shape.vertices[2] = new b2Vec2(width, height);
		shape.vertices[3] = new b2Vec2(0, height);
	body.CreateFixtureFromShape(shape, 0.5);
		return {
			type: ITEM_TYPE_POLYGON,
			body: body,
			shape: shape
		};
	}
	function createDynamicCircle_(params) {
		var radius = params.radius / SCALE;
		var x = params.x / SCALE;
		var y = params.y / SCALE;
		var bodyDef = new b2BodyDef();
		bodyDef.type = b2_dynamicBody;
		bodyDef.linearDamping = 0.4;
		bodyDef.linearVelocity = new b2Vec2(15.0, -2.0);
		bodyDef.position.Set(x, y);
		var shape = new b2CircleShape();
		shape.radius = radius;
		var fixDef = new b2FixtureDef;
		fixDef.restitution = 1;
		fixDef.shape = shape;
		fixDef.density = 0.4;
		fixDef.friction = 0.9;
		fixDef.restitution = 0.9;
		var body = world.CreateBody(bodyDef);
		body.CreateFixtureFromDef(fixDef);
		return {
			type: ITEM_TYPE_CIRCLE,
			body: body,
			shape: shape
		};
	}
}
function Viewer(params) {
	var canvas_ = document.getElementById(params.id);
	var context_ = canvas_.getContext("2d");
	return {
		update: update
	};
	function update(params) {
		var items = params.items;
		context_.clearRect(0, 0, STAGE_WIDTH, STAGE_HEIGHT);
		var i = 0,
			max;
		for (i = 0, max = items.length; i < max; i = i + 1)
		{
			var item = items[i];
			var position = null;
			var angle = null;
			if (item.type === ITEM_TYPE_CIRCLE)
			{
				position = item.body.GetPosition();
				context_.beginPath();
				context_.arc(position.x * SCALE, position.y * SCALE, item.shape.radius * SCALE, 0, Math.PI * 2, true);
				context_.closePath();
				context_.strokeStyle = "rgb(229, 178, 178)";
				context_.lineWidth = 1;
				context_.stroke();
				context_.fillStyle = "rgba(229, 178, 178, 0.5)";
				context_.fill();
			}
			else if (item.type === ITEM_TYPE_POLYGON)
			{
				position = item.body.GetPosition();
				angle = item.body.GetAngle();
				context_.save();
				context_.translate(position.x * SCALE, position.y * SCALE);
				context_.rotate(angle);
				context_.beginPath();
				var j = 0,
					max2;
				for (j = 0, max2 = item.shape.vertices.length; j < max2; j = j + 1)
				{
					var vector = item.shape.vertices[j];
					if (j <= 0)
					{
						context_.moveTo((vector.x * SCALE) , (vector.y * SCALE) );
					}
					else
					{
						context_.lineTo((vector.x * SCALE), (vector.y * SCALE) );
					}
				}
				context_.closePath();
				context_.strokeStyle = "rgb(127, 229, 127)";
				context_.lineWidth = 1;
				context_.stroke();
				context_.fillStyle = "rgba(127, 229, 127, 0.5)";
				context_.fill();
				context_.restore();
			}
		}
	}
}
setInterval(function() {
	var items = physicsEngine.getItems();
	for (var i = 0; i < 7; i++)
	{
		var p = items[i].body.GetPosition();
		var a = items[i].body.GetAngle();
		if (p.y < 0.5)
		{
	 		items[i].body.SetTransform(new b2Vec2(p.x, 35.0), a);
		}
		else
		{
 			items[i].body.SetTransform(new b2Vec2(p.x, p.y - 0.1), a);
		}
	}
	physicsEngine.update();
	viewer.update({
		items: physicsEngine.getItems()
	});
}, FPS);

成果物

以上。
