Claude AIを使ってAWS EC2インスタンスを作成するCloudformationテンプレートを作ってみた

0
Posted at

はじめに

今回コード生成AIを試しに使ってみようということでClaudeを使って、簡単なAWS EC2インスタンスを作成するためのテンプレートファイルを作ってみようと思います。

Claudeはどうやら、draw.ioのファイル（.drawio または .xml）をアップロードすると、そこからテンプレート作成までもっていってくれるそうなので、それも体験してみます。

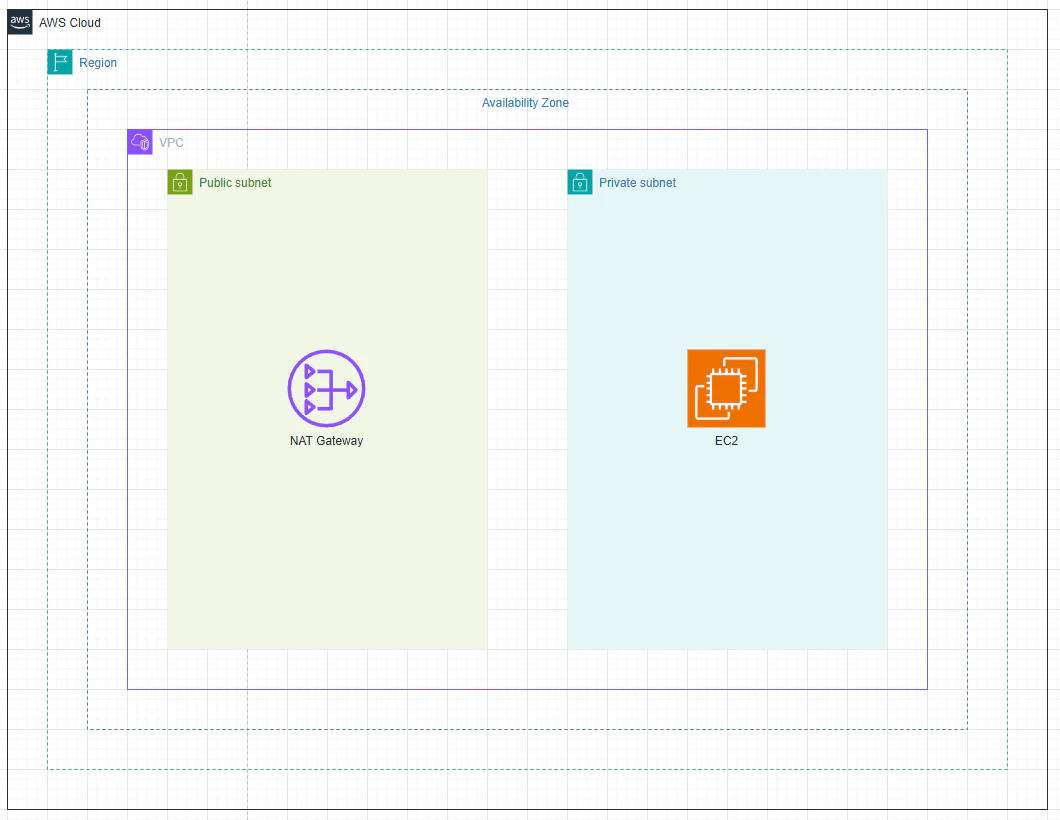

アップロードに使ったdraw.io

※qiitaに.drawio または .xml形式のファイルは添付できなかったので、画像を添付

  • {C9FBE56E-D951-4BFA-939D-DB7B7F613E5C}.png

コード生成

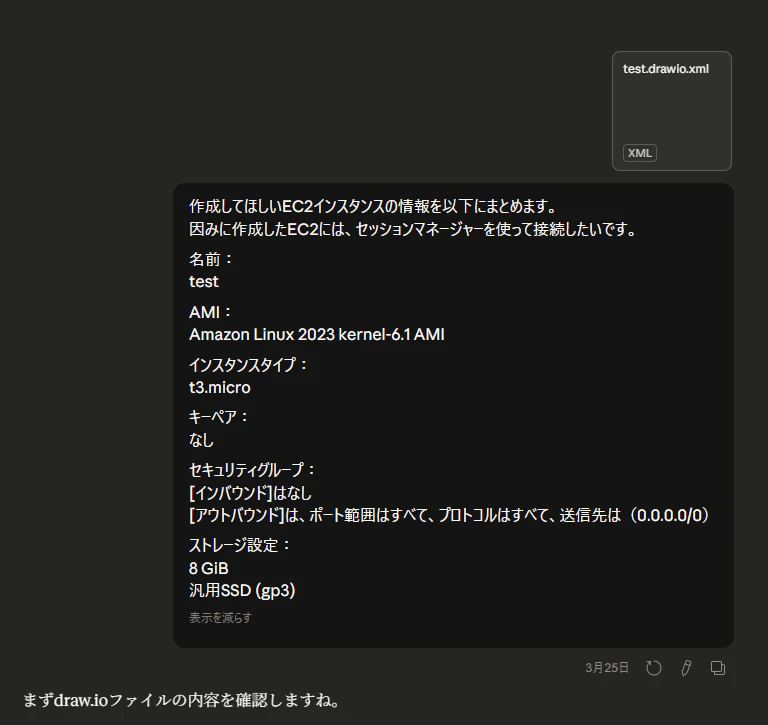

アップロードの際に少し補足文書もいれてみた。

色々まとめてくれて作成完了！

出来たyamlファイル

test_cfn_template.yaml
AWSTemplateFormatVersion: "2010-09-09"
Description: >
  CloudFormation Template generated from draw.io architecture diagram.
  Includes VPC, Public/Private Subnets, NAT Gateway, EC2 (Private Subnet),
  SSM Session Manager endpoints, and IAM Role for EC2.

# ============================================================
# Parameters
# ============================================================
Parameters:
  EnvironmentName:
    Type: String
    Default: test
    Description: Environment name used as prefix for resource names

# ============================================================
# Resources
# ============================================================
Resources:

  # ----------------------------------------------------------
  # VPC
  # ----------------------------------------------------------
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 10.0.0.0/16
      EnableDnsSupport: true
      EnableDnsHostnames: true   # VPCエンドポイント利用に必要
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-vpc

  # ----------------------------------------------------------
  # Internet Gateway
  # ----------------------------------------------------------
  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-igw

  InternetGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref InternetGateway

  # ----------------------------------------------------------
  # Subnets
  # ----------------------------------------------------------
  PublicSubnet:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.0.1.0/24
      AvailabilityZone: !Select [0, !GetAZs ""]
      MapPublicIpOnLaunch: true
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-public-subnet

  PrivateSubnet:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.0.2.0/24
      AvailabilityZone: !Select [0, !GetAZs ""]
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-private-subnet

  # ----------------------------------------------------------
  # NAT Gateway
  # ----------------------------------------------------------
  NatGatewayEIP:
    Type: AWS::EC2::EIP
    DependsOn: InternetGatewayAttachment
    Properties:
      Domain: vpc
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-nat-eip

  NatGateway:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NatGatewayEIP.AllocationId
      SubnetId: !Ref PublicSubnet
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-nat-gateway

  # ----------------------------------------------------------
  # Route Tables
  # ----------------------------------------------------------
  # Public Route Table
  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-public-rtb

  PublicRoute:
    Type: AWS::EC2::Route
    DependsOn: InternetGatewayAttachment
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

  PublicSubnetRouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet
      RouteTableId: !Ref PublicRouteTable

  # Private Route Table
  PrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-private-rtb

  PrivateRoute:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NatGateway

  PrivateSubnetRouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet
      RouteTableId: !Ref PrivateRouteTable

  # ----------------------------------------------------------
  # Security Groups
  # ----------------------------------------------------------
  # EC2用セキュリティグループ
  # インバウンド: なし
  # アウトバウンド: すべて許可（0.0.0.0/0）
  EC2SecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: !Sub ${EnvironmentName}-ec2-sg
      GroupDescription: Security group for EC2 - no inbound, all outbound
      VpcId: !Ref VPC
      SecurityGroupEgress:
        - IpProtocol: -1
          FromPort: -1
          ToPort: -1
          CidrIp: 0.0.0.0/0
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-ec2-sg

  # VPCエンドポイント用セキュリティグループ
  # EC2からのHTTPS(443)のみ許可
  VPCEndpointSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: !Sub ${EnvironmentName}-vpce-sg
      GroupDescription: Security group for SSM VPC Endpoints
      VpcId: !Ref VPC
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 443
          ToPort: 443
          SourceSecurityGroupId: !Ref EC2SecurityGroup
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-vpce-sg

  # ----------------------------------------------------------
  # VPC Endpoints (Session Manager用)
  # Privateサブネットからインターネット経由なしでSSM接続するために必要
  # ----------------------------------------------------------
  SSMEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: !Sub com.amazonaws.${AWS::Region}.ssm
      VpcId: !Ref VPC
      VpcEndpointType: Interface
      SubnetIds:
        - !Ref PrivateSubnet
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      PrivateDnsEnabled: true

  SSMMessagesEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: !Sub com.amazonaws.${AWS::Region}.ssmmessages
      VpcId: !Ref VPC
      VpcEndpointType: Interface
      SubnetIds:
        - !Ref PrivateSubnet
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      PrivateDnsEnabled: true

  EC2MessagesEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: !Sub com.amazonaws.${AWS::Region}.ec2messages
      VpcId: !Ref VPC
      VpcEndpointType: Interface
      SubnetIds:
        - !Ref PrivateSubnet
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      PrivateDnsEnabled: true

  # ----------------------------------------------------------
  # IAM Role for EC2 (Session Manager接続に必要)
  # ----------------------------------------------------------
  EC2SSMRole:
    Type: AWS::IAM::Role
    Properties:
      RoleName: !Sub ${EnvironmentName}-ec2-ssm-role
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Principal:
              Service: ec2.amazonaws.com
            Action: sts:AssumeRole
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/AmazonSSMManagedInstanceCore
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}-ec2-ssm-role

  EC2InstanceProfile:
    Type: AWS::IAM::InstanceProfile
    Properties:
      InstanceProfileName: !Sub ${EnvironmentName}-ec2-instance-profile
      Roles:
        - !Ref EC2SSMRole

  # ----------------------------------------------------------
  # EC2 Instance
  # ----------------------------------------------------------
  EC2Instance:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: t3.micro
      # Amazon Linux 2023 kernel-6.1 (ap-northeast-1 最新AMI)
      # ※ リージョンによってAMI IDが異なります。必要に応じて更新してください。
      ImageId: !Sub "{{resolve:ssm:/aws/service/ami-amazon-linux-latest/al2023-ami-kernel-6.1-x86_64}}"
      SubnetId: !Ref PrivateSubnet
      IamInstanceProfile: !Ref EC2InstanceProfile
      SecurityGroupIds:
        - !Ref EC2SecurityGroup
      # キーペアなし（Session Managerで接続）
      BlockDeviceMappings:
        - DeviceName: /dev/xvda
          Ebs:
            VolumeSize: 8
            VolumeType: gp3
            DeleteOnTermination: true
      Tags:
        - Key: Name
          Value: !Sub ${EnvironmentName}

# ============================================================
# Outputs
# ============================================================
Outputs:
  VPCId:
    Description: VPC ID
    Value: !Ref VPC

  PublicSubnetId:
    Description: Public Subnet ID
    Value: !Ref PublicSubnet

  PrivateSubnetId:
    Description: Private Subnet ID
    Value: !Ref PrivateSubnet

  EC2InstanceId:
    Description: EC2 Instance ID
    Value: !Ref EC2Instance

  EC2SSMRoleArn:
    Description: IAM Role ARN for EC2 SSM
    Value: !GetAtt EC2SSMRole.Arn

内容もまぁまぁイケてるじゃん！

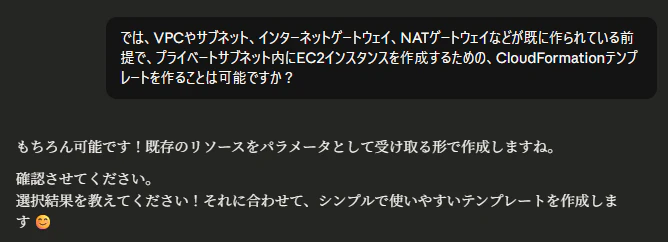

ここで、VPCとかサブネットとかは既にできてる前提で作ってと依頼
ここ地味に感心したのは、この要求に対して選択形式で返してきた。

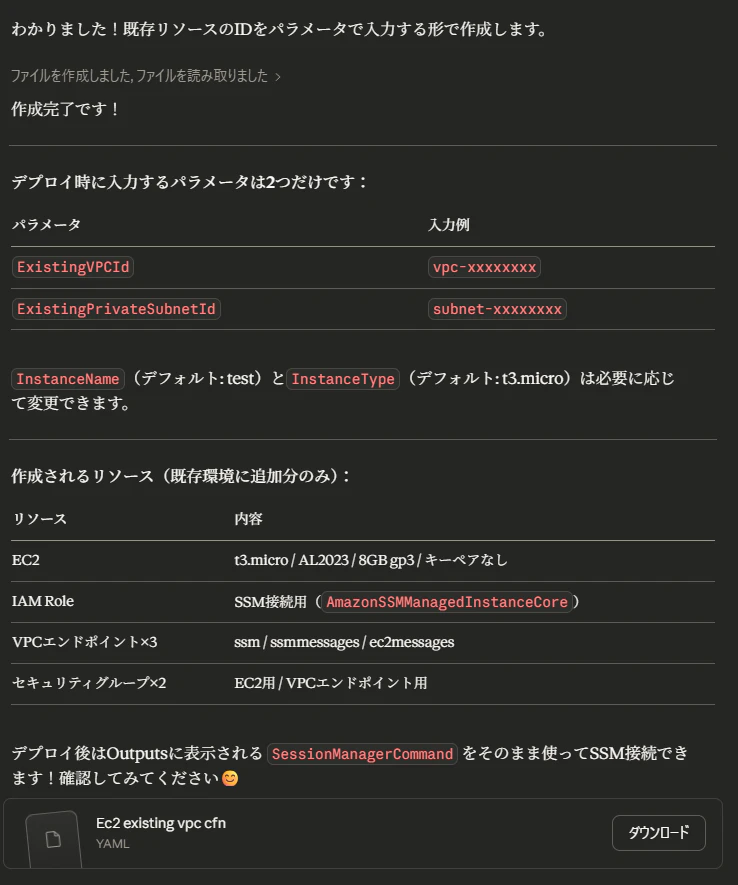

選択後は画面にはこんな感じで表示された

Claude君ファイル作成中...

からの出来たyamlファイル

ec2_existing_vpc_cfn.yaml
AWSTemplateFormatVersion: "2010-09-09"
Description: >
  既存のVPC・サブネット環境にEC2インスタンスを作成するテンプレート。
  Session Manager接続のためのIAMロール・VPCエンドポイントも作成します。

# ============================================================
# Parameters
# ============================================================
Parameters:

  # --- 既存リソースのID ---
  ExistingVPCId:
    Type: AWS::EC2::VPC::Id
    Description: >
      既存VPCのID（例: vpc-xxxxxxxx）
      ※ VPCエンドポイントのセキュリティグループに使用します

  ExistingPrivateSubnetId:
    Type: AWS::EC2::Subnet::Id
    Description: >
      EC2を配置するプライベートサブネットのID（例: subnet-xxxxxxxx）

  # --- EC2設定 ---
  InstanceName:
    Type: String
    Default: test
    Description: EC2インスタンスの名前タグ

  InstanceType:
    Type: String
    Default: t3.micro
    Description: EC2インスタンスタイプ

# ============================================================
# Resources
# ============================================================
Resources:

  # ----------------------------------------------------------
  # Security Group for EC2
  # インバウンド: なし
  # アウトバウンド: すべて許可（0.0.0.0/0）
  # ----------------------------------------------------------
  EC2SecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: !Sub ${InstanceName}-ec2-sg
      GroupDescription: Security group for EC2 - no inbound, all outbound
      VpcId: !Ref ExistingVPCId
      SecurityGroupEgress:
        - IpProtocol: -1
          FromPort: -1
          ToPort: -1
          CidrIp: 0.0.0.0/0
      Tags:
        - Key: Name
          Value: !Sub ${InstanceName}-ec2-sg

  # ----------------------------------------------------------
  # Security Group for VPC Endpoints
  # EC2からのHTTPS(443)のみ許可
  # ----------------------------------------------------------
  VPCEndpointSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: !Sub ${InstanceName}-vpce-sg
      GroupDescription: Security group for SSM VPC Endpoints
      VpcId: !Ref ExistingVPCId
      SecurityGroupIngress:
        - IpProtocol: tcp
          FromPort: 443
          ToPort: 443
          SourceSecurityGroupId: !Ref EC2SecurityGroup
      Tags:
        - Key: Name
          Value: !Sub ${InstanceName}-vpce-sg

  # ----------------------------------------------------------
  # VPC Endpoints (Session Manager接続に必要な3つ)
  # ----------------------------------------------------------
  SSMEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: !Sub com.amazonaws.${AWS::Region}.ssm
      VpcId: !Ref ExistingVPCId
      VpcEndpointType: Interface
      SubnetIds:
        - !Ref ExistingPrivateSubnetId
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      PrivateDnsEnabled: true

  SSMMessagesEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: !Sub com.amazonaws.${AWS::Region}.ssmmessages
      VpcId: !Ref ExistingVPCId
      VpcEndpointType: Interface
      SubnetIds:
        - !Ref ExistingPrivateSubnetId
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      PrivateDnsEnabled: true

  EC2MessagesEndpoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: !Sub com.amazonaws.${AWS::Region}.ec2messages
      VpcId: !Ref ExistingVPCId
      VpcEndpointType: Interface
      SubnetIds:
        - !Ref ExistingPrivateSubnetId
      SecurityGroupIds:
        - !Ref VPCEndpointSecurityGroup
      PrivateDnsEnabled: true

  # ----------------------------------------------------------
  # IAM Role for EC2 (Session Manager接続に必要)
  # ----------------------------------------------------------
  EC2SSMRole:
    Type: AWS::IAM::Role
    Properties:
      RoleName: !Sub ${InstanceName}-ec2-ssm-role
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Principal:
              Service: ec2.amazonaws.com
            Action: sts:AssumeRole
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/AmazonSSMManagedInstanceCore
      Tags:
        - Key: Name
          Value: !Sub ${InstanceName}-ec2-ssm-role

  EC2InstanceProfile:
    Type: AWS::IAM::InstanceProfile
    Properties:
      InstanceProfileName: !Sub ${InstanceName}-ec2-instance-profile
      Roles:
        - !Ref EC2SSMRole

  # ----------------------------------------------------------
  # EC2 Instance
  # ----------------------------------------------------------
  EC2Instance:
    Type: AWS::EC2::Instance
    Properties:
      InstanceType: !Ref InstanceType
      # Amazon Linux 2023 kernel-6.1
      # SSMパラメータストア経由でリージョンに応じた最新AMIを自動取得
      ImageId: !Sub "{{resolve:ssm:/aws/service/ami-amazon-linux-latest/al2023-ami-kernel-6.1-x86_64}}"
      SubnetId: !Ref ExistingPrivateSubnetId
      IamInstanceProfile: !Ref EC2InstanceProfile
      SecurityGroupIds:
        - !Ref EC2SecurityGroup
      # キーペアなし（Session Managerで接続）
      BlockDeviceMappings:
        - DeviceName: /dev/xvda
          Ebs:
            VolumeSize: 8
            VolumeType: gp3
            DeleteOnTermination: true
      Tags:
        - Key: Name
          Value: !Ref InstanceName

# ============================================================
# Outputs
# ============================================================
Outputs:
  EC2InstanceId:
    Description: 作成されたEC2インスタンスのID
    Value: !Ref EC2Instance

  EC2SecurityGroupId:
    Description: EC2に適用されたセキュリティグループID
    Value: !Ref EC2SecurityGroup

  EC2SSMRoleArn:
    Description: EC2に割り当てたIAMロールのARN
    Value: !GetAtt EC2SSMRole.Arn

  SessionManagerCommand:
    Description: Session Managerで接続するコマンド（AWS CLI）
    Value: !Sub "aws ssm start-session --target ${EC2Instance}"

出来も最初に作った時と同じでイケており、パラメータを使う環境ごとに変えたら作れちゃいそう！

おわりに・まとめ

まずdraw.ioをベースに作れちゃうのが便利。
補足で出した指示もそこまで細かいものではなかったけど、東京リージョンに作ってくれたり、色々Claude側で補完してくれているのもグッド。

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
