milk-V Duo カメラのトラブルシューティング

Last updated at Posted at 2023-12-14

カメラを接続して、サンプルスクリプト CviIspTool.sh を動かします。

環境

  • milk-V Duo

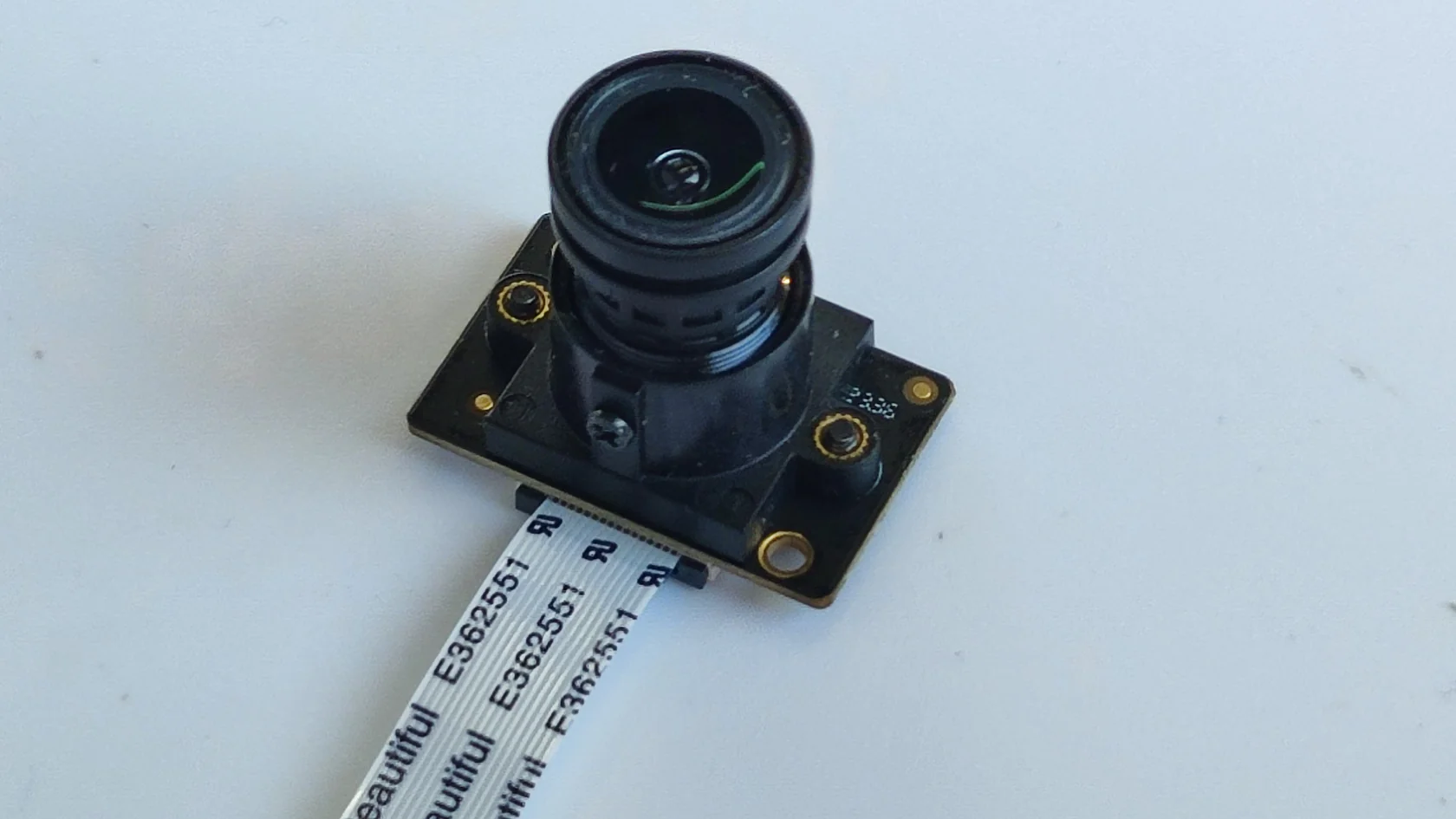

  • カメラ: CAM-GC2083


接続

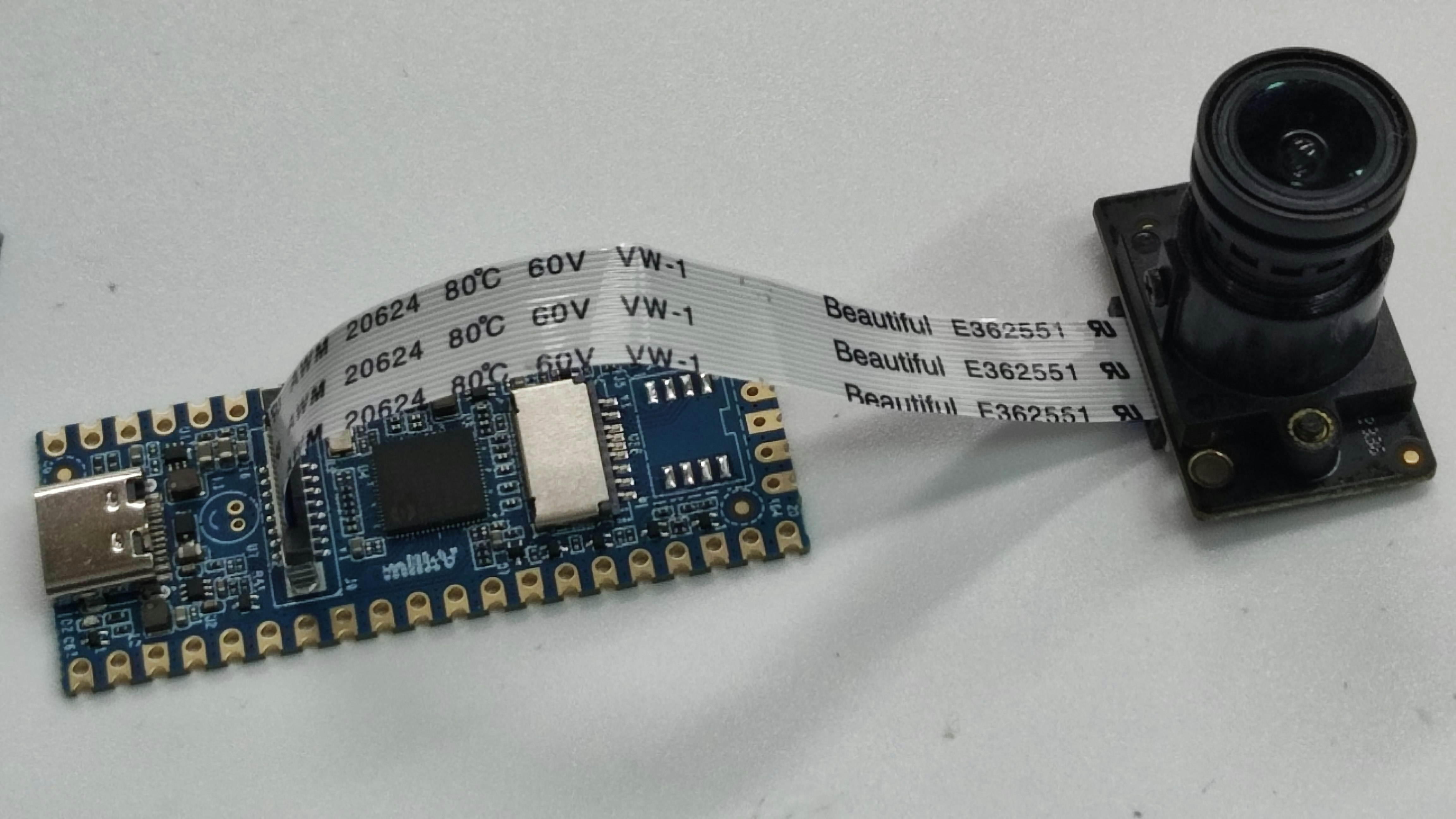

IMG_20231210_144500 (1).jpg

スクリプトの起動

root@milkv-duo]/mnt/data/install# ./CviIspTool.sh 64M
pin PAD_MIPIRX1P
func IIC1_SDA
register: 30010f0
value: 4
.
.
.

正常な反応

以下のように進んでいきます。

.
.
.
awbInit ver 6.7@10121100
0 R:1400 B:3100 CT:2850
1 R:1500 B:2500 CT:3900
2 R:2300 B:1600 CT:6500
Golden 1024 1024 1024
WB Quadratic:0
isWdr:0
ViPipe:0,===GC2083 1080P 30fps 10bit LINE Init OK!===
********************************************************************************
cvi_bin_isp message
gerritId:      36403          commitId:      c69c5863e
md5:           cab880835a2ad5184de5ed7762404b84
sensorNum      1
sensorName0    2083
.
.
.
[SAMPLE_COMM_ISP_Thread]-95: ISP Dev 0 running!
CVI_ISP_GetPubAttr Get FPS: 30.000000
VpssChn0 , Enable Vpss Grp: 0
VPSS init with src (1920, 1080) dst (1920, 1080).
CVI_VPSS_CreateGrp:0, s32Ret=0
rtsp://127.0.1.1:8554/stream0
prio:0
CVI_RTSP_SERVICE_CreateFromJsonFile[./cfg_64M.json]
connect: 192.168.42.138
[REMOTE] cvi_raw_dump_run,158: raw dump ready...
waiting for connect...

と続いていきます。

ケーブルが接続できていない

以下のようになったときは、ケーブルが接続できていません。

.
.
.

**** - venc_cfg.videoFormat:0
**** - venc_cfg.videoFullRangeFlag:0
**** - venc_cfg.colourDescriptionPresentFlag:0
enable online mode 1
ISP Vipipe(0) Allocate pa(0x83364000) va(0x0x3ff4b5d000) size(290968)
stSnsrMode.u16Width 1920 stSnsrMode.u16Height 1080 25.000000 wdrMode 0 pstSnsObj 0x3ff4fb7878
[SAMPLE_COMM_VI_StartMIPI]-483: sensor 0 stDevAttr.devno 0
vi init failed. s32Ret: 0xffffffff !
init vi fail
CVI_RTSP_SERVICE_CreateFromJsonFile fail -1
CVI_RTSP_SERVICE_CreateFromJsonFile[./cfg_64M.json]
[REMOTE] cvi_raw_dump_run,158: raw dump ready...
waiting for connect...

着目点

うまくいってないときには devno が取得できていません。

[SAMPLE_COMM_VI_StartMIPI]-483: sensor 0 stDevAttr.devno 0
