フットプリントエディターでパッドのリナンバー on KiCad7

Posted at

KiCadのフットプリントで、パッドをコピーしたのだけどパッド番号が同じになってしまう。


リナンバーはどうするんだったかな? 備忘録。

環境

KiCad7

操作

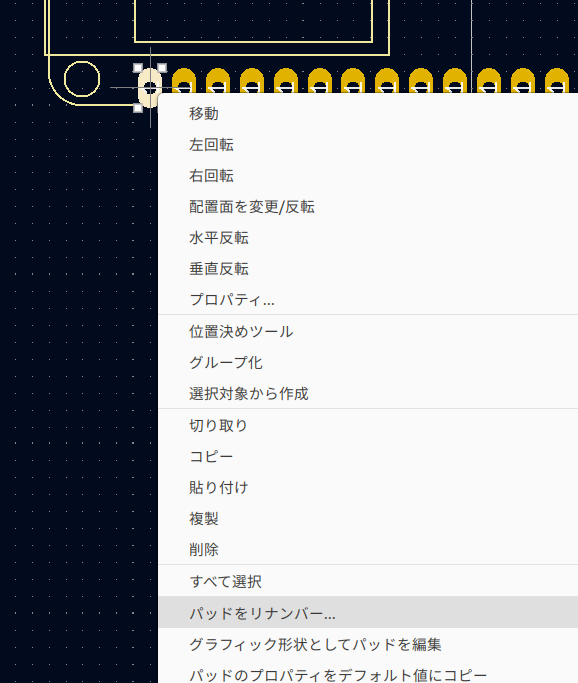

フットプリントエディターで、適当なパッドを右クリックで「パッドをリナンバー」

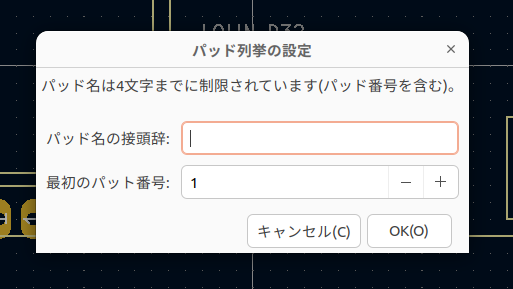

1番から順につけていくのなら得日変更せずに「OK」

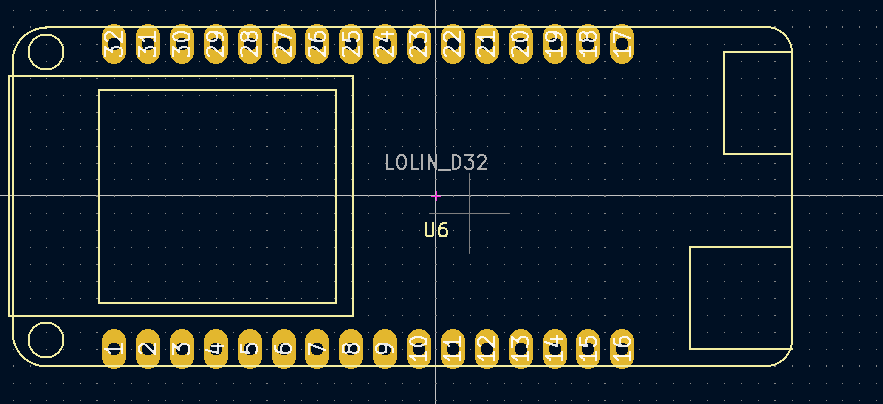

1番パッドから順にクリックしていきます。今回のような場合はマウスのボタンを押しっぱなしにしてドラッグが簡単!


ダブルクリックで確定します。
