[Junos] Circuit Cross-Connect(CCC)

Posted at

CCC とは

ざっくり

  • Multi-Protocol Label Switching(MPLS)を用いた Layer-2 tunneling
  • Ethernet で使用可能（今どきethernet/tcpip以外使ってるところってどこ...）
  • 遠隔地と同一IPセグメントを使用可能（L2スイッチの延長）
  • スター型トポロジーだけでなくリング型トポロジーにも適用可能
  • QoS環境下でも使用可能
  • 暗号化はしない
  • ユーザートラフィックをMPLS/CCCでカプセル化するためMTUの調整が必要
  • Layer-2技術のためtracerouteなどではトラシュができない（interface counterで判断する）

Juniperマニュアル

CCC、TCC、Ethernet over MPLSの設定 | Junos OS | Juniper Networks

CCC(回線クロスコネクト)を使用すると、2 つの回線間に透過的な接続を設定できます。回線は、フレームリレー データリンク接続識別子(DLCI)、非同期転送モード(ATM)仮想回線(VC)、ポイントツーポイント プロトコル(PPP)インターフェイス、Cisco HDLC(ハイレベル データ リンク制御)インターフェイス、または MPLS ラベルスイッチ パス(LSP)になります。CCCを使用すると、送信元回線からのパケットは、最大でレイヤー2アドレスが変更される状態で宛先回線に配信されます。ヘッダーチェックサム、TTL(Time-to-live)デクリメント、プロトコル処理など、その他の処理は行われません。

構成


通常のネットワークとは異なり、ルータ～スイッチ間で通信ケーブル（IEEE802.3準拠）を2本接続する必要があります。

LANケーブル：1000BASE-T, 1000BASE-TX, 100BASE-TX, etc...
光ケーブル：10GBASE-SR, 1000BASE-SX, 10GBASE-LR, 1000BASE-LX, 10GBASE-BX-U/D, etc...

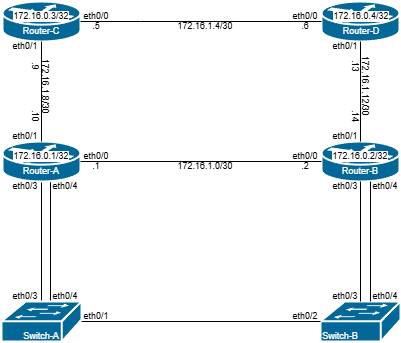

以下の設定例では Router-A eth0/4 と Router-B eth0/4 をL2-tunnelingで接続します。

Router-A～Router-B間のリンクが切れた場合用に Router-C, Router-D が存在していますが、冗長性考慮しない場合はなくても構いません。

CCCはあくまでL2-tunnelingのためループ対策などは別途行う必要があります。

設定例

IPアドレス帯

IPアドレス 用途
172.16.0.0/24 Loopback
172.16.1.0/24 ルータ間接続
172.17.101.0/24 VLAN101
172.17.102.0/24 VLAN102
172.17.103.0/24 VLAN103

VLAN(Virtual LAN)

VLAN番号 名前
101 vlan101
102 vlan102
103 vlan103

OSPF Cost

自動計算式

\displaylines{
Cost = \frac{10^8[bps]}{Bandwidth[bps]}
}

※100Mbps(100000000bps)基準となっている為、実際に使用する場合には手動設定される場合が多い。（小数点以下は扱えないため cost=1 となる）

Bandwidth 計算結果 実際の値
100Mbps 1 1
1000Mbps 0.1 1
10Gbps 0.01 1

今回は以下のようにした。（手動設定）

箇所 値
ルータ間 1
端末向け(VRRP Master側) 100
端末向け(VRRP Backup側) 110

Router-A

Details
interfaces lo0
set interfaces lo0 unit 0 family inet 172.16.0.1/32

注: family mplsは、個々のインターフェイスまたは集合型イーサネットインターフェイスのいずれかで有効にできます。タグ付き VLAN インターフェイスで有効にすることはできません。

interfaces eth0/0
set interfaces eth0/0 description "To Router-B eth0/0"
set interfaces eth0/0 unit 0 family inet 172.16.1.1/30
set interfaces eth0/0 unit 0 family mpls
interfaces eth0/1
set interfaces eth0/1 description "To Router-C eth0/1"
set interfaces eth0/1 unit 0 family inet 172.16.1.10/30
set interfaces eth0/1 unit 0 family mpls
interfaces eth0/2 (Option)
set interfaces eth0/2 shutdown
interfaces eth0/3
set interfaces eth0/3 description "To Switch-A eth0/3"
set interfaces eth0/3 vlan-tagging
set interfaces eth0/3 unit 0 family bridge interface-mode trunk
set interfaces eth0/3 unit 0 family bridge vlan-id-list 101-103
interfaces eth0/4
set interfaces eth0/4 description "To Switch-A eth0/4"
set interfaces eth0/4 vlan-tagging
set interfaces eth0/4 unit 101 encapsulation vlan-ccc
set interfaces eth0/4 unit 101 vlan-id 101
set interfaces eth0/4 unit 101 family ccc
set interfaces eth0/4 unit 102 encapsulation vlan-ccc
set interfaces eth0/4 unit 102 vlan-id 102
set interfaces eth0/4 unit 102 family ccc
set interfaces eth0/4 unit 103 encapsulation vlan-ccc
set interfaces eth0/4 unit 103 vlan-id 103
set interfaces eth0/4 unit 103 family ccc

下記は透過するVLANの数分記述します。

set interfaces eth0/4 unit {unit-number} encapsulation vlan-ccc
set interfaces eth0/4 unit {unit-number} vlan-id {vlan-number}
set interfaces eth0/4 unit {unit-number} family ccc

interfaces vlan
set interfaces irb unit 101 description vlan101
set interfaces irb unit 101 family inet address 172.17.101.2/24 vrrp-group 0 virtual-address 172.17.101.1
set interfaces irb unit 101 family inet address 172.17.101.2/24 vrrp-group 0 priority 128
set interfaces irb unit 101 family inet address 172.17.101.2/24 vrrp-group 0 accept-data
set interfaces irb unit 102 description vlan102
set interfaces irb unit 102 family inet address 172.17.102.2/24 vrrp-group 0 virtual-address 172.17.102.1
set interfaces irb unit 102 family inet address 172.17.102.2/24 vrrp-group 0 priority 128
set interfaces irb unit 102 family inet address 172.17.102.2/24 vrrp-group 0 accept-data
set interfaces irb unit 103 description vlan103
set interfaces irb unit 103 family inet address 172.17.103.2/24 vrrp-group 0 virtual-address 172.17.103.1
set interfaces irb unit 103 family inet address 172.17.103.2/24 vrrp-group 0 priority 128
set interfaces irb unit 103 family inet address 172.17.103.2/24 vrrp-group 0 accept-data
vlan
set bridge-domains vlan101 domain-type bridge
set bridge-domains vlan101 vlan-id 101
set bridge-domains vlan101 routing-interface irb.101
set bridge-domains vlan102 domain-type bridge
set bridge-domains vlan102 vlan-id 102
set bridge-domains vlan102 routing-interface irb.102
set bridge-domains vlan103 domain-type bridge
set bridge-domains vlan103 vlan-id 103
set bridge-domains vlan103 routing-interface irb.103
ospf
set protocols ospf area 0 interface lo0.0 passive
set protocols ospf area 0 interface eth0/0.0 interface-type p2p
set protocols ospf area 0 interface eth0/0.0 metric 1
set protocols ospf area 0 interface eth0/1.0 interface-type p2p
set protocols ospf area 0 interface eth0/1.0 metric 1
set protocols ospf area 1 interface irb.101 passive
set protocols ospf area 1 interface irb.101 metric 100
set protocols ospf area 1 interface irb.102 passive
set protocols ospf area 1 interface irb.102 metric 100
set protocols ospf area 1 interface irb.103 passive
set protocols ospf area 1 interface irb.103 metric 100
mpls
set protocols ldp interface eth0/0.0
set protocols ldp interface eth0/1.0

set protocols rsvp interface eth0/0.0
set protocols rsvp interface eth0/1.0

set protocols mpls no-cspf
set protocols mpls interface eth0/0.0
set protocols mpls interface eth0/1.0

set protocols mpls path RouterA-to-RouterB_Pri 172.16.1.2 strict
set protocols mpls path RouterA-to-RouterB_Sec 172.16.1.9 strict
set protocols mpls path RouterA-to-RouterB_Sec 172.16.1.6 strict
set protocols mpls path RouterA-to-RouterB_Sec 172.16.1.14 strict
set protocols mpls path RouterA-to-RouterB_Lst

set protocols mpls label-switched-path RouterA-to-RouterB_101 from 172.16.0.1
set protocols mpls label-switched-path RouterA-to-RouterB_101 to 172.16.0.2
set protocols mpls label-switched-path RouterA-to-RouterB_101 primary RouterA-to-RouterB_Pri
set protocols mpls label-switched-path RouterA-to-RouterB_101 secondary RouterA-to-RouterB_Sec standby
set protocols mpls label-switched-path RouterA-to-RouterB_101 secondary RouterA-to-RouterB_Lst
set protocols mpls label-switched-path RouterA-to-RouterB_102 from 172.16.0.1
set protocols mpls label-switched-path RouterA-to-RouterB_102 to 172.16.0.2
set protocols mpls label-switched-path RouterA-to-RouterB_102 primary RouterA-to-RouterB_Pri
set protocols mpls label-switched-path RouterA-to-RouterB_102 secondary RouterA-to-RouterB_Sec standby
set protocols mpls label-switched-path RouterA-to-RouterB_102 secondary RouterA-to-RouterB_Lst
set protocols mpls label-switched-path RouterA-to-RouterB_103 from 172.16.0.1
set protocols mpls label-switched-path RouterA-to-RouterB_103 to 172.16.0.2
set protocols mpls label-switched-path RouterA-to-RouterB_103 primary RouterA-to-RouterB_Pri
set protocols mpls label-switched-path RouterA-to-RouterB_103 secondary RouterA-to-RouterB_Sec standby
set protocols mpls label-switched-path RouterA-to-RouterB_103 secondary RouterA-to-RouterB_Lst

注: CSPF は、ネットワーク全体の最短パスが計算される場合に、特定の制限を考慮するために変更された最短パスファースト アルゴリズです。リンク保護がエリア間パスで正しく機能するためには、CSPF を無効にする必要があります。

ccc
set protocols connections remote-interface-switch To-RouterB_101 interface eth0/4.101
set protocols connections remote-interface-switch To-RouterB_101 transmit-lsp RouterA-to-RouterB_101
set protocols connections remote-interface-switch To-RouterB_101 receive-lsp RouterB-to-RouterA_101
set protocols connections remote-interface-switch To-RouterB_102 interface eth0/4.102
set protocols connections remote-interface-switch To-RouterB_102 transmit-lsp RouterA-to-RouterB_102
set protocols connections remote-interface-switch To-RouterB_102 receive-lsp RouterB-to-RouterA_102
set protocols connections remote-interface-switch To-RouterB_103 interface eth0/4.103
set protocols connections remote-interface-switch To-RouterB_103 transmit-lsp RouterA-to-RouterB_103
set protocols connections remote-interface-switch To-RouterB_103 receive-lsp RouterB-to-RouterA_103

Router-B

Details
interfaces lo0
set interfaces lo0 unit 0 family inet 172.16.0.2/32
interfaces eth0/0
set interfaces eth0/0 description "To Router-A eth0/0"
set interfaces eth0/0 unit 0 family inet 172.16.1.2/30
set interfaces eth0/0 unit 0 family mpls
interfaces eth0/1
set interfaces eth0/1 description "To Router-D eth0/1"
set interfaces eth0/1 unit 0 family inet 172.16.1.14/30
set interfaces eth0/1 unit 0 family mpls
interfaces eth0/2 (Option)
set interfaces eth0/2 shutdown
interfaces eth0/3
set interfaces eth0/3 description "To Switch-B eth0/3"
set interfaces eth0/3 vlan-tagging
set interfaces eth0/3 unit 0 family bridge interface-mode trunk
set interfaces eth0/3 unit 0 family bridge vlan-id-list 101-103
interfaces eth0/4
set interfaces eth0/4 description "To Switch-B eth0/4"
set interfaces eth0/4 vlan-tagging
set interfaces eth0/4 unit 101 encapsulation vlan-ccc
set interfaces eth0/4 unit 101 vlan-id 101
set interfaces eth0/4 unit 101 family ccc
set interfaces eth0/4 unit 102 encapsulation vlan-ccc
set interfaces eth0/4 unit 102 vlan-id 102
set interfaces eth0/4 unit 102 family ccc
set interfaces eth0/4 unit 103 encapsulation vlan-ccc
set interfaces eth0/4 unit 103 vlan-id 103
set interfaces eth0/4 unit 103 family ccc
interfaces vlan
set interfaces irb unit 101 description vlan101
set interfaces irb unit 101 family inet address 172.17.101.3/24 vrrp-group 0 virtual-address 172.17.101.1
set interfaces irb unit 101 family inet address 172.17.101.3/24 vrrp-group 0 priority 64
set interfaces irb unit 101 family inet address 172.17.101.3/24 vrrp-group 0 accept-data
set interfaces irb unit 102 description vlan102
set interfaces irb unit 102 family inet address 172.17.102.3/24 vrrp-group 0 virtual-address 172.17.102.1
set interfaces irb unit 102 family inet address 172.17.102.3/24 vrrp-group 0 priority 64
set interfaces irb unit 102 family inet address 172.17.102.3/24 vrrp-group 0 accept-data
set interfaces irb unit 103 description vlan103
set interfaces irb unit 103 family inet address 172.17.103.3/24 vrrp-group 0 virtual-address 172.17.103.1
set interfaces irb unit 103 family inet address 172.17.103.3/24 vrrp-group 0 priority 64
set interfaces irb unit 103 family inet address 172.17.103.3/24 vrrp-group 0 accept-data
vlan
set bridge-domains vlan101 domain-type bridge
set bridge-domains vlan101 vlan-id 101
set bridge-domains vlan101 routing-interface irb.101
set bridge-domains vlan102 domain-type bridge
set bridge-domains vlan102 vlan-id 102
set bridge-domains vlan102 routing-interface irb.102
set bridge-domains vlan103 domain-type bridge
set bridge-domains vlan103 vlan-id 103
set bridge-domains vlan103 routing-interface irb.103
ospf
set protocols ospf area 0 interface lo0.0 passive
set protocols ospf area 0 interface eth0/0.0 interface-type p2p
set protocols ospf area 0 interface eth0/0.0 metric 1
set protocols ospf area 0 interface eth0/1.0 interface-type p2p
set protocols ospf area 0 interface eth0/1.0 metric 1
set protocols ospf area 1 interface irb.101 passive
set protocols ospf area 1 interface irb.101 metric 110
set protocols ospf area 1 interface irb.102 passive
set protocols ospf area 1 interface irb.102 metric 110
set protocols ospf area 1 interface irb.103 passive
set protocols ospf area 1 interface irb.103 metric 110
mpls
set protocols ldp interface eth0/0.0
set protocols ldp interface eth0/1.0

set protocols rsvp interface eth0/0.0
set protocols rsvp interface eth0/1.0

set protocols mpls no-cspf
set protocols mpls interface eth0/0.0
set protocols mpls interface eth0/1.0

set protocols mpls path RouterB-to-RouterA_Pri 172.16.1.1 strict
set protocols mpls path RouterB-to-RouterA_Sec 172.16.1.13 strict
set protocols mpls path RouterB-to-RouterA_Sec 172.16.1.5 strict
set protocols mpls path RouterB-to-RouterA_Sec 172.16.1.10 strict
set protocols mpls path RouterB-to-RouterA_Lst

set protocols mpls label-switched-path RouterB-to-RouterA_101 from 172.16.0.2
set protocols mpls label-switched-path RouterB-to-RouterA_101 to 172.16.0.1
set protocols mpls label-switched-path RouterB-to-RouterA_101 primary RouterB-to-RouterA_Pri
set protocols mpls label-switched-path RouterB-to-RouterA_101 secondary RouterB-to-RouterA_Sec standby
set protocols mpls label-switched-path RouterB-to-RouterA_101 secondary RouterB-to-RouterA_Lst
set protocols mpls label-switched-path RouterB-to-RouterA_102 from 172.16.0.2
set protocols mpls label-switched-path RouterB-to-RouterA_102 to 172.16.0.1
set protocols mpls label-switched-path RouterB-to-RouterA_102 primary RouterB-to-RouterA_Pri
set protocols mpls label-switched-path RouterB-to-RouterA_102 secondary RouterB-to-RouterA_Sec standby
set protocols mpls label-switched-path RouterB-to-RouterA_102 secondary RouterB-to-RouterA_Lst
set protocols mpls label-switched-path RouterB-to-RouterA_103 from 172.16.0.2
set protocols mpls label-switched-path RouterB-to-RouterA_103 to 172.16.0.1
set protocols mpls label-switched-path RouterB-to-RouterA_103 primary RouterB-to-RouterA_Pri
set protocols mpls label-switched-path RouterB-to-RouterA_103 secondary RouterB-to-RouterA_Sec standby
set protocols mpls label-switched-path RouterB-to-RouterA_103 secondary RouterB-to-RouterA_Lst
ccc
set protocols connections remote-interface-switch To-RouterA_101 interface eth0/4.101
set protocols connections remote-interface-switch To-RouterA_101 transmit-lsp RouterB-to-RouterA_101
set protocols connections remote-interface-switch To-RouterA_101 receive-lsp RouterA-to-RouterB_101
set protocols connections remote-interface-switch To-RouterA_102 interface eth0/4.102
set protocols connections remote-interface-switch To-RouterA_102 transmit-lsp RouterB-to-RouterA_102
set protocols connections remote-interface-switch To-RouterA_102 receive-lsp RouterA-to-RouterB_102
set protocols connections remote-interface-switch To-RouterA_103 interface eth0/4.103
set protocols connections remote-interface-switch To-RouterA_103 transmit-lsp RouterB-to-RouterA_103
set protocols connections remote-interface-switch To-RouterA_103 receive-lsp RouterA-to-RouterB_103

Router-C

Details
interfaces lo0
set interfaces lo0 unit 0 family inet 172.16.0.3/32
interfaces eth0/0
set interfaces eth0/0 description "To Router-D eth0/0"
set interfaces eth0/0 unit 0 family inet 172.16.1.5/30
set interfaces eth0/0 unit 0 family mpls
interfaces eth0/1
set interfaces eth0/1 description "To Router-A eth0/1"
set interfaces eth0/1 unit 0 family inet 172.16.1.9/30
set interfaces eth0/1 unit 0 family mpls
interfaces eth0/2 (Option)
set interfaces eth0/2 shutdown
interfaces eth0/3 (Option)
set interfaces eth0/3 shutdown
interfaces eth0/4 (Option)
set interfaces eth0/4 shutdown
ospf
set protocols ospf area 0 interface lo0.0 passive
set protocols ospf area 0 interface eth0/0.0 interface-type p2p
set protocols ospf area 0 interface eth0/0.0 metric 1
set protocols ospf area 0 interface eth0/1.0 interface-type p2p
set protocols ospf area 0 interface eth0/1.0 metric 1
mpls
set protocols ldp interface eth0/0.0
set protocols ldp interface eth0/1.0

set protocols rsvp interface eth0/0.0
set protocols rsvp interface eth0/1.0

set protocols mpls no-cspf
set protocols mpls interface eth0/0.0
set protocols mpls interface eth0/1.0

Router-D

Details
interfaces lo0
set interfaces lo0 unit 0 family inet 172.16.0.4/32
interfaces eth0/0
set interfaces eth0/0 description "To Router-C eth0/0"
set interfaces eth0/0 unit 0 family inet 172.16.1.6/30
set interfaces eth0/0 unit 0 family mpls
interfaces eth0/1
set interfaces eth0/1 description "To Router-B eth0/1"
set interfaces eth0/1 unit 0 family inet 172.16.1.13/30
set interfaces eth0/1 unit 0 family mpls
interfaces eth0/2 (Option)
set interfaces eth0/2 shutdown
interfaces eth0/3 (Option)
set interfaces eth0/3 shutdown
interfaces eth0/4 (Option)
set interfaces eth0/4 shutdown
ospf
set protocols ospf area 0 interface lo0.0 passive
set protocols ospf area 0 interface eth0/0.0 interface-type p2p
set protocols ospf area 0 interface eth0/0.0 metric 1
set protocols ospf area 0 interface eth0/1.0 interface-type p2p
set protocols ospf area 0 interface eth0/1.0 metric 1
mpls
set protocols ldp interface eth0/0.0
set protocols ldp interface eth0/1.0

set protocols rsvp interface eth0/0.0
set protocols rsvp interface eth0/1.0

set protocols mpls no-cspf
set protocols mpls interface eth0/0.0
set protocols mpls interface eth0/1.0

確認コマンド

コマンド 確認可能ノード 備考
show configuration all 設定情報
show configuration | display set all 設定情報をset形式で出力
show configuration | display json all 設定情報をjson形式で出力
show interfaces terse all ciscoのshow ip interface brief
show interfaces all interfaceの様々な情報を出す
更に細かく見る場合はdetailや extensiveを末尾に加える
show vrrp Router-A, Router-B VRRP status
現在のMaster/Backup状態が確認可能
show vrrp | match lcl Router-A, Router-B 1行1件にして表のようにする（Virtual IPやMasterのIPアドレスは非表示）
show ldp neighbor Router-A, Router-B LDP neighbor status
show rsvp neighbor Router-A, Router-B RSVP neighbor status
show mpls lsp Router-A, Router-B MPLS LSP status
Router-C, Router-D でも確認は可能(egressとして表示される)
show mpls lsp detail name RouterA-to-RouterB_101 Router-A MPLS LSP status
show mpls lsp detail name RouterA-to-RouterB_102 Router-A MPLS LSP status
show mpls lsp detail name RouterA-to-RouterB_103 Router-A MPLS LSP status
show mpls lsp detail name RouterB-to-RouterA_101 Router-B MPLS LSP status
show mpls lsp detail name RouterB-to-RouterA_102 Router-B MPLS LSP status
show mpls lsp detail name RouterB-to-RouterA_103 Router-B MPLS LSP status
show connections Router-A, Router-B CCC Connectivity status
ステータスで->とか<-になってる場合はコンフィグ見直したほうがいい
show connections brief Router-A, Router-B CCC Connectivity status
show connections To-RouterB_101 Router-A CCC Connectivity status
show connections To-RouterB_102 Router-A CCC Connectivity status
show connections To-RouterB_103 Router-A CCC Connectivity status
show connections To-RouterA_101 Router-B CCC Connectivity status
show connections To-RouterA_102 Router-B CCC Connectivity status
show connections To-RouterA_103 Router-B CCC Connectivity status

サンプル出力

show mpls lsp

Ingress LSP: 3 sessions
To              From            State Rt P     ActivePath       LSPname
172.16.0.2      172.16.0.1      Up     0 *     RouterA-to-RouterB_Pri RouterA-to-RouterB_101
172.16.0.2      172.16.0.1      Up     0 *     RouterA-to-RouterB_Pri RouterA-to-RouterB_102
172.16.0.2      172.16.0.1      Up     0 *     RouterA-to-RouterB_Pri RouterA-to-RouterB_103

show mpls lsp detail name RouterA-to-RouterB_101

172.16.0.2
  From: 172.16.0.1, State: Up, ActiveRoute: 0, LSPname: RouterA-to-RouterB_101, LSPid: xx
  ActivePath: RouterA-to-RouterB_Pri (primary)
  LSPtype: Static Configured, Penultimate hop popping
  LoadBalance: Random
  Follow destination IGP metric
  Encoding type: Packet, Switching type: Packet, GPID: IPv4
  LSP Self-ping Status : Not-Supported
 *Primary   RouterA-to-RouterB_Pri State: Up
    Priorities: 7 0
    SmartOptimizeTimer: 180
    Flap Count: 5
    MBB Count: 0
    Received RRO (ProtectionFlag 1=Available 2=InUse 4=B/W 8=Node 10=SoftPreempt 20=Node-ID):
          172.16.0.2(Label=xx)
  Secondary RouterA-to-RouterB_Lst State: Dn
    Priorities: 7 0
    SmartOptimizeTimer: 180
    Flap Count: 4
    MBB Count: 0
   34 Jun 28 10:00:00.000 Clear Call
  Standby   RouterA-to-RouterB_Sec State: Up
    Priorities: 7 0
    SmartOptimizeTimer: 180
    Flap Count: 6
    MBB Count: 0
    Received RRO (ProtectionFlag 1=Available 2=InUse 4=B/W 8=Node 10=SoftPreempt 20=Node-ID):
          172.16.0.9(Label=xx) 172.16.0.6(Label=xx) 172.16.0.14(Label=xx)

show connections brief

CCC and TCC connections [Link Monitoring On]
Legend for status (St):             Legend for connection types:
 UN -- uninitialized                 if-sw:  interface switching
 NP -- not present                   rmt-if: remote interface switching
 WE -- wrong encapsulation           lsp-sw: LSP switching
 DS -- disabled                      tx-p2mp-sw: transmit P2MP switching
 Dn -- down                          rx-p2mp-sw: receive P2MP switching
 -> -- only outbound conn is up     Legend for circuit types:
 <- -- only inbound  conn is up      intf -- interface
 Up -- operational                   oif  -- outgoing interface
 RmtDn -- remote CCC down            tlsp -- transmit LSP
 Restart -- restarting               rlsp -- receive LSP


Connection/Circuit                Type        St      Time last up     # Up trans
To-RouterB_101                    rmt-if      Up      Jun 28 10:30:00           2
To-RouterB_102                    rmt-if      Up      Jun 28 10:30:00           2
To-RouterB_103                    rmt-if      Up      Jun 28 10:30:00           2

誤り・誤記・不備などあればコメント欄へお願いします。
実際に試して動いたものを抜粋して持ってきているので、一部漏れていたらすみませぬ( ๑╹⌓╹ )ﾉｼ

実際に業務ネットワークなどに組み込む場合は十分評価検証してから実装してください。
どうしてもわからない場合はケースをJuniperに投げて公式見解もらってください。
この記事のやつはとりあえず動いたものです。
予期しない出来事が発生しても責任取りません。

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
