kotlinでSQLite データベース 使い方

Last updated at Posted at 2020-05-14

kotlinでSQLite データベース 使い方

以下の手順となります。

・プロジェクト作成
・レイアウトデザイン作成
・DatabaseHandler作る
・Model クラス作る
・データ追加、更新、削除機能作る

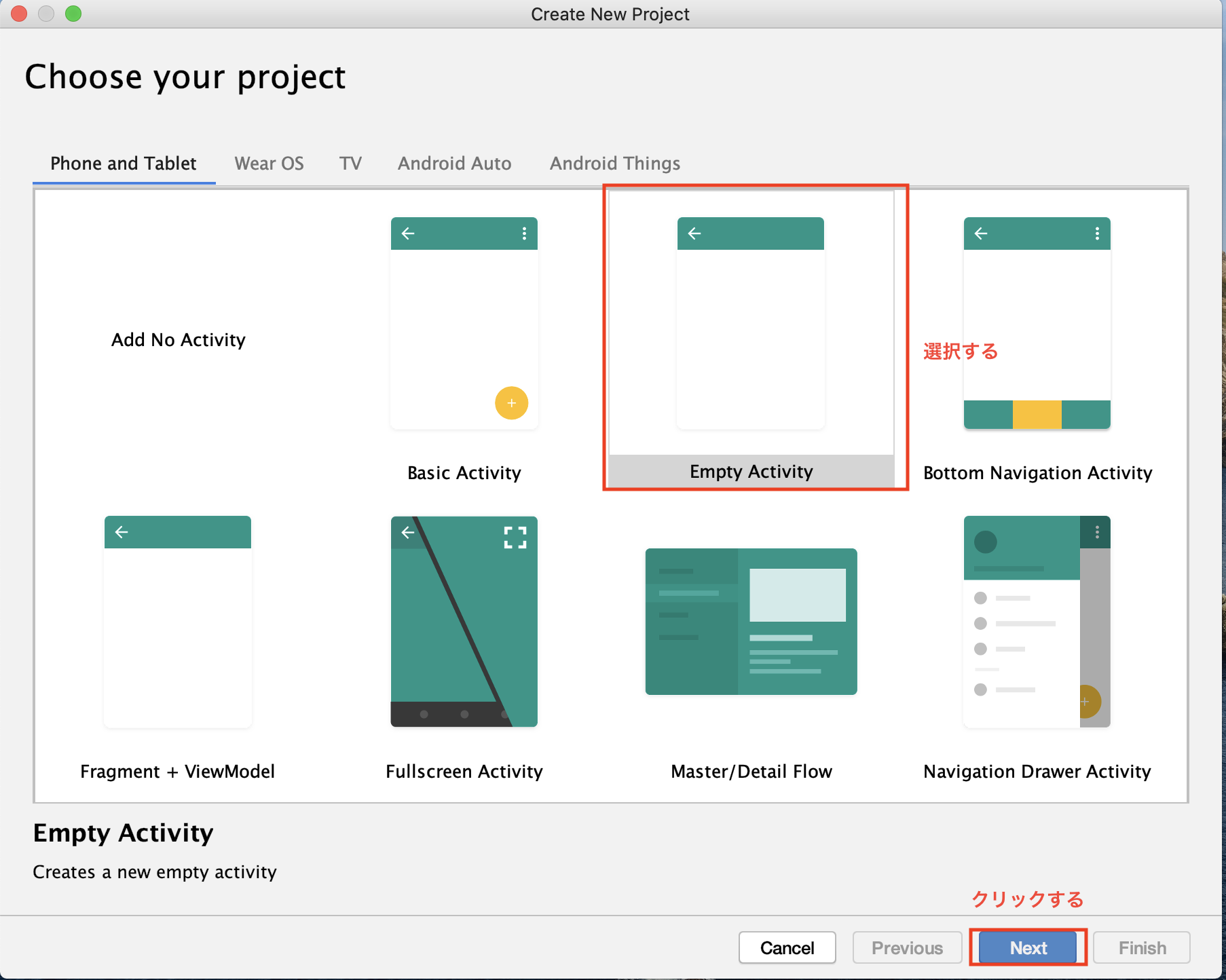

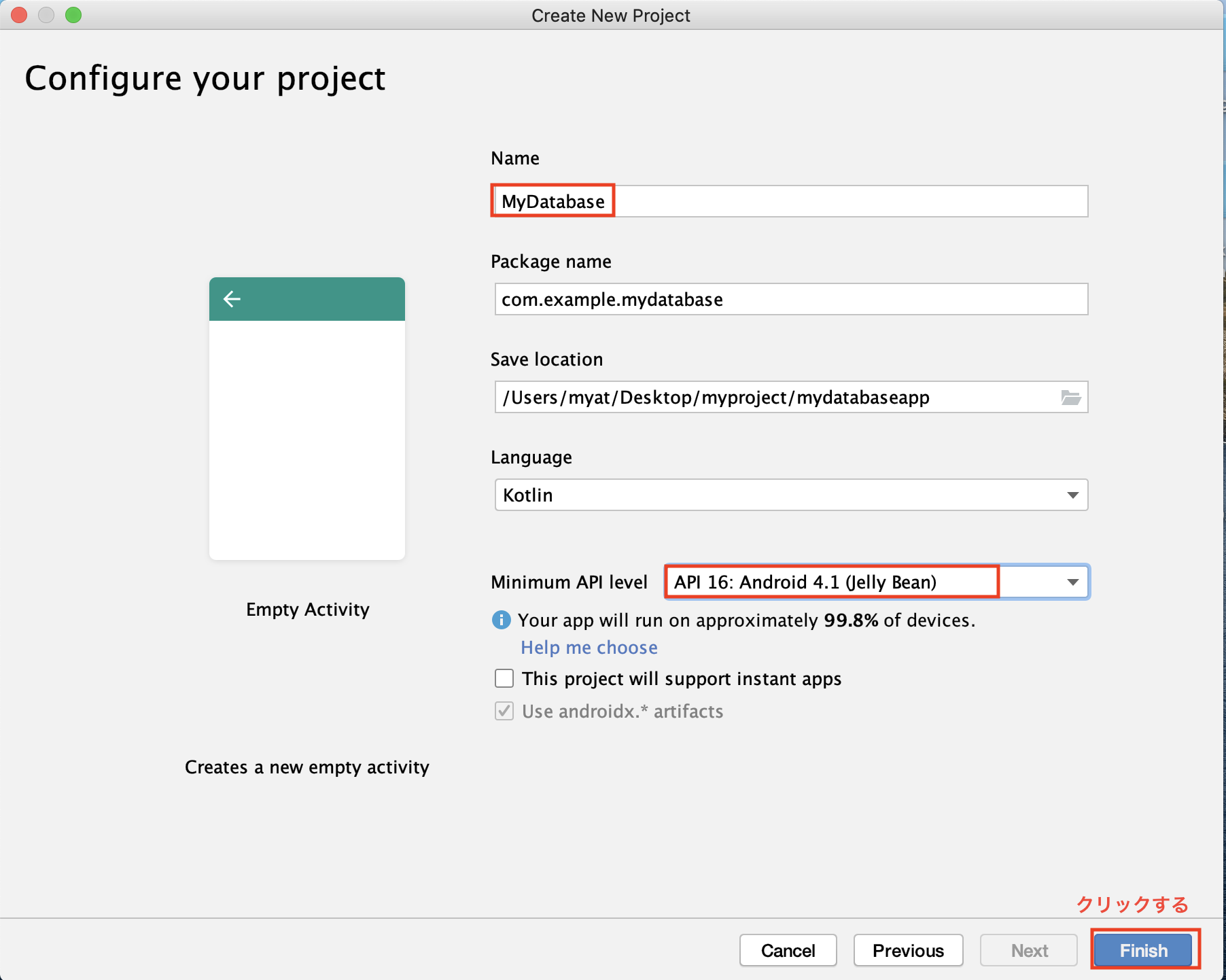

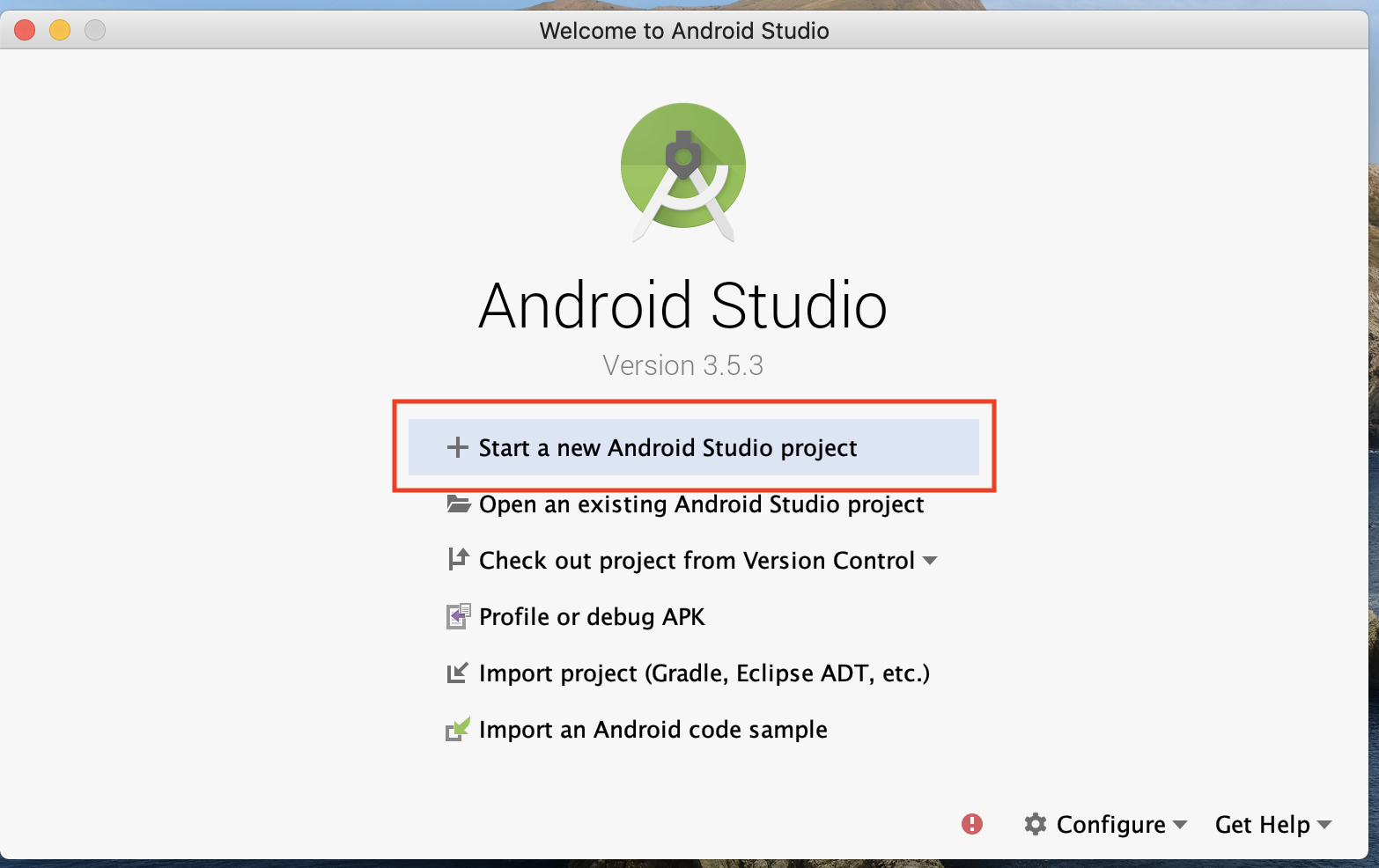

プロジェクト作成


レイアウトデザイン作成

activity_mainでデザイン作成
・ボタンのonClickイベント作る【保存,表示,更新,削除】
・データ表示listview作る

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_marginBottom="8dp"
    android:layout_marginEnd="8dp"
    android:layout_marginStart="8dp"
    android:layout_marginTop="8dp"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <TableLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <TableRow>
            <TextView
                android:text="User Id"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_column="1" />

            <EditText

                android:id="@+id/u_id"
                android:layout_width="200dp"
                android:layout_height="wrap_content"
                android:layout_marginLeft="20sp"
                android:layout_marginStart="20sp"
                android:width="150px" />
        </TableRow>
        <TableRow>
            <TextView
                android:text="User Name"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_column="1" />

            <EditText
                android:id="@+id/u_name"
                android:width="200dp"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_column="2"
                android:layout_marginStart="20sp"
                android:layout_marginLeft="20sp"/>
        </TableRow>

        <TableRow>

            <TextView
                android:text="User Email"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_column="1" />

            <EditText
                android:id="@+id/u_email"
                android:width="200dp"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_column="2"
                android:layout_marginStart="20sp"
                android:layout_marginLeft="20sp" />
        </TableRow>

    </TableLayout>
    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="350sp"
        android:layout_marginTop="20sp">
        <ListView
            android:id="@+id/listView"
            android:layout_width="wrap_content"
            android:layout_height="350sp"/>
    </LinearLayout>
    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginTop="40sp"
        android:orientation="horizontal"
        android:layout_gravity="center">
        <Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Save"
            android:onClick="saveRecord"/>
        <Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="View"
            android:onClick="viewRecord"/>
        <Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Update"
            android:onClick="updateRecord"/>
        <Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Delete"
            android:onClick="deleteRecord"/>
    </LinearLayout>
</LinearLayout>

DatabaseHandler作る

package com.example.mydatabase
import android.content.Context
import android.database.sqlite.SQLiteDatabase
import android.database.sqlite.SQLiteOpenHelper
import android.content.ContentValues
import android.database.Cursor
import android.database.sqlite.SQLiteException

//creating the database logic, extending the SQLiteOpenHelper base class
class DatabaseHandler(context: Context): SQLiteOpenHelper(context,DATABASE_NAME,null,DATABASE_VERSION) {
    companion object {
        private val DATABASE_VERSION = 1
        private val DATABASE_NAME = "EmployeeDatabase"
        private val TABLE_CONTACTS = "EmployeeTable"
        private val KEY_ID = "id"
        private val KEY_NAME = "name"
        private val KEY_EMAIL = "email"
    }
    override fun onCreate(db: SQLiteDatabase?) {
        // TODO("not implemented") //To change body of created functions use File | Settings | File Templates.
        //creating table with fields
        val CREATE_CONTACTS_TABLE = ("CREATE TABLE " + TABLE_CONTACTS + "("
                + KEY_ID + " INTEGER PRIMARY KEY," + KEY_NAME + " TEXT,"
                + KEY_EMAIL + " TEXT" + ")")
        db?.execSQL(CREATE_CONTACTS_TABLE)
    }

    override fun onUpgrade(db: SQLiteDatabase?, oldVersion: Int, newVersion: Int) {
        //  TODO("not implemented") //To change body of created functions use File | Settings | File Templates.
        db!!.execSQL("DROP TABLE IF EXISTS " + TABLE_CONTACTS)
        onCreate(db)
    }
}

Model クラス作る

package com.example.mydatabase
//creating a Data Model Class
class EmpModelClass (var userId: Int, val userName:String , val userEmail: String)

データ追加、更新、削除機能作る

MainActivityでボタンonClickメソットを実装
DatabaseHandlerでデータベースやり取り実装

SAVEボタン

activity_main.xml

 <Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Save"
            android:onClick="saveRecord"/>

MainActivity.kt

fun saveRecord(view: View){
        val id = u_id.text.toString()
        val name = u_name.text.toString()
        val email = u_email.text.toString()
        val databaseHandler: DatabaseHandler= DatabaseHandler(this)
        if(id.trim()!="" && name.trim()!="" && email.trim()!=""){
            val status = databaseHandler.addEmployee(EmpModelClass(Integer.parseInt(id),name, email))
            if(status > -1){
                Toast.makeText(applicationContext,"record save",Toast.LENGTH_LONG).show()
                u_id.text.clear()
                u_name.text.clear()
                u_email.text.clear()
            }
        }else{
            Toast.makeText(applicationContext,"id or name or email cannot be blank",Toast.LENGTH_LONG).show()
        }

    }

DatabaseHandler.kt

    fun addEmployee(emp: EmpModelClass):Long{
        val db = this.writableDatabase
        val contentValues = ContentValues()
        contentValues.put(KEY_ID, emp.userId)
        contentValues.put(KEY_NAME, emp.userName)
        contentValues.put(KEY_EMAIL,emp.userEmail )
        // Inserting Row
        val success = db.insert(TABLE_CONTACTS, null, contentValues)
        //2nd argument is String containing nullColumnHack
        db.close() // Closing database connection
        return success
    }

VIEWボタン

activity_main.xml

<Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="View"
            android:onClick="viewRecord"/>

MainActivity.kt

fun viewRecord(view: View){
        //creating the instance of DatabaseHandler class
        val databaseHandler: DatabaseHandler= DatabaseHandler(this)
        //calling the viewEmployee method of DatabaseHandler class to read the records
        val emp: List<EmpModelClass> = databaseHandler.viewEmployee()
        val empArrayId = Array<String>(emp.size){"0"}
        val empArrayName = Array<String>(emp.size){"null"}
        val empArrayEmail = Array<String>(emp.size){"null"}
        var index = 0
        for(e in emp){
            empArrayId[index] = e.userId.toString()
            empArrayName[index] = e.userName
            empArrayEmail[index] = e.userEmail
            index++
        }
        //creating custom ArrayAdapter
        val myListAdapter = MyListAdapter(this,empArrayId,empArrayName,empArrayEmail)
        listView.adapter = myListAdapter
    }

DatabaseHandler.kt

fun viewEmployee():List<EmpModelClass>{
        val empList:ArrayList<EmpModelClass> = ArrayList<EmpModelClass>()
        val selectQuery = "SELECT  * FROM $TABLE_CONTACTS"
        val db = this.readableDatabase
        var cursor: Cursor? = null
        try{
            cursor = db.rawQuery(selectQuery, null)
        }catch (e: SQLiteException) {
            db.execSQL(selectQuery)
            return ArrayList()
        }
        var userId: Int
        var userName: String
        var userEmail: String
        if (cursor.moveToFirst()) {
            do {
                userId = cursor.getInt(cursor.getColumnIndex("id"))
                userName = cursor.getString(cursor.getColumnIndex("name"))
                userEmail = cursor.getString(cursor.getColumnIndex("email"))
                val emp= EmpModelClass(userId = userId, userName = userName, userEmail = userEmail)
                empList.add(emp)
            } while (cursor.moveToNext())
        }
        return empList
    }

MyListAdapter.kt

package com.example.mydatabase

import android.app.Activity
import android.view.View
import android.view.ViewGroup
import android.widget.ArrayAdapter
import android.widget.TextView

class MyListAdapter(private val context: Activity, private val id: Array<String>, private val name: Array<String>, private val email: Array<String>)
    : ArrayAdapter<String>(context, R.layout.custom_list, name) {

    override fun getView(position: Int, view: View?, parent: ViewGroup): View {
        val inflater = context.layoutInflater
        val rowView = inflater.inflate(R.layout.custom_list, null, true)

        val idText = rowView.findViewById(R.id.textViewId) as TextView
        val nameText = rowView.findViewById(R.id.textViewName) as TextView
        val emailText = rowView.findViewById(R.id.textViewEmail) as TextView

        idText.text = "Id: ${id[position]}"
        nameText.text = "Name: ${name[position]}"
        emailText.text = "Email: ${email[position]}"
        return rowView
    }
}

custom_list.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical" android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:id="@+id/linearLayout">

    <TextView
        android:id="@+id/textViewId"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Id"
        android:textAppearance="@style/Base.TextAppearance.AppCompat.Medium"/>

    <TextView
        android:id="@+id/textViewName"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Name"
        android:textAppearance="@style/Base.TextAppearance.AppCompat.Medium"/>

    <TextView
        android:id="@+id/textViewEmail"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Email"
        android:textAppearance="@style/Base.TextAppearance.AppCompat.Medium"/>
</LinearLayout>

UPDATEボタン

activity_main.xml

<Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Update"
            android:onClick="updateRecord"/>

MainActivity.kt

fun updateRecord(view: View){
        val dialogBuilder = AlertDialog.Builder(this)
        val inflater = this.layoutInflater
        val dialogView = inflater.inflate(R.layout.update_dialog, null)
        dialogBuilder.setView(dialogView)

        val edtId = dialogView.findViewById(R.id.updateId) as EditText
        val edtName = dialogView.findViewById(R.id.updateName) as EditText
        val edtEmail = dialogView.findViewById(R.id.updateEmail) as EditText

        dialogBuilder.setTitle("Update Record")
        dialogBuilder.setMessage("Enter data below")
        dialogBuilder.setPositiveButton("Update", DialogInterface.OnClickListener { _, _ ->

            val updateId = edtId.text.toString()
            val updateName = edtName.text.toString()
            val updateEmail = edtEmail.text.toString()
            //creating the instance of DatabaseHandler class
            val databaseHandler: DatabaseHandler= DatabaseHandler(this)
            if(updateId.trim()!="" && updateName.trim()!="" && updateEmail.trim()!=""){
                //calling the updateEmployee method of DatabaseHandler class to update record
                val status = databaseHandler.updateEmployee(EmpModelClass(Integer.parseInt(updateId),updateName, updateEmail))
                if(status > -1){
                    Toast.makeText(applicationContext,"record update",Toast.LENGTH_LONG).show()
                }
            }else{
                Toast.makeText(applicationContext,"id or name or email cannot be blank",Toast.LENGTH_LONG).show()
            }

        })
        dialogBuilder.setNegativeButton("Cancel", DialogInterface.OnClickListener { dialog, which ->
            //pass
        })
        val b = dialogBuilder.create()
        b.show()
    }

update_dialog.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:padding="10dp"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <EditText
        android:id="@+id/updateId"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:ems="10"
        android:hint="enter id" />

    <EditText
        android:id="@+id/updateName"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:ems="10"
        android:hint="enter name"/>

    <EditText
        android:id="@+id/updateEmail"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:ems="10"
        android:hint="enter email"/>
</LinearLayout>

DatabaseHandler.kt

fun updateEmployee(emp: EmpModelClass):Int{
        val db = this.writableDatabase
        val contentValues = ContentValues()
        contentValues.put(KEY_ID, emp.userId)
        contentValues.put(KEY_NAME, emp.userName) // EmpModelClass Name
        contentValues.put(KEY_EMAIL,emp.userEmail ) // EmpModelClass Email

        // Updating Row
        val success = db.update(TABLE_CONTACTS, contentValues,"id="+emp.userId,null)
        //2nd argument is String containing nullColumnHack
        db.close() // Closing database connection
        return success
    }

DELETEボタン

activity_main.xml

<Button
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Delete"
            android:onClick="deleteRecord"/>

MainActivity.xml

fun deleteRecord(view: View){
        //creating AlertDialog for taking user id
        val dialogBuilder = AlertDialog.Builder(this)
        val inflater = this.layoutInflater
        val dialogView = inflater.inflate(R.layout.delete_dialog, null)
        dialogBuilder.setView(dialogView)

        val dltId = dialogView.findViewById(R.id.deleteId) as EditText
        dialogBuilder.setTitle("Delete Record")
        dialogBuilder.setMessage("Enter id below")
        dialogBuilder.setPositiveButton("Delete", DialogInterface.OnClickListener { _, _ ->

            val deleteId = dltId.text.toString()
            //creating the instance of DatabaseHandler class
            val databaseHandler: DatabaseHandler= DatabaseHandler(this)
            if(deleteId.trim()!=""){
                //calling the deleteEmployee method of DatabaseHandler class to delete record
                val status = databaseHandler.deleteEmployee(EmpModelClass(Integer.parseInt(deleteId),"",""))
                if(status > -1){
                    Toast.makeText(applicationContext,"record deleted",Toast.LENGTH_LONG).show()
                }
            }else{
                Toast.makeText(applicationContext,"id or name or email cannot be blank",Toast.LENGTH_LONG).show()
            }

        })
        dialogBuilder.setNegativeButton("Cancel", DialogInterface.OnClickListener { _, _ ->
            //pass
        })
        val b = dialogBuilder.create()
        b.show()
    }

delete_dialog.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:padding="10dp"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <EditText
        android:id="@+id/deleteId"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:ems="10"
        android:hint="enter id" />
</LinearLayout>

DatabaseHandler.kt

fun deleteEmployee(emp: EmpModelClass):Int{
        val db = this.writableDatabase
        val contentValues = ContentValues()
        contentValues.put(KEY_ID, emp.userId) // EmpModelClass UserId
        // Deleting Row
        val success = db.delete(TABLE_CONTACTS,"id="+emp.userId,null)
        //2nd argument is String containing nullColumnHack
        db.close() // Closing database connection
        return success
    }

サンプルプロジェクト
sampleproject

Screen Shot 2020-05-14 at 15.52.52.png

2
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
2
0
