ORANGE pico には、プリンターにUARTで情報を送って印刷を行うコマンドがある。
公式のコマンド一覧によれば、対応しているプリンターのモードは
- ナダ電子製プリンターAS-289R2
- 汎用プリンター
の2種類があるようである。

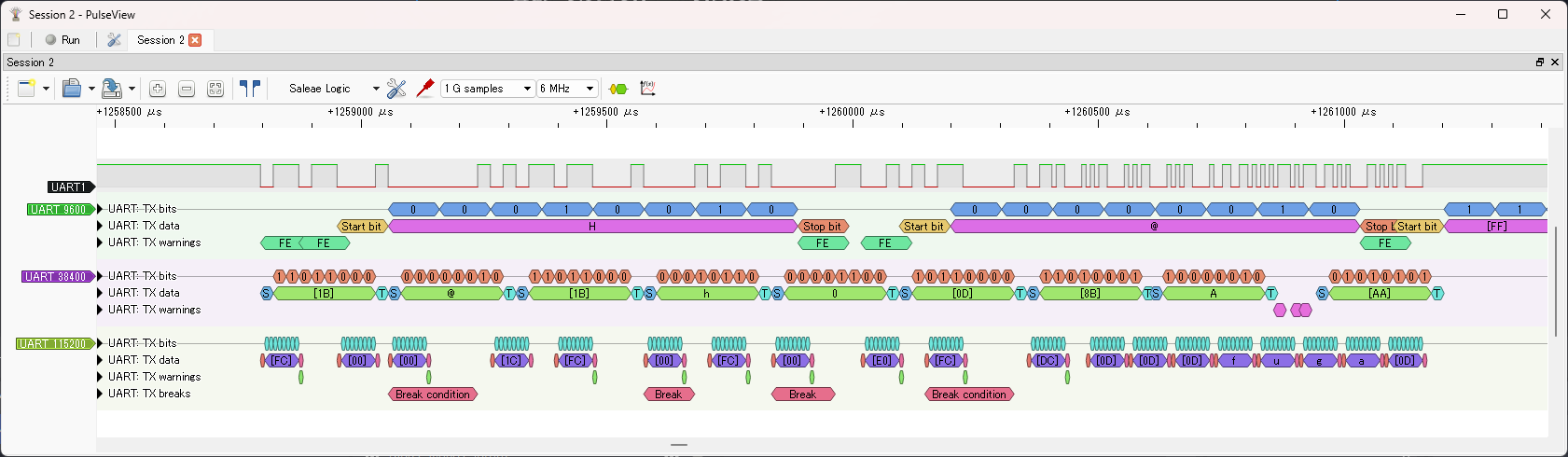

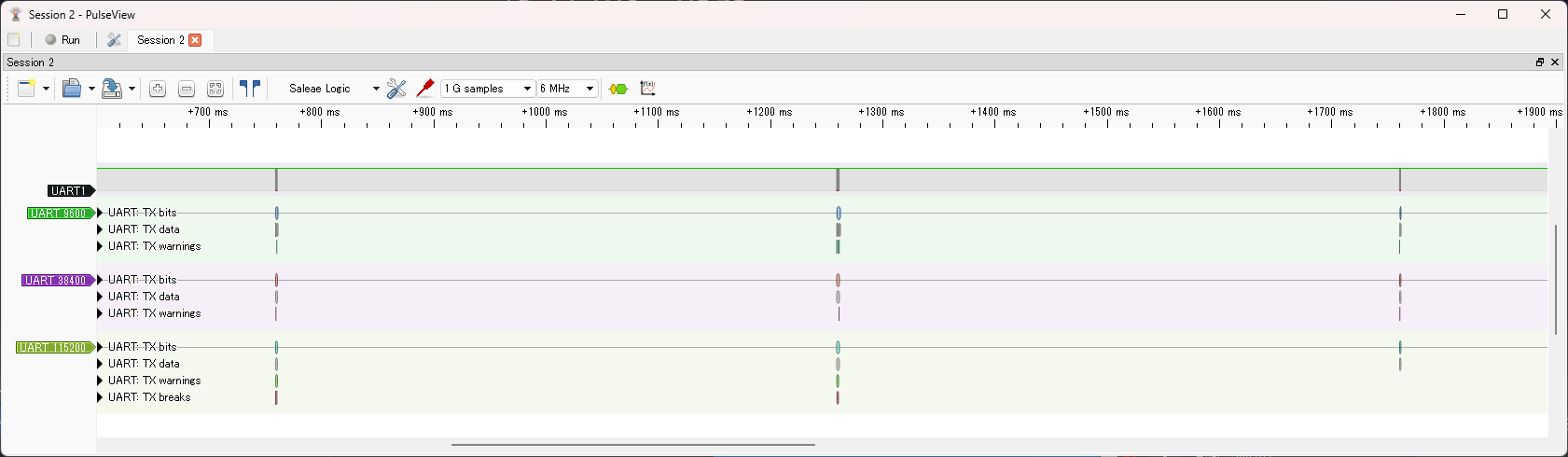

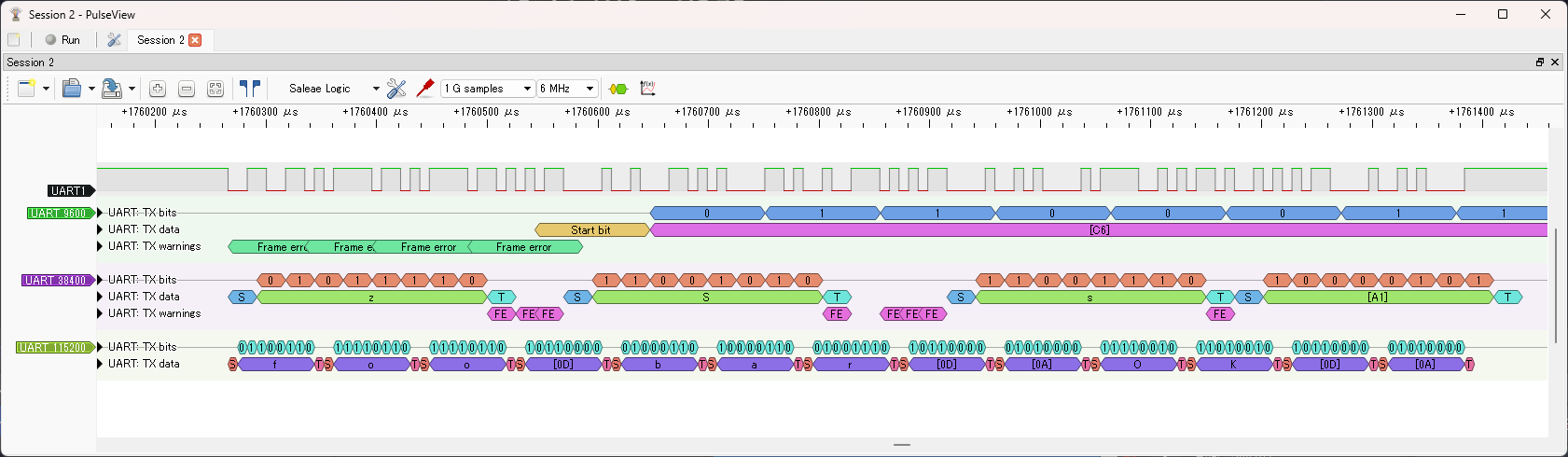

さらに、それぞれUART1に出力するモードとUART2に出力するモードがある。
今回は、主にUART2に出力するモードを用い、IJUtilities の HEX 表示を用いてデータを取得した。
さらに、取得したデータを CyberChef で見やすく変換した。
基本動作の観察
ビデオ出力モードにおいて、各プリンターのモードの動作を観察した。
ナダ電子製プリンターAS-289R2 モード

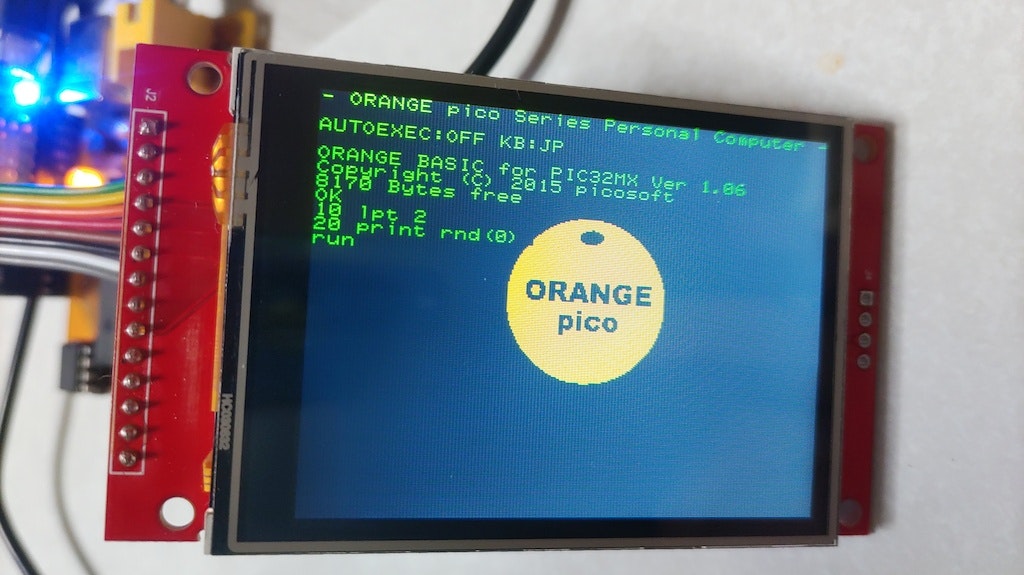

lpt 2 (初期化)
lpt 2
を実行すると、以下のデータが出力された。
00000000 1b 40 1b 68 30 0d 0d 0d 0d 0d |.@.h0.....|
以下のデータが送信されているようである。
- コマンド1
1b 40 - コマンド2
1b 68 30 - CR×5
0d 0d 0d 0d 0d
lprint (データ出力)
lprint "hello"
を実行すると、以下のデータが出力された。
00000000 68 65 6c 6c 6f 0d |hello.|
lprint "a\x30\x00b"
を実行すると、以下のデータが出力された。
00000000 61 30 00 62 0d |a0.b.|
lprint "\x5c"+"x00"
を実行すると、以下のデータが出力された。
00000000 00 0d |..|
lprint "hoge";
を実行すると、以下のデータが出力された。
00000000 68 6f 67 65 |hoge|
lprint 123
を実行すると、以下のデータが出力された。
00000000 31 32 33 0d |123.|
lprint 3.14
を実行すると、以下のデータが出力された。
00000000 33 2e 31 34 0d |3.14.|
これらから、以下のことが読み取れる。
-
lprintは、渡されたデータをを原則としてprintコマンドと同様に出力する。改行コードは CR である。 - 文字列中に
\x00がある場合は、値0x00の1バイトに変換して出力する。(printコマンドは変換せずにそのまま\x00を出力する)
llist (プログラム出力)
10 print 1
20 print 2
llist
を実行すると、以下のデータが出力された。
00000000 31 30 20 70 72 69 6e 74 20 31 0d 32 30 20 70 72 |10 print 1.20 pr|
00000010 69 6e 74 20 32 0d 0d 0d 0d 0d 0d |int 2......|
プログラムに続いて、CR が5個出力されている。
copy 1 (テキスト画面のハードコピー)
リセット後、lpt 2 および以下のプログラムを実行した。
10 locate 30,10
20 print "hello"
30 locate 20,20
40 print "world"

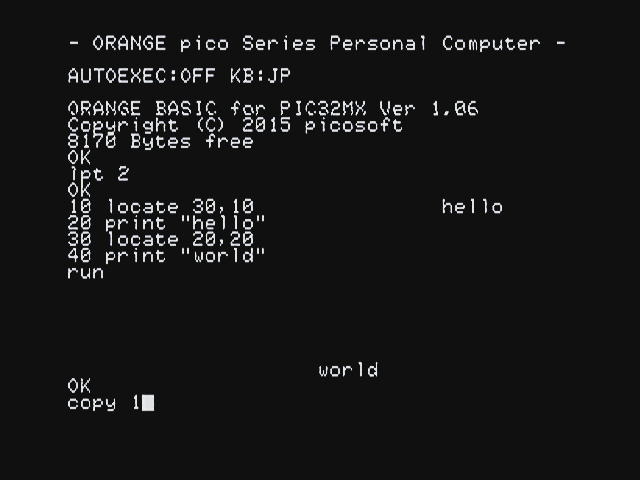

さらに copy 1 を入力すると、画面は以下の状態になった。
この状態で copy 1 を実行すると、以下のデータが出力された。
copy 1 で出力されたデータ
00000000 2d 20 4f 52 41 4e 47 45 20 70 69 63 6f 20 53 65 |- ORANGE pico Se|
00000010 72 69 65 73 20 50 65 72 73 6f 6e 61 6c 20 43 6f |ries Personal Co|
00000020 6d 70 75 74 65 72 20 2d 0d 20 20 20 20 20 20 20 |mputer -. |
00000030 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000040 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000050 20 0d 41 55 54 4f 45 58 45 43 3a 4f 46 46 20 4b | .AUTOEXEC:OFF K|
00000060 42 3a 4a 50 20 20 20 20 20 20 20 20 20 20 20 20 |B:JP |
00000070 20 20 20 20 20 20 20 20 20 20 0d 20 20 20 20 20 | . |
00000080 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000090 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000000a0 20 20 20 0d 4f 52 41 4e 47 45 20 42 41 53 49 43 | .ORANGE BASIC|
000000b0 20 66 6f 72 20 50 49 43 33 32 4d 58 20 56 65 72 | for PIC32MX Ver|
000000c0 20 31 2e 30 36 20 20 20 20 20 20 20 0d 43 6f 70 | 1.06 .Cop|
000000d0 79 72 69 67 68 74 20 28 43 29 20 32 30 31 35 20 |yright (C) 2015 |
000000e0 70 69 63 6f 73 6f 66 74 20 20 20 20 20 20 20 20 |picosoft |
000000f0 20 20 20 20 20 0d 38 31 37 30 20 42 79 74 65 73 | .8170 Bytes|
00000100 20 66 72 65 65 20 20 20 20 20 20 20 20 20 20 20 | free |
00000110 20 20 20 20 20 20 20 20 20 20 20 20 20 20 0d 4f | .O|
00000120 4b 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 |K |
00000130 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000140 20 20 20 20 20 20 20 0d 6c 70 74 20 32 20 20 20 | .lpt 2 |
00000150 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000160 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000170 0d 4f 4b 20 20 20 20 20 20 20 20 20 20 20 20 20 |.OK |
00000180 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000190 20 20 20 20 20 20 20 20 20 0d 31 30 20 6c 6f 63 | .10 loc|
000001a0 61 74 65 20 33 30 2c 31 30 20 20 20 20 20 20 20 |ate 30,10 |
000001b0 20 20 20 20 20 20 20 20 68 65 6c 6c 6f 20 20 20 | hello |
000001c0 20 20 0d 32 30 20 70 72 69 6e 74 20 22 68 65 6c | .20 print "hel|
000001d0 6c 6f 22 20 20 20 20 20 20 20 20 20 20 20 20 20 |lo" |
000001e0 20 20 20 20 20 20 20 20 20 20 20 0d 33 30 20 6c | .30 l|
000001f0 6f 63 61 74 65 20 32 30 2c 32 30 20 20 20 20 20 |ocate 20,20 |
00000200 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000210 20 20 20 20 0d 34 30 20 70 72 69 6e 74 20 22 77 | .40 print "w|
00000220 6f 72 6c 64 22 20 20 20 20 20 20 20 20 20 20 20 |orld" |
00000230 20 20 20 20 20 20 20 20 20 20 20 20 20 0d 72 75 | .ru|
00000240 6e 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 |n |
00000250 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000260 20 20 20 20 20 20 0d 20 20 20 20 20 20 20 20 20 | . |
00000270 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000280 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 0d | .|
00000290 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000002a0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000002b0 20 20 20 20 20 20 20 20 0d 20 20 20 20 20 20 20 | . |
000002c0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000002d0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000002e0 20 0d 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | . |
000002f0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000300 20 20 20 20 20 20 20 20 20 20 0d 20 20 20 20 20 | . |
00000310 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000320 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000330 20 20 20 0d 20 20 20 20 20 20 20 20 20 20 20 20 | . |
00000340 20 20 20 20 20 20 20 20 77 6f 72 6c 64 20 20 20 | world |
00000350 20 20 20 20 20 20 20 20 20 20 20 20 0d 4f 4b 20 | .OK |
00000360 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000370 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000380 20 20 20 20 20 0d 63 6f 70 79 20 31 20 20 20 20 | .copy 1 |
00000390 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000003a0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 0d 20 | . |
000003b0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000003c0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000003d0 20 20 20 20 20 20 20 0d 20 20 20 20 20 20 20 20 | . |
000003e0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000003f0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000400 0d 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 |. |
00000410 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000420 20 20 20 20 20 20 20 20 20 0d 20 20 20 20 20 20 | . |
00000430 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000440 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000450 20 20 0d 20 20 20 20 20 20 20 20 20 20 20 20 20 | . |
00000460 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000470 20 20 20 20 20 20 20 20 20 20 20 0d 20 20 20 20 | . |
00000480 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
00000490 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000004a0 20 20 20 20 0d 20 20 20 20 20 20 20 20 20 20 20 | . |
000004b0 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 | |
000004c0 20 20 20 20 20 20 20 20 20 20 20 20 20 0d | .|
これは以下のテキストに相当する。
- ORANGE pico Series Personal Computer -
AUTOEXEC:OFF KB:JP
ORANGE BASIC for PIC32MX Ver 1.06
Copyright (C) 2015 picosoft
8170 Bytes free
OK
lpt 2
OK
10 locate 30,10 hello
20 print "hello"
30 locate 20,20
40 print "world"
run
world
OK
copy 1
ここから、以下のことが読み取れる。
- 横40文字、縦30行出力される
- 画面の空きの部分は空白 (0x20) で表される
- 各行の後に CR (0x0d) が1個出力される
-
llistと違い、最後に自動で CR を連続で出力することはない
また、テキストのデータのみが出力されるため、キャラクターパターンの設定は反映されないと推測できる。
copy 2 (グラフィック画面のハードコピー)
リセット後、lpt 2 および以下のプログラムを実行した。
10 line 0,0,1,30,1
20 circle 100,80,30,1
30 line 200,80,190,130,1
40 line 200,80,240,130,1
50 line 190,130,240,130,1
60 sprite 1,100,170,1000,0
70 cpeek asc("e")
80 mpoke 8000,&HDE
90 mpoke 8001,&HAD
100 gput 250,170,8,8000,1

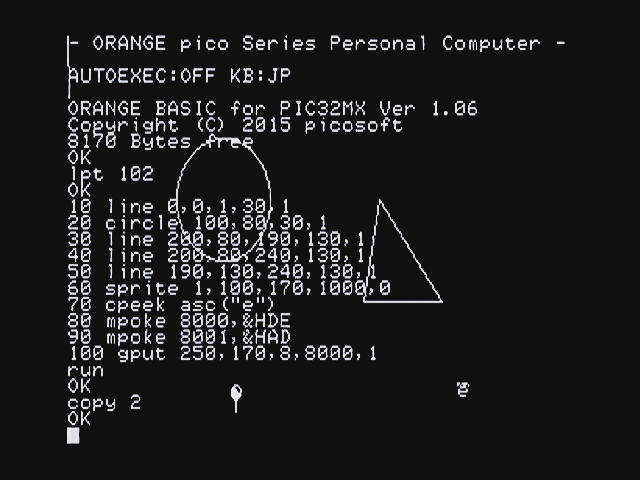

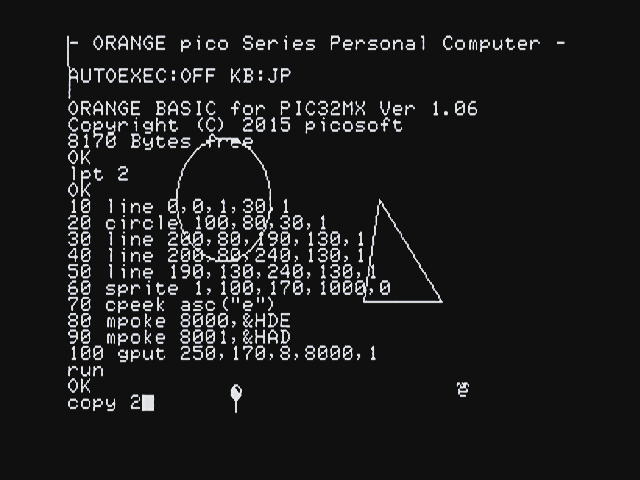

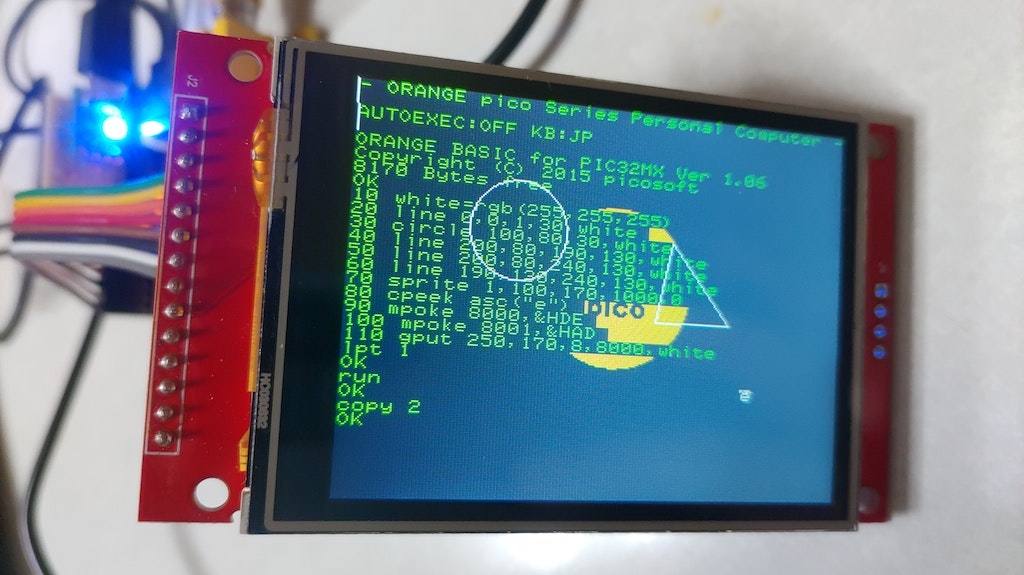

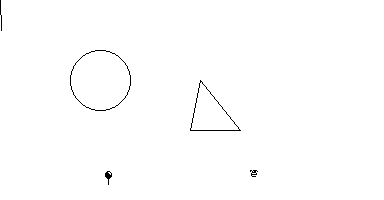

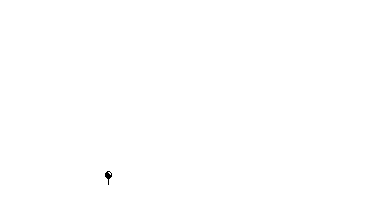

さらに copy 2 を入力すると、画面は以下の状態になった。
