GROVE - GSRセンサーとArduino M5StickC Plus2 (ESP32)で緊張度を測定する

Posted at

GSRセンサーをつなげてseed studioのサンプルプログラムを書き込みましたが、起動しませんでした。
色々調べた結果、下記のコードで同等の結果を得ることができました

今回使用したGSRセンサーはこちら
うまく動かないメーカー(seed studio)のコード

修正して動作を確認したコードはこちら

```Arduino:GSR_reading.ino
#include <M5Unified.h>

const int GSR = 36;
int sensorValue = 0;
int gsr_average = 0;

void setup() {
  auto cfg = M5.config();
  M5.begin(cfg);
  Serial.begin(115200);

  pinMode(GSR, INPUT);
  gpio_pulldown_dis(GPIO_NUM_25);  // G36を使うときのおまじない
  gpio_pullup_dis(GPIO_NUM_25);
}

void loop() {
  long sum = 0;
  for (int i = 0; i < 10; i++) {
    sensorValue = analogRead(GSR);
    sum += sensorValue;
    delay(5);
  }

  gsr_average = sum / 10;
  Serial.print("GSR Average: ");
  Serial.println(gsr_average);

  delay(500);
}

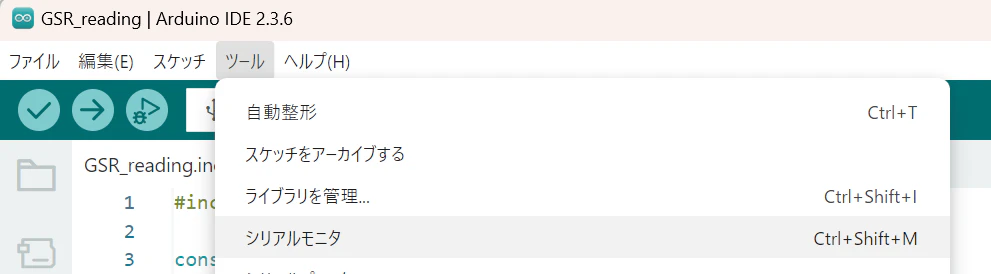

なお出力は下記の要領で見られます

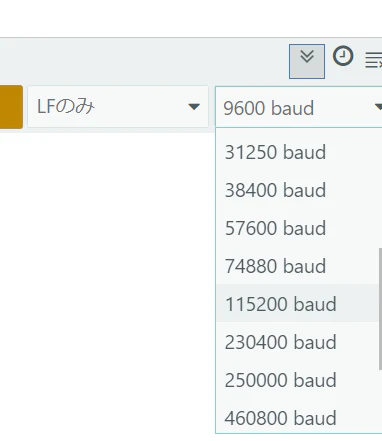

115200に変更して下さい
