RDSに初期データを自動で投入する方法

Posted at

やりたいこと

アプリケーションの起動時に自動的にRDSに初期データを入れたい場合があると思います
やり方は複数あると思いますが、今回はLambdaで実装していきます
また、CloudFormation化して全自動で初期データを投入する方法です

構成や条件

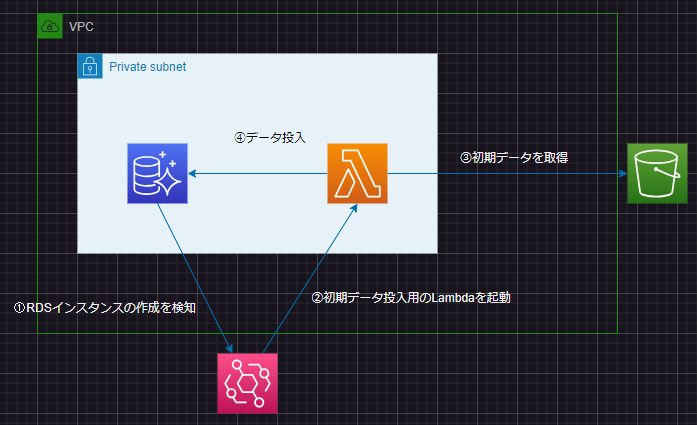

構成

以下の構成と初期プロセスをCloudFormationで自動化

条件

  • Aurora MySQL
  • Lambdaで初期データ投入
  • RDSインスタンスの起動を条件にEventBridgeでデータ投入用のLambdaを起動
  • Lambda LayerはS3のrds-initバケットにrds-layer.zipとして保存
  • Lambdaのソースコードはrds-initバケットにlambda.zipとして保存
  • 初期データはrds-initバケットにinit_data.jsonとして保存
  • RDS操作にはpymysqlを使用
  • S3の操作にはboto3を使用

ハンズオン

Lambda ファイル

S3を操作するモジュール

storage.py

import json
import boto3

s3 = boto3.client('s3')

def read_rds_init_data(bucket, object_key, application_name, table_name):
    response = s3.get_object(Bucket=bucket, Key=object_key)
    body = response['Body'].read()
    data = json.loads(body.decode('utf-8'))
    init_data = data[application_name][table_name]
    return init_data

main

lambda_rds_init_process.py

# 標準モジュール
import sys
import logging
import os
from typing import Final
import uuid

# 自作モジュール
from storage import read_rds_init_data

# 外部ライブラリ
import pymysql

logger = logging.getLogger()
logger.setLevel(logging.DEBUG)

# DBの設定条件
DB_HOST: Final[str] = os.environ['DB_HOST']
DB_USER_NAME: Final[str] = os.environ['DB_USER_NAME']
DB_PASSWORD: Final[str] = os.environ['DB_PASSWORD']
DB_NAME: Final[str] = os.environ['DB_NAME']
DB_PORT: Final[int] = os.environ['DB_PORT']

logger.info('RDS Init Process Start')

# DBとのセッションを確立する
try:
    conn = pymysql.connect(host=DB_HOST, user=DB_USER_NAME, passwd=DB_PASSWORD, db=DB_NAME, connect_timeout=5)
except pymysql.MySQLError as e:
    print(e)
    sys.exit(1)

def handler(event, context):
    bucket = event['bucket_name']
    object_key = event['object_key']
    application_name = event['application_name']
    table_name = event['table_name']

    with conn.cursor() as cursor:
        create_table_sql: str = "CREATE TABLE IF NOT EXISTS users(`id` varchar(256) PRIMARY KEY,`name` varchar(256) NOT NULL,`age` TINYINT NOT NULL, `mail_address` varchar(256) NOT NULL)"
        cursor.execute(create_table_sql)

        init_data = read_rds_init_data(bucket=bucket, object_key=object_key, application_name=application_name, table_name=table_name)
        for data in init_data:
            logger.debug(f'insert data: {data}')
            id = uuid.uuid1()
            name = data['name']
            age = data['age']
            mail_address = data['mail_address']
            insert_sql: str = f"INSERT INTO users(id, name, age, mail_address) VALUES (%s, %s, %s, %s)"
            cursor.execute(insert_sql, (id, name, age, mail_address))
            conn.commit()

        select_sql: str = "SELECT * FROM users"
        cursor.execute(select_sql)

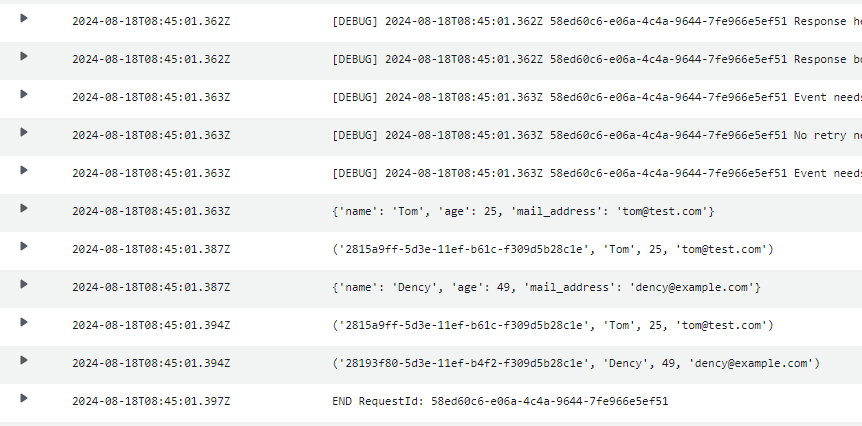

        logger.debug('check inserted data')
        for row in cursor:
            print(row)

logger.info('RDS Init Process End')

投入するデータ

init_data.json

{
    "import-data-from-s3": {
        "users": [
            {"name": "Tom", "age": 25, "mail_address": "tom@test.com"},
            {"name": "Dency", "age": 49, "mail_address": "dency@example.com"}
        ]
    }
}

テンプレートファイル

注意点
実際に使用する場合はDBのUserName, Passwordはテンプレートへの直書きはよろしくないです
パラメータストアやシークレットマネージャに保管して参照するようにしてください

AWSTemplateFormatVersion: "2010-09-09"
Description: "RDS Import Data by Lambda via S3 Stack"
Parameters:
  ApplicationName:
    Type: String
    Default: 'import-data-from-s3'
  VpcCidr:
    Type: String
    Default: '10.1.0.0/16'
  PublicSubnetCidr1:
    Type: String
    Default: '10.1.10.0/24'
  PublicSubnetCidr2:
    Type: String
    Default: '10.1.20.0/24'
  PrivateSubnetCidr1:
    Type: String
    Default: '10.1.100.0/24'
  PrivateSubnetCidr2:
    Type: String
    Default: '10.1.200.0/24'
  MasterUsername:
    Type: String
    Default: RootUserName
  MasterUserPassword:
    Type: String
    Default: RootPassword
  DbPort:
    Type: Number
    Default: 3306
  S3Bucket:
    Type: String
    Default: rds-init

# ------------------------------------------------------------#
# Mappings
# ------------------------------------------------------------#
Mappings:
  Constant:
    RDS:
      DatabaseName: auroradb
      InstanceClass: db.t4g.medium

Resources:
# ------------------------------------------------------------#
#  VPC
# ------------------------------------------------------------#
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VpcCidr
      EnableDnsHostnames: "true"
      EnableDnsSupport: "true"
      InstanceTenancy: "default"
  InternetGateway:
    Type: AWS::EC2::InternetGateway
  InternetGatewayAttachment:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      InternetGatewayId: !Ref InternetGateway
      VpcId: !Ref VPC
# ------------------------------------------------------------#
#  Subnet
# ------------------------------------------------------------#
  PublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: !Ref PublicSubnetCidr1
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 0
        - Fn::GetAZs: !Ref "AWS::Region"
  PublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: !Ref PublicSubnetCidr2
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 1
        - Fn::GetAZs: !Ref "AWS::Region"
  PrivateSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: !Ref PrivateSubnetCidr1
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 0
        - Fn::GetAZs: !Ref "AWS::Region"
  PrivateSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: !Ref PrivateSubnetCidr2
      VpcId: !Ref VPC
      AvailabilityZone: !Select
        - 1
        - Fn::GetAZs: !Ref "AWS::Region"
# ------------------------------------------------------------#
#  RouteTable
# ------------------------------------------------------------#
  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
  PrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
# ------------------------------------------------------------#
# Routing
# ------------------------------------------------------------#
  PublicRoute:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: "0.0.0.0/0"
      GatewayId: !Ref InternetGateway
# ------------------------------------------------------------#
# S3 EndPoint
# ------------------------------------------------------------#
  S3VpcEndPoint:
    Type: AWS::EC2::VPCEndpoint
    Properties:
      ServiceName: !Sub "com.amazonaws.${AWS::Region}.s3"
      VpcId: !Ref VPC
      VpcEndpointType: "Gateway"
      PrivateDnsEnabled: "false"
      RouteTableIds:
        - !Ref PrivateRouteTable
# ------------------------------------------------------------#
# RouteTable Associate
# ------------------------------------------------------------#
  PublicSubnetRouteTableAssociation1:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet1
      RouteTableId: !Ref PublicRouteTable
  PublicSubnetRouteTableAssociation2:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnet2
      RouteTableId: !Ref PublicRouteTable
  PrivateSubnetRouteTableAssociation1:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet1
      RouteTableId: !Ref PrivateRouteTable
  PrivateSubnetRouteTableAssociation2:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnet2
      RouteTableId: !Ref PrivateRouteTable
# ------------------------------------------------------------#
# Lambda Secrity Group
# ------------------------------------------------------------#
  LambdaSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      VpcId: !Ref VPC
      GroupName: Lambda-sg
      GroupDescription: Lambda Secrity Group
      SecurityGroupIngress:
        - CidrIp: 0.0.0.0/0
          IpProtocol: -1
# ------------------------------------------------------------#
# RDS Secrity Group
# ------------------------------------------------------------#
  RdsSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      VpcId: !Ref VPC
      GroupName: Rds-sg
      GroupDescription: RDS Secrity Group
      SecurityGroupIngress:
        - IpProtocol: "tcp"
          FromPort: !Ref DbPort
          ToPort: !Ref DbPort
          SourceSecurityGroupId: !Ref LambdaSecurityGroup
# ------------------------------------------------------------#
# S3 Access IAM Role
# ------------------------------------------------------------#
  AuroraS3AccessRole:
    Type: AWS::IAM::Role
    Properties:
      RoleName: !Sub ${ApplicationName}-DB-Access-S3
      AssumeRolePolicyDocument:
        Version: '2012-10-17'
        Statement:
          - Effect: Allow
            Principal:
              Service: rds.amazonaws.com
            Action: sts:AssumeRole
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/AmazonS3FullAccess
# ------------------------------------------------------------#
# DBSubnetGroup
# ------------------------------------------------------------#
  DBSubnetGroup:
    Type: AWS::RDS::DBSubnetGroup
    Properties:
      DBSubnetGroupDescription: !Sub ${ApplicationName} DB Subnet Group
      DBSubnetGroupName: !Sub ${ApplicationName}
      SubnetIds:
        - !Ref PrivateSubnet1
        - !Ref PrivateSubnet2
# ------------------------------------------------------------#
# DB Cluster Parameter Group
# ------------------------------------------------------------#
  DBClusterParameterGroup:
    Type: AWS::RDS::DBClusterParameterGroup
    Properties:
      DBClusterParameterGroupName: !Sub ${ApplicationName}-DbClusterParamGroup
      Description: !Sub ${ApplicationName} DbClusterParamGroup
      Family: aurora-mysql8.0
      Parameters:
        time_zone: 'Asia/Tokyo'
        aws_default_s3_role: !GetAtt AuroraS3AccessRole.Arn
# ------------------------------------------------------------#
# DB Cluster
# ------------------------------------------------------------#
  DBCluster:
    Type: AWS::RDS::DBCluster
    Properties:
      DatabaseName: !FindInMap [Constant, RDS, DatabaseName]
      AssociatedRoles:
        - RoleArn: !GetAtt AuroraS3AccessRole.Arn
      AvailabilityZones:
        - !Sub ${AWS::Region}c
        - !Sub ${AWS::Region}a
      DBSubnetGroupName: !Ref DBSubnetGroup
      Engine: aurora-mysql
      EngineMode: provisioned
      EngineVersion: '8.0'
      Port: !Ref DbPort
      DBClusterIdentifier: !Sub ${ApplicationName}-data-base-cluster
      DBClusterParameterGroupName: !Ref DBClusterParameterGroup
      MasterUsername: !Ref MasterUsername
      MasterUserPassword: !Ref MasterUserPassword
      StorageEncrypted: true
      VpcSecurityGroupIds:
        - !Ref RdsSecurityGroup
# ------------------------------------------------------------#
# DB Instance
# ------------------------------------------------------------#
  DBInstance:
    Type: AWS::RDS::DBInstance
    DependsOn: DBCluster
    Properties:
      DBSubnetGroupName: !Ref DBSubnetGroup
      DBInstanceClass: !FindInMap [Constant, RDS, InstanceClass]
      DBClusterIdentifier: !Ref DBCluster
      Engine: aurora-mysql
      EngineVersion: '8.0'
      DBInstanceIdentifier: !Sub ${ApplicationName}-data-base-instance
# ------------------------------------------------------------#
# Lambda Role
# ------------------------------------------------------------#
  LambdaRole:
    Type: AWS::IAM::Role
    Properties:
      RoleName: !Sub "${ApplicationName}-lambda"
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Action: sts:AssumeRole
            Principal:
              Service: lambda.amazonaws.com
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/AmazonS3FullAccess
        - arn:aws:iam::aws:policy/AmazonRDSFullAccess
        - arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole
        - arn:aws:iam::aws:policy/service-role/AWSLambdaSQSQueueExecutionRole
        - arn:aws:iam::aws:policy/service-role/AWSLambdaVPCAccessExecutionRole
# ------------------------------------------------------------#
# Lambda Layer
# ------------------------------------------------------------#
  LambdaLayer:
    Type: AWS::Lambda::LayerVersion
    Properties:
      LayerName: !Sub ${ApplicationName}-Layer
      Description: !Sub ${ApplicationName} Lambda Layer
      CompatibleArchitectures:
        - arm64
      CompatibleRuntimes:
        - python3.10
      Content:
        S3Bucket: !Ref S3Bucket
        S3Key: rds-layer.zip
# ------------------------------------------------------------#
# Lambda
# ------------------------------------------------------------#
  Lambda:
    Type: AWS::Lambda::Function
    Properties:
      Description: RDS初期プロセス
      FunctionName: rds-init-process
      Role: !GetAtt LambdaRole.Arn
      Handler: lambda_rds_init_process.handler
      Architectures:
        - arm64
      Runtime: python3.10
      MemorySize: 256
      Timeout: 600
      Layers:
        - !Ref LambdaLayer
      VpcConfig:
        Ipv6AllowedForDualStack: false
        SubnetIds:
          - !Ref PrivateSubnet1
          - !Ref PrivateSubnet2
        SecurityGroupIds:
          - !Ref LambdaSecurityGroup
      Environment:
        Variables:
          DB_HOST: !GetAtt DBCluster.Endpoint.Address
          DB_USER_NAME: !Ref MasterUsername
          DB_PASSWORD: !Ref MasterUserPassword
          DB_NAME: !FindInMap [Constant, RDS, DatabaseName]
          DB_PORT: !Ref DbPort
      Code:
        S3Bucket: !Ref S3Bucket
        S3Key: lambda.zip
# ------------------------------------------------------------#
# Event Bridge IAM Role
# ------------------------------------------------------------#
  EventBridgeRole:
    Type: AWS::IAM::Role
    Properties:
      RoleName: !Sub "${ApplicationName}-event-bridge"
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Action: sts:AssumeRole
            Principal:
              Service: events.amazonaws.com
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/AWSLambda_FullAccess
# ------------------------------------------------------------#
# RDS Init Process Rule
# ------------------------------------------------------------#
  RdsStartRule:
    Type: AWS::Events::Rule
    Properties:
      Name: !Sub ${ApplicationName}
      Description: RDS Init Process
      RoleArn: !GetAtt EventBridgeRole.Arn
      State: ENABLED
      EventPattern:
        source:
          - aws.rds
        detail-type:
          - DS DB Instance Event
        detail.EventID:
          - RDS-EVENT-0005
      Targets:
        -
          Arn: !GetAtt Lambda.Arn
          Id: TempId123
          Input: !Sub |
            {
              "bucket_name": "${S3Bucket}",
              "object_key": "init_data.json",
              "application_name": "${ApplicationName}",
              "table_name": "users"
            }
# ------------------------------------------------------------#
# Lambda RDS Init Process Permission
# ------------------------------------------------------------#
  PermissionForEventsToInvokeLambda:
    Type: AWS::Lambda::Permission
    Properties:
      FunctionName: !Ref Lambda
      Action: lambda:InvokeFunction
      Principal: events.amazonaws.com
      SourceArn: !GetAtt RdsStartRule.Arn

実行結果

lambdaのログを確認するとRDSに初期値が入っていることが確認できました

他の初期データ投入方法の記事

そういえば

Amazon Aurora MySQLがData APIをサポートするようになったようですね

今回はLambdaをRDSと同じPrivate Subnetに入れていましたが、必要なくなりそうですね
将来的にはAPI GatewayからRDSを操作できる未来があるかも??

0
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
1

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
