Azure Synapse Analytics Dedicated SQL pool ( 専用 SQL プール) における Merge（Upsert）処理の性能検証を実施する方法

概要

Azure Synapse Analytics Dedicated SQL pool ( 専用 SQL プール) における Merge（Upsert）処理を、 TPC-H の LINEITEM テーブルのデータを用いて性能検証を実施する方法を共有します。

下記のリソースを利用します。Azure Datbricks にて TPC-H のデータを生成、および、TPC-H のParquet 化を実施します。その後、出力される SQL 文を Azure Synapse Analytics Dedicated SQL pool (専用 SQL プール)で実行します。

• Azure Synapse Analytics
• Azure Storage
• Azure Databricks

TPC-H の概要とデータ生成方法については、下記記事にて整理してます。

• データベースの性能検証に利用されるTPC-HとTPC-DSに関するざっくりとした整理 - Qiita
• Databrick(Spark)にて、TPC-H、および、TPC-DSのデータを生成する方法 - Qiita

本手順後に、下記表のデータを生成できます。Merge 処理時のソースでは約600万レコードを想定しており、ファイルサイズは Snappy 形式で圧縮した Parquet 形式のファイルサイズを示しております。

#	想定処理	処理後のレコード数	ソースのレコード数	ソースの新規レコード数	ソースの既存レコード数	ファイルサイズ（MB）	テキストファイル時のサイズ（MB）
0	初期データのロード	44,991,725	44,991,725	44,991,725	0
1	１度目の処理	47,989,007	5,996,953	2,997,282	2,999,671	245	774
2	２度目の処理	50,988,593	5,997,887	2,999,586	2,998,301	245	776
3	３度目の処理	53,986,608	5,996,879	2,998,015	2,998,864	245	778
4	４度目の処理	56,982,414	5,997,357	2,995,806	3,001,551	245	779
5	５度目の処理	59,986,052	6,000,991	3,003,638	2,997,353	245	779

2022 年 10 月 31 日時点にて、Merge 文により Upsert 処理を実施する場合には、ターゲットのテーブルがハッシュ分散テーブルのみに制限されております。

引用元：MERGE (Transact-SQL) - SQL Server | Microsoft Learn

本手順で記述しているストレージは削除済みです。

データと SQL 文の生成

TPC-H のデータ生成

scale_factor = "10"  # Scale Factor数をセット
chunks_number = "20"  # 出力ファイル数と並列処理数をセット

path = "file:/tmp/tpch_data"
dbfs_path = "dbfs:/FileStore/load_test/raw"

# ディレクトリの初期化
dbutils.fs.rm(path, True)
dbutils.fs.rm(dbfs_path, True)

import os

# shellスクリプトに渡す引数をセット
os.environ["scale_factor"] = scale_factor
print(os.getenv("scale_factor"))

os.environ["chunks_number"] = chunks_number
print(os.getenv("chunks_number"))

%sh
sudo apt-get install -y make gcc yacc
cd /tmp
rm -r ./tpch-dbgen -f
git clone https://github.com/databricks/tpch-dbgen.git
cd tpch-dbgen
make OS=LINUX WORKLOAD=TPCH
cd ..
rm -r ./tpch_data -f
mkdir tpch_data
cd tpch_data

for i in $( seq 1 ${chunks_number} ) ; do
    ../tpch-dbgen/dbgen -b ../tpch-dbgen/dists.dss -f -s ${scale_factor} -C ${chunks_number} -S ${i} -T L &
done
wait

file_list = dbutils.fs.ls(path)

# ファイル一覧を表示
display(file_list)

# ファイルサイズを表示
spark.createDataFrame(file_list).groupBy().sum("size").display()

# dbfs 上にファイルをコピー
dbutils.fs.cp(path, dbfs_path, True)

# データ件数チェック（ 59,986,052 件のはず）
def create_tpch_lineitem_dataframe(
    filepath,
):

    schema = """
      L_ORDERKEY    INTEGER ,
      L_PARTKEY     INTEGER ,
      L_SUPPKEY     INTEGER ,
      L_LINENUMBER  INTEGER ,
      L_QUANTITY    DECIMAL(15,2) ,
      L_EXTENDEDPRICE  DECIMAL(15,2) ,
      L_DISCOUNT    DECIMAL(15,2) ,
      L_TAX         DECIMAL(15,2) ,
      L_RETURNFLAG  STRING ,
      L_LINESTATUS  STRING ,
      L_SHIPDATE    DATE ,
      L_COMMITDATE  DATE ,
      L_RECEIPTDATE DATE ,
      L_SHIPINSTRUCT STRING ,
      L_SHIPMODE     STRING ,
      L_COMMENT      STRING
    """

    df = spark.read.format("csv").schema(schema).option("sep", "|").load(filepath)
    return df


df = create_tpch_lineitem_dataframe(dbfs_path)
df.count()

TPC-H のデータの Parquet 形式への変換

parquet_file_paths = {
    "base": [
        f"{dbfs_path}/lineitem.tbl.1",
        f"{dbfs_path}/lineitem.tbl.2",
        f"{dbfs_path}/lineitem.tbl.3",
        f"{dbfs_path}/lineitem.tbl.4",
        f"{dbfs_path}/lineitem.tbl.5",
        f"{dbfs_path}/lineitem.tbl.6",
        f"{dbfs_path}/lineitem.tbl.7",
        f"{dbfs_path}/lineitem.tbl.8",
        f"{dbfs_path}/lineitem.tbl.9",
        f"{dbfs_path}/lineitem.tbl.10",
        f"{dbfs_path}/lineitem.tbl.11",
        f"{dbfs_path}/lineitem.tbl.12",
        f"{dbfs_path}/lineitem.tbl.13",
        f"{dbfs_path}/lineitem.tbl.14",
        f"{dbfs_path}/lineitem.tbl.15",
    ],
    "wiret_01": [
        f"{dbfs_path}/lineitem.tbl.1",
        f"{dbfs_path}/lineitem.tbl.16",
    ],
    "wiret_02": [
        f"{dbfs_path}/lineitem.tbl.4",
        f"{dbfs_path}/lineitem.tbl.17",
    ],
    "wiret_03": [
        f"{dbfs_path}/lineitem.tbl.7",
        f"{dbfs_path}/lineitem.tbl.18",
    ],
    "wiret_04": [
        f"{dbfs_path}/lineitem.tbl.10",
        f"{dbfs_path}/lineitem.tbl.19",
    ],
    "wiret_05": [
        f"{dbfs_path}/lineitem.tbl.13",
        f"{dbfs_path}/lineitem.tbl.20",
    ],
}

base_dbfs_path = "dbfs:/FileStore/load_test"

parqeut_dbfs_path = f"{base_dbfs_path}/parquet"

def create_tpch_lineitem_dataframe(
    filepath,
):

    schema = """
      L_ORDERKEY    INTEGER ,
      L_PARTKEY     INTEGER ,
      L_SUPPKEY     INTEGER ,
      L_LINENUMBER  INTEGER ,
      L_QUANTITY    DECIMAL(15,2) ,
      L_EXTENDEDPRICE  DECIMAL(15,2) ,
      L_DISCOUNT    DECIMAL(15,2) ,
      L_TAX         DECIMAL(15,2) ,
      L_RETURNFLAG  STRING ,
      L_LINESTATUS  STRING ,
      L_SHIPDATE    DATE ,
      L_COMMITDATE  DATE ,
      L_RECEIPTDATE DATE ,
      L_SHIPINSTRUCT STRING ,
      L_SHIPMODE     STRING ,
      L_COMMENT      STRING
    """

    df = spark.read.format("csv").schema(schema).option("sep", "|").load(filepath)
    return df

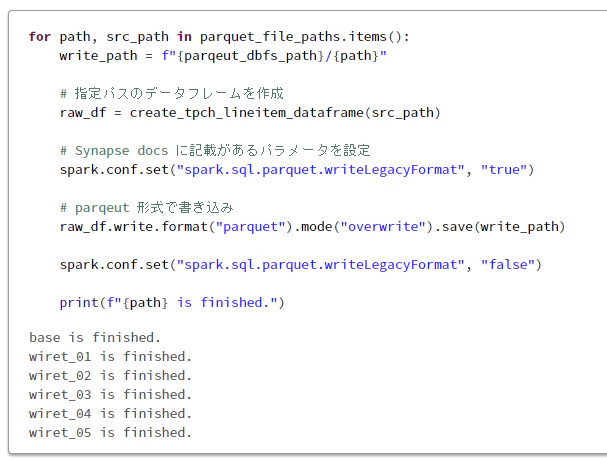

for path, src_path in parquet_file_paths.items():
    write_path = f"{parqeut_dbfs_path}/{path}"

    # 指定パスのデータフレームを作成
    raw_df = create_tpch_lineitem_dataframe(src_path)

    # Synapse docs に記載があるパラメータを設定
    spark.conf.set("spark.sql.parquet.writeLegacyFormat", "true")

    # parqeut 形式で書き込み
    raw_df.write.format("parquet").mode("overwrite").save(write_path)

    spark.conf.set("spark.sql.parquet.writeLegacyFormat", "false")

    print(f"{path} is finished.")

# ファイル一覧を表示
file_list = dbutils.fs.ls(f"{parqeut_dbfs_path}")
display(file_list)

Parquet 形式のTPC-H のデータをストレージへの書き込み

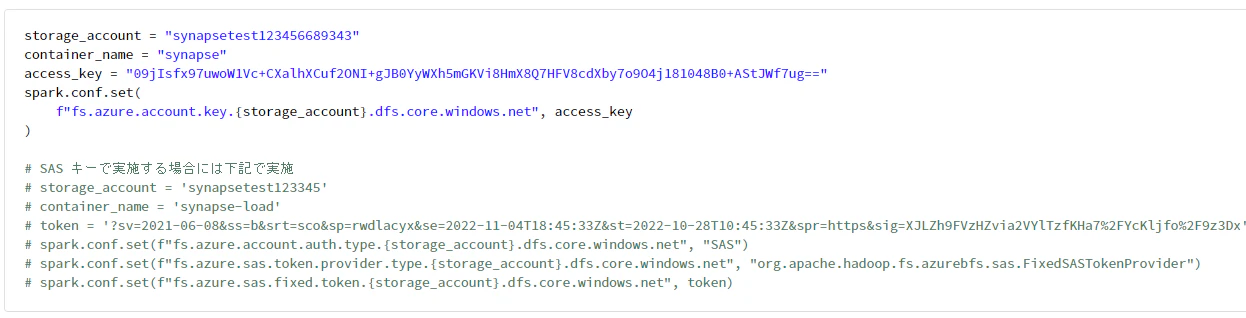

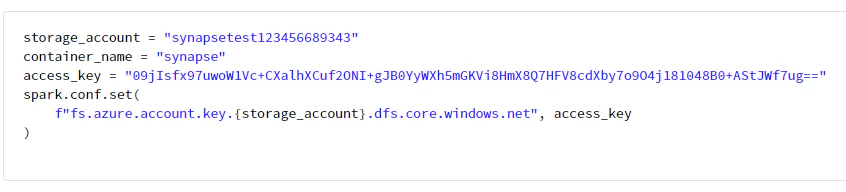

storage_account = "synapsetest123456689343"
container_name = "synapse"
access_key = "09jIsfx97uwoW1Vc+CXalhXCuf2ONI+gJB0YyWXh5mGKVi8HmX8Q7HFV8cdXby7o9O4j181048B0+AStJWf7ug=="
spark.conf.set(
    f"fs.azure.account.key.{storage_account}.dfs.core.windows.net", access_key
)

# SAS キーで実施する場合には下記で実施
# storage_account = 'synapsetest123345'
# container_name = 'synapse-load'
# token = '?sv=2021-06-08&ss=b&srt=sco&sp=rwdlacyx&se=2022-11-04T18:45:33Z&st=2022-10-28T10:45:33Z&spr=https&sig=XJLZh9FVzHZvia2VYlTzfKHa7%2FYcKljfo%2F9z3Dx'
# spark.conf.set(f"fs.azure.account.auth.type.{storage_account}.dfs.core.windows.net", "SAS")
# spark.conf.set(f"fs.azure.sas.token.provider.type.{storage_account}.dfs.core.windows.net", "org.apache.hadoop.fs.azurebfs.sas.FixedSASTokenProvider")
# spark.conf.set(f"fs.azure.sas.fixed.token.{storage_account}.dfs.core.windows.net", token)

# 接続確認
storage_dir = f"abfss://{container_name}@{storage_account}.dfs.core.windows.net"
dbutils.fs.ls(storage_dir)

tpch_dir = f"{storage_dir}/tpch"

# ストレージ上のディレクトリを初期化
dbutils.fs.rm(tpch_dir, True)

# `tpch` ディレクトリをストレージ側に作成後、dbfs 上の parquet ファイルをコピー
dbutils.fs.mkdirs(tpch_dir)
dbutils.fs.cp(parqeut_dbfs_path, tpch_dir, True)

# ストレージ上のファイルチェック
dbutils.fs.ls(tpch_dir)

Synapse における検証用 SQL の生成

変数をセット

storage_account = "synapsetest123456689343"
container_name = "synapse"
access_key = "09jIsfx97uwoW1Vc+CXalhXCuf2ONI+gJB0YyWXh5mGKVi8HmX8Q7HFV8cdXby7o9O4j181048B0+AStJWf7ug=="
spark.conf.set(
    f"fs.azure.account.key.{storage_account}.dfs.core.windows.net", access_key
)

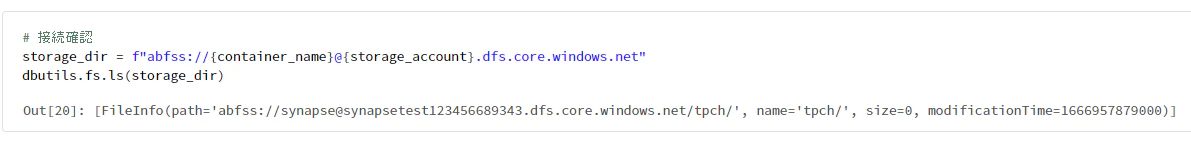

# 接続確認
storage_dir = f"abfss://{container_name}@{storage_account}.dfs.core.windows.net"
dbutils.fs.ls(storage_dir)

data_dir = "tpch"
base_path = f"{data_dir}/base/*.parquet"
wiret_01 = f"{data_dir}/wiret_01/*.parquet"
wiret_02 = f"{data_dir}/wiret_02/*.parquet"
wiret_03 = f"{data_dir}/wiret_03/*.parquet"
wiret_04 = f"{data_dir}/wiret_04/*.parquet"
wiret_05 = f"{data_dir}/wiret_05/*.parquet"

ワークロードを作成

# ユーザー名を取得
sql = """
SELECT user_name();
"""

print(sql)

# ユーザー名を設定
user_name = "dbo"

sql = f"""
CREATE WORKLOAD GROUP DataLoads
WITH (
    MIN_PERCENTAGE_RESOURCE = 0
    ,CAP_PERCENTAGE_RESOURCE = 100
    ,REQUEST_MIN_RESOURCE_GRANT_PERCENT = 100
);

CREATE WORKLOAD CLASSIFIER [wgcELTLogin]
WITH (
    WORKLOAD_GROUP = 'DataLoads'
    ,MEMBERNAME = '{user_name}'
);
"""

print(sql)

テーブルを作成

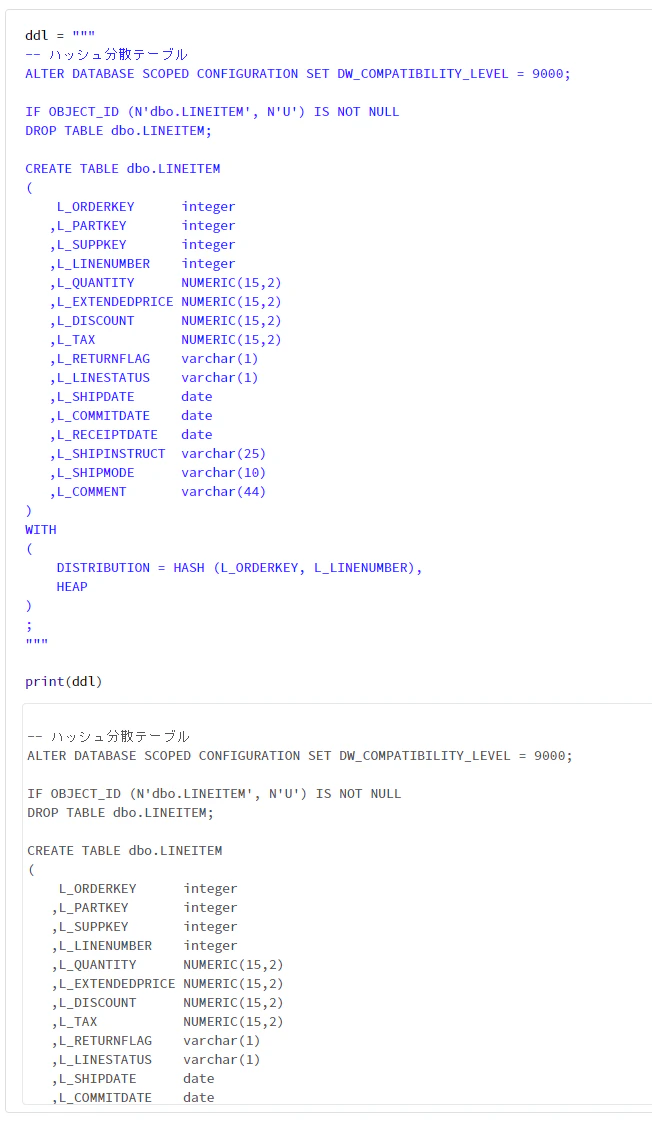

複数列のハッシュ分散テーブルを作成

ddl = """
-- ハッシュ分散テーブル
ALTER DATABASE SCOPED CONFIGURATION SET DW_COMPATIBILITY_LEVEL = 9000;

IF OBJECT_ID (N'dbo.LINEITEM', N'U') IS NOT NULL
DROP TABLE dbo.LINEITEM;

CREATE TABLE dbo.LINEITEM
(
    L_ORDERKEY      integer
   ,L_PARTKEY       integer
   ,L_SUPPKEY       integer
   ,L_LINENUMBER    integer
   ,L_QUANTITY      NUMERIC(15,2)
   ,L_EXTENDEDPRICE NUMERIC(15,2)
   ,L_DISCOUNT      NUMERIC(15,2)
   ,L_TAX           NUMERIC(15,2)
   ,L_RETURNFLAG    varchar(1)
   ,L_LINESTATUS    varchar(1)
   ,L_SHIPDATE      date
   ,L_COMMITDATE    date
   ,L_RECEIPTDATE   date
   ,L_SHIPINSTRUCT  varchar(25)
   ,L_SHIPMODE      varchar(10)
   ,L_COMMENT       varchar(44)
)
WITH
(
    DISTRIBUTION = HASH (L_ORDERKEY, L_LINENUMBER),
    HEAP
)
;
"""

print(ddl)

単一列のハッシュ分散テーブルを作成

ddl = """
IF OBJECT_ID (N'dbo.LINEITEM', N'U') IS NOT NULL
DROP TABLE dbo.LINEITEM;

CREATE TABLE dbo.LINEITEM
(
    L_ORDERKEY      integer
   ,L_PARTKEY       integer
   ,L_SUPPKEY       integer
   ,L_LINENUMBER    integer
   ,L_QUANTITY      NUMERIC(15,2)
   ,L_EXTENDEDPRICE NUMERIC(15,2)
   ,L_DISCOUNT      NUMERIC(15,2)
   ,L_TAX           NUMERIC(15,2)
   ,L_RETURNFLAG    varchar(1)
   ,L_LINESTATUS    varchar(1)
   ,L_SHIPDATE      date
   ,L_COMMITDATE    date
   ,L_RECEIPTDATE   date
   ,L_SHIPINSTRUCT  varchar(25)
   ,L_SHIPMODE      varchar(10)
   ,L_COMMENT       varchar(44)
)
WITH
(
    DISTRIBUTION = HASH (L_LINENUMBER),
    HEAP
)
;
"""

print(ddl)

ラウンドロビン分散テーブルを作成

ddl = """
-- ラウンドロビンテーブル
IF OBJECT_ID (N'dbo.LINEITEM', N'U') IS NOT NULL
DROP TABLE dbo.LINEITEM;
CREATE TABLE dbo.LINEITEM
(
    L_ORDERKEY      integer
   ,L_PARTKEY       integer
   ,L_SUPPKEY       integer
   ,L_LINENUMBER    integer
   ,L_QUANTITY      NUMERIC(15,2)
   ,L_EXTENDEDPRICE NUMERIC(15,2)
   ,L_DISCOUNT      NUMERIC(15,2)
   ,L_TAX           NUMERIC(15,2)
   ,L_RETURNFLAG    varchar(1)
   ,L_LINESTATUS    varchar(1)
   ,L_SHIPDATE      date
   ,L_COMMITDATE    date
   ,L_RECEIPTDATE   date
   ,L_SHIPINSTRUCT  varchar(25)
   ,L_SHIPMODE      varchar(10)
   ,L_COMMENT       varchar(44)
)
WITH
(
    DISTRIBUTION = ROUND_ROBIN,
    HEAP
)
;
"""

print(ddl)

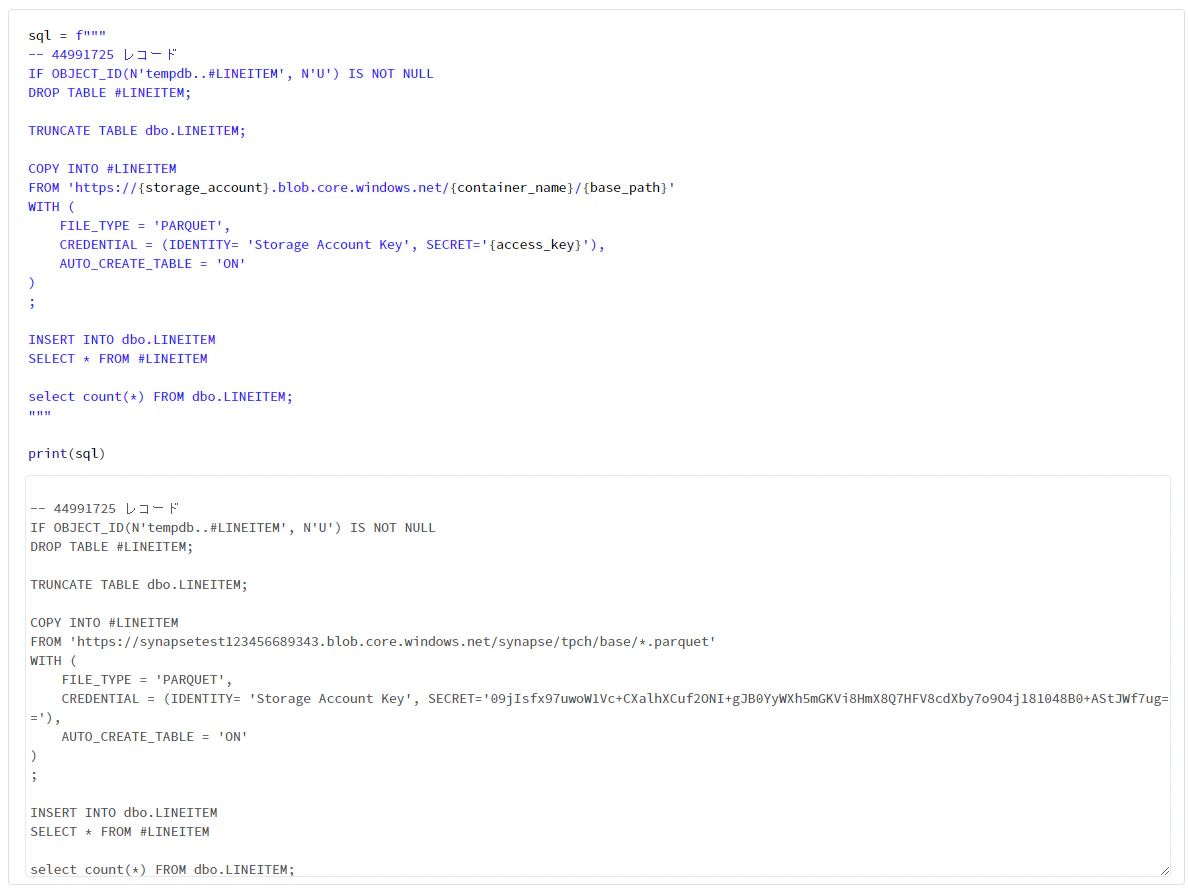

初期データをロード

sql = f"""
-- 44991725 レコード
IF OBJECT_ID(N'tempdb..#LINEITEM', N'U') IS NOT NULL
DROP TABLE #LINEITEM;

TRUNCATE TABLE dbo.LINEITEM;

COPY INTO #LINEITEM
FROM 'https://{storage_account}.blob.core.windows.net/{container_name}/{base_path}'
WITH (
    FILE_TYPE = 'PARQUET',
    CREDENTIAL = (IDENTITY= 'Storage Account Key', SECRET='{access_key}'),
    AUTO_CREATE_TABLE = 'ON'
)
;

INSERT INTO dbo.LINEITEM
SELECT * FROM #LINEITEM

select count(*) FROM dbo.LINEITEM;
"""

print(sql)

Merge 処理

1 回目のデータを更新

sql = f"""
IF OBJECT_ID(N'tempdb..#LINEITEM', N'U') IS NOT NULL
DROP TABLE #LINEITEM;

COPY INTO #LINEITEM
FROM 'https://{storage_account}.blob.core.windows.net/{container_name}/{wiret_01}'
WITH (
    FILE_TYPE = 'PARQUET',
    CREDENTIAL = (IDENTITY= 'Storage Account Key', SECRET='{access_key}'),
    AUTO_CREATE_TABLE = 'ON'
)
;

MERGE INTO
    dbo.LINEITEM AS tgt
USING
    #LINEITEM AS src
ON
(
    tgt.L_ORDERKEY = src.L_ORDERKEY
    and tgt.L_LINENUMBER = src.L_LINENUMBER
)
 WHEN MATCHED THEN
    UPDATE
        SET
        tgt.L_ORDERKEY = src.L_ORDERKEY
        ,tgt.L_PARTKEY = src.L_PARTKEY
        ,tgt.L_SUPPKEY = src.L_SUPPKEY
        ,tgt.L_LINENUMBER = src.L_LINENUMBER
        ,tgt.L_QUANTITY = src.L_QUANTITY
        ,tgt.L_EXTENDEDPRICE = src.L_EXTENDEDPRICE
        ,tgt.L_DISCOUNT = src.L_DISCOUNT
        ,tgt.L_TAX = src.L_TAX
        ,tgt.L_RETURNFLAG = src.L_RETURNFLAG
        ,tgt.L_LINESTATUS = src.L_LINESTATUS
        ,tgt.L_SHIPDATE = src.L_SHIPDATE
        ,tgt.L_COMMITDATE = src.L_COMMITDATE
        ,tgt.L_RECEIPTDATE = src.L_RECEIPTDATE
        ,tgt.L_SHIPINSTRUCT = src.L_SHIPINSTRUCT
        ,tgt.L_SHIPMODE = src.L_SHIPMODE
        ,tgt.L_COMMENT = src.L_COMMENT

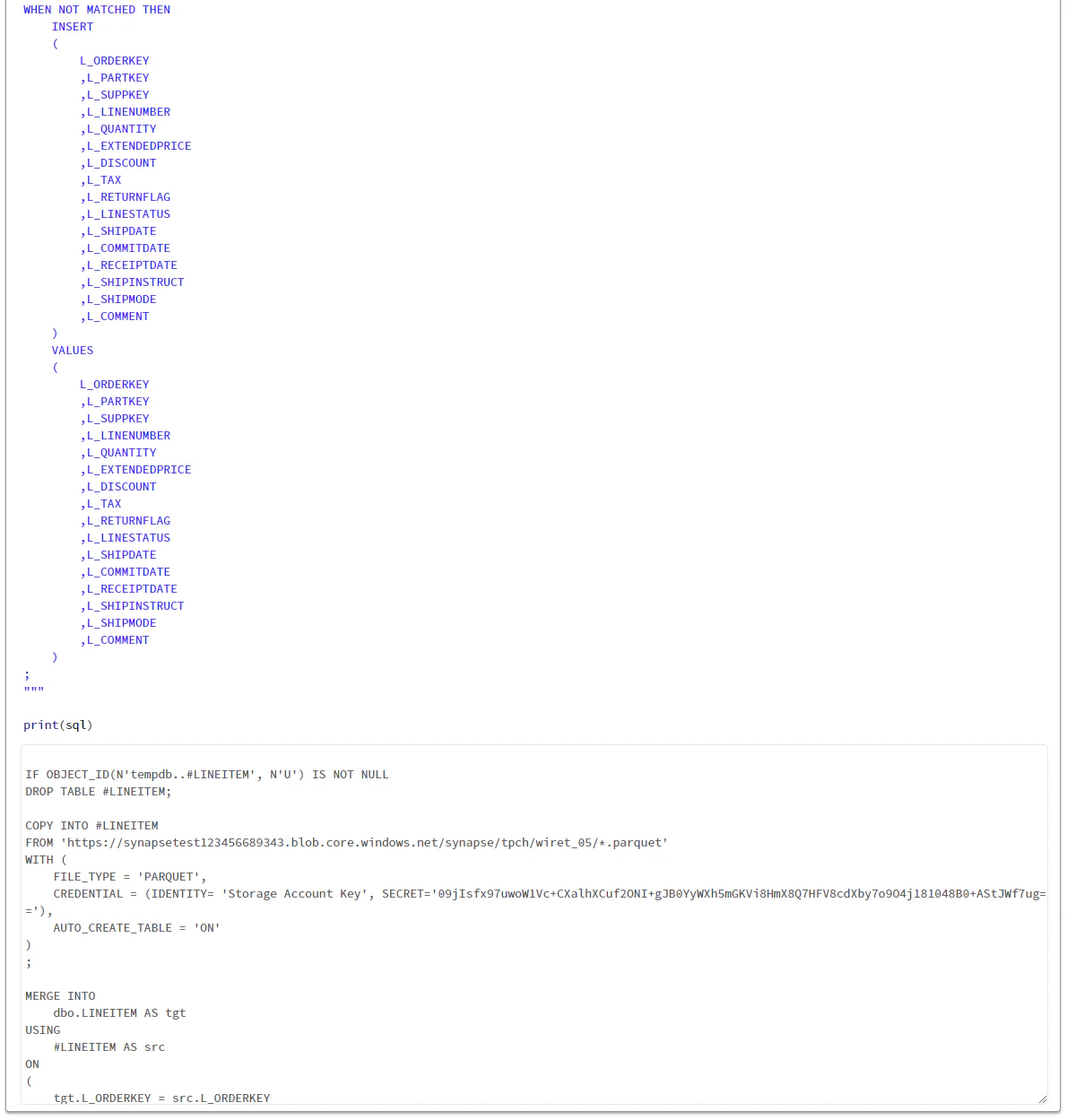

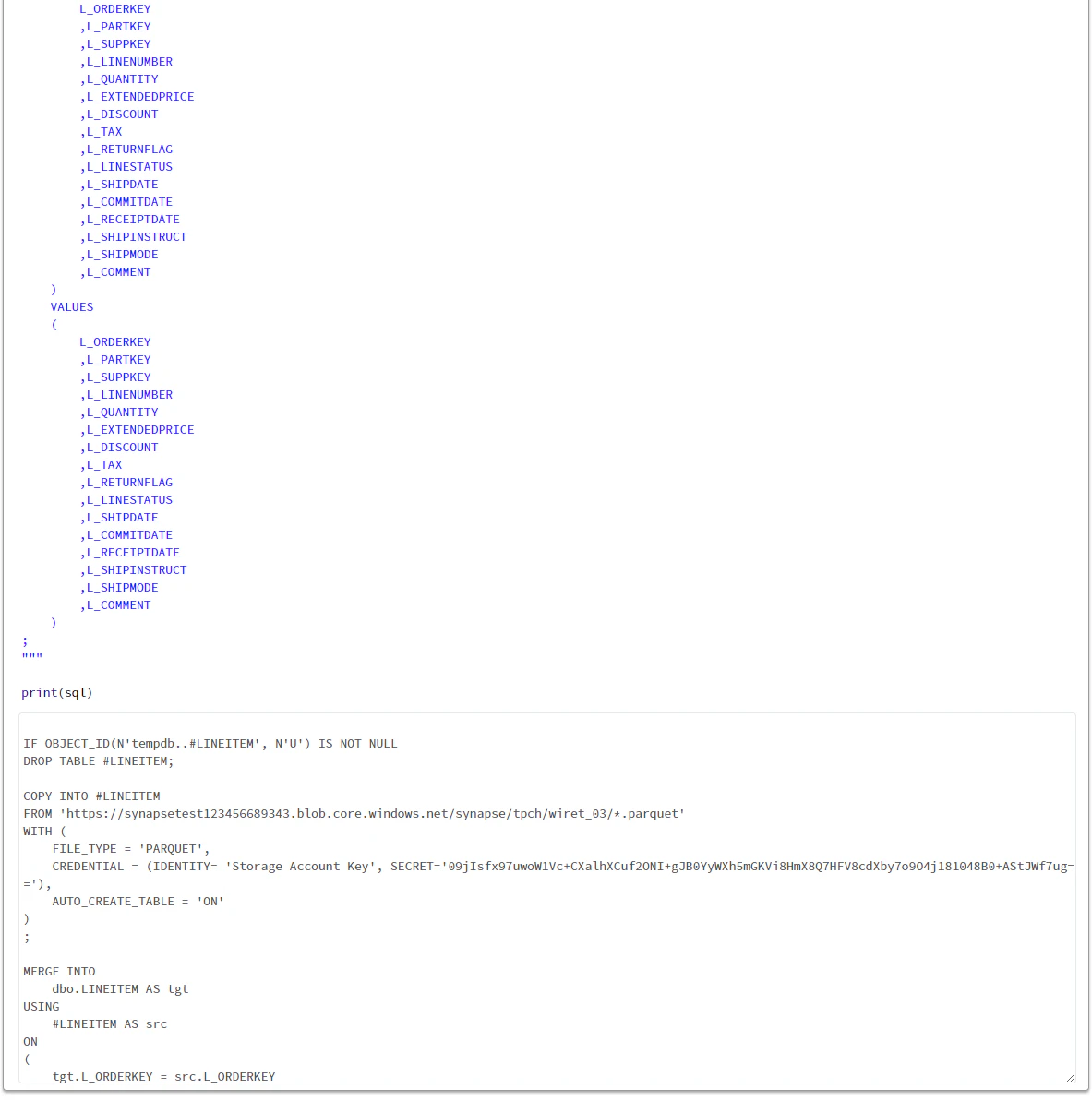

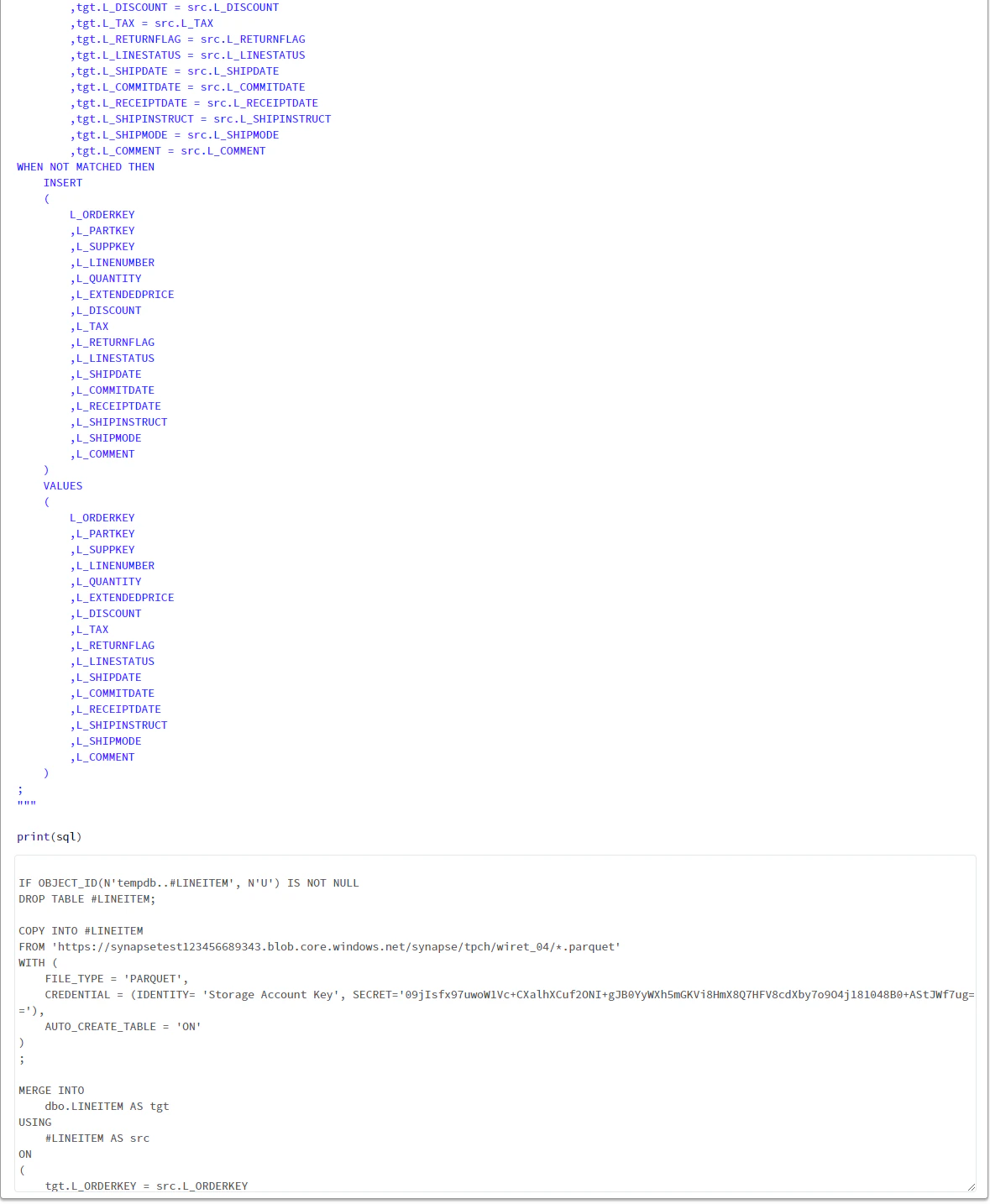

WHEN NOT MATCHED THEN
    INSERT
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
    VALUES
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
;
"""

print(sql)

2 回目のデータを更新

sql = f"""
IF OBJECT_ID(N'tempdb..#LINEITEM', N'U') IS NOT NULL
DROP TABLE #LINEITEM;

COPY INTO #LINEITEM
FROM 'https://{storage_account}.blob.core.windows.net/{container_name}/{wiret_02}'
WITH (
    FILE_TYPE = 'PARQUET',
    CREDENTIAL = (IDENTITY= 'Storage Account Key', SECRET='{access_key}'),
    AUTO_CREATE_TABLE = 'ON'
)
;

MERGE INTO
    dbo.LINEITEM AS tgt
USING
    #LINEITEM AS src
ON
(
    tgt.L_ORDERKEY = src.L_ORDERKEY
    and tgt.L_LINENUMBER = src.L_LINENUMBER
)
 WHEN MATCHED THEN
    UPDATE
        SET
        tgt.L_ORDERKEY = src.L_ORDERKEY
        ,tgt.L_PARTKEY = src.L_PARTKEY
        ,tgt.L_SUPPKEY = src.L_SUPPKEY
        ,tgt.L_LINENUMBER = src.L_LINENUMBER
        ,tgt.L_QUANTITY = src.L_QUANTITY
        ,tgt.L_EXTENDEDPRICE = src.L_EXTENDEDPRICE
        ,tgt.L_DISCOUNT = src.L_DISCOUNT
        ,tgt.L_TAX = src.L_TAX
        ,tgt.L_RETURNFLAG = src.L_RETURNFLAG
        ,tgt.L_LINESTATUS = src.L_LINESTATUS
        ,tgt.L_SHIPDATE = src.L_SHIPDATE
        ,tgt.L_COMMITDATE = src.L_COMMITDATE
        ,tgt.L_RECEIPTDATE = src.L_RECEIPTDATE
        ,tgt.L_SHIPINSTRUCT = src.L_SHIPINSTRUCT
        ,tgt.L_SHIPMODE = src.L_SHIPMODE
        ,tgt.L_COMMENT = src.L_COMMENT
WHEN NOT MATCHED THEN
    INSERT
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
    VALUES
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
;
"""

print(sql)

3 回目のデータを更新

sql = f"""
IF OBJECT_ID(N'tempdb..#LINEITEM', N'U') IS NOT NULL
DROP TABLE #LINEITEM;

COPY INTO #LINEITEM
FROM 'https://{storage_account}.blob.core.windows.net/{container_name}/{wiret_03}'
WITH (
    FILE_TYPE = 'PARQUET',
    CREDENTIAL = (IDENTITY= 'Storage Account Key', SECRET='{access_key}'),
    AUTO_CREATE_TABLE = 'ON'
)
;

MERGE INTO
    dbo.LINEITEM AS tgt
USING
    #LINEITEM AS src
ON
(
    tgt.L_ORDERKEY = src.L_ORDERKEY
    and tgt.L_LINENUMBER = src.L_LINENUMBER
)
 WHEN MATCHED THEN
    UPDATE
        SET
        tgt.L_ORDERKEY = src.L_ORDERKEY
        ,tgt.L_PARTKEY = src.L_PARTKEY
        ,tgt.L_SUPPKEY = src.L_SUPPKEY
        ,tgt.L_LINENUMBER = src.L_LINENUMBER
        ,tgt.L_QUANTITY = src.L_QUANTITY
        ,tgt.L_EXTENDEDPRICE = src.L_EXTENDEDPRICE
        ,tgt.L_DISCOUNT = src.L_DISCOUNT
        ,tgt.L_TAX = src.L_TAX
        ,tgt.L_RETURNFLAG = src.L_RETURNFLAG
        ,tgt.L_LINESTATUS = src.L_LINESTATUS
        ,tgt.L_SHIPDATE = src.L_SHIPDATE
        ,tgt.L_COMMITDATE = src.L_COMMITDATE
        ,tgt.L_RECEIPTDATE = src.L_RECEIPTDATE
        ,tgt.L_SHIPINSTRUCT = src.L_SHIPINSTRUCT
        ,tgt.L_SHIPMODE = src.L_SHIPMODE
        ,tgt.L_COMMENT = src.L_COMMENT
WHEN NOT MATCHED THEN
    INSERT
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
    VALUES
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
;
"""

print(sql)

4 回目のデータを更新

sql = f"""
IF OBJECT_ID(N'tempdb..#LINEITEM', N'U') IS NOT NULL
DROP TABLE #LINEITEM;

COPY INTO #LINEITEM
FROM 'https://{storage_account}.blob.core.windows.net/{container_name}/{wiret_04}'
WITH (
    FILE_TYPE = 'PARQUET',
    CREDENTIAL = (IDENTITY= 'Storage Account Key', SECRET='{access_key}'),
    AUTO_CREATE_TABLE = 'ON'
)
;

MERGE INTO
    dbo.LINEITEM AS tgt
USING
    #LINEITEM AS src
ON
(
    tgt.L_ORDERKEY = src.L_ORDERKEY
    and tgt.L_LINENUMBER = src.L_LINENUMBER
)
 WHEN MATCHED THEN
    UPDATE
        SET
        tgt.L_ORDERKEY = src.L_ORDERKEY
        ,tgt.L_PARTKEY = src.L_PARTKEY
        ,tgt.L_SUPPKEY = src.L_SUPPKEY
        ,tgt.L_LINENUMBER = src.L_LINENUMBER
        ,tgt.L_QUANTITY = src.L_QUANTITY
        ,tgt.L_EXTENDEDPRICE = src.L_EXTENDEDPRICE
        ,tgt.L_DISCOUNT = src.L_DISCOUNT
        ,tgt.L_TAX = src.L_TAX
        ,tgt.L_RETURNFLAG = src.L_RETURNFLAG
        ,tgt.L_LINESTATUS = src.L_LINESTATUS
        ,tgt.L_SHIPDATE = src.L_SHIPDATE
        ,tgt.L_COMMITDATE = src.L_COMMITDATE
        ,tgt.L_RECEIPTDATE = src.L_RECEIPTDATE
        ,tgt.L_SHIPINSTRUCT = src.L_SHIPINSTRUCT
        ,tgt.L_SHIPMODE = src.L_SHIPMODE
        ,tgt.L_COMMENT = src.L_COMMENT
WHEN NOT MATCHED THEN
    INSERT
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
    VALUES
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
;
"""

print(sql)

5 回目のデータを更新

sql = f"""
IF OBJECT_ID(N'tempdb..#LINEITEM', N'U') IS NOT NULL
DROP TABLE #LINEITEM;

COPY INTO #LINEITEM
FROM 'https://{storage_account}.blob.core.windows.net/{container_name}/{wiret_05}'
WITH (
    FILE_TYPE = 'PARQUET',
    CREDENTIAL = (IDENTITY= 'Storage Account Key', SECRET='{access_key}'),
    AUTO_CREATE_TABLE = 'ON'
)
;

MERGE INTO
    dbo.LINEITEM AS tgt
USING
    #LINEITEM AS src
ON
(
    tgt.L_ORDERKEY = src.L_ORDERKEY
    and tgt.L_LINENUMBER = src.L_LINENUMBER
)
 WHEN MATCHED THEN
    UPDATE
        SET
        tgt.L_ORDERKEY = src.L_ORDERKEY
        ,tgt.L_PARTKEY = src.L_PARTKEY
        ,tgt.L_SUPPKEY = src.L_SUPPKEY
        ,tgt.L_LINENUMBER = src.L_LINENUMBER
        ,tgt.L_QUANTITY = src.L_QUANTITY
        ,tgt.L_EXTENDEDPRICE = src.L_EXTENDEDPRICE
        ,tgt.L_DISCOUNT = src.L_DISCOUNT
        ,tgt.L_TAX = src.L_TAX
        ,tgt.L_RETURNFLAG = src.L_RETURNFLAG
        ,tgt.L_LINESTATUS = src.L_LINESTATUS
        ,tgt.L_SHIPDATE = src.L_SHIPDATE
        ,tgt.L_COMMITDATE = src.L_COMMITDATE
        ,tgt.L_RECEIPTDATE = src.L_RECEIPTDATE
        ,tgt.L_SHIPINSTRUCT = src.L_SHIPINSTRUCT
        ,tgt.L_SHIPMODE = src.L_SHIPMODE
        ,tgt.L_COMMENT = src.L_COMMENT
WHEN NOT MATCHED THEN
    INSERT
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
    VALUES
    (
        L_ORDERKEY
        ,L_PARTKEY
        ,L_SUPPKEY
        ,L_LINENUMBER
        ,L_QUANTITY
        ,L_EXTENDEDPRICE
        ,L_DISCOUNT
        ,L_TAX
        ,L_RETURNFLAG
        ,L_LINESTATUS
        ,L_SHIPDATE
        ,L_COMMITDATE
        ,L_RECEIPTDATE
        ,L_SHIPINSTRUCT
        ,L_SHIPMODE
        ,L_COMMENT
    )
;
"""

print(sql)
