timing diagram, PlantUML

PlantUML
一目でわかるPlantUML
https://plantuml.com/ja/

PlantUML を使った UML の描き方
https://plantuml.com/ja/guide

シーケンス図
https://plantuml.com/ja/sequence-diagram

タイミング図
https://plantuml.com/ja/timing-diagram

https://www.analog.com/jp/resources/technical-articles/i2c-timing-definition-and-specification-guide-part-2.html

uml

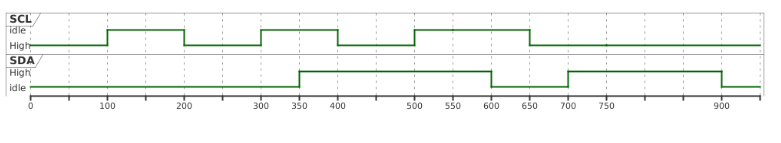

@startuml
robust "SCL" as SCL
robust "SDA" as SDA

@0
SCL is High
SDA is idle

@+100
SCL is idle

@+100
SCL is High

@+100
SCL is idle
@+50
SDA is High

@+50
SCL is High

@+100
SCL is idle
@+50
SCL is idle

@+50
SDA is idle

@+50
SCL is High
@+50
SDA is High

@+50
SCL is High

@+150
SDA is idle
@enduml
