What is the AUTOSAR meta model?

ChatGPT:

The AUTOSAR meta-model is the formal description of the concepts, rules, and relationships used to define all AUTOSAR software and system models.
Think of it as AUTOSAR’s “model of models”: it specifies what elements exist in AUTOSAR, how they can be combined, and what constraints apply, so that AUTOSAR tools and developers share a consistent, machine-readable structure.
Key Points about the AUTOSAR Meta-Model
Definition
It’s a meta-model expressed in UML (Unified Modeling Language).
Defines the language and semantics used in AUTOSAR models (e.g., software components, interfaces, communication, ECUs, networks).
Provides the foundation for exchanging AUTOSAR models in a tool-independent way.
Levels of Abstraction
The meta-model supports AUTOSAR descriptions at multiple levels:
Application Layer: software components, ports, runnables, interfaces.
System Layer: ECUs, networks, and topology.
Basic Software Layer: OS, communication stacks, services.
Rationale
AUTOSAR is used by many different vendors and tools; the meta-model ensures interoperability.
Guarantees that when one tool exports an AUTOSAR description (via ARXML, AUTOSAR XML), another tool can import it without loss of meaning.
Concrete Representation
The meta-model is the basis of ARXML schema (AUTOSAR XML).
Each AUTOSAR release (e.g., 4.4, 4.5, Adaptive Platform) has a corresponding meta-model that evolves with new features.

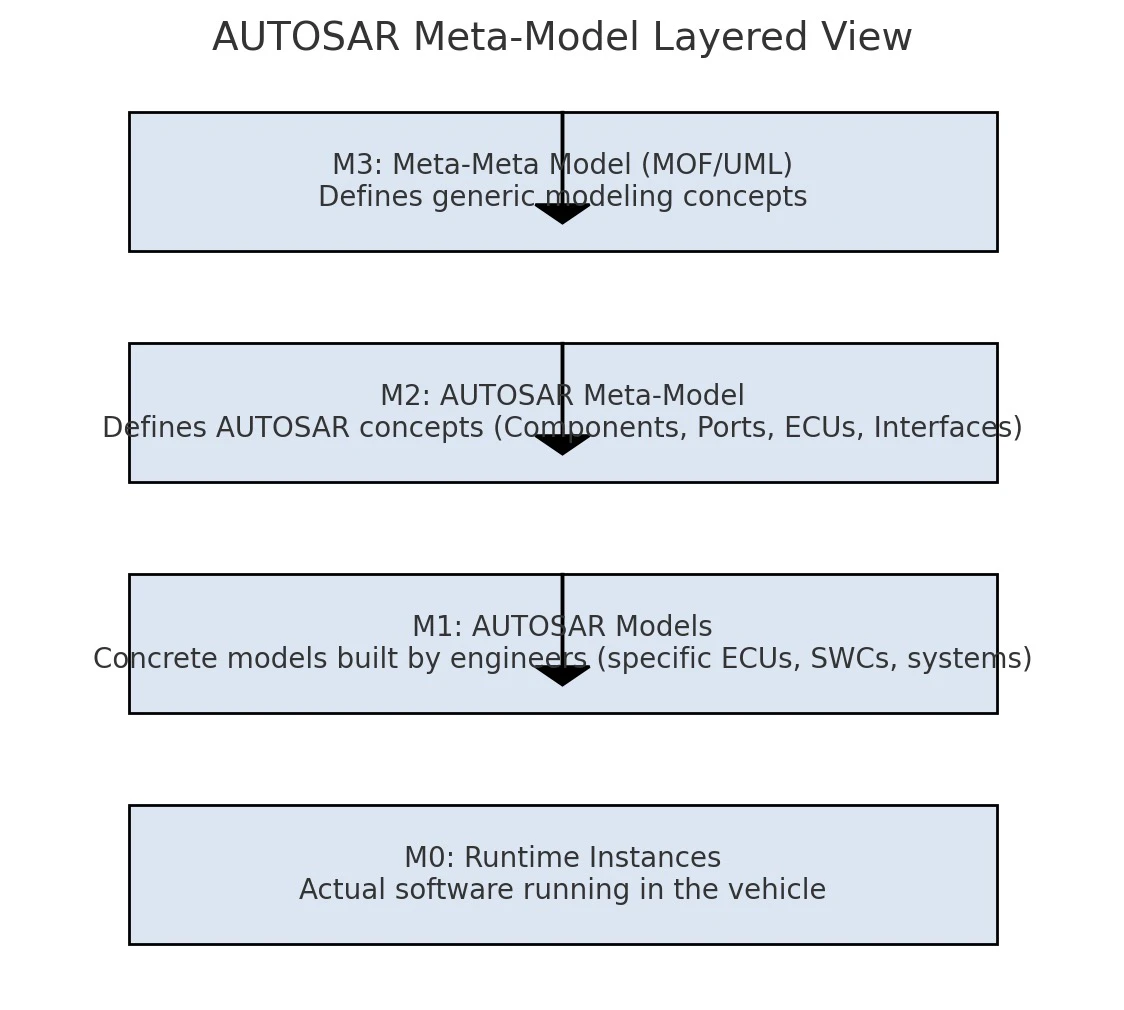

Meta-Model Layers (simplified)
M3 (MOF/Meta-Object Facility): generic meta-meta model (like UML standard).
M2 (AUTOSAR Meta-Model): AUTOSAR concepts (Component, Port, ECU, etc.).
M1 (AUTOSAR Models): concrete ECU or software models built by engineers.
M0 (Runtime Instances): the actual running system in the car.
✅ In short:
The AUTOSAR meta-model is the standardized UML-based description language of AUTOSAR. It defines all the building blocks (components, ports, ECUs, services) and how they interrelate, enabling consistent design, exchange, and implementation of automotive software architectures.
Would you like me to illustrate this with a layered diagram (M3 → M0) showing how the meta-model relates to actual AUTOSAR software components?

Yes, please.

import matplotlib.pyplot as plt
# Define layers
layers = ["M3: Meta-Meta Model (MOF/UML)\nDefines generic modeling concepts",
          "M2: AUTOSAR Meta-Model\nDefines AUTOSAR concepts (Components, Ports, ECUs, Interfaces)",
          "M1: AUTOSAR Models\nConcrete models built by engineers (specific ECUs, SWCs, systems)",
          "M0: Runtime Instances\nActual software running in the vehicle"]
# Plot
fig, ax = plt.subplots(figsize=(7, 6))
ax.set_xlim(0, 1)
ax.set_ylim(0, len(layers))
# Draw rectangles for each layer
for i, text in enumerate(layers):
    y = len(layers) - i - 1
    ax.add_patch(plt.Rectangle((0.1, y + 0.2), 0.8, 0.6, facecolor="#dce6f2", edgecolor="black"))
    ax.text(0.5, y + 0.5, text, ha="center", va="center", wrap=True, fontsize=10)
# Arrows
for i in range(len(layers)-1):
    ax.arrow(0.5, len(layers)-i-0.2, 0, -0.4, head_width=0.05, head_length=0.08, fc="black", ec="black")
# Cleanup
ax.axis("off")
plt.title("AUTOSAR Meta-Model Layered View", fontsize=14)
plt.show()

What is the AUTOSAR ARXML meta model?

ChatGPT:

Great follow-up 👌
Let’s carefully separate AUTOSAR meta-model and the ARXML meta-model:

1. AUTOSAR Meta-Model (M2)
   Defined in UML by AUTOSAR consortium.
   Abstract description of all AUTOSAR concepts:
   SoftwareComponent, Port, Runnable, ECU, Communication Cluster, Service, etc.
   Tool-independent: exists as the standard definition (M2 layer in MOF 4-layer architecture).
2. ARXML Meta-Model
   AUTOSAR uses ARXML (AUTOSAR XML) as the exchange format for models.
   The ARXML schema (XSD) is generated automatically from the UML meta-model.
   So, the ARXML meta-model is the XML Schema (XSD) representation of the AUTOSAR meta-model.
   It makes the abstract UML definitions concrete so that tools can:
   Serialize AUTOSAR models into .arxml files.
   Validate models against the schema.
   Exchange models between different AUTOSAR tools/vendors.
3. Example Flow
   M2 (UML Meta-Model):
   Defines ApplicationSwComponentType with attributes (ports, runnables).
   ARXML Meta-Model (XSD):
   Defines how APPLICATION-SW-COMPONENT-TYPE looks in XML.
   M1 (ARXML Models):
   A concrete .arxml file describing a specific ECU’s software component.
   M0 (Runtime):
   The compiled and running software component in the vehicle.
4. Example Snippet
   From ARXML (derived from meta-model):

<AUTOSAR>
  <AR-PACKAGES>
    <AR-PACKAGE>
      <SHORT-NAME>MyComponents</SHORT-NAME>
      <ELEMENTS>
        <APPLICATION-SW-COMPONENT-TYPE>
          <SHORT-NAME>EngineCtrl</SHORT-NAME>
          <PORTS>
            <P-PORT-PROTOTYPE>
              <SHORT-NAME>EngineDataOut</SHORT-NAME>
            </P-PORT-PROTOTYPE>
          </PORTS>
        </APPLICATION-SW-COMPONENT-TYPE>
      </ELEMENTS>
    </AR-PACKAGE>
  </AR-PACKAGES>
</AUTOSAR>

Here:
APPLICATION-SW-COMPONENT-TYPE comes from the UML meta-model (M2).
Its allowed XML structure comes from the ARXML XSD meta-model.
The actual component EngineCtrl is a model instance (M1).
✅ In short:
The AUTOSAR ARXML meta-model is the XML Schema (XSD) representation of the AUTOSAR UML meta-model, which defines how AUTOSAR models are serialized into .arxml files for exchange and tool interoperability.
Would you like me to draw the relation between UML meta-model ↔ ARXML schema ↔ ARXML instance in the same layered diagram style I showed before?

Do you know the meaning of config-class ARXML tag?

ChatGPT:

Yes — the tag in AUTOSAR ARXML belongs to the configuration part of the meta-model (mostly for Basic Software (BSW) modules).
🔹 Meaning of CONFIG-CLASS
CONFIG-CLASS describes how a particular AUTOSAR element can be configured.
It indicates whether the configuration data is pre-compile time, link-time, or post-build.
This controls when and how configuration values can be changed during the ECU software lifecycle.
🔹 Typical Values of CONFIG-CLASS
In AUTOSAR specifications, you’ll see three standard values:
PRE-COMPILE
Configurable only at pre-compile time.
Affects generated C code directly.
Changing requires recompilation of the software.
LINK
Configurable at link time.
Values can be set without recompiling each source file, but still require re-linking.
POST-BUILD
Configurable after the ECU software is built.
Typically stored in configuration files or NVM (non-volatile memory).
Allows maximum flexibility — values can be changed for different ECU instances without recompiling or linking the software.
🔹 Example in ARXML
Here’s how you might see it:

<ECUC-MODULE-DEF>
  <SHORT-NAME>Com</SHORT-NAME>
  <PARAM-CONF-CONTAINER-DEF>
    <SHORT-NAME>ComConfig</SHORT-NAME>
    <CONFIG-CLASS>POST-BUILD</CONFIG-CLASS>
  </PARAM-CONF-CONTAINER-DEF>
</ECUC-MODULE-DEF>

Here, the Com (Communication) module has a configuration container ComConfig.
Because its CONFIG-CLASS is POST-BUILD, you can adjust ComConfig parameters after building the ECU software.
🔹 Why it matters
Flexibility vs Performance:
Pre-compile gives efficiency but less flexibility.
Post-build allows flexible product variants (same binary, different configs).
ECU Variants: Many OEMs rely on post-build configuration to adapt one ECU software build to multiple vehicle variants.
✅ In summary:
The CONFIG-CLASS ARXML tag specifies when a configuration parameter or container can be set (pre-compile, link-time, or post-build), defining the configurability and flexibility of AUTOSAR BSW modules.
Would you like me to also make a comparison table showing pros/cons of each CONFIG-CLASS (pre-compile, link, post-build) from a developer and OEM perspective?

What is the relationship between and ?

ChatGPT:

Excellent question 👍 — because and often appear close in ARXML, and they both deal with configurability. But they are not the same thing — they work at different levels of the AUTOSAR meta-model.
🔹 1. CONFIG-CLASS
Belongs to the ECUC meta-model (M2).
Defined in module definitions ( or ).
Specifies at what lifecycle stage a parameter/container/module can be configured.
Possible values:
PRE-COMPILE
LINK
POST-BUILD
👉 Think of it as: "When is this element configurable?"
🔹 2. CONFIG-VARIANT
Belongs to the ECUC description (M1), i.e. actual module instances in ARXML.
Appears in module configuration values ( or ).
Specifies which kind of configuration is actually used in a given project/instance.
Possible values:
VARIANT-PRE-COMPILE
VARIANT-LINK
VARIANT-POST-BUILD
👉 Think of it as: "How is this module configured in this ECU?"
🔹 3. Relationship Between Them
CONFIG-CLASS = capability (what is allowed) defined in the module’s meta-model (M2).
CONFIG-VARIANT = choice (what is actually used) in a concrete ECU configuration (M1).
⚙️ Rule of thumb:
CONFIG-VARIANT must comply with the CONFIG-CLASS.
If a module definition says CONFIG-CLASS = PRE-COMPILE, then its instance must use CONFIG-VARIANT = VARIANT-PRE-COMPILE.
You cannot set a POST-BUILD variant if the module was defined as PRE-COMPILE.
🔹 4. Example
Module Definition (Meta-model, M2)

<ECUC-MODULE-DEF>
  <SHORT-NAME>Com</SHORT-NAME>
  <PARAM-CONF-CONTAINER-DEF>
    <SHORT-NAME>ComConfig</SHORT-NAME>
    <CONFIG-CLASS>POST-BUILD</CONFIG-CLASS>
  </PARAM-CONF-CONTAINER-DEF>
</ECUC-MODULE-DEF>

ECU Configuration (Concrete model, M1)

<ECUC-MODULE-CONFIGURATION-VALUES>
  <SHORT-NAME>ComConfigValues</SHORT-NAME>
  <DEFINITION-REF DEST="ECUC-MODULE-DEF">/Com</DEFINITION-REF>
  <IMPLEMENTATION-CONFIG-VARIANT>VARIANT-POST-BUILD</IMPLEMENTATION-CONFIG-VARIANT>
</ECUC-MODULE-CONFIGURATION-VALUES>

Here:
Definition (CONFIG-CLASS = POST-BUILD) says Com can be configured post-build.
Instance (CONFIG-VARIANT = VARIANT-POST-BUILD) selects that option for this ECU.
✅ In summary:
CONFIG-CLASS: capability defined in the AUTOSAR module definition (M2).
CONFIG-VARIANT: actual choice used in the ECU configuration (M1).
They must be consistent: the variant is constrained by the class.
Would you like me to also prepare a side-by-side table (CONFIG-CLASS vs CONFIG-VARIANT) so it’s easy to see the difference at a glance?
