Androidでカレンダーを自作する【背景色編】

概要

前回カレンダーっぽくするために枠線を入れたのですが、今回はそれに加えて土日の色を少し変えていきたいと思います。

やること

• 土曜の色を青に
• 日曜の色を赤に

いざ、着色

実は昨日の枠線をつける段階で背景色の設定方法も調べはついていたのでそれを黙々と組み込みます。

前回のflame_style.xmlとは別にflame_style_red.xmlとflame_style_blue.xmlを用意します。
そしてそれそれに赤と青のスタイルを記述して設定するだけです。
(ホントはflame_style.xmlの中に書きたかったがレイアウトでの指定方法がわからんかった....)

flame_style_red.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">

    <!-- 背景色 -->
    <solid android:color="#45FF0000" />

    <!-- 枠線 width:線の幅、color:線の色 -->
    <stroke
        android:width="1dp"
        android:color="#000000" />
</shape>

flame_style_blue.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">

    <!-- 背景色 -->
    <solid android:color="#450288D1" />

    <!-- 枠線 width:線の幅、color:線の色 -->
    <stroke
        android:width="1dp"
        android:color="#000000" />
</shape>

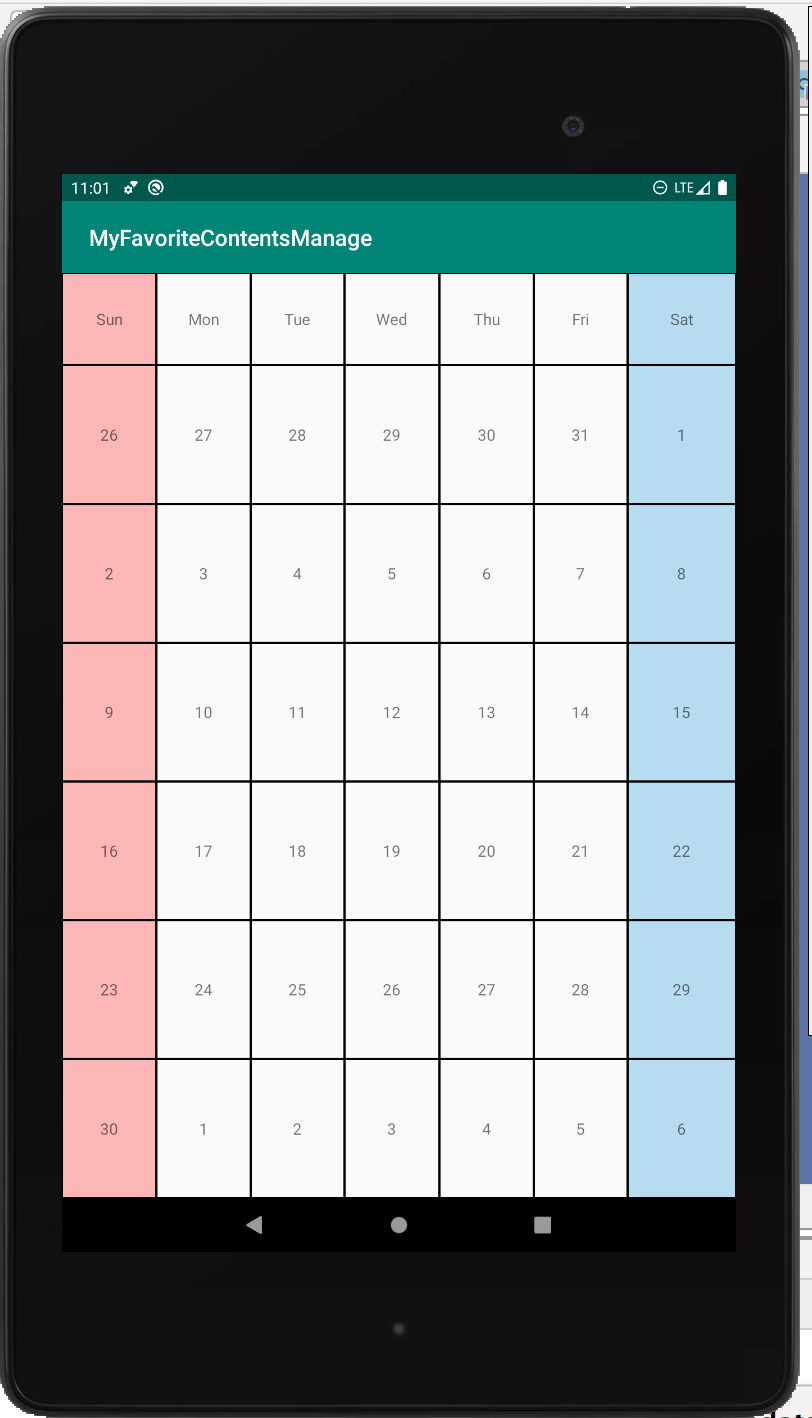

そしてこの２つを特定のマスのみ適用します。

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<layout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        tools:context=".MainActivity">

        <!--縦分割のガイドライン-->
        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/youbi"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            app:layout_constraintGuide_percent="0.1" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/line_1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            app:layout_constraintGuide_percent="0.25" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/line_2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            app:layout_constraintGuide_percent="0.40" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/line_3"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            app:layout_constraintGuide_percent="0.55" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/line_4"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            app:layout_constraintGuide_percent="0.70" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/line_5"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            app:layout_constraintGuide_percent="0.85" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/line_6"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            app:layout_constraintGuide_percent="1" />

        <!--横分割のガイドライン-->
        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/row1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            app:layout_constraintGuide_percent="0.14" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/row2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            app:layout_constraintGuide_percent="0.28" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/row3"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            app:layout_constraintGuide_percent="0.42" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/row4"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            app:layout_constraintGuide_percent="0.56" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/row5"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            app:layout_constraintGuide_percent="0.70" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/row6"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            app:layout_constraintGuide_percent="0.84" />

        <androidx.constraintlayout.widget.Guideline
            android:id="@+id/row7"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:orientation="vertical"
            app:layout_constraintGuide_percent="1" />


        <TextView
            android:id="@+id/sunday"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_red"
            android:gravity="center_horizontal|center_vertical"
            android:text="Sun"
            app:layout_constraintBottom_toBottomOf="@id/youbi"
            app:layout_constraintEnd_toEndOf="@id/row1"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />


        <TextView
            android:id="@+id/monday"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="Mon"
            app:layout_constraintBottom_toBottomOf="@id/youbi"
            app:layout_constraintEnd_toEndOf="@id/row2"
            app:layout_constraintStart_toEndOf="@+id/row1"
            app:layout_constraintTop_toTopOf="@+id/sunday" />

        <TextView
            android:id="@+id/tuesday"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="Tue"
            app:layout_constraintBottom_toBottomOf="@id/youbi"
            app:layout_constraintEnd_toEndOf="@id/row3"
            app:layout_constraintStart_toEndOf="@+id/row2"
            app:layout_constraintTop_toTopOf="@+id/sunday" />

        <TextView
            android:id="@+id/wednesday"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="Wed"
            app:layout_constraintBottom_toBottomOf="@id/youbi"
            app:layout_constraintEnd_toEndOf="@id/row4"
            app:layout_constraintStart_toEndOf="@+id/row3"
            app:layout_constraintTop_toTopOf="@+id/sunday" />

        <TextView
            android:id="@+id/thursday"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="Thu"
            app:layout_constraintBottom_toBottomOf="@id/youbi"
            app:layout_constraintEnd_toEndOf="@id/row5"
            app:layout_constraintStart_toEndOf="@+id/row4"
            app:layout_constraintTop_toTopOf="@+id/sunday" />

        <TextView
            android:id="@+id/friday"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="Fri"
            app:layout_constraintBottom_toBottomOf="@id/youbi"
            app:layout_constraintEnd_toEndOf="@id/row6"
            app:layout_constraintStart_toEndOf="@+id/row5"
            app:layout_constraintTop_toTopOf="@+id/sunday" />

        <TextView
            android:id="@+id/saturday"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_blue"
            android:gravity="center_horizontal|center_vertical"
            android:text="Sat"
            app:layout_constraintBottom_toBottomOf="@id/youbi"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toEndOf="@id/row6"
            app:layout_constraintTop_toTopOf="@+id/sunday" />


        <TextView
            android:id="@+id/cell_1"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_red"
            android:gravity="center_horizontal|center_vertical"
            android:text="26"
            app:layout_constraintBottom_toBottomOf="@id/line_1"
            app:layout_constraintEnd_toEndOf="@id/row1"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="@id/youbi" />


        <TextView
            android:id="@+id/cell_2"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="27"
            app:layout_constraintBottom_toBottomOf="@id/line_1"
            app:layout_constraintEnd_toEndOf="@id/row2"
            app:layout_constraintStart_toEndOf="@+id/row1"
            app:layout_constraintTop_toTopOf="@id/youbi" />

        <TextView
            android:id="@+id/cell_3"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="28"
            app:layout_constraintBottom_toBottomOf="@id/line_1"
            app:layout_constraintEnd_toEndOf="@id/row3"
            app:layout_constraintStart_toEndOf="@+id/row2"
            app:layout_constraintTop_toTopOf="@id/youbi" />

        <TextView
            android:id="@+id/cell_4"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="29"
            app:layout_constraintBottom_toBottomOf="@id/line_1"
            app:layout_constraintEnd_toEndOf="@id/row4"
            app:layout_constraintStart_toEndOf="@+id/row3"
            app:layout_constraintTop_toTopOf="@id/youbi" />

        <TextView
            android:id="@+id/cell_5"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="30"
            app:layout_constraintBottom_toBottomOf="@id/line_1"
            app:layout_constraintEnd_toEndOf="@id/row5"
            app:layout_constraintStart_toEndOf="@+id/row4"
            app:layout_constraintTop_toTopOf="@id/youbi" />

        <TextView
            android:id="@+id/cell_6"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="31"
            app:layout_constraintBottom_toBottomOf="@id/line_1"
            app:layout_constraintEnd_toEndOf="@id/row6"
            app:layout_constraintStart_toEndOf="@+id/row5"
            app:layout_constraintTop_toTopOf="@id/youbi" />

        <TextView
            android:id="@+id/cell_7"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_blue"
            android:gravity="center_horizontal|center_vertical"
            android:text="1"
            app:layout_constraintBottom_toBottomOf="@id/line_1"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toEndOf="@id/row6"
            app:layout_constraintTop_toTopOf="@id/youbi" />

        <TextView
            android:id="@+id/cell_21"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_red"
            android:gravity="center_horizontal|center_vertical"
            android:text="2"
            app:layout_constraintBottom_toBottomOf="@id/line_2"
            app:layout_constraintEnd_toEndOf="@id/row1"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="@id/line_1" />


        <TextView
            android:id="@+id/cell_22"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="3"
            app:layout_constraintBottom_toBottomOf="@id/line_2"
            app:layout_constraintEnd_toEndOf="@id/row2"
            app:layout_constraintStart_toEndOf="@+id/row1"
            app:layout_constraintTop_toTopOf="@id/line_1" />

        <TextView
            android:id="@+id/cell_23"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="4"
            app:layout_constraintBottom_toBottomOf="@id/line_2"
            app:layout_constraintEnd_toEndOf="@id/row3"
            app:layout_constraintStart_toEndOf="@+id/row2"
            app:layout_constraintTop_toTopOf="@id/line_1" />

        <TextView
            android:id="@+id/cell_24"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="5"
            app:layout_constraintBottom_toBottomOf="@id/line_2"
            app:layout_constraintEnd_toEndOf="@id/row4"
            app:layout_constraintStart_toEndOf="@+id/row3"
            app:layout_constraintTop_toTopOf="@id/line_1" />

        <TextView
            android:id="@+id/cell_25"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="6"
            app:layout_constraintBottom_toBottomOf="@id/line_2"
            app:layout_constraintEnd_toEndOf="@id/row5"
            app:layout_constraintStart_toEndOf="@+id/row4"
            app:layout_constraintTop_toTopOf="@id/line_1" />

        <TextView
            android:id="@+id/cell_26"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="7"
            app:layout_constraintBottom_toBottomOf="@id/line_2"
            app:layout_constraintEnd_toEndOf="@id/row6"
            app:layout_constraintStart_toEndOf="@+id/row5"
            app:layout_constraintTop_toTopOf="@id/line_1" />

        <TextView
            android:id="@+id/cell_27"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_blue"
            android:gravity="center_horizontal|center_vertical"
            android:text="8"
            app:layout_constraintBottom_toBottomOf="@id/line_2"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toEndOf="@id/row6"
            app:layout_constraintTop_toTopOf="@id/line_1" />

        <TextView
            android:id="@+id/cell_31"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_red"
            android:gravity="center_horizontal|center_vertical"
            android:text="9"
            app:layout_constraintBottom_toBottomOf="@id/line_3"
            app:layout_constraintEnd_toEndOf="@id/row1"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="@id/line_2" />


        <TextView
            android:id="@+id/cell_32"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="10"
            app:layout_constraintBottom_toBottomOf="@id/line_3"
            app:layout_constraintEnd_toEndOf="@id/row2"
            app:layout_constraintStart_toEndOf="@+id/row1"
            app:layout_constraintTop_toTopOf="@id/line_2" />

        <TextView
            android:id="@+id/cell_33"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="11"
            app:layout_constraintBottom_toBottomOf="@id/line_3"
            app:layout_constraintEnd_toEndOf="@id/row3"
            app:layout_constraintStart_toEndOf="@+id/row2"
            app:layout_constraintTop_toTopOf="@id/line_2" />

        <TextView
            android:id="@+id/cell_34"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="12"
            app:layout_constraintBottom_toBottomOf="@id/line_3"
            app:layout_constraintEnd_toEndOf="@id/row4"
            app:layout_constraintStart_toEndOf="@+id/row3"
            app:layout_constraintTop_toTopOf="@id/line_2" />

        <TextView
            android:id="@+id/cell_35"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="13"
            app:layout_constraintBottom_toBottomOf="@id/line_3"
            app:layout_constraintEnd_toEndOf="@id/row5"
            app:layout_constraintStart_toEndOf="@+id/row4"
            app:layout_constraintTop_toTopOf="@id/line_2" />

        <TextView
            android:id="@+id/cell_36"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="14"
            app:layout_constraintBottom_toBottomOf="@id/line_3"
            app:layout_constraintEnd_toEndOf="@id/row6"
            app:layout_constraintStart_toEndOf="@+id/row5"
            app:layout_constraintTop_toTopOf="@id/line_2" />

        <TextView
            android:id="@+id/cell_37"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_blue"
            android:gravity="center_horizontal|center_vertical"
            android:text="15"
            app:layout_constraintBottom_toBottomOf="@id/line_3"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toEndOf="@id/row6"
            app:layout_constraintTop_toTopOf="@id/line_2" />

        <TextView
            android:id="@+id/cell_41"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_red"
            android:gravity="center_horizontal|center_vertical"
            android:text="16"
            app:layout_constraintBottom_toBottomOf="@id/line_4"
            app:layout_constraintEnd_toEndOf="@id/row1"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="@id/line_3" />

        <TextView
            android:id="@+id/cell_42"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="17"
            app:layout_constraintBottom_toBottomOf="@id/line_4"
            app:layout_constraintEnd_toEndOf="@id/row2"
            app:layout_constraintStart_toEndOf="@+id/row1"
            app:layout_constraintTop_toTopOf="@id/line_3" />

        <TextView
            android:id="@+id/cell_43"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="18"
            app:layout_constraintBottom_toBottomOf="@id/line_4"
            app:layout_constraintEnd_toEndOf="@id/row3"
            app:layout_constraintStart_toEndOf="@+id/row2"
            app:layout_constraintTop_toTopOf="@id/line_3" />

        <TextView
            android:id="@+id/cell_44"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="19"
            app:layout_constraintBottom_toBottomOf="@id/line_4"
            app:layout_constraintEnd_toEndOf="@id/row4"
            app:layout_constraintStart_toEndOf="@+id/row3"
            app:layout_constraintTop_toTopOf="@id/line_3" />

        <TextView
            android:id="@+id/cell_45"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="20"
            app:layout_constraintBottom_toBottomOf="@id/line_4"
            app:layout_constraintEnd_toEndOf="@id/row5"
            app:layout_constraintStart_toEndOf="@+id/row4"
            app:layout_constraintTop_toTopOf="@id/line_3" />

        <TextView
            android:id="@+id/cell_46"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="21"
            app:layout_constraintBottom_toBottomOf="@id/line_4"
            app:layout_constraintEnd_toEndOf="@id/row6"
            app:layout_constraintStart_toEndOf="@+id/row5"
            app:layout_constraintTop_toTopOf="@id/line_3" />

        <TextView
            android:id="@+id/cell_47"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_blue"
            android:gravity="center_horizontal|center_vertical"
            android:text="22"
            app:layout_constraintBottom_toBottomOf="@id/line_4"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toEndOf="@id/row6"
            app:layout_constraintTop_toTopOf="@id/line_3" />

        <TextView
            android:id="@+id/cell_51"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_red"
            android:gravity="center_horizontal|center_vertical"
            android:text="23"
            app:layout_constraintBottom_toBottomOf="@id/line_5"
            app:layout_constraintEnd_toEndOf="@id/row1"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="@id/line_4" />

        <TextView
            android:id="@+id/cell_52"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="24"
            app:layout_constraintBottom_toBottomOf="@id/line_5"
            app:layout_constraintEnd_toEndOf="@id/row2"
            app:layout_constraintStart_toEndOf="@+id/row1"
            app:layout_constraintTop_toTopOf="@id/line_4" />

        <TextView
            android:id="@+id/cell_53"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="25"
            app:layout_constraintBottom_toBottomOf="@id/line_5"
            app:layout_constraintEnd_toEndOf="@id/row3"
            app:layout_constraintStart_toEndOf="@+id/row2"
            app:layout_constraintTop_toTopOf="@id/line_4" />

        <TextView
            android:id="@+id/cell_54"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="26"
            app:layout_constraintBottom_toBottomOf="@id/line_5"
            app:layout_constraintEnd_toEndOf="@id/row4"
            app:layout_constraintStart_toEndOf="@+id/row3"
            app:layout_constraintTop_toTopOf="@id/line_4" />

        <TextView
            android:id="@+id/cell_55"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="27"
            app:layout_constraintBottom_toBottomOf="@id/line_5"
            app:layout_constraintEnd_toEndOf="@id/row5"
            app:layout_constraintStart_toEndOf="@+id/row4"
            app:layout_constraintTop_toTopOf="@id/line_4" />

        <TextView
            android:id="@+id/cell_56"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="28"
            app:layout_constraintBottom_toBottomOf="@id/line_5"
            app:layout_constraintEnd_toEndOf="@id/row6"
            app:layout_constraintStart_toEndOf="@+id/row5"
            app:layout_constraintTop_toTopOf="@id/line_4" />

        <TextView
            android:id="@+id/cell_57"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_blue"
            android:gravity="center_horizontal|center_vertical"
            android:text="29"
            app:layout_constraintBottom_toBottomOf="@id/line_5"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toEndOf="@id/row6"
            app:layout_constraintTop_toTopOf="@id/line_4" />

        <TextView
            android:id="@+id/cell_61"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_red"
            android:gravity="center_horizontal|center_vertical"
            android:text="30"
            app:layout_constraintBottom_toBottomOf="@id/line_6"
            app:layout_constraintEnd_toEndOf="@id/row1"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="@id/line_5" />

        <TextView
            android:id="@+id/cell_62"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="1"
            app:layout_constraintBottom_toBottomOf="@id/line_6"
            app:layout_constraintEnd_toEndOf="@id/row2"
            app:layout_constraintStart_toEndOf="@+id/row1"
            app:layout_constraintTop_toTopOf="@id/line_5" />

        <TextView
            android:id="@+id/cell_63"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="2"
            app:layout_constraintBottom_toBottomOf="@id/line_6"
            app:layout_constraintEnd_toEndOf="@id/row3"
            app:layout_constraintStart_toEndOf="@+id/row2"
            app:layout_constraintTop_toTopOf="@id/line_5" />

        <TextView
            android:id="@+id/cell_64"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="3"
            app:layout_constraintBottom_toBottomOf="@id/line_6"
            app:layout_constraintEnd_toEndOf="@id/row4"
            app:layout_constraintStart_toEndOf="@+id/row3"
            app:layout_constraintTop_toTopOf="@id/line_5" />

        <TextView
            android:id="@+id/cell_65"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="4"
            app:layout_constraintBottom_toBottomOf="@id/line_6"
            app:layout_constraintEnd_toEndOf="@id/row5"
            app:layout_constraintStart_toEndOf="@+id/row4"
            app:layout_constraintTop_toTopOf="@id/line_5" />

        <TextView
            android:id="@+id/cell_66"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style"
            android:gravity="center_horizontal|center_vertical"
            android:text="5"
            app:layout_constraintBottom_toBottomOf="@id/line_6"
            app:layout_constraintEnd_toEndOf="@id/row6"
            app:layout_constraintStart_toEndOf="@+id/row5"
            app:layout_constraintTop_toTopOf="@id/line_5" />

        <TextView
            android:id="@+id/cell_67"
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:background="@drawable/flame_style_blue"
            android:gravity="center_horizontal|center_vertical"
            android:text="6"
            app:layout_constraintBottom_toBottomOf="@id/line_6"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toEndOf="@id/row6"
            app:layout_constraintTop_toTopOf="@id/line_5" />

    </androidx.constraintlayout.widget.ConstraintLayout>
</layout>

これで設定は完了です。

実行結果

思った20倍それっぽくなりました笑

予約投稿:2020-06-23
