Catalyst 9800 シリーズ ワイヤレスLANコントローラ用 Zabbix テンプレートをつくりました

Posted at

Catalyst 9800 シリーズ ワイヤレスLANコントローラ用 Zabbix テンプレート

これは何ですか？

これは、Cisco Catalyst 9800シリーズ ワイヤレスLANコントローラ用のZabbixテンプレートです。SNMPを使用して、無線クライアント数、AP数、ラジオ利用率、モビリティトンネルの状態、ハイアベイラビリティの状態などの無線監視を可能にします。CPU使用率、メモリ使用量、インターフェース状態などの一般的なIOS-XEデバイスのステータスはCisco IOS by SNMP」テンプレートやその他のテンプレートを使用して取得してください。

要件

  • Cisco Catalyst 9800シリーズ ワイヤレスLANコントローラと
    サポートされているアクセスポイント
  • IOS-XE 17.11以降のソフトウェアイメージ
    (AIRESPACE-WIRELESS-MIB::bsnDot11EssNumberOfMobileStations などの
    無線SNMP OIDを取得のため)
  • Catalyst 9800 WLCでのSNMPおよびSNMPトラップの設定
  • Zabbix 6.0以降（6.0.29でテスト済み）

SNMPのサンプル設定は以下の通りです。

snmp-server community [SNMP COMMUNITY] RO
snmp-server location ["YOUR PHYSICAL ADDRESS"]
snmp-server enable traps wireless bsnAutoRF
snmp-server enable traps rf
snmp-server host [ZABBIX IP ADDRESS] version 2c [SNMP COMMUNITY]

使用方法

  1. zabbix-cisco-9800テンプレートをダウンロードします。
  2. ダウンロードしたテンプレートをインポートします。
  3. テンプレートの最新バージョンを使用して、すべてのテンプレートアイテムが正しいことを確認してください。

使用しているSNMP MIB

Monitoring Item SNMP MIBs
AP Name AIRESPACE-WIRELESS-MIB::bsnAPName
AP Channel Number (2.4GHz) AIRESPACE-WIRELESS-MIB::bsnAPIfPhyChannelNumber
AP Channel Number (5GHz) AIRESPACE-WIRELESS-MIB::bsnAPIfPhyChannelNumber
CISCO-LWAPP-AP-MIB::cLApExtensionChannels
AP Channel Bandwidth (5GHz) CISCO-LWAPP-AP-MIB::cLAp11ChannelBandwidth
AP Channel Utilization (2.4GHz/5GHz) AIRESPACE-WIRELESS-MIB::bsnAPIfLoadChannelUtilization
AP Operation Status AIRESPACE-WIRELESS-MIB::bsnAPOperationStatus
AP Serial Number AIRESPACE-WIRELESS-MIB::bsnAPSerialNumber
AP Software Version AIRESPACE-WIRELESS-MIB::bsnAPSoftwareVersion
AP Tx Power Level (2.4GHz/5GHz) AIRESPACE-WIRELESS-MIB::bsnAPIfPhyTxPowerLevel
Current Number of AP CISCO-LWAPP-AP-MIB::cLApGlobalAPConnectCount.0
Number of APs Supported CISCO-LWAPP-AP-MIB::cLApGlobalMaxApsSupported.0
HA SSO status CISCO-LWAPP-HA-MIB::cLHaPeerHotStandbyEvent
Mobility Member Status (Control) CISCO-LWAPP-MOBILITY-MIB::cLMobilityGroupMembersOperControlPathStatus
Mobility Member Status (Data) CISCO-LWAPP-MOBILITY-MIB::cLMobilityGroupMembersOperControlPathStatus
Rouge AP Count AIRESPACE-WIRELESS-MIB::bsnRogueAPDot11MacAddress
Rogue Client Count AIRESPACE-WIRELESS-MIB::bsnRogueClientDot11MacAddress
SSID Administrative Status AIRESPACE-WIRELESS-MIB::bsnDot11EssAdminStatus
SSID Number of Clients AIRESPACE-WIRELESS-MIB::bsnDot11EssNumberOfMobileStations
AP disassociation AIRESPACE-WIRELESS-MIB::bsnAPDisassociated
CISCO-LWAPP-AP-MIB::ciscoLwappApAssociated
Channel Changed AIRESPACE-WIRELESS-MIB::bsnAPCurrentChannelChanged
DFS Radar Detection AIRESPACE-WIRELESS-MIB::bsnRadarChannelDetected

本テンプレートでは標準MIBおよびOIDで実装をしているためベンダーMIBのインストールは不要です。詳細は下記からMIBをダウンロードし確認ください。

  • AIRESPACE-REF-MIB.my
  • AIRESPACE-WIRELESS-CAPABILITY.my
  • AIRESPACE-WIRELESS-MIB.my
  • CISCO-LWAPP-AP-MIB.my
  • CISCO-LWAPP-DOT11-MIB.my
  • CISCO-LWAPP-RF-MIB.my
  • CISCO-LWAPP-TC-MIB.my
  • CISCO-LWAPP-WLAN-MIB.my
  • CISCO-SMI.my
  • CISCO-TC.my
  • ENTITY-MIB.my

https://github.com/cisco/cisco-mibs

スクリーンショット

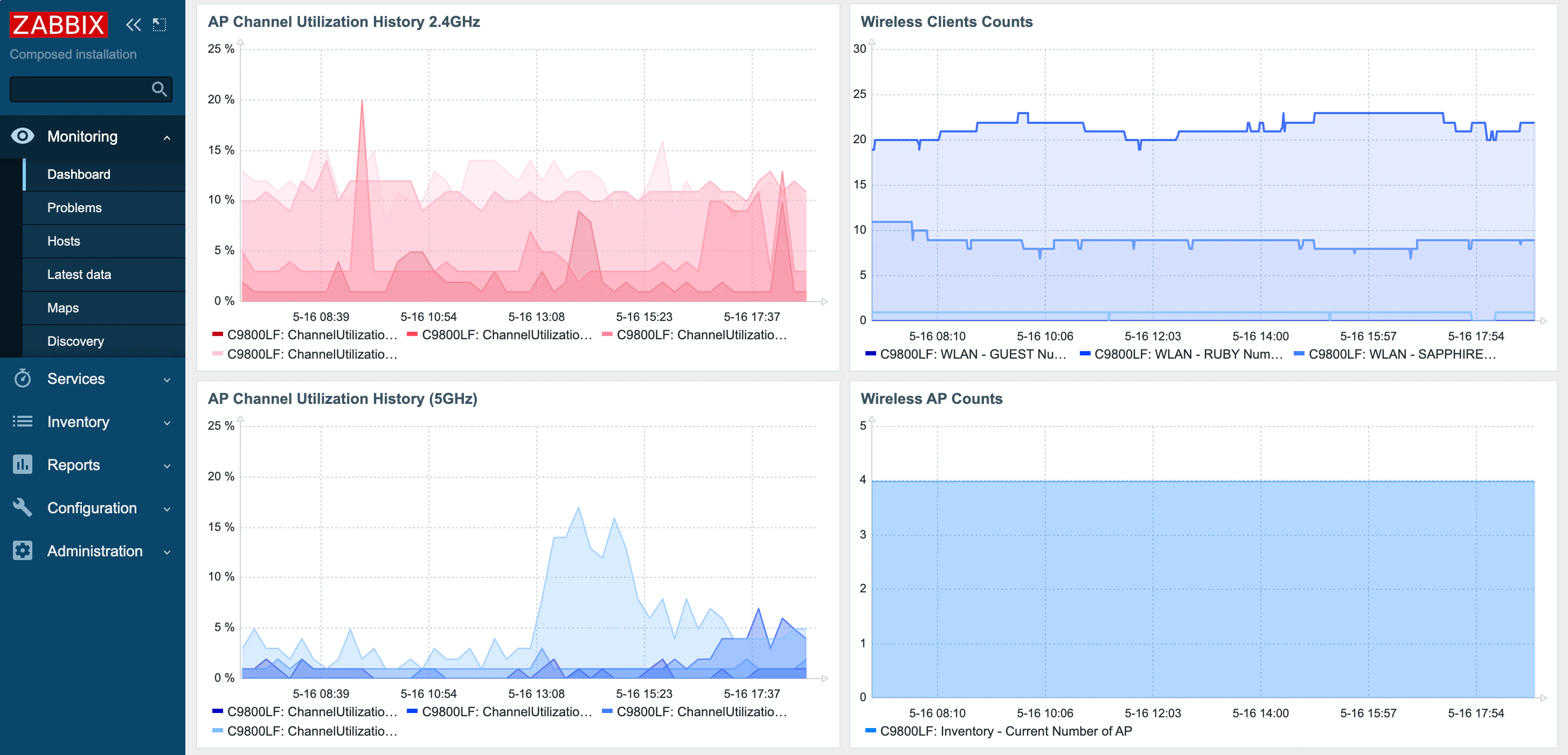

Screenshot 2024-05-16 at 18.58.51.png

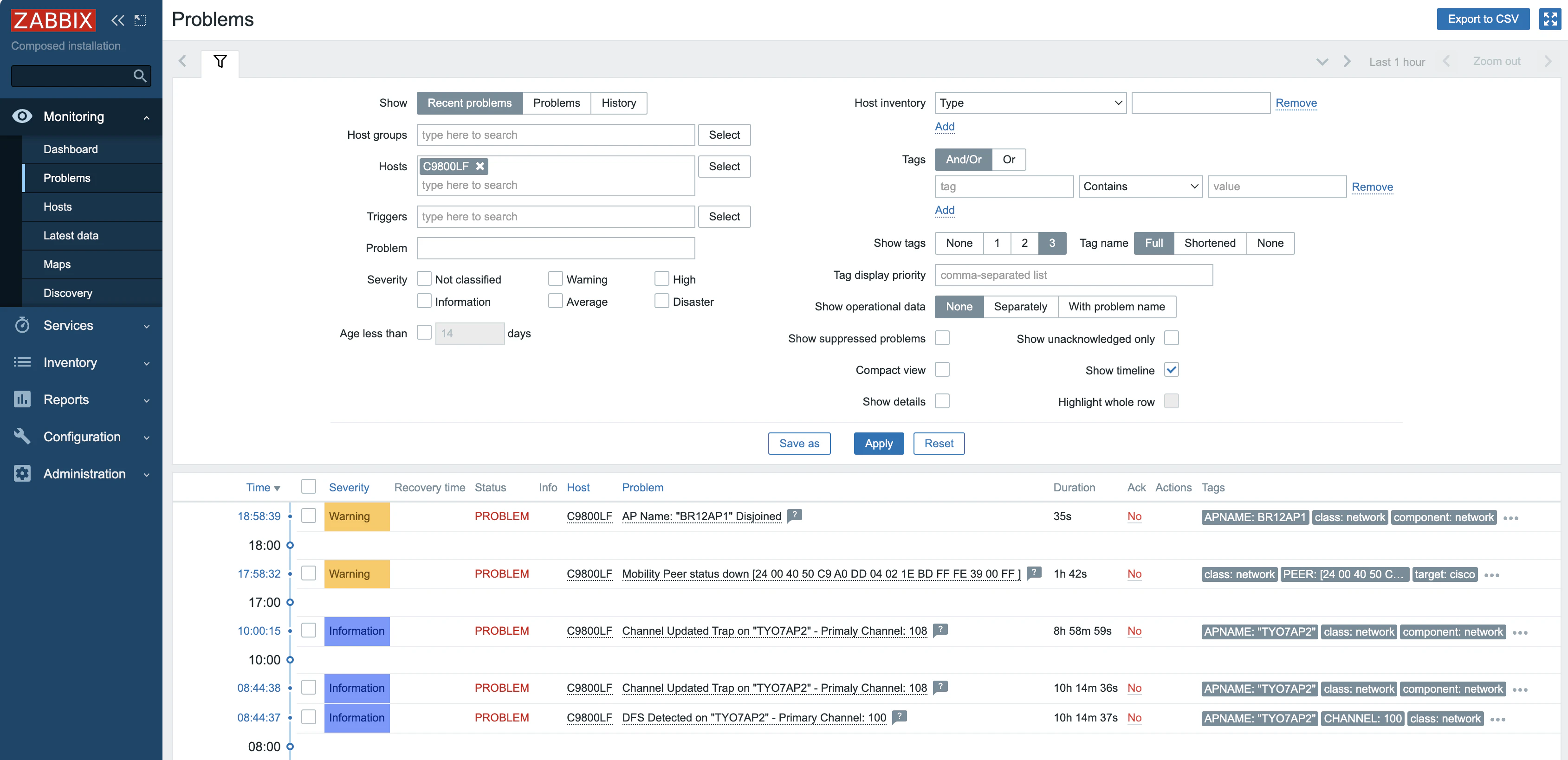

Screenshot 2024-05-16 at 18.59.27.png

テスト環境

  • Cisco IOS Software [Dublin], C9800 Software (C9800_IOSXE-K9), Version 17.12.3, RELEASE SOFTWARE (fc7)
    • C9800-L-F-K9
    • C9800-CL-K9
  • Zabbix 6.0.29

テストは小規模なラボ環境で実施しています。大規模な環境ではSNMPでワイヤレスコントローラのCPUに負荷がかかっていないか確認を行ってください。

ディスカバリルール

Name Description Type Key and additional info
bsnAPTable Enumerate Access Point and create prototype for each SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPName
Update: 1h
cLMobilityGroupMembersOperEntry Enumurate Mobility Group Member and createprotoype for each SNMP Agent CISCO-LWAPP-MOBILITY-MIB::cLMobilityGroupMembersOperNodeAddress
Update: 1h
cLWlanSsid Enumerate SSID and create prototype for each SNMP Agent CISCO-LWAPP-WLAN-MIB::cLWlanSsid
Update: 1h

アイテム

Name Description Type Key and additional info
AP Name - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPName
Update: 1h
AP Channel Number (2.4GHz) - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPIfPhyChannelNumber
Update: 15min
AP Channel Number (5GHz) Chennel bonding is supported SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPIfPhyChannelNumber
+ CISCO-LWAPP-AP-MIB::cLApExtensionChannels
Update: 15min
AP Channel Bandwidth (5GHz) - SNMP Agent CISCO-LWAPP-AP-MIB::cLAp11ChannelBandwidth
Update: 15min
AP Channel Utilization (2.4GHz/5GHz) - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPIfLoadChannelUtilization
Update: 15min
AP Operation Status - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPOperationStatus
Update: 15min
AP Serial Number - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPSerialNumber
Update: 24h
AP Software Version - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPSoftwareVersion
Update 1h
AP Tx Power Level (2.4GHz/5GHz) - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnAPIfPhyTxPowerLevel
Update: 15min
Current Number of AP - SNMP Agent CISCO-LWAPP-AP-MIB::cLApGlobalAPConnectCount.0
Update: 1min
Number of APs Supported - SNMP Agent CISCO-LWAPP-AP-MIB::cLApGlobalMaxApsSupported.0
Update: 15min
HA SSO status - SNMP Agent CISCO-LWAPP-HA-MIB::cLHaPeerHotStandbyEvent
Update: 15min
Mobility Member Status (Control) - SNMP Agent CISCO-LWAPP-MOBILITY-MIB::cLMobilityGroupMembersOperControlPathStatus
Update: 1min
Mobility Member Status (Data) - SNMP Agent CISCO-LWAPP-MOBILITY-MIB::cLMobilityGroupMembersOperControlPathStatus
Update: 1min
Rouge AP Count - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnRogueAPDot11MacAddress
Update: 15min
Rogue Client Count - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnRogueClientDot11MacAddress
Update: 15min
SSID Administrative Status - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnDot11EssAdminStatus
Update: 1min
SSID Number of Clients - SNMP Agent AIRESPACE-WIRELESS-MIB::bsnDot11EssNumberOfMobileStations
Update: 1min
AP diassociation - SNMP Trap AIRESPACE-WIRELESS-MIB::bsnAPDisassociated
CISCO-LWAPP-AP-MIB::ciscoLwappApAssociated
Channel Changed - SNMP Trap AIRESPACE-WIRELESS-MIB::bsnAPCurrentChannelChanged
DFS Radar Detection - SNMP Trap AIRESPACE-WIRELESS-MIB::bsnRadarChannelDetected

トリガー

Name Description Expression Priority
AP Name: {{ITEM.VALUE}.regsub("SNMPv2-SMI::enterprises.14179.2.2.1.1.3..=\s(.)",\1)} Disjoined Problem trigger TrapOID
AIRESPACE-WIRELESS-MIB::bsnAPDisassociated

Recovery trigger TrapOID
CISCO-LWAPP-AP-MIB::ciscoLwappApAssociated

Tag "APNAME" from
AIRESPACE-WIRELESS-MIB::bsnAPName (problem)
CISCO-LWAPP-AP-MIB::cLApName (recovery)		 Problem expression
find(/Cisco Catalyst 9800 by SNMP/snmptrap[SNMPv2-SMI::enterprises.14179.2.6.3.8$|SNMPv2-SMI::enterprises.9.9.513.0.4$],,"regexp","14179.2.6.3.8")=1

Recovery expression
find(/Cisco Catalyst 9800 by SNMP/snmptrap[SNMPv2-SMI::enterprises.14179.2.6.3.8$|SNMPv2-SMI::enterprises.9.9.513.0.4$],,"regexp","9.9.513.0.4")=1		 Warning
Channel Updated Trap on {{ITEM.VALUE}.regsub("SNMPv2-SMI::enterprises.14179.2.2.1.1.3..=\s(.)",\1)} Primaly Channel: {{ITEM.VALUE}.regsub("SNMPv2-SMI::enterprises.14179.2.6.2.23..=\s(.)",\1)} 2 AIRESPACE-WIRELESS-MIB::bsnAPCurrentChannelChanged

APNAME
AIRESPACE-WIRELESS-MIB::bsnAPName

find(/Cisco Catalyst 9800 by SNMP/snmptrap["SNMPv2-SMI::enterprises.14179.2.6.3.16"],86400)=1		 Expression
find(/Cisco Catalyst 9800 by SNMP/snmptrap["SNMPv2-SMI::enterprises.14179.2.6.3.16"],,"like","SNMPv2-SMI::enterprises.14179.2.6.3.16")=1		 Information
DFS Detected on {{ITEM.VALUE}.regsub("SNMPv2-SMI::enterprises.14179.2.2.1.1.3..=\s(.)",\1)} Channel: {{ITEM.VALUE}.regsub("SNMPv2-SMI::enterprises.14179.2.2.2.1.4..=\s(.)",\1)} Trigger SNMP OID
AIRESPACE-WIRELESS-MIB::bsnRadarChannelDetected

APNAME
AIRESPACE-WIRELESS-MIB::bsnAPName

CHANNEL
AIRESPACE-WIRELESS-MIB::bsnAPIfPhyChannelNumber

find(/Cisco Catalyst 9800 by SNMP/snmptrap["SNMPv2-SMI::enterprises.14179.2.6.3.81"],86400)=1		 Expression
find(/Cisco Catalyst 9800 by SNMP/snmptrap["SNMPv2-SMI::enterprises.14179.2.6.3.81"],,"like","SNMPv2-SMI::enterprises.14179.2.6.3.81")=1		 Information
HA Peer Hotstandby status changed Track CISCO-LWAPP-HA-MIB::cLHaPeerHotStandbyEvent Expression
change(/Cisco Catalyst 9800 by SNMP/cLHaPeerHotStandbyEvent)<>0		 Warning
Maxmimum AP join limit has reached Trigger
CISCO-LWAPP-AP-MIB::cLApGlobalAPConnectCount.0
= CISCO-LWAPP-AP-MIB::cLApGlobalMaxApsSupported.0		 Expression
last(/Cisco Catalyst 9800 by SNMP/cLApGlobalAPConnectCount)=last(/Cisco Catalyst 9800 by SNMP/cLApGlobalMaxApsSupported)		 Average
AP Operation Status changed {#APNAME} This is tracking AIRESPACE-WIRELESS-MIB::bsnAPOperationStatus.
It will be useful when SNMP trap is not used.		 Problem expression
last(/Cisco Catalyst 9800 by SNMP/bsnAPOperationStatus[{#APNAME}])=2 and last(/Cisco Catalyst 9800 by SNMP/bsnAPOperationStatus[{#APNAME}],#1)<>last(/Cisco Catalyst 9800 by SNMP/bsnAPOperationStatus[{#APNAME}],#2)

Recovery expression
find(/Cisco Catalyst 9800 by SNMP/bsnAPOperationStatus[{#APNAME}],3,,"1")=1		 Warning
Channel Updated on {#APNAME} This is tracking AIRESPACE-WIRELESS-MIB::bsnAPIfPhyChannelNumber.
This trigger can catch channel update of both manual channel assignment and auto assignment.		 Problem expression
(nodata(/Cisco Catalyst 9800 by SNMP/bsnAPIfPhyChannelNumber-24ghz-[{#APNAME}],900)=0
or
nodata(/Cisco Catalyst 9800 by SNMP/bsnAPIfPhyChannelNumber-cLApExtensionChannels-5ghz-[{#APNAME}],900)=0)

and

(change(/Cisco Catalyst 9800 by SNMP/bsnAPIfPhyChannelNumber-24ghz-[{#APNAME}])<>0
or
change(/Cisco Catalyst 9800 by SNMP/bsnAPIfPhyChannelNumber-cLApExtensionChannels-5ghz-[{#APNAME}])<>0)		 Information
Mobility Peer status down [{#MOBILITYPEER}] Tracking CISCO-LWAPP-MOBILITY-MIB::cLMobilityGroupMembersOperControlPathStatus Problem expression
last(/Cisco Catalyst 9800 by SNMP/cLMobilityGroupMembersOperControlPathStatus[{#MOBILITYPEER}])=2
and
(last(/Cisco Catalyst 9800 by SNMP/cLMobilityGroupMembersOperControlPathStatus[{#MOBILITYPEER}],#1)<>last(/Cisco Catalyst 9800 by SNMP/cLMobilityGroupMembersOperControlPathStatus[{#MOBILITYPEER}],#2))

Recovery expression
find(/Cisco Catalyst 9800 by SNMP/cLMobilityGroupMembersOperControlPathStatus[{#MOBILITYPEER}],600,,"1")=1		 Warning

  1. Cisco Embedded Wireless Controller on Catalyst Access Points（EWC）はSNMP MIBを実装していません(一部のオブジェクト識別子（OID）に応答することがあります)。 詳細はConfiguration guideを参照ください。 ↩

  2. こちらのトリガーはデフォルトで無効です ↩
