[AWS] lsyncd+rsyncでの複数サーバ同期の設定 (リアルタイムミラーリング)

More than 1 year has passed since last update.

AWSに以下の環境を構築するまでの流れを実施したので、備忘録として残しておこうと思います。

前提・開発環境

・AmazonLinux
・Apache2.2
・PHP7
EC2の設定は下記です。
[AWS] EC2+RDS開発環境設定 Apache2.2+PHP7+MySQL+WordPress+phpMyAdmin

実施事項

lsyncd+rsyncでの複数サーバ同期の設定
ミラーリング対象のディレクトリは、/var/www/html以下のディレクトリ・ファイル

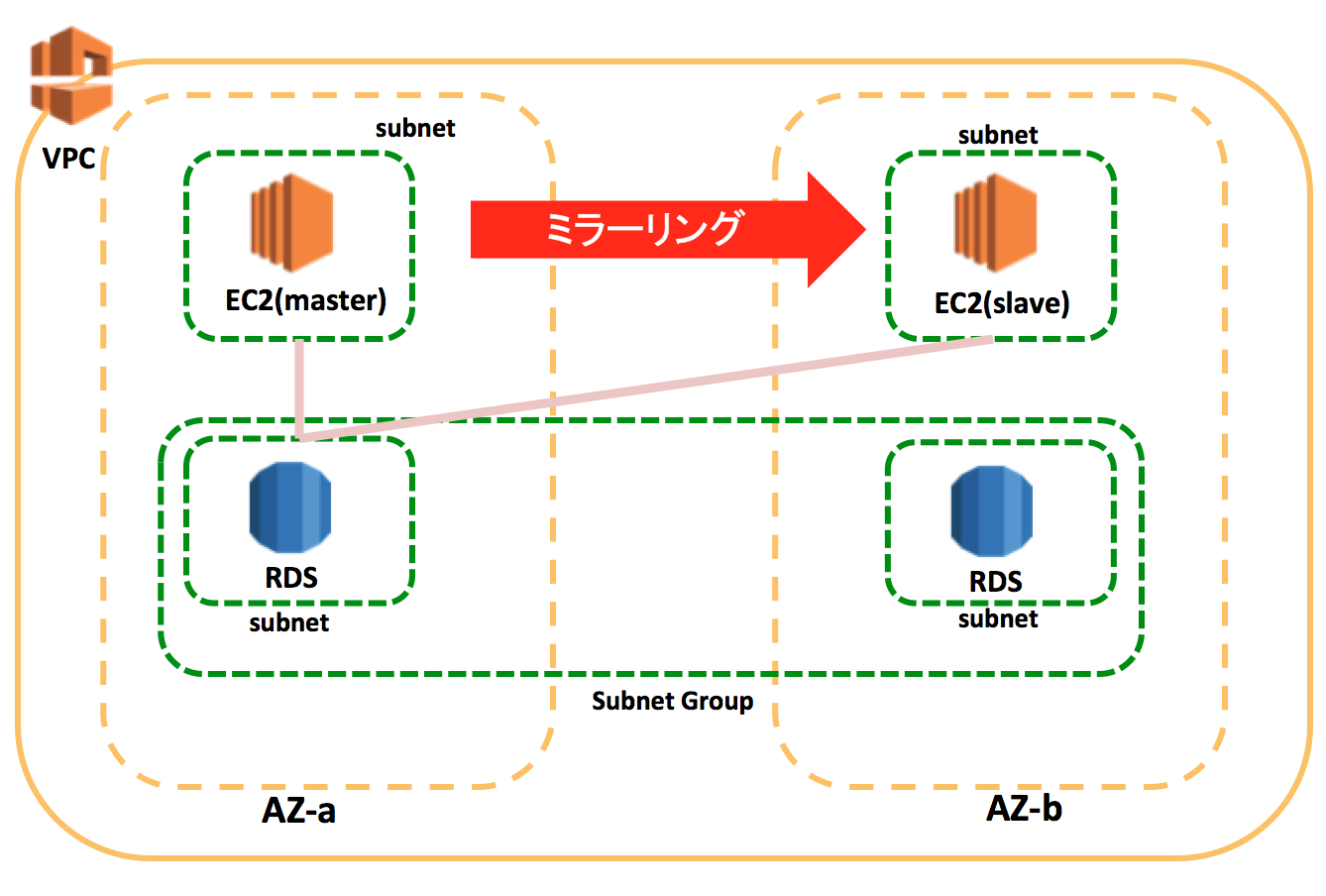

イメージ

master(ミラー元) EC2のIPアドレス → XXX:XXX:XXX:XXX
slave(ミラー先)EC2のIPアドレス → YYY:YYY:YYY:YYY

スクリーンショット 2017-03-01 16.05.57.png

設定

最初にmaster側の設定

master
[ec2-user@ip-10-0-1-187 ~]$ sudo yum -y install lsyncd
[ec2-user@ip-10-0-1-187 ~]$ cd /etc
[ec2-user@ip-10-0-1-187 etc]$ sudo vi lsyncd.conf

lsyncd.confの編集/追加
=========================
settings{
    logfile = "/var/log/lsyncd.log",
    statusFile = "/tmp/lsyncd.stat",
    statusInterval = 1,
}
sync{
    default.rsync,
    source="/var/www/html/",
    target="YYY.YYY.YYY.YYY::qiita",
    rsync = {
        archive = true,
        links = true,
        update = true,
        verbose = false
    }
}
=========================
[ec2-user@ip-10-0-1-187 etc]$ sudo chkconfig lsyncd on
[ec2-user@ip-10-0-1-187 etc]$ sudo /etc/rc.d/init.d/lsyncd start
Starting lsyncd:                                           [  OK  ]

別シェルを立ち上げて下記のtailコマンドでログを拾っておくとエラーの状況が把握しやすいです。

master_log
[ec2-user@ip-10-0-1-187 ~]$ tail -f /var/log/lsyncd.log
Wed Mar  1 07:27:58 2017 Error: Temporary or permanent failure on startup of "/var/www/html/". Terminating since "insist" is not set.
・・・・・

次にslave側の設定

slave
[ec2-user@ip-10-0-2-165 ~]$ sudo yum -y install xinetd
[ec2-user@ip-10-0-2-165 ~]$ cd /etc/xinetd.d
[ec2-user@ip-10-0-2-165 xinetd.d]$ sudo vi rsync

rsyncの編集
=========================
# default: off
# description: The rsync server is a good addition to an ftp server, as it \
#       allows crc checksumming etc.
service rsync
{
        disable = no yesをnoに修正
        flags           = IPv6
        socket_type     = stream
        wait            = no
        user            = root
        server          = /usr/bin/rsync
        server_args     = --daemon
        log_on_failure  += USERID
}
=========================

[ec2-user@ip-10-0-2-165 xinetd.d]$ cd ..
[ec2-user@ip-10-0-2-165 etc]$ sudo touch rsyncd.conf
[ec2-user@ip-10-0-2-165 etc]$ sudo vi rsyncd.conf

rsyncd.confの編集追加
=========================
uid = root
gid = root
read only = no
log file = /home/slave/logs/rsyncd.log
pid file = /home/slave/logs/rsyncd.pid
port = 873

[qiita]
path = /var/www/html/
hosts allow = XXX.XXX.XXX.XXX
read only = false
=========================
[ec2-user@ip-10-0-2-165 etc]sudo chkconfig xinetd on
[ec2-user@ip-10-0-2-165 etc]$ cd
[ec2-user@ip-10-0-2-165 ~]$ sudo  service xinetd start
Starting xinetd:                                           [  OK  ]

lsyncd(master側)とrsync(slave側)の設定は以上です。

しかし、これだけではミラーリング出来ないので下記の2つの設定を実施します。
1. EC2(slave側)において、TCPのポート(873)の解放
2. サーバ間のSSH接続をするためのRSA認証

1.EC2(slave側)において、TCPのポート(873)の解放

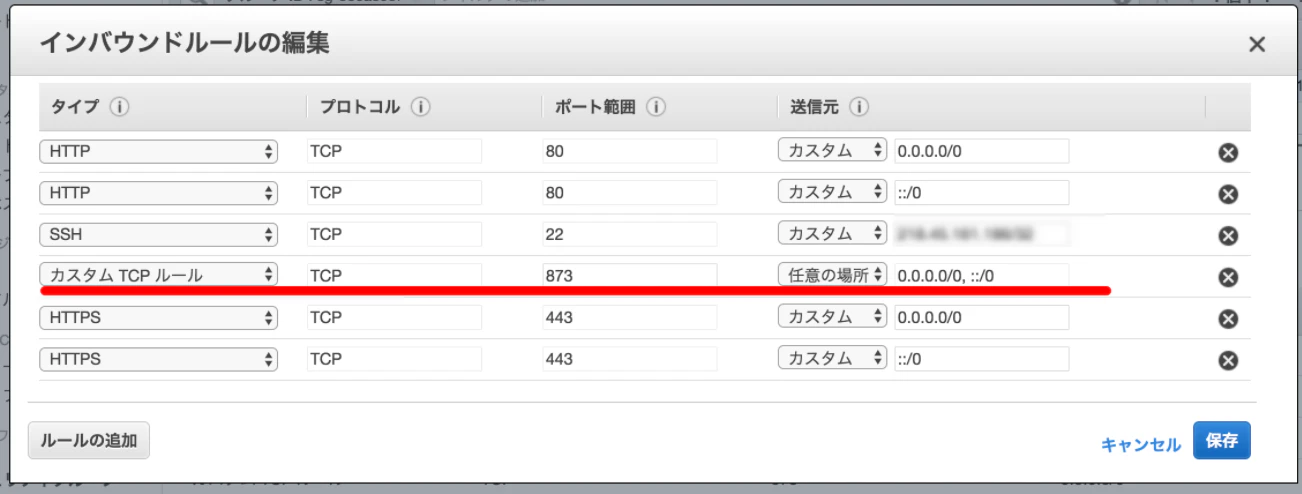

EC2(slave側)のセキュリティグループのインバウンドルールを追加する。
スクリーンショット 2017-03-01 18.18.21.png

2.masterとslaveのサーバ間でRSA公開鍵認証

2-1 RSA鍵の生成
2-2 EC2(master)からEC2(slave)に生成された公開鍵を渡すための準備
   1) EC2(slave)のSSHポートを一旦全て解放 (上記1のTCPと同様の手順)※後ほど要閉鎖
   2) EC2(slave)のシークレットキーをEC2(master)の/.sshに一時保存※後ほど要削除
2-3 EC2(master)からEC2(slave)への公開鍵の送信
2-4 EC2(slave)の/.sshに公開鍵が渡されたか確認とEC2(slave)のxinetdを再起動
2-5 EC2(master)のlsyncdの再起動
2-6 EC2(master_log)の確認

2-1 RSA鍵の生成

master
[ec2-user@ip-10-0-1-187 etc]$ cd
[ec2-user@ip-10-0-1-187 ~]$ ssh-keygen -t rsa -N ""
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa): (そのままEnter)
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
12:34:56:78:90:ab:cd:ef:gh:ij:kl:mn:op:qr:st:uv root@ip-10-0-1-187
The keys randomart image is:
+--[ RSA 2048]----+
|          ... oo |
|          +. oo .|
|         . +E+.. |
|         イメージ|
+-----------------+
[ec2-user@ip-10-0-1-187 ~]$ cd .ssh
[ec2-user@ip-10-0-1-187 .ssh]$ ls -la
合計 24
drwx------ 2 ec2-user ec2-user 4096  3  1 08:21 .
drwx------ 3 ec2-user ec2-user 4096  2 27 08:21 ..
-rw------- 1 ec2-user ec2-user  774  3  1 01:59 authorized_keys
-rw------- 1 ec2-user ec2-user 1675  3  1 08:21 id_rsa #秘密鍵
-rw-r--r-- 1 ec2-user ec2-user  404  3  1 08:21 id_rsa.pub #公開鍵
[ec2-user@ip-10-0-1-187 .ssh]$ exit
ログアウト
Connection to XXX.XXX.XXX.XXX closed.

2-2 EC2(master)からEC2(slave)に生成された公開鍵を渡すための準備

master
Myname-no-MacBook-Pro:~myname$ scp -i .ssh/key_of_XXX.pem .ssh/key_of_YYY.pem ec2-user@XXX.XXX.XXX.XXX:~/.ssh
key_of_YYY.pem                                                                                                                                                                        100% 1696     1.7KB/s   00:00
Myname-no-MacBook-Pro:~ myname$ ssh -i ~/.ssh/key_of_XXX.pem ec2-user@XXX.XXX.XXX.XXX
Last login: Wed Mar  1 07:55:18 2017 from k99999.ppp.hogehoge-net.or.jp

       __|  __|_  )
       _|  (     /   Amazon Linux AMI
      ___|\___|___|

https://aws.amazon.com/amazon-linux-ami/2016.09-release-notes/
[ec2-user@ip-10-0-1-187 ~]$ cd .ssh
[ec2-user@ip-10-0-1-187 .ssh]$ ls -la
合計 24
drwx------ 2 ec2-user ec2-user 4096  3  1 08:21 .
drwx------ 3 ec2-user ec2-user 4096  2 27 08:21 ..
-rw------- 1 ec2-user ec2-user  774  3  1 01:59 authorized_keys
-rw------- 1 ec2-user ec2-user 1675  3  1 08:21 id_rsa
-rw-r--r-- 1 ec2-user ec2-user  404  3  1 08:21 id_rsa.pub
-r-------- 1 ec2-user ec2-user 1696  3  1 08:19 key_of_YYY.pem

2-3 EC2(master)からEC2(slave)への公開鍵の送信

[ec2-user@ip-10-0-1-187 ~]$ scp -i .ssh/key_of_YYY.pem .ssh/id_rsa.pub ec2-user@YYY.YYY.YYY.YYY:~/.ssh
The authenticity of host YYY.YYY.YYY.YYY(YYY.YYY.YYY.YYY) cant be established.
ECDSA key fingerprint is 12:34:56:78:90:ab:cd:ef:gh:ij:kl:mn:op:qr:st:uv.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'YYY.YYY.YYY.YYY' (ECDSA) to the list of known hosts.
id_rsa.pub                                                                                                                                                                       100%  404     0.4KB/s   00:00
[ec2-user@ip-10-0-1-187 .ssh]$ sudo rm -r key_of_YYY.pem

2-4 EC2(slave)の/.sshに公開鍵が渡されたか確認とEC2(slave)のxinetdを再起動

slave
[ec2-user@ip-10-0-2-165 ~]$ cd .ssh
[ec2-user@ip-10-0-2-165 .ssh]$ ls -la
合計 16
drwx------ 2 ec2-user ec2-user 4096  3  1 08:28 .
drwx------ 3 ec2-user ec2-user 4096  2 27 08:21 ..
-rw------- 1 ec2-user ec2-user  774  3  1 02:04 authorized_keys
-rw-r--r-- 1 ec2-user ec2-user  404  3  1 08:28 id_rsa.pub #公開鍵
[ec2-user@ip-10-0-2-165 ~]$ sudo service xinetd restart
Stopping xinetd:                                           [  OK  ]
Starting xinetd:                                           [  OK  ]

2-5 EC2(master)のlsyncdの再起動

master
[ec2-user@ip-10-0-1-187 ~]$ sudo /etc/rc.d/init.d/lsyncd restart
lsyncd を停止中:                                           [  OK  ]
lsyncd を起動中:                                           [  OK  ]

2-6 EC2(master_log)の確認

master_log
Wed Mar  1 09:13:16 2017 Normal: --- TERM signal, fading ---
Wed Mar  1 09:13:16 2017 Normal: recursive startup rsync: /var/www/html/ -> YYY.YYY.YYY.YYY::qiita/
Wed Mar  1 09:13:17 2017 Normal: Startup of "/var/www/html/" finished.

Startup of "/var/www/html/" finishedとなれば成功
htmlディレクトリ内にファイルを作成/ファイルの変更で確認

logは以下のように推移(html内のhogeディレクトリを変更)

master_log
Wed Mar  1 09:04:37 2017 Normal: --- TERM signal, fading ---
Wed Mar  1 09:04:37 2017 Normal: recursive startup rsync: /var/www/html/ -> YYY.YYY.YYY.YYY::qiita/
Wed Mar  1 09:04:38 2017 Normal: Startup of "/var/www/html/" finished.
Wed Mar  1 09:05:07 2017 Normal: Calling rsync with filter-list of new/modified files/dirs
/hoge/assets/cache/pages/hoge/docid_1.pageCache.php
/hoge/assets/cache/pages/hoge/
/hoge/assets/cache/pages/
/hoge/assets/cache/
/hoge/assets/
/hoge/
/
/hoge/assets/cache/pages/hoge/***
/hoge/assets/cache/pages/***
/hoge/assets/cache/.tmp_2624_58b68eb4bacf0
/hoge/assets/cache/basicConfig.php
/hoge/assets/cache/.tmp_23766_58b68eb7697b0
Wed Mar  1 09:05:08 2017 Normal: Finished a list after exitcode: 0

以上です。

まだまだ、勉強不足です。
ご指摘があればコメントいただけますと幸いです。

また、今回はslaveサーバは1台でしたが、複数台同時に同期する場合は、masterのlsyncd.confを下記のように追加修正することで対応できるようです。

lsyncd.conf
settings{
    logfile = "/var/log/lsyncd.log",
    statusFile = "/tmp/lsyncd.stat",
    statusInterval = 1,
}
sync_base = {
    default.rsync,
    source="/var/www/html/",
    rsync = {
        archive = true,
        links = true,
        update = true,
        verbose = false
    }
}

sync {sync_base, target='target=YYY.YYY.YYY.YYY::qiita'}
sync {sync_base, target='target=ZZZ.ZZZ.ZZZ.ZZZ::qiita'}
