GitHub Enterprise Cloudの監査ログストリーミングに必要なAWSリソースをCloudFormationで作成する

Posted at 2023-03-16

はじめに

GitHub Enteprise Cloud の監査ログは各種クラウドプロバイダーへのストリーミングをサポートしています。

Amazon S3 に監査ログをストリーミングする場合、OpenID Connect による接続が可能です。AWS 側にはログ保管用の S3 バケットの他、OIDC Provider と IAM ロールを作成する必要があります。細かな手順は上記ドキュメントを参照ください。

用途的に何度も作成するものではないですが、CloudFormation テンプレート化したので、新規にサクッと作成したい方のお役に立てれば幸いです。

作成されるリソース

論理 ID	タイプ	用途
AuditLogBucket	AWS::S3::Bucket	監査ログ保管用の S3 バケット
AuditLogbucketPolicy	AWS::S3::BucketPolicy	監査ログ保管用の S3 バケットポリシー
AccessLogBucket	AWS::S3::Bucket	サーバーアクセスログ用の S3 バケット
AccessLogBucketPolicy	AWS::S3::BucketPolicy	サーバーアクセスログ用の S3 バケットポリシー
AuditLogEncryptionKey	AWS::KMS::Key	監査ログ保管用 S3 バケットのデフォルト暗号化用 KMS キー
AuditLogEncryptionKeyAlias	AWS::KMS::Alias	監査ログ保管用 S3 バケットのデフォルト暗号化用 KMS キーエイリアス
AuditLogStremingPolicy	AWS::IAM::ManagedPolicy	監査ログストリーミング用 IAM ポリシー
AuditLogStreamingRole	AWS::IAM::Role	監査ログストリーミング用 IAM Role
GithubAuditLogOIDCProvider	AWS::IAM::OIDCProvider	GitHub OIDC provider

CloudFormation テンプレート

GitHub リポジトリはこちら

template.yaml

AWSTemplateFormatVersion: "2010-09-09"
Description: Create AWS resources required for GitHub Enterprise Cloud audit log streaming

Parameters:
  RetainDays:
    Description: Number of days to keep audit log.
    Type: String
    Default: 365
  EnterpriseName:
    Description: Your GitHub Enterprise Name.
    Type: String
    Default: EXAPMLECORP
  AccessLogPrefix:
    Description: Server access log-prefix of audit log bucket.
    Type: String
    Default: logs/

Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: GitHub Configuration
        Parameters:
          - EnterpriseName
      - Label:
          default: Audit Log Configuration
        Parameters:
          - RetainDays
          - AccessLogPrefix

Resources:
  # Customer Managed Key for audit log encryption
  AuditLogEncryptionKey:
    Type: AWS::KMS::Key
    Properties:
      Description: Customer Managed Key for audit log encryption
      Enabled: true
      EnableKeyRotation: True
      KeyPolicy:
        Version: '2012-10-17'
        Id: key-default-1
        Statement:
        - Sid: Allow administration of the key
          Effect: Allow
          Principal:
            AWS: !Sub arn:aws:iam::${AWS::AccountId}:root
          Action:
          - kms:Create*
          - kms:Describe*
          - kms:Enable*
          - kms:List*
          - kms:Put*
          - kms:Update*
          - kms:Revoke*
          - kms:Disable*
          - kms:Get*
          - kms:Delete*
          - kms:ScheduleKeyDeletion
          - kms:CancelKeyDeletion
          Resource: '*'
        - Sid: Allow local use of the key
          Effect: Allow
          Principal:
            AWS: !Sub arn:aws:iam::${AWS::AccountId}:root
          Action:
          - kms:Encrypt
          - kms:Decrypt
          - kms:ReEncrypt*
          - kms:GenerateDataKey*
          - kms:DescribeKey
          Resource: '*'

  # Customer Managed Key ALias
  AuditLogEncryptionKeyAlias:
    Type: AWS::KMS::Alias
    Properties:
      AliasName: !Sub alias/${AWS::StackName}-key
      TargetKeyId: !Ref AuditLogEncryptionKey

  # S3 bucket for audit log
  AuditLogBucket:
    Type: AWS::S3::Bucket
    DeletionPolicy: Retain
    UpdateReplacePolicy: Retain
    Properties:
      BucketEncryption:
        ServerSideEncryptionConfiguration:
          - ServerSideEncryptionByDefault:
              SSEAlgorithm: aws:kms
              KMSMasterKeyID: !GetAtt AuditLogEncryptionKey.Arn
            BucketKeyEnabled: true
      LifecycleConfiguration:
        Rules:
          - Id: Retain
            Status: Enabled
            ExpirationInDays: !Ref RetainDays
      PublicAccessBlockConfiguration:
        BlockPublicAcls: true
        BlockPublicPolicy: true
        IgnorePublicAcls: true
        RestrictPublicBuckets: true
      LoggingConfiguration:
        DestinationBucketName: !Ref AccessLogBucket
        LogFilePrefix: !Ref AccessLogPrefix
      VersioningConfiguration:
        Status: Enabled
      OwnershipControls:
        Rules:
          - ObjectOwnership: BucketOwnerEnforced

  # S3 bucket policy for audit log
  AudtiLogBucketPolicy:
    Type: AWS::S3::BucketPolicy
    Properties:
      Bucket: !Ref AuditLogBucket
      PolicyDocument:
        Statement:
        - Effect: Deny
          Principal: '*'
          Action: 's3:*'
          Resource:
            - !Sub ${AuditLogBucket.Arn}/*
            - !GetAtt AuditLogBucket.Arn
          Condition:
            Bool:
              aws:SecureTransport: false

  # S3 bucket for server access log
  AccessLogBucket:
    Type: AWS::S3::Bucket
    DeletionPolicy: Retain
    UpdateReplacePolicy: Retain
    Properties:
      BucketEncryption:
        ServerSideEncryptionConfiguration:
          - ServerSideEncryptionByDefault:
              SSEAlgorithm: AES256
      LifecycleConfiguration:
        Rules:
          - Id: Retain
            Status: Enabled
            ExpirationInDays: !Ref RetainDays
      PublicAccessBlockConfiguration:
        BlockPublicAcls: true
        BlockPublicPolicy: true
        IgnorePublicAcls: true
        RestrictPublicBuckets: true
      VersioningConfiguration:
        Status: Enabled
      OwnershipControls:
        Rules:
          - ObjectOwnership: BucketOwnerEnforced

  # S3 bucket policy for server access log
  AccessLogBucketPolicy:
    Type: AWS::S3::BucketPolicy
    Properties:
      Bucket: !Ref AccessLogBucket
      PolicyDocument:
        Statement:
          - Effect: Deny
            Principal: '*'
            Action: 's3:*'
            Resource:
              - !Sub ${AccessLogBucket.Arn}/*
              - !GetAtt AccessLogBucket.Arn
            Condition:
              Bool:
                aws:SecureTransport: false
          - Effect: Allow
            Principal:
              Service: logging.s3.amazonaws.com
            Action: s3:PutObject
            Resource:
              - !Sub ${AccessLogBucket.Arn}/${AccessLogPrefix}*
            Condition:
              ArnLike:
                aws:SourceArn: !GetAtt AuditLogBucket.Arn
              StringEquals:
                aws:SourceAccount: !Ref AWS::AccountId

  # IAM policy for audit log streaming role
  AuditLogStremingPolicy:
    Type: AWS::IAM::ManagedPolicy
    Properties:
      Description: Policy for GitHub Audit Log Streaming
      PolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Action:
              - s3:PutObject
            Resource:
              - !Sub ${AuditLogBucket.Arn}/*

  # IAM Role for audit log streaming role
  AuditLogStreamingRole:
    Type: AWS::IAM::Role
    Properties:
      ManagedPolicyArns:
        - !Ref AuditLogStremingPolicy
      AssumeRolePolicyDocument:
        Statement:
          - Effect: Allow
            Action: sts:AssumeRoleWithWebIdentity
            Principal:
              Federated: !Ref GithubAuditLogOIDCProvider
            Condition:
              StringEquals:
                oidc-configuration.audit-log.githubusercontent.com:sub: !Sub https://github.com/${EnterpriseName}
                oidc-configuration.audit-log.githubusercontent.com:aud: sts.amazonaws.com

  GithubAuditLogOIDCProvider:
    Type: AWS::IAM::OIDCProvider
    Properties:
      Url: https://oidc-configuration.audit-log.githubusercontent.com
      ClientIdList:
        - sts.amazonaws.com
      ThumbprintList:
        - 7e6db7b7584d8cf2003e0931e6cfc41a3a62d3df

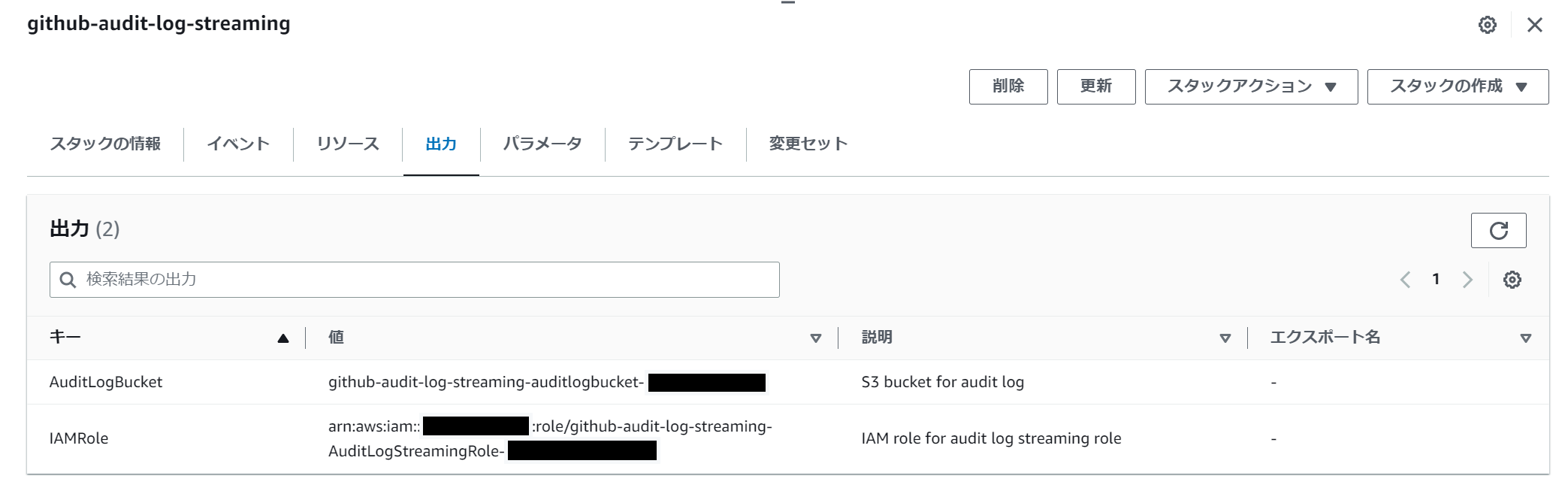

Outputs:
  IAMRole:
    Description: IAM role for audit log streaming role
    Value: !GetAtt AuditLogStreamingRole.Arn
  AuditLogBucket:
    Description: S3 bucket for audit log
    Value: !Ref AuditLogBucket
