はじめに
FPGAに実装される回路間のやり取りは基本AXIトランザクションで統一される。提供されるIPのほとんどがこのAXIという規格を採用しているので、いざ自作IPをそれらと組み合わせようとした場合、必然的に「そもそも正しくAXIできてるの？うちの子。」と検証が必要になる。そこで役立つのがこのAXI Verification IP。
AXI master, AXI slaveの両方として振る舞うことが出来る。 (pass-throughモードもある)
しかし、テストベンチファイルから特定の記述を行わないとシミュレーションでこのAXI VIPは起動しない。とくに、axi masterとしての取り扱いはslaveよりちょっと面倒。本記事はAXI VIPのmasterとしての起動・操作方法について公式サイトからまとめたものである。
テストベンチへの基本的な追記内容
まず、最初に必要になる追記内容は以下の通り。<component_name>と<hierarchy_path>を実際の文字列に置き換えないといけない。それぞれの確認方法を順に説明する。
import axi_vip_pkg::*;
import <component_name>_pkg::*;
<component_name>_mst_t agent;
initial begin
agent = new("my VIP agent", <hierarchy_path>.IF);
agent.start_master();
end
-
<component_name>の確認方法
Block Designを開いて、DiagramからVIPをクリック、Block PropertiesペインのProperties内にあるCONFIGを展開、Component_Name行から確認できる -
<hierarchy_path>の確認方法

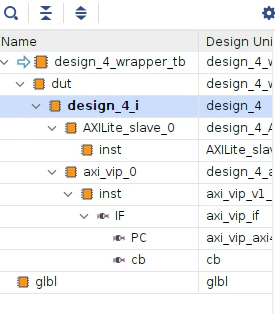

とりあえずRun Bihavioral Simulationを実行、ScopeタブでExpand Allをクリック。テストベンチの下からvipのIFまでを.で繋げるだけ。以下ならdut.design_4_i.axi_vip_0.instが<hierarchy_path>になる。
トランザクションの発行方法
上のままでは何もreadしないし何もwriteしない。ので、騒ぎ立ててもらいたい。上のagent.start_master();に続いて書くといい。
なお、適当なプロジェクト内にVIPを配置、SourceタブにあるVIPを右クリック、Opem IP Example Designで開かれるプロジェクト内にあるaxi_vip_0_mst_stimulus.svhが参考になる。 (末尾に載せる)
- writeの発行
task simple_write_transaction();
axi_transaction t;
t = agent.wr_driver.create_transaction("writewritewritewrite");
agent.rd_driver.send(t);
endtask
- readの発行
task simple_read_transaction();
axi_transaction t;
t = agent.rd_driver.create_transaction("readreadreadreadread");
agent.rd_driver.send(t);
endtask
まとめ
import axi_vip_pkg::*;
import <component_name>_pkg::*;
<component_name>_mst_t agent;
task simple_write_transaction();
axi_transaction wr_t;
wr_t = agent.wr_driver.create_transaction("writewritewritewrite");
agent.wr_driver.send(wr_t);
endtask
task simple_read_transaction();
axi_transaction rd_t;
rd_t = agent.rd_driver.create_transaction("readreadreadreadread");
agent.rd_driver.send(rd_t);
endtask
initial begin
agent = new("my VIP agent", <hierarchy_path>.IF);
agent.start_master();
simple_read_transaction();
simple_write_transaction();
end
参考
ちなみに
上の例をそのまんま使うとランダムなアドレスを読みに行くので不便。t.set_read_cmd(addr,burst,id,len,size);とかでアドレス指定とかバースト調指定もできる。詳しくは以下のsingle_read_transaction_apitaskあたりを読むといい。
あとreset中にトランザクションを発行しないように注意。あと同時に二つのトランザクションを発行したいときはfork-joinを使うといい。
fork
begin
simple_read_transaction();
end
begin
simple_write_transaction();
end
join

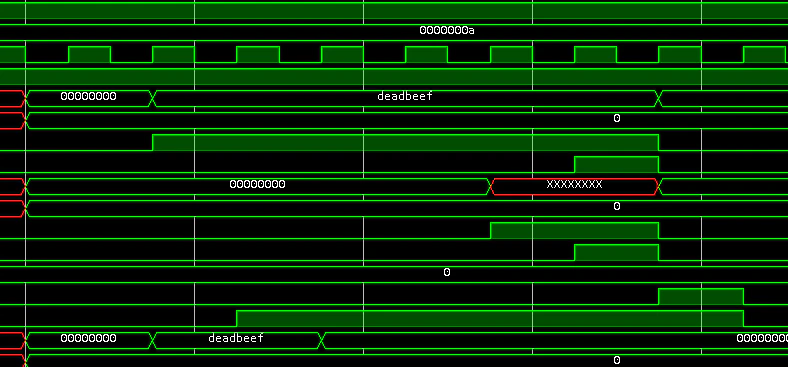

ちなみにアドレス指定しなかったときに使われるデフォルトのアドレスはdeadbeef。
おまけ
使用例
import axi_vip_pkg::*;
import design_4_axi_vip_0_0_pkg::*;
module design_4_wrapper_tb(
);
logic ACLK, ARESETN, req_empty;
design_4_wrapper dut(.aclk(ACLK), .aresetn(ARESETN), .req_empty(req_empty));
localparam STEP = 10;
always begin
ACLK = 0; #(STEP/2);
ACLK = 1; #(STEP/2);
end
initial begin
req_empty = 1;
ARESETN = 1; #(STEP*5);
ARESETN = 0; #(STEP*20);
ARESETN = 1; #(STEP*500);
$stop;
end
design_4_axi_vip_0_0_mst_t agent;
task simple_write_transaction( input xil_axi_uint id =0,
input xil_axi_ulong addr =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst =XIL_AXI_BURST_TYPE_INCR,
input bit [32-1:0] data =0);
axi_transaction wr_t;
wr_t = agent.wr_driver.create_transaction("writewritewritewrite");
wr_t.set_write_cmd(addr, burst, id, len, size);
wr_t.set_data_block(data);
agent.wr_driver.send(wr_t);
endtask
task simple_read_transaction( input xil_axi_uint id =0,
input xil_axi_ulong addr =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst =XIL_AXI_BURST_TYPE_INCR);
axi_transaction rd_t;
rd_t = agent.rd_driver.create_transaction("readreadreadreadread");
rd_t.set_read_cmd(addr, burst, id, len, size);
agent.rd_driver.send(rd_t);
endtask
initial begin
#(STEP*50)
agent = new("my VIP agent", dut.design_4_i.axi_vip_0.inst.IF);
agent.start_master();
simple_read_transaction(0, 8, 0, 2, 0); #(STEP*10);
simple_write_transaction(0, 8, 0, 2, 0, 32'hdeadbeef); #(STEP*10);
simple_read_transaction(0, 8, 0, 2, 0); #(STEP*10);
simple_read_transaction(0, 20, 0, 2, 0); #(STEP*10);
simple_write_transaction(0, 25, 0, 2, 0, 32'hbeefdead); #(STEP*10);
simple_read_transaction(0, 20, 0, 2, 0); #(STEP*10);
// fork
// begin
// simple_read_transaction();
// end
// begin
// simple_write_transaction();
// end
// join
end
endmodule
mst_stimulus.svh
/***************************************************************************************************
* Description:
* This file contains examples showing how user can generate simple write and/or read transaction
* According to VIP's WRITE_READ_MODE. user will see different examples.
* WRITE_ONLY - simple write transaction
* READ_ONLY - simple read transaction
* READ_WRITE - both simple write and read transaction
* For Master VIP to work correctly, user environment MUST have to do the following lists of item
* and follow the same order as shown here. Item 1 to 5 can be copied into a user testbench and
* care of the ordering must be taken into account.
* 1. import two packages.
* import axi_vip_pkg::*;
* import <component_name>_pkg::*;
* 2. delcare <component_name>_mst_t agent
* 3. new agent (passing instance IF correctly)
* 4. start_master
* 5. generate transaction/
* More details about generating transaction please refer tasks below.
*
* In this file,it shows how to generate a write/read transaction in three ways(fully randomization,
* partial randomization and API), it then shows how to get read data back from driver,how
* generate write in data and then read it back.
*
***************************************************************************************************/
import axi_vip_pkg::*;
import ex_sim_axi_vip_mst_0_pkg::*;
/*************************************************************************************************
* <component_name>_mst_t for master agent
* <component_name> can be easily found in vivado bd design: click on the instance,
* Then click CONFIG under Properties window and Component_Name will be shown
* More details please refer PG267 section about "Useful Coding Guidelines and Examples"
* for more details.
*************************************************************************************************/
ex_sim_axi_vip_mst_0_mst_t mst_agent;
/*************************************************************************************************
* Declare variables which will be used in API and parital randomization for transaction generation
* and data read back from driver.
*************************************************************************************************/
axi_transaction wr_trans; // Write transaction
axi_transaction rd_trans; // Read transaction
xil_axi_uint mtestWID; // Write ID
xil_axi_ulong mtestWADDR; // Write ADDR
xil_axi_len_t mtestWBurstLength; // Write Burst Length
xil_axi_size_t mtestWDataSize; // Write SIZE
xil_axi_burst_t mtestWBurstType; // Write Burst Type
xil_axi_uint mtestRID; // Read ID
xil_axi_ulong mtestRADDR; // Read ADDR
xil_axi_len_t mtestRBurstLength; // Read Burst Length
xil_axi_size_t mtestRDataSize; // Read SIZE
xil_axi_burst_t mtestRBurstType; // Read Burst Type
xil_axi_data_beat [255:0] mtestWUSER; // Write user
xil_axi_data_beat mtestAWUSER; // Write Awuser
xil_axi_data_beat mtestARUSER; // Read Aruser
// Error count to check how many comparison failed
xil_axi_uint error_cnt = 0;
/************************************************************************************************
* No burst for AXI4LITE and maximum data bits is 64
* Write Data Value for WRITE_BURST transaction
* Read Data Value for READ_BURST transaction
************************************************************************************************/
bit [63:0] mtestWData; // Write Data
bit[8*4096-1:0] Rdatablock; // Read data block
xil_axi_data_beat Rdatabeat[]; // Read data beats
bit[8*4096-1:0] Wdatablock; // Write data block
xil_axi_data_beat Wdatabeat[]; // Write data beats
task mst_start_stimulus();
/***********************************************************************************************
* Before agent is newed, user has to run simulation with an empty testbench to find the hierarchy
* path of the AXI VIP's instance.Message like
* "Xilinx AXI VIP Found at Path: my_ip_exdes_tb.DUT.ex_design.axi_vip_mst.inst" will be printed
* out. Pass this path to the new function.
***********************************************************************************************/
mst_agent = new("master vip agent",DUT.ex_design.axi_vip_mst.inst.IF);
mst_agent.start_master(); // mst_agent start to run
// Parallel write/read transaction generation
fork // Fork process of write/read transaction generation
begin
// single write transaction with fully randomization
multiple_write_transaction_full_rand ("single write",1);
mtestWID = $urandom_range(0,(1<<(0)-1));
mtestWADDR = 0;
mtestWBurstLength = 0;
mtestWDataSize = xil_axi_size_t'(xil_clog2((32)/8));
mtestWBurstType = XIL_AXI_BURST_TYPE_INCR;
mtestWData = $urandom();
//single write transaction filled in user inputs through API
single_write_transaction_api("single write with api",
.id(mtestWID),
.addr(mtestWADDR),
.len(mtestWBurstLength),
.size(mtestWDataSize),
.burst(mtestWBurstType),
.wuser(mtestWUSER),
.awuser(mtestAWUSER),
.data(mtestWData)
);
//multiple write transactions with the same inline randomization
multiple_write_transaction_partial_rand(.num_xfer(2),
.start_addr(mtestWADDR),
.id(mtestWID),
.len(mtestWBurstLength),
.size(mtestWDataSize),
.burst(mtestWBurstType),
.no_xfer_delays(1)
);
end
begin
//single read transaction with fully randomization
multiple_read_transaction_full_rand ("single read",1);
mtestRID = $urandom_range(0,(1<<(0)-1));
mtestRADDR = $urandom_range(0,(1<<(32)-1));
mtestRBurstLength = 0;
mtestRDataSize = xil_axi_size_t'(xil_clog2((32)/8));
mtestRBurstType = XIL_AXI_BURST_TYPE_INCR;
//single read transaction filled in user inputs through API
single_read_transaction_api("single read with api",
.id(mtestRID),
.addr(mtestRADDR),
.len(mtestRBurstLength),
.size(mtestRDataSize),
.burst(mtestRBurstType)
);
//multiple read transaction with the same inline randomization
multiple_read_transaction_partial_rand( .num_xfer(2),
.start_addr(mtestRADDR),
.id(mtestRID),
.len(mtestRBurstLength),
.size(mtestRDataSize),
.burst(mtestRBurstType),
.no_xfer_delays(1)
);
//get read data back from driver
rd_trans = mst_agent.rd_driver.create_transaction("read transaction with randomization for getting data back");
fill_transaction_with_fully_randomization(rd_trans);
//get read data beat back from driver
get_rd_data_beat_back(rd_trans,Rdatabeat);
//get read data block back from driver
get_rd_data_block_back(rd_trans,Rdatablock);
end
join
mst_agent.wait_drivers_idle(); // Wait driver is idle
//Below shows write two transactions in and then read them back
mtestWID = $urandom_range(0,(1<<(0)-1));
mtestWADDR = 0;
mtestWBurstLength = 0;
mtestWDataSize = xil_axi_size_t'(xil_clog2((32)/8));
mtestWBurstType = XIL_AXI_BURST_TYPE_INCR;
multiple_write_in_then_read_back(.num_xfer(2),
.start_addr(mtestWADDR),
.id(mtestWID),
.len(mtestWBurstLength),
.size(mtestWDataSize),
.burst(mtestWBurstType),
.no_xfer_delays(1)
);
mst_agent.wait_drivers_idle(); // Wait driver is idle then stop the simulation
if(error_cnt ==0) begin
$display("EXAMPLE TEST DONE : Test Completed Successfully");
end else begin
$display("EXAMPLE TEST DONE ",$sformatf("Test Failed: %d Comparison Failed", error_cnt));
end
$finish;
endtask
/*************************************************************************************************
* Fully randomization of transaction
* This simple task shows fully randomize one transaction
* Fatal will show up if randomizaiton failed
*************************************************************************************************/
task automatic fill_transaction_with_fully_randomization(inout axi_transaction trans);
if( !(trans.randomize())) begin
$fatal(1,"fill_transaction_with_fully_randomization of %s failed at time =%t",trans.get_name(), $realtime);
end
endtask : fill_transaction_with_fully_randomization
/*************************************************************************************************
* Partial randomization of transaction
* This simple task shows paritaly randomize one transaction with fixed value for ID,ADDR,LENGTH,
* SIZE and BURST.User can following this task and create some other partial randomized transaction
* Fatal will show up if randomizaiton failed
* NOTE: Please don't use this task in VIVADO Simulator for it's limitiaton of SV support.
*************************************************************************************************/
task automatic inline_randomize_transaction(inout axi_transaction trans,
input xil_axi_uint id_val,
input xil_axi_ulong addr_val,
input xil_axi_len_t len_val,
input xil_axi_size_t size_val,
input xil_axi_burst_t burst_val);
if(! ((trans.randomize() with {
id == id_val;
addr==addr_val;
len==len_val;
size ==size_val;
burst ==burst_val;
}))) begin
$fatal(1,"inline_randomize_transaction of %s failed at time =%t",trans.get_name(), $realtime);
end
endtask : inline_randomize_transaction
/************************************************************************************************
* Task send_wait_rd is a task which set_driver_return_item_policy of the read transaction,
* send the transaction to the driver and wait till it is done
*************************************************************************************************/
task send_wait_rd(inout axi_transaction rd_trans);
rd_trans.set_driver_return_item_policy(XIL_AXI_PAYLOAD_RETURN);
mst_agent.rd_driver.send(rd_trans);
mst_agent.rd_driver.wait_rsp(rd_trans);
endtask
/************************************************************************************************
* Task get_rd_data_beat_back is to get read data back from read driver with
* data beat format.
*************************************************************************************************/
task get_rd_data_beat_back(inout axi_transaction rd_trans,
output xil_axi_data_beat Rdatabeat[]
);
send_wait_rd(rd_trans);
Rdatabeat = new[rd_trans.get_len()+1];
for( xil_axi_uint beat=0; beat<rd_trans.get_len()+1; beat++) begin
Rdatabeat[beat] = rd_trans.get_data_beat(beat);
// $display("Read data from Driver: beat index %d, Data beat %h ", beat, Rdatabeat[beat]);
end
endtask
/************************************************************************************************
* Task get_rd_data_block_back is to get read data back from read driver with
* data block format.
*************************************************************************************************/
task get_rd_data_block_back(inout axi_transaction rd_trans,
output bit[8*4096-1:0] Rdatablock
);
send_wait_rd(rd_trans);
Rdatablock = rd_trans.get_data_block();
// $display("Read data from Driver: Block Data %h ", Rdatablock);
endtask
/************************************************************************************************
* Task send_wait_wr is a task which set_driver_return_item_policy of the write transaction,
* send the transaction to the driver and wait till it is done
*************************************************************************************************/
task send_wait_wr(inout axi_transaction wr_trans);
wr_trans.set_driver_return_item_policy(XIL_AXI_PAYLOAD_RETURN);
mst_agent.wr_driver.send(wr_trans);
mst_agent.wr_driver.wait_rsp(wr_trans);
endtask
/************************************************************************************************
* Task get_wr_data_beat_back is to get read data back from write driver with
* data beat format.
*************************************************************************************************/
task get_wr_data_beat_back(inout axi_transaction wr_trans,
output xil_axi_data_beat Wdatabeat[]
);
send_wait_wr(wr_trans);
Wdatabeat = new[wr_trans.get_len()+1];
for( xil_axi_uint beat=0; beat<wr_trans.get_len()+1; beat++) begin
Wdatabeat[beat] = wr_trans.get_data_beat(beat);
// $display("Write data from Driver: beat index %d, Data beat %h ", beat, Wdatabeat[beat]);
end
endtask
/************************************************************************************************
* Task get_wr_data_block_back is to get write data back from write driver with
* data block format.
*************************************************************************************************/
task get_wr_data_block_back(inout axi_transaction wr_trans,
output bit[8*4096-1:0] Wdatablock
);
send_wait_wr(wr_trans);
Wdatablock = wr_trans.get_data_block();
// $display("Write data from Driver: Block Data %h ", Wdatablock);
endtask
/************************************************************************************************
* task single_write_transaction_api is to create a single write transaction, fill in transaction
* by using APIs and send it to write driver.
* 1. declare write transction
* 2. Create the write transaction
* 3. set addr, burst,ID,length,size by calling set_write_cmd(addr, burst,ID,length,size),
* 4. set prot.lock, cache,region and qos
* 5. set beats
* 6. set AWUSER if AWUSER_WIDH is bigger than 0
* 7. set WUSER if WUSR_WIDTH is bigger than 0
*************************************************************************************************/
task automatic single_write_transaction_api (
input string name ="single_write",
input xil_axi_uint id =0,
input xil_axi_ulong addr =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst =XIL_AXI_BURST_TYPE_INCR,
input xil_axi_lock_t lock = XIL_AXI_ALOCK_NOLOCK,
input xil_axi_cache_t cache =0,
input xil_axi_prot_t prot =0,
input xil_axi_region_t region =0,
input xil_axi_qos_t qos =0,
input xil_axi_data_beat [255:0] wuser =0,
input xil_axi_data_beat awuser =0,
input bit [63:0] data =0
);
axi_transaction wr_trans;
wr_trans = mst_agent.wr_driver.create_transaction(name);
wr_trans.set_write_cmd(addr,burst,id,len,size);
wr_trans.set_prot(prot);
wr_trans.set_lock(lock);
wr_trans.set_cache(cache);
wr_trans.set_region(region);
wr_trans.set_qos(qos);
wr_trans.set_data_block(data);
mst_agent.wr_driver.send(wr_trans);
endtask : single_write_transaction_api
/************************************************************************************************
* task single_read_transaction_api is to create a single read transaction, fill in command with user
* inputs and send it to read driver.
* 1. declare read transction
* 2. Create the read transaction
* 3. set addr, burst,ID,length,size by calling set_read_cmd(addr, burst,ID,length,size),
* 4. set prot.lock, cache,region and qos
* 5. set ARUSER if ARUSER_WIDH is bigger than 0
*************************************************************************************************/
task automatic single_read_transaction_api (
input string name ="single_read",
input xil_axi_uint id =0,
input xil_axi_ulong addr =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst =XIL_AXI_BURST_TYPE_INCR,
input xil_axi_lock_t lock =XIL_AXI_ALOCK_NOLOCK ,
input xil_axi_cache_t cache =0,
input xil_axi_prot_t prot =0,
input xil_axi_region_t region =0,
input xil_axi_qos_t qos =0,
input xil_axi_data_beat aruser =0
);
axi_transaction rd_trans;
rd_trans = mst_agent.rd_driver.create_transaction(name);
rd_trans.set_read_cmd(addr,burst,id,len,size);
rd_trans.set_prot(prot);
rd_trans.set_lock(lock);
rd_trans.set_cache(cache);
rd_trans.set_region(region);
rd_trans.set_qos(qos);
mst_agent.rd_driver.send(rd_trans);
endtask : single_read_transaction_api
/************************************************************************************************
* multiple write transaction with fully randomization
* This simple task shows how user can generate multiple write transaction with fully randomization
* 1. Declare a handle for write transaction
* 2. Depends on how many transfers user need,it will
* 2.a Write driver of the agent create transaction
* 2.b Randomized the transaction
* 2.c Write driver of the agent sends the transaction to Master VIP interface
* 3. once it is does, it repeats step 2 to generate another write transaction.
*************************************************************************************************/
task automatic multiple_write_transaction_full_rand (
input string name ="multiple_write_transaction_full_rand",
input xil_axi_uint num_xfer =1);
axi_transaction wr_tran;
for (int i =0; i< num_xfer; i++) begin
wr_tran = mst_agent.wr_driver.create_transaction($sformatf("%s, %0d of %0d",name,i,num_xfer));
fill_transaction_with_fully_randomization(wr_tran);
mst_agent.wr_driver.send(wr_tran);
end
endtask
/************************************************************************************************
* multiple read transaction with fully randomization
* This simple task shows how user can generate multiple read transaction with fully randomization
* 1. Declare a handle for read transaction
* 2. Depends on how many transfers user need,it will
* 2.a Read driver of the agent create transaction
* 2.b Randomized the transaction
* 2.c Read driver of the agent sends the transaction to Master VIP interface
* 3. once it is does, it repeats step 2 to generate another read transaction.
*************************************************************************************************/
task automatic multiple_read_transaction_full_rand(
input string name ="multiple_read_transaction_full_rand",
input xil_axi_uint num_xfer =1);
axi_transaction rd_tran;
rd_tran = mst_agent.rd_driver.create_transaction(name);
for (int i =0; i< num_xfer; i++) begin
rd_tran = mst_agent.rd_driver.create_transaction($sformatf("%s, %0d of %0d",name,i,num_xfer));
fill_transaction_with_fully_randomization(rd_tran);
mst_agent.rd_driver.send(rd_tran);
end
endtask
/*************************************************************************************************
* This task is to queue up multiple transactions with the same id, length,size, burst type
* and incrementd addr with different data. then it send out all these transactions
* 1. Declare a handle for read transaction
* 2. set delay range if user set there transction is of no delay
* 3. constraint randomize the transaction
* 4. increment the addr
* 5. repeat 1-4 to generate num_xfer transaction
* 6. send out the transaction
*************************************************************************************************/
task automatic multiple_read_transaction_partial_rand(
input xil_axi_uint num_xfer =1,
input xil_axi_ulong start_addr =0,
input xil_axi_uint id =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst = XIL_AXI_BURST_TYPE_INCR,
input bit no_xfer_delays =0
);
axi_transaction rd_tran[];
xil_axi_ulong addr;
rd_tran =new[num_xfer];
addr = start_addr;
// queue up transactions
for (int i =0; i <num_xfer; i++) begin
rd_tran[i] = mst_agent.rd_driver.create_transaction($sformatf("read_multiple_transaction id =%0d",i));
if(no_xfer_delays ==1) begin
rd_tran[i].set_data_insertion_delay_range(0,0);
rd_tran[i].set_addr_delay_range(0,0);
rd_tran[i].set_beat_delay_range(0,0);
end
inline_randomize_transaction(.trans(rd_tran[i]),
.id_val(id),
.addr_val(addr),
.len_val(len),
.size_val(size),
.burst_val(burst));
addr += rd_tran[i].get_num_bytes_in_transaction();
end
//send out transaction
for (int i =0; i <num_xfer; i++) begin
mst_agent.rd_driver.send(rd_tran[i]);
end
endtask :multiple_read_transaction_partial_rand
/************************************************************************************************* * This task is to queue up multiple transactions with the same id, length,size, burst type
* and incrementd addr with different data. then it send out all these transactions
* 1. Declare a handle for write transaction
* 2. set delay range if user set there transction is of no delay
* 3. constraint randomize the transaction
* 4. increment the addr
* 5. repeat 1-4 to generate num_xfer transaction
* 6. send out the transaction
*************************************************************************************************/
task automatic multiple_write_transaction_partial_rand(
input xil_axi_uint num_xfer =1,
input xil_axi_ulong start_addr =0,
input xil_axi_uint id =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst = XIL_AXI_BURST_TYPE_INCR,
input bit no_xfer_delays =0
);
axi_transaction wr_tran[];
xil_axi_ulong addr;
wr_tran =new[num_xfer];
addr = start_addr;
// queue up transactions
for (int i =0; i <num_xfer; i++) begin
wr_tran[i] = mst_agent.wr_driver.create_transaction($sformatf("write_multiple_transaction id =%0d",i));
if(no_xfer_delays ==1) begin
wr_tran[i].set_data_insertion_delay_range(0,0);
wr_tran[i].set_addr_delay_range(0,0);
wr_tran[i].set_beat_delay_range(0,0);
end
inline_randomize_transaction(.trans(wr_tran[i]),
.id_val(id),
.addr_val(addr),
.len_val(len),
.size_val(size),
.burst_val(burst));
addr += wr_tran[i].get_num_bytes_in_transaction();
end
//send out transaction
for (int i =0; i <num_xfer; i++) begin
mst_agent.wr_driver.send(wr_tran[i]);
end
endtask :multiple_write_transaction_partial_rand
/************************************************************************************************
* multiple_write_in_then_read_back shows user how to write to one address and then read back.
* 1. create a write transaction with fixed address, id, length, size, burst type.
* 2. send the transaction to Master VIP interface and wait till response come back
* 3. Get write data beat and data block from the driver
* 4. create a read transaction with the same address, id, length, size and burst type as write transaction
* 5. send the transaction to Master VIP interface and wait till response come back
* 6. Get read data beat and data block from the driver
* 7. user can do a check between write data and read data(if in the enviroment there is memory in the system)
* or print out the data information
* 8. increment the address and repeat another write in and read back till num_xfer transactions
*************************************************************************************************/
task automatic multiple_write_in_then_read_back (
input xil_axi_uint num_xfer =1,
input xil_axi_ulong start_addr =0,
input xil_axi_uint id =0,
input xil_axi_len_t len =0,
input xil_axi_size_t size =xil_axi_size_t'(xil_clog2((32)/8)),
input xil_axi_burst_t burst = XIL_AXI_BURST_TYPE_INCR,
input bit no_xfer_delays =0
);
axi_transaction wr_trans;
axi_transaction rd_trans;
bit[8*4096-1:0] data_block_for_read;
xil_axi_data_beat DataBeat_for_read[];
bit[8*4096-1:0] data_block_for_write;
xil_axi_data_beat DataBeat_for_write[];
xil_axi_ulong addr;
addr = start_addr;
for (int i =0; i <num_xfer; i++) begin
//write transaction in
wr_trans = mst_agent.wr_driver.create_transaction($sformatf("fill in write transaction with inline randomization id =%0d",i));
if(no_xfer_delays ==1) begin
wr_trans.set_data_insertion_delay_range(0,0);
wr_trans.set_addr_delay_range(0,0);
wr_trans.set_beat_delay_range(0,0);
end
inline_randomize_transaction(.trans(wr_trans),
.id_val(id),
.addr_val(addr),
.len_val(len),
.size_val(size),
.burst_val(burst));
get_wr_data_beat_back(wr_trans,DataBeat_for_write);
data_block_for_write = wr_trans.get_data_block();
//$display("Write data from Driver: Block Data %h ", data_block_for_write);
// read data back
rd_trans = mst_agent.rd_driver.create_transaction($sformatf("fill in read transaction with inline randomization id =%0d",i));
if(no_xfer_delays ==1) begin
rd_trans.set_data_insertion_delay_range(0,0);
rd_trans.set_addr_delay_range(0,0);
rd_trans.set_beat_delay_range(0,0);
end
inline_randomize_transaction(.trans(rd_trans),
.id_val(id),
.addr_val(addr),
.len_val(len),
.size_val(size),
.burst_val(burst));
get_rd_data_beat_back(rd_trans,DataBeat_for_read);
data_block_for_read = rd_trans.get_data_block();
// $display("Read data from Driver: Block Data %h ", data_block_for_read);
addr += wr_trans.get_num_bytes_in_transaction();
end
endtask
/**********************************************************************************************
* Note: if multiple agents are called in one testbench,it will be hard to tell which
* agent is complaining. set_agent_tag can be used to set a name tag for each agent
mst_agent.set_agent_tag("My Master VIP one");
* If user wants to know all the details of each transaction, set_verbosity can be used to set
* up information being printed out or not. Default is no print out
* Verbosity level which specifies how much debug information to produce
* 0 - No information will be printed out.
* 400 - All information will be printed out
mst_agent.set_verbosity(0);
* These two lines should be added anywhere after agent is being newed
*************************************************************************************************/
/*************************************************************************************************
* RREADY Generation with customized pattern
* Master read driver create rready
* Set rready generation policy
* Set low/high time
* Master read driver send rready
* NOTE: if user wants default pattern of ready generation,nothing needs to be done
task user_gen_rready();
axi_ready_gen rready_gen;
rready_gen = mst_agent.rd_driver.create_ready("rready");
rready_gen.set_ready_policy(XIL_AXI_READY_GEN_AFTER_VALID_OSC);
rready_gen.set_low_time(2);
rready_gen.set_high_time(1);
mst_agent.rd_driver.send_rready(rready_gen);
endtask
*************************************************************************************************/
/*************************************************************************************************
* There are two ways to get read data. One is to get it through the read driver of master agent.
* The other is to get it through the monitor of VIP.(Please refer
* monitor_rd_data_method_one, monitor_rd_data_method_two in *exdes_generic.sv file.)
*
* To get data from read driver, follow the steps listed below.
* step 1: Use the read driver in master agent to create a read transaction handle.
* step 2: Randmoize the read transaction. If the user wants to generate a specific read command,
use the APIs in the axi_transaction class to set address, burst length, etc or
randomize the transaction with specific values.
* step 3: Set driver_return_item_policy of the read transaction to be any of the follwing values:
* XIL_AXI_PAYLOAD_RETURN or XIL_AXI_CMD_PAYLOAD_RETURN.
* step 4: Use the read driver to sends read transaction out.
* step 5: Use the read driver to wait for the response.
* step 6: Use get_data_beat/get_data_block to inspect data from the response transaction.
*
* driver_rd_data_method_one shows how to get a data beat from the read driver.
* driver_rd_data_method_two shows how to get a data block from the read driver.
*
* Note on API get_data_beat: get_data_beat returns the value of the specified beat.
* It always returns 1024 bits. It aligns the signification bytes to the lower
* bytes and sets the unused bytes to zeros.
* This is NOT always the RDATA representation. If the data width is 32-bit and
* the transaction is sub-size burst (1B in this example), only the last byte of
* get_data_beat is valid. This is very different from the Physical Bus.
*
* get_data_beat Physical Bus
* 1024 ... 0 32 0
* ---------------- -----------
* | X| | X|
* | X| | X |
* | X| | X |
* | X| | X |
* ---------------- -----------
*
* Note on API get_data_block: get_data_block returns 4K bytes of the payload
* for the transaction. This is NOT always the RDATA representation. If the data
* width is 32-bit and the transaction is sub-size burst (1B in this example),
* It will align the signification bytes to the lower bytes and set the unused
* bytes to zeros.
*
* get_data_block Physical Bus
* 32 ... 0 32 0
* 0 ---------------- -----------
* | D C B A| | A|
* | 0 0 0 0| | B |
* | 0 0 0 0| | C |
* | 0 0 0 0| | D |
* | 0 0 0 0| -----------
* | 0 0 0 0|
* 1k----------------
*
*************************************************************************************************/
task driver_rd_data_method_one();
axi_transaction rd_trans;
xil_axi_data_beat mtestDataBeat[];
rd_trans = mst_agent.rd_driver.create_transaction("read transaction with randomization");
RD_TRANSACTION_FAIL_1a:assert(rd_trans.randomize());
rd_trans.set_driver_return_item_policy(XIL_AXI_PAYLOAD_RETURN);
mst_agent.rd_driver.send(rd_trans);
mst_agent.rd_driver.wait_rsp(rd_trans);
mtestDataBeat = new[rd_trans.get_len()+1];
for( xil_axi_uint beat=0; beat<rd_trans.get_len()+1; beat++) begin
mtestDataBeat[beat] = rd_trans.get_data_beat(beat);
// $display("Read data from Driver: beat index %d, Data beat %h ", beat, mtestDataBeat[beat]);
end
endtask
task driver_rd_data_method_two();
axi_transaction rd_trans;
bit[8*4096-1:0] data_block;
rd_trans = mst_agent.rd_driver.create_transaction("read transaction with randomization");
RD_TRANSACTION_FAIL_1a:assert(rd_trans.randomize());
rd_trans.set_driver_return_item_policy(XIL_AXI_PAYLOAD_RETURN);
mst_agent.rd_driver.send(rd_trans);
mst_agent.rd_driver.wait_rsp(rd_trans);
data_block = rd_trans.get_data_block();
// $display("Read data from Driver: Block Data %h ", data_block);
endtask
```
</details>
