cloudflare + caddy v2で SSL mode full (strict) をする方法

1
Posted at

これをしたい

SSL_TLS___mardigrasbeadsfactory_com___Account___Cloudflare_-_Web_Performance___Security.png

flexible(サイトに来る人 - SSL - cloudflare - plain - 自サーバー)

これだけでもまー良さそうではある。が、一応cloudflare自身もオススメしていないので、full (strict)に設定したい。

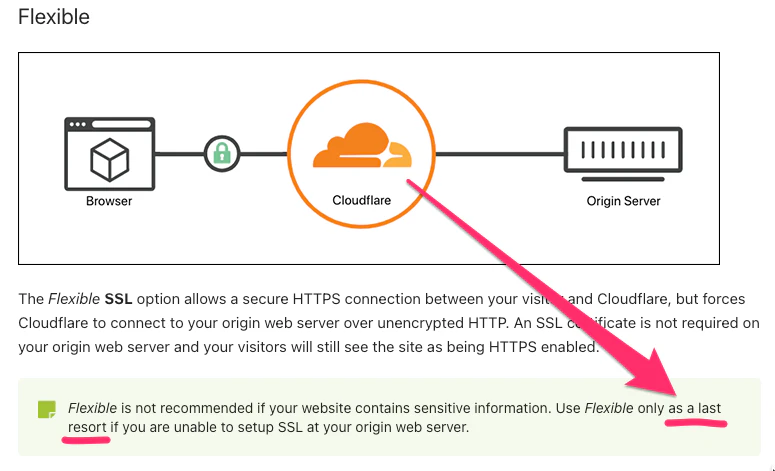

Cursor_and_End-to-end_HTTPS_with_Cloudflare_-Part_3__SSL_options–_Cloudflare_Help_Center.png

as a last resort (最終手段)

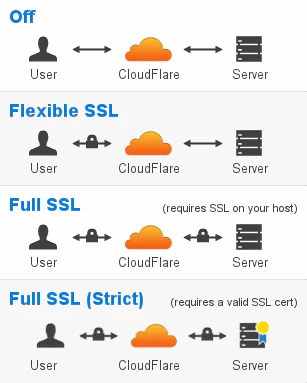

それぞれの違い


  • off 言うまでもなく何も防御なし
  • flexible 見る人からcloudflareまではSSL
  • full cloudflareから自サーバーまでもSSL(self-certificate)
  • full(strict) cloudflareから自サーバーまでもSSL(certificateはcloudflareから)

Caddyを使ってる

caddyは最初からlet's encryptでcertificateを用意してくれるので...cloudfareがドメイン管理してて、そっちでlet's encrypt使ってくれてるから、???
となる。

多分一番簡単なやり方

  1. まず、間違いなく80と443ポートはファイヤーウォールから外れていることを確認

  2. caddyはv2だ

  3. cloudflareの自ドメインで、SSL/TLS→origin server→create certificateと行く
    SSL_TLS___mardigrasbeadsfactory_com___Account___Cloudflare_-_Web_Performance___Security-2.png

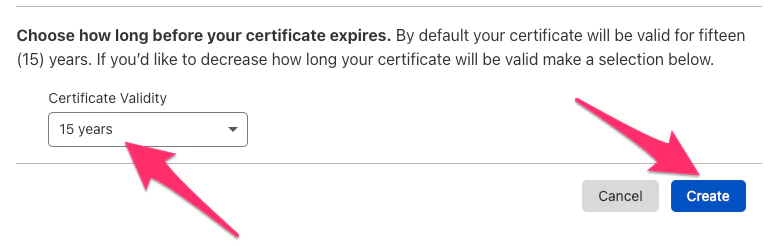

  4. 何もせずにcreateすれば15年持つcertificateが作れる
    SSL_TLS___mardigrasbeadsfactory_com___Account___Cloudflare_-_Web_Performance___Security-4.png

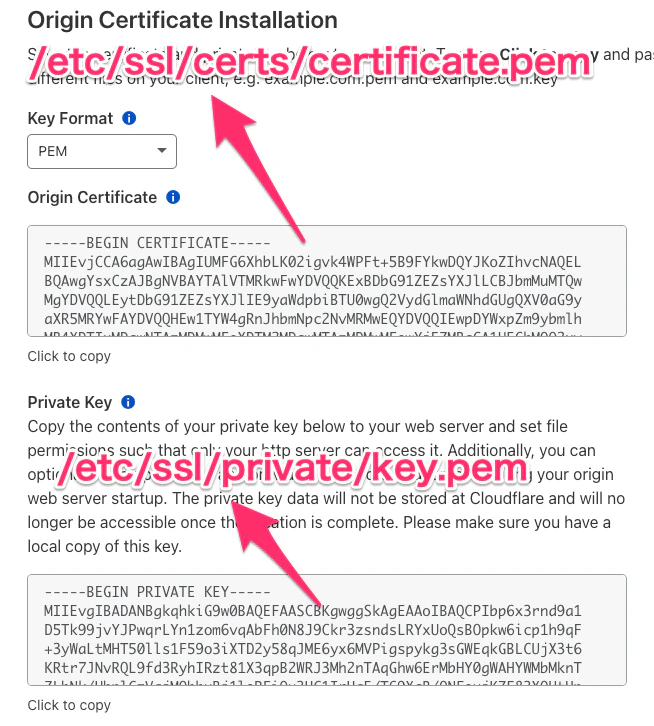

  5. 出てきたcertificateとprivate keyを各ファイルにする
    /etc/ssl/certs/certificate.pem
    /etc/ssl/private/key.pem
    SSL_TLS___mardigrasbeadsfactory_com___Account___Cloudflare_-_Web_Performance___Security-6.png

  6. Caddyfileを書き換える

  7. caddy runする

  8. cloudflareのSSL modeをfull (strict)に切り替える(多分10秒ぐらいは待ったほうが良い)

Caddyfileを書き換え

example.com {
  tls /etc/ssl/certs/certificate.pem /etc/ssl/private/key.pem
  respond "Hello, world!"
}

参考:
