Node-REDでECHONET Liteの送受信nodeを作成してみた

Last updated at Posted at 2016-11-22

##概要
　Node-REDにdefaultでinstallされるUDPの送信nodeと受信nodeを利用して、ECHONET Liteの送受信を容易にするnodeを作成しました。受信したUDP dataはパースされECHONET Liteで規定されるブロックに分解されます。データを送信する場合はECHONET Liteで規定される各ブロックの値を引数として渡します。ECHONET Liteはバイト単位でパケットが構成されますが、UInt8のdata typeを持たないJavaScriptでは扱いにくいため、データはIntで渡します。
　サンプルプログラムとして以下の３つを用意しました。

  • Node-REDからマニュアルでエアコンと照明のON/OFF制御
  • 電子錠の開閉でエアコンと照明のON/OFF制御
  • スマホのブラウザーをエアコンと照明のON/OFF制御リモコンにするweb application

なお、以下の環境で動作確認しています。
Node-RED version: v0.15.1
Node.js version: v6.9.1

全体のFLOWはこんな感じです。


##送信

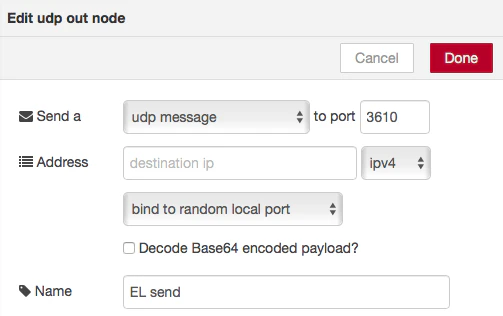

まず送信側から見ていきましょう。画面上で「EL send」と表示されているUDPの送信ノードの設定はこのようになります。to portに3610を入力してください。


このudp nodeの入力側に接続されている「Send EL1」というfunction nodeの中身はこのようになりますが、理解しなくても使えます。

// Send ECHONET Lite packet
// Assumption: OPC = 1
//
//  Usage:
//      Input following data
//
//  msg.els.ip      // ip address (String)
//  msg.els.tid     // TID (Int)
//  msg.els.seoj    // SEOJ ([Int:device, Int:instance])
//  msg.els.deoj    // DEOJ ([Int:device, Int:instance])
//  msg.els.esv     // ESV (Int)
//  msg.els.epc     // EPC (Int)
//  msg.els.edt     // EDT ([Int])
//          // in case of no EDT data, no edt or []

const tid_buffer = Buffer.allocUnsafe(2);
let   seoj_buffer = Buffer.allocUnsafe(3);
const seoj = msg.els.seoj;
let   deoj_buffer = Buffer.allocUnsafe(3);
const deoj = msg.els.deoj;
const esv_buffer = Buffer.allocUnsafe(1);
const opc_buffer = Buffer.from([1]);
const epc_buffer = Buffer.allocUnsafe(1);
const pdc_buffer = Buffer.allocUnsafe(1);
let edt = msg.els.edt;

tid_buffer.writeUInt16BE(msg.els.tid, 0);
esv_buffer.writeUInt8(msg.els.esv, 0);
epc_buffer.writeUInt8(msg.els.epc, 0);

seoj_buffer.writeUInt16BE(seoj[0], 0);
seoj_buffer.writeUInt8(seoj[1], 2);
deoj_buffer.writeUInt16BE(deoj[0], 0);
deoj_buffer.writeUInt8(deoj[1], 2);

// edt[]からedt_bufferを作成
if ((typeof edt) == "undefined") {
    edt = [];
}

const edt_buffer = Buffer.allocUnsafe(edt.length);
for (var i = 0; i < edt.length; i++) {
    edt_buffer.writeUInt8(edt[i], i);
}

pdc_buffer.writeUInt8(edt_buffer.length, 0);

// Create ECHONET Lite packet
const el_buffer = Buffer.from([
	0x10, 0x81,
	tid_buffer[0], tid_buffer[1],
	seoj_buffer[0], seoj_buffer[1], seoj_buffer[2],
	deoj_buffer[0], deoj_buffer[1], deoj_buffer[2],
	esv_buffer[0], opc_buffer[0], epc_buffer[0], pdc_buffer[0]]);

// add EDT data
if (edt_buffer.length !== 0) {
    msg.payload = Buffer.concat([el_buffer, edt_buffer],
        (el_buffer.length + edt_buffer.length));
} else {
    msg.payload = el_buffer;
}

msg.ip = msg.els.ip;
return msg;

　冒頭のコメントに記述されているように、このfunctionに以下のデータを渡してやると、byte列のECHONET Liteデータパケットに変換してudp nodeに渡します。なお、OPC=1のみ対応しています。

  • msg.els.ip // ip address (String)
  • msg.els.tid // TID (Int)
  • msg.els.seoj // SEOJ ([Int:device, Int:instance])
  • msg.els.deoj // DEOJ ([Int:device, Int:instance])
  • msg.els.esv // ESV (Int)
  • msg.els.epc // EPC (Int)
  • msg.els.edt // EDT ([Int])

具体的には、この「Send EL1」functionの入力側に接続されている「エアコン ON」functionを見てみましょう。

msg.els = {
    "ip" : "224.0.23.0",
    "tid" : 5,
    "seoj" : [0x05ff,1],
    "deoj" : [0x0130,1],
    "esv" : 0x61,
    "epc" : 0x80,
    "edt" : [0x30]
};

return msg;

このfunction内の必要な箇所の値を変更するだけで、ECHONET Liteのデータ送信を実現できます。

##受信

続いて受信側を見ていきましょう。画面上で「EL receive」と表示されているUDPの受信ノードの設定はこのようになります。「Listen for」で「multicast message」を選択し、「Group」に224.0.23.0を「on port」に3610を入力してください。「Output」は「a Buffer」を選択してください。


このudp nodeの出力側に接続されている「Parse EL1」というfunction nodeの中身はこのようになりますが、理解しなくても使えます。

// Parse ECHONET Lite packet
// Assumption: OPC = 1

//  OUTPUT:
//  msg.elr.ip      // ip address (String)
//  msg.elr.ehd     // EHD (Int)
//  msg.elr.tid     // TID (Int)
//  msg.elr.seoj    // SEOJ ([Int:device, Int:instance])
//  msg.elr.deoj    // DEOJ ([Int:device, Int:instance])
//  msg.elr.esv     // ESV (Int)
//  msg.elr.opc     // OPC (Int)
//  msg.elr.epc     // EPC (Int)
//  msg.elr.pdc     // PDC (Int)
//  msg.elr.edt     // EDT ([Int]) or [](no EDT data)

const buffer = msg.payload;
msg.elr = null;

if (buffer.length >= 14) {
  const ehd_buffer = buffer.slice(0, 2);
  const tid_buffer = buffer.slice(2, 4);
  const seoj_device_buffer = buffer.slice(4, 6);
  const seoj_instance_buffer = buffer.slice(6, 7);
  const deoj_device_buffer = buffer.slice(7, 9);
  const deoj_instance_buffer = buffer.slice(9, 10);
  const esv_buffer = buffer.slice(10, 11);
  const opc_buffer = buffer.slice(11, 12);
  const epc_buffer = buffer.slice(12, 13);
  const pdc_buffer = buffer.slice(13, 14);

  const ehd = ehd_buffer.readUInt16BE(0);
  const tid = tid_buffer.readUInt16BE(0);
  const seoj_device = seoj_device_buffer.readUInt16BE(0);
  const seoj_instance = seoj_instance_buffer.readUInt8(0);
  const seoj = [seoj_device, seoj_instance];
  const deoj_device = deoj_device_buffer.readUInt16BE(0);
  const deoj_instance = deoj_instance_buffer.readUInt8(0);
  const deoj = [deoj_device, deoj_instance];
  const esv = esv_buffer.readUInt8(0);
  const opc = opc_buffer.readUInt8(0);
  const epc = epc_buffer.readUInt8(0);
  const pdc = pdc_buffer.readUInt8(0);
  let edt = [];

  if (buffer.length >= 15) {
    const edt_buffer = buffer.slice(14);
    for (var i = 0; i < edt_buffer.length; i++) {
        edt[i] = edt_buffer.readUInt8(i);
    }
  }

  // ECHONET Lite header check
  if (ehd == 0x1081) {
    msg.elr = {
        "ip"            : msg.ip,
        "ehd"           : ehd,
        "tid"           : tid,
        "seoj"          : seoj,
        "deoj"          : deoj,
        "esv"           : esv,
        "opc"           : opc,
        "epc"           : epc,
        "pdc"           : pdc,
        "edt"           : edt
    };
  }
}

return msg;

　冒頭のコメントに記述されているように、このfunctionから以下のデータが出力されます。なお、OPC=1のみ対応しています。

  • msg.elr.ip // ip address (String)
  • msg.elr.ehd // EHD (Int)
  • msg.elr.tid // TID (Int)
  • msg.elr.seoj // SEOJ ([Int:device, Int:instance])
  • msg.elr.deoj // DEOJ ([Int:device, Int:instance])
  • msg.elr.esv // ESV (Int)
  • msg.elr.opc // OPC (Int)
  • msg.elr.epc // EPC (Int)
  • msg.elr.pdc // PDC (Int)
  • msg.elr.edt // EDT ([Int])

パースされたデータの使い方の例を、この「Parse EL1」functionの出力側に接続されている「filter keyStatus」functionで見てみましょう。受信したデータの送信元が「電子錠」で、プロパティが「開閉状態」ならば、開閉状態を表すEDTデータをmsg.payloadに格納しています。次のswitch nodeで閉(0x41)または開(0x42)で分岐し、エアコンや照明をON/OFF制御しています。

// 電子錠 EOJ=0x026f, 開閉状態 EPC=0xe0
if ((msg.elr.seoj[0] == 0x026f) && (msg.elr.epc == 0xe0)) {
    msg.payload = msg.elr.edt[0];
}

return msg;

##Webリモコン

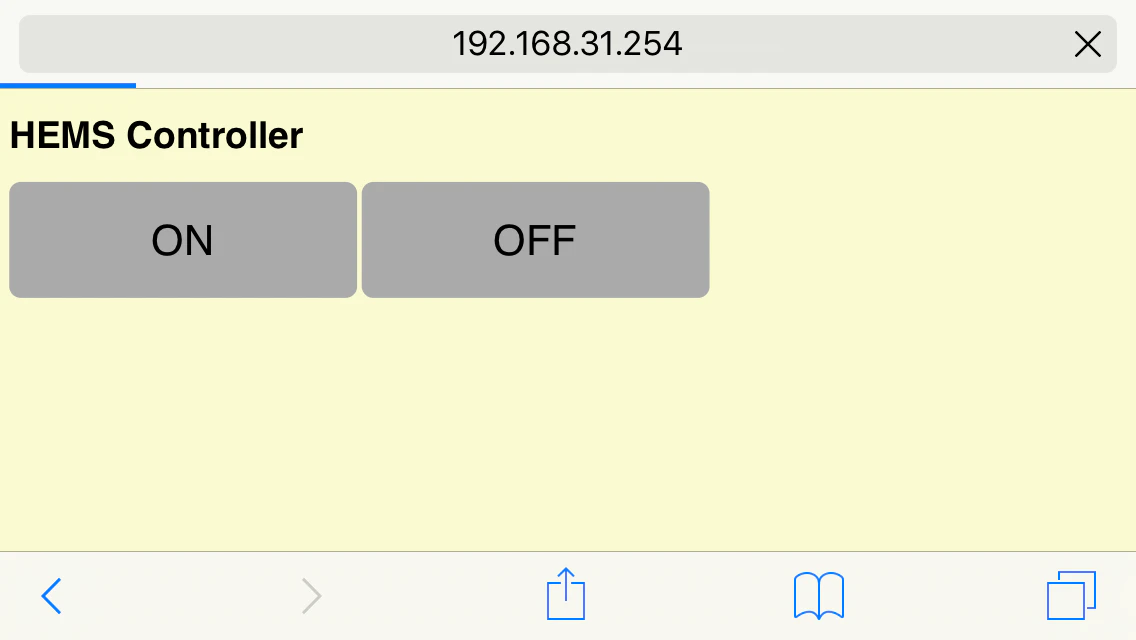

Node-REDはweb server機能をもっているので、web applicationを容易に作成することができます。全体Flowの下部の「ON/OFF Remote Controller」を見てください。スマホのブラウザで

http://:1880/control

をアクセスすると、このようなシンプルなリモコン画面が現れます。このON/OFFボタンでエアコンや照明をON/OFF制御できます。


全体のFlowの左下部にある「/control」と書かれたhttp nodeでGET requestを受け付けます。このnodeはURLに「/control」と入力してあるだけです。このnodeの出力が接続されている「ON/OFF button」と書かれたtemplate nodeがHTMLを出力して、ブラウザーにボタンを表示します。template nodeのソースコードはこのようになっています。

<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
    <meta charset=“UFT-8”>
    <style>
        body { background: #FAFAD2; }
        h1 {color:black; font-family:sans-serif;}
        button { width: 300px; height: 100px; font-size: 36px; border-radius: 10px; border-style: none; background-color: #aaaaaa;}
        button:hover {background-color: #dddddd;}
    </style>
    <title> ON/OFF BUTTON </title>
    <script language="javascript" type="text/javascript">
        function OnButtonClick() {
            location.href = "/on";
        }
        function OffButtonClick() {
            location.href = "/off";
        }
    </script>
</head>
<body>
	<h1>HEMS Controller</h1>
    <button type="button" name="buttonOn" onclick="OnButtonClick()">ON</button>
    <button type="button" name="buttonOff" onclick="OffButtonClick()">OFF</button> <br/>
</body>
</html>

このHTMLがhttp response nodeから出力されます。

##全体のFlow

全体のFlowのJSONデータはこちらです。
