【UML】UMLツールのPlantUMLのサンプル

More than 1 year has passed since last update.

UMLツールで良いのがないかと探したところ、PlantUMLがあったのでこれのサンプルを並べてみて、業務の参考にすることにしました。

メリット

シーケンス図

リファレンス

http://plantuml.com/sequence-diagram

サンプル

alt

@startuml
actor Foo1
boundary Foo2
control Foo3
entity Foo4
database Foo5
collections Foo6
Foo1 -> Foo2 : To boundary
Foo1 -> Foo3 : To control
Foo1 -> Foo4 : To entity
Foo1 -> Foo5 : To database
Foo1 -> Foo6 : To collections
@enduml

ユースケース図

リファレンス

http://plantuml.com/use-case-diagram

サンプル

alt

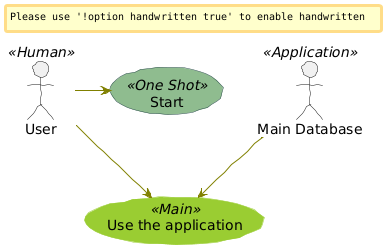

@startuml
skinparam handwritten true

skinparam usecase {
    BackgroundColor DarkSeaGreen
    BorderColor DarkSlateGray

    BackgroundColor<< Main >> YellowGreen
    BorderColor<< Main >> YellowGreen

    ArrowColor Olive
    ActorBorderColor black
    ActorFontName Courier

    ActorBackgroundColor<< Human >> Gold
}

User << Human >>
:Main Database: as MySql << Application >>
(Start) << One Shot >>
(Use the application) as (Use) << Main >>

User -> (Start)
User --> (Use)

MySql --> (Use)

@enduml

[alt]

@startuml
left to right direction
skinparam packageStyle rectangle
actor customer
actor clerk
rectangle checkout {
  customer -- (checkout)
  (checkout) .> (payment) : include
  (help) .> (checkout) : extends
  (checkout) -- clerk
}
@enduml

アクティビティ図

リファレンス

サンプル

[alt]

@startuml
|Swimlane1|
start
:foo1;
|#AntiqueWhite|Swimlane2|
:foo2;
:foo3;
|Swimlane1|
:foo4;
|Swimlane2|
:foo5;
stop
@enduml
