OpenFOAM10 を LXD 環境の Ubuntu 22.04 にインストールする方法です。
参考ページ
Download v8 | Ubuntu
LXD で Ubuntu を使う
LXD 環境の構築
lxc launch ubuntu:22.04 ubuntu
インストールが完了するとホストから次のように見えます。
$ lxc list
| ubuntu | RUNNING | 10.64.227.206 (eth0) | fd42:c9bf:2e1c:6d4f:216:3eff:fe41:e63f (eth0) |
CONTAINER | 0 |
インストールした ubuntu 22.04 にログインします。
$ lxc console ubuntu
To detach from the console, press: <ctrl>+a q
ubuntu login:
OpenFOAM10 のインストール
sudo sh -c "wget -O - https://dl.openfoam.org/gpg.key | apt-key add -"
sudo add-apt-repository http://dl.openfoam.org/ubuntu
次はかなり時間がかかります。
sudo apt -y install openfoam10
更新
sudo apt update
sudo apt upgrade
インストールできたことの確認
.bashrc に次の一行を加えます。
~/.bashrc
(省略)
#
. /opt/openfoam10/etc/bashrc
$ simpleFoam -help
Usage: simpleFoam [OPTIONS]
options:
-case <dir> specify alternate case directory, default is the cwd
-fileHandler <handler>
override the fileHandler
-hostRoots <(((host1 dir1) .. (hostN dirN))>
slave root directories (per host) for distributed running
-libs <(lib1 .. libN)>
pre-load libraries
-listFunctionObjects
List functionObjects
-listFvOptions List fvOptions
リモートデスクトップ x2go を使う
サーバー側 (インストールした ubuntu 20.04)
GNome もインストール
sudo apt -y install x2goserver x2goserver-fmbindings x2goclient
sudo apt -y install gnome-panel gnome-flashback gnome-session-flashback indicator-applet-appmenu
クライアント側 (ホストOS)
sudo apt install x2goclient

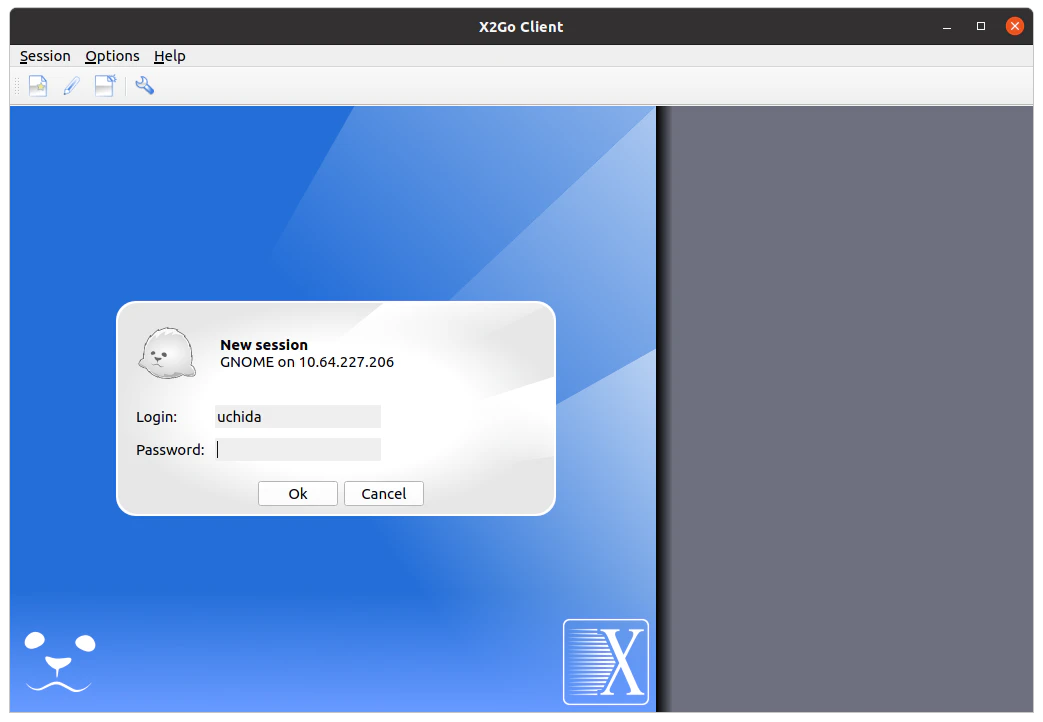

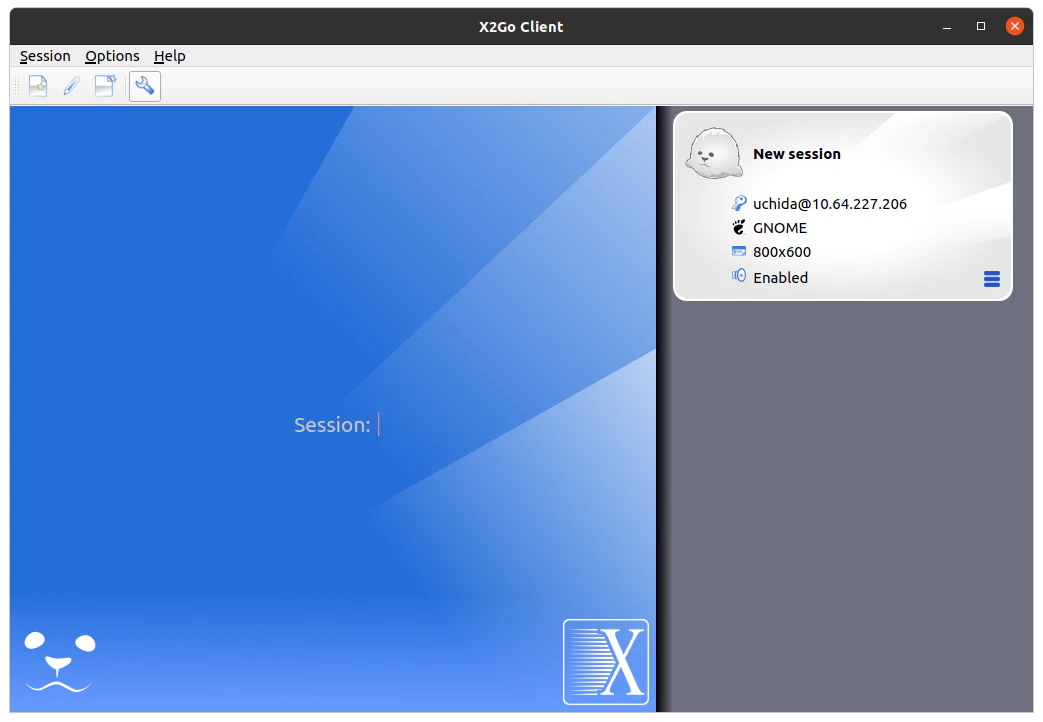

クライアント(ホストOS)で
x2goclient
ターミナルで次の操作を行う
$FOAM_RUN が設定されていることを確認
$ echo $FOAM_RUN
/home/uchida/OpenFOAM/uchida-8/run
mkdir -p $FOAM_RUN
cd $FOAM_RUN
cp -r $FOAM_TUTORIALS/incompressible/simpleFoam/pitzDaily .
cd pitzDaily
blockMesh
simpleFoam
paraFoam
