はじめに
1に続いて、OCI DevOps ProfessionalのLeaning PathにあるLabを実際にやってみて、OCIにおけるDevOpsの設定や動作を確認します。
今回はIaCに関する以下2つのLabになります。
07. Ansible
08. TerraformとResource Manager
07. Ansible
Ansibleコレクションを用いてOCIのCompute Instanceをプロビジョニングする手順を確認します。
ポリシーの設定
以下のポリシーを設定します。
Allow dynamic-group <動的グループ名> to manage virtual-network-family in compartment <コンパートメント名>
Allow dynamic-group <動的グループ名> to manage volume-family in compartment <コンパートメント名>
Allow dynamic-group <動的グループ名> to manage instance-family in compartment <コンパートメント名>
Ansibleコレクションのインストール
Cloud Shellを開いてOCIのAnsibleコレクションをインストールして、動作を確認します。
$ ansible-galaxy collection install oracle.oci
Starting galaxy collection install process
Process install dependency map
Starting collection install process
Downloading https://galaxy.ansible.com/download/oracle-oci-4.24.0.tar.gz to /home/kosuke_mac/.ansible/tmp/ansible-local-1958eue90_vo/tmp9v13_3yx/oracle-oci-4.24.0-0m7juv7k
Installing 'oracle.oci:4.24.0' to '/home/kosuke_mac/.ansible/collections/ansible_collections/oracle/oci'
oracle.oci:4.24.0 was installed successfully
$ ansible localhost -m oracle.oci.oci_object_storage_namespace_facts
localhost | SUCCESS => {
"changed": false,
"namespace": "orasejapan"
}
サンプルのダウンロード
GitHubからサンプルコードをCloneします。
$ git clone https://github.com/oracle/oci-ansible-collection.git
Cloning into 'oci-ansible-collection'...
remote: Enumerating objects: 138684, done.
remote: Counting objects: 100% (33324/33324), done.
remote: Compressing objects: 100% (221/221), done.
remote: Total 138684 (delta 33110), reused 33238 (delta 33081), pack-reused 105360
Receiving objects: 100% (138684/138684), 304.69 MiB | 33.98 MiB/s, done.
Resolving deltas: 100% (137380/137380), done.
$ ls -l oci-ansible-collection/
total 292
-rw-r--r--. 1 kosuke_mac oci 87402 Jun 22 05:38 CHANGELOG.md
-rw-r--r--. 1 kosuke_mac oci 3153 Jun 22 05:38 COMMON_ISSUES.md
-rw-r--r--. 1 kosuke_mac oci 2129 Jun 22 05:38 CONTRIBUTING.md
drwxr-xr-x. 7 kosuke_mac oci 4096 Jun 22 05:38 docs
-rw-r--r--. 1 kosuke_mac oci 1148 Jun 22 05:38 FAQ.md
-rw-r--r--. 1 kosuke_mac oci 2540 Jun 22 05:38 galaxy.yml
-rw-r--r--. 1 kosuke_mac oci 6113 Jun 22 05:38 InstallationGuide.md
-rw-r--r--. 1 kosuke_mac oci 3140 Jun 22 05:38 KNOWN_ISSUES.md
-rw-r--r--. 1 kosuke_mac oci 41869 Jun 22 05:38 LICENSE.txt
drwxr-xr-x. 2 kosuke_mac oci 25 Jun 22 05:38 meta
-rw-r--r--. 1 kosuke_mac oci 85763 Jun 22 05:38 MigrationGuide.md
drwxr-xr-x. 7 kosuke_mac oci 93 Jun 22 05:38 plugins
-rw-r--r--. 1 kosuke_mac oci 5685 Jun 22 05:38 README.md
-rw-r--r--. 1 kosuke_mac oci 26 Jun 22 05:38 requirements.txt
drwxr-xr-x. 15 kosuke_mac oci 4096 Jun 22 05:38 samples
-rw-r--r--. 1 kosuke_mac oci 634 Jun 22 05:38 sbom_generation.yaml
drwxr-xr-x. 2 kosuke_mac oci 42 Jun 22 05:38 scripts
-rw-r--r--. 1 kosuke_mac oci 1737 Jun 22 05:38 SECURITY.md
drwxr-xr-x. 4 kosuke_mac oci 48 Jun 22 05:38 solutions
-rw-r--r--. 1 kosuke_mac oci 12062 Jun 22 05:38 THIRD_PARTY_LICENSES.txt
-rw-r--r--. 1 kosuke_mac oci 5994 Jun 22 05:38 UserGuide.md
Working Directoryを作成して、サンプルコードをコピーします。
$ mkdir -p ansible/playbooks
$ cd ansible/playbooks/
$ cp -r ../../oci-ansible-collection/samples/compute/launch_compute_instance/ .
$ cd launch_compute_instance/
$ ls
README.md sample.yaml setup.yaml teardown.yaml templates
Ansibleの実行
以下3つの環境変数を定義します。
$ export SAMPLE_IMAGE_OCID=ocid1.image.oc1.iad.aaaaaaaaox73mjjcopg6damp7tssjccpp5opktr3hwgr63u2lacdt2nver5a
$ export SAMPLE_COMPARTMENT_OCID=ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpgqxxxxxxxxxx
$ export SAMPLE_AD_NAME=TGjA:US-ASHBURN-AD-3
SAMPLE_IMAGE_OCIDはリージョンに合わせて、以下のURLで使用するOCIDを確認します。
実行します。
$ ansible-playbook sample.yaml
[WARNING]: No inventory was parsed, only implicit localhost is available
[WARNING]: provided hosts list is empty, only localhost is available. Note that the implicit localhost does not match 'all'
PLAY [Launch a compute instance and connect to it using SSH] *****************************************************************************************************************************************************************************
TASK [Gathering Facts] *******************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Check pre-requisites] **************************************************************************************************************************************************************************************************************
skipping: [localhost] => (item=SAMPLE_COMPARTMENT_OCID)
skipping: [localhost] => (item=SAMPLE_IMAGE_OCID)
skipping: [localhost] => (item=SAMPLE_AD_NAME)
TASK [Create a temporary directory to house a temporary SSH keypair we will later use to connect to instance] ****************************************************************************************************************************
changed: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Generate a Private Key] ************************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Generate a Public Key] *************************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [Create a VCN] **********************************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Create a new Internet Gateway] *****************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Create route table to connect internet gateway to the VCN] *************************************************************************************************************************************************************************
changed: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [create ingress rules yaml body] ****************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [create egress yaml body] ***********************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [load the variables defined in the ingress rules yaml body] *************************************************************************************************************************************************************************
ok: [localhost]
TASK [print loaded_ingress] **************************************************************************************************************************************************************************************************************
ok: [localhost] => {
"msg": "loaded ingress is {'instance_ingress_security_rules': [{'source': '0.0.0.0/0', 'protocol': '6', 'tcp_options': {'destination_port_range': {'min': 22, 'max': 22}}}]}"
}
TASK [load the variables defined in the egress rules yaml body] **************************************************************************************************************************************************************************
ok: [localhost]
TASK [print loaded_egress] ***************************************************************************************************************************************************************************************************************
ok: [localhost] => {
"msg": "loaded egress is {'instance_egress_security_rules': [{'destination': '0.0.0.0/0', 'protocol': '6', 'tcp_options': {'destination_port_range': {'min': 22, 'max': 22}}}]}"
}
TASK [Create a security list for allowing access to public instance] *********************************************************************************************************************************************************************
changed: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Create a subnet to host the public instance. Link security_list and route_table.] **************************************************************************************************************************************************
changed: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Launch an instance] ****************************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [Print instance details] ************************************************************************************************************************************************************************************************************
ok: [localhost] => {
"msg": "Launched a new instance {'changed': True, 'instance': {'availability_domain': 'TGjA:US-ASHBURN-AD-3', 'capacity_reservation_id': None, 'compartment_id': 'ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpgq5tcmxlipjm2uitoihfschylliy5a', 'dedicated_vm_host_id': None, 'defined_tags': {}, 'display_name': 'my_test_instance', 'extended_metadata': {}, 'fault_domain': 'FAULT-DOMAIN-3', 'freeform_tags': {}, 'id': 'ocid1.instance.oc1.iad.anuwcljrssl65iqcolxmlkgjea6pq5jscm3jqt6amlulhg5xxufgveimqspq', 'image_id': 'ocid1.image.oc1.iad.aaaaaaaaox73mjjcopg6damp7tssjccpp5opktr3hwgr63u2lacdt2nver5a', 'ipxe_script': None, 'launch_mode': 'NATIVE', 'launch_options': {'boot_volume_type': 'PARAVIRTUALIZED', 'firmware': 'UEFI_64', 'network_type': 'PARAVIRTUALIZED', 'remote_data_volume_type': 'PARAVIRTUALIZED', 'is_pv_encryption_in_transit_enabled': False, 'is_consistent_volume_naming_enabled': True}, 'instance_options': {'are_legacy_imds_endpoints_disabled': False}, 'availability_config': {'is_live_migration_preferred': None, 'recovery_action': 'RESTORE_INSTANCE'}, 'preemptible_instance_config': None, 'lifecycle_state': 'RUNNING', 'metadata': {'ssh_authorized_keys': 'ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCWvJmG9y/ttGDvJUMJV5FEPbHSigpuGBGGO8WVyl7TnBsAXNfBPb8kZ/X9IaUZM9qMnuKNJQlMblzTN/XfOrB1s9hi6hdtQlVMbIO8Vv+bwZ9jVfZ63WBctA/W8zigcax7OKGOyy8kY24pJnBDkFUBAwmJxkLI/W4UywpTdYByqtcEVNaKMZ5U34wtf+N5u6zHus+VniRW2gUT9nLUVcsTWEeg3IjYeyZTt0HYnzI4FmS6tMjDoyW0VTCvpLihJtJHSfGh+AS7F4ktl7D/k9gjRcU8Bm8/ZUZmnwegFvRBotkz3f4As3kiA1ihjmvp2b44y6xCFWUvEOquMwwe3hmd'}, 'region': 'iad', 'shape': 'VM.Standard2.1', 'shape_config': {'ocpus': 1.0, 'memory_in_gbs': 15.0, 'baseline_ocpu_utilization': None, 'processor_description': '2.0 GHz Intel® Xeon® Platinum 8167M (Skylake)', 'networking_bandwidth_in_gbps': 1.0, 'max_vnic_attachments': 2, 'gpus': 0, 'gpu_description': None, 'local_disks': 0, 'local_disks_total_size_in_gbs': None, 'local_disk_description': None}, 'is_cross_numa_node': False, 'source_details': {'source_type': 'image', 'boot_volume_size_in_gbs': None, 'image_id': 'ocid1.image.oc1.iad.aaaaaaaaox73mjjcopg6damp7tssjccpp5opktr3hwgr63u2lacdt2nver5a', 'kms_key_id': None, 'boot_volume_vpus_per_gb': None}, 'system_tags': {}, 'time_created': '2023-06-22T05:44:26.236000+00:00', 'agent_config': {'is_monitoring_disabled': False, 'is_management_disabled': False, 'are_all_plugins_disabled': False, 'plugins_config': None}, 'time_maintenance_reboot_due': None, 'platform_config': None, 'primary_public_ip': '129.213.29.146', 'primary_private_ip': '10.0.0.58'}, 'failed': False}"
}
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Get the VNIC attachment details of instance] ***************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Get details of the VNIC] ***********************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [Print the public ip of the newly launched instance] ********************************************************************************************************************************************************************************
ok: [localhost] => {
"msg": "Public IP of launched instance 129.213.29.146"
}
TASK [Wait (upto 10 minutes) for port 22 to become open] *********************************************************************************************************************************************************************************
ok: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
ok: [localhost]
TASK [set_fact] **************************************************************************************************************************************************************************************************************************
skipping: [localhost]
TASK [Attempt a ssh connection to the newly launched instance] ***************************************************************************************************************************************************************************
changed: [localhost]
TASK [Print SSH response from launched instance] *****************************************************************************************************************************************************************************************
ok: [localhost] => {
"msg": "SSH response from instance -> ['Linux mytestinstance 4.14.35-1902.7.3.el7uek.x86_64 #2 SMP Thu Oct 31 10:06:41 PDT 2019 x86_64 x86_64 x86_64 GNU/Linux']"
}
TASK [Terminate the instance] ************************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [Delete the subnet] *****************************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [Delete the security list] **********************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [Delete the route table] ************************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [Delete the Internet Gateway] *******************************************************************************************************************************************************************************************************
changed: [localhost]
TASK [Delete the VCN] ********************************************************************************************************************************************************************************************************************
changed: [localhost]
PLAY RECAP *******************************************************************************************************************************************************************************************************************************
localhost : ok=40 changed=18 unreachable=0 failed=0 skipped=2 rescued=0 ignored=0
サンプルはインスタンスをプロビジョニングして、すぐに削除するようになっています。
コンソールでは削除後のインスタンスを確認できます。
08. TerraformとResource Manager
TerraformとそのマネージドサービスであるResource Managerの手順を確認します。
ポリシーの設定
以下のポリシーを追加します。
Allow dynamic-group member-kosuke.machida_dynamic_group to manage orm-jobs in compartment kosuke.machida
Allow dynamic-group member-kosuke.machida_dynamic_group to manage orm-stacks in compartment kosuke.machida
Terraform
（マネージドではない）Terraformを利用して、OCIのVCNを作成します。
サンプルコードのダウンロード
GitHubからサンプルコードをCloneします。
$ git clone https://github.com/ou-developers/devops-lab03-terraform.git
Cloning into 'devops-lab03-terraform'...
remote: Enumerating objects: 20, done.
remote: Counting objects: 100% (20/20), done.
remote: Compressing objects: 100% (17/17), done.
remote: Total 20 (delta 4), reused 0 (delta 0), pack-reused 0
Receiving objects: 100% (20/20), 4.91 KiB | 4.91 MiB/s, done.
Resolving deltas: 100% (4/4), done.
$ ls -l devops-lab03-terraform/
total 16
-rw-rw-r--. 1 opc opc 993 Jun 22 07:13 README.md
-rw-rw-r--. 1 opc opc 35 Jun 22 07:13 terraform.tfvars
-rw-rw-r--. 1 opc opc 46 Jun 22 07:13 variables.tf
-rw-rw-r--. 1 opc opc 556 Jun 22 07:13 vcn.tf
初期化
$ terraform init
Initializing the backend...
Initializing provider plugins...
- Finding oracle/oci versions matching ">= 4.67.3"...
- Installing oracle/oci v5.2.1...
- Installed oracle/oci v5.2.1 (signed by a HashiCorp partner, key ID 1533A49284137CEB)
Partner and community providers are signed by their developers.
If you'd like to know more about provider signing, you can read about it here:
https://www.terraform.io/docs/cli/plugins/signing.html
Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.
Terraform has been successfully initialized!
You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.
If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.
初期化すると、.terraformディレクトリが作られます。
$ ls -la
total 32
drwxrwxr-x. 4 opc opc 4096 Jun 22 08:11 .
drwxrwxr-x. 3 opc opc 36 Jun 22 07:13 ..
drwxrwxr-x. 8 opc opc 163 Jun 22 07:13 .git
drwxr-xr-x. 3 opc opc 23 Jun 22 08:06 .terraform
-rw-r--r--. 1 opc opc 1405 Jun 22 08:06 .terraform.lock.hcl
-rw-rw-r--. 1 opc opc 993 Jun 22 07:13 README.md
-rw-rw-r--. 1 opc opc 4028 Jun 22 08:11 terraform.tfstate
-rw-rw-r--. 1 opc opc 375 Jun 22 08:11 terraform.tfstate.backup
-rw-rw-r--. 1 opc opc 103 Jun 22 08:09 terraform.tfvars
-rw-rw-r--. 1 opc opc 46 Jun 22 07:13 variables.tf
-rw-rw-r--. 1 opc opc 515 Jun 22 08:09 vcn.tf
ファイルの編集
サンプルファイルを以下のように編集します。
VCNを作成するコードです。
compartment_idは変数にして、別ファイルで管理するようにします。
vcn.tf
terraform {
required_providers {
oci = {
source = "oracle/oci"
version = ">=4.67.3"
}
}
required_version = ">= 1.0.0"
}
resource "oci_core_vcn" "example_vcn" {
compartment_id = var.compartment_id
display_name = "IAD-DOP-LAB03-1-VCN-01"
cidr_blocks = ["10.0.0.0/16"]
}
resource "oci_core_subnet" "example_subnet" {
compartment_id = var.compartment_id
display_name = "IAD-DOP-LAB03-1-SNT-01"
vcn_id = oci_core_vcn.example_vcn.id
cidr_block = "10.0.0.0/24"
}
変数を定義するファイルです。サンプルから変更はありません。
compartment_idをstring型の変数として定義しています。
variables.tf
variable "compartment_id" {
type = string
}
変数に値を定義します。ここでは環境に合わせてコンパートメントIDを設定します。
terraform.tfvars
compartment_id = "ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpXXXXXXXXX"
plan
実行計画を作成します。
$ terraform plan
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# oci_core_subnet.example_subnet will be created
+ resource "oci_core_subnet" "example_subnet" {
+ availability_domain = (known after apply)
+ cidr_block = "10.0.0.0/24"
+ compartment_id = "ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpgq5xxxxxxxxxxx"
+ defined_tags = (known after apply)
+ dhcp_options_id = (known after apply)
+ display_name = "IAD-DOP-LAB03-1-SNT-01"
+ dns_label = (known after apply)
+ freeform_tags = (known after apply)
+ id = (known after apply)
+ ipv6cidr_block = (known after apply)
+ ipv6cidr_blocks = (known after apply)
+ ipv6virtual_router_ip = (known after apply)
+ prohibit_internet_ingress = (known after apply)
+ prohibit_public_ip_on_vnic = (known after apply)
+ route_table_id = (known after apply)
+ security_list_ids = (known after apply)
+ state = (known after apply)
+ subnet_domain_name = (known after apply)
+ time_created = (known after apply)
+ vcn_id = (known after apply)
+ virtual_router_ip = (known after apply)
+ virtual_router_mac = (known after apply)
}
# oci_core_vcn.example_vcn will be created
+ resource "oci_core_vcn" "example_vcn" {
+ byoipv6cidr_blocks = (known after apply)
+ cidr_block = (known after apply)
+ cidr_blocks = [
+ "10.0.0.0/16",
]
+ compartment_id = "ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpgq5tcmxxxxxxxxxxxxxx"
+ default_dhcp_options_id = (known after apply)
+ default_route_table_id = (known after apply)
+ default_security_list_id = (known after apply)
+ defined_tags = (known after apply)
+ display_name = "IAD-DOP-LAB03-1-VCN-01"
+ dns_label = (known after apply)
+ freeform_tags = (known after apply)
+ id = (known after apply)
+ ipv6cidr_blocks = (known after apply)
+ ipv6private_cidr_blocks = (known after apply)
+ is_ipv6enabled = (known after apply)
+ is_oracle_gua_allocation_enabled = (known after apply)
+ state = (known after apply)
+ time_created = (known after apply)
+ vcn_domain_name = (known after apply)
}
Plan: 2 to add, 0 to change, 0 to destroy.
────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Note: You didn't use the -out option to save this plan, so Terraform can't guarantee to take exactly these actions if you run "terraform apply" now.
apply
適用してVCNを作成します。
$ terraform apply
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
+ create
Terraform will perform the following actions:
# oci_core_subnet.example_subnet will be created
+ resource "oci_core_subnet" "example_subnet" {
+ availability_domain = (known after apply)
+ cidr_block = "10.0.0.0/24"
+ compartment_id = "ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpgq5tcmxlxxxxxxxxxxxxxxx"
+ defined_tags = (known after apply)
+ dhcp_options_id = (known after apply)
+ display_name = "IAD-DOP-LAB03-1-SNT-01"
+ dns_label = (known after apply)
+ freeform_tags = (known after apply)
+ id = (known after apply)
+ ipv6cidr_block = (known after apply)
+ ipv6cidr_blocks = (known after apply)
+ ipv6virtual_router_ip = (known after apply)
+ prohibit_internet_ingress = (known after apply)
+ prohibit_public_ip_on_vnic = (known after apply)
+ route_table_id = (known after apply)
+ security_list_ids = (known after apply)
+ state = (known after apply)
+ subnet_domain_name = (known after apply)
+ time_created = (known after apply)
+ vcn_id = (known after apply)
+ virtual_router_ip = (known after apply)
+ virtual_router_mac = (known after apply)
}
# oci_core_vcn.example_vcn will be created
+ resource "oci_core_vcn" "example_vcn" {
+ byoipv6cidr_blocks = (known after apply)
+ cidr_block = (known after apply)
+ cidr_blocks = [
+ "10.0.0.0/16",
]
+ compartment_id = "ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpgq5tcmxlxxxxxxxxxxxxxxx"
+ default_dhcp_options_id = (known after apply)
+ default_route_table_id = (known after apply)
+ default_security_list_id = (known after apply)
+ defined_tags = (known after apply)
+ display_name = "IAD-DOP-LAB03-1-VCN-01"
+ dns_label = (known after apply)
+ freeform_tags = (known after apply)
+ id = (known after apply)
+ ipv6cidr_blocks = (known after apply)
+ ipv6private_cidr_blocks = (known after apply)
+ is_ipv6enabled = (known after apply)
+ is_oracle_gua_allocation_enabled = (known after apply)
+ state = (known after apply)
+ time_created = (known after apply)
+ vcn_domain_name = (known after apply)
}
Plan: 2 to add, 0 to change, 0 to destroy.
Do you want to perform these actions?
Terraform will perform the actions described above.
Only 'yes' will be accepted to approve.
Enter a value: yes
oci_core_vcn.example_vcn: Creating...
oci_core_vcn.example_vcn: Creation complete after 1s [id=ocid1.vcn.oc1.ap-osaka-1.amaaaaaassl65iqae5f74wnzxaxn2l5fjui5k5xm5xnuk72v7ai5uqhqyaka]
oci_core_subnet.example_subnet: Creating...
oci_core_subnet.example_subnet: Creation complete after 7s [id=ocid1.subnet.oc1.ap-osaka-1.aaaaaaaao4uh3woo2num34bb7h57yrz4awl743dnhzcp5tjbbt2bgcfjgbxq]
Apply complete! Resources: 2 added, 0 changed, 0 destroyed.
コンソール画面で作成できていることを確認します。
destroy
削除します。
$ terraform destroy
oci_core_vcn.example_vcn: Refreshing state... [id=ocid1.vcn.oc1.ap-osaka-1.amaaaaaassl65iqae5f74wnzxaxn2l5fjui5k5xm5xnuk72v7ai5uqhqyaka]
oci_core_subnet.example_subnet: Refreshing state... [id=ocid1.subnet.oc1.ap-osaka-1.aaaaaaaao4uh3woo2num34bb7h57yrz4awl743dnhzcp5tjbbt2bgcfjgbxq]
Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
- destroy
Terraform will perform the following actions:
# oci_core_subnet.example_subnet will be destroyed
- resource "oci_core_subnet" "example_subnet" {
- cidr_block = "10.0.0.0/24" -> null
- compartment_id = "ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpgq5tcxxxxxxxxxxxxxxxxxxxx" -> null
- defined_tags = {} -> null
- dhcp_options_id = "ocid1.dhcpoptions.oc1.ap-osaka-1.aaaaaaaaety7enj2mcpslyqq5r2m42qekfmrirv44g6bp3ar2mbdk7r4j2xq" -> null
- display_name = "IAD-DOP-LAB03-1-SNT-01" -> null
- freeform_tags = {} -> null
- id = "ocid1.subnet.oc1.ap-osaka-1.aaaaaaaao4uh3woo2num34bb7h57yrz4awl743dnhzcp5tjbbt2bgcfjgbxq" -> null
- ipv6cidr_blocks = [] -> null
- prohibit_internet_ingress = false -> null
- prohibit_public_ip_on_vnic = false -> null
- route_table_id = "ocid1.routetable.oc1.ap-osaka-1.aaaaaaaavddpgnb6a3mg32iilrs4ajuz5qh2rv7kviskvcbpdnaclm734xbq" -> null
- security_list_ids = [
- "ocid1.securitylist.oc1.ap-osaka-1.aaaaaaaao3qw7aestdk6jfudem73hmprrivfpebwnlw2rdqkxn33splgwbda",
] -> null
- state = "AVAILABLE" -> null
- time_created = "2023-06-22 08:11:47.081 +0000 UTC" -> null
- vcn_id = "ocid1.vcn.oc1.ap-osaka-1.amaaaaaassl65iqae5f74wnzxaxn2l5fjui5k5xm5xnuk72v7ai5uqhqyaka" -> null
- virtual_router_ip = "10.0.0.1" -> null
- virtual_router_mac = "00:00:17:EB:DB:84" -> null
}
# oci_core_vcn.example_vcn will be destroyed
- resource "oci_core_vcn" "example_vcn" {
- byoipv6cidr_blocks = [] -> null
- cidr_block = "10.0.0.0/16" -> null
- cidr_blocks = [
- "10.0.0.0/16",
] -> null
- compartment_id = "ocid1.compartment.oc1..aaaaaaaamyemvazvbgl42f5pi7gzlpgq5tcmxxxxxxxxxxxxxxxxxxxxx" -> null
- default_dhcp_options_id = "ocid1.dhcpoptions.oc1.ap-osaka-1.aaaaaaaaety7enj2mcpslyqq5r2m42qekfmrirv44g6bp3ar2mbdk7r4j2xq" -> null
- default_route_table_id = "ocid1.routetable.oc1.ap-osaka-1.aaaaaaaavddpgnb6a3mg32iilrs4ajuz5qh2rv7kviskvcbpdnaclm734xbq" -> null
- default_security_list_id = "ocid1.securitylist.oc1.ap-osaka-1.aaaaaaaao3qw7aestdk6jfudem73hmprrivfpebwnlw2rdqkxn33splgwbda" -> null
- defined_tags = {} -> null
- display_name = "IAD-DOP-LAB03-1-VCN-01" -> null
- freeform_tags = {} -> null
- id = "ocid1.vcn.oc1.ap-osaka-1.amaaaaaassl65iqae5f74wnzxaxn2l5fjui5k5xm5xnuk72v7ai5uqhqyaka" -> null
- ipv6cidr_blocks = [] -> null
- ipv6private_cidr_blocks = [] -> null
- is_ipv6enabled = false -> null
- state = "AVAILABLE" -> null
- time_created = "2023-06-22 08:11:46.336 +0000 UTC" -> null
}
Plan: 0 to add, 0 to change, 2 to destroy.
Do you really want to destroy all resources?
Terraform will destroy all your managed infrastructure, as shown above.
There is no undo. Only 'yes' will be accepted to confirm.
Enter a value: yes
oci_core_subnet.example_subnet: Destroying... [id=ocid1.subnet.oc1.ap-osaka-1.aaaaaaaao4uh3woo2num34bb7h57yrz4awl743dnhzcp5tjbbt2bgcfjgbxq]
oci_core_subnet.example_subnet: Destruction complete after 0s
oci_core_vcn.example_vcn: Destroying... [id=ocid1.vcn.oc1.ap-osaka-1.amaaaaaassl65iqae5f74wnzxaxn2l5fjui5k5xm5xnuk72v7ai5uqhqyaka]
oci_core_vcn.example_vcn: Destruction complete after 1s
Destroy complete! Resources: 2 destroyed.
Resource Manager
Terraformと同様にVCNをResource Managerで作成します。
Stackの作成
Stackとは複数のTerraformの設定ファイルをまとめたOCIのリソースです。Resource Managerでは、Stackという単位でTerraform構成ファイルを管理します。
Terraformで使用した以下3つのファイルをローカルPCにダウンロードしておきます。
% ls terraform_vcn
terraform.tfvars variables.tf vcn.tf

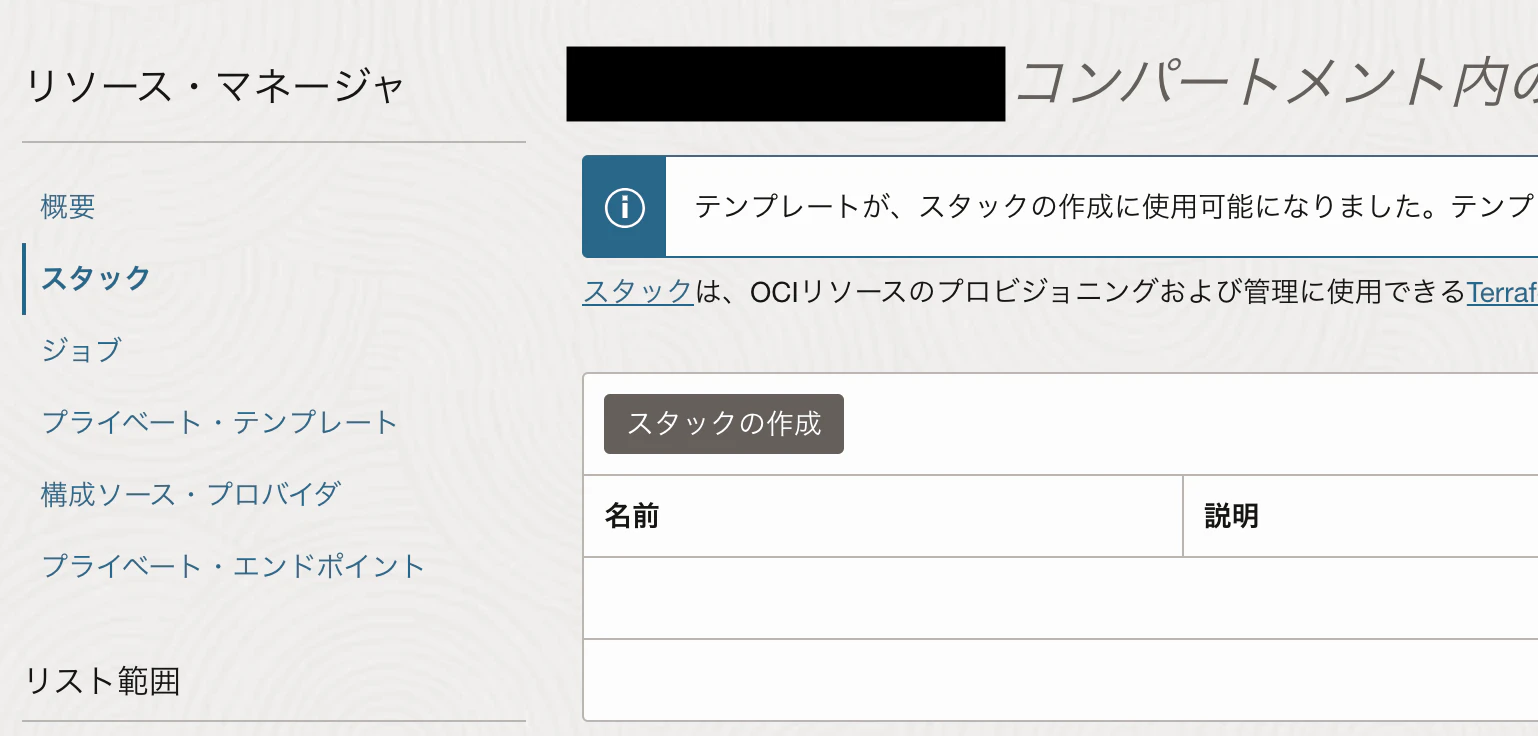

OCIコンソールからスタックの作成をクリック

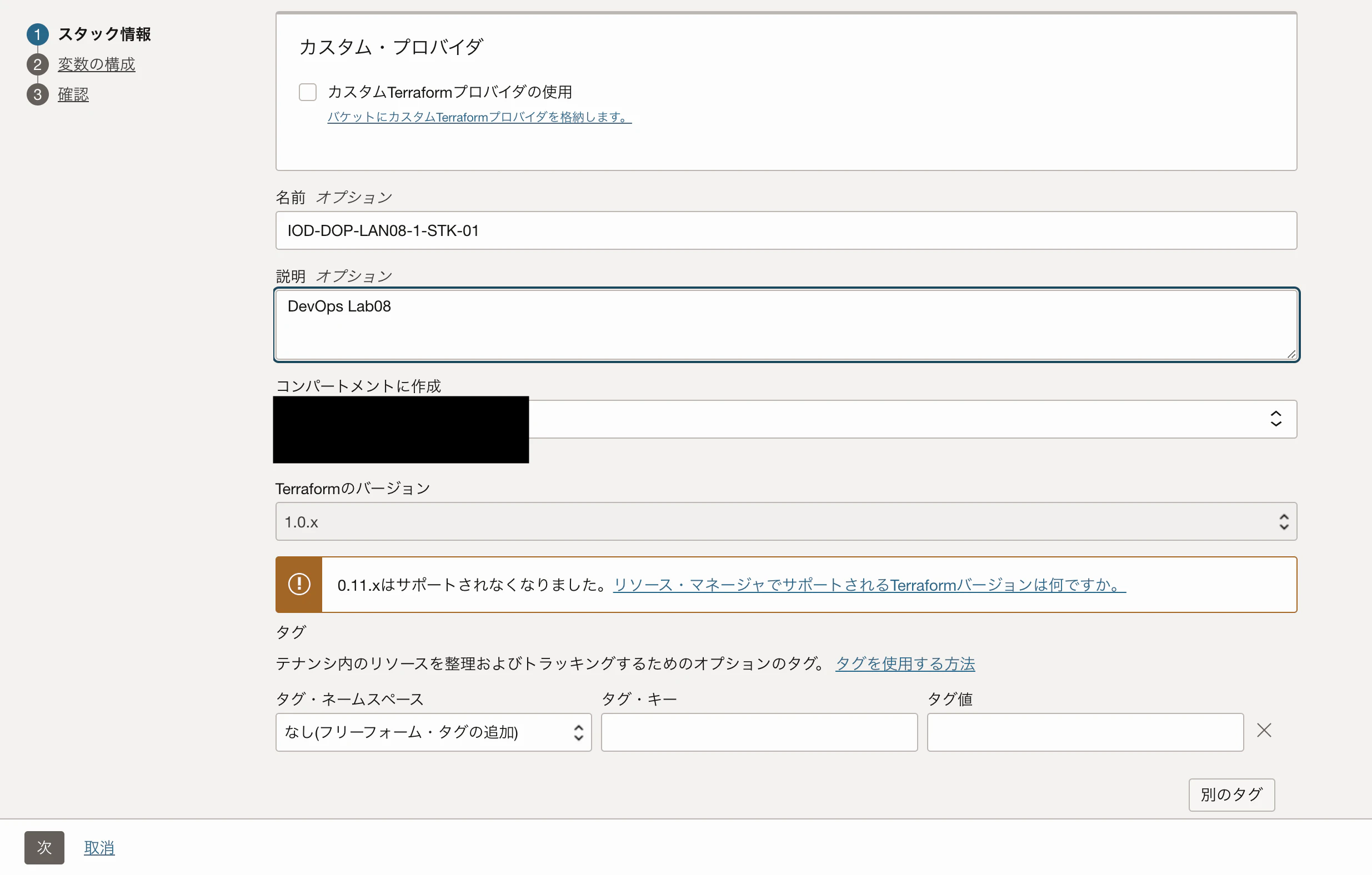

以下の画面のTerraform構成ソースで、フォルダを選択し、ローカルPCにダウンロードしたファイルを保存しているフォルダを選択します。
続き。
terraform.tfvarsファイルで指定されている変数（コンパートメントOCID）が表示されます。
作成をクリック
このようにアイコンがグリーンになれば完了です。
計画
実行計画を作成します。terraform planに相当します。
スタックの画面から計画をクリックし、以下の画面で計画をクリックします。

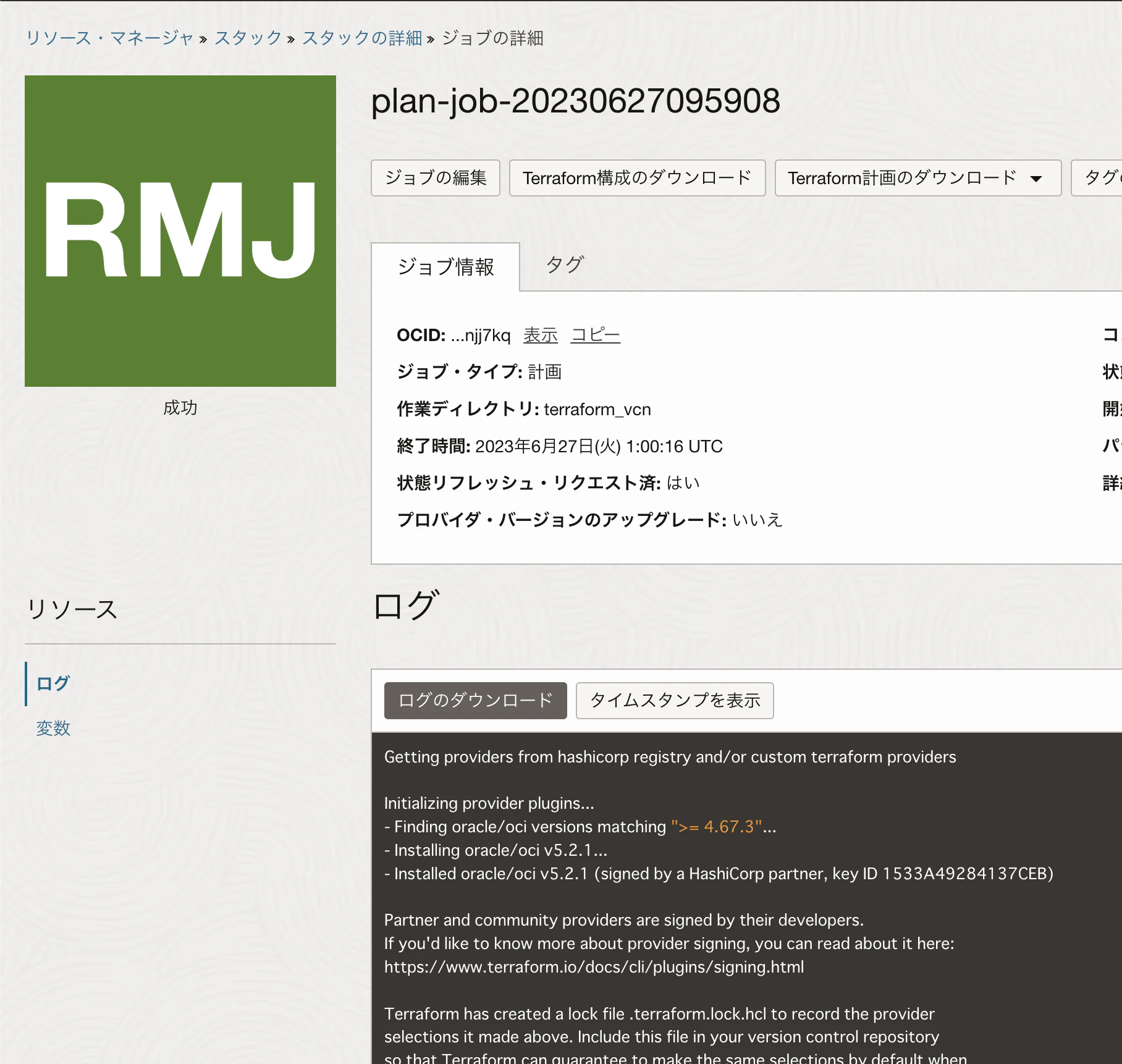

以下のような画面になります。
ログにはterraform planコマンドを実行した時と同様のログが表示されます。
適用
terraform applyに相当します。stackを実行して、リソースを作成します。
スタックの画面から適用をクリックします。

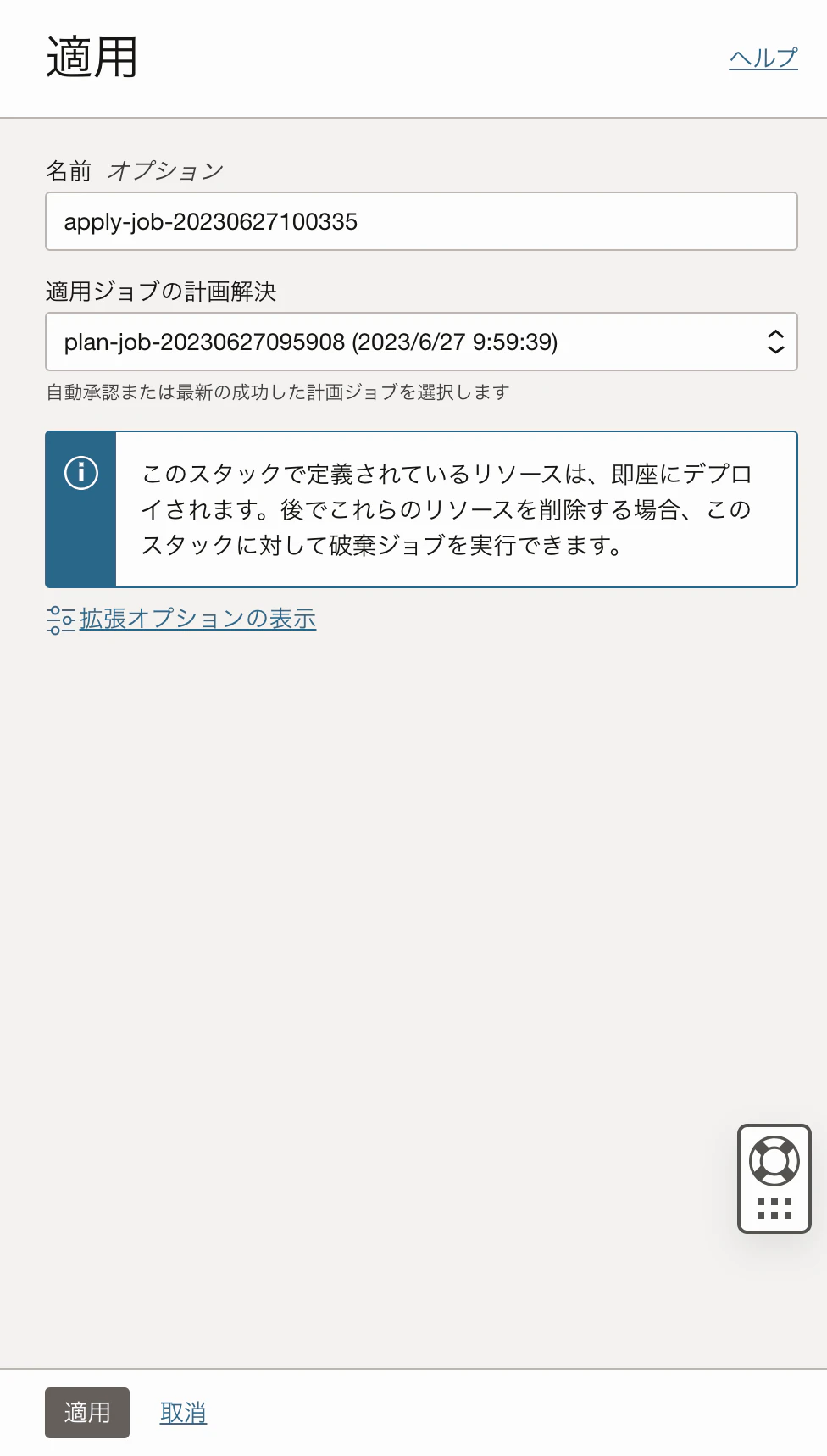

以下の画面で適用ジョブの計画解決では、計画で作成したジョブを選択し、適用をクリックします。

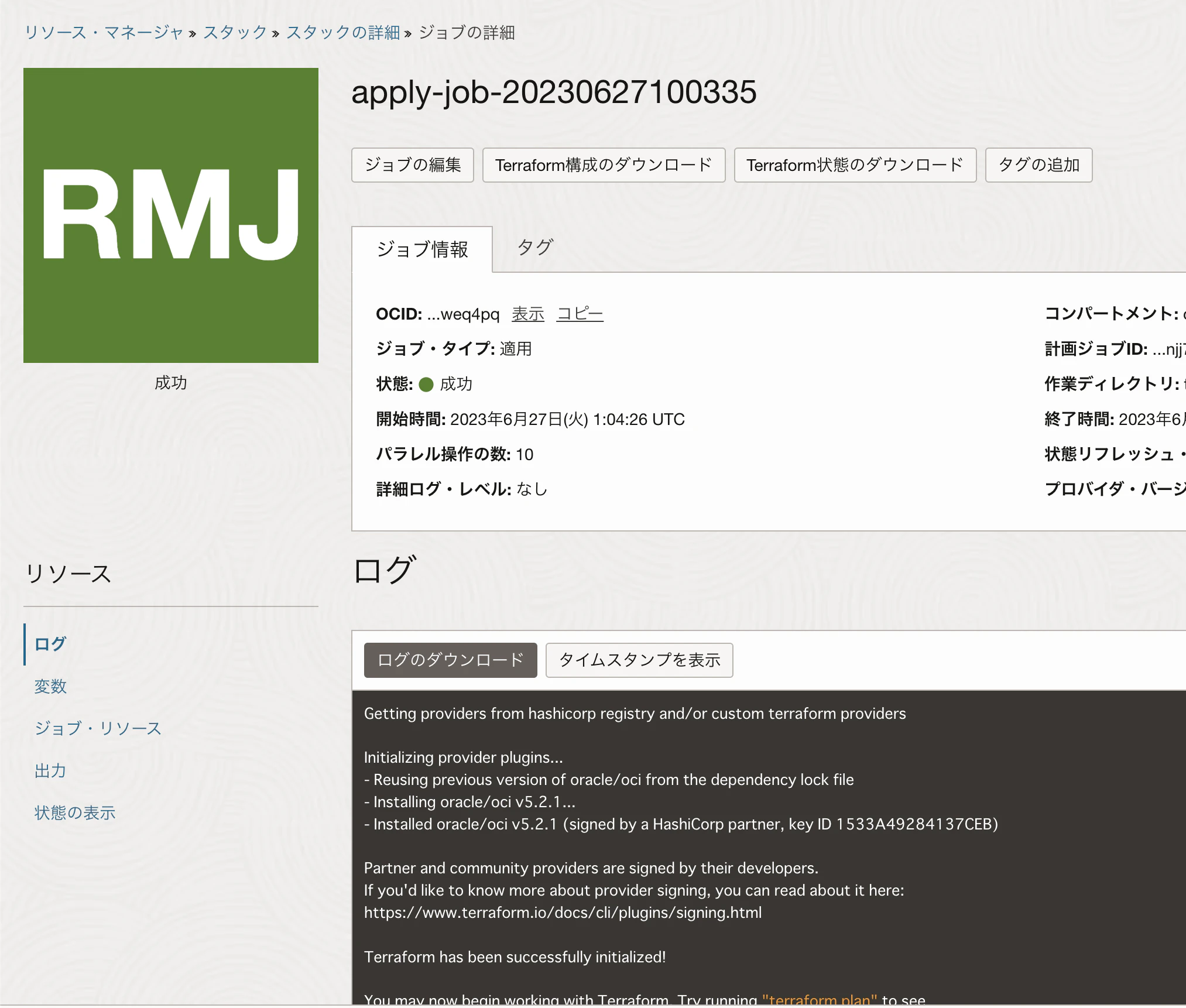

このような画面になれば成功です。計画と同様にログが表示されます。

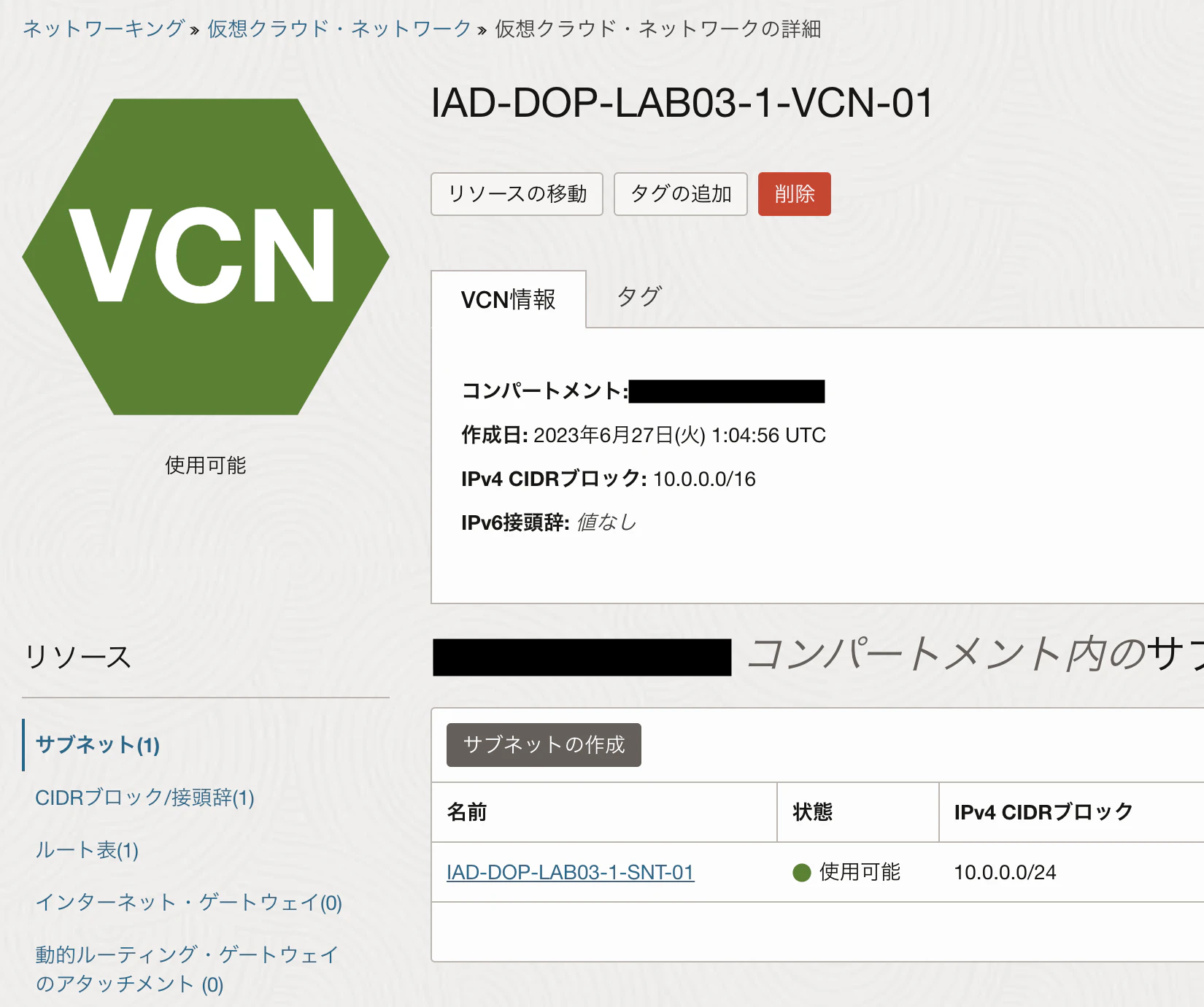

VCNが作成されていることを確認します。
破棄
作成したリソースを削除します。terraform destroyに相当します。
スタックの画面から破棄をクリックし、以下の画面で破棄をクリックします。
計画や適用と同様に以下のような画面になれば破棄は完了です。
