Creating a simple JupyterLab plugin having BookMark menu

abstract

in this document, we are going to discuss how to create a simple jupyterlab plugin having a custom menu 'BookMark'.

Let's start

let's start with a simple plugin project created from extension-cookiecutter-ts

if you are a newbie to cookiecutter, this post would be a help.

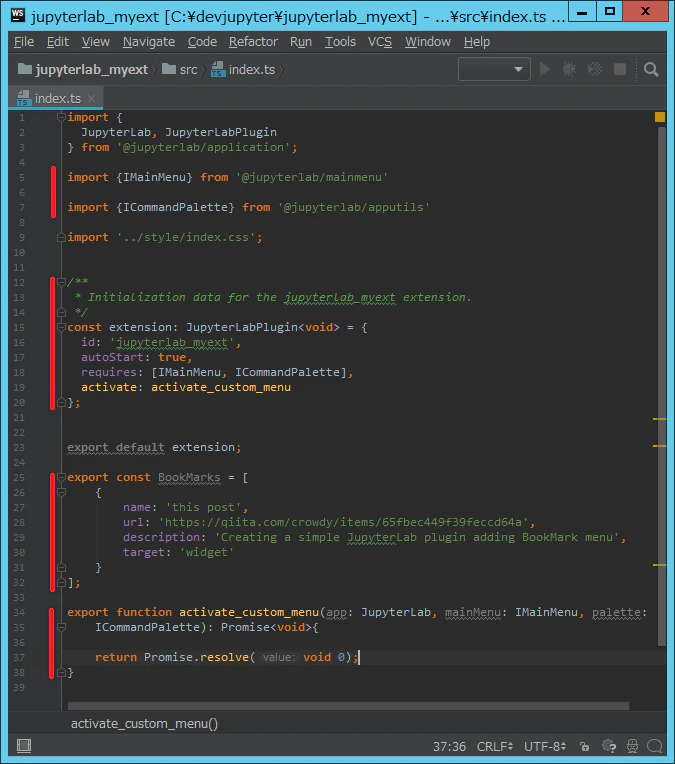

Basic Skelecton

this is a basic skelecton of a jupyterlab plugin.

import part

import {IMainMenu} from '@jupyterlab/mainmenu'

import {IFrame, ICommandPalette} from '@jupyterlab/apputils'

import {Menu} from '@phosphor/widgets'

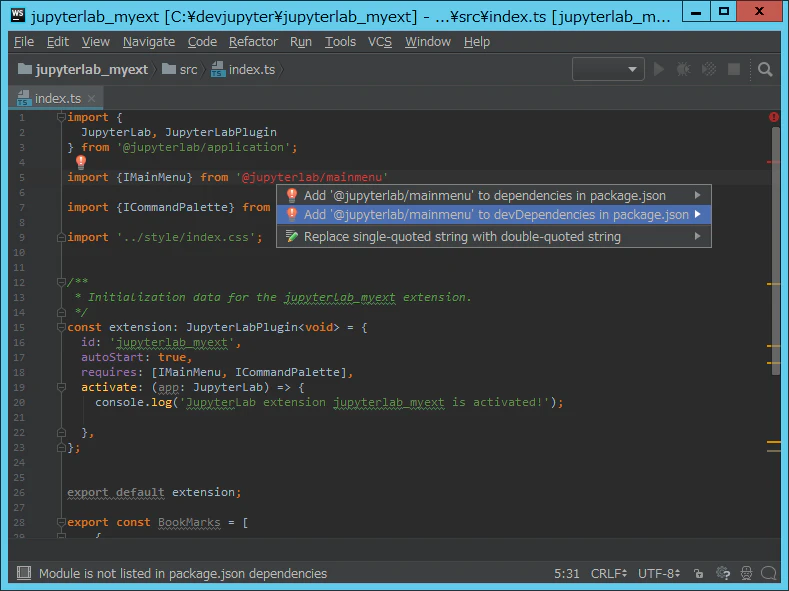

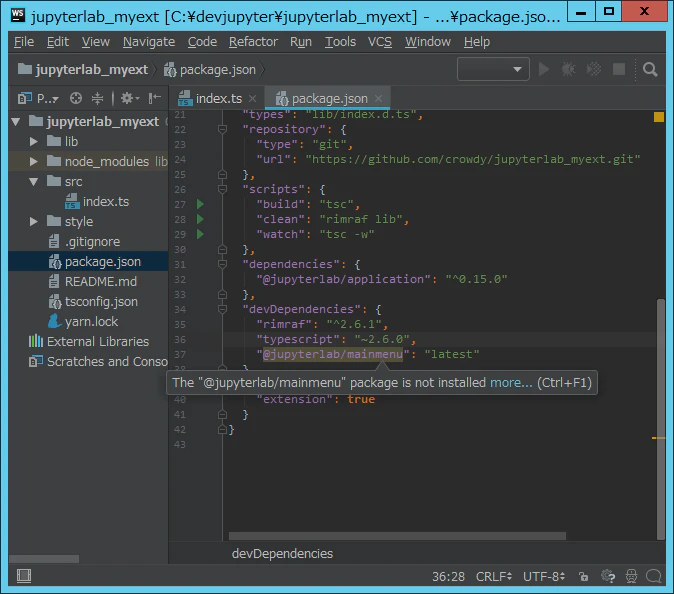

to use @jupyterlab/mainmenu package, you might need to describe the package name in package.json file.

if you use pycharm, alt+enter will do that for you.

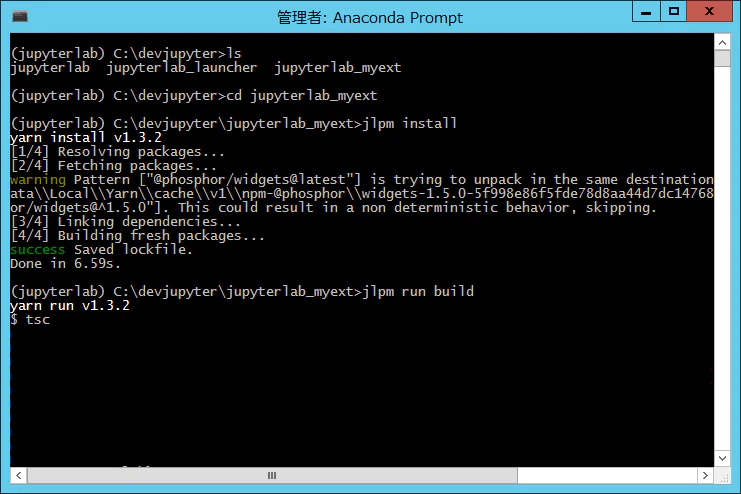

not installed? don't be worry. jlpm install comannd will make you have the package under node_modules directory.

extension part

/**
 * Initialization data for the jupyterlab_myext extension.
 */
const extension: JupyterLabPlugin<void> = {
  id: 'jupyterlab_myext',
  autoStart: true,
  requires: [IMainMenu, ICommandPalette],
  activate: activate_custom_menu
};

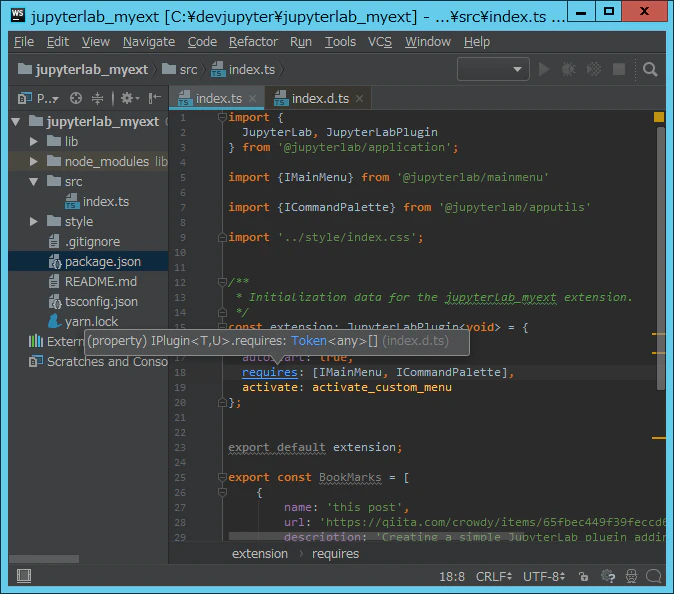

in webstorm, do Ctrl+click the requires and you can navigate to the definition.

bookmark data part

export const BookMarks = [
    {
        name: 'gmo',
        url: 'https://www.gmo.jp/en/',
        description: 'Creating a simple JupyterLab plugin adding BookMark menu',
        target: 'widget'
    }
];

this is a hard-coded bookmark data. of course, you can change it to load from file, url(ajax) or to be delivered by javascript from index.html, which is rendered by jupyterlab_launcher/handlers.py

activation definition part

export function activate_custom_menu(app: JupyterLab, mainMenu: IMainMenu, palette:
    ICommandPalette): Promise<void>{
    // todo
    return Promise.resolve(void 0);
}

by the declaration requires: [IMainMenu, ICommandPalette] at extension definition,
those parameters are dynamically delivered when calling activate_custom_menu

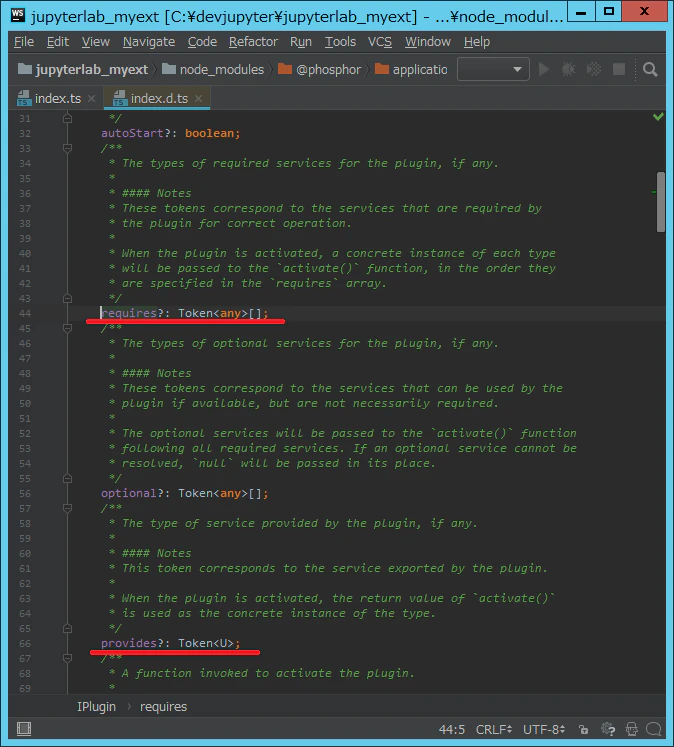

if you want to provide a service other widgets can refer, use provides property.

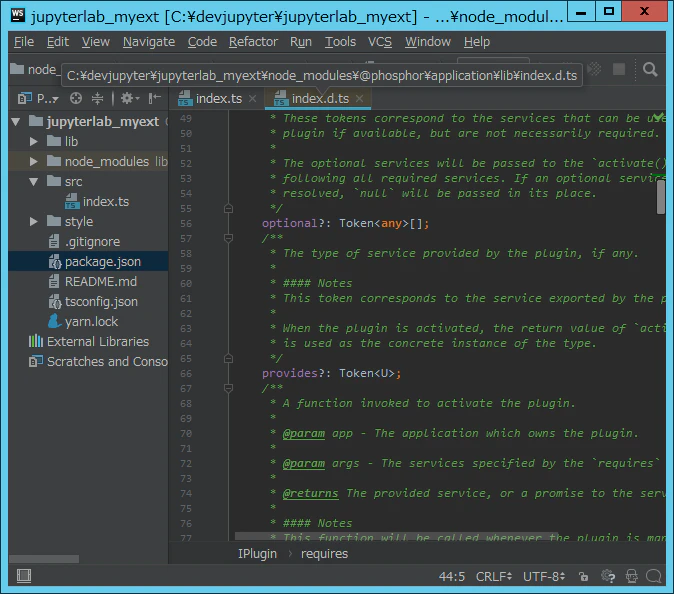

for details, refer
jupyterlab_myext\node_modules@phosphor\application\lib\index.d.ts

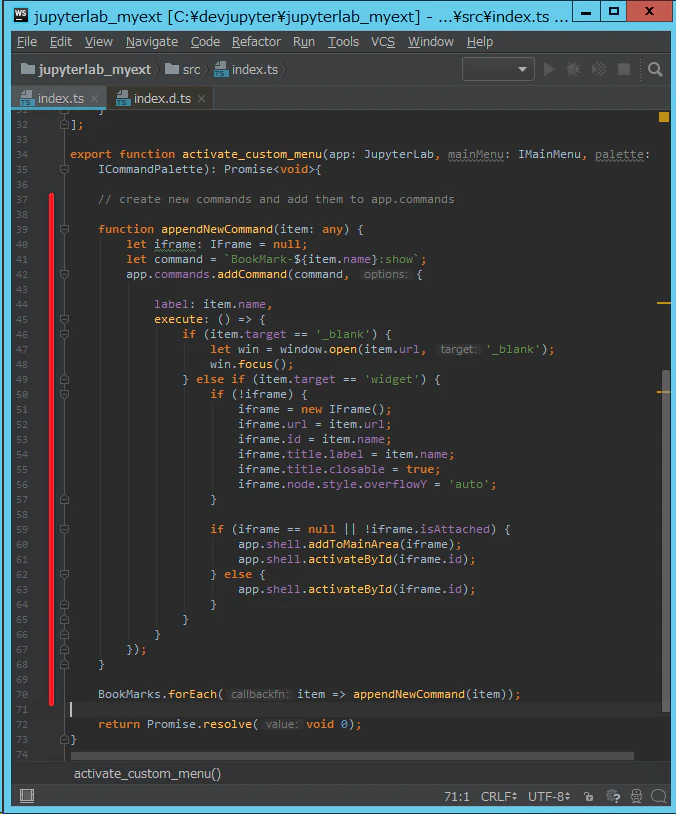

Register Commands

phosphorjs uses command|event / listener model like VSCode does.

I believe you can understand what this typescript does.

    function appendNewCommand(item: any) {
        let iframe: IFrame = null;
        let command = `BookMark-${item.name}:show`;
        app.commands.addCommand(command, {

            label: item.name,
            execute: () => {
                if (item.target == '_blank') {
                    let win = window.open(item.url, '_blank');
                    win.focus();
                } else if (item.target == 'widget') {
                    if (!iframe) {
                        iframe = new IFrame();
                        iframe.url = item.url;
                        iframe.id = item.name;
                        iframe.title.label = item.name;
                        iframe.title.closable = true;
                        iframe.node.style.overflowY = 'auto';
                    }

                    if (iframe == null || !iframe.isAttached) {
                        app.shell.addToMainArea(iframe);
                        app.shell.activateById(iframe.id);
                    } else {
                        app.shell.activateById(iframe.id);
                    }
                }
            }
        });
    }

    BookMarks.forEach(item => appendNewCommand(item));

IFrame came from @jupyterlab/apputils

import {IFrame, ICommandPalette} from '@jupyterlab/apputils'

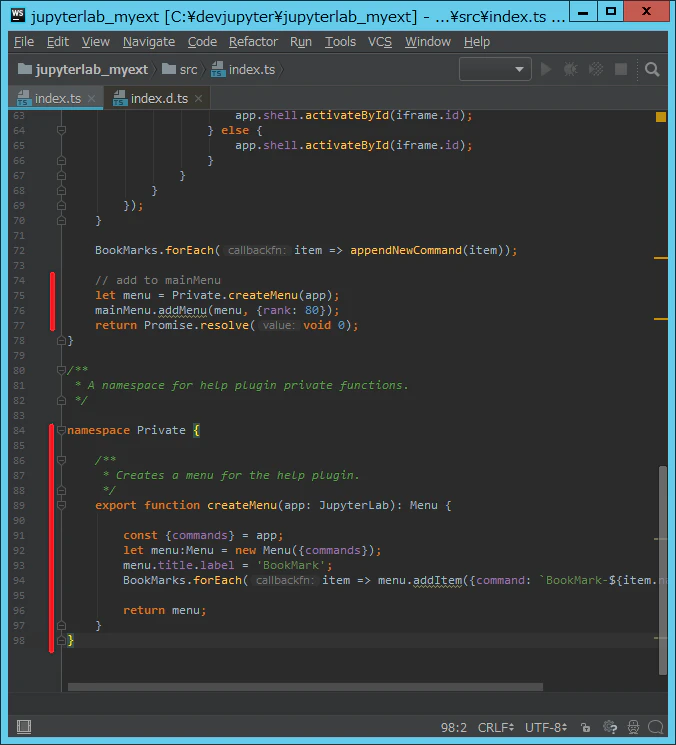

UI rednering

and make menu show actually.
we usually describe rendering part on Private namespace like below.

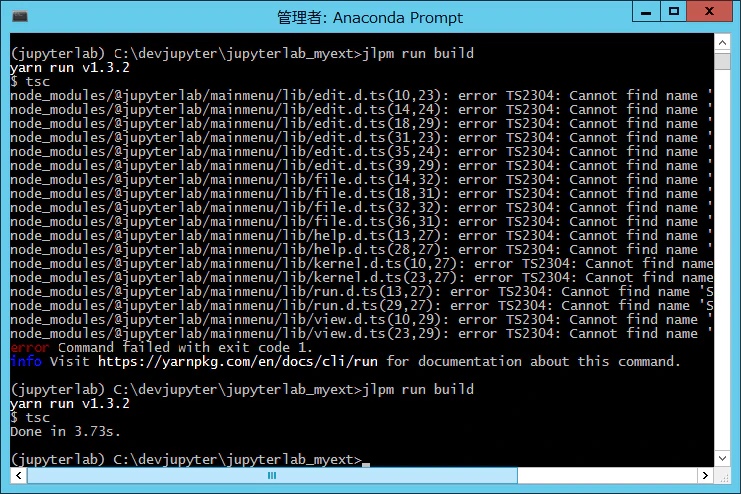

build

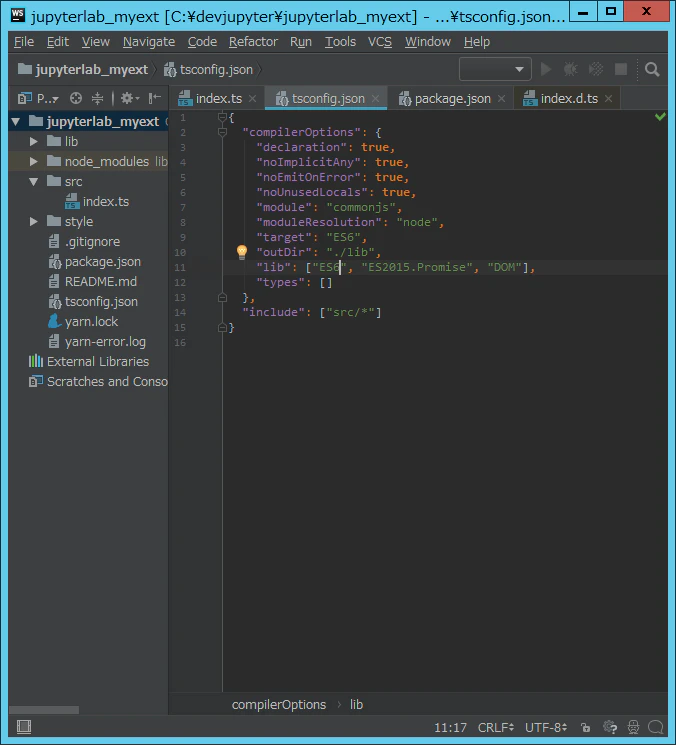

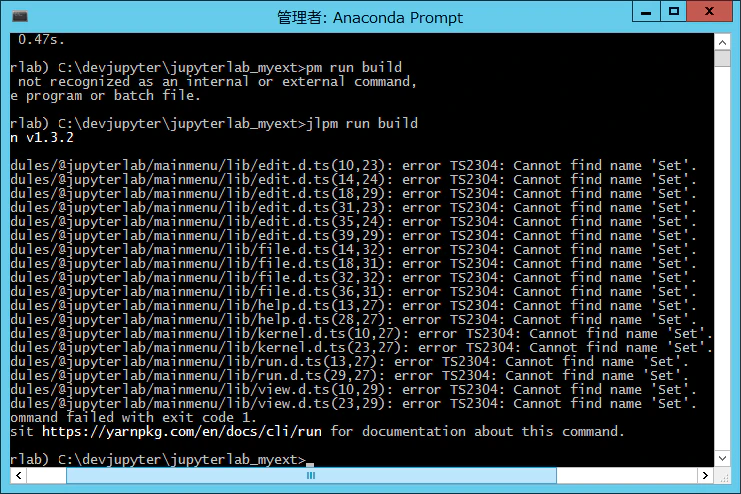

what? no Set? then, make target and lib use ES6 on tsconfig.json


Okay.

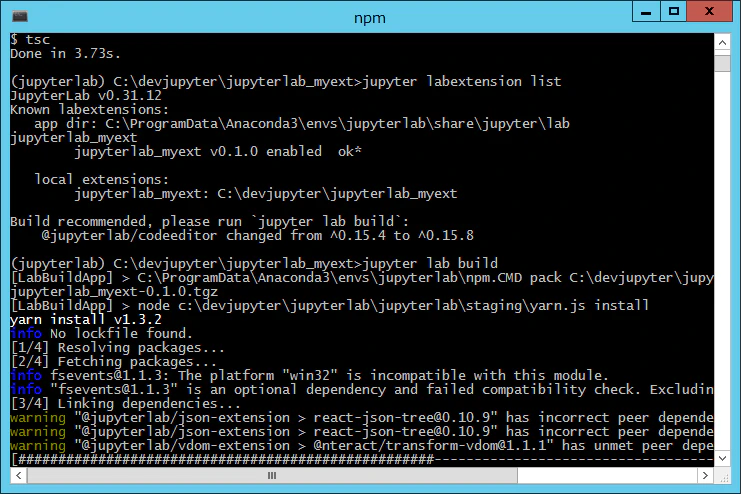

jupyter labextension list

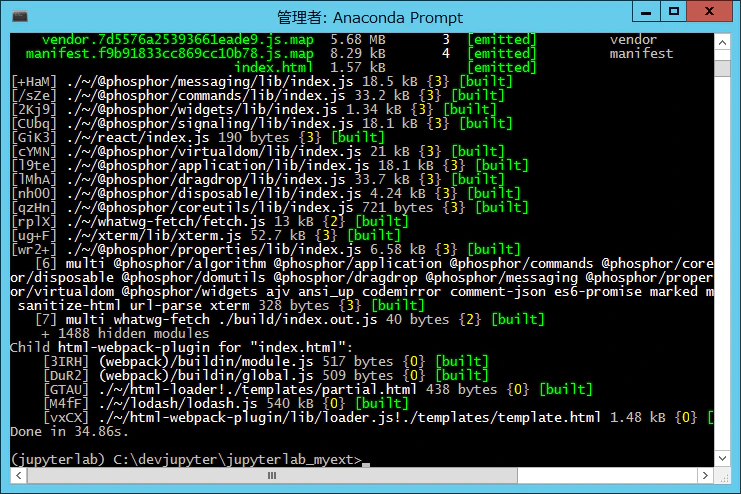

jupyter lab build

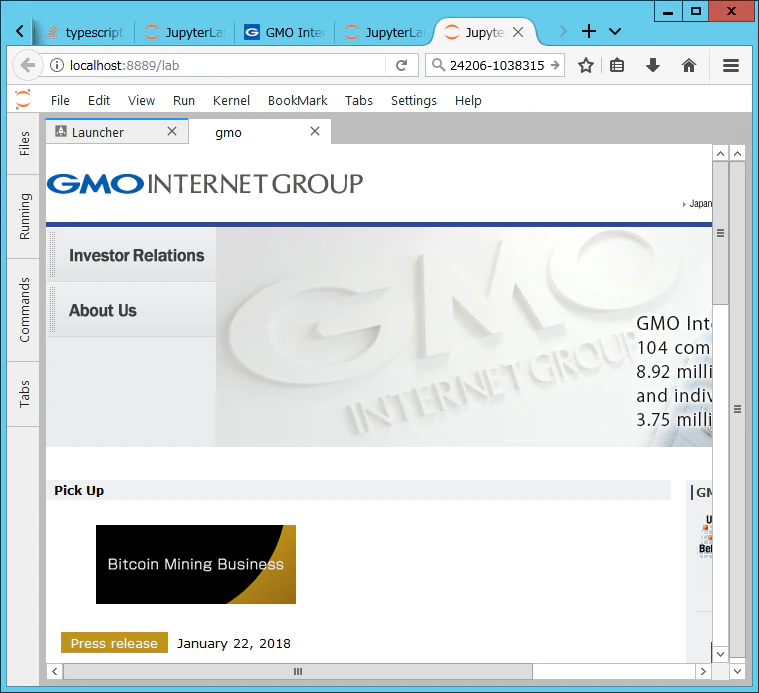

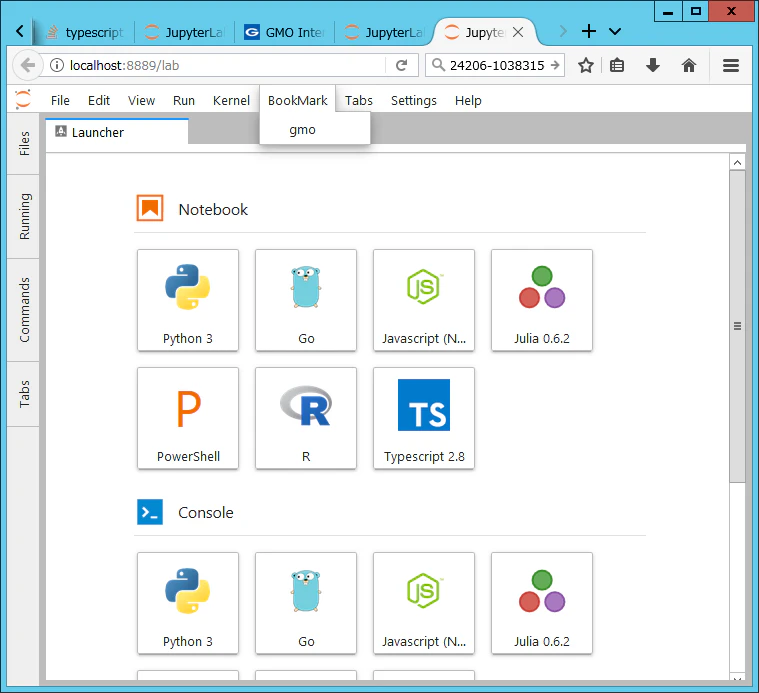

run

jupyter lab

the whole code

import {
  JupyterLab, JupyterLabPlugin
} from '@jupyterlab/application';

import {IMainMenu} from '@jupyterlab/mainmenu'

import {IFrame, ICommandPalette} from '@jupyterlab/apputils'

import {Menu} from '@phosphor/widgets'

import '../style/index.css';


/**
 * Initialization data for the jupyterlab_myext extension.
 */
const extension: JupyterLabPlugin<void> = {
  id: 'jupyterlab_myext',
  autoStart: true,
  requires: [IMainMenu, ICommandPalette],
  activate: activate_custom_menu
};


export default extension;

export const BookMarks = [
    {
        name: 'gmo',
        url: 'https://www.gmo.jp/en/',
        description: 'Creating a simple JupyterLab plugin adding BookMark menu',
        target: 'widget'
    }
];

export function activate_custom_menu(app: JupyterLab, mainMenu: IMainMenu, palette:
    ICommandPalette): Promise<void>{

    // create new commands and add them to app.commands

    function appendNewCommand(item: any) {
        let iframe: IFrame = null;
        let command = `BookMark-${item.name}:show`;
        app.commands.addCommand(command, {

            label: item.name,
            execute: () => {
                if (item.target == '_blank') {
                    let win = window.open(item.url, '_blank');
                    win.focus();
                } else if (item.target == 'widget') {
                    if (!iframe) {
                        iframe = new IFrame();
                        iframe.url = item.url;
                        iframe.id = item.name;
                        iframe.title.label = item.name;
                        iframe.title.closable = true;
                        iframe.node.style.overflowY = 'auto';
                    }

                    if (iframe == null || !iframe.isAttached) {
                        app.shell.addToMainArea(iframe);
                        app.shell.activateById(iframe.id);
                    } else {
                        app.shell.activateById(iframe.id);
                    }
                }
            }
        });
    }

    BookMarks.forEach(item => appendNewCommand(item));

    // add to mainMenu
    let menu = Private.createMenu(app);
    mainMenu.addMenu(menu, {rank: 80});
    return Promise.resolve(void 0);
}

/**
 * A namespace for help plugin private functions.
 */

namespace Private {

    /**
     * Creates a menu for the help plugin.
     */
    export function createMenu(app: JupyterLab): Menu {

        const {commands} = app;
        let menu:Menu = new Menu({commands});
        menu.title.label = 'BookMark';
        BookMarks.forEach(item => menu.addItem({command: `BookMark-${item.name}:show`}));

        return menu;
    }
}

ref

jupyterlabのexternal extensionを作ってみた。
https://qiita.com/crowdy/items/167a65cee4a857184ac7
