テトリス風落ち物パズルを作る part04 ミノの設置とライン消去

前回はキー入力と落下処理を行った
今回はミノの設置とライン消去を行う

ミノの設置

落下処理が失敗した→地面に着いたなので
地面についた状態から少し動かす余裕を持たせるために
カウントダウンしていく

# 床に着地しているかのチェック
is_floor_landed = not self.can_mino_move(self.mino, Pos(0, 1), 0)
if is_floor_landed:
    self.wait_count -= 1

移動処理のタイミングでカウントが基準値を下回ったら設置する。

def move_and_rotate_mino(self):
    if self.wait_count <= WAIT // 2:
        self.wait()
        return
def wait(self) -> None:
    if self.wait_count == 0:
        self.mino_setup()
    else:
        self.wait_count -=1
    if self.wait_count == WAIT // 2  - 1:
        # print(self.mino.p)
        self.put_mino()
        self.line_check()
    if self.wait_count == 1:
        self.clear_line()
def put_mino(self):
    self.is_draw_mino = False
    m = self.mino
    for p in m.get_shape():
        self.matrix[p.y][p.x] = m.m.tile

マップの編集

ライン消去用に消えるラインを別の色のブロックにしたいが
どうやらpytmxはマップ上にタイルを設置しないと表示できないみたいなので

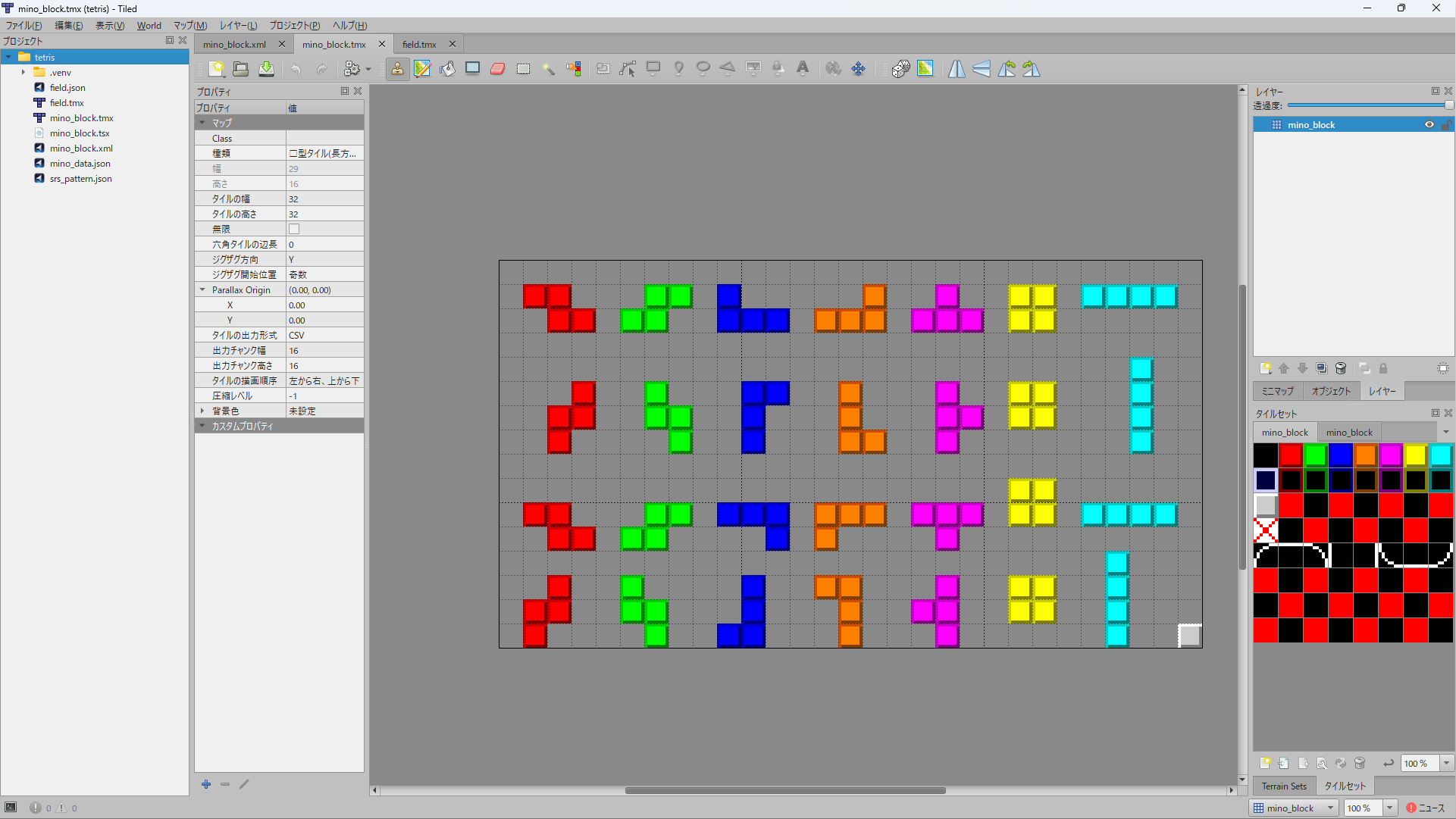

mino_data.tmxを編集する。マップの幅を1増やして一番右下に灰色のブロックを追加した。

mino_block.tmx

mino_block.tmx

<?xml version="1.0" encoding="UTF-8"?>
<map version="1.10" tiledversion="1.10.2" orientation="orthogonal" renderorder="right-down" width="29" height="16" tilewidth="32" tileheight="32" infinite="0" nextlayerid="2" nextobjectid="1">
 <tileset firstgid="1" source="mino_block.tsx"/>
 <layer id="1" name="mino_block" width="29" height="16">
  <data encoding="csv">
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
0,2,2,0,0,0,3,3,0,4,0,0,0,0,0,5,0,0,6,0,0,7,7,0,8,8,8,8,0,
0,0,2,2,0,3,3,0,0,4,4,4,0,5,5,5,0,6,6,6,0,7,7,0,0,0,0,0,0,
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,8,0,0,
0,0,0,2,0,0,3,0,0,0,4,4,0,0,5,0,0,0,6,0,0,7,7,0,0,0,8,0,0,
0,0,2,2,0,0,3,3,0,0,4,0,0,0,5,0,0,0,6,6,0,7,7,0,0,0,8,0,0,
0,0,2,0,0,0,0,3,0,0,4,0,0,0,5,5,0,0,6,0,0,0,0,0,0,0,8,0,0,
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,7,7,0,0,0,0,0,0,
0,2,2,0,0,0,3,3,0,4,4,4,0,5,5,5,0,6,6,6,0,7,7,0,8,8,8,8,0,
0,0,2,2,0,3,3,0,0,0,0,4,0,5,0,0,0,0,6,0,0,0,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,8,0,0,0,
0,0,2,0,0,3,0,0,0,0,4,0,0,5,5,0,0,0,6,0,0,7,7,0,0,8,0,0,0,
0,2,2,0,0,3,3,0,0,0,4,0,0,0,5,0,0,6,6,0,0,7,7,0,0,8,0,0,0,
0,2,0,0,0,0,3,0,0,4,4,0,0,0,5,0,0,0,6,0,0,0,0,0,0,8,0,0,17
</data>
 </layer>
</map>

追加したタイルを使えるようにmino.pyにクラスを追加する

class OtherTiles(Enum):
    Vanish = "Vanish", -1, Pos(28,15)
    def __init__(self, name, value, p):
        self._name = name
        self._value_ = value
        self.tile = tmx_data.get_tile_gid(p.x,p.y,0)

    @classmethod
    def values(cls):
        return list(cls.__members__.values())

ライン消去

ライン消去の処理を追加する

def line_check(self):
    for y in range(19, -2, -1):
        n = 0
        for x in range(10):
            if self.matrix[y][x]!=0:
                n += 1
        if n != 10:
            continue
        else:
            for x in range(10):
                self.matrix[y][x] = OtherTiles.Vanish.tile
def clear_line(self):
    for y in range(19,-3,-1):
        while self.matrix[y][0] == OtherTiles.Vanish.tile:
            self.wait_count = WAIT // 2 - 2
            for i in range(y, -20, -1):
                for x in range(10):
                    t = self.matrix[i - 1][x]
                    self.matrix[i][x] = t
            for x in range(10):
                self.matrix[-20][x] = 0

プログラム全体

更新したmain.pyとmino.pyの内容全体を示す。

main.py

main.py

from random import choice
import pygame
from pytmx import util_pygame as tmx_util

from mino import MinoType, Mino, OtherTiles
from key import Key
from pos import Pos

TILE_SIZE = 32

MATRIX_SIZE = (20,10)
MATRIX_POS  = (11,1)
WAIT = 60
GRAVITY = 60
SOFT_DROP_SPEED = 20

start_pos = Pos(4,-2)

class Game:

    # 番兵用に連想配列でラクする
    matrix = {
        i:{
            j:0 for j in range(-2,12)
        } for i in range(-20,21)
    }

    key = Key()

    mino : Mino

    g_cnt = 0
    wait_count = WAIT
    is_draw_mino = True

    def __init__(self):
        pygame.init()
        self.screen = pygame.display.set_mode((1024, 768))

    def draw_tile(self, tmx, x, y, t):
        tile_image = tmx.get_tile_image_by_gid(t)
        if tile_image:
            self.screen.blit(tile_image, (x * TILE_SIZE, y * TILE_SIZE))

    def mino_setup(self):
        self.wait_count = WAIT
        self.is_draw_mino = True

        t = choice(MinoType.values())
        self.mino = Mino(t,start_pos,0)
        if not self.can_mino_move(self.mino,Pos(0,0),0):
            for i in range(3):
                if self.can_mino_move(self.mino,Pos(0,-i),0):
                    self.mino.move(Pos(0,-i))
                    break
            else:
                self.gameover = True

    def put_mino(self):
        self.is_draw_mino = False
        m = self.mino
        for p in m.get_shape():
            self.matrix[p.y][p.x] = m.m.tile
    def line_check(self):
        for y in range(19, -2, -1):
            n = 0
            for x in range(10):
                if self.matrix[y][x]!=0:
                    n += 1
            if n != 10:
                continue
            else:
                for x in range(10):
                    self.matrix[y][x] = OtherTiles.Vanish.tile
    def clear_line(self):
        for y in range(19,-3,-1):
            while self.matrix[y][0] == OtherTiles.Vanish.tile:
                self.wait_count = WAIT // 2 - 2
                for i in range(y, -20, -1):
                    for x in range(10):
                        t = self.matrix[i - 1][x]
                        self.matrix[i][x] = t
                for x in range(10):
                    self.matrix[-20][x] = 0
    def wait(self) -> None:
        if self.wait_count == 0:
            self.mino_setup()
        else:
            self.wait_count -=1
        if self.wait_count == WAIT // 2  - 1:
            self.put_mino()
            self.line_check()
        if self.wait_count == 1:
            self.clear_line()

    def can_mino_move(self,mino:Mino,pos:Pos,r:int):
        for p in mino.get_moved_mino(pos,r):
            if self.matrix[p.y][p.x] != 0:
                return False
        return True
    def move_and_rotate_mino(self):
        # 待機時間が設定の半分以下の場合は待機
        if self.wait_count <= WAIT // 2:
            self.wait()
            return
        vpos = Pos()
        vr = 0
        # 回転と移動のフラグをチェックして状態を更新
        if self.key.flags["is_left_rot"]:
            vr += 3
        elif self.key.flags["is_right_rot"]:
            vr += 1
        elif self.key.flags["is_left_move"]:
            vpos += Pos(-1, 0)
        elif self.key.flags["is_right_move"]:
            vpos += Pos(1, 0)
        # ソフトドロップと重力の処理
        if self.key.flags["is_soft_drop"]:
            self.g_cnt += SOFT_DROP_SPEED
        elif self.g_cnt < GRAVITY:
            self.g_cnt += 1

        # 床に着地しているかのチェック
        is_floor_landed = not self.can_mino_move(self.mino, Pos(0, 1), 0)
        if is_floor_landed:
            self.wait_count -= 1
        # 重力によるミノの移動
        while self.g_cnt >= GRAVITY:
            if not is_floor_landed:
                self.mino.p += Pos(0, 1)
                self.g_cnt -= GRAVITY
                self.wait_count = WAIT
            else:
                self.g_cnt = 0
                break
        # 可能であればミノを移動または回転
        if vpos.x == 0 and vpos.y == 0 and vr == 0:
            pass
        elif self.can_mino_move(self.mino, vpos, vr):
            self.mino.move(vpos, vr)

    def run(self):
        clock = pygame.time.Clock()
        running = True

        tmx_data = tmx_util.load_pygame('field.tmx')
        mino_block = tmx_util.load_pygame('mino_block.tmx')

        self.mino_setup()

        # 番兵を設置
        for i in range(-20,21):
            for j in range(-2,12):
                if j < 0 or j >= 10:
                    self.matrix[i][j] = 1
                else:
                    self.matrix[i][j] = 0
        for i in range(-2,12):
            self.matrix[20][i] = 1

        while running:
            self.key.process_key_input() # キー入力の処理
            self.move_and_rotate_mino()


            for event in pygame.event.get():
                if event.type == pygame.QUIT:
                    running = False

            self.screen.fill((0, 0, 0))

            for layer in tmx_data.layers:
                if layer.name == "mainfield":
                    for x, y, gid in layer.iter_data():
                        self.draw_tile(tmx_data, x, y, gid)

            x, y = MATRIX_POS
            for i in range(-1, MATRIX_SIZE[0]):
                for j in range(MATRIX_SIZE[1]):
                    self.draw_tile(mino_block, x+j, y+i, self.matrix[i][j])
            if self.is_draw_mino:
                for p in self.mino.get_shape():
                    self.draw_tile(mino_block, x+p.x, y+p.y, self.mino.m.tile)

            pygame.display.flip()
            clock.tick(60)

        pygame.quit()

if __name__ == "__main__":
    game = Game()
    game.run()

mino.py

mino.py

from dataclasses import dataclass
from enum import Enum, auto

import pytmx


from pos import Pos

# tmx ファイルからミノを構成するブロックの配置を定義する
tmx_data = pytmx.TiledMap('mino_block.tmx')
def get_mino_data(t, size=4):

    shapes = [[] for _ in range(4)]
    tile = 0
    for r in range(4):
        for y in range(size):
            for x in range(size):
                gid = tmx_data.get_tile_gid(size*t+x, size*(r%4)+y, 0)
                if gid != 0:
                    tile = gid
                    shapes[r].append((x,y))
    return tile, shapes



class OtherTiles(Enum):
    Vanish = "Vanish", -1, Pos(28,15)
    def __init__(self, name, value, p):
        self._name = name
        self._value_ = value
        self.tile = tmx_data.get_tile_gid(p.x,p.y,0)

    @classmethod
    def values(cls):
        # Order dictionary -> list
        return list(cls.__members__.values())
# ミノの形を定義する列挙型
class MinoType(Enum):
    Z = 'Z', auto(), *get_mino_data(0)
    S = 'S', auto(), *get_mino_data(1)
    J = 'J', auto(), *get_mino_data(2)
    L = 'L', auto(), *get_mino_data(3)
    T = 'T', auto(), *get_mino_data(4)
    O = 'O', auto(), *get_mino_data(5)
    I = 'I', auto(), *get_mino_data(6)
    def __init__(self, name, value, tile, shape):
        self._name = name
        self._value_ = value
        self.tile = tile
        self.shape = tuple(tuple(s) for s in shape)
        self.shape_pos = tuple(tuple(Pos(*p) for p in s) for s in shape)

    @classmethod
    def values(cls):
        # Order dictionary -> list
        return list(cls.__members__.values())


@dataclass
class Mino:
    m : MinoType
    p : Pos
    r : int
    def move(self,pos:Pos,r:int=0):
        self.r = (r+self.r) % 4
        self.p += pos
    def get_shape(self):
        for p in self.m.shape_pos[self.r%4]:
            yield p + self.p
    def get_moved_mino(self,pos:Pos,r:int=0):
        for p in self.m.shape_pos[(100+r+self.r)%4]:
            yield p + self.p + pos

def main():
    for mino in MinoType.values():
        print(mino.name, mino.value, mino.tile)
    for mino in OtherTiles.values():
        print(mino.name, mino.value, mino.tile)

if __name__ == '__main__':
    main()

動作確認

実行して操作した様子の録画。

1ライン消し、複数ライン消しともに実行できているのが確認できる。

まとめ

ミノ設置とライン消去を実装した

これで最低限遊べる状態になったけど遊びづらいので改良していく
