はじめに
AWSのUser PoolとUser IdentityをAWS-SDK-Swift利用してS3 BucketのユーザーのHome Directory内のコンテンツを編集する動作検証アプリを試してみたいと思います。Home Directoryと言っているのは、ログインユーザーのみがRead/Writeなどの権限を持っていていて、他のログインユーザーはアクセスできない環境を目指しています。よって仮にアプリがハックされて他のユーザーのデータにアクセスを試みても、AWSレベルで保護される事を目的とします。
前回同様に、将来の自分への備忘録を目的としていますので、部分的に記載漏れなどがあるかもしれませんが、同様な事をやろうと思った人が、一部でも参考になるなら幸いです。また、執筆時点でのAWS-SDK-Swiftのステータスはデベロッパープレビューなので、APIなどに変更があるかもしれません。
そして、AWSへのrootレベルもしくは必要な権限は必要です。ちなみに、私自身AWSはほぼ初心者なので、間違ったもしくは理解不足による不正確な記載がなされているばあいもあるので、あらかじめご了承ください。
いつもは、動作検証系のプロジェクトにHelloとかつけてやっているのですが、ここに至るまでもいろいろな作りかけができてしまって、管理が難しくなってきたので、これからは宝石の名前を足跡にしようと、今回はAmberをProject Prefixとして採用しました。
User pools
| Name | Property |
|---|---|
| User pool name | amber-user-pool |
| User pool ID | ap-northeast-1_7R43qBEk1 |
| ARN | arn:aws:cognito-idp:ap-northeast-1:566372147352:userpool/ap-northeast-1_7R43qBEk1 |
| Advanced security | Disabled |
| Cognito user pool sign-in options | |
| Federated identity provider sign-in | none |
| Multi-factor authentication | No MFA |
| Self-service account recovery | Enabled |
| Recovery message delivery method | Email only |
| Allow Cognito to automatically send messages to verify and confirm | Yes |
| Attributes to verify | Send email message, verify email address |
| Keep original attribute value active when an update is pending | Enabled |
| Active attribute values when an update is pending | Email address |
| Required attributes | |
| Custom attributes | none |
| Self-registration | Enabled |
| Cognito domain | https://amber-user-pool.auth.ap-northeast-1.amazoncognito.com |
Identity Pool
| Name | Property |
|---|---|
| Identity pool name | amber-identity-pool |
| Identity pool ID | ap-northeast-1:41d41301-fcdf-4ef6-8a6e-de24167b8dc5 |
| Authenticated role | service-role/amber-user-pool-role |
| Authenticated role ARN | arn:aws:iam::566372147352:role/service-role/amber-user-pool-role |
| Identity provider type | Amazon Cognito user pool |
| Identity provider | ap-northeast-1_7R43qBEk1 |
| Attributes for access control | Inactive |
| Basic authentication | Inactive |
App Integration
| Name | Property |
|---|---|
| App client name | amber-user-pool-app-client |
| Client ID | 2m2u617er4kjig9ar9k0qhnaaq |
| Client secret | - |
| Authentication flows | ALLOW_REFRESH_TOKEN_AUTH, ALLOW_USER_PASSWORD_AUTH, ALLOW_USER_SRP_AUTH |
| Hosted UI status | Available |
| Allowed callback URLs | amber-user-pool-app://auth/callback/signin |
| Allowed sign-out URLs | amber-user-pool-app://auth/callback/signout |
| Identity providers | Cognito user pool directory |
| OAuth grant types | Authorization code grant |
| OpenID Connect scopes | aws.cognito.signin.user.admin, emailm openid |
S3 Bucket
| Name | Property |
|---|---|
| Bucket name | amber-user-pool-bucket |
| AWS Region | Asia Pacific (Tokyo) ap-northeast-1 |
| Amazon Resource Name (ARN) | arn:aws:s3:::amber-user-pool-bucket |
Bucket Policy JSON
bucket-policy.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"AWS": "arn:aws:iam::566372147352:role/service-role/amber-user-pool-role"
},
"Action": "s3:*",
"Resource": [
"arn:aws:s3:::amber-user-pool-bucket/home/${cognito-identity.amazonaws.com:sub}/*",
"arn:aws:s3:::amber-user-pool-bucket"
]
}
]
}
IAM > Role
| Name | Property |
|---|---|
| Role name | amber-user-pool-role |
| ARN | arn:aws:iam::566372147352:role/service-role/amber-user-pool-role |
Trusted relationships.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Federated": "cognito-identity.amazonaws.com"
},
"Action": "sts:AssumeRoleWithWebIdentity",
"Condition": {
"StringEquals": {
"cognito-identity.amazonaws.com:aud": "ap-northeast-1:41d41301-fcdf-4ef6-8a6e-de24167b8dc5"
},
"ForAnyValue:StringLike": {
"cognito-identity.amazonaws.com:amr": "authenticated"
}
}
}
]
}
amber-user-pool-role-policy.json
{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "AllowListingOfUserFolder",
"Effect": "Allow",
"Action": "s3:ListBucket",
"Resource": "arn:aws:s3:::amber-user-pool-bucket"
},
{
"Sid": "AllowUserFolderOperations",
"Effect": "Allow",
"Action": [
"s3:GetObject",
"s3:PutObject",
"s3:DeleteObject"
],
"Resource": "arn:aws:s3:::amber-user-pool-bucket/home/${cognito-identity.amazonaws.com:sub}/*"
}
]
}
App
クライアントアプリを実装します。今回は毎年期待しながら、食わず嫌いなSwiftUIで実装していきたいと思います。アプリ名は「Amber User Pool」にしましたSDKはAWS-SDK_Swiftを利用します。ステータスはいまだにDeveloper Previewなので留意しましょう。執筆時点でのバージョンは「0.47.0」です。プロジェクトに以下のパッケージを追加します。今回はMacアプリを想定してみます。
https://github.com/awslabs/aws-sdk-swift
パッケージの中から今回組み込むモジュールは以下の通りです。
AWSClientRuntime
AWSCognitoldentity
AWSCognitoldentityProvider
AWSS3
検証プロジェクトをGitHubに置いておきます。念を押しておきますが、メインはCognitoベースの権限確認の為、アプリとしての完成度は不十分です。現時点でのコードはトークンを保存するわけではなく、起動毎に毎度サインインする必要があります。また、ユーザー体験や挙動に問題がありますが、あくまでもメインは権限の動作確認である事をご理解ください。さらに、各種ID類は各々自分のID等に置き換えてください。

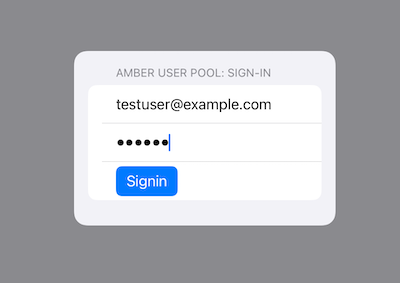

簡単に検証アプリを紹介しておきます。起動すると、サインインを求められます。User Poolに登録した。Userでロウインします。

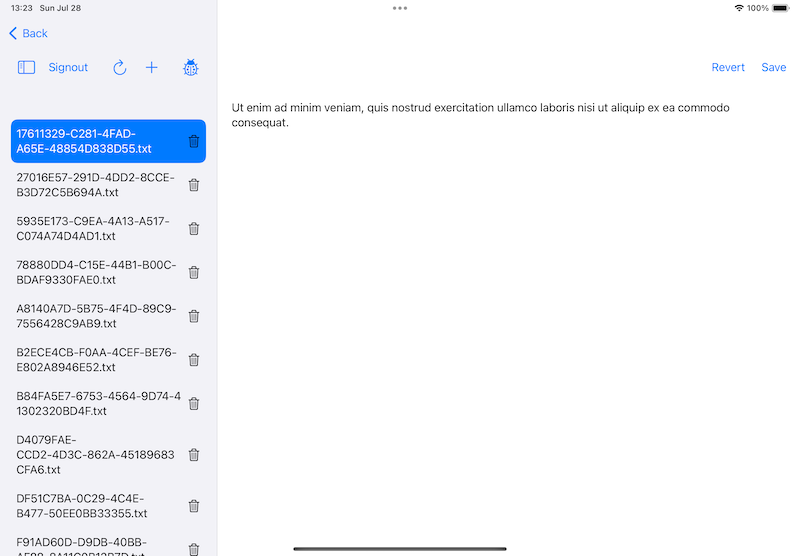

ログインするとユーザーのホームディレクトリにコンテンツの一覧が表示され、選択するとテキストの編集画面がディテールビューに表示されます。編集後「Save」ボタンで保存、または「Revert」で編集破棄されます。「＋」ボタンで新規追加、リロードボタンで一覧を更新します。別デバイスでコンテンツの追加削除した場合はこれで更新されます。「Signout」でサインアプトします。
検証用として、デバック用のボタンがあり、わかりにくいですが、「private/README.txt」とありますが、ここにs3のキーを入力するとそのオブジェクト（ファイル）にアクセスできます。検証用に、「private/README.txt」にテストデータを置いてみましたが、「Access Test」で「Access Dened」が表示されます。コンテンツが読み込めた場合は、下部にその内容が表示されます。読み込めた場合は、Policyに問題があると考えられます。
といった感じで、劣化版「Notes」アプリといった感じですが、権限検証目的としては十分です。ユーザーはHosted UIからサインアップさせるか、コンソールから作成するか、事前に用意する必要があります。
ServiceManager
AWSアクセス関連をマネージャとしてシングルトンにしました。今から思うと設計はイマイチですが、何しろAWSのCognitoの実装と挙動が謎すぎて、試行錯誤で迷走していたので、ご容赦ください。
ServiceManager.swift
import Foundation
import AWSClientRuntime
import AWSSDKIdentity
import AWSCognitoIdentity
import AWSCognitoIdentityProvider
import Smithy
import SmithyIdentity
import AWSS3
import CryptoKit
import SmithyHTTPAPI
extension String: Error {
}
class ServiceManager {
typealias MD5 = Data
struct Token {
let identityId: String
let accessToken: String
let idToken: String
let refreshToken: String
let expires: Date
let sub: String
let email: String
init?(identityId: String, accessToken: String?, idToken: String?, refreshToken: String?) {
guard
let accessToken = accessToken,
let idToken = idToken,
let refreshToken = refreshToken
else { return nil }
self.identityId = identityId
self.accessToken = accessToken
self.idToken = idToken
self.refreshToken = refreshToken
guard let jwt = try? Self.decodeJWT(token: idToken)
else { return nil }
guard
let sub = jwt["sub"] as? String,
let email = jwt["email"] as? String,
let exp = jwt["exp"] as? Int
else { return nil }
self.sub = sub
self.email = email
self.expires = Date(timeIntervalSince1970: TimeInterval(exp))
}
static func decodeJWT(token: String) throws -> [String: Any] {
enum JWTError: Error {
case invalidToken
case decodingFailed
}
let segments = token.split(separator: ".")
guard segments.count == 3 else {
throw JWTError.invalidToken
}
func decodeBase64Url(_ string: String) -> Data? {
var base64 = string
.replacingOccurrences(of: "-", with: "+")
.replacingOccurrences(of: "_", with: "/")
let paddingLength = 4 - base64.count % 4
if paddingLength < 4 {
base64.append(contentsOf: repeatElement("=", count: paddingLength))
}
return Data(base64Encoded: base64)
}
guard let payloadData = decodeBase64Url(String(segments[1]))
else { throw JWTError.decodingFailed }
guard let json = try? JSONSerialization.jsonObject(with: payloadData, options: []), let payload = json as? [String: Any]
else { throw JWTError.decodingFailed }
return payload
}
var hasExpired: Bool {
return Date() >= self.expires
}
}
struct Credentials {
let accessKeyId: String
let secretKey: String
let sessionToken: String
let expiration: Date
init?(credentials: CognitoIdentityClientTypes.Credentials?) {
guard
let credentials = credentials,
let accessKeyId = credentials.accessKeyId,
let secretKey = credentials.secretKey,
let sessionToken = credentials.sessionToken,
let expiration = credentials.expiration
else { return nil }
self.accessKeyId = accessKeyId
self.secretKey = secretKey
self.sessionToken = sessionToken
self.expiration = expiration
}
}
class Session: Hashable {
init(token: Token, serviceManager: ServiceManager) {
self.token = token
self.serviceManager = serviceManager
}
deinit {
}
private var _s3client: S3Client?
var s3client: S3Client {
get async throws {
if let s3client = self._s3client {
if self.token.hasExpired {
guard let token = try await serviceManager.refreshToken(self.token)
else { throw "failed refresh token" }
self.token = token
}
else {
return s3client
}
}
let s3client = try await self.serviceManager.makeS3Client(from: self.token)
self._s3client = s3client
return s3client
}
}
unowned let serviceManager: ServiceManager
var email: String { return self.token.email }
var sub: String { return self.token.sub }
var token: Token
func hash(into hasher: inout Hasher) {
hasher.combine(email)
}
static func == (lhs: Session, rhs: Session) -> Bool {
return lhs.email == rhs.email
}
}
class Object: Hashable, Identifiable {
let key: String
let hash: Data
let lastModified: Date
init?(_ object: S3ClientTypes.Object) {
guard
let key = object.key, (key as NSString).pathExtension == TextContentView.pathExtension,
let eTag = object.eTag,
let hash = eTag.trimmingQuoteCharactors().hexadecimalData,
let lastModified = object.lastModified
else { return nil }
self.key = key
self.hash = hash
self.lastModified = lastModified
}
var filename: String {
return (self.key as NSString).lastPathComponent
}
var id: String {
return self.key
}
func hash(into hasher: inout Hasher) {
hasher.combine(self.key)
}
static func == (lhs: Object, rhs: Object) -> Bool {
return lhs === rhs
}
}
static let shared = ServiceManager()
private init() {
}
func signin(email: String, password: String) async throws -> Session {
let authParameters: [String: String] = [
"USERNAME": email,
"PASSWORD": password
]
let identityProviderClient = try CognitoIdentityProviderClient(region: Self.region)
guard let result = try await identityProviderClient.initiateAuth(input: InitiateAuthInput(authFlow: .userPasswordAuth, authParameters: authParameters, clientId: Self.appClientID)).authenticationResult
else { throw "Failed to get token" }
guard let idToken = result.idToken, let identityId = try await self.getIdentityId(with: idToken)
else { throw "Failed to get identity ID" }
guard let token = Token(identityId: identityId, accessToken: result.accessToken, idToken: result.idToken, refreshToken: result.refreshToken)
else { throw "Failed to get token" }
print("Signin Token: \(token)") // Log the token
let credentials = try await self.getAWSCredentials(with: token.idToken)
print("Signin Credentials: \(String(describing: credentials))") // Log the credentials
return Session(token: token, serviceManager: self)
}
func makeS3Client(from token: Token) async throws -> S3Client {
let cognitoIdentityClient = try CognitoIdentityClient(region: Self.region)
let logins: [String: String] = [
"cognito-idp.\(Self.region).amazonaws.com/\(Self.userPoolID)": token.idToken
]
let getIdResponse = try await cognitoIdentityClient.getId(input: GetIdInput(identityPoolId: Self.identityPoolID, logins: logins))
guard let identityId = getIdResponse.identityId
else { throw "Failed to get identity ID." }
let output2 = try await cognitoIdentityClient.getCredentialsForIdentity(input: GetCredentialsForIdentityInput(identityId: identityId, logins: logins))
guard let credentials = Credentials(credentials: output2.credentials)
else { throw "Failed to get credentials" }
let identity = AWSCredentialIdentity(accessKey: credentials.accessKeyId, secret: credentials.secretKey, sessionToken: credentials.sessionToken)
let resolver = try StaticAWSCredentialIdentityResolver(identity)
let configuration = try await S3Client.S3ClientConfiguration(awsCredentialIdentityResolver: resolver, region: Self.region)
let s3Client = S3Client(config: configuration)
return s3Client
}
private func refreshToken(_ token: Token) async throws -> Token? {
let client = try CognitoIdentityProviderClient(region: Self.region)
let authParameters = [
"REFRESH_TOKEN": token.refreshToken
]
guard let result = try await client.initiateAuth(input: InitiateAuthInput(authFlow: .refreshToken, authParameters: authParameters, clientId: Self.appClientID)).authenticationResult
else { return nil }
guard let newToken = Token(identityId: token.identityId, accessToken: result.accessToken, idToken: result.idToken, refreshToken: result.refreshToken ?? token.refreshToken)
else { return nil }
return newToken
}
func listTextContents(session: Session) async throws -> [Object] {
let prefix = "home/\(session.token.identityId)/"
print(self.self, #function, "prefix=", prefix)
let contents = try await session.s3client.listObjectsV2(input: ListObjectsV2Input(bucket: Self.bucket, delimiter: "/", prefix: prefix)).contents ?? []
return contents.compactMap { Object($0) }
}
private func randomText() -> String {
return [
"Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.",
"Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.",
"Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.",
"Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum."
].randomElement()!
}
func addTextContent(session: Session) async throws -> Object? {
let key = "home/\(session.token.identityId)/\(UUID().uuidString).\(TextContent.pathExtension)"
let textContent = TextContent(key: key, text: self.randomText())
try await self.saveTextContent(session: session, textContent: textContent)
let object = try await session.s3client.listObjectsV2(input: ListObjectsV2Input(bucket: Self.bucket, delimiter: "/", prefix: key)).contents?.first
return object.flatMap { Object($0) }
}
func saveTextContent(session: Session, textContent: TextContent) async throws {
_ = try await session.s3client.putObject(input: PutObjectInput(body: ByteStream.data(textContent.data), bucket: Self.bucket, key: textContent.key))
}
func loadTextContent(session: Session, key: String) async throws -> TextContent? {
let output = try await session.s3client.getObject(input: GetObjectInput(bucket: Self.bucket, key: key, responseCacheControl: "max-age=2"))
guard let data = try await output.body?.readData()
else { return nil }
let text = String(data: data, encoding: .utf8) ?? ""
let textContent = TextContent(key: key, text: text)
return textContent
}
func deleteObject(session: Session, key: String) async throws {
_ = try await session.s3client.deleteObject(input: DeleteObjectInput(bucket: Self.bucket, key: key))
}
func getObject(session: Session, s3Key: String) async throws -> String? {
do {
let result = try await session.s3client.getObject(input: GetObjectInput(bucket: Self.bucket, key: s3Key, responseCacheControl: "max-age=2"))
if let data = try await result.body?.readData(),
let string = String(data: data, encoding: .utf8) {
return string
}
else {
return nil
}
}
catch {
switch error {
case let error as AWSServiceError:
throw error.errorCode ?? "\(error)"
default:
throw error
}
}
}
private func exchangeCodeForTokens(code: String) async throws -> Token {
// URL for the Cognito token endpoint
// Set up the request
var request = URLRequest(url: URL(string: Self.tokenURL)!)
request.httpMethod = "POST"
request.setValue("application/x-www-form-urlencoded", forHTTPHeaderField: "Content-Type")
// Body parameters
let params = [
"grant_type": "authorization_code",
"client_id": Self.appClientID,
"code": code,
"redirect_uri": Self.signinRedirectURL
]
request.httpBody = params.map { "\($0.key)=\($0.value)" }.joined(separator: "&").data(using: .utf8)
// Perform the network request
let (data, response) = try await URLSession.shared.data(for: request)
// Check for response status code
guard let httpResponse = response as? HTTPURLResponse
else { throw "Failed to exchange code for tokens: invalid http response" }
guard httpResponse.statusCode == 200
else { throw "Failed to exchange code for tokens: Invalid response: code=\(httpResponse.statusCode)" }
// Parse the response
if let json = try JSONSerialization.jsonObject(with: data, options: []) as? [String: Any] {
if let id_token = json["id_token"] as? String,
let access_token = json["access_token"] as? String,
let refresh_token = json["refresh_token"] as? String,
let identityId = try await self.getIdentityId(with: id_token),
let token = Token(identityId: identityId, accessToken: access_token, idToken: id_token, refreshToken: refresh_token) {
return token
}
else {
throw NSError(domain: "\(Self.self)", code: 101, userInfo: [
NSLocalizedDescriptionKey: "insufficient token",
"json": json
])
}
}
else {
throw "\(Self.self) \(#function): response for the code is not a json."
}
}
private func getIdentityId(with idToken: String) async throws -> String? {
let configuration = try await CognitoIdentityClient.CognitoIdentityClientConfiguration(region: Self.region)
let identityClient = CognitoIdentityClient(config: configuration)
let logins: [String: String] = [
"cognito-idp.\(Self.region).amazonaws.com/\(Self.userPoolID)": idToken
]
let request = GetIdInput(identityPoolId: Self.identityPoolID, logins: logins)
let response = try await identityClient.getId(input: request)
return response.identityId
}
func getAWSCredentials(with idToken: String) async throws -> Credentials? {
let identityId = try await self.getIdentityId(with: idToken)
assert(identityId != nil)
let configuration = try await CognitoIdentityClient.CognitoIdentityClientConfiguration(region: Self.region)
let identityClient = CognitoIdentityClient(config: configuration)
let logins: [String: String] = [
"cognito-idp.\(Self.region).amazonaws.com/\(Self.userPoolID)": idToken
]
let request = GetCredentialsForIdentityInput(customRoleArn: nil, identityId: identityId, logins: logins)
let response = try await identityClient.getCredentialsForIdentity(input: request)
return response.credentials.flatMap { Credentials(credentials: $0) }
}
func handleCognitoRedirect(url: URL) async throws -> Session? {
let components: URLComponents? = URLComponents(url: url, resolvingAgainstBaseURL: true)
if components?.scheme?.lowercased() == Self.customScheme.lowercased() {
if components?.path.lowercased() == "/callback/signin" {
if let code = components?.queryItems?.first(where: { $0.name == "code" })?.value {
let token = try await self.exchangeCodeForTokens(code: code)
print("Callback Token: \(token)") // Log the token
let credentials = try await self.getAWSCredentials(with: token.idToken)
print("Callback Credentials: \(String(describing: credentials))") // Log the credentials
return Session(token: token, serviceManager: self)
}
}
}
return nil
}
func signout(session: Session) async throws {
let client = try CognitoIdentityProviderClient(region: Self.region)
_ = try await client.globalSignOut(input: GlobalSignOutInput(accessToken: session.token.accessToken))
}
}
はまりポイント
今回の最大のはまりポイントは${cognito-identity.amazonaws.com:sub}がJWTとCognitoのsubすなわちUser IDと思い込んで、「Access Denied」の壁がなかなか突破できなくて、Chat GPTもClaudeの嘘に気が付かなくてかなりの時間を無駄にしました。一度、「Identity ID」じゃないかと思った事もあったのですが、ChatGPTに違うと言われたり、試してみたけど「Access Denied」でおそらく別の原因でアクセス拒否されたのですが、どのポリシーに引っかかってダメなのかと、ログもとれないので、長期間にわたって、あっちさわってこっち
さわってと、「ルービックキューブを適当に回して揃うのを待つ」みたいな感じで結構辛かったです。いやAmazonさんこの「:sub」ってネーミング絶対勘違いします。
まとめ
AWSのCognitoのUser PoolとIdentity Poolでユーザー固有のHome directoryのみアクセス可能な検証アプリをSwiftUIで作ってみました。正直、自分がこの記事をみながらもう一度、AWSの設定とアプリから再現できるかは自信がありません。おそらく「ルービックキューブを適当に回しすぎた」トラウマかもしれません。でも、この記事を残さないと、再度「ルービックキューブを適当に回す」行為を繰り返す事になるので、ここに記す事とします。
A
macOS: 14.5 (23F79)
Xcode: Version 15.4 (15F31d)
$ swift --version
swift-driver version: 1.90.11.1 Apple Swift version 5.10 (swiftlang-5.10.0.13 clang-1500.3.9.4)
Target: arm64-apple-macosx14.0
$ aws --version
aws-cli/2.15.38 Python/3.11.8 Darwin/23.5.0 exe/x86_64 prompt/off
aws-sdk-swift: 0.46.0
